Coaster 300007FULL Manuel utilisateur

300007FULL

FULL SIZE BED

ASSEMBLY INSTEUCTIONS

COASTER FINE FURNITURE

2014-5-8

1 OF 4

ITEM: 300007FB1 ASSEMBLY INSTRUCTION

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of

assembly.

3. Please follow attached instructions in the same sequence as numbered to assure

fast & easy assembly.

warning

1. Don't attempt to repair or modify parts that are broken or defective please contact

the store immediately.

2. This product is for home use only and not intended for commercial establishment.

PARTS IDENTIFICATION

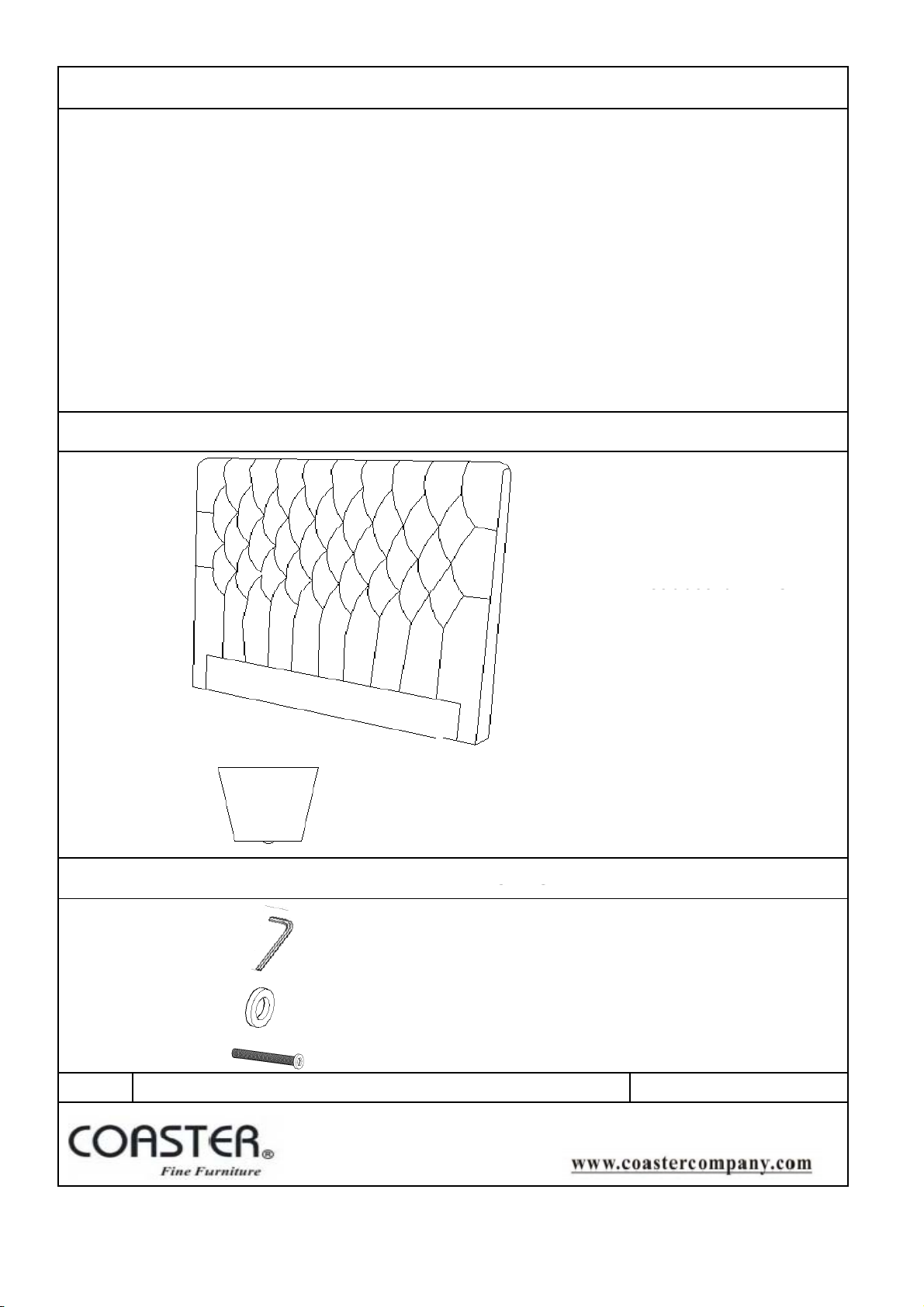

Headboard 1PC

Headboard

1PC

Wood legs 2 PCS

HARDWARE PACKAGE

5*23*67mm Allen wrench 1 PC

Ø5/16 * Ø16 * Ø1.5 mm Flat washer 2 PCS

HARDWARE

PACKAGE

Long bolt 2 PCS

All above hardware pack is located in 300007F B1

2 OF 4

ITEM: 300007FB2 ASSEMBLY INSTRUCTION

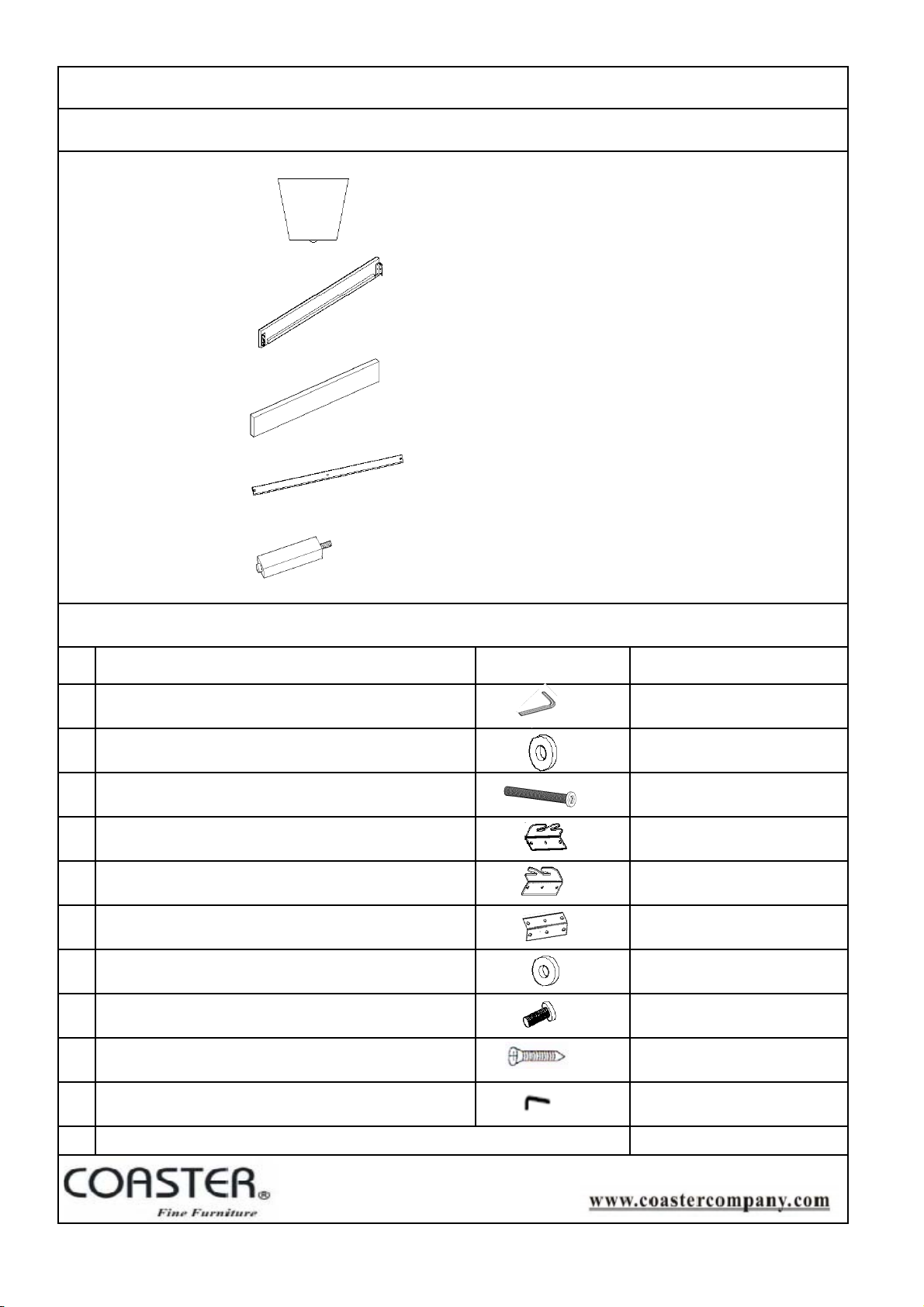

PARTS IDENTIFICATION

Wood legs 2 PCS

Bed rail 2 PCS

Footboard 1 PC

Slat 3 PCS

Support leg 3 PCS

Q'TY

1 1 PC

HARDWARE PACKAGE

Allen wrench 5*23*67mm

DESCRIPTION FIGURE

2 Flat washer Ø5/16 * Ø16 * Ø1.5 mm 2 PCS

32 PCS

41 PC

1PC

Headboard corner bracket - Left (facing)

Headboard corner bracket

Right (facing)

Long bolt

62 PCS

7 18 PCS

8 18 PCS

Short bolt

Headboard

corner

bracket

Right

(facing)

Footboard corner bracket

Flat washer Ø6.5 * Ø19 * Ø2 mm

9 6 PCS

10 1 PC

Wood screw

Allen wrench 4*23*60mm

All above hardware pack is located in 300007F B2

3 OF 4

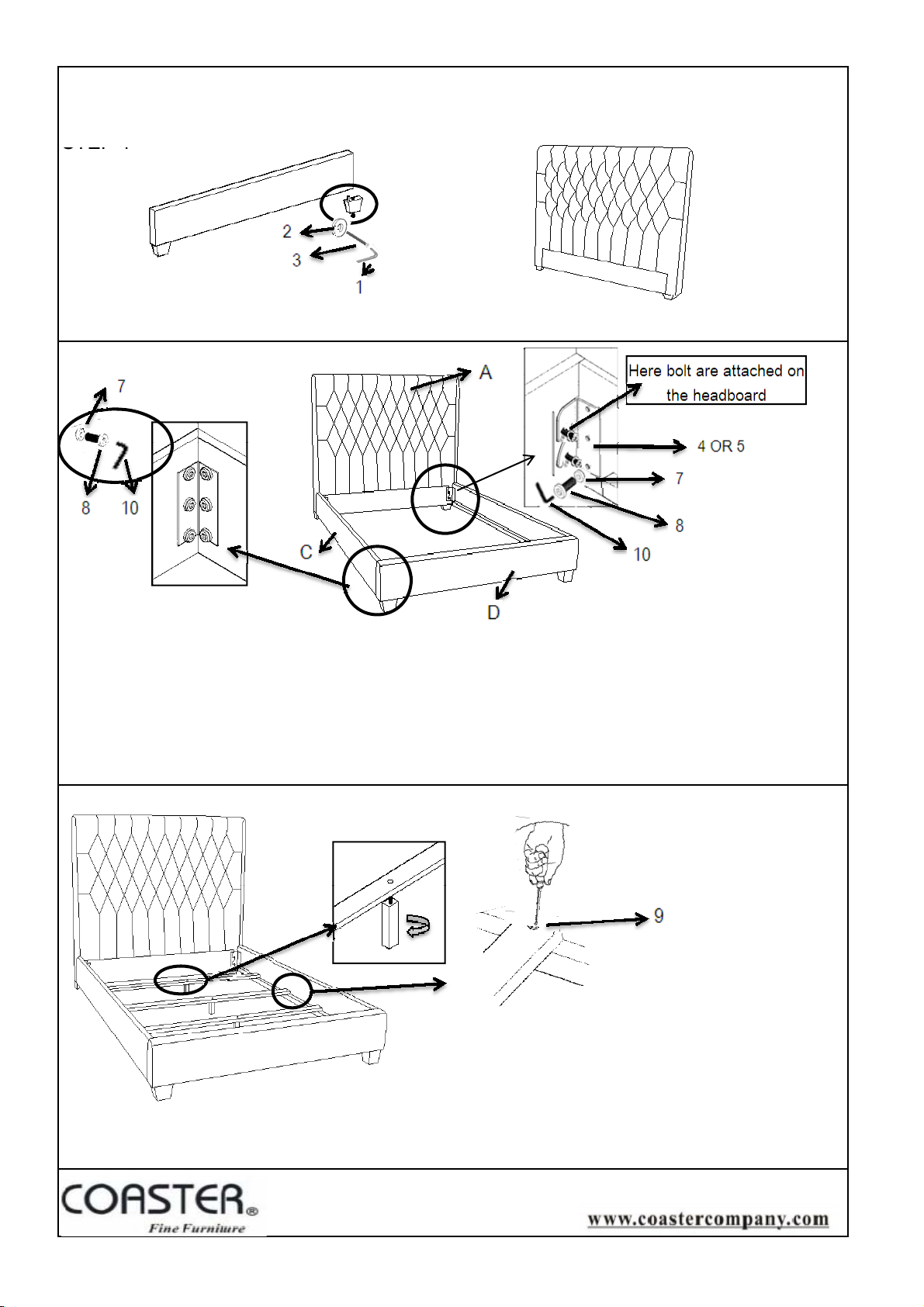

TEP 1

IT NEEDS TWO PERSONS AND TAKES ABOUT THIRTY MINUTES TO ASSEMBLE

THE ITEM.

STEP

STEP 2

Attach the wooden foot(B) to the headboard(A) and footboard(D)

Align and attach the left and right brackets (4 and 5) to the bed rails (C) using flat

washer (7) bolt (8) and tighten with allen wrench (10). Then align and attach the

footboard brackets (6) to the footboard (D) and bed rails (C) using flat washer (7) bolt

(8) and tighten with allen wrench (10). Finally hang the bed rails (C) to the headboard

STEP 3

(A). Now tighten all corner brackets.

Set up support legs on the slats first, then attach slats on the side rails using wood

screw(9) tighten with screw driver (not included) .

4 of 4
