Coantec C50 Series Manuel utilisateur

Industrial Videoscope

Users Manual

COANTEC C50 Series

Before using，do read the manual

This instruction is applicable to the C50 series. The copyright belongs to the Shenzhen

Coantec Automation Technology Co., Ltd. All the contents are protected by the state

contained therein without the consent of the written permission of Shenzhen Coantec

Automation Technology Co., Ltd. In case of copying or translating into other languages

or spreading the instructions in any form, the offender will be held liable.

Attention:

Our company is committed to improving the function and the quality of the service

of the product constantly, so the right to change the contents of any product and

software described in this manual, as well as the content of this manual, is reserved

without prior notice. We have carried out strict collation and repeated checking of this

manual, but we can not guarantee that we can avoid errors and omissions completely.

This manual is only used as a guide to help you correctly use Coantec products, but

does not represent any description of the hardware and software configuration of the

product.

Any questions,please contact our after-sales personality by tel: 0755-89728626

Catalog

1. Users notice..................................................................................................................... 4

1.1 Uses and scope of application...............................................................................4

1.2 Repair and refit..................................................................................................... 4

1.3 Safety precautions.................................................................................................4

2. COANTEC C50 Product instruction............................................................................6

2.1 System Parameters............................................................................................. 6

2.2 Operation Environment.........................................................................................8

3. Operation process...........................................................................................................8

4. Operation guide.............................................................................................................. 9

4.1 Button Introduction............................................................................................9

4.2 C50 A quick start guide for work patterns..........................................................10

4.3 Battery disassembly............................................................................................ 12

4.4 Boot preparation...............................................................................................14

5. Function Introduction..................................................................................................15

5.1 Menu Settings..................................................................................................... 15

5.2 Lock/bending control....................................................................................... 19

5.3 Playback mode:...................................................................................................20

5.4 Photo/Video switching........................................................................................23

5.5 LED brightness adjustment.................................................................................24

5.6 Speed adjustment............................................................................................. 25

5.7 Battery state detection.........................................................................................25

5.8 Reading photos and video files........................................................................... 26

5.9 HDMI external output.........................................................................................26

5.10 Shutdown.......................................................................................................... 28

6. Instrument storage....................................................................................................... 28

7. Solutions to common problems................................................................................... 29

1. Users notice

1.1 Uses and scope of application

This product can only be applied to the real-time detection and analysis in the industrial

field. It can directly observe whether there are defects or anomalies on the inner surface

of the pipe, turbine, cylinder, engine and other devices. This product has direct visual

characteristics, can take photo and video in real time, providing users with appropriate

data collection.

1.2 Repair and refit

This product has no spare parts for the user to maintain, do not try to disassemble, refit

and repair.So if the damage and loss to the users caused by that,Shenzhen Coantec

Automation Technology Co., Ltd. will not bear any responsibility. The maintenance

service of this product is only provided by Shenzhen Coantec Automation Technology

Co., Ltd. and authorized dealers.

1.3 Safety precautions

It is not appropriate to control the operating handle for a long time

in the maximum bending angle during operation, which will make

the equipment in high load state and affect the service life of the

equipment.So please control the maximum bending angle within 40

seconds.

When using this product, please comply with the following

contents:

1) Prohibit use this instrument to observe human body or animal body；

2) Prohibit work under charged condition in order to avoid electric shock；

3) Do not contact the end of the lens directly in the process of use, especially pay

attention to the use of endoscope in the high temperature environment, at this

time the contact end may cause burns；

4) Do not look closely at the strong light source emitted from the endoscope lens

at the end, avoiding the influence of strong light on eyesight；

5) Do not force excessive bending, stretching, twisting and rolling the pipeline,

otherwise it may cause damage to pipelines or equipment；

6) Long term use of this product will cause the lens to stain, resulting in blurred

picture and affecting data collection. Please wipe the lens with alcohol before

use；

7) If there is any abnormality in the angle adjustment operation, stop the current

operation and turn off the machine, then contact the supplier；

8) Keep the insertion tube away from any liquid other than water, brine, oil and

light oil；

9) When the instrument is used up, please clean the front end of the insertion

tube in time to prevent corrosion.

2. COANTEC C50 Product instruction

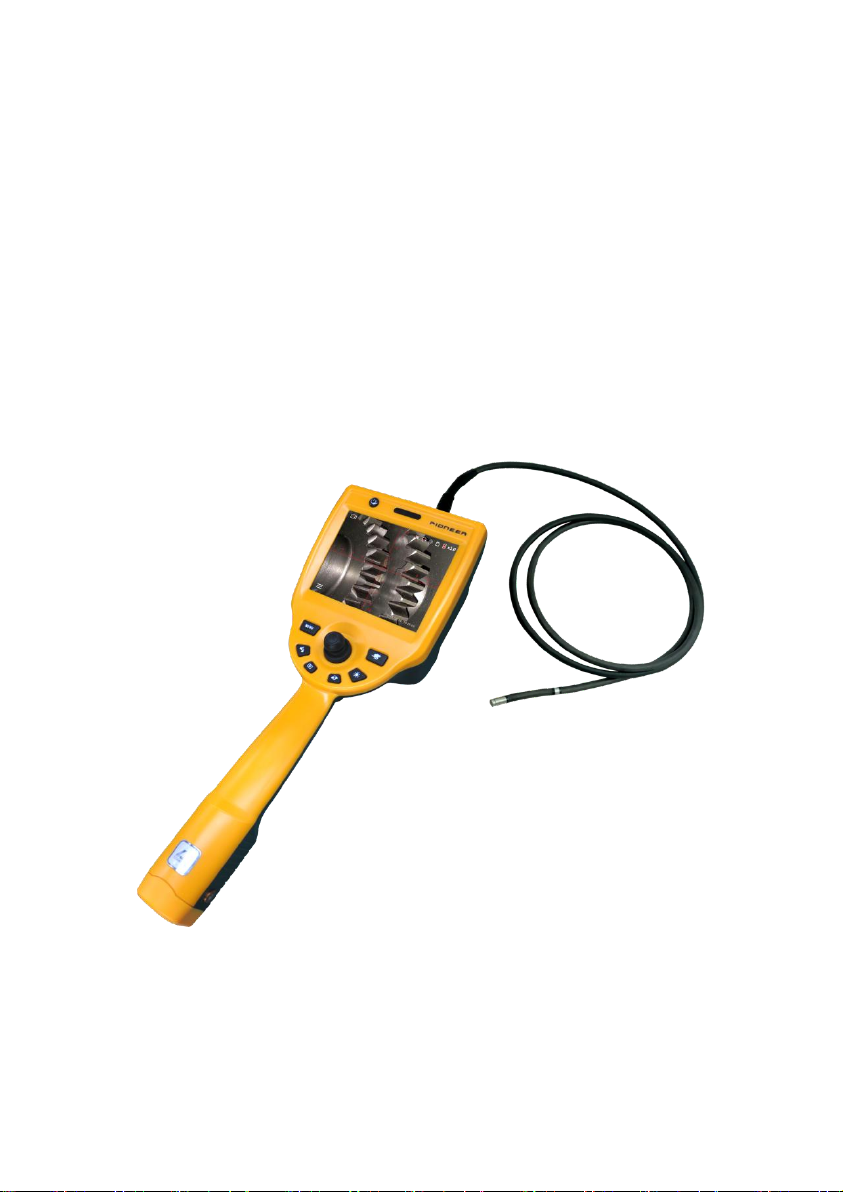

COANTEC C50 (hereinafter referred to as C50) series industrial videoscope is a portable

and easy to use,360 degree arbitrarily oriented industrial videoscope, researched and

developed by the Shenzhen Coantec Automation Technology Co., Ltd. This product

adopts a hand-held design,highlight 5 inches LCD daylight display, high definition image

sensing technology.The image is more HD and can be photographed and taped.The probe

is corrosion resistant, wearable, waterproof and dust-proof, meeting the requirements of

IP67. It can be widely used in many industrial fields such as special inspection, electric

power, automobile, machinery, aviation, pipeline and container.

2.1 System Parameters

Probe Diameter

φ4.8/φ6 /φ8mm

Probe Material

Hard titanium alloy

Camera Resolution

1,000,000 pixels

Depth of View

10-100mm/5-180mm/25mm-100mm

Angel of Field

120°/110°

Viewing Direction

Standard:straight view /Optional:side view

Light Type

Rear-mounted LED （≥3w hours) ,optic fiber

light guiding

Illumination

100,000lx at a maximum

Brightness

8 levels, manual adjustment

White Balance

Auto white balance

Bending Control

360°all way motor-driven control

Bending Angle

≥160°±10°

Insert Tube Length

1.5m/1.5-6m/1.5-10m

Insertion Tube

Double tungsten alloy braided insert tube of 4

layers

Insertion Tube Protection

130mm length wear resistant pipe anti twist

protection tube

Structure material

Anti - fall shell

Language Menu

Chinese, English, Japanese, Korean, German,

French, Portuguese, Spanish, and Russian.(9

language optional)

Display

Highlight 5 inches LCD daylight display

Image / Video Recording File

Format

JPEG、BMP/MP4

Host

Integrated hand-held design

Memory

Standard SD card:8G, Maximum: 32G

Data Interface

HDMI high definition output interface, external

display.

Bending Lock

One-key lock

Step Regulation

Step regulation between high-speed and low-speed

bend

Lighting function

Emergency lighting device

Dustproof &Waterproof

Host IP55,Probe IP67

Working Time

≥4 hours,Can be extended to 8 hours

Weight of the system

about 1.35kg, and the total weight is determined

by the length and diameter of the tube

Battery

2 groups of power supply (each group of 3

rechargeable lithium batteries)

Capacity

3200mAh*3(supporting online charging)

Product Warranty

One year warranty,life-long maintenance

2.2 Operation Environment

Host System Working

Temperature

-10°C~40°C (when 0°C below, the display needs

preheating)

Camera Working Temperature

-20°C~75°C ，when 0°C below, please reduce

oriented operation.

Store Temperature

-20°C~60°C

Relative Humidity Maximum

80%, non-condensing

3. Operation process

1) Take out the instrument:Press the lock to open the instrument case,take out of the

instrument main unit while drawing out the tube and holding the probe,to avoid

impact the probe and scratch the lens.

2) Ready to start: install battery and SD card.

3) Insert the pipeline: insert the insertion tube into the equipment.

4) Adjust the brightness: adjust the brightness of the light source to get the appropriate

illumination to make the picture achieve the best effect.

5) Detection operation: during observation, the direction of the probe is controlled

through the operation of the joystick, and the images and videos are taken at the

same time.

6) Insertion tube recovery: confirm that the probe of the industrial endoscope inserted

tube is in the unlocked state, so that it can automatically restore to the straight

position and then slowly extract it.

7) Storage instrument: After use, turn off the power switch, remove the battery, put the

instrument into the carrying case, and insert the insertion tube to ensure that no part

will be squeezed by the cover and close the upper cover.

4. Operation guide

4.1 Button Introduction

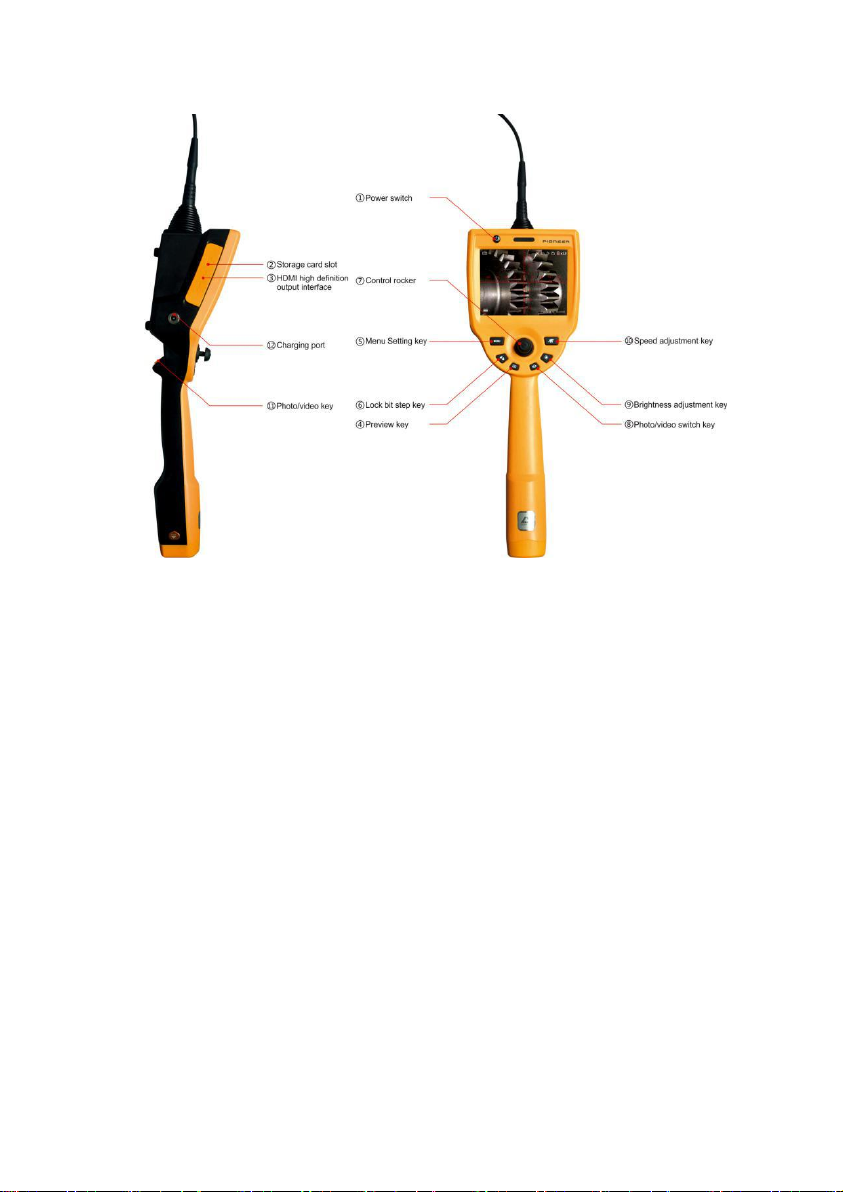

C50 button and function interface schematic diagram is shown below （Figure1）。

Figure1

①Power switch: switchgear for control equipment.

②Storage card slot: you need to install a storage card for storing JPEG/BMP

pictures and MP4 video files. If you do not install the storage card, press the photo

key / look back key will prompt "no SD card was detected, please insert SD card".

③HDMI high definition output interface: used for external display.

④Preview key: back to the JPEG/BMP picture file and MP4 video file, this mode

can take full screen view / play, file delete, file name editing, add notes and so on.

⑤Menu Setting key: for function settings.

⑥Lock bit step key: set the movement mode of the front end probe, switch the lock

step / unlock follow mode.

⑦Control rocker: control the motion direction and angle of the front end probe,

this key has the function of direction navigation, and also has auxiliary function

under different operation mode, and press the middle OK button to express it.

⑧Photo / video switch key: switch camera mode / video mode.

⑨Brightness adjustment key: adjust the brightness of the LED lamp on the front

end probe.

⑩Speed adjustment key: adjust the movement speed of the front end probe.

⑪Photo / video key: take pictures in the photo mode, video or capture in video

mode.

⑫Charging port: the power adapter can be used to supply the equipment directly or

to charge the battery in the device.

4.2 C50 Work Mode Quick Start Guide

C50 industrial endoscope system mainly has 3 working modes, which are real-time

detection mode, playback mode, and system setup mode. After the system is switched on

the system, the real-time detection mode is entered by default. Please refer to figure 1

button function list for details of button functions under different modes and sub modes.

Figure 1 Button function list

Button

shape

Button

name

Real-time

detection

Playback

Video

play

system

setting

time

setting

Setup

Entry system

and setting

return

exit

setting

exit

setting

Locking step

Lock step

/Unlocking

and

following

probe motion

mode

---

Table des matières

Autres manuels Coantec Équipement de diagnostic

Coantec

Coantec C68 Series Manuel utilisateur

Manuels Équipement de diagnostic populaires d'autres marques

Mindray

Mindray M7Vet Guide de démarrage rapide

Autel

Autel MaxiProgrammer 201 Manuel utilisateur

TEXA

TEXA TMD2 Manuel utilisateur

Autel

Autel MaxiIM IM608 Manuel utilisateur

Sealey

Sealey BT2012 Manuel utilisateur

Diagnoptics

Diagnoptics Age Reader Manuel utilisateur

LAUNCH TECH

LAUNCH TECH X-431 PRO5 Manuel utilisateur

Hella Gutmann

Hella Gutmann Mega macs X Manuel utilisateur

Foxwell

Foxwell I80TS Manuel utilisateur

KaVo

KaVo 3D eXam Manuel utilisateur

ATEQ

ATEQ VT46 Manuel utilisateur

Hella Gutmann

Hella Gutmann mega macs X Manuel utilisateur

Autel

Autel MaxiFlash VCMI Manuel utilisateur

Qiagen

Qiagen QIAcube Connect MDx Manuel utilisateur

Alber

Alber BDSU Manuel utilisateur

St. Jude Medical

St. Jude Medical QUANTIEN Manuel utilisateur

Bosch

Bosch DCU 100 Manuel utilisateur

Launch

Launch CNC-602A Manuel utilisateur
