CM LODESTAR Manuel utilisateur

P/N: 83874-Sub1 Rev AC January 2017

Before installing hoist, ﬁll in the information below.

Antes de instalar el polipasto, rellene los datos siguientes.

Enregistrez les informations suivantes avant de faire l'installation.

Rated Load / Carga Nominal / Charge nominale

Serial No. / N.° de Serie / No. de Ser.

Purchase Date / Fecha de Compra / Date d'achat

CAPACITIES:

1/8 – 3 TONS

(125 – 3000 kg)

Follow all instructions and warnings

for inspecting, maintaining and

operating this hoist.

The use of any hoist presents some risk

of personal injury or property damage. That

risk is greatly increased if proper instructions

and warnings are not followed. Before using

this hoist, each operator should become

thoroughly familiar with all warnings,

instructions and recommendations

in this manual. Retain this manual for

future reference and use.

Forward this manual to operator.

Failure to operate equipment as

directed in manual may cause injury.

CAPACIDADES DE CARGA:

1/8 – 3 TONELADAS

(125 – 3.000KG)

Siga todas las instrucciones y

advertencias para inspeccionar,

mantener y operar este polipasto.

El uso de cualquier polipasto presenta cierto

riesgo de lesiones personales o daños en

la propiedad. Ese riesgo aumenta en gran

medida si no se siguen las instrucciones y

advertencias adecuadas. Antes de usar el

polipasto, el operario debe familiarizarse

con todas las advertencias, instrucciones

y recomendaciones de este manual. Guarde

este manual para referencia y uso futuros.

Entregue este manual al operario. Si el

equipo no se opera como se recomienda

en el presente manual, es posible que se

produzcan lesiones.

CHARGES NOMINALES:

1/8 À 3 TONNES

(125 – 3000 KG)

Veuillez vous conformer à toutes les

directives et mises en garde d'inspection,

d'entretien et d'opération de ce palan.

L'utilisation de tout appareil de levage

comporte des risques de blessures ou

de dégâts matériels. Ces risques sont

de beaucoup accrus si les instructions

et avertissements ne sont pas suivis.

Tous les opérateurs devraient se

familiariser complètement avec toutes

les recommandations, instructions et

avertissements de ce manuel avant d'utiliser

ce palan. Conserver ce manuel pour

utilisation et référence futures.

Remettre ce manuel à l'opérateur. Si l'équipement

n'est pas utilisé conformément aux directives de

ce manuel, cela peut causer des blessures.

ELECTRIC CHAIN HOIST

POLIPASTO ELÉCTRICO DE CADENA

PALAN ÉLECTRIQUE À CHAÎNE

OPERATING, MAINTENANCE

& PARTS MANUAL

MANUAL DE FUNCIONAMIENTO,

MANTENIMIENTO Y PIEZAS

MANUEL D'ENTRETIEN,

D'OPÉRATION ET DE PIÈCES

Windmill Manual Supplement

Suplemento del manual del molino de viento

Supplément au manuel Windmill

1P/N: 83874-Sub1 Rev AC January 2017

(ENGLISH)

ENGLISH

WINDMILL SPECIFIC INFORMATION

To Reduce the Risk of Electric Shock or Injury, Use Indoors Only.

Using “Commercial” or other manufacturer’s parts to repair the CM

Lodestar Hoists may cause load loss.

TO AVOID INJURY:

Use only CM supplied replacement parts. Parts may look alike but

CM parts are made of specic materials or processed to achieve

specic properties.

ORDERING INSTRUCTIONS

The following information must accompany all correspondence

orders for replacement parts:

1. Hoist Model Number from identication plate.

2. Serial number of the hoist stamped below identication plate.

3. Voltage, phase, hertz from the identication plate.

4. Length of lift.

5. Part number of part from parts list.

6. Number of parts required.

7. Part name from parts list.

NOTE: When ordering replacement parts, it is recommended

that consideration be given to the need for also ordering such

items as gaskets, fasteners, insulators, etc. These items may

be damaged or lost during disassembly or just unﬁt for future

use because of deterioration from age or service.

CM HOIST PARTS AND SERVICES

ARE AVAILABLE IN THE UNITED

STATES AND IN CANADA

Parts for your hoist are available from your local authorized repair

station. For the name of the nearest parts or service center, visit

our web site www.cmworks.com or call our customer service

department at 1-800-888-0985.

NOTE: FOR RADIO SPECIFIC

INFORMATION REFER TO:

Manual #: 191-00512-3200 R0

Included with your unit.

Telephone: 1.800.288.8178

Website: www.magnetek.com

e-mail: [email protected]

2P/N: 83874-Sub1 Rev AC January 2017

(ENGLISH)

ENGLISH

13 12

25 24

63 44

DETAIL A

SCALE: (1 : 2)

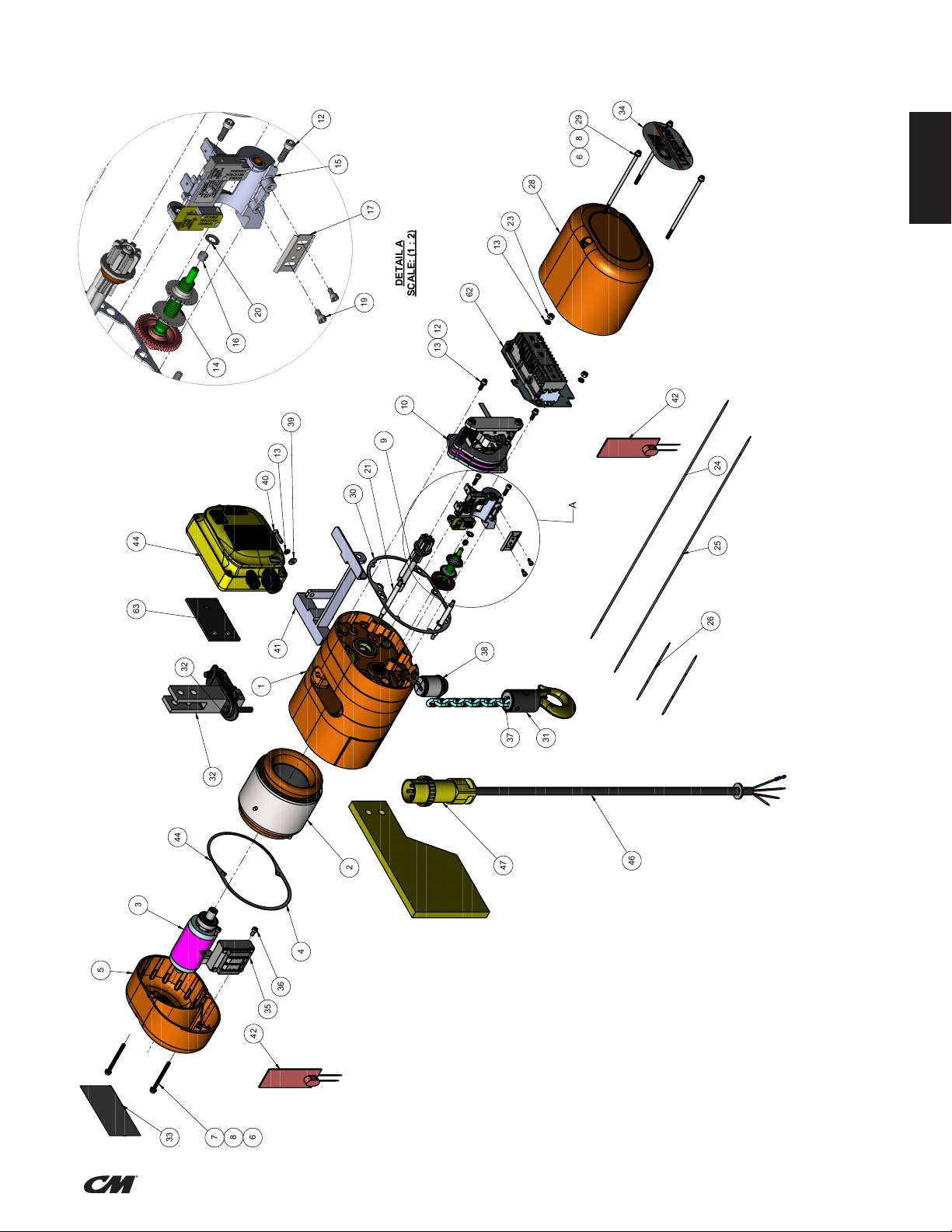

REPAIR PARTS DRAWING

3P/N: 83874-Sub1 Rev AC January 2017

(ENGLISH)

ENGLISH

REPAIR PARTS LIST

Item No. Part Number Description Qty.

1 29371 GEARBOX ASSEMBLY, CLASSIC MODEL C 1

2 10001747WM STATOR, 230-3-60, WINDMILL SPECIFIC 1

3 10001748 ROTOR ASSEMBLY 1

4 27847 GASKET, MOTOR HOUSING COVER 1

5 27058 MOTOR HOUSING COVER 1

6 00001747 O-RING 5

7 987397 SCREW 1/4-20 X 3", SLOTTED FILLISTER 2

8 982251 WASHER - .252 ID X .19 WALL 5

9 27654 DRIVE SHAFT & PINION 1

10 27684 BRAKE, ELECTRIC 1

11* 983197 WIRING TERMINAL 2

12 10001265 SCREW, 1/4-20 X 3/4, SOCKET HEAD 4

13 982226 LOCKWASHER 1/4 X .109 X .062 6

14 10001744 LIMIT SWITCH SHAFT 1

15 10001750 LIMIT SWITCH & BRACKET ASS'Y 1

16 28712 LIMIT SWITCH SHAFT SPRING 1

17 28714 PLATE,LIMIT SWITCH GUIDE 1

18* 28718 HARNESS HOLD DOWN 1

19 10001266 SCREW, #10-24 X 3/8", SOCKET HEAD 2

20 987878 WASHER .328" X 9/16" X .032 1

21 27836 CONTACTOR MOUNTING PLATE STUD 3

22 10001763 CONTACTOR PLT S/A 110 VOLT 1

23 982514 NUT, 1/4-20UNC-2B HEX 3

24 27671 JUMPER (R19) 1

25 27680 JUMPER (R20) 1

26 27660 JUMPER (R7) 1

27 27609 JUMPER (R10) 1

28 28009C BACK FRAME COVER 1

29 10001653 SCREW, 1/4-20 X 6.5", SOCKET HEAD 3

30 27848 GASKET, BACK FRAME COVER 1

31 10001764 LOWER HOOK BLOCK ASSEMBLY 1

32 10001745 LUG SUSPENSION 1

33 27277 CAPACITY PLATE 1

34 27238 SERIES LABEL 1

35 27778WM TRANSFORMER SUB-ASSEMBLY, WINDMILL 1

36 982688 SCREW 1/4-20 UNC-2A X 1/2" 2

37 85889 LOAD CHAIN (.250) AS REQ'D

38 75JG7 CHAIN STOP KIT 1

39 954802 WASHER, FLAT, .250 DIA. 1

40 82554 SCREW, SOCKET HEAD CAP 1

41 24835 CHAIN CONTAINER BRACKET 1

42 10001743 SILICONE HEATER, SELF-ADHESIVE 2

43 10002098B RADIO MOUNTING PLATE 1

44 10001741WM RADIO CONTROL SYSTEM, FLEX 4EX, WINDMILL 1

45 10001752 RADIO ANTENNA 1

46 10001982 POWER CORD 1

47 10002093 ELECTRIC PLUG, MALE 1

48* 10001769 FABRIC CHAIN CONTAINER 1

49* 900K262 HOIST STORAGE TAG 1

50* 28275 TAG, INSTRUCTION 1

51* 81704 TAG, WARNING 1

52* 928894 LABEL, CHAIN 1

53* 10001751 LABEL, CHAINBAG WARNING 1

54* 24842 LABEL, ELECTRICAL WARNING 1

55* 24846 LABEL, ELECTRICAL INFORMATION 1

56* 10001749 LABEL, WARNING 1

57* 982158 LINE CONNECTOR 2

58* 982234 ALTECH DIN SERIES SINGLE WIRE 18

59* 11742704 PUSH WIRE CONNECTOR 12

* Items Not Shown In The Exploded View

4P/N: 83874-Sub1 Rev AC January 2017

(ENGLISH)

ENGLISH

GEAR BOX ASSEMBLY

Item No. Part Number Description Qty.

1 10001712C MOTOR HOUSING 1

2 28669 GEAR HOUSING 1

3 27008 CHAIN GUIDE 2

4 27360 LIFT WHEEL 1

5 27747 GASKET, GEAR HOUSING 1

6 927755 ELASTIC STOP NUT 2

7 27767 SNAP RING 1

8 28830 SCREW 1/4-20 UNC-2A X 1 5/8 4

9 82638 NUT-1/4-20 UNC-2B HEX-UNITORQ 1

10 88429 BEARING 2

11 27618 BACK FRAME 1

12 27010 LIFTWHEEL GEAR (32 F.P.M.) 1

13 28640 INTERMEDIATE GEAR & PINION 1

14 982699 SCREW 1/4-20 UNC-2A X 2" 3

15 940802 LOCKWASHER 1/4 X .078 THICK 7

16 82354 DOWEL PIN 4

17 10001722 GEAR BOX WIRE WAY GASKET 1

18 10001723 GEAR BOX SPACER GASKET 1























 



















$66(0%/('9,(:

'(7$,/$

6&$/(

25,(17:,7+7+5($'

/2&.,1*)($785(72:$5'6

&(17(52)+2,67

25,(17:,7+7+5($'

/2&.,1*)($785('2:1

7<3

,7(012

3$57180%(5

'(6&5,37,21

47<



&

02725+286,1*&/$66,&9



 

*($5+286,1*



 

&+$,1*8,'(



 

/,)7:+((/



 

9*($5+286,1**$6.(7



 

(/$67,&6723187



 

5(7$,1,1*5,1*(;7



 

6&5(:81&$;



 

18781&%+(;81,7254



 

%($5,1*



 

%$&.)5$0(



 

/,)7:+((/*($5)30



 

,17(50(',$7(*($53,1,21



 

6&5(:81&$;



 

/2&.:$6+(5;7+,&.



 

'2:(/3,1



 

*($5%2;:,5(:$<*$6.(7



 

*($5%2;63$&(5*$6.(7



5P/N: 83874-Sub1 Rev AC January 2017

(ENGLISH)

ENGLISH

CONTACTOR PLATE ASSEMBLY

15 17

19 11 12

ITEM NO.

PART NUMBER

DESCRIPTION

QTY.

1 31633

CONTACTOR PLATE

224799

REVERSING CONTACTOR

3982686

SCREW #10-32 UNF-2A X 3/8" SL

4987827

SCREW 1/4-20 UNC-2A X 1/2"

520940

GROUND LABEL

629014

TERMINAL STRIP

7987873

LOCKWASHER #10 ASA MEDIUM

829010

DIN-RAIL 6.50" LONG

910001408

CLIPFIX 35-5 END CLAMP

10 28904

MAINLINE CONTACTOR - 110V

11 10001773

JUMPER R16

12 10001774

JUMPER R14

13 10001772

JUMPER R15

14 27189

JUMPER (G-Y)

15 29915

JUMPER B1

16 51847

JUMPER

17 29916

JUMPER B2

18 27760

JUMPER R7

19 27609

JUMPER R10

CONTACTOR PLATE ASSEMBLY

Item No. Part Number Description Qty.

1 31633 CONTACTOR PLATE 1

2 24799 REVERSING CONTACTOR 1

3 982686 SCREW #10-32 UNF-2A X 3/8" SL 2

4 987827 SCREW 1/4-20 UNC-2A X 1/2" 1

5 20940 GROUND LABEL 1

6 29014 TERMINAL STRIP 1

7 987873 LOCKWASHER #10 ASA MEDIUM 2

8 29010 DIN-RAIL 6.50" LONG 1

9 10001408 CLIPFIX 35-5 END CLAMP 2

10 28904 MAINLINE CONTACTOR - 110V 1

11 10001773 JUMPER R16 1

12 10001774 JUMPER R14 1

13 10001772 JUMPER R15 1

14 27189 JUMPER (G-Y) 1

15 29915 JUMPER B1 1

16 51847 JUMPER 4

17 29916 JUMPER B2 1

18 27760 JUMPER R7 1

19 27609 JUMPER R10 1

6P/N: 83874-Sub1 Rev AC January 2017

(ENGLISH)

ENGLISH

CHAIN CONTAINER INSTALLATION

Item No. Part Number Description Qty.

1 24835 CHAIN CONTAINER BRACKET 1

2 10001769 FABRIC CHAIN CONTAINER 1

3 954802 FLAT WASHER, .250 DIA. 1

4 982226 LOCK WASHER .25x.109x.062 1

5 82554 CAP SCREW, SOCKET HEAD 1

6 24651 RETAINER WIRE 1

7 --* M10 FLAT WASHER 6

8 --* M10 x 35mm HEX BOLT 2

9 --* M10 NYLON INSERT LOCK NUT 2

10 24834 INSTRUCTION SHEET 1

*ITEMS SUPPLIED WITH ITEM 2, CHAIN CONTAINER

7P/N: 83874-Sub1 Rev AC January 2017

(ENGLISH)

ENGLISH

CHAIN CONTAINER INSTALLATION

IMPORTANT!

Read all instructions before attempting to install chain container to

hoist.

To facilitate the installation of the chain container, it is recommended

that the hoist be suspended from its support and be connected

to the power supply in accordance with instructions in the manual

provided with the hoist. After this is completed, install the chain

container as follows:

1. Preparing the hoist:

Operate hoist in the down direction to check the setting of the

lower limit switch. When hook is in its lowest position, there

should be a minimum of six (6) chain links between the loose

end link and the hoist frame on the loose end of the chain. If

there are less than the required number of links, reset the lower

limit switch per the instructions in the manual provided with the

hoist.

After verifying the correct setting of the limit switch, remove

the loose end screw (3), lockwasher (4), at washer (5), and the

loose end (open) link from the hoist frame, allowing the loose

end of the chain to hang free. Do not discard these parts, they

will be reused. See manual page 68, parts 627-740, 627-741,

627-742, 627-743 for reference.

2. Installing the chain container:

a. Place one at washer (7) on one bolt (8), followed by

the retainer wire (6), and an additional at washer (7).

Insert bolt through bracket as shown.

b. Align bracket with reinforced hole in chain bag. Add one at

washer (7) to the bolt. Add one nylon insert lock nut (9) onto

bolt. Tighten by hand until tight.

c. Using the hardware removed in step 1, add the lockwasher

(4) to the loose end screw (5), followed by the at washer (3).

Insert the screw through the bracket and into the hoist body.

d. Loop the retainer wire (6) around the suspension lug (10)

until the loose end is near the remaining bracket mount.

e. Repeat steps 2a-2b.

f. Torque lock nuts (9) to approximately 15 ft·lbs (20.5 N·m).

g. Torque loose-end screw (5) to approximately 4.5 ft·lbs

(6.1 N·m).

8P/N: 83874-Sub1 Rev AC January 2017

(ENGLISH)

ENGLISH

SUSPENSION COMPONENTS

Item No. Part Number Description Qty.

1 10001745 LUG SUSPENSION 1

2 10001754 HEX HEAD BOLT, M12x1.75THRDx60mm 2

3 10001755 FLAT WASHER, M12 2

4 10001757 NYLOCK NUT, M12x1.75THRD 2

5 10001756 LOCK WASHER, M12 2

6 10002098 RADIO MOUNTING PLATE 1

7 10001741WM RADIO CONTROL SYSTEM, FLEX 4EX, WINDMILL 1

8 10001752 ANTENNA 1

9 CUSTOMER SUPPLIED MOUNTING PLATE 1

10 Supplied with #7 M8 HEX NUT 1

SUSPENSION COMPONENTS

With the lug suspension (1) attached to hoist, assemble as follows and as shown in exploded view on previous page:

1. Align customer supplied mounting plate (9) to lug suspension (1) as shown in the exploded view.

2. Align radio mounting plate (6) to mounting plate (9).

3. Insert M12 bolt (2) through at washer (3) and insert through both mounting plates and suspension lug (1), with bolt-head and at

washer on mounting plate (6) side. Repeat for both bolts.

4. Add lock washer (5) on opposite side of bolt. Thread M12 nylon lock nut (4) onto threaded bolt by hand until nger tight.

Repeat for both nuts.

5. Torque M12 nylon lock nut to 70 ft·lbs (95 N·m). Repeat for both.

6. Using included M8 hardware (10), assemble FLEX radio control unit (7) to radio mounting plate.

7. Assemble radio antenna (8) to FLEX radio control unit.

ITEM NO.

PART NUMBER

DESCRIPTION

QTY

10001745

LUG SUSPENSION

10001754

HEX HEAD BOLT, M12x1.75THRDx60mm

10001755

FLAT WASHER, M12

10001757

NYLOCK NUT, M12x1.75THRD

10001756

LOCK WASHER, M12

10002098B

RADIO MOUNTING PLATE

10001741

FLEX 4EX RADIO CONTROL

10001752

ANTENNA

CUSTOMER SUPPLIED MOUNTING PLATE

--*

M8 HEX NUT

*Included with item 7, radio control.

9P/N: 83874-Sub1 Rev AC January 2017

(ENGLISH)

ENGLISH

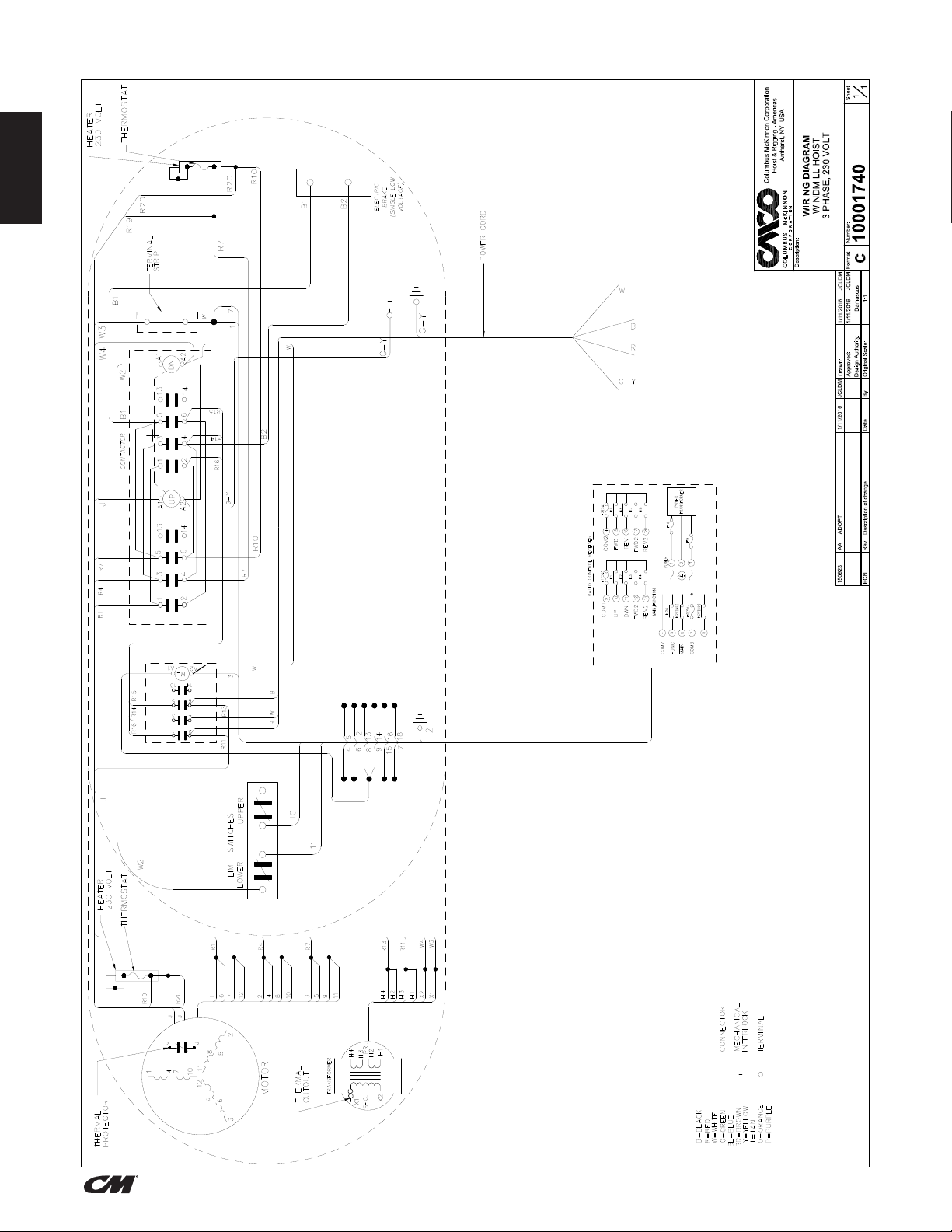

WIRING DIAGRAM

Autres manuels pour LODESTAR

Table des matières

Manuels palan à chaîne populaires d'autres marques

EINHELL

EINHELL Herkules H-F 1000 Manuel utilisateur

RED ROOSTER

RED ROOSTER TCR-250 Manuel utilisateur

POWERTEX

POWERTEX PCB-S1 Manuel utilisateur

Parkside

Parkside PSZ 250 A1 Manuel utilisateur

Ingersoll-Rand

Ingersoll-Rand QCH Series Manuel utilisateur

Creative Conners

Creative Conners CM Varistar Smart Chain Hoist Manuel utilisateur

Stagemaker

Stagemaker SR05 Manuel utilisateur

KITO

KITO TCL Series Manuel utilisateur

CRYSTEEL

CRYSTEEL LO-BOY Manuel utilisateur

Performance Tool

Performance Tool W4005DB Manuel utilisateur

Parkside

Parkside PSZ 250 A1 Manuel utilisateur

Stahl

Stahl ST Series Manuel utilisateur

Coffing Hoists

Coffing Hoists EC Series Manuel utilisateur

KITO

KITO RY Series Instructions d'installation

Haklift

Haklift LOABT800 Manuel utilisateur

Tractel

Tractel bravo Manuel d'utilisation

Villager

Villager VEH 250 Manuel utilisateur

Starke

Starke STK Series Manuel utilisateur
