Closet Maid Maxload 4380 Manuel utilisateur

4380 & 34380 11/1901-10146-00

6 FT - 10 FT ADJUSTABLE GARAGE ORGANIZER

INSTALLATION INSTRUCTIONS

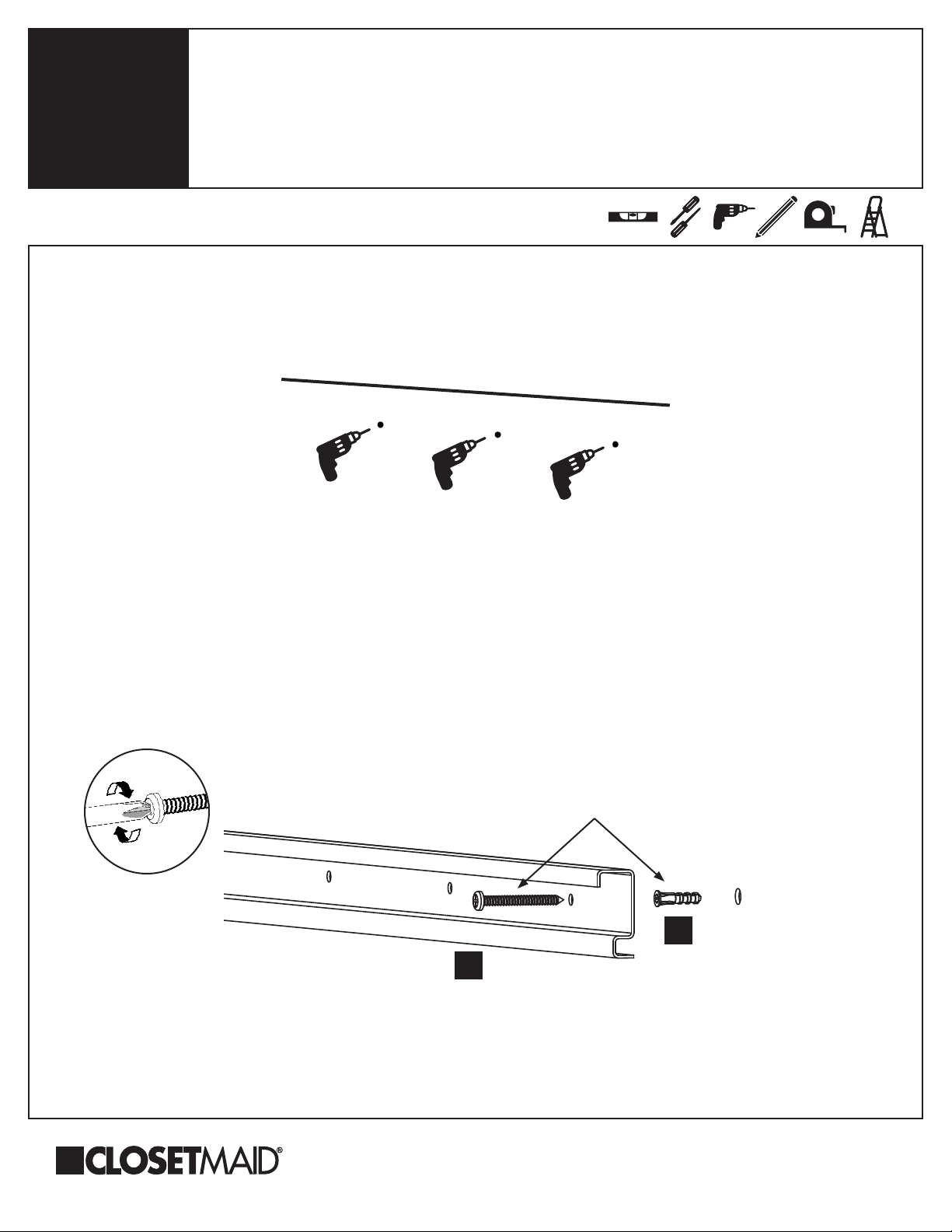

What you will need:

• Please read all instructions carefully.

• Familiarize yourself with all parts (see “PARTS INCLUDED WITH KIT”) and check quantities.

• Follow all safety precautions (see “SAFETY PRECAUTIONS”).

• Follow all manufacturer installation requirements in order to comply with the

advertised weight load specifications.

BEFORE BEGINNING

Primary Configuration

*Static Load Evenly Distributed. Must be installed per manufacturer’s

specifications or weight load capacity does not apply.

Whichever load reaches

capacity first:

Maximum Shelving Load*: 100 lbs/ft

Maximum 40 in. Hang Track Load*: 700 lbs

Maximum System Load*: 1,400 lbs

(See pages 6)

Primary Conﬁguration Kit Capacity

PARTS INCLUDED WITH KIT

Hang Track

Standard

Standard Extender

Shelf Bracket

Wire Shelf

Screw

Toggle Bolt

Panhead Screw

Anchor

End Cap

40 in. (3)

48 in. (10)

(4)

(23)

48 in. (2)

72 in. (2)

3/ 16 in. (45)

#12 x 2 in. (45)

1/4 in. (45)

(48)

93583

93585

28192

93582

43717

43719

274

270

688

650

90813

Name Size (Qty) Part Number

AAA

B BB

CCC

D DD

FOLLOW INSTRUCTIONS CAREFULLY

Please do not return product to the retail store. For product assistance and warranty

information please call Consumer Affairs at 1-800-874-0008.

Manufacturer Warranty

Manufacturer will replace any missing or damaged part due to manufacturer defect for one

year after purchase. Please have proof of purchase for warranty claims.

• Unit MUST be installed as per the installation instructions beginning on

page 7 to satisfy published weight load capacity.

• This unit contains small parts which could be a choking hazard for small

children. Children should be under adult supervision at all times or

serious injury could occur.

• Always unload unit prior to moving the unit. The weight of personal

belongings can cause the unit to become unstable and either tip or

collapse. Serious bodily injury and/or damage to personal belongings

may occur.

• Do not overload unit. If any shelf, top, or bottom of unit bows or bends,

it is overloaded. The shelf, top, or bottom could collapse and cause

serious bodily injury and/or damage to personal belongings.

• Do not drop items on shelves.

SAFETY PRECAUTIONS

WARNING

• Do not climb or step on the unit. The unit may become unstable and

either tip or collapse. Serious bodily injury and/or damage to personal

belongings may occur.

• Do not mount or attach anything to the sides, rear, or front of the unit as

this can create a force which can cause the unit to tip. Serious bodily

injury and/or damage to personal belongings may occur.

• Follow proper safety procedures if using power tools and ladders.

• We recommend you protect your work surface during assembly to

prevent scratching or damage to table tops, wood floors, etc.

• We recommend you tighten screws by hand. Use care not to overtighten

if using power tools.

MEASURE AND FIT (WIDTH)

This is a versatile organizer with multiple orientations depending on the size of your area. Once you understand how the pieces work together, you have many design options. However, it’s

important to decide what your final organizer will look like before starting.

The next page features diagrams for several closet design ideas. Find the configuration closest to your area size and choose the design option you prefer for your closet. In some cases, the hang

track, shelf, and/or standards should be cut to fit depending on the size of your area.

Measure wall area width and height to determine if cutting the hang track, shelving, or standards will be required. If the wall width is smaller than 80 in., the hang track and possibly the

shelves will require cutting. If the wall height is shorter than 99 in., the standards may require cutting.

PLEASE NOTE: Any alteration of components voids any advertised performance specifications listed in this manual.

CONFIGURATION EXAMPLES

10 ft.

40 in. 40 in. 40 in.

10 ft.

40 in. 40 in. 40 in.

10 ft.

40 in. 40 in. 40 in.

Configuration 3

Configuration 4

Configuration 5

CUT HANG TRACK, IF NECESSARY

CUTTING WILL ONLY BE REQUIRED FOR SPACES LESS THAN 80 IN. OR 120 IN. WIDE.

If your space is less than 80 in. or 120 in. wide, cutting Hang Track to fit space may be required.

See Hang Track Location Diagrams for guidelines depending on your closet width.

Advertised weight loads in this manual apply to ONLY Configuration 1 (the Primary Configuration) as installed per manufacturer’s specification and DO NOT APPLY to any other alternative configurations.

6.67 ft.

40 in. 40 in.

6.67 ft.

40 in. 40 in.

Configuration 1: Primary Configuration

Configuration 2

PARTS NEEDED FOR

PRIMARY CONFIGURATION

Ax2

x18

x48 * Installation hardware varies based on wall type

SAFETY PRECAUTIONS

RECOMMENDED INSTALLATION

The following installation is required to satisfy the weight capacity rating indicated for this product. In order for the weight load speciﬁcations to be valid, you MUST install the components

in this organizer per the following installation instructions. Before moving on to the system installation instructions, please take the time to review the installation requirements below.

If you are unable to install per the primary configuration installation instructions, alternate installation methods are provided on page 6.

WARNING

Locate studs.

Hit studs in at least 5 holes.

Use a toggle bolt on each hole that does not hit a stud.

AA AA AA AA

BB BB BB BB

CC CC CC CC CC

STUD STUD STUD STUDSTUD

TOGGLE TOGGLE TOGGLE TOGGLE TOGGLE

STUD STUD STUD STUDSTUD

MARK HANG TRACK LOCATION

99 in.

A) The hang track can be installed at any height, keeping in mind the overall height of your standards once installed. Be aware that the hang track is the highest point in the system,

meaning no shelving can be placed above it.

B) Measure hang track to desired height and use a level to assure hang track is straight before marking holes and making a level line.

C) When track is at desired height and level, mark each screw hole on the wall using a pencil. Do this for all tracks, spacing according to the size of your area. It’s recommended to

install one track before others, including drilling any necessary holes.

D) For Configurations 1 and 2, the minimum hang track installed height is 99 in. from the top of your baseboard.

FOR DRYWALL INSTALLATION

C) Insert a toggle bolt into the predrilled holes in the drywall. Be sure to install the toggle bolt assembly only in the holes where there are no studs. For any marks over a stud, use a

panhead screw directly. This will enhance the security of the hang track mounting.

IMPORTANT: SECURE HARDWARE THROUGH EACH HOLE!

* Tighten toggle bolts first, then stud screws

B) Insert toggle bolts through the holes in the hang track that aren’t over studs,

and then thread the toggle anchor onto the bolt once it’s through the track.

STUD = SCREW

DRYWALL = TOGGLE BOLT

TOP

BOTTOM

DRILL 1/2 IN. HOLES.

FOR DRYWALL INSTALLATION

A) Locate each pencil mark and drill a 1/2 in. hole for any marks not over a stud. DRILL 1/2 IN. HOLES. NO DRILL FOR STUD MOUNTING.

FOR CONCRETE INSTALLATION

B) Insert anchors into 1/4 in. predrilled holes and secure hang track with panhead screws.

IMPORTANT: SECURE HARDWARE THROUGH EACH HOLE!

FOR CONCRETE INSTALLATION

A) Locate each pencil mark and drill a 1/4 in. hole at least 2 in. deep using a masonry drill bit.

DRILL 1/4 IN. HOLES.

SCREWS AND ANCHORS ONLY

DRILL 1/4 IN. HOLES.
