Climate Technologies Multi-appliance Comfort Control Manuel utilisateur

PNE Control - 2004

Using the

Ducted Gas Central Heating

Add-on Refrigerated Air Conditioning

Ducted Evaporative Air Conditioning

with your

multi-appliance

Comfort Control

Radio Frequency & Low Voltage

Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that

regular maintenance is carried out on this Ducted Evaporative Air Conditioner. Failure to do so will

void all guarantees beyond statutory and legal requirements.

www.climatetechnologies.com.au

Owner’s Manual

Multi-Appliance Comfort Control

PNE Comfort Control - 2004 Page 2

Contents

INTRODUCTION.............................................................................................................................. 4

YOUR MULTI-APPLIANCE COMFORT CONTROLLER ..............................................................................................4

GENERAL INFORMATION. ..........................................................................................................................................4

Important Installation Notice. .................................................................................................................4

Data Location..........................................................................................................................................4

Warranty..................................................................................................................................................4

NAVIGATING THE CONTROLS..................................................................................................... 5

QUICK START .............................................................................................................................................................. 5

QUICK START - SIMPLE MANUAL OPERATION........................................................................................................ 5

The Comfort Controller..................................................................................................................................................7

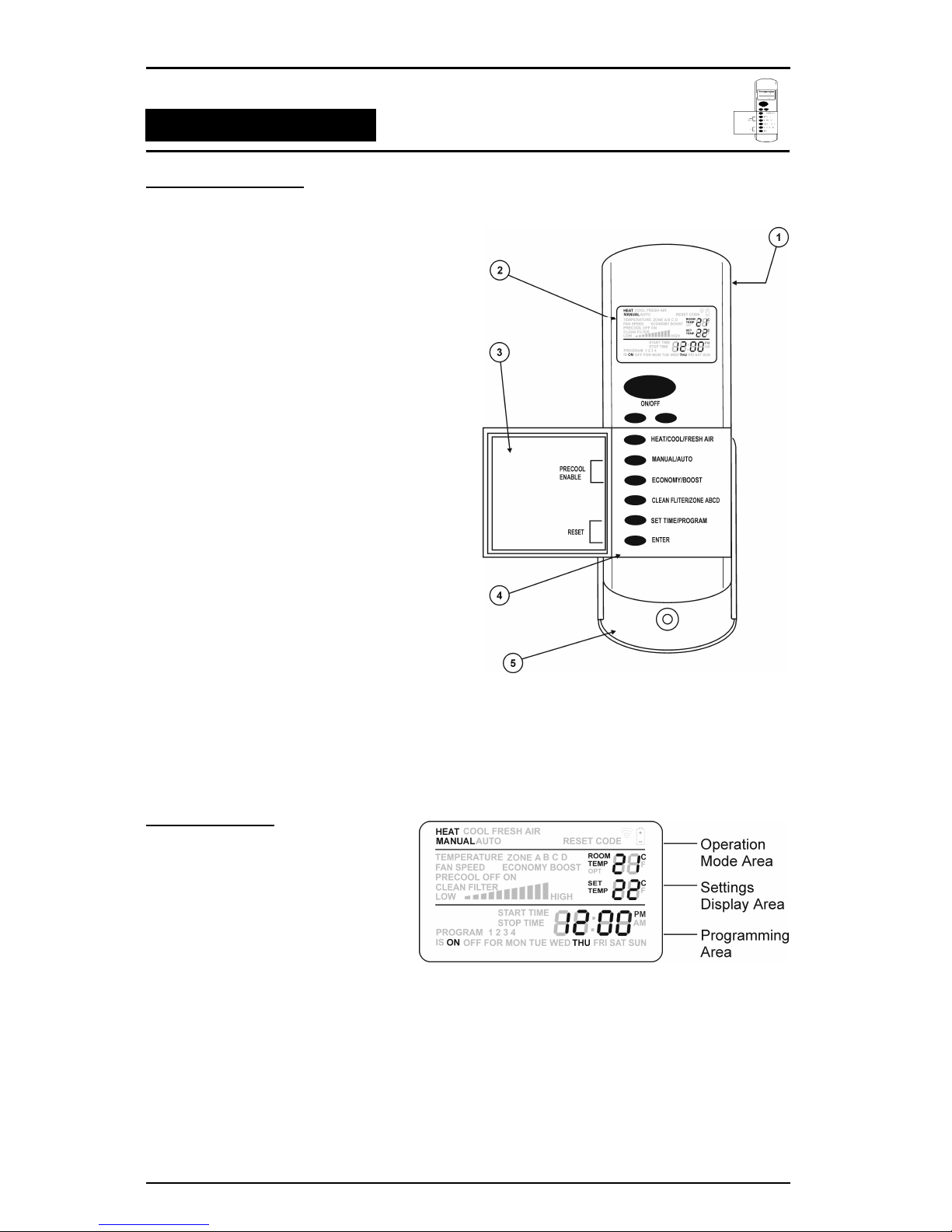

THE LCD DISPLAY....................................................................................................................................................... 7

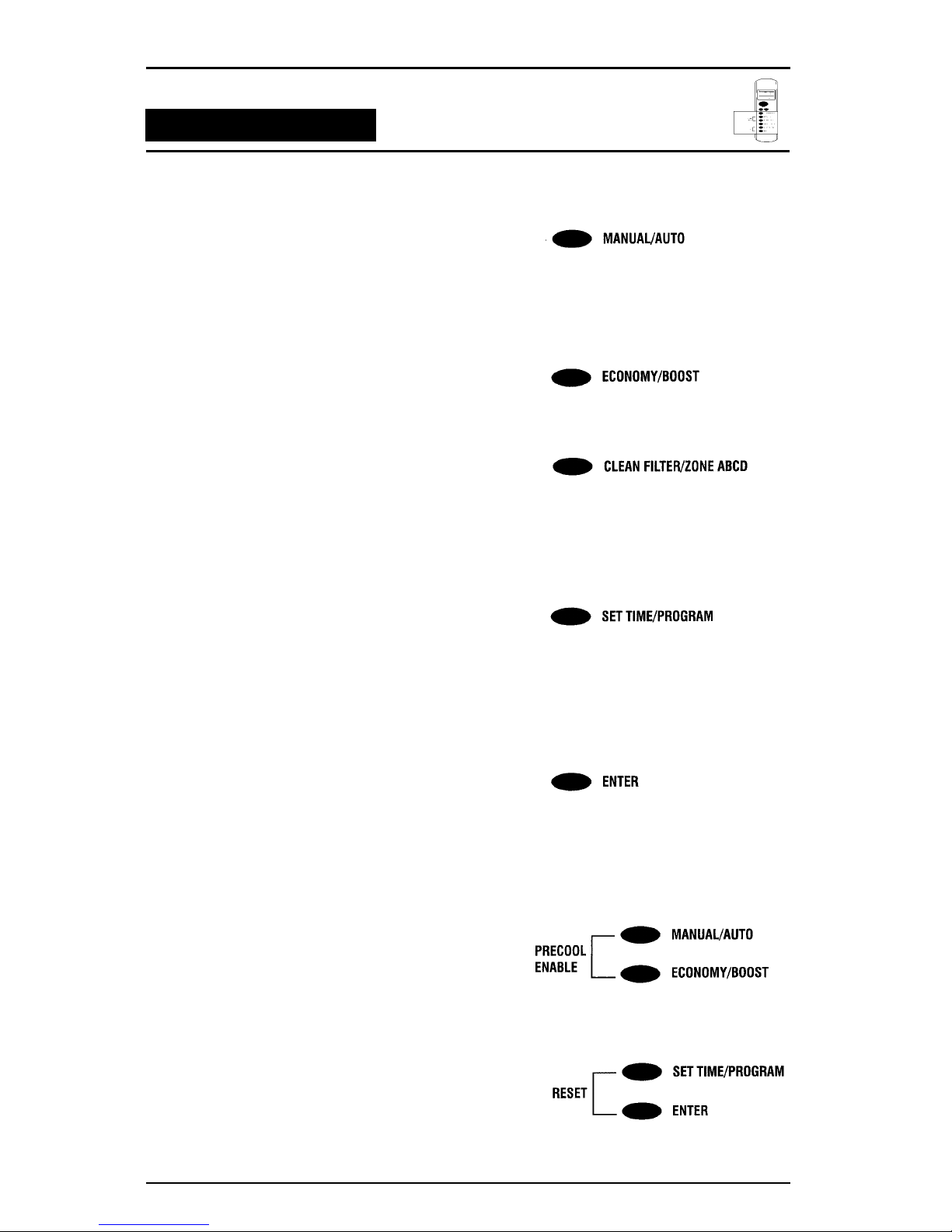

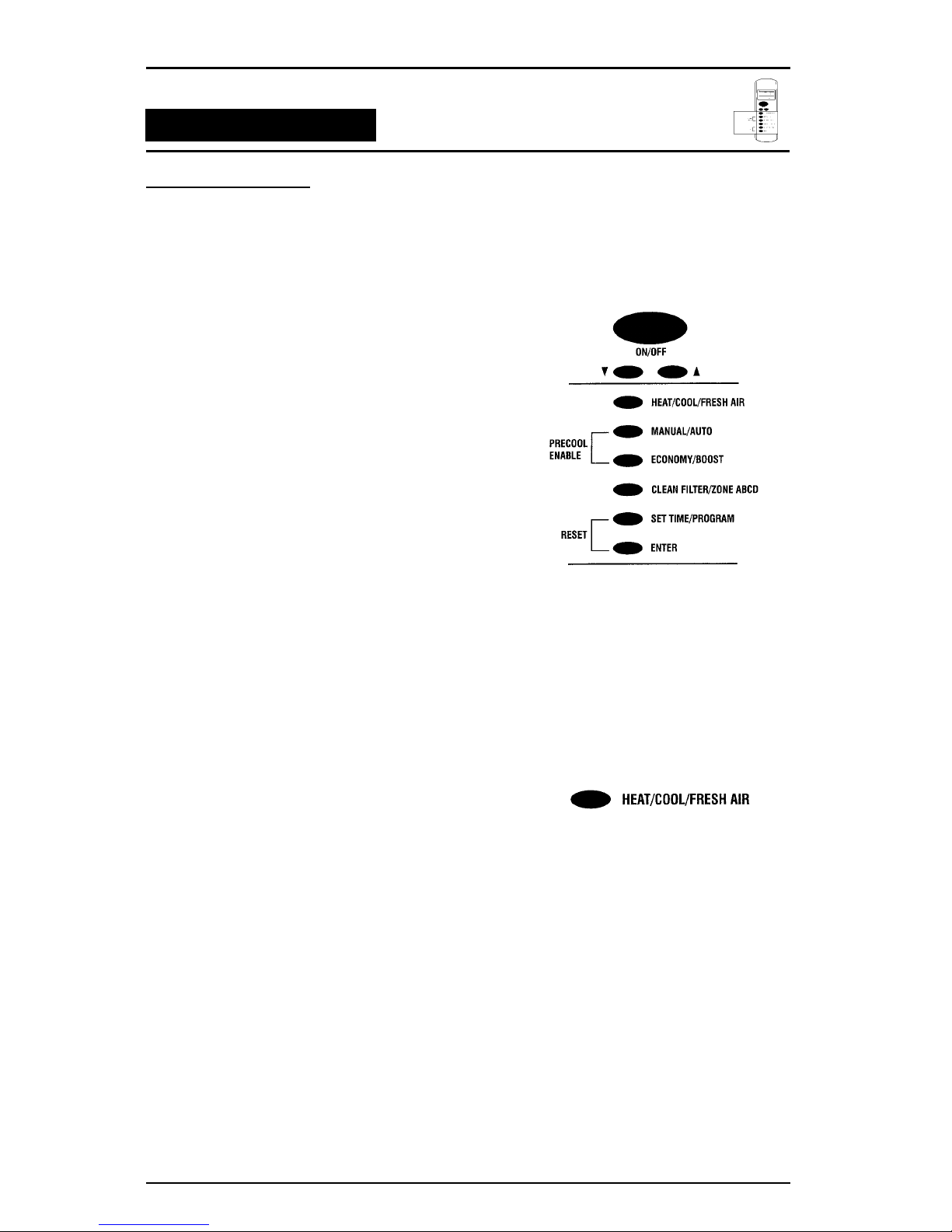

USING THE 9 BUTTONS..............................................................................................................................................8

SETTING DAY AND TIME ..........................................................................................................................................10

DUCTED GAS CENTRAL HEATING............................................................................................ 11

GENERAL INFORMATION. ........................................................................................................................................12

Important Notice....................................................................................................................................12

Warranty.................................................................................................. Error! Bookmark not defined.

Data Location........................................................................................................................................12

Assembly................................................................................................................................................12

SAFETY.......................................................................................................................................................................13

Safety & Owner Responsibility..............................................................................................................13

Precautions............................................................................................................................................13

Features.................................................................................................................................................13

Power or Gas interruption.....................................................................................................................13

USING YOUR COMFORT CONTROL ........................................................................................................................14

Manual Operation .................................................................................................................................14

ECONOMY & BOOST for heating........................................................................................................15

Summer Fan...........................................................................................................................................15

ZONES - Selecting ABCD options........................................................................................................16

Summer Shutdown .................................................................................................................................16

First Startup or Restart After Shutdown................................................................................................16

Auto Mode .............................................................................................................................................17

Programming Your Comfort Control ....................................................................................................17

HEATER MAINTENANCE...........................................................................................................................................19

SCHEDULED MAINTENANCE. .................................................................................................................................. 19

PROBLEM SOLVING.................................................................................................................................................. 20

ADD-ON REFRIGERATED AIR CONDITIONING ........................................................................ 21

GENERAL INFORMATION. ........................................................................................................................................22

Important Notice....................................................................................................................................22

Data Location........................................................................................................................................22

Assembly................................................................................................................................................22

SAFETY.......................................................................................................................................................................22

Safety & Owner Responsibility..............................................................................................................22

Precautions............................................................................................................................................22

Features.................................................................................................................................................22

Power interruption. ...............................................................................................................................22

COMFORT CONTROL................................................................................................................................................ 23

Multi-Appliance Comfort Control

PNE Comfort Control - 2004 Page 3

Contents

Manual Operation .................................................................................................................................23

ZONES - Selecting ABCD Options........................................................................................................24

Fan Operation .......................................................................................................................................24

Programming Your Comfort Control ....................................................................................................24

Using the Programming Sequence ........................................................................................................24

DUCTED EVAPORATIVE AIR CONDITIONING .......................................................................... 25

INTRODUCTION.........................................................................................................................................................26

UNIT OPERATION......................................................................................................................................................26

Exhaust..................................................................................................................................................26

Dialflo....................................................................................................................................................27

Optional Dump Valve............................................................................................................................27

Comfort Control – Quick Reference ............................................................................................................................ 28

USING YOUR COMFORT CONTROL ........................................................................................................................29

Manual Mode.........................................................................................................................................29

Auto Mode (Thermostat)........................................................................................................................29

BOOST...................................................................................................................................................30

TIMER MODE.......................................................................................................................................30

PRECOOL ON/OFF..............................................................................................................................31

Filter Cleaning ......................................................................................................................................31

DUCTED EVAPORATIVE AIR CONDITIONER MAINTENANCE...............................................................................32

CONTROL SETUP ........................................................................................................................ 35

SETTING UP THE CONTROL - GENERAL................................................................................................................35

Installation.............................................................................................................................................35

Coding The Unit....................................................................................................................................36

Checking The Signal – RF Remote Control Only..................................................................................36

Changing the Code................................................................................................................................36

SETTING UP THE CONTROLS – DUCTED GAS CENTRAL HEATING ...................................................................37

Setting Minimum Fan Speed..................................................................................................................37

Setting Maximum Fan Speed.................................................................................................................37

Setting The Zone Availability.................................................................................................................37

SETTING UP THE CONTROLS – DUAL CYCLE ADDON REFRIGERATED AIR CONDITIONING ........................38

Setting the Fan Control from Continuous to Auto Mode.......................................................................38

Setting the Fan Control from Auto to Continuous Mode.......................................................................39

Setting Minimum Fan Speed..................................................................................................................39

Setting Maximum Fan Speed.................................................................................................................39

Setting The Zone Availability Filter.......................................................................................................39

SETTING UP THE CONTROLS – DUCTED EVAPORATIVE AIR CONDITIONING..................................................40

Setting Minimum Fan Speed..................................................................................................................40

Setting Maximum Fan Speed.................................................................................................................40

Setting up the Dump Valve (Where Fitted)............................................................................................41

COMMISSIONING CHECK LIST ................................................................................................................................42

WARRANTY .................................................................................................................................. 44

APPLIANCE WARRANTY STATEMENT.................................................................................................................... 44

Conditions And Exclusions....................................................................................................................44

WARRANTY ON REPLACEMENTS PARTS. ............................................................................................................. 45

PERIODS OF WARRANTY – YEARS.........................................................................................................................45

SERVICE........................................................................................................................................ 46

Multi-Appliance Comfort Control

PNE Comfort Control - 2004 Page 4

Introduction

INTRODUCTION

YOUR MULTI-APPLIANCE COMFORT CONTROLLER

You have chosen one of the world's most advanced comfort control systems incorporating the latest

technology.

Your Comfort Control has been designed to operate various Climate Technologies products:

Heating - Ducted Gas Central Heaters.

Fresh Air Conditioners - Ducted Evaporative Air Conditioners.

Dual Cycle Add-on Cooling - Refrigerated Air Conditioning (cooling only) designed to add-on to

Ducted Gas Central Heaters.

Your Comfort Controller is designed to automatically detect the appliances during the commissioning of the

unit by the installer. Controller options not required for your appliances will usually not be visible on your

Comfort Control display.

Whether hand held or wall mounted take advantage of the versatility your Comfort Controller offers.

Use your Comfort Controller to reduce your energy bills by selectively conditioning part or all of your home

at an economical reduced rate or by setting programs to suit your needs.

Your Comfort Control is designed in Australia to suit Australian conditions and will ensure that your home

is comfortable all year round.

GENERAL INFORMATION.

IMPORTANT INSTALLATION NOTICE.

A licensed person is required to install Climate Technologies equipment. If the equipment is not installed in a

accordance with the installation instructions and the governing body regulations, Climate Technologies

reserves the right to refuse service on non compliant installations.

Subject to state regulations and by laws a certificate of compliance must be issued for the electrical and

plumbing connections certifying that the work complies with all the relevant standards.

Note: Only a licensed person will have insurance protecting their workmanship.

DATA LOCATION.

Your appliance model number, serial number and model description are located on the appliance data plate

on the end of the heater or inside the cooler in the vicinity of the electronic controls. These details should

also be in the warranty section of this booklet.

You will need this information, should your appliance require servicing, spare parts or just if you require

additional information about this product.

WARRANTY

Warranty service work must only be carried out by Climate Technologies service division or its authorised

service providers. See warranty section.

Multi-Appliance Comfort Control

PNE Comfort Control - 2004 Page 5

Navigating the Controls

NAV IGAT ING TH E CONTR OLS

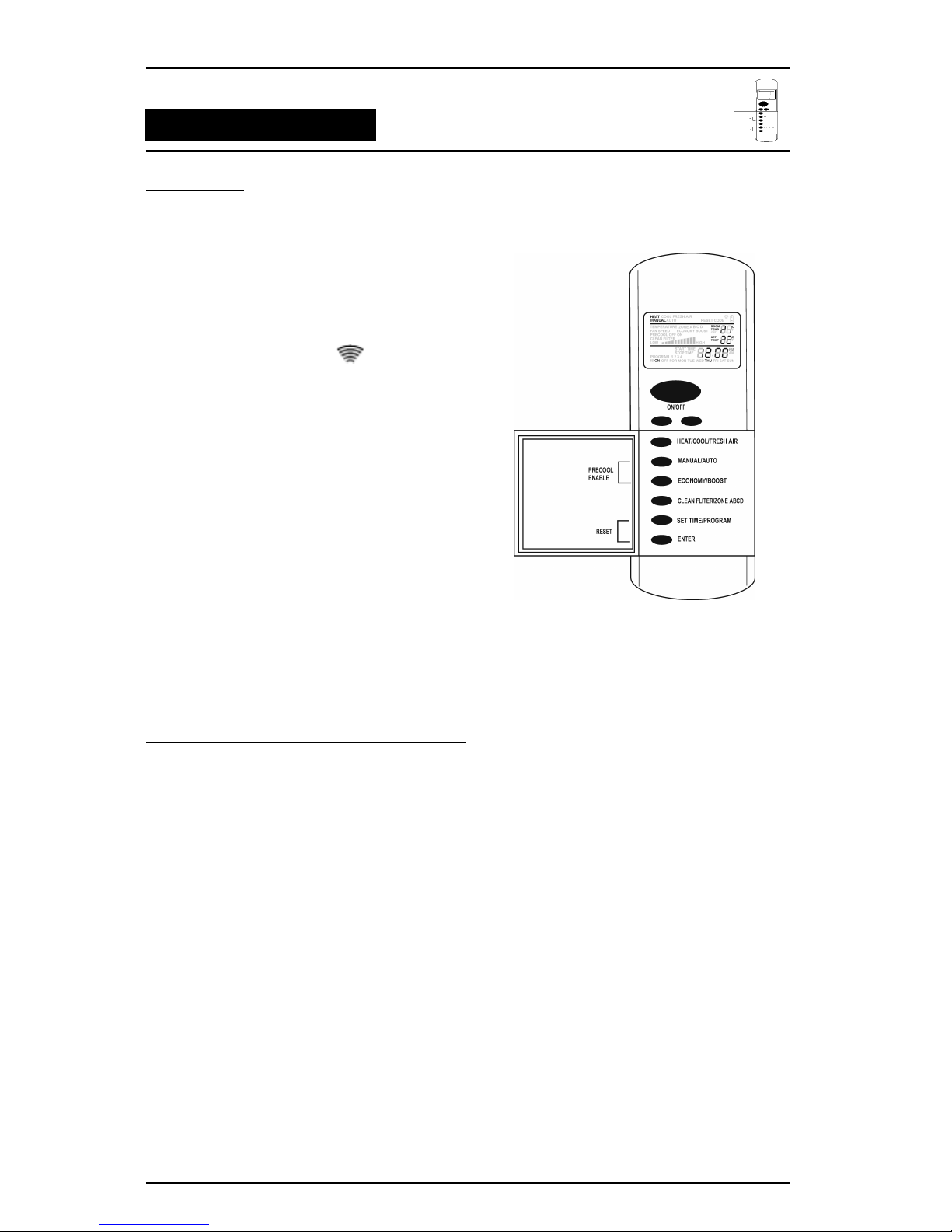

QUICK START

First - the 15 second delay

To give you time to choose your settings the

Comfort Control pauses 15 seconds then

sends its signal to your Heater/Cooler. So

don't worry if something doesn't happen

immediately.

Watch for the transmit symbol at the top

of the screen. This means that the signal has

been sent.

If you don't want to wait, pressing and

releasing the ENTER button sends your

settings immediately. (You don't need to do

this when using ON/OFF.)

Second - What you'll see is what you've got

Your Comfort Controller is designed to

automatically detect the appliances you have

installed. Controller options not required for

your appliances will usually not be visible on

your Comfort Control display. So don't worry if

you don't see all the menu items listed in this

book.

QUICK START - SIMPLE MANUAL OPERATION

Here's all you have to do to get going (if the

installer hasn't already done it for you).

1. If you have a Radio Frequency comfort control make sure the 3 new AAA alkaline batteries have

been fitted (see page 6). The wall mounted comfort control gets its power from a cable.

2. Press and release the ON/OFF button until ON appears at the bottom of the display screen.

3. Press & release the HEAT/COOL/FRESH AIR button (inside the flip open door) to select the

appliance. The choices available will be dependant on the appliances you have installed. Press

MANUAL/AUTO to select MANUAL.

4. Press ▼or ▲buttons to choose the desired setting.

Your unit will now operate in manual mode.

Multi-Appliance Comfort Control

PNE Comfort Control - 2004 Page 6

Navigating the Controls

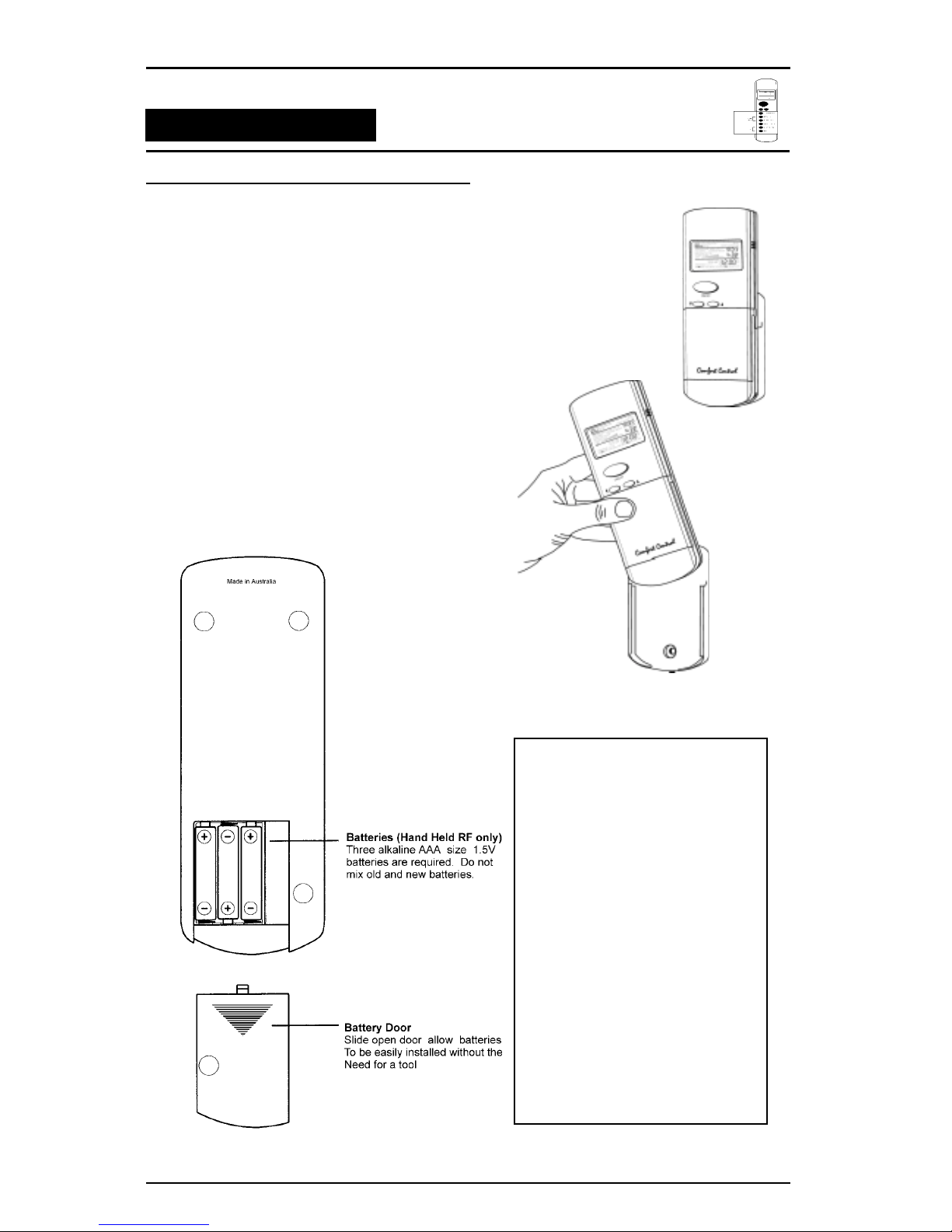

IDENTIFY YOUR COMFORT CONTROL MODEL

Use these pictures to identify which model you have.

WALL MOUNTED

This model is mounted permanently in the cradle on

your wall. No batteries are required. Power is supplied

via the same cable that takes the controller's signals to

your heating and / or cooling appliances.

HAND HELD RF

This model is hand held and will operate your appliances

from most areas of your home – See IMPORTANT

NOTE for exceptions.

It is powered by 3 AAA batteries. The controller uses

radio signals to control your appliance.

IMPORTANT NOTE

To reduce the risk of possible R

interference, do not locate your R

control near any electrica

equipment e.g. TV’s computers,

fridges, telecommunications and HI

FI equipment or close to meta

objects or window frames.

Other RF devices within your home

can also cause interference such

wireless door bells, gate or doo

openers, or perhaps baby monitors

& intercoms. Such interference can

impede the operation of you

appliance.

Ensure the RF control unit is no

exposed to excessive heat,

humidity, moisture or dampness.

Multi-Appliance Comfort Control

PNE Comfort Control - 2004 Page 7

Navigating the Controls

The Comfort Controller

Features of the Controller

1. Temperature sensor

Measures room temperature for thermostatic

operation.

2. Display screen LCD (Liquid Crystal Display)

Displays operational status of mode, time, day,

room temperature, set temperature, temporary

temperature, fan speed, filter cleaning, batteries

and programming.

3. Flip open door

Covers the less frequently used secondary

buttons.

4. Soft touch buttons

9 button layout includes large ON/OFF button

5. Comfort Control cradle

Fixed to the wall to permanently mount the wall

control. Fixed to the wall for easy access to the

portable RF control.

THE LCD DISPLAY

The Controller display shows different

information depending on the functions

in use. The Controller usually shows

only those items required for the

appliances you have installed.

Multi-Appliance Comfort Control

PNE Comfort Control - 2004 Page 8

Navigating the Controls

USING THE 9 BUTTONS

The following explains the function of each of the buttons:

ON/OFF

•Turns your heating and / or cooling appliances ON and

OFF. When you switch on in AUTO mode your preset

programs stored in memory (heating only) will start to

operate .

•During programming the ON/OFF button selects ON or

OFF for the program period.

•Use to set Fresh Air Conditioner TIMER ON/OFF

•Use to turn ZONES on and off (if fitted)

▼▲BUTTONS

•Press & hold ▼▲(DOWN/UP) button to increase or

decrease settings.

•Or press & release ▼▲buttons to increase or

decrease one setting at a time. Settings include day,

time, temperature, fan speed and timer.

•The ▼▲buttons are also used to select the different

zones or programs available.

HEAT/COOL/FRESH AIR

•Press to select from the heating and or cooling choices (in

most cases you will only be able to see the titles for the

appliances that you have installed).

•HEAT Ducted Gas Central Heaters

•COOL Dual Cycle Add-on Refrigerated Air Conditioning

•COOL FRESH AIR Ducted Evaporative Air

Conditioning

•FRESH AIR Fan only from your Fresh Air

Conditioner

•HEAT COOL Automatic selection of either a Gas

Central Heater or Dual Cycle Add-on Refrigerated Air

Conditioning to maintain a desired temperature no title

shows' Fan only from your Heater (when no other appliance

is installed)

Multi-Appliance Comfort Control

PNE Comfort Control - 2004 Page 9

Navigating the Controls

MANUAL/AUTO

•Press to select manual thermostat or

programmed operation for heating and manual

or thermostat for evaporative cooling.

ECONOMY/BOOST

•Select economy, boost or normal operating

modes.

CLEAN FILTER/ZONE ABCD

•Press to select the different zones within the

house (if available) or to activate the CLEAN

FILTER facility when in COOL FRESH AIR

mode.

SET TIME/PROGRAM

•Press & release to select the programming

options.

•To SET TIME, press and hold the button until

TIME is displayed.

ENTER

•Press and release to save settings when in

SET TIME, PROGRAM mode and ZONE

setting.

•Press and release to immediately send

instructions.

PRECOOL

•Press & release MANUAL/AUTO and

ECONOMY/ BOOST together to access

PRECOOL settings. PRECOOL can be set

with the Controller OFF.

RESET

•Press & release SET TIME/PROGRAM and

ENTER simultaneously to reset the unit if

RESET is displayed.

Multi-Appliance Comfort Control

PNE Comfort Control - 2004 Page 10

Navigating the Controls

SETTING DAY AND TIME

After installing batteries for the first time or replacing old batteries(RF hand held model), or after a power

cut (Low voltage hard wired model), the display will indicate OFF and the day and time when the

batteries/power were last removed.

SET TIME

Using SET TIME mode:

1. Press ON/OFF to switch the controller ON.

2. Press & hold the SET TIME/PROGRAM button for more

than 2 seconds until TIME flashes. A DAY will also flash

on the bottom row of the display.

3. Press ▲to advance to next day or ▼for previous days.

4. Press ENTER to select the day. The DAYS will stop

flashing and the HOURS segments will flash.

5. Press ▲to advance to next hour or ▼for previous

hours.

6. Press ENTER to select hour. HOUR will stop flashing and

MINUTES will flash.

7. Press ▲to advance to next minute or ▼for previous

minutes.

8. Press ENTER to select minutes.

9. Press SET TIME/PROGRAM to exit the time setting mode

at any stage.

12/24 HOUR CLOCK

To change between the 12 hour and 24 hour clock modes

1. Press & hold the SET TIME/PROGRAM button for more

than 2 seconds until TIME flashes.

2. When TIME is flashing press the SET TIME/PROGRAM

button again for approximately 3 seconds. The time will

switch between the 12 and 24 hour clock. (AM or PM

shows next to the clock in 12 hour clock mode.) Press SET

TIME/PROGRAM to exit.

Table des matières

Autres manuels Climate Technologies Télécommande

Climate Technologies

Climate Technologies Bonaire Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation

Climate Technologies multi-appliance Comfort Control Manuel utilisateur

Manuels Télécommande populaires d'autres marques
