Climate King HCK-BX9 Manuel

Climate

King®

User Manual and

Operating

Instructions

INDUSTRIAL

FAN HEATERS

READ INSTRUCTIONS CAREFULLY: Read and follow all

instructions. Keep these instructions in a safe place for future reference. Do

not allow anyone who has not read these instructions to assemble, adjust

or operate the heater.

This product is only suitable for well insulated spaces or occasional

use.

Model: HCK-BX9

1.1 This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children should not play with the appliance. Cleaning and user

maintenance should not be undertaken by children without supervision.

1.2 WARNING: In order to avoid overheating, do not cover the heater.

1.3 Children under 3 years old should be kept away from the appliance unless

continuously supervised.

1.4 Children aged from 3 years and less than 8 years should only switch the

appliance on/off provided that it has been placed or installed in its intended

normal operating position and they are supervised or given instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children

aged from 3 years and less than 8 years should not plug in, adjust and clean the

appliance or perform user maintenance.

1.5 CAUTION-some parts of this product can become very hot and could cause

burns if touched. Particular care must be given where children and vulnerable

people are present.

2. Introduction

2.1 Depending on the power cord fitted there may be limits regarding where this

fan heater can be used. See section 5 for more information. The unit incorporates

a thermostat and a non-self resetting thermal cut-out to control the heating

elements. The thermostat detects the air temperature and controls the heat output

of the appliance.The non-self reset thermostat will switch off the heater to

prevent overheating. The fan motor is not controlled by the thermostat. When the

thermostat switches off the heating element the fan can keep running.

2.2 When using the heater for the first time, you may notice a slight emission of

smoke. This is quite normal and it stops after a short time. The heating element is

made of stainless steel and was coated with a protective oil during manufacturing.

The smoke is caused by the residual protective oil when the heater is switched on

for the first time.

Technical specifications

Model

HCK-BX9

Waterproof Class

IPX4

Voltage

400V 3-Phase

Required Power

9000W

Current

13.0A

Required Fuse

16A

Setting

52/4500/9000W

Self-resetting Thermostat

40°C

Product Dimensions (mm)

355x300x490

Net Weight (kg)

9.6

3.1 Housing made of heat-resistant powder coated steel plate.

3.2Supplied with industrial socket installed in the heater. A 3-Phase cable (not

included) of the correct rating fitted with a suitable connector is required to

connect the HCK-BX9 to the power supply.

3.3 Coupler/3-Phase cable requirements:

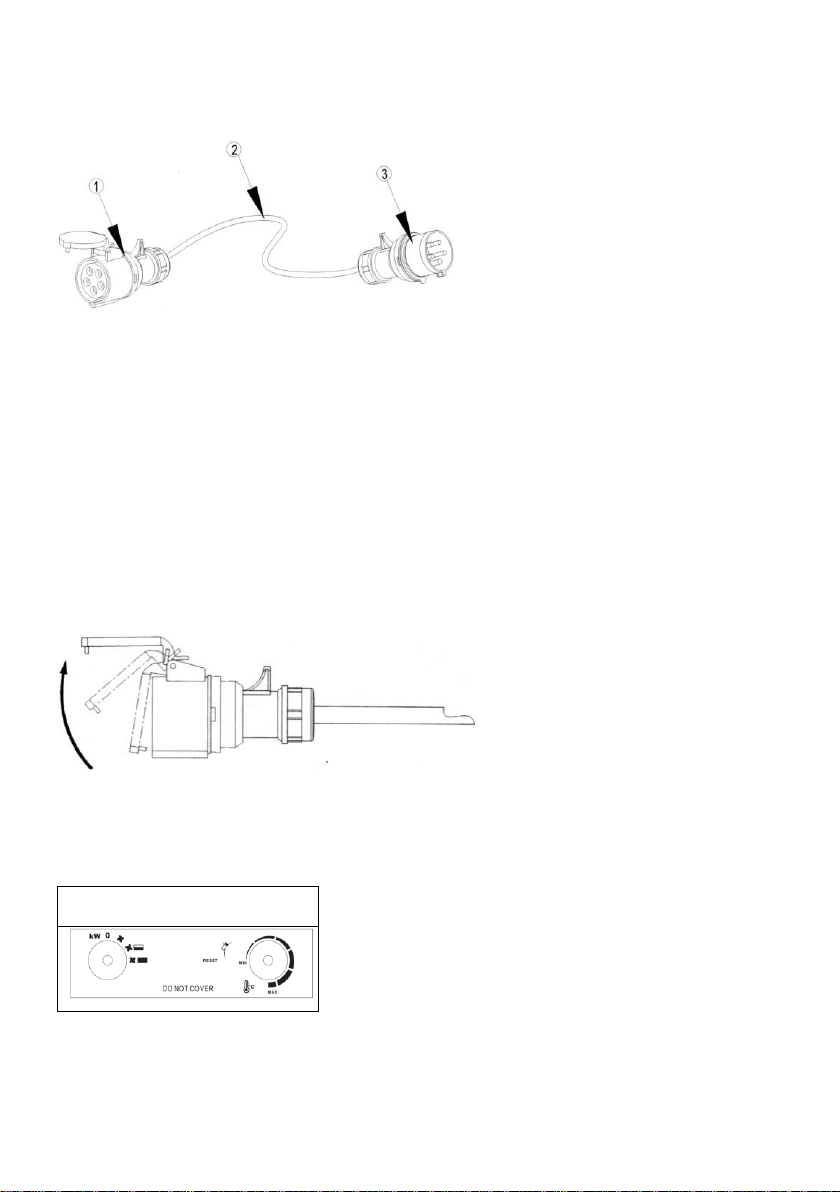

Figure 1

1. Five pin connector 380V/415V 50/60Hz (3P+N+E)

2. Power cord

3. Five pin plug 380V/415V 50/60Hz IPX4 (3P+N+E)

3.4.1 Any separately purchased coupler/cable should match with the appliance

and earthing pin layout. The coupler/cable should be approved for use in the

relevant country. The length of the power cord can be more than 1.8m but less

than 3m. If the power cord is too long and heavy, it could cause the cable to work

loose from the socket in the unit or cause a trip hazard.

3.4.2 When connecting the power cable to the appliance, open the protective lid

in the direction shown below

Figure2

3.5 After use shut down the appliance and remove the plug from the supply

before disconnecting the coupler end of the cable from the unit.

4. Description of Control Panel

HCK-BX9

4.1 Left Dial: Heat setting selector

4.2 Right Dial: Thermostat dial

5. Safety

5.1 Before use, please check the marking on the power cord. Depending on the

power cord type this appliance may be used in different ambient conditions

Type

You can use the appliance in

Do not use in

H07RN-F

household, warehouses and

workshops, building sites or

greenhouses

H05RN-F

household, warehouses and

workshops or greenhouses

building sites

H05RR-F

household, warehouses and

workshops

building sites or greenhouses

It is the responsibility of the owner and the operator to read, understand and

comply with the following:

You must check all electrical products, before use, to ensure that they are safe.

You must inspect power cables, plugs, sockets and any other connectors for wear

or damage. You must ensure that the risk of electric shock is minimised by the

installation of appropriate safety devices. Appropriate circuit protection should be

incorporated in the main distribution board and/or the individual circuit being used

to connect the appliance. If in doubt consult a qualified electrician before

connecting the appliance to the power supply.

You must also read and understand the following instructions concerning

electrical safety.

5.1.1. The Electricity at Work Act 1989 requires that all portable electrical

appliances, if used on business premises, are tested by a qualified electrician,

using a Portable Appliance Tester (PAT), at least once a year.

5.1.2. The Health & Safety at Work Act 1974 makes owners of electrical

appliances responsible for the safe condition of those appliances and the safety

of the appliance operators. If in any doubt about electrical safety, contact a

qualified electrician.

5.1.3. Ensure that the insulation on all cables and on the appliance is safe before

connecting it to the power supply. See 5.1.1. and 5.1.2. and use a Portable

Appliance Tester.

5.1.4. Ensure that cables are always protected against short circuit and overload.

5.1.5. Regularly inspect power supply cables and plugs for wear or damage and

check all connections to ensure that none are loose.

5.1.6. Important: Ensure that the voltage marked on the appliance matches the

power supply to be used.

5.1.7. DO NOT pull or carry the appliance by the power cable.

5.1.8. DO NOT pull the plug from the socket by the cable.

5.1.9. DO NOT use worn or damaged cables, plugs or connectors. Immediately

have any faulty item repaired or replaced by a qualified electrician.

5.2 When using the electrical appliance basic precautions should always be

followed including:

5.2.1 The fan heater is not suitable for use outdoors in damp weather, in

bathrooms or in other wet or damp environments.

5.2.2 The fan heater can become very hot and should, therefore, be placed at a

safe distance from flammable objects such as furniture, curtains and similar.

5.2.3 Do not cover any part of the fan heater.

5.2.4 The fan heater must not be located immediately below a wall socket.

5.2.5 Do not connect the fan heater using an on/off timer or other equipment

which can automatically switch the device on.

5.2.6 The fan heater must not be placed in rooms where flammable liquids or

gases are used or stored.

5.2.7 If an extension cord is used, it must be as short as possible and always be

fully extended.

5.2.8 You must not connect other appliances to the same mains socket as the fan

heater.

5.2.9 Do not use this fan heater in the immediate surroundings of a bath, a

shower or a swimming pool or any environment where it may come into contact

with water.

5.2.10 If the supply cord is damaged, it must be replaced by the manufacturer,

local service agent or similarly qualified persons in order to avoid a hazard.

5.2.11 Keep children and animals away from the appliance.

5.2.12 Do not place the fan heater on moving vehicles or anywhere it can be

easily tipped over.

5.2.13 If the fan heater is not used for an extended period, unplug the appliance.

Never remove the plug by pulling on the cord.

5.2.14 Keep the heater away from anything that could block the air inlet.

5.2.15 In order to prevent possible electric shock or leakage current, never use

the fan heater with wet hands or operate the appliance when there is water on the

power cord.

5.2. Do not dispose of electrical appliances as unsorted municipal waste, use

separate collection facilities. Contact local government for information regarding

the available disposal options. Improper disposal of electrical waste in landfills or

dumps can result in the release of hazardous substances into the environment.

Always dispose of electrical waste through approved recycling facilities.

5.2.17 This fan heater is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

5.2.18 Do not allow children to play with the appliance

6. Operating Instructions

6.1 Position the fan heater so that it stands upright on a firm surface and at a safe

distance from wet environments, sources of water and other liquids, flammable

objects and flammable substances.

6.2 Connect the fan heater to a mains power supply of the correct rating.

6.3 Set the thermostat dial to the MAX setting to set the heater to operate on full

power.

6.4 The fan heater will switch on when the heat level selector dial is set to one of

the power settings. It will take up to 3 minutes for the heater to reach optimum

temperature.

6.5 Once the room reaches the required temperature, turn the thermostat dial

counter-clockwise until the thermostat clicks and the heating element switches off.

Leave the dial in this position to maintain the room temperature. Once the

temperature drops, the heating element will switch on again to maintain

temperature.

6.6 After use and before switching off the heater, turn the thermostat to the MIN

position and turn the fan heat selector switch to the fan position, let the appliance

cool down for two minutes then turn off the heater and remove the plug.

6.7 The HCK-BX9 has an additional thermostat to control the fan motor. If the

internal temperature of the heater is high and it is connected to the power supply

the thermostat can allow the fan to continue to operate independently of the heat

selector dial setting. For example, after operation, when the heater is turned off,

the fan motor may continue to operate to aid the internal cooling of the heater.

7. Cleaning and Maintenance

7.1 Before cleaning the appliance, disconnect it from the power supply and let it

cool down. To keep the outside of the heater case clean, wipe it regularly with a

soft sponge. Where the outside of the case is heavily soiled, wipe it with a sponge

dipped in <50°C water and mild detergent, then dry the heater enclosure with a

clean cloth. Be careful not to let the water enter the appliance or splash water

directly onto the heater. Never use solvent or abrasive cleaners to clean the

heater.

7.2 Clean the cord and plug, dry and pack it in a plastic bag.

7.3 When you store the heater, let it cool down first, keep it dry. Then cover it with

a plastic bag, put in a packing box and store it in a dry, ventilated place.

8. Troubleshooting:

You can solve many common problems easily, saving you the cost of a possible

service call. Try the suggestions below to see if you can solve the problem before

making a warranty call.

Problem

Possible cause

Treatment

The heater does not

operate, even when

it is plugged in and

the heat level

selector switch and

thermostat are

switched on.

The plug is loose, bad

connection

Remove the plug, check the

connection of the plug and

socket. Then connect again.

No power in socket outlet

Move the plug to an

alternative socket with a

known good power supply

The heating

element is glowing

The input voltage is too

high or too low

Use a power supply

according to the rating on the

label

The air inlet grill is blocked

Check the air inlet and

remove any blockage. Keep

the heater away from articles

like curtains, plastic bags,

paper and other items which

can block the air inlet.

The appliance does

not heat up, or only

ventilator worked

The heat selector dial was

not set to a heating setting

Turn the dial to a heat setting

The thermostat operated

Set the thermostat to a higher

temperature and listen to hear

it operating. If there is no click

and the thermostat is not

damaged, the heater will

automatically switch on when

the appliance cools.

The self-resetting cut-out

operated

Turn the heater off and

inspect the blockage of the

inlet or outlet. Disconnect

the plug and wait at least 10

minutes for the protection

system to reset before

attempting to restart the

heater.

The Non-self resetting cut-

out operated

(only for devices fitted with

this function)

Disconnect the power, insert

a suitable size pin/clip/item in

the reset hole on the control

panel, press down on the

reset button.

Abnormal noise

The appliance is not

standing upright

Put the heater on a level

surface

Model identifier(s):HCK-BX9

Item

Symbol

Value

Unit

Item

Unit

Heat output

Type of heat input, for electric storage local space heaters only

(select one)

Nominal heat

output

Pnom

Manual heat charge control with integrated thermostat

[no]

Minimum heat

output (indicative)

Pmin

4.5

Manual heat charge control with room and/or outdoor

temperature feedback

[no]

Maximum

continuous heat

output

Pmax

Electronic heat charge control with room and/or

outdoor temperature feedback

[no]

Auxiliary electricity consumption

Fan assisted heat output

[no]

At nominal heat

output

elmax

N/A

Type of heat output/room temperature control (select one)

At minimum heat

output

elmin

N/A

Single stage heat output and no room temperature

control

[no]

In standby mode

elSB

N/A

Two or more manual stages, no room temperature

control

[no]

With mechanic thermostat room temperature control

[yes]

With electronic room temperature control

[no]

Electronic room temperature control plus day timer

[no]

Electronic room temperature control plus week timer

[no]

Other control options (multiple selections possible)

Room temperature control, with presence detection

[no]

Room temperature control, with open window detection

[no]

With distance control option

[no]

With adaptive start control

[no]

With working time limitation

[no]

With black bulb sensor

[no]

Contact details:

Remark:

For electric local space heaters, the measured seasonal space heating energy efficiency ηs cannot be worse than the declared

value at the nominal heat output of the unit.

Disposal

Environmental Protection

Waste electrical products should not be disposed of with household

waste. Please recycle where facilities exist. Check with your Local

Authority or retailer for recycling advice.

SERVICE WARRANTY

Cottage Stores LLP guarantees the product free from defects in materials and

workmanship for a period of twelve months after purchase. Proof of purchase will

be required. Should this unit be operated under conditions other than those rec-

ommended, at voltages other than the voltage indicated on the unit, or any at-

tempts made to undertake unapproved servicing or make modifications to the

unit, then the warranty will be rendered void. The product you buy may sometimes

differ slightly from illustrations. This warranty is in addition to, and does not affect,

your statutory rights. If you have any problems with this product, please in the

first instance call the retailer from whom you purchased it.

Climate King

Cottage Stores LLP

7 Harris Drive

Rugby CV22 6DX

United Kingdom

Autres manuels pour HCK-BX9

Table des matières

Autres manuels Climate King Chauffage

Climate King

Climate King HCK-TP3UK Manuel

Climate King

Climate King HCK-BX9 Manuel utilisateur

Climate King

Climate King HCK-BX2UK Manuel

Climate King

Climate King HCK-TP30 Manuel

Climate King

Climate King HCK-BX5 Manuel

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
