MMaattrriixx11XX

➤

OOwwnneerr’’ssGGuuiiddee

LLiimmiitteeddlliiffeettiimmeeccoonnssuummeerrwwaarrrraannttyy

Directed Electronics ("Directed") promises to the original purchaser to repair or replace

with a comparable reconditioned model any Directed unit (hereafter the "unit"), exclud-

ing without limitation the siren, the remote transmitters, the associated sensors and acces-

sories, which proves to be defective in workmanship or material under reasonable use dur-

ing the lifetime of the vehicle provided the following conditions are met: the unit was pro-

fessionally installed and serviced by an authorized Directed dealer; the unit will be pro-

fessionally reinstalled in the vehicle in which it was originally installed by an authorized

Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy

of the bill of sale or other dated proof of purchase bearing the following information: con-

sumer's name, telephone number and address; the authorized dealers name, telephone

number and address; complete product description, including accessories; the year, make

and model of the vehicle; vehicle license number and vehicle identification number. All

components other than the unit, including without limitation the siren, the remote trans-

mitters and the associated sensors and accessories, carry a one-year warranty from the date

of purchase of the same. This warranty is non-transferable and is automatically void if: the

original purchaser has not completed the warranty card and mailed it within ten (10) days

of the date of purchase to the address listed on the card; the unit's date code or serial num-

ber is defaced, missing or altered; the unit has been modified or used in a manner con-

trary to its intended purpose; the unit has been damaged by accident, unreasonable use,

neglect, improper service, installation or other causes not arising out of defects in materi-

als or construction. The warranty does not cover damage to the unit caused by installa-

tion or removal of the unit. Directed, in its sole discretion, will determine what consti-

tutes excessive damage and may refuse the return of any unit with excessive damage. TO

THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUD-

ING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY,

WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE

AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY,

ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR

AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY,

OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.

DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY

AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEAL-

ERS OR INSTALLERS. DIRECTED SECURITY SYSTEMS, INCLUDING THIS

UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT

OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAM-

AGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND

HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-

ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR

VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR

MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY

CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM

OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER

VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.

CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY

AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY

CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE

AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT.

DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEV-

ER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,

INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF

EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY

AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER

DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON-

TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on

how long an implied warranty will last or the exclusion or limitation of incidental or con-

sequential damages. This warranty gives you specific legal rights and you may also have

other rights that vary from State to State.

This product may be covered by a Guaranteed Protection Plan ("GPP"). See your autho-

rized Directed dealer for details of the plan or call Directed Customer Service at 1-800-

876-0800. Directed security systems, including this unit, are deterrents against possible

theft. Directed is not offering a guarantee or insurance against vandalism, damage or theft

of the automobile, its parts or contents; and hereby expressly disclaims any liability what-

soever, including without limitation, liability for theft, damage and/or vandalism.

Directed does not and has not authorized any person or entity to create for it any other

obligation, promise, duty or obligation in connection with this security system.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

➤Date of purchase

➤Your full name and address

➤Authorized dealer's company name and address

➤Type of alarm installed

➤Year, make, model and color of the automobile

➤Automobile license number

➤Vehicle identification number

➤All security options installed on automobile

➤Installation receipts

iii

TTaabblleeooffccoonntteennttss

LLiimmiitteeddlliiffeettiimmeeccoonnssuummeerrwwaarrrraannttyy..............................................................................ii

22--wwaayyLLCCDDrreemmootteeccoonnttrrooll..........................................................................................11

LLCCDDssccrreeeenn..................................................................................................................22

SSttaannddaarrddrreemmootteeccoonnffiigguurraattiioonn....................................................................................33

WWhhaattiissiinncclluuddeedd..............

............................................................................................44

IImmppoorrt

taannttiinnffoorrmmaattiioonn..................................................................................................44

System maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

FCC/ID notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

RReeppllaacceemmeennttrreemmootteeccoonnttrroollss........................................................................................77

22--wwaayyLLCCDDrreemmootteeccoonnttrroollffuunnccttiioonnss................................

..........................................77

Standard configurations (1-way and 2-way remote controls). . . . . . . . . . . . . . . . 7

Standard LCD icon configurations (2-way only). . . . . . . . . . . . . . . . . . . . . . . . . 9

RReemmootteeooppeerraattiioonn......................................

................................................................1122

System signal paging features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Out of range notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

PPrrooggrraammmmiinnggLLCCDDrreemmoottee........................................................................................1144

To enter programming mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Beeps/Vibration On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Illumination On/Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Page notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

To exit programming mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

UUssiinnggyyoouurrssyysstteemm......................................................................................................1166

Active arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Passive arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Multi-level security arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Disarming without a transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Dome light control (optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Silent mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Panic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

False Alarm Control Technology (FACTIITM) . . . . . . . . . . . . . . . . . . . . . . . . . . 25

AAuuxxiilliiaarryyoouuttppuuttss((ooppttiioonnss))........................................................................................2266

DDiiaaggnnoossttiiccss................................................................................................................2277

Arming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Disarming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table of zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Interpreting zone diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

OOwwnneerrrreeccooggnniittiioonn......................................................................................................3311

RRaappiiddrreessuummeellooggiicc....................................................................................................3322

PPoowweerrssaavveerrmmooddee......................................................................................................3322

PPrrooggrraammmmiinngg.........................

.....................................................................................3333

IInnssttaallllaattiioonnooppttiioonnss....................................................................................................3377

VVeehhiicclleerreeccoovveerryyssyysstteemm((VVRRSS®®))...........................................................

.....................3377

Arming the VRS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Triggered sequence, VRS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Disarming the VRS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

SSeeccuurriittyy&&ccoonnvveenniieenncceeeexxppaannssiioonnss........................................

....................................4411

GGlloossssaarryyoofftteerrmmss........................................................................................................4433

QQuuiicckkrreeffeerreenncceegguuiiddee................

................................................................................4455

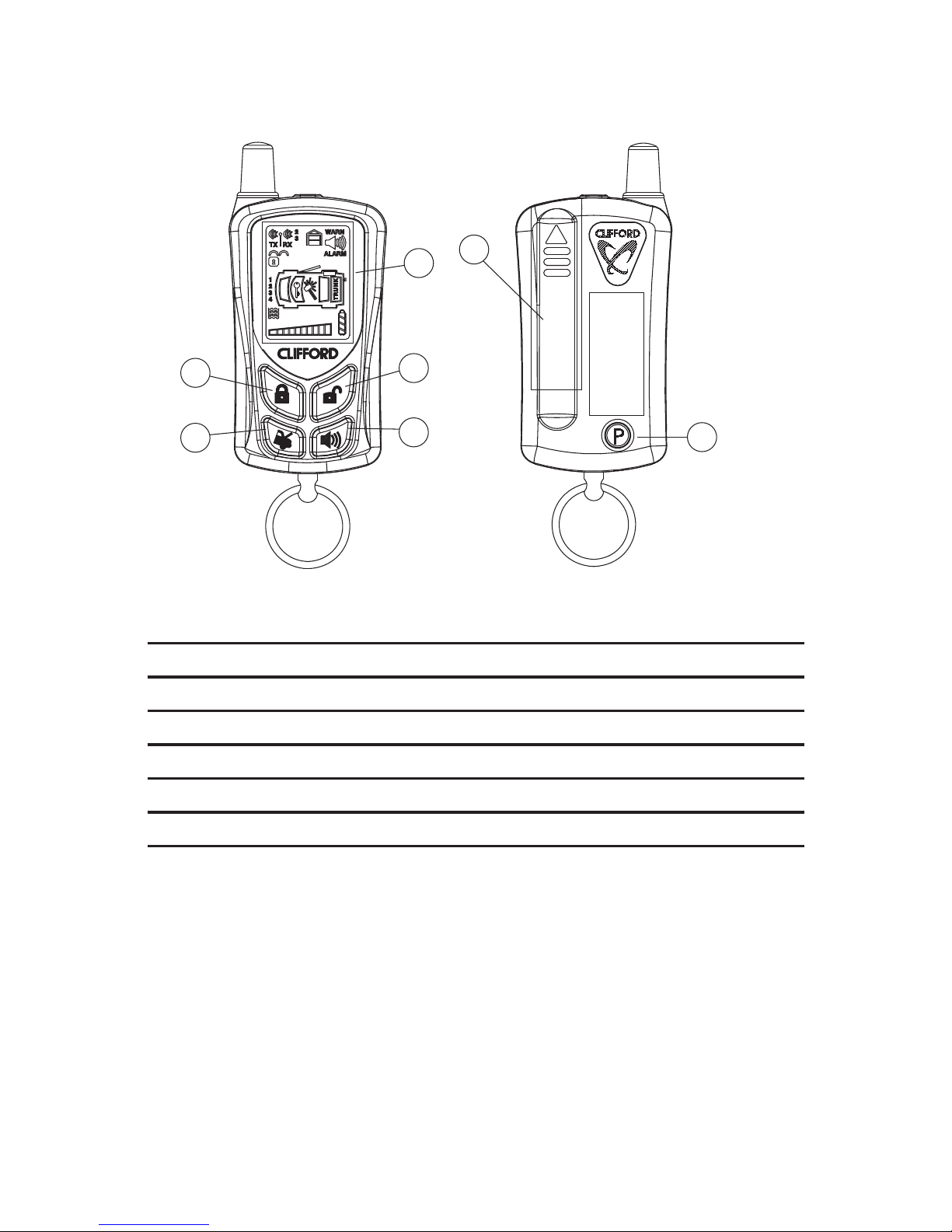

22--wwaayyLLCCDDrreemmootteeccoonnttrrooll

1. Auxiliary Channel Button

2. Arm Button

3. LCD Screen (see LCD Screen)

4. Disarm Button

5. Panic Button

6. Battery Compartment

7. Program Button

1 5

1-800-274-0200

2(66) CODES

FCC ID:EZSDEI489

RPN 7341V/P/X

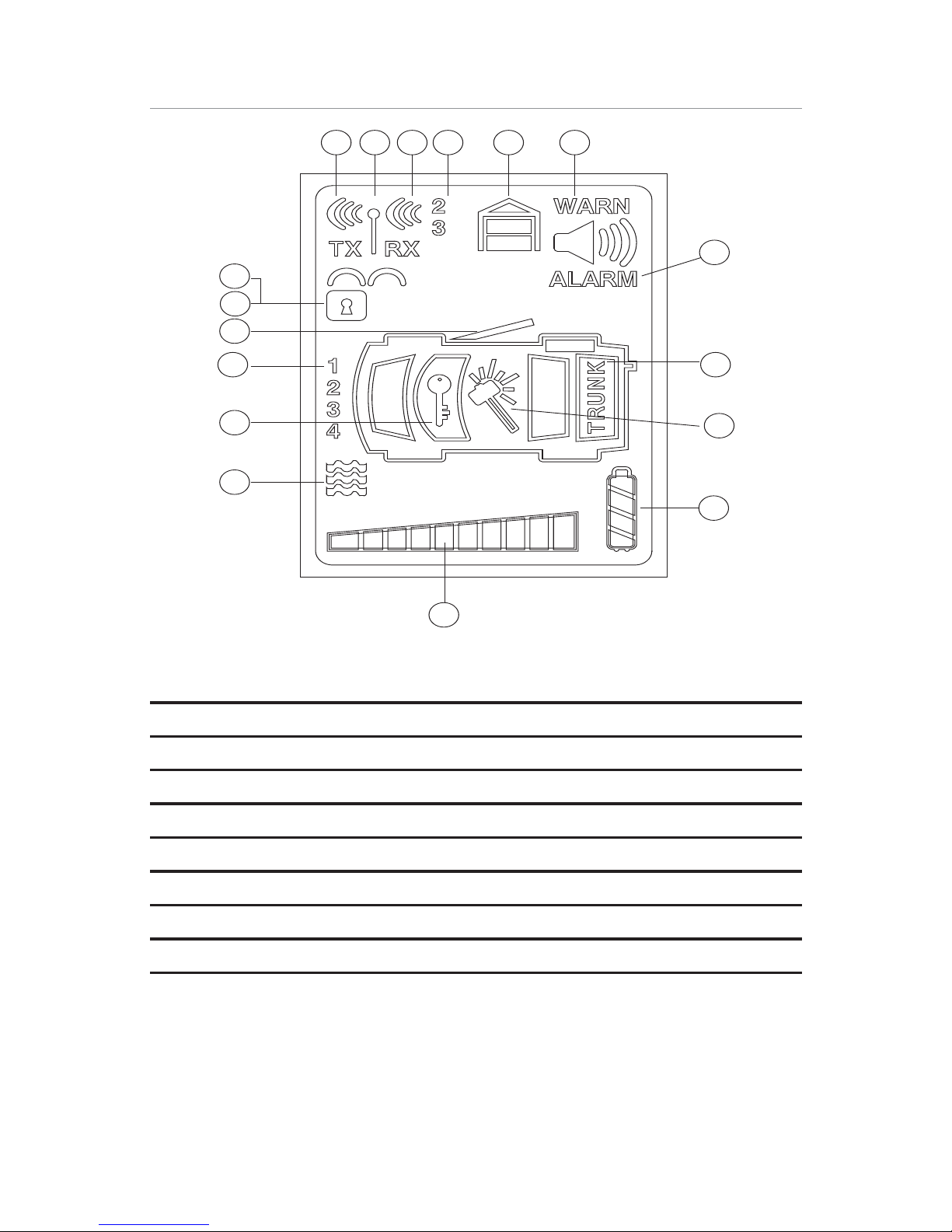

LLCCDDssccrreeeenn

1. Transmit 10. Battery level indicator

2. Out of range 11. Remote sending

3. Receive 12. Vibrate mode

4. Aux Output 2 or 3 13. Ignition

5. Garage door (519H2 option) 14. Vehicle number

6. Warn Away®15. Door

7. Alarm 16. Arm

8. Trunk or Hood 17. Disarm

9. Sensor

1 23 4 5 6

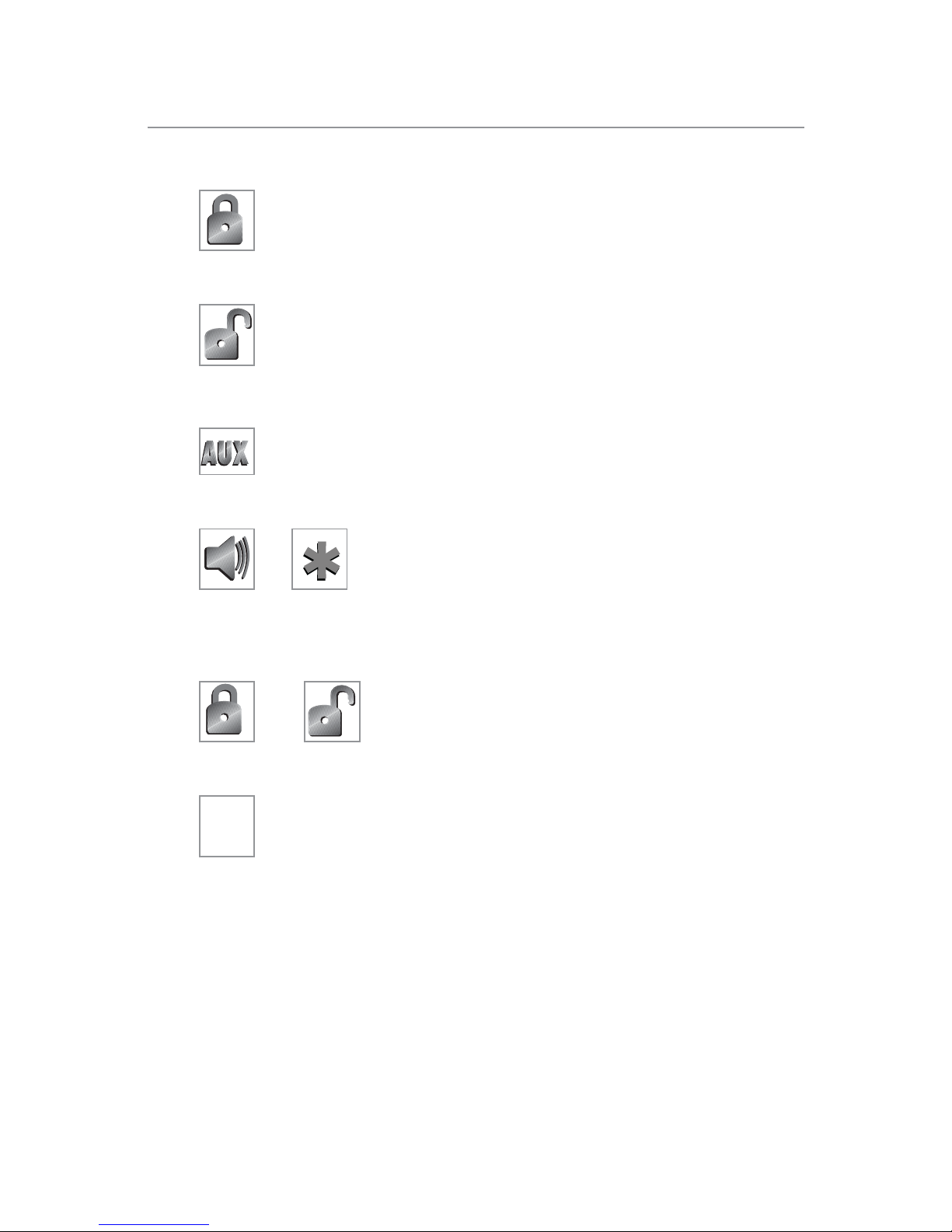

SSttaannddaarrddrreemmootteeccoonnffiigguurraattiioonn

controls the LLoocckk––AArrmm//PPaanniiccOOnn//PPaanniiccOOfffffunction.

controls the UUnnlloocckk––DDiissaarrmm//PPaanniiccOOfffffunction.

controls SSiilleennttMMooddee™™and an AAuuxxiilliiaarryyOOuuttppuutt((22)).

or controls the

PPaanniic

cOOnn//OOfffffunction (hold for 2-

seconds).

and pressed together control an AAuuxxiilliiaarryyOOuuttppuutt((33)).

(located on back of the remote) selects the vehicle to control

and also provides user selection of LCD remote response .

WWhhaattiissiinncclluuddeedd

➤Control module

➤1 four-button 2-way LCD transmitter

➤1 four-button transmitter

➤Wire harnesses

➤The 514N six-tone programmable siren

➤In-vehicle status LED indicator light

➤A push-button Valet switch

➤Your warranty registration

➤Failsafe®Starter Kill ready circuitry

(may require additional labor)

➤548T receiver/antenna

IImmppoorrttaannttiinnffoorrmmaattiioonn

Congratulations on the purchase of your state-of-the-art vehicle

security system. This system has been designed to provide years

of trouble-free operation. Due to the complexity of this system,

it must be installed by an authorized dealer only. Installation of

this product by anyone other than an authorized dealer voids the

warranty. All dealers are provided with preprinted dealer certifi-

cates to verify that they are authorized.

This owner’s guide should help you to get the most out of your

system. Please take the time to read it prior to using the system.

note: On both remotes the panic button is the same color.

System maintenance

This system needs no specific maintenance beyond remote

control battery replacement. The 2-way remote is powered by a

1.5V AAA battery. The 1-way remote is powered by a pair of 3V,

CR2016 batteries.

BBaatttteerryyLLeevveellIInnddiiccaattoorr((22--wwaayyrreemmoottee))

The Battery Level indicator has four level indicators that serve as

a visual indication of battery charge. When the battery reaches a

low charge level that requires replacement, the remote control

will generate a single notification chirp, and the Battery Level

indicator will flash continuously.

Battery Replacement (2-way remote)

Gently pull the end of the battery door away from the top of the

remote control then slide the door up to expose the battery and

remove the expired battery. Place the new battery into the remote

control observing the correct polarity. When power is returned

the remote control will display all icons in the LCD and generate

all beeper tones once. Press any button on the remote to termi-

nate the beeper tone review.

Your warranty

Your warranty registration must be returned and the bar code

serial number must not be removed. If the warranty registration

is not returned, you do not have a warranty. It is also necessary to

➜

Table des matières

Autres manuels Clifford Alarme de voiture

Clifford

Clifford 4105X Manuel utilisateur

Clifford

Clifford SOLARIS 5 Manuel utilisateur

Clifford

Clifford Concept 650 Manuel utilisateur

Clifford

Clifford 562C Manuel utilisateur

Clifford

Clifford Auto Immobilizer Manuel utilisateur

Clifford

Clifford CallGuard Manuel utilisateur

Clifford

Clifford 3706X Manuel utilisateur

Clifford

Clifford 330X1 Manuel utilisateur

Clifford

Clifford Prime Level Three Manuel utilisateur

Clifford

Clifford SE 2020 Special Edition Manuel utilisateur

Clifford

Clifford cyber Arrow 3 Manuel utilisateur

Clifford

Clifford 4706X Responder LC3 Manuel utilisateur

Clifford

Clifford Concept 650MkII Manuel utilisateur

Clifford

Clifford Delta IV Manuel utilisateur

Clifford

Clifford Bullet II Manuel utilisateur

Clifford

Clifford Bullet 4 Manuel utilisateur

Clifford

Clifford 4606X Manuel utilisateur

Clifford

Clifford Bullet 2 Manuel utilisateur

Clifford

Clifford ACE 2000 Manuel utilisateur

Clifford

Clifford G5 11CX 562C Manuel utilisateur

Clifford

Clifford Polaris II Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Clifford

Clifford Model RSX1.5 Manuel utilisateur

Clifford

Clifford Auto Immobilizer Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur

Viper

Viper 560XV Manuel utilisateur

SECO-LARM

SECO-LARM 300C Manuel utilisateur

Python

Python 660XP Manuel utilisateur
