CLEARSPAN™END WALL FRAMING KITS

Revision date: 11.12.14

is prohibited without permission. STK#

108986 End Frame Kit

ClearSpan™End Frame Kit

36' Wide x 16' 2" High

Rafter is not included with kit. Customer supplies the concrete to secure the 2" x 2" tubing.

CLEARSPAN™END WALL FRAMING KITS

2Revision date: 11.12.14

YOU MUST READ THIS DOCUMENT BEFORE YOU

BEGIN TO ASSEMBLE THE END WALL KIT.

Thank you for purchasing this ClearSpan™ End Frame Kit.

When properly assembled and maintained, this product will

provide years of reliable service. These instructions include

helpful hints and important information needed to safely

assemble and properly maintain the end wall. Please read

these instructions before you begin.

If you have any questions during the assembly, contact

Customer Service for assistance.

SAFETY PRECAUTIONS

• Wear eye protection.

• Wear head protection.

• Wear gloves when handling metal tubes.

• Use a portable GFCI (Ground Fault Circuit Interrupter)

when working with power tools and cords.

• Do not climb on the shelter or framing during or after

construction.

• Do not occupy the shelter during high winds,

tornadoes, or hurricanes.

• Provide adequate ventilation if the structure is

enclosed.

• Do not store hazardous materials in the shelter.

• Provide proper ingress and egress to prevent

entrapment.

WARNING: The individuals assembling this end

frame are responsible for designing and furnishing all

temporary bracing, shoring and support needed during

the assembly process. For safety reasons, those who

are not familiar with recognized construction methods

and techniques must seek the help of a qualified

contractor.

ASSEMBLY PROCEDURE

Following the instructions as presented will help ensure the

proper assembly of your end wall. The steps outlining the

assembly process are as follows:

1. Verify that all parts are included in the shipment. Notify

Customer Service for questions or concerns.

2. Read these instructions, the Must Read document, and

all additional documentation included with the shipment

before you begin assembling the end wall.

3. Gather the tools, bracing, ladders (and lifts), and

assistance needed to assemble the end frame.

4. Check the weather before you install the end frame

panel (if equipped). Do not install end panels on a

windy or stormy day.

5. Assemble the end wall frame.

6. Read the care and maintenance information at the end

of these instructions.

7. Complete and return all warranty information as

instructed (if included).

REQUIRED TOOLS

The following list identifies the main tools needed to

assemble the end wall. Additional tools and supports may

be needed depending on the structure, location, and

application.

• Tape measure or measuring device

• Fine point marker to mark the location on tubing.

• Variable speed drill and impact driver (cordless with

extra batteries works best)

• Metal file and metal-cutting saw

• Wrenches and impact socket set

• Scissors or utility knife

• Hammers, gloves and eye protection

• Adjustable pliers and self-locking pliers

• Ladders, work platforms, and other machinery for lifting

designed to work safely at the height of the building

and end wall.

ATTENTION: Consult the services of a qualified,

professional contractor if you are not familiar with the

construction of similar frame structures.

CLEARSPAN™END WALL FRAMING KITS

Revision date: 11.12.14

UNPACK AND IDENTIFY PARTS

The following steps will ensure that you have all the

necessary parts before you begin to assemble the end wall.

1. Unpack the contents of the shipment and place where

you can easily inventory the parts. Refer to the Bill of

Materials/Spec Sheets.

2. Verify that all parts listed on the Bill of Materials/Spec

Sheets are present. If anything is missing or you have

questions, consult the parts guide on the next page

and all diagrams for clarification, or contact customer

service.

NOTE: At this time, you do not need to open the plastic

bags containing smaller parts such as fasteners and

clamps.

QUICK START GUIDE

For a quick overview of the end wall and its components,

consult the Quick Start Guide at the back of these

instructions.

Optional End Panel Installation (additional purchase)

In addition to the end frame installation steps, these

instructions describe installing an optional end panel.

(Additional purchase required.)

The components used to install the optional end panel are

also described and shown during the procedure. Some

components may differ from what is shown.

Contact your sale representative to purchase an end panel

with end panel installation kit if desired.

ATTENTION: Some of these instructions may not apply

to your end wall and shelter. It is the customer's or

contractor's responsibility to adapt these instructions as

needed during the construction process.

These end wall kits are designed to attach to buildings

with a specific rafter pipe dimension. Differences in

pipe dimensions may require the purchase of additional

components. If you are securing the end frame kit to an

existing structure, verify that you have the required clamps

to complete the installation. May not apply to your building.

The following graphics and photos will help you identify the

different parts. (Some parts are not shown.)

FA4482B

Tek Screw

100441

Nut Setter

QH1330

Angled Bracket

104075

1.75" x 1.75" Square Tube

CLEARSPAN™END WALL FRAMING KITS

4Revision date: 11.12.14

ClearSpan™

End Frame Kit

OVERVIEW

This section describes assembling your end frame

kit. For details, please see section "Assembling the

End Frame Kit Components." See illustration below to

identify main parts of end frame kit.

1. Locate the required parts for each assembly

procedure.

2. Assemble and attach all end wall framing.

3. Prepare and attach end panel (if equipped).

4. Prepare and install doors (if equipped).

ATTENTION: End frame spacing depends on the door sizes

and may differ from what is shown in these diagrams. Consult

the End Wall diagrams in the Quick Start section for pipe

identifications and locations.

If you are installing an overhead door, do not attach end framing

within the door opening.

Additional purchase required for end panel and doors.

ground level

ATTENTION: The QH1330 bracket shown in the detail

above (left) is used to secure the vertical frame tube to a

concrete slab. It is also used to secure a base tube (not

included) between each vertical tube. It is not used when

vertical tube is set in the concrete pier.

QH1330

Bracket

Base Tube

CLEARSPAN™END WALL FRAMING KITS

Revision date: 11.12.14

ASSEMBLING THE END FRAME KIT COMPONENTS

Consult the end wall diagrams in the Quick Start section of

these instructions before you begin.

ATTENTION: If the main cover is installed, loosen the two

(2) main cover bonnet ratchets at the end of the shelter

where the end wall will be installed. If an end panel is to

be installed, remove the ratchets to install the end panel

frame. The ratchets are reattached after the end frame is

installed.

Assistance is required to assemble the end wall. Lifts

designed to reach the top of the end rafter are also needed.

Consult a qualified construction professional if you are not

familiar with the construction of similar frame structures.

INSTALL THE END FRAME

• Angled Bracket (#QH1330)

• Tek screws (#FA4482B)

• 2" x 2" square tube (105328)

• 1.75" x 1.75" square tube inserts (104075)

The following steps describe one way to set end frame tubes.

1. At ground level, measure between the legs of the end rafter to locate the center of the end wall. Use a plumb line to

identify the center of the overhead rafter and mark that location on the ground as well.

2. Using the dimensions on the Front Profile diagrams, locate the positions of the end frame (or door jambs for the door

if equipped). The width of the door determines the frame dimensions for the door opening. Consult the documentation

sent with the door for the correct spacing of the door jambs.

3. Dig a 12" diameter hole at the locations found in previous step to a depth that is below the geographic frost line.

ATTENTION: Concrete should remain 1" to 2" below ground level so that it does not interfere with construction and

installation of the door frame components if equipped.

Ground Level

Sample Frame

ATTENTION: If you are installing an overhead door, do not

attach framing within the door opening.

4. Assemble the vertical frame members and attach the upper ends

to the end rafter using QH1330 brackets and Tek screws.

NOTE: Splice the joints of the 2" x 2" tubes using a 104075

(1.75" x 1.75") square tube insert for each splice. Install Tek

screws to secure each splice.

Do not install Tek screws on surfaces where the end panel

(if equipped) or overhead door (if equipped) are positioned.

Consult the installation instructions that shipped with the door for

additional information. If an overhead door (additional purchase

required) is to be installed, do not install the center vertical within

the framed door opening.

ATTENTION: For best results, cut the 2" x 2" tube assembly to

a length that allows the bottom end to extend into ground anchor

holes at least 12" to be secured.

*Not shown to scale.

Concrete

*2.00" x 2.00"

square tube

Finished Grade

12"

CLEARSPAN™END WALL FRAMING KITS

6Revision date: 11.12.14

9. After assembling end frame, inspect frame for sharp edges and bolts that could damage end panel (if equipped) or

main cover when it is pulled back into place. Tape over or file the sharp edges as needed.

10. Install end panel if equipped. (Additional purchase required for end panels and doors.)

NOTE: If covering the end frame with something other than an end panel, install that material now and then secure

the main cover of the shelter.

5. Plumb the vertical frame tube and use wooden stakes or other means to anchor it in place.

6. Repeat the steps to construct, attach, and set the remaining end frame tubes.

7. Verify that all end frame tubes are plumb and spaced as needed.

8. Add concrete to each hole and allow to set. Concrete should remain a few inches below the finished grade.

INSTALL THE END FRAME (CONTINUED)

2" x 2" Tubes

Finished Grade

2" x 2" Tubes

Concrete Pier

CLEARSPAN™END WALL FRAMING KITS

Revision date: 11.12.14

END PANEL INSTALLATION

The following procedure describes installing an end panel

that includes D-rings at the top and horizontal pocket heat

sealed to the lower inside surface of the panel.

Additional purchase is required for end panel and end

panel installation kit. Complete these steps to install an

end panel of this design.

Required parts include:

• End panel

• 131S075 Pipe (kit)

• QH1061 Ratchet & 103620E 1" strap (kit)

• FAMF01B Washers & FA4482B Tek screws (kit)

1. Position the panel flat on ground with the long edge

against the bottom end wall frame member and the

pocket facing up. (The pocket and D-rings should be

visible when the panel is positioned properly.)

2. Locate D-rings near top edge of panel and tie a section

of strapping (or rope) to center-most D-ring. Tie two

additional straps on each side of the center D-ring,

allowing a few feet to remain between the straps.

Outside of the End Panel

DO NOT ATTEMPT

TO PULL THE END

PANEL INTO POSITION

ON WINDY OR STORMY

DAYS!

3. With the temporary straps (or customer-supplied rope)

in place, pull the end panel up to the end rafter and

secure the end panel to the end rafter using small

sections of the strap. Keep the panel centered.

End Panel

Main Cover

Strap in D-ring

Top Chord of the

End Rafter

NOTE: Pull top edge of end panel toward rafter.

(Approximately 1 to 2 feet of the end panel material will

remain at and run along the base of the end wall. In a

later step, this can be secured to the bottom tube of the

end wall frame, if equipped. Or, it can remain as a skirt

to direct water away from the shelter.)

The end panel must touch the ground after the top

edge of the panel is secured to the rafter. Adjust panel

and strap as needed.

View (above) is from the inside of the shelter looking

at the end panel. Frame and rafter shown are different

from your frame. The technique used to secure the

end panel is the same however. Photo shows the main

cover installed.

CLEARSPAN™END WALL FRAMING KITS

8Revision date: 11.12.14

4. Once the end panel is temporarily secured, take the roll

of 1" strapping and weave the end of the strap through

the D-rings and around the rafter pipe as shown below.

END PANEL INSTALLATION (CONTINUED)

Strap with built

in D-rings near

the top edge of

the end panel.

Main security strap woven

through D-rings and around

the end rafter.

Main Cover

End Panel

Main Cover Stretch Pocket

Photo above shows a building with the main cover

already installed. View is from the inside looking up at

the rafter and main cover. Rafter design may differ from

actual rafter.

NOTE: Maintain an even space between the rafter

and the top of the end panel. The end panel flap that

extends beyond the D-rings is tucked between the

rafter and the main cover.

DO NOT attach the flap to the end rafter at this time.

5. Stretch the bottom of the end panel evenly out on the

ground along the bottom frame tube of the end wall

frame (if needed) and tighten the 1" strap at the top of

the end panel. Top of end panel must remain as close

to the rafter as possible.

NOTE: Verify that the lower end of the panel remains

on the ground as the top is tightened. If the panel

begins to lift off the ground, loosen the top evenly along

the radius of the rafter. (In a later step, the end panel

is stretched from the bottom to pull the panel tight and

into position using the end panel horizontal conduit,

straps, and ratchets.)

6. With the top edge of the end panel secured, continue

by installing the end panel conduit.

Space below is reserved for customer notes.

CLEARSPAN™END WALL FRAMING KITS

Revision date: 11.12.14

8. Align the strap ends and insert both ends into the slot

in the center hub of the ratchet.

9. Tighten slightly and repeat the steps for the remaining

straps and ratchets.

ATTENTION: If strap "builds up" inside ratchet, loosen

ratchet, remove excess strap, and retighten.

10. Return to all horizontal conduit ratchets and tighten.

11. After straps are tight, cut the opening for door

installation if equipped.

NOTE: If no doors, reinstall ratchets for the main cover

bonnet and tighten main cover bonnet.

If you are installing an optional door, consult the

general steps in the following procedure. Some steps

may not apply. It is the installer's responsibility to adapt

these instructions as needed to install an end panel.

END PANEL INSTALLATION (continued)

Install Horizontal End Panel Conduit

Depending on size and design, some end panels include

a horizontal pocket on the inside panel surface. A pipe

assembly is inserted into the pocket. Conduit is secured to

the end frame using straps and ratchets.

Complete these steps to assemble and install the pipe

assembly. Required Pipe: 1.315" x 75" swaged Pipe

(#131S075)

NOTE: If doors are to be installed, cut the pipe to the

correct length to properly fit into the pocket and to remove it

from the opening.

1. Locate the 1.315" pipes and assemble sections to

achieve the required length. (Cut to length if needed.)

2. Secure each pipe joint with a Tek screw. Wrap joint and

screw with duct tape to prevent end panel damage.

3. Insert assembled conduit into horizontal end panel

pocket. (End wall and panel shown are used for

illustration only. These may differ from actual items.)

5. Once ratchets are attached, make a horizontal slit

(approximately 3"– 6" long) in the horizontal pocket

directly above each ratchet. See photos for details.

(Photos show a different frame.)

WARNING: Cut only the end panel pocket. DO NOT

cut through the end panel.

6. Locate the 1" strapping and cut a section that reaches

from the ratchet (#QH1061), around the horizontal

conduit in the panel pocket, and back to the ratchet.

NOTE: Allow enough extra strap so you can insert both

ends of the strap into the ratchet.

7. Thread one end of the strap in through the slit, around

the conduit, and back to the ratchet.

Horizontal Pocket

4. Locate the QH1061 ratchets and attach these to the

end wall frame tubes on the inside surface using

FA4482B Tek screws. If a base rail is installed (not

included), space ratchets evenly along base rail in a

location that will not interfere with the installation of

doors (if equipped).

NOTE: For end walls with door openings, attach

ratchets in locations that will best secure and stretch

the end panel. This may or may not be evenly spaced

CLEARSPAN™END WALL FRAMING KITS

10 Revision date: 11.12.14

END PANEL INSTALLATION (continued)

3. Make two (2) diagonal cuts in the end panel as shown above to create the 12"-16" flaps.

4. Continue with the next procedure.

Cut Door Openings (Door installation only; additional door purchase required.)

ATTENTION: For best results and to keep the stretched panel in position, install Tek screws and washers from the outside

around the door frame to secure the end panel to the door jambs and header. (See dashed lines Fig. 1.) Do this before

cutting the opening in the panel. If you do not want to install screws through the panel, continue with Step 1.

These steps describe one way to cut a door opening:

ATTENTION: Do not cut door openings if you are not

installing doors.

1. Working from inside the frame, mark a 12"-16" border

along the door jambs and below the header. (Consult

the diagram below.) These 12"-16" flaps are wrapped

around the door framing and secured to the inside of

the door frame once the final diagonal cuts are made.

2. Using the diagram as a guide, cut the end panel to

remove the section that is shaded.

Diagram above shows the end wall and end panel as seen from inside a similar shelter.

FIG. 1

Wrap this portion

of the end panel

around and

secure it to the

door frame using

Tek screws and

washers. See

Step 1 in the next

procedure.

Door Jamb

12"-16" 12"-16"

Example Door Opening

(Can be used on any size door)

Header

Door

Jamb

Remove this dark shaded

portion of the end panel

material to create an opening

for the overhead door.

Step 3 Cut

Horizontal Conduit

used to stretch the

end panel during

installation.

END PANEL

12"-16"

Horizontal

Conduit

Ground Level

Base Rail

Table des matières

Autres manuels ClearSpan Kit de serre

ClearSpan

ClearSpan CL108545 Manuel utilisateur

ClearSpan

ClearSpan Gothic Style Cold Frame Manuel utilisateur

ClearSpan

ClearSpan R030B00008 Manuel utilisateur

ClearSpan

ClearSpan 104900 Manuel utilisateur

ClearSpan

ClearSpan Gothic Style Solar Star Series Manuel utilisateur

ClearSpan

ClearSpan 36' Wide Pony Wall Building Manuel utilisateur

ClearSpan

ClearSpan 104813PCA Manuel utilisateur

ClearSpan

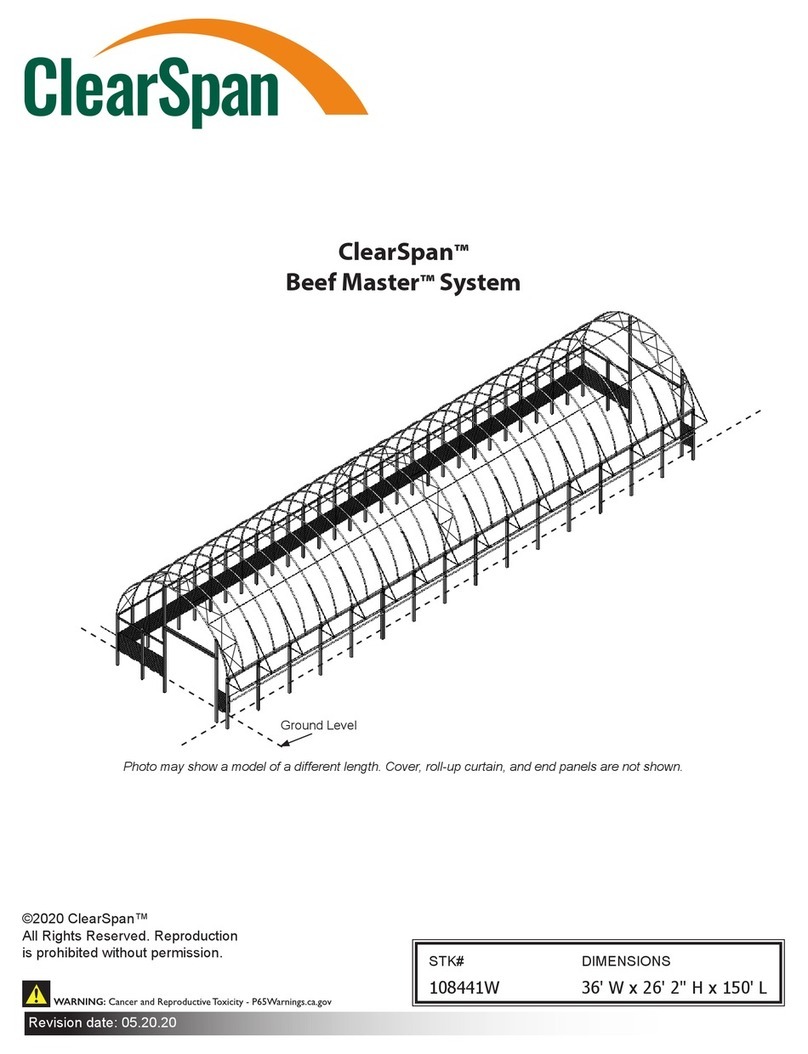

ClearSpan Beef Master 108441W Manuel utilisateur

ClearSpan

ClearSpan R020B00008 Manuel utilisateur

ClearSpan

ClearSpan R020B00001 Manuel utilisateur

ClearSpan

ClearSpan EZ-Growl Manuel utilisateur

ClearSpan

ClearSpan Cedar 8' Wide End Frame Kit Manuel utilisateur

ClearSpan

ClearSpan 104458 Manuel utilisateur

ClearSpan

ClearSpan R030A00007 Manuel utilisateur

ClearSpan

ClearSpan PB00250R4 Manuel utilisateur

ClearSpan

ClearSpan 104828PCA Manuel utilisateur

ClearSpan

ClearSpan Premium Moo-Tel Series Manuel utilisateur

ClearSpan

ClearSpan Tall Boy Moo-Tel Manuel utilisateur

ClearSpan

ClearSpan Super Moo-Tel Building 38' Wide Manuel utilisateur

ClearSpan

ClearSpan 104818PCA Manuel utilisateur

ClearSpan

ClearSpan CL108552 Manuel utilisateur

ClearSpan

ClearSpan Carport 104968F Manuel utilisateur

ClearSpan

ClearSpan Gothic Style Solar Star Manuel utilisateur

ClearSpan

ClearSpan CL108550 Manuel utilisateur

Manuels Kit de serre populaires d'autres marques

ACD PRESTIGE

ACD PRESTIGE MR3 H Manuel utilisateur

Vitavia

Vitavia VA0040-TRP Manuel utilisateur

VegTrug

VegTrug Nursery Manuel utilisateur

Riverstone Networks

Riverstone Networks Monticello 041315V Manuel utilisateur

STC

STC Easy Grow 6x12 Greenhouse Manuel utilisateur

CLIMA POD

CLIMA POD Spirit V7 Series Manuel utilisateur

Vitavia

Vitavia GAIA JUMBO Manuel utilisateur

Palram

Palram Harmony 6'x4' Manuel utilisateur

Sproutwell

Sproutwell GRANGE - 5 Manuel utilisateur

ACD

ACD Piccolo 03 Manuel utilisateur

Growhouse

Growhouse Lean To 6 x 8 Manuel utilisateur

Riverstone Networks

Riverstone Networks Grower's 181010V Manuel utilisateur

GrowSpan

GrowSpan 500 Series Manuel utilisateur

Robinsons

Robinsons 5ft Wide LEAN-TO Manuel utilisateur

Botanica

Botanica E Manuel utilisateur

PNI

PNI SP6000 Manuel utilisateur

Hortus

Hortus 211-203 Manuel de programmation

Robinsons

Robinsons 6' Lean-To Manuel utilisateur
