Operating Manual

ClearSounds®CSC500

Amplified Spirit Phone™

FRANÇAIS ESPAÑOL ENGLISH

2 – ENGLISH

TABLE OF CONTENTS

PRIOR TO USE

Pg. 3 Congratulations

Pg. 3 Important Safety Instructions

Pg. 5-6 Location of Controls

Pg. 7-8 Installation Steps

BASIC TELEPHONE FUNCTIONS

Pg. 9-10 Amplification

Pg. 10 Ringer Setting

Pg. 11 Hearing Aid and Cochlear Implant Users

Pg. 11 Speakerphone

Pg. 11 Answer a Call

Pg. 12 Make a Call

TELEPHONE SETTINGS

Pg. 13 Dialing Mode

Pg. 13 One-Touch Memory

Pg. 14 Inserting Photos

Pg.14-15 Mute, Redial and Call Waiting

TROUBLESHOOTING GUIDE

TECHNICAL SPECIFICATIONS

REGULATORY COMPLIANCE

Important FCC Information for Customers

INDUSTRY CANADA

WARRANTY POLICY

3 – ENGLISH

Congratulations on your purchase of the CSC500 phone

from ClearSounds Communications®. Please read this User

Manual carefully in order to get the best use out of your new

telephone. This phone is designed for individuals with mild to

severe hearing loss. Keep this manual near the telephone for

easy reference.

Please visit our website at www.clearsounds.com to register

your product, download additional manuals and review trouble-

shooting tips.

Be sure to save your sales receipt as your proof of purchase

should you need warranty service.

Warranty Service – This product is designed to provide years

of quality service. However, if there is a malfunction and the

troubleshooting recommendations on pages 15-16 do not resolve

the problem, follow the warranty procedure on pages 18-19.

█IMPORTANT SAFETY INSTRUCTIONS

Read and understand the Installation Guide and User Manual.

Whenusingyourtelephoneequipment, basic safetyprecautions

should always be followed to reduce the risk of fire, electric

shock and injury to person, including the following:

WARNING: The CSC500 Phone is capable of amplifying sounds

to a loud volume. It is important to instruct all potential users

of its proper operation. It is advised to adjust the volume control

to the minimum level (Low) when not in use and alert other

users that hearing damage can potentially result from misuse.

WARNING: To avoid the possibility of electrical shock, do not

use this product near water (For example, near a bathtub, wash

basin, kitchen sink or laundry tub, in a wet basement or near

a swimming pool) while in the bathtub or shower or when you

are wet. If the phone becomes submerged in water, do not

PRIOR TO USE

4 – ENGLISH

attempt to retrieve it until after you have unplugged the line

cord from the modular wall jack. Do not plug the phone back in

until it has dried completely.

WARNING: Avoid using the telephone during electrical storms.

There may be a remote risk of electric shock from lightning.

If the electrical storm is present in your immediate area,

possibility of electrical shock exists.

WARNING: Do not use the phone if you suspect a gas leak in

the area. The phone’s electrical contact could create a spark,

which could ignite any heavy concentration of leaking gas.

WARNING: When cleaning, unplug the phone first, and then

use a damp cloth to wipe. Do not use liquid cleaners or aerosol

cleaners on the telephone.

WARNING: No telephone should ever be placed near an open

radiator or heating register.

WARNING: Never push any object through the slots in the

telephone. They can touch dangerous voltage points or short

out parts that could results in risk of fire or electrical shock.

WARNING: Do not cover slots and opening on the units, they

are needed for ventilation and protection against overheating.

WARNING: Stop using the telephone if dropped or if it becomes

damaged.

WARNING: Ring volume is very loud and can damage your

hearing. Never put your ear close to the ringer.

Hearing Aid Compatibility (HAC)

This telephone meets the FCC standards for Hearing Aid

Compatibility.

IMPORTANT: YOUR RECEIPT IS PART OF YOUR WARRANTY

AND MUST BE RETAINED AND PRODUCED IN THE EVENT OF A

WARRANTY CLAIM.

PLEASE SAVE THESE INSTRUCTIONS

5 – ENGLISH

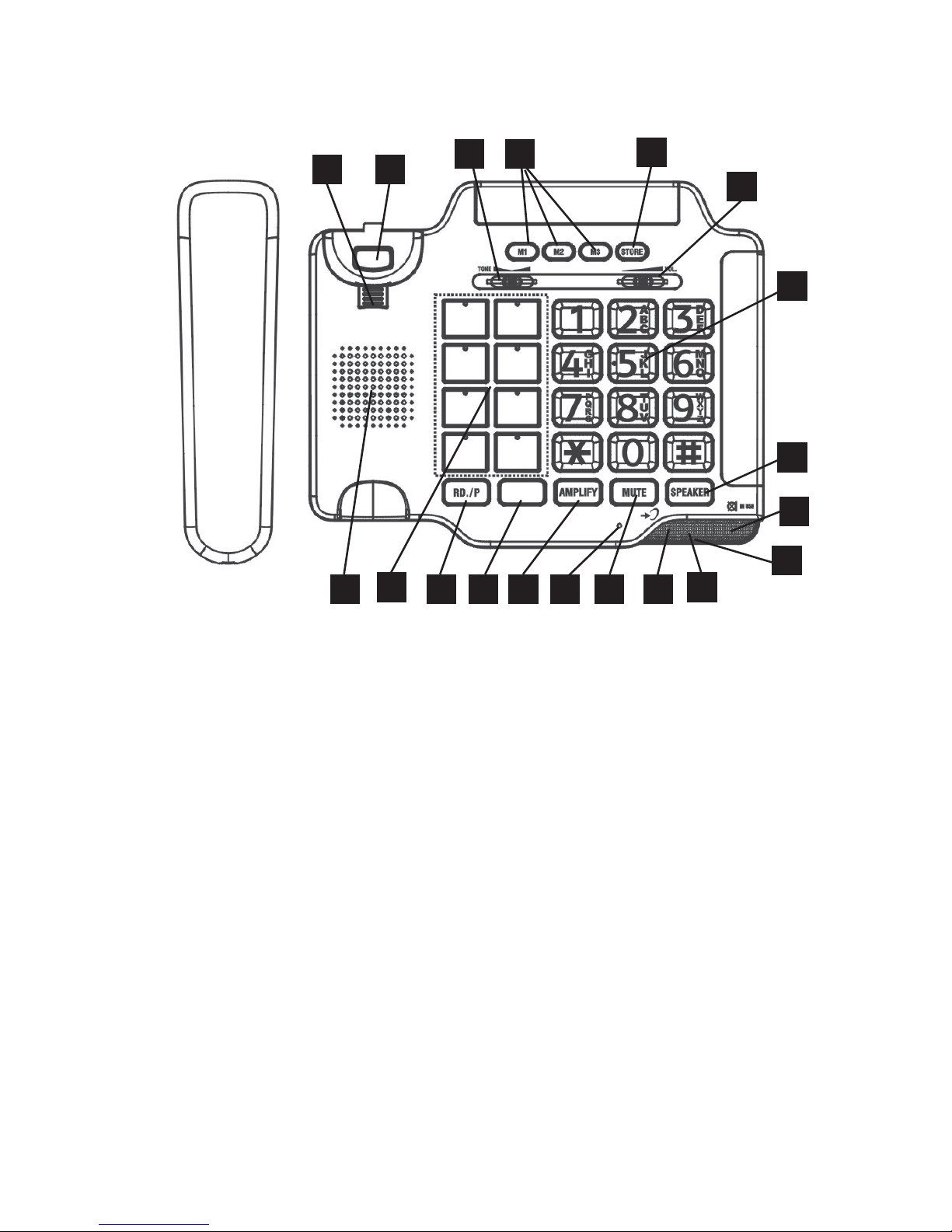

█LOCATION OF CONTROLS

01. Handset Hanger Tab

02. Hook Switch

03. Handset Tone Control

04. (3) 1-Touch Memory Dial Keys

05. Store Key

06. Handset Volume Control

07. Large Keypad

08. Visual Phone Ringer

09. In Use LED Indicator

10. Mute LED Indicator

11. Amplify LED Indicator

12. Speakerphone Key

13. Mute Key

14. Microphone

15. Amplify Activation Key

16. Call Waiting Key

17. Redial/Pause Key

18. (8) 1-Touch Photo Memory Dial Keys

19. Speaker

123

131415161719 18

CALL

WAITING

6 – ENGLISH

LOCATION OF CONTROLS (continued)

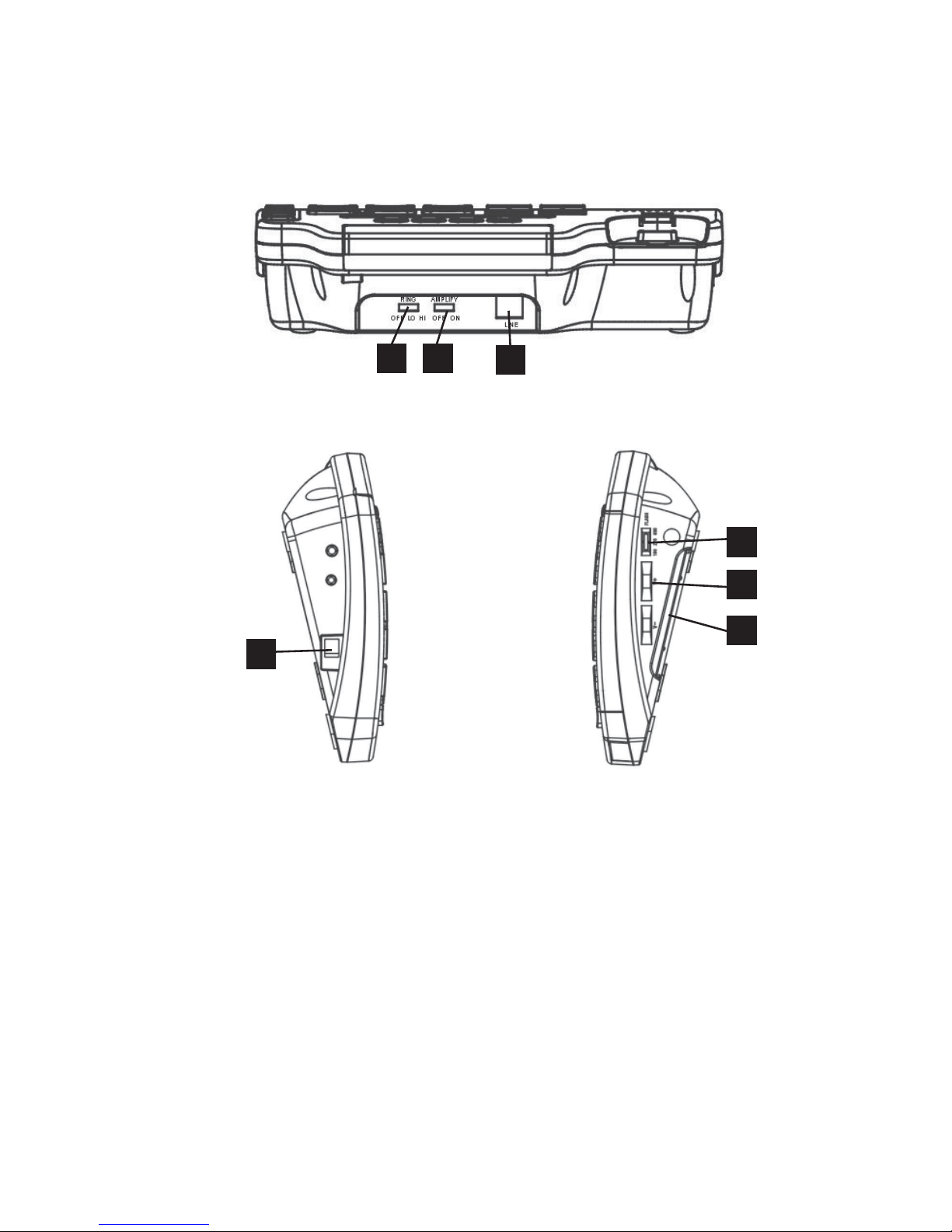

BACK SIDE

LEFT SIDE RIGHT SIDE

BACK SIDE

20. Ringer Volume Switch

21. Amplification Reset Override Switch (ON/OFF)

22. Phone Line Cord Jack

LEFT SIDE

23. Handset Cord Jack

RIGHT SIDE

24. Flash Time Switch

25. Speakerphone Volume Control

26. Memory Card (Record Photo Speed Dial Names/Numbers)

7 – ENGLISH

█INSTALLATION STEPS

Installation of your ClearSounds®CSC500 Amplified Spirit

Phone™is easy. There are some basic steps you need to take

when you set-up your phone for the first time.

1. Check parts list

2. Pre-select auxiliary features:

a. AMPLIFICATION: Amplify Override ON / OFF

b. RINGER: High, Low or Off

3. Installation

If at any time you have questions about your telephone

after reading this manual, please contact our ClearSounds®

Customer Service Department at 1-800-965-9043.

1. PARTS CHECKLIST

Check the contents of the box - The CSC500 should contain:

1. Handset and handset cord

2. Phone base

3. Telephone line cords (one 6 inch and one 6 ft cord)

4. Wall plate adapter

5. User’s Manual

6. Photo Template

2. PRE-SELECT AUXILIARY FEATURES: If you plan on

mounting your phone on the wall, you may want to consider

setting up the Amplification Override Switch (page 9-10) and

Ringer Switch (pages 10).

3. PHONE INSTALLATION

The phone should be located in an area where it is easy to

see the lighted ringer and choose an area near a telephone

wall jack (RJ11C). The telephone may be placed on a shelf or

table or may be fixed to the wall using the wall plate adapter

(mounting bracket). To avoid potential interference, the

phone should not be located near electronic equipment, such

as personal computers, television or microwave ovens.

8 – ENGLISH

Desk / Table Mounting

1. Connect one end of the 6 ft telephone cord to the line

jack on the back of the phone and connect the other end

to a modular phone jack.

2. Connect one end of the coiled handset cord to the

handset and the other end to the phone base.

3. Lift the handset and listen for the dial tone. If you don’t

hear a dial tone, re-check all the installation steps.

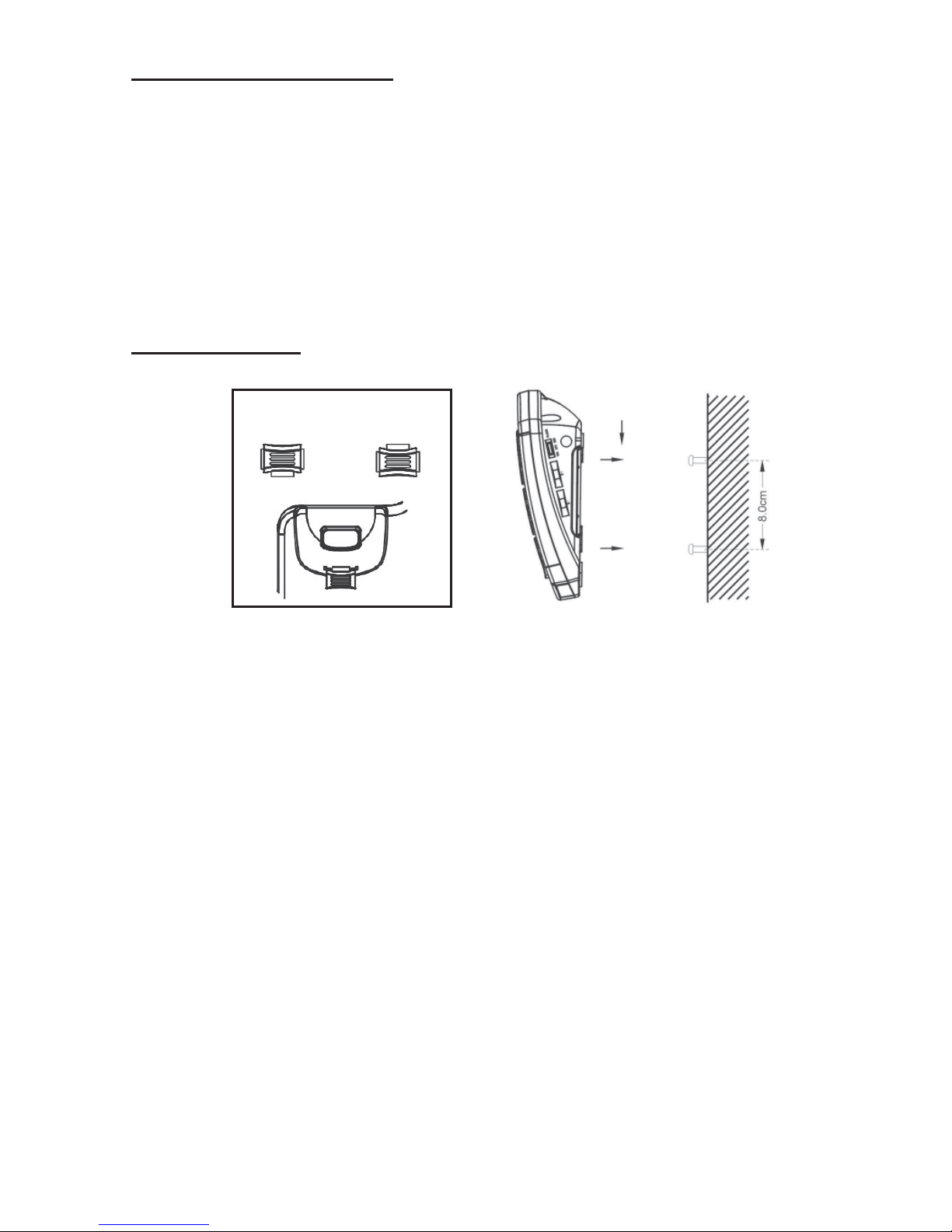

Wall Mounting

1. Slide the handset hanger tab out and reverse its position

(rotate it 180 degrees). Slide it back into place so that

the hook points up. This will keep the handset from

falling out of the cradle when it is mounted on the wall.

2. Plug the 6-inch short phone cord into the telephone

jack on the phone, run the phone cord underneath the

wall plate adapter and through the opening. The excess

telephone line can be positioned into the recessed area

on the bottom of the mounting plate.

3. Insert the wall plate adapter by holding the wall plate

adapter so that the raised mounting pins line up with the

phone’s keyholes on the back. Once the holes are lined

up, push the wall plate adapter in towards the phone and

then slide the plate upwards until it is securely seated

on the phone

4. With the wall plate adapter installed, plug the 6-inch

short phone cord into the jack on the wall.

Desk tab

position Wall mount

tab position

9 – ENGLISH

5. Holding the phone slightly above the mounting screws

on the wall jack, push the phone against the mounting

screws so they are hooked into upper and lower keyhole

slots on the back of the phone. Slowly slide the phone

down until it snaps into place.

6. When mounting the phone on dry wall without a standard

telephone wall plate, install 2 self-tapping screws (not

supplied) at a distance of 80 mm (3.15 inches) from

each other and located on a vertical line. Place the phone

onto the screw-heads and slide down to secure.

7. Connect the handset using the coiled handset cord and

listen for a dial tone. If you hear a dial tone, your phone

is ready to use. If there is no dial tone, check all your

cords to make sure they are plugged in securely and re-

check installation steps.

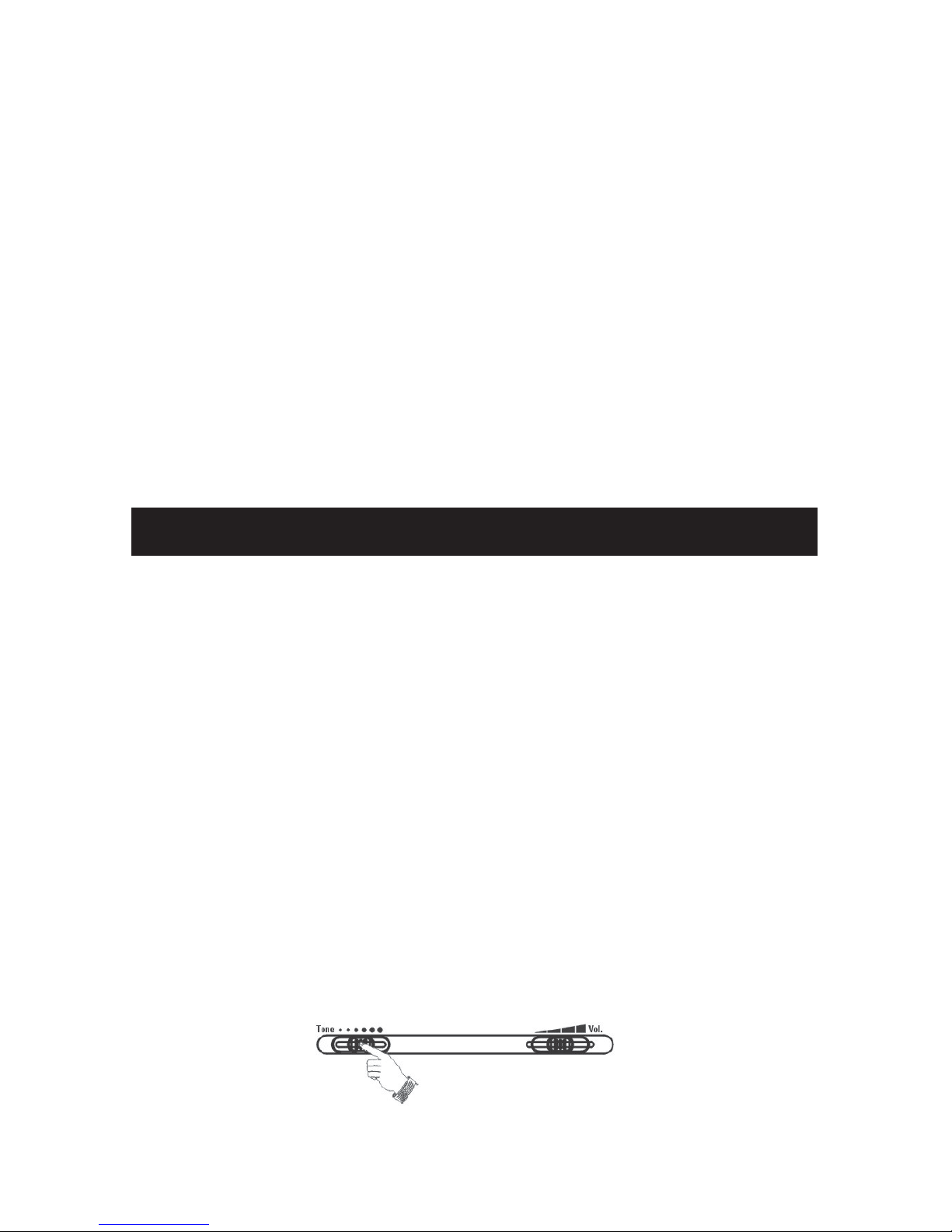

█Using the Amplification Function

Your ClearSounds®CSC500 is equipped with a specialized

amplification function designed to adjust to your needs.

You may press the Amplify key to temporarily increase the

volume of the handset during a call. To return to normal, press

the key again. Volume levels will also return to normal when

the handset is replaced on the base after the call. Once the

Amplify key is pressed, an extra level of amplification and

tone enhancement is added. During a call, adjust the Volume

control and Tone control on the front panel of the phone to fit

the levels to your hearing requirements. The volume control

provides up to 15 dB of volume before the Amplify key is

activated. Once the Amplify key activated, the phone will

provide up to 30 dB of amplification and tone adjustment.

Please Note: The Amplify key controls both the loudness &

tone frequency of the handset.

BASIC TELEPHONE FUNCTIONS

10 – ENGLISH

Using the Amplification Reset Override Switch (location #21)

The ClearSounds®CSC500 is designed with unique features

to protect users from being exposed to dangerous sound

levels. You are able to switch between automatic or manual

amplification, and you should select the setting that best suits

your needs.

Set ON – When the Amplification Reset Override Switch is set

to ON, the amplify function will be ON every time a call starts.

The user will no longer need to remember to press the Amplify

key with every telephone conversation. When the phone hangs

up, the amplify setting will remain ON.

Set OFF – When the Amplification Reset Override Switch is set

to OFF, the amplify function will be OFF every time a call starts.

This allows people who do not require the level of amplification

offered on the phone to use it. Every time a call starts, the

user will need to press the Amplify key in order to gain the

extra level of amplification and tone control. When the phone

hangs up, the Amplify key will reset to OFF.

Important: You may manually turn ON and OFF the amplify

function during a conversation by simply pressing the Amplify

key. When the Amplify key is pressed to turn the amplification

ON, the Amplify LED light will go on and when the amplification

is turned OFF, the Amplify LED light will go off.

NOTE: Your ClearSounds®CSC500 comes from the factory preset

in the OFF position. If you would like to override the factory

preset, simply change the selection on the back of the phone

to ON.

█Ringer Setting

You can adjust the ringer of your phone as high as 85 dB. The

ringer volume level can be adjusted by sliding the switch on the

back side of the phone. Ringer options include HI, LO and OFF.

Please Note: Your phone is also equipped with a visual flasher

that automatically flashes when the phone rings.

█Amplification Function (continued)

Autres manuels pour CSC500

Table des matières

Langues :

Autres manuels ClearSounds Téléphone

ClearSounds

ClearSounds v407 Guide de dépannage

ClearSounds

ClearSounds CSC50-ER Guide de dépannage

ClearSounds

ClearSounds Geemarc PhotoPHONE 100 Manuel utilisateur

ClearSounds

ClearSounds AMPLIFIED FREEDOM PHONE CSC600D Manuel utilisateur

ClearSounds

ClearSounds TALK500 ER Manuel utilisateur

ClearSounds

ClearSounds AMPLIFIED FREEDOM PHONE CSC600D Manuel utilisateur

ClearSounds

ClearSounds CSC600ER Manuel utilisateur

ClearSounds

ClearSounds TALK500 ER Manuel utilisateur

ClearSounds

ClearSounds Talk500-ER Manuel utilisateur

ClearSounds

ClearSounds CSC500 Manuel utilisateur

ClearSounds

ClearSounds CL600 Guide de dépannage

ClearSounds

ClearSounds Freedom Phone CSC1000 Manuel utilisateur

ClearSounds

ClearSounds CSC40 Guide de dépannage

ClearSounds

ClearSounds Photo50 V608 Manuel utilisateur

ClearSounds

ClearSounds CSC50 Guide de dépannage

ClearSounds

ClearSounds PHONE A1600 Manuel du propriétaire

ClearSounds

ClearSounds Freedom Phone CSC1000 Manuel utilisateur

ClearSounds

ClearSounds Talk500-ER Manuel utilisateur

ClearSounds

ClearSounds A600 Manuel utilisateur

ClearSounds

ClearSounds TALK500 ER Manuel utilisateur

ClearSounds

ClearSounds CST25 Guide de dépannage

ClearSounds

ClearSounds HearingEasy CSC48 Manuel du propriétaire

ClearSounds

ClearSounds Freedom Phone CSC1000 Manuel utilisateur

ClearSounds

ClearSounds TALK500 V508 Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur
