CSC40

Ampliﬁed

Telephone

Installation Guide

& User Manual

Congratulations on your purchase of the CSC40 Phone from

ClearSounds Communications™. Please read this User Manual

carefullyinordertogettheverybestresultsfromyourtelephone.

Keep the manual near the telephone for easy reference.

Please visit our web site at www.clearsounds.com to:

Download additional manuals and trouble shooting tips

Conditions for Use

IMPORTANT SAFETY INSTRUCTIONS

Read and understand the Installation Guide & User Manual. When using your telephone

equipment, basic safety precautions should always be followed to reduce the risk of ﬁre,

electric shock and injury to person, including the following.

WARNING: The CSC40 Phone is capable of amplifying sounds to a loud volume. It is

important to instruct all potential users of its proper operation. It is advised to adjust the

volume control to its minimum level (Low) when not in use and alert other users that

hearing damage can potentially result from misuse.

WARNING: To avoid the possibility of electrical shock, do not use this product near water

(For example, near a bathtub, wash basin, kitchen sink or laundry tub, in a wet basement

or near a swimming pool) while in the bathtub or shower or when you are wet. If the phone

becomes submerged in water, do not attempt to retrieve it until after you have unplugged

the line cord from the modular wall jack. Do not plug the phone back in until it has dried

completely.

WARNING: Avoid using the telephone during electrical storms. There may be a remote

risk of electric shock from lightning. If the electrical storm is present in your immediate

area, possibility of electrical shock exists.

WARNING: Do not use the phone if you suspect a gas leak in the area. The phone’s

electrical contacts could create a spark, which could ignite any heavy concentration of

leaking gas.

WARNING: Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp

cloth for cleaning.

PLEASE SAVE THESE INSTRUCTIONS

Table Of Contents

Table of Contents

Introduction Page 2

Condition For Use Page 2

Table of Contents Page 3

Features & Functions Pages 4 - 5

Installation Steps Pages 6 - 9

Components (Parts check list) Page 6

Installing the optional batteries Page 6

Setting the dialing mode Page 7

Phone mounting – desk & wall use Pages 7 - 8

Programming memory dial buttons Page 8

Programming ringer – volume & style Page 9

CSC40 Phone Operation Pages 10 - 13

Making & receiving a call Pages 10 - 11

Using the ampliﬁcation function Page 11

Volume, tone & ampliﬁcation

Volume reset override Page 11

Outgoing speech volume Page 12

Dialing stored numbers Page 12

Last number redial Page 13

Flash button Page 13

Mute button Page 13

Troubleshooting Guide Page 14

Maintenance and Care Page 15

Speciﬁcations Page 15

FCC Regulatory Compliance Pages 16 - 17

Warranty and Service Page 18

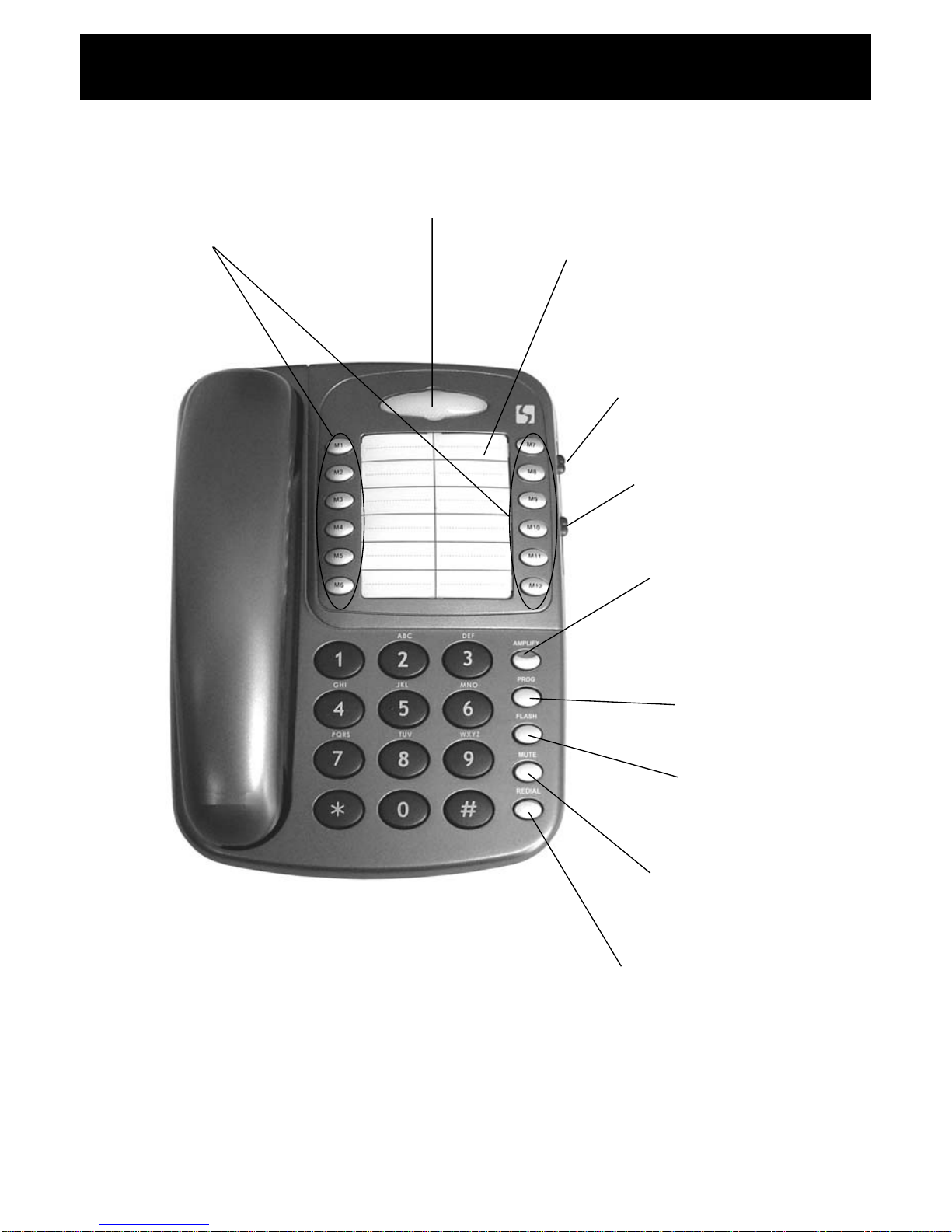

4. Tone Control

10. Redial Button

7. Program (save)

Button

9. Mute Button

2. Visual Ring Indicator

1. M1 – M12 One-Touch

Memory Dial Buttons

5. Volume Control

6. Amplify Button

(ON/OFF)

8. Flash Button

3. Erasable

Phonebook Card

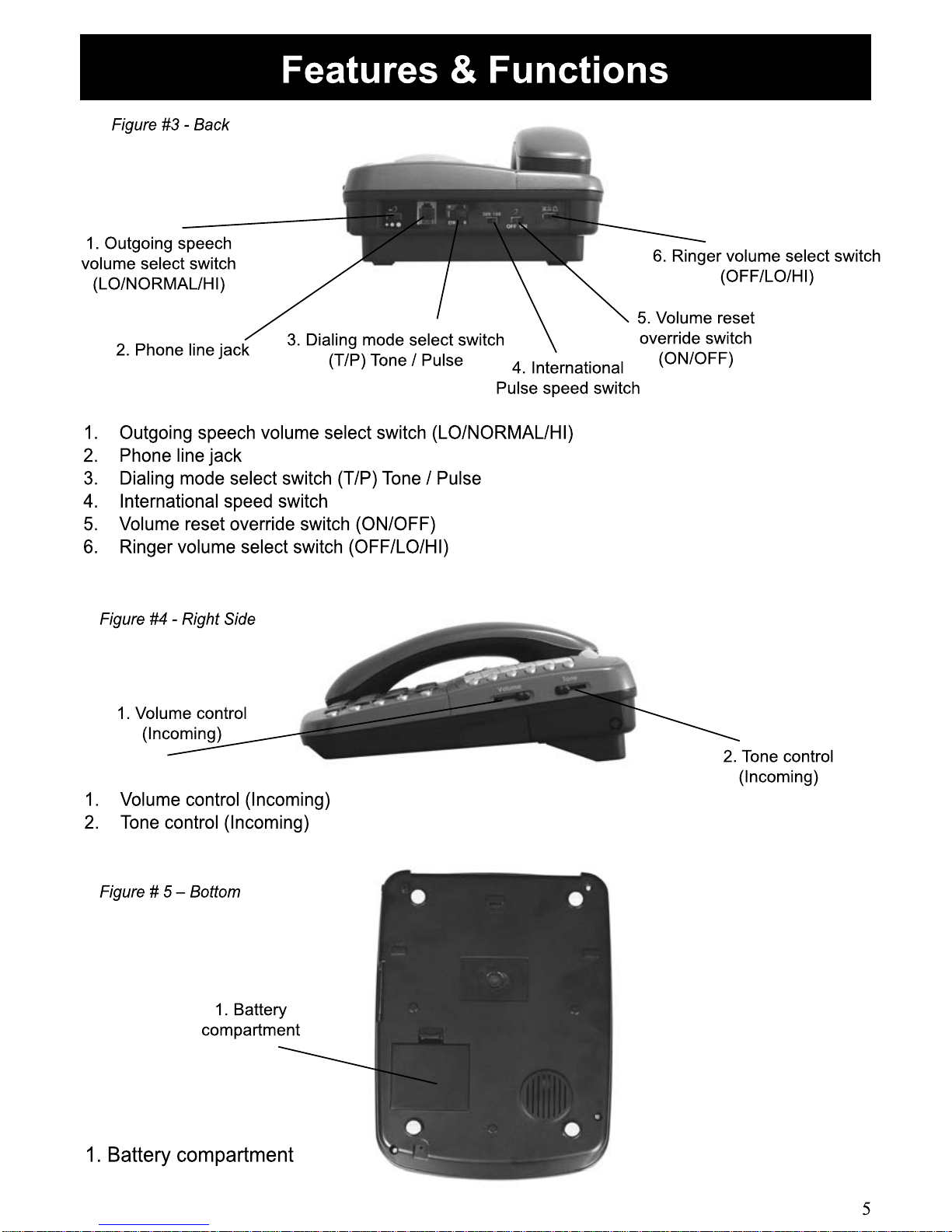

Features & Functions

1. M1–M12One-TouchMemory

Dial Buttons

2. Visual Ring Indicator

3. Phonebook Insert Card

4. Tone Control

5. Volume Control

6. Amplify Button (ON/OFF)

7. Program (save) Button

8. Flash Button

9. Mute Button

10. Redial Button

Figure #2

Installation Steps

Installation of your ClearSounds™ CSC40 Phone is easy. There are some basic steps you

need to take when you set-up your CSC40 for the ﬁrst time.

Check Parts list.

• Install (4) AAA Alkaline batteries (not included). Batteries are required if you wish to

increase the ringer level an additional 10 dB.

• Set the dialing mode.

• Choose desktop or wall mount.

• Program your memory dial buttons.

• Set ringer.

• Set your volume and tone.

PARTS CHECK LIST

Check to make sure your package includes the items described below. You should have

a TELEPHONE BASE, TELEPHONE HANDSET, 6ft LONG TELEPHONE LINE CORD,

8 inch SHORT TELPHONE LINE CORD, HANDSET CURLY CORD, WALL PLATE

ADAPTER, AND OWNERS MANUAL

INSTALLING THE OPTIONAL BATTERIES

(required if you wish to increase the ringer level up to 85 dB)

1. Open the battery compartment door located on the bottom of your phone by pulling

back the latch.

2. Insert correctly (4) AAA alkaline batteries

(not included) in the battery compartment

(See diagram #1). Be sure to observe battery

polarity as imprinted on the base of the

compartment.

3. Snap the battery compartment door back in

place.

4. The batteries will last approximately 1 year

before needing replacement.

5. Note: The telephone ringer will operate with

or without batteries.

6. Note: When replacing batteries, you will

need to remove the Wall Plate adapter if

in use. Slide the phone upward to remove

& disconnect the phone from your existing

wall jack. Slowly slide the Wall Plate adapter

down until it unsnaps from the phone.

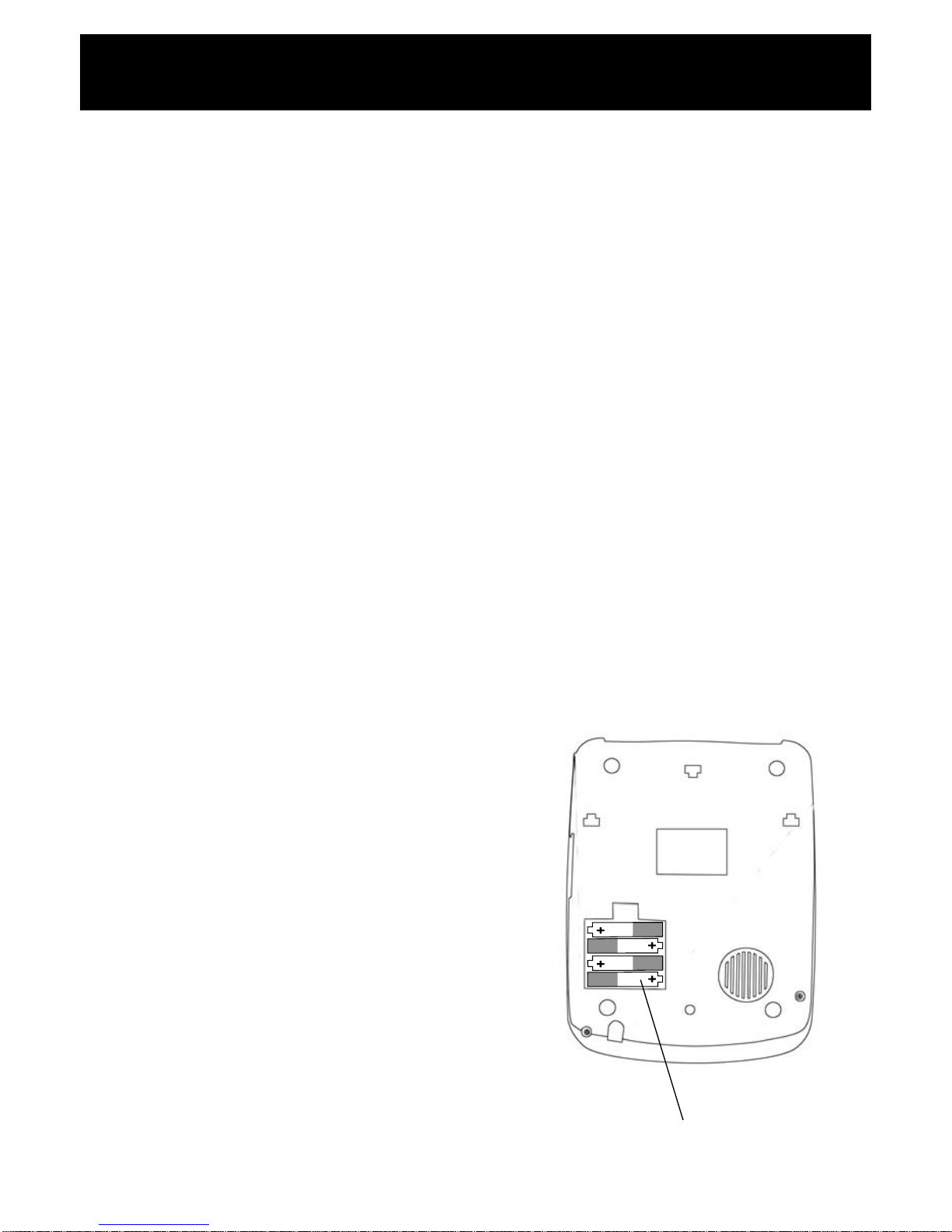

Follow the directions above. DIAGRAM #1- Installing the batteries

SETTING THE DIALING MODE

Set the dial mode switch located on back of the phone to “T” if you have Touch Tone

service or “P” for Pulse dialing if you have rotary dialing service. The default is set to “T”

dialing switch mode. Please check with your local telephone company if uncertain of the

type of service. (See diagram #2)

INTERNATIONAL PULSE SPEED SWITCH

Set the International speed switch located on back of the phone to “300 mS”. The

default is set to 300mS (See diagram #3). The 100 mS is used in the UK.

PHONE MOUNTING INSTALLATIONS

Make sure you have a modular wall jack near the place you have chosen to install the

telephone. If you have an older phone jack, you will need to buy a modular jack adapter.

Desk / Table Use

1. Connect one end of the 6ft telephone cord to the line jack on the back of your

CSC40 Phone and connect the other end to a modular phone jack (RJ11C).

2. Connect the handset coil cord (curly cord) to the handset and to the telephone.

3. Lift the handset and listen for a dial tone. If you hear a dial tone, you phone is ready

to use. If there is no dial tone, check all your cords to make sure they are plugged in

securely.

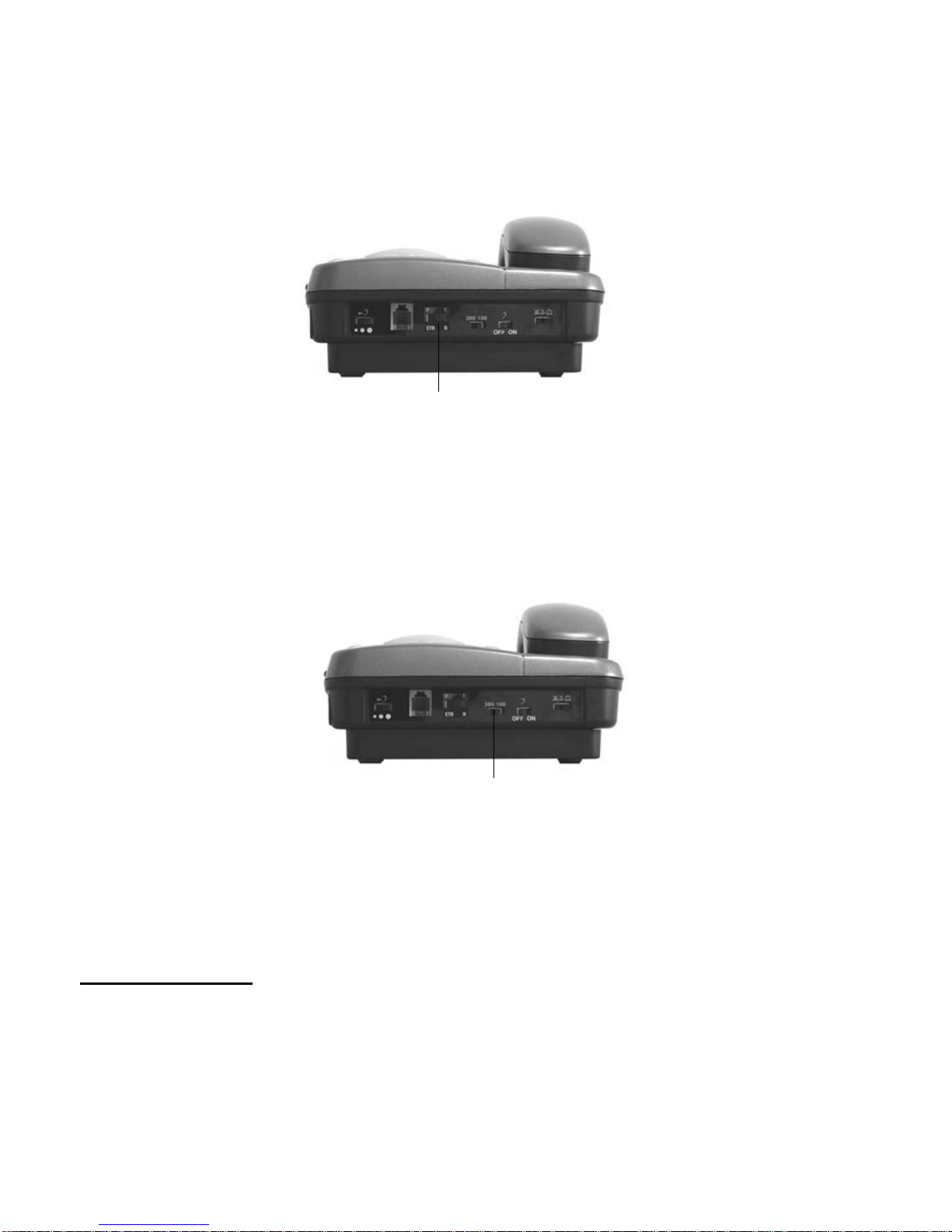

DIAGRAM #2 – Dialing mode switch

DIAGRAM #3 – International speed switch

Wall Mount Use

1. Slide the handset hanger tab out and reverse its position (rotate it 180 degrees).

Slide it back into place so that the hook points up (See diagram #4). This will keep the

handset from falling out of the cradle when it is mounted on the wall.

2. Insert the Wall Plate adapter (See diagram #5). It snaps into place. The cords phone

line should run underneath the wall-mounting bracket.

3. WiththeWall Plateadapter installed,plug the8in shortphone cordinto thetelephone

jack on the CSC40 and then into the jack on the wall.

4. Holding the phone slightly above the mounting screws on the wall jack, push the

phone against the mounting screws so they are hooked into upper and lower key-

hole slots on the back of the phone. Slowly slide the phone down until it snaps into

place (See diagram #6).

5. Connect the handset coil cord (curly cord) to the handset and to the telephone.

6. Lift the handset and listen for a dial tone. If you hear a dial tone, your phone is ready

to use. If there is no dial tone, check all your cords to make sure they are plugged in

securely.

PROGRAMMING MEMORY DIAL BUTTONS

Your CSC40 Phone holds 12 programmed Memory Dial Buttons.

To program your one-touch memory dial buttons please follow instructions below:

1. Lift the handset.

2. Press the PROG button (See diagram #7).

3. Press one of the 12 Memory Dial buttons (M1 - M12) located on top of the phone

(See diagram #8). Each button can be programmed (or reprogrammed using the

same procedure) for a phone number up to 21 digits long.

4. Using the keypad, dial the number you would like to save, including 1 and the area

code (if applicable). (See diagram #9).

5. Press the PROG button again (See diagram #7).

6. To register your stored phone numbers, use the erasable phonebook card located

on the top of your phone. IMPORTANT: The phonebook card is non-removable.

Simply use a clean pencil eraser to make changes.

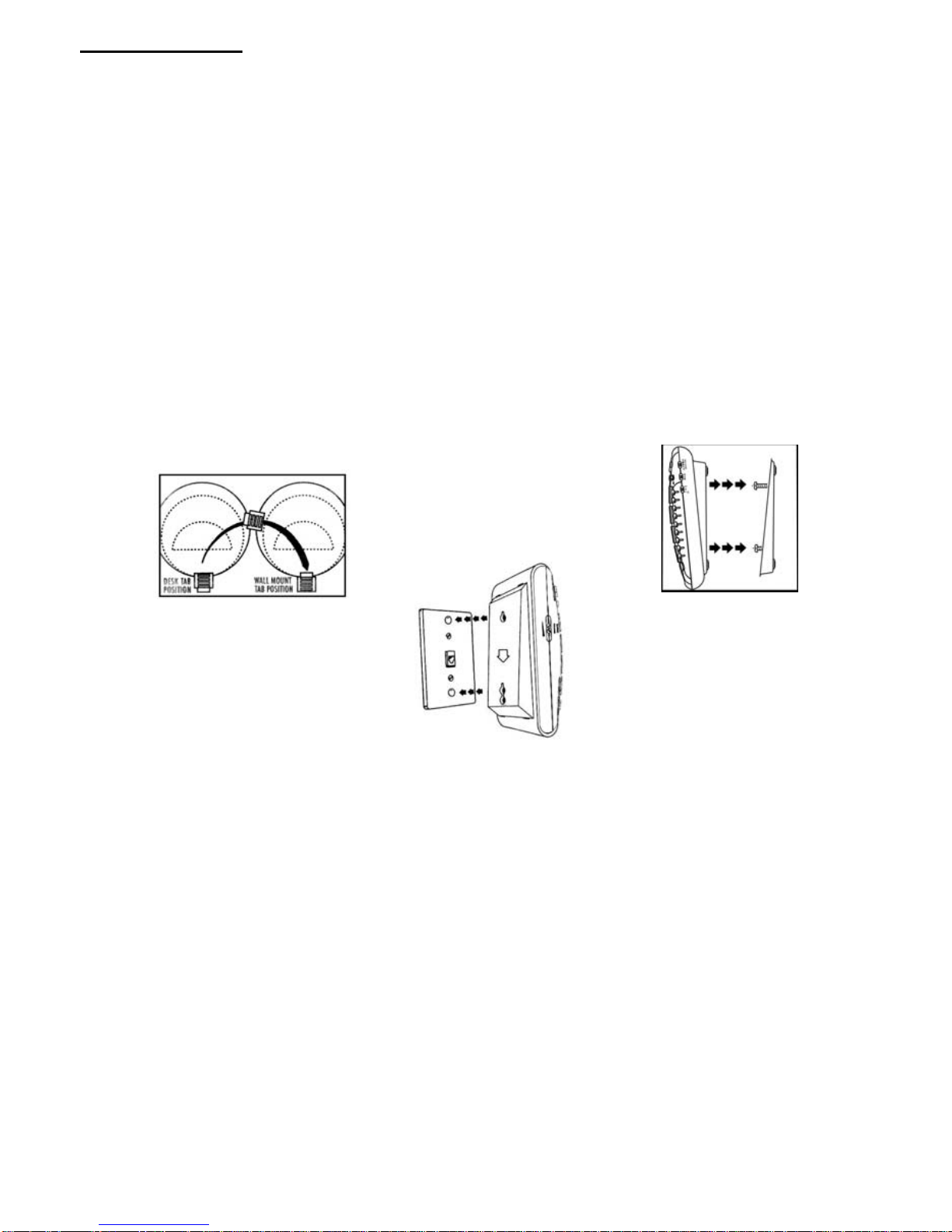

DIAGRAM #4 – Reversing the hook DIAGRAM #5 –Wall plate installation

DIAGRAM #6 – Wall installation

Note: Numbers will be lost after a few hours if you disconnect your phone. Entering a new

number in the same location will automatically erase the previous number.

Note: You may store in multiple pauses during programming by pressing the “REDAIL”

button. Each pause is 2 seconds when inserted within the ﬁrst digits and when inserted

after the 5 digits. WHen the number is dilled, the phone will halt at the inserted pause(s)

until you press “REDIAL” button to continue.

PROGRAMMING THE RINGER

Ringer Volume:

You can adjust the ringer volume of your CSC40 as high as 75 dB. The ringer volume

adjustment is located on the backside of the telephone. The settings are HI, LO, OFF (See

diagram 10). Batteries are required if you wish to increase the ringer level an additional 10

dB of gain, see page #6.

: Off

: Lo

: Hi

Ringer Style:

Your CSC40 Phone’s default setting for the ringer is set at 6. If you don’t like the ringer

style, you can choose a new one by changing the settings as follows:

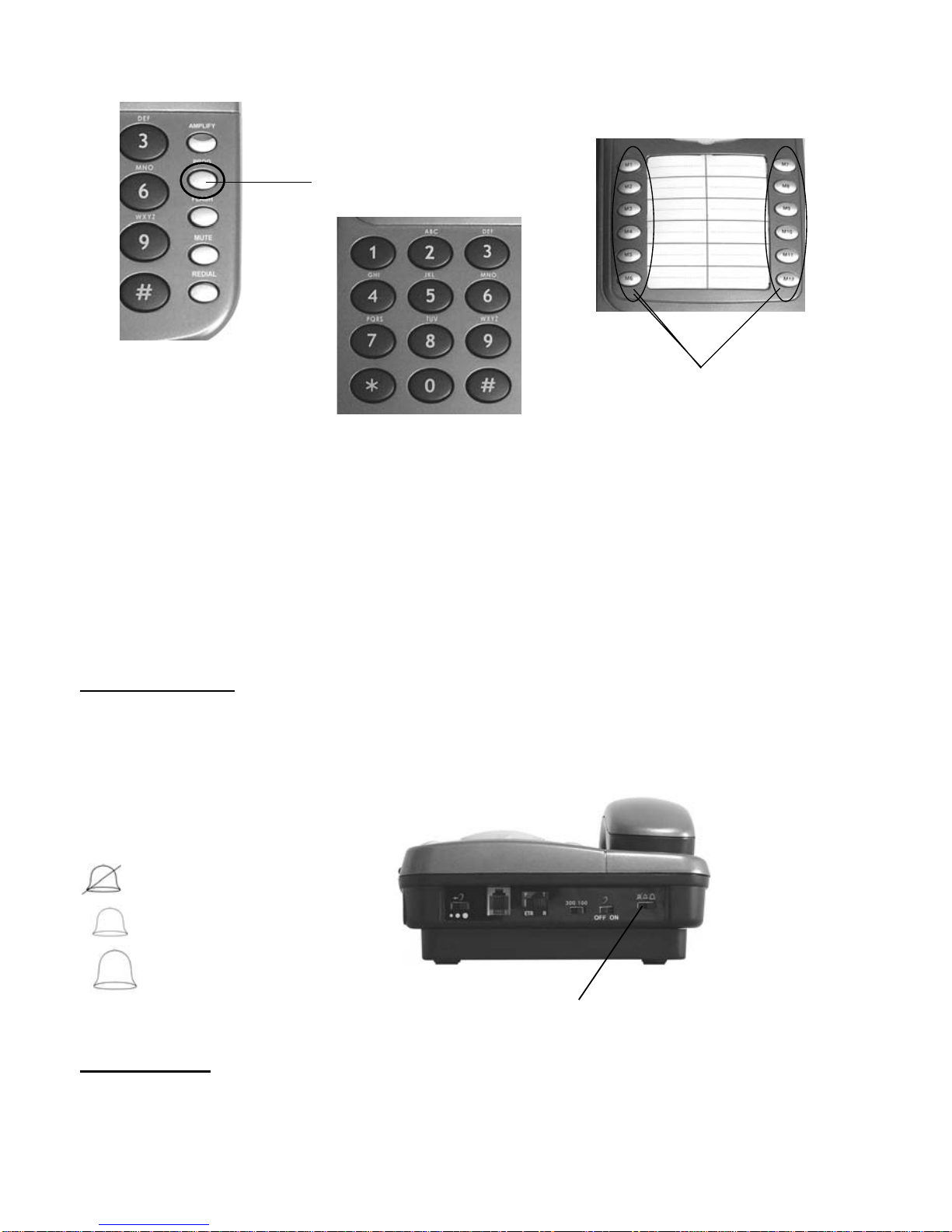

DIAGRAM #7- Program button

DIAGRAM #8 – Memory buttons

DIAGRAM #9 – Telephone keypad

DIAGRAM #10 – Ringer volume switch

1. Lift the handset

2. Press PROG button (see diagram #7)

3. Press the “#” button

4. Press any of the dial keys 1 - 9 (see diagram #8)

5. The new ringer setting will be activated with the next incoming call.

Your CSC40 is also equipped with a visual ringer, which ﬂashes when the phone rings.

NOTE: You may temporarily turn OFF the audible ringer by selecting the “0” key in the

instructions above.An incoming call will now be indicated only by the red ﬂashing indicator

light located on the top of the phone. The audible ringer will be automatically reset to the

previous setting (1 to 9) when the handset is lifted from the base unit.

If at any time you have questions about your telephone please contact our ClearSounds™

Customer Service Department at: 1-800-965-9043.

CSC40 Phone Operation

MAKING AND RECEIVING A CALL

Making A Call

1. To make a call, lift the handset, listen for a dial tone and adjust your Volume & Tone

Settings. (See pages 10 - 11 for details on the ampliﬁcation functions)

2. To dial a number you can:

a. Dial a number from the keypad

-OR-

b. Press one of the memory dial buttons (See pages 8 - 9 for instructions on program-

ming Memory Dial Buttons)

3. On completion of the call, carefully replace the handset in the cradle.

Receiving/Answering A Call

When an incoming call is received the phone will ring and the (red) Visual Ring Indicator

will ﬂash.

1. While the phone is ringing, simply lift the handset and speak.

2. Adjust your Volume and Tone Settings if needed (See pages 10 - 11 for assistance)

3. On completion of the call, carefully replace the handset in the cradle.

CHART # 1

Low Mid High

Melody 1 1 2 3

Melody 2 5 5 6

by default

Melody 3 7 8 9

Table des matières

Langues :

Autres manuels ClearSounds Téléphone

ClearSounds

ClearSounds Freedom Phone CSC1000 Manuel utilisateur

ClearSounds

ClearSounds Talk500-ER Manuel du propriétaire

ClearSounds

ClearSounds v407 Guide de dépannage

ClearSounds

ClearSounds TALK500 ER Manuel utilisateur

ClearSounds

ClearSounds TALK500 ER Manuel utilisateur

ClearSounds

ClearSounds CSC500 Manuel utilisateur

ClearSounds

ClearSounds CSC500 Manuel utilisateur

ClearSounds

ClearSounds CSC 600 Guide de dépannage

ClearSounds

ClearSounds HearingEasy CSC48 Manuel du propriétaire

ClearSounds

ClearSounds CST25 Guide de dépannage

ClearSounds

ClearSounds 40XLC Guide de dépannage

ClearSounds

ClearSounds Freedom Phone CSC1000 Manuel utilisateur

ClearSounds

ClearSounds HearingEasy CSC48 Manuel utilisateur

ClearSounds

ClearSounds A600 Manuel utilisateur

ClearSounds

ClearSounds CL1100 Guide de dépannage

ClearSounds

ClearSounds PHONE A1600 Manuel utilisateur

ClearSounds

ClearSounds WCSC600 Manuel utilisateur

ClearSounds

ClearSounds TALK500 ER Manuel utilisateur

ClearSounds

ClearSounds Talk500-ER Manuel utilisateur

ClearSounds

ClearSounds AMPLIFIED FREEDOM PHONE CSC600D Manuel utilisateur

ClearSounds

ClearSounds CSC50-ER Guide de dépannage

ClearSounds

ClearSounds CSC50 Guide de dépannage

ClearSounds

ClearSounds A600 Manuel utilisateur

ClearSounds

ClearSounds Liberty 30T Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur
