ClearSounds ClearTV CS2001M Manuel utilisateur
AMPLIFIED WIRELESS TV LISTENING SYSTEM
with Dual Ear Volume Control
Model CS2001M
2.3MHz Frequency
OWNER’S MANUAL
INTRODUCTION
Our wireless infrared system allows you to
listen to your TV, stereo, radio, or any other
audio source at a volume that is comfortable
for you without disturbing others in the room.
Use it if you are hard of hearing or if you sim-
ply want to watch television when someone
else is sleeping.
Infrared technology is considered to be the
best and clearest for sound transmission and
our headphones arelightweight for maxi-
mum comfort.
The installation is very easy. Simply determine
which type of installation suits your needs
best. Please review the installation choices
that appear in this manual and determine
which features your television has before
setting up your ClearSounds®CS2001M.
CONTENTS
Introduction..................................2
How It Works..................................3
Components.................................3
Installation.....................................4
Placement of Transmitter............8
Activating the Headphones.......8
Muting the Television Sound.......9
Troubleshooting..........................10
Technical Specifications............11
For Your Well Being.....................11
Limited Warranty........................12
In-Warranty Procedure..............12
If you are having difficulty,
please call our help desk at
1-800-965-9043
Monday-Friday, 8:30AM - 5:00PM CST
2
HOW IT WORKS
The transmitter sits on your audio source (TV/VCR, stereo, etc.) and transmits an audio
signal via infrared light. The receiver in the headphones captures the infrared light
waves and converts them back into sound. You adjust the volume on the cordless
headphones to suit your personal needs. Multiple headphones can be used with one
transmitter.

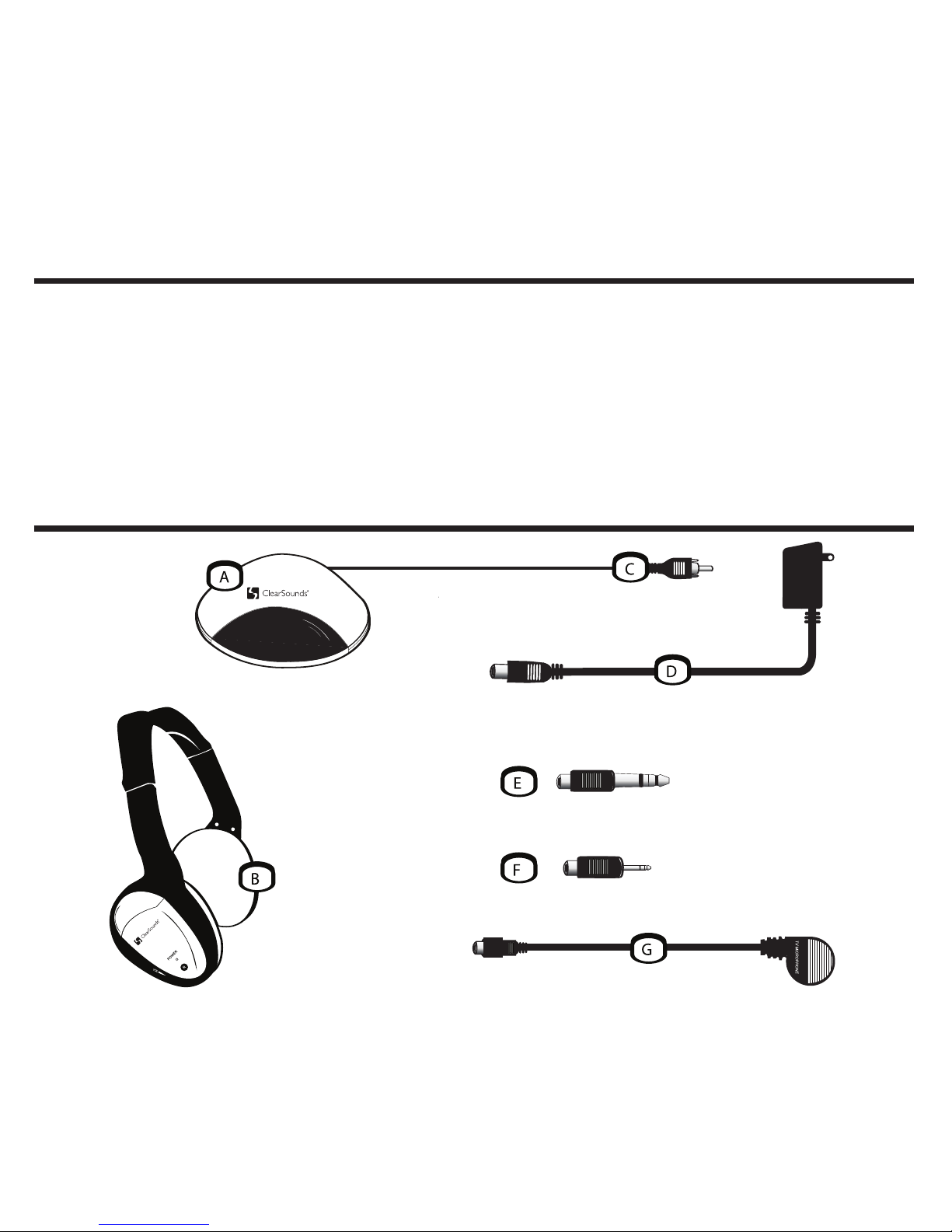

COMPONENTS
3
Infrared Transmitter
Headphone
Receiver
AC Adapter
3.5mm RCA plug
Large 6.3mm adapter
Small 3.5mm adapter
Microphone adapter
INSTALLATION
How you install your CS2001M will depend on what type of equipment you have. It is
important to note that because not all TVs are the same, when you plug something
into the audio output jack, one of two things will happen.
1. The sound from your television will be automatically cut off and nobody else in the
room will be able to hear the TV. This is okay if you don’t want anyone else to be
able to hear the television but not if you just want to listen at a higher volume than
others in the room. To have the sound continue to come out of your television speak-
ers, you must either use the microphone adapter or connect the transmitter to your
DVD player, cable box, or VCR (see VCR installation).
2. The sound will continue to come out of the TV speakers. This is okay if other people
want to listen as well, but not if you want to be able to hear exclusively through your
headphones. If you turn the volume down a lot, you may reduce the signal going
into the TV’s audio output jack(s) (see Muting the Television Sound).
First, for all installations, insert the plug of the AC adapter (D) into the DC 12V input
connection on the back of the infrared transmitter (A) as shown in Diagram 1 and then
plug the adapter into your electrical outlet. Now choose the installation that matches
your equipment.
D
A
Diagram 1
4
Power Switch
DC 12V input
Stereo and Mono Installation
If your television has audio output jacks, plug the transmitter directly into your television
using the RCA plug (C). If your TV has dual left and right audio output jacks, insert the
plug into the left (white) audio output jack.
A
C
D
SMALL HEADPHONE JACK INSTALLATION
To connect to a radio or MP3 player with a small 3.5mm headphone jack, use adapter
F. Connect plug C into adapter F and insert it into the headphone jack on your audio
device.
A
C
D
F
5
Diagram 2
Diagram 3
Audio Out
Small
Headphone
Jack
Large Headphone Jack Installation
If your audio device has a large 6.3mm headphone jack, use adapter E. Connect plug
C into adapter E and insert it into the large headphone jack on your audio device.
A
C
D
E
VCR Installation
Follow these instructions when you have cable passing through your VCR and no other
audio output jacks are available. The VCR must be on before beginning this installa-
tion. Plug the transmitter into the audio output jack on your VCR using plug C. Your
VCR must say on when using the headphones.
A
C
D
6
Diagram 4
Diagram 5
Large
Headphone
Jack
Audio Out
Microphone Installation
Follow these instructions when your equipment does not have any audio output jacks.
Connect plug C into the microphone adapter (G). Affix the microphone directly over
the speaker of your television by peeling the tape off the back of the adhesive. For this
installation, you will have to keep your television at a very low volume.
A
C
D
G
As an alternative to using the microphone, if your television has a cable box, locate
the audio output jack on the back panel of the cable box. Plug the transmitter into the
jack and mute the TV using the mute function on your TV remote. Once the TV is
muted, the headphones can be used exclusively to pick up the sound
7
Diagram 6
PLACEMENT OF THE TRANSMITTER
Turn on the infrared transmitter. Four red lights on the front of the transmitter will illumi-
nate. The infrared light rays are emitted in a conical shape. For best results, place your
transmitter above your TV. The transmitter will work best if it is within 33 feet (10 meters)
from the headphone receiver. There should not be anything obstructing the transmis-
sion of the infrared light rays to the receiver.
ACTIVATING THE HEADPHONES
Place two AAA batteries into the battery compartment in the left earpiece of the
headphone matching positive to positive and negative to negative. Do NOT mix old
and new batteries. Do NOT mix alkaline and rechargeable batteries. Turn on the head-
phones making surethereis an unobstructed line of sight between the headphones
and the transmitter. Adjust the television volume and the headphone volume to a
comfortable listening level.
8
Diagram 7
MUTING THE TELEVISION SOUND
Many televisions have speaker switches located on the back panel. If your television
has one and you want to keep the sound muted, move this switch to the OFF position
and listen to your TV exclusively through the headphones.
Some televisions have speaker switches that can only be controlled by the remote
control. If your televisions falls into this category, press Menu on the TV remote and
locate SPEAKER on the screen menu. Switch SPEAKER to the OFF position and listen to
the TV exclusively through the headphones. To find out if your television has this func-
tion, refer to your owner’s manual.
9
TROUBLESHOOTING
PROBLEM
Red power light is not on
No sound from headphones
Self-testing of system
Sound too low
Poor sound
Static
POSSIBLE CAUSE
-AC adapter is not plugged into electrical outlet
-AC adapter is not plugged into transmitter
-Audio cord is not plugged into the audio source
-There is no audio output from the audio source
-Transmitter is not on
-Headphones are not on
-Headphones have no batteries
-Batteries areinserted incorrectly
-Batteries aredead and need to be replaced
-Hook up the microphone to the transmitter and
speak into the microphone. You should hear your
voice in the headphones and you will confirm the
unit is working.
-Headphone volume control is too low
-Batteries are weak and need to be replaced
-Infrared sensor in headphone is not in line with
transmitter
-Batteries areweak and need to be replaced
-Headphone volume control needs to be adjusted
-Infrared sensor in headphone is not in line with
transmitter
10
