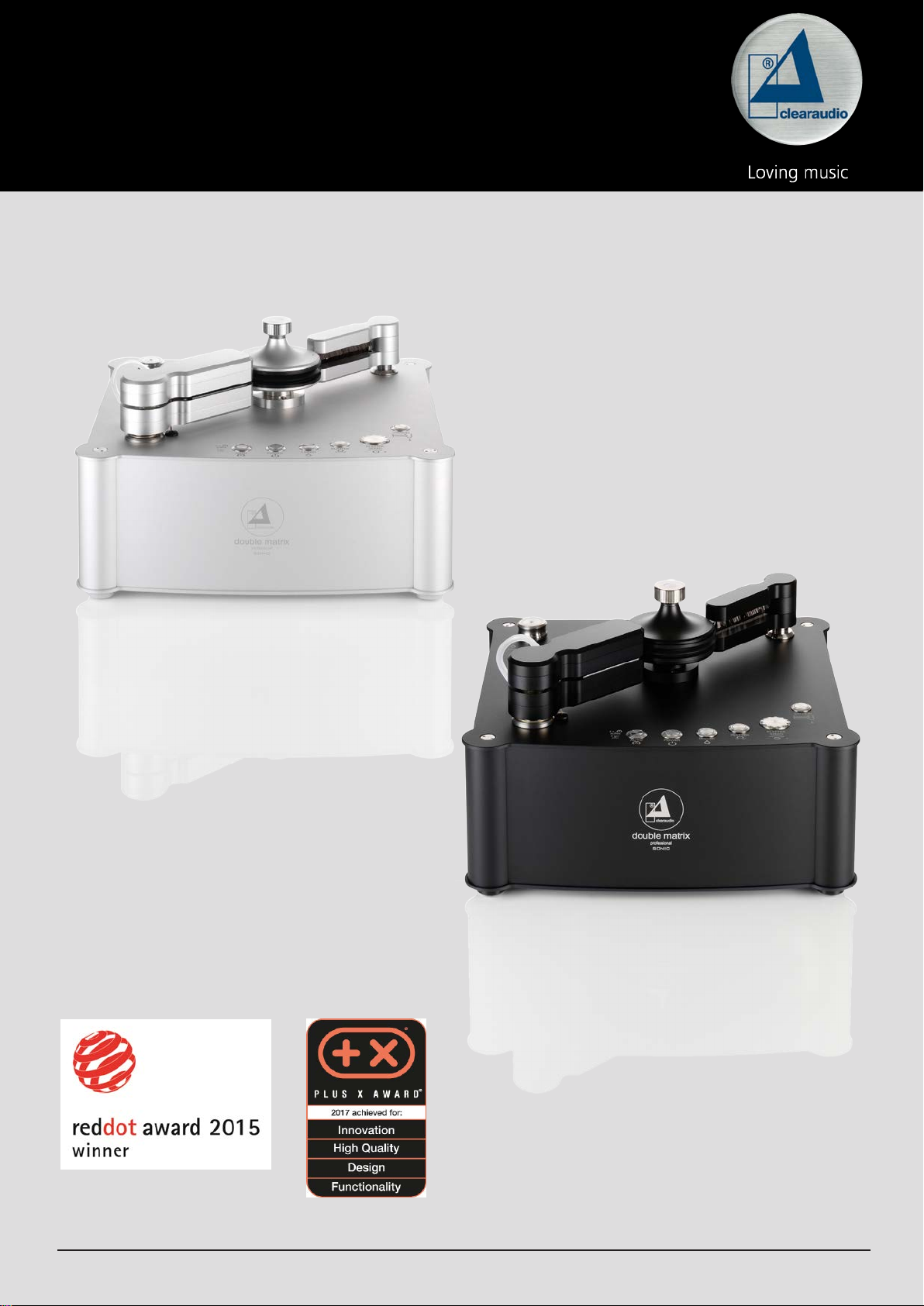

Clearaudio double matrix professional SONIC Manuel utilisateur
User manual
Bedienungsanleitung
© clearaudio electronic GmbH, 2022-01 Made in Germany
double matrix professional SONIC
Pic. similar / Abb. ähnlich
Pic. similar / Abb. ähnlich
Page / Seite 2 © clearaudio electronic GmbH, 2022-01
User manual / Bedienungsanleitung
User manual............................................2 - 15
Bedienungsanleitung..............................16 - 29
Dear Clearaudio customer,
Congratulations on the purchase of your
double matrix professional SONIC
, a high-performance
product made by Clearaudio.
Keeping your vinyl records clean improves their sound quality. It is equally important to clean new
vinyl records, because the pressing process often leaves behind surface residues. The integrated
sonic cleaning technology of the Clearaudio
double matrix professional SONIC
will eectively
remove all such contaminants from the grooves of your records.
Please read these instructions carefully to ensure correct operation and to achieve the
best possible cleaning results.
Components and processing
The Clearaudio
double matrix professional SONIC
is built using the highest quality components
and is designed for intensive and continuous use. The chassis, cleaning, vacuum and antistatic
arms, as well as the Seal record clamp are machined from solid aluminium. The chassis is lined with
acoustic damping pads to keep operational noise to a minimum.
Our quality standard is reected in a warranty of 3 years, provided that the completed warranty card
is returned to us within 14 days of purchase.
We thank you for your purchase and hope you enjoy using your new
double matrix professional SONIC.
Available Accessories:
Dustcover for
double matrix professional
SONIC
(Art. No. AC143)
Record cleaning uids
(for example pure groove
Art. No. AC048)
Available in dierent sizes
and versions.
Replacement microber strips for
double matrix professional SONIC
(Art. No. AC062/DMPS)
Made in Germany Page / Seite 3
User manual / Bedienungsanleitung
Safety instructions
1. Transportation
• If you transport or ship the Clearaudio
double matrix professional SONIC
for any reason,
the original packaging must be used. Please pack the machine as it was packed originally by
Clearaudio to ensure secure transport.
Ensure also that both tanks (uid reservoir and waste uid tank) are empty before
packing the unit and the cap of the cleaning uid reservoir is secured with tape.
2. Service
• The
double matrix professional SONIC
should only be repaired by Clearaudio approved
institutions or persons, or by Clearaudio, otherwise the warranty will be void.
• If damage should occur for any reason and repair to the machine is necessary, it should be sent
to the selected dealer or distributor.
Please note: If uids that produce foam, or uids which are acid-based, have been used, or if the
precautions noted in this instruction manual have not been followed, the warranty will be void.
3. Safety instructions
CE Mark
This electronic product complies with the valid guidelines for obtaining the CE mark.
Disposal
This product is not allowed to be disposed with household waste.
WEEE Reg.No.: DE26004446
Visual check
Never touch the power cable with wet hands or other wet body parts!
For your own safety, a frequent visual check of the mains cable is suggested.
If any damage should occur, repair or exchange should be done immediately using an
approved electrician or institution. Any servicing of Clearaudio products should only be
done through certied Clearaudio dealers.
This machine is designed to be used in heated or climate controlled surroundings.
Legal disclaimer:
Clearaudio refuse to cover any claims or damage to records or any other damage that have been
caused by misuse or mishandling of the
smart matrix SILENT
.
Page / Seite 4 © clearaudio electronic GmbH, 2022-01
User manual / Bedienungsanleitung
Contents
1. Package contents.................................................................5
2. Features overview of the
double matrix professional SONIC
......................................6
3. Setup of the
double matrix professional SONIC
..................7
4. Operating elements.............................................................8
5. Functions .............................................................................9 - 10
6. Initial start-up.....................................................................11
7. Maintenance ........................................................................12
8. Points to note ......................................................................13 - 14
9. Technical data......................................................................15
Warranty information..............................................................30 - 31
Made in Germany Page / Seite 5
User manual / Bedienungsanleitung
1. Package contents
The Clearaudio
double matrix professional SONIC
is delivered in a special designed packaging for
this product.
Ensure that the packaging has no external damage, such as shipping damage.
Please retain the packaging, as only the original packaging provides the necessary protection and
stability during any subsequent transportation.
Please check the contents of you’re newly purchased
double matrix professional SONIC
record cleaning machine for completeness:
1. Fully assembled record cleaning machine
2. Seal record clamp
3. Filling funnel
4. IEC connector
(according to country specications)
5. 6pcs. spare microber stripes
6. 500ml groove care cleaning uid*
7. Cap for cleaning uid reservoir
(mounted on the lling opening)
8. Tube plug
(mounted on the drain tube)
9. Single adapter
10. Hex wrench #5
11. Warranty card
12. Quality control card
In the event of an incomplete delivery, please contact the relevant Clearaudio dealer immediately.
* We do not recommend to clean your shellac records with
groove care
because Vinyl cleaner easily
aect Shellac.
Please use only liquids which are specically developed for this purpose (for example Clearaudio
pure groove Shellac,
Art. No. AC048/SH, available through your Clearaudio dealer or directly from
the Clearaudio analog shop: www.analogshop.de.)
Page / Seite 6 © clearaudio electronic GmbH, 2022-01
User manual / Bedienungsanleitung
2. Features overview of the
double matrix professional SONIC
• Integrated sonic – vibrating cleaning elements
Deep cleaning of pressing residues and persistent dirt deep within the record groove.
• Cleans LPs, EPs and singles
• Simultaneous cleaning of both sides
Ecient and eective cleaning of both sides of a record in a single washing program.
• Manual operation
Set your own cleaning parameters.
• Bi-directional rotation
For enhanced cleaning performance you can change the direction of the rotation.
• Variable speed regulation
During manual operation, select the desired speed to receive the best cleaning result.
• LED level indication
Shows the uid level in the internal cleaning uid reservoir.
• Adaptive cleaning brush
The cleaning brushes automatically adjust for dierent thickness and sizes of record.
• Seal record clamp
Ensures that the record is held rmly during the cleaning process and protects the record label
from uid damage.
• Auto mode
A fully automated cleaning program suitable for most record cleaning situations.
• Super clean mode
A fully automated cleaning program for records that need an extra thorough clean.
• ECO mode
A shortened cleaning program.
Made in Germany Page / Seite 7
User manual / Bedienungsanleitung
3. Setup of the
double matrix professional SONIC
Take the already assembled
double matrix professional SONIC
record cleaning machine from its
packaging. Set it on a stable and horizontal surface (such as a desk or rack).
Please note that due to the weight of the record cleaning machine, the feet of the device can cause
marks on soft surfaces. Due to the warm air outlet on the bottom of the
double matrix professional
SONIC
, the surface on which it rests should be heat resistant to a minimum of 60°C.
3.1 Connect to the mains supply
To avoid using an additional extension cable, place the
double matrix professional SONIC
within 2
metres of an electrical wall outlet.
Connect the supplied mains cable rst to the IEC socket on the back of the
double matrix professional
SONIC
and then to the electrical wall outlet. Press the switch on the IEC socket and position it to “I”.
Please read the whole user manual before cleaning your rst record.
Note: Voltages are referenced to EU countries with 230V mains power.
In other countries the mains voltage and frequency may vary (e.g. USA 115V/60Hz.)
The correct operating voltage can be found on the back of the device on the product
information label (Pic. 1).
The mains cable supplied should be of the type appropriate for your country. Please ensure that the
mains voltage of your country also matches the mains voltage of the device. This information is also
on the product information label (see above).
If it does not match, please contact your Clearaudio dealer.

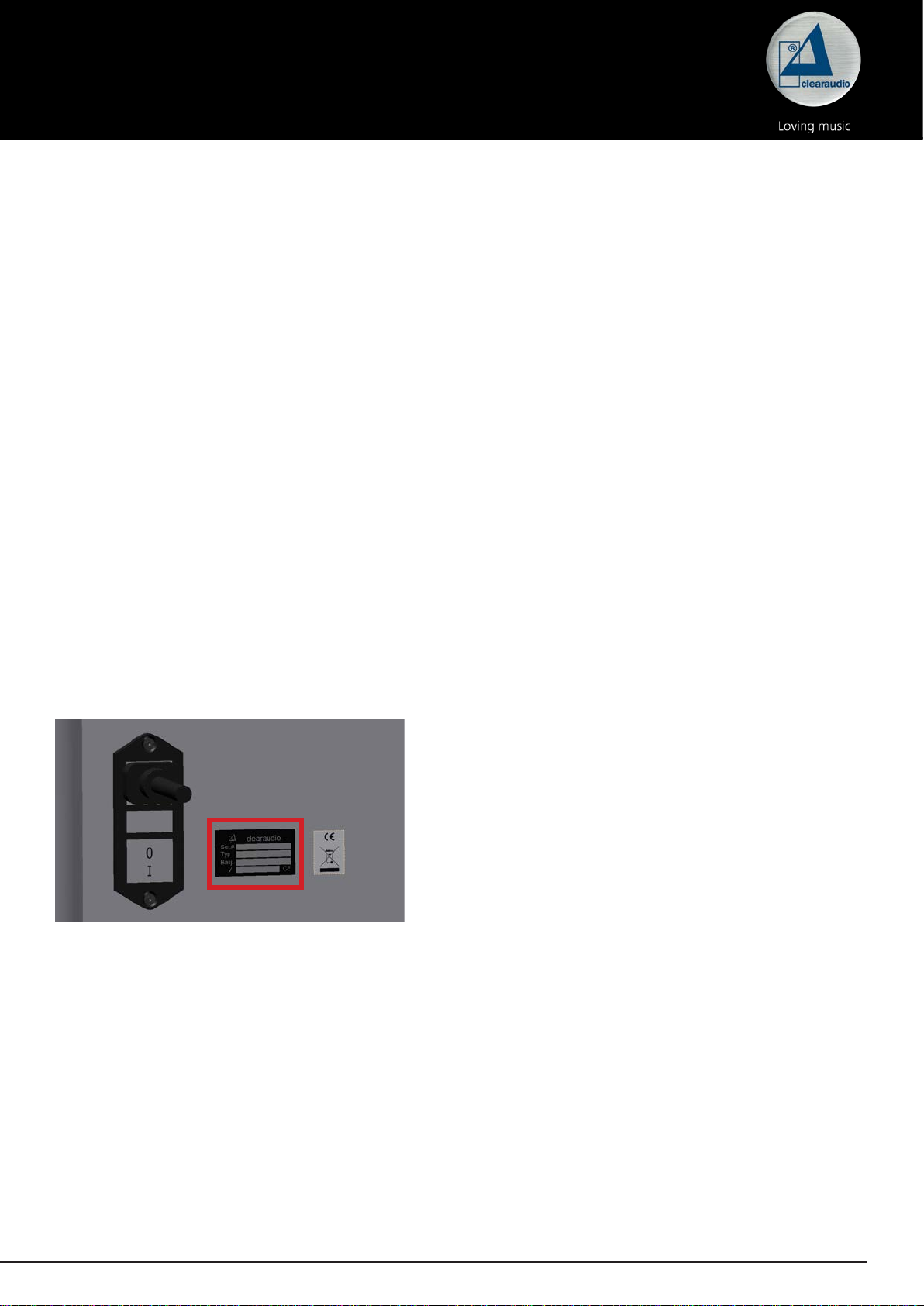

Pic. 1: Product information label on the back
Page / Seite 8 © clearaudio electronic GmbH, 2022-01
User manual / Bedienungsanleitung
4. Operating elements
Please familiarise yourself with each of the operating elements shown above, which are described
in detail on the following pages.
1
8
7
65
4
32
10 9
13
12
11
14
1Automatic / Superclean start / ECO mode 8Antistatic arm
2Manual platter rotation on & o /
Automatic o 9IEC socket with power switch
3Cleaning uid application 10 Drain tube with sealing plug
4Rotational direction selection 11 Cleaning uid reservoir lling cap
5Rotational speed adjust 12 Cleaning uid reservoir level indication
LEDs
6Vacuum drying on / o 13 Cleaning & vacuum arm
7Seal record clamp 14 Removeable microber stripes

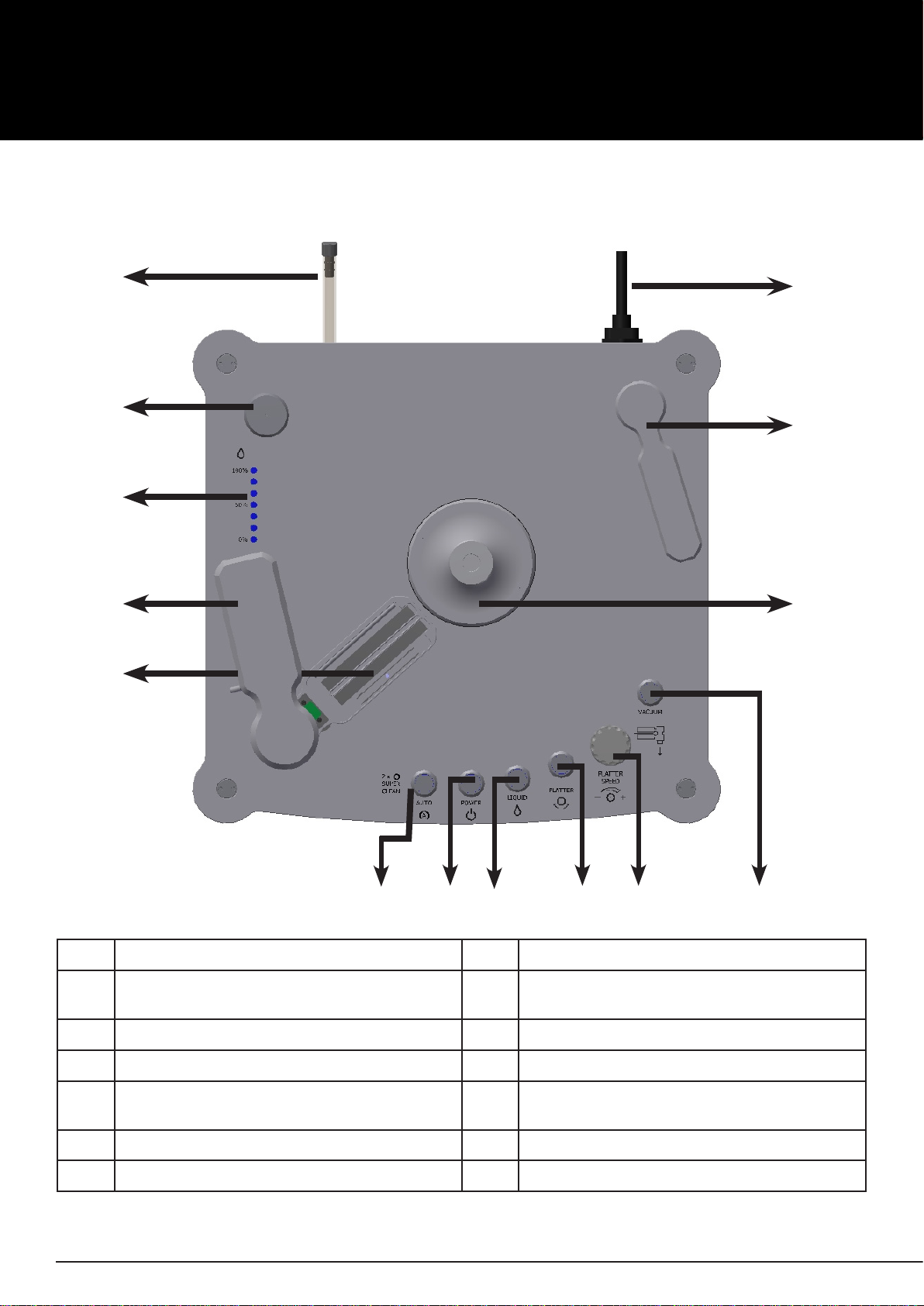

Pic. 2: View from above
Made in Germany Page / Seite 9
User manual / Bedienungsanleitung
5. Functions
5.1 Automatic cleaning
Automatic / Superclean / Eco mode
The “Auto” button has a multifunction for dierent automatic cleaning modes.
• Eco mode
Hold the button for 3 seconds, the LED ring of the “AUTO” button will blink fast.
This mode is the most economical in terms of cleaning time and cleaning uid consumption.
• Automatic mode
Press the button once, the LED ring of the button will shine constantly.
This mode is a normal cleaning mode.
• Super-Clean mode
Press the button twice, the LED ring will blink slowly.
This mode is for very dirty records and will run the “AUTOMATIC MODE” twice.
If the respective cleaning program (Auto mode / Super-Clean / ECO mode) is nished, the blue ring
of the button will ash short and expire completely.
You can cancel every automatic mode by pressing the button “POWER” shortly.
5.2 Manual cleaning
• Power
Starts the platter rotating and switches on the sonic cleaning function.
• Liquid
Press to apply cleaning uid to the upper and lower sides of the record.
• Platter
Press to change the platter’s rotational direction.
• Platter Speed
Turn to adjust the platter rotation speed.
• Vacuum
Activates the suction drying process while also stopping the sonic cleaning function.
Page / Seite 10 © clearaudio electronic GmbH, 2022-01
User manual / Bedienungsanleitung

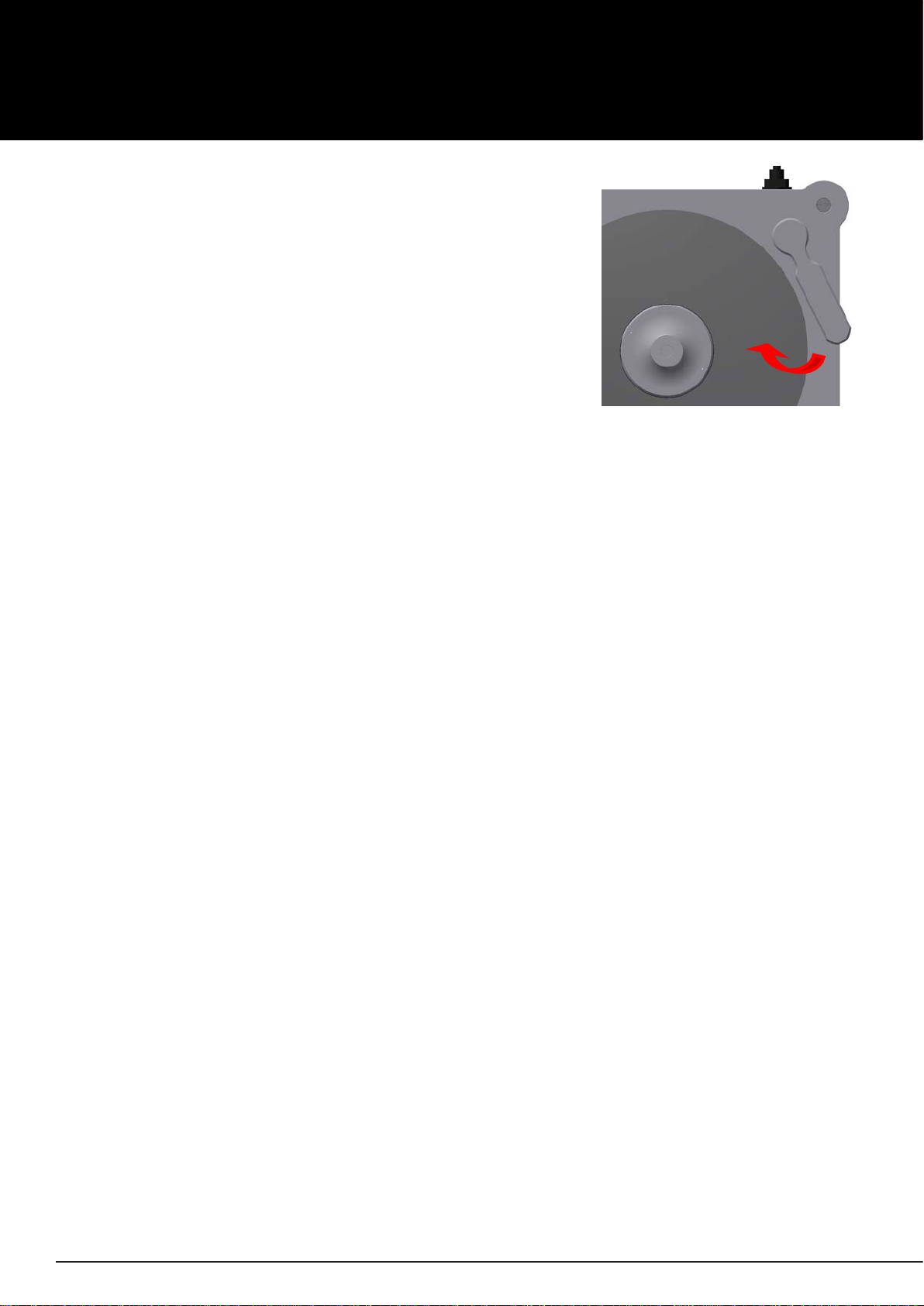

Pic. 3: Turning the antistaic unit
5.3 Automatic and manual cleaning
• Antistatic brush
The antistatic brush arm is used to discharge any static that is
generated during the drying process. After completion of the
automatic programs or manual cleaning, the dry record should
pass the antistatic brush at least for 2-3 full rotations. Turn the
antistatic arm above the record to the outer point. The record will
start to turn and the constructed static will derived.
The antistatic function can only be activated with opened suction
arm.
After 2-3 full rotations, turn the antistatic arm back to the start position. The rotation of the record
ends automatically.
5.4 LED level indicator
Shows the level of cleaning uid currently in the reservoir (0% to 100%).
Autres manuels pour double matrix professional SONIC
3
Table des matières
Langues :
Autres manuels Clearaudio Équipement de test
Clearaudio
Clearaudio Speed Light V2 Manuel utilisateur
Clearaudio
Clearaudio Speed Light Manuel utilisateur
Clearaudio
Clearaudio IEC cartridge alignment gauge Manuel utilisateur
Clearaudio
Clearaudio AC039 Manuel utilisateur
Clearaudio
Clearaudio Stroboscope Testrecord Manuel utilisateur
Clearaudio
Clearaudio Magnify Manuel utilisateur
Manuels Équipement de test populaires d'autres marques
SMART
SMART KANAAD SBT XTREME 3G Series Manuel utilisateur
Agilent Technologies
Agilent Technologies BERT Serial Manuel utilisateur
Agilent Technologies
Agilent Technologies N3280A Manuel utilisateur
Vernier
Vernier Go Direct Voltage Manuel utilisateur
Lifeloc
Lifeloc R.A.D.A.R. Manuel utilisateur
Fluke
Fluke T5-600 Instructions d'utilisation et d'installation
