Classic Exhibits Perfect 10 VK-1402 Manuel utilisateur
www.classicexhibits.com
866.652.2100
© 2014
WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING
Order #XXXXX - VK-1402 Table Top -
Page 1 of 3
Step 1
patent D599,121
General Layout
Item
1
2
3
4
Qty.
1
1
1
1
Steps:
1) Attach lower and upper horizontal extrusions [3,4] between assemblies by slightly
tightening BLACK knobs on backside of extrusion as shown.
NOTE 1: Make sure velcro faces toward back and knobs face horizontally as shown in detail.
NOTE 2: Make sure the lock is flush with extrusion before tightening. If lock will not fully
engage, gently rock lock and extrusion while turning knob until lock fully opens.
** Various Accessories Available **
When assembled
Description
Left Leg Assembly
Right Leg Assembly
Hinged Horizontal
Hinged Horizontal
Rear View of Display
Hinge Extrusion
Top Horizontal Hinge faces DOWN.
Bottom Horizontal Hinge faces UP.
NOTE: When assembling horizontals
they should be placed approximately
one inch from TOP and BOTTOM.
Slide
horizontal into groove
Assure
that a good
connection is made
and tighten to secure.
Black
Knob
Turn Knob Clockwise
to Tighten Lock
STAR indicates location of
knobs on BACKSIDE of unit.
1
2
4
3*
*
*
*
*
*
*
*
Light Connection
Attach lights to
backwall where
desired and
tighten in place.
www.classicexhibits.com
866.652.2100
© 2014
WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING
Order #XXXXX - VK-1402 Table Top -
patent D599,121

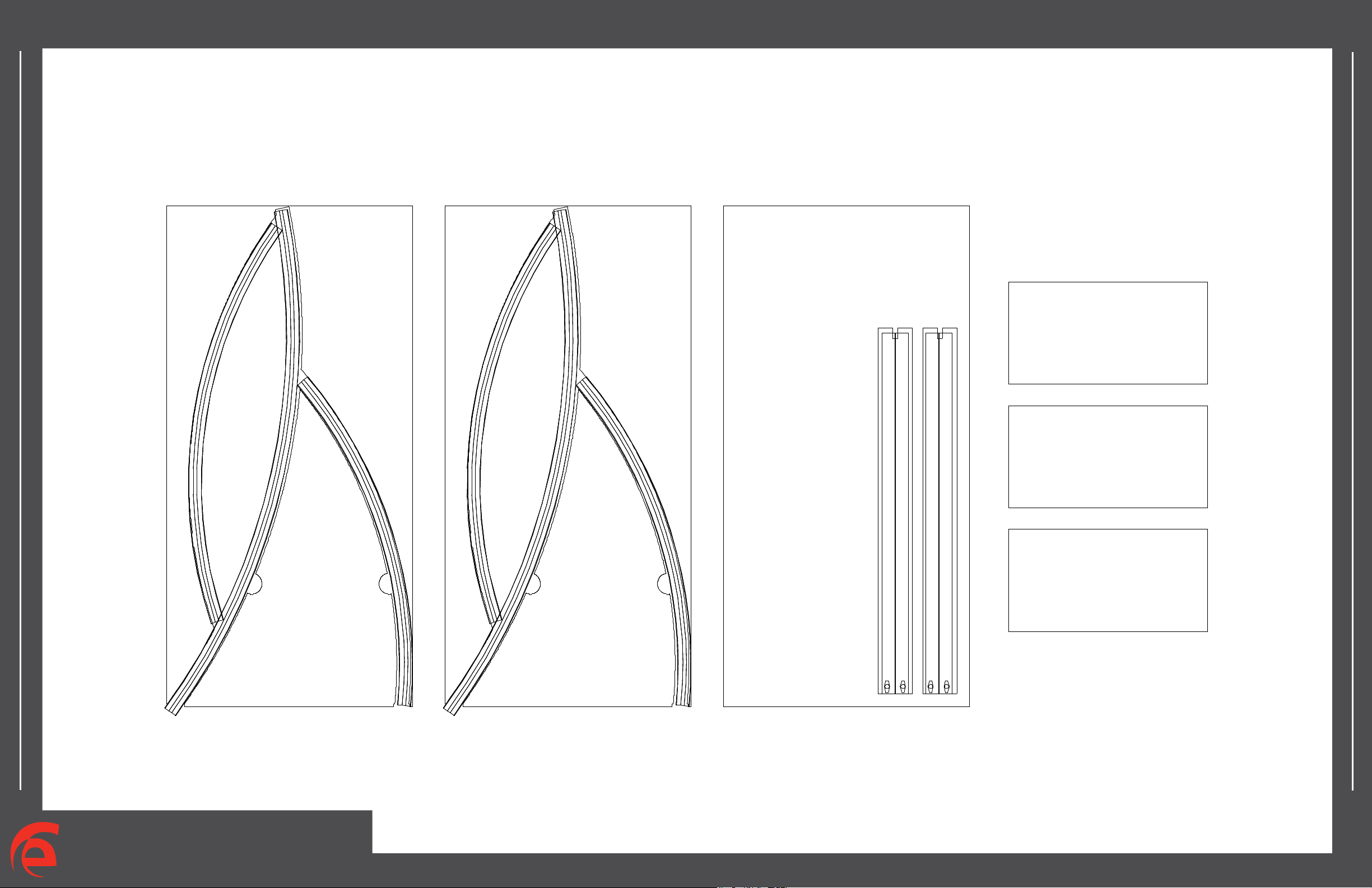

Case Packing Instructions
Level 1 Level 2 Level 3
#3 #4
Top View of Each Level
Setup Hardware
Leg Assembly
1
Leg Assembly
2
Graphics
Halogen Lights
