Classeq Pass Through Range - User Manual
3
TABLE OF CONTENT
1. INTRODUCTION 4
1.1 Installation and commissioning 4
1.2 Service and repairs 4
1.3 Modification 4
2. SAFETY 4
2.1 Symbols Used in this Manual 4
2.2 Danger Warnings 4
2.3 Warnings 4
2.4 Cautions 4
3. TOOLS LIST 4

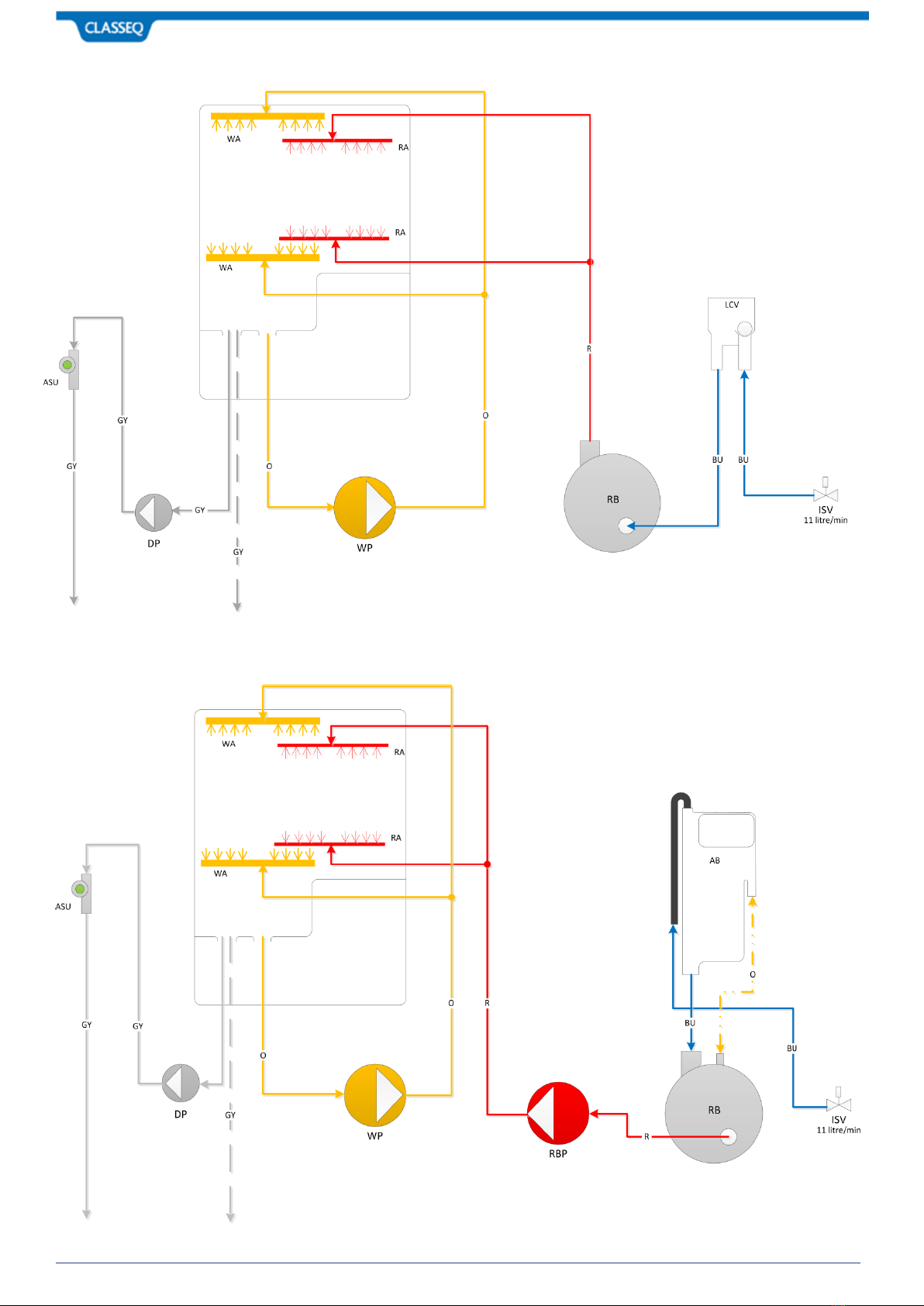

4. WATER SYSTEM 5
4.1 Water ways 5
4.2 Water ways legend 5
4.3 P500 (Pressurised) 6
4.4 P500-A (Standard Air-break) 6
4.5 P500-A-WS (Standard Water Softener) 7
4.6 P500-AS (AS Air Break) 7
4.7 P500-AS-WS (AS Water Softener) 8
4.8 Water Softener Unit 8
5. MACHINE SPECIFICATIONS 9
5.1 Systems matrix 9
5.2 Mechanical specifications/ site requirements 9
5.3 Electrical Components Specification 9
5.4 Pump wiring 10
5.5 External Chemical Pump Signals 10
5.6 Terminal Block Layout 11
5.7 Terminal Block Configurations 11
5.8 Contactor Wiring 12
6. LOGIC 14
6.1 Indicator Logic 14
6.2 Fill and Heat 14
6.3 Wash and Rinse 15
6.4 Drain 15
6.5 Chemical Dosing 15
6.6 Water Softener Unit 16
7. COMMISSIONING 17
7.1 Commissioning/ Service Interface 17
7.2 Commissioning Mode 17
7.3 Setting Chemical Dosage 17
7.4Priming Chemicals 17
7.5 Setting Water Hardness (if fitted) 17
8. SERVICE MODE 19
8.1 Accessing Service Mode 19
8.2 Program Value 19
8.3 Heat Interlock Settings 19
8.4 Reset to Factory Settings 20
8.5 Statistics 20
8.6 Loads 20
8.7 Errors 21
9. CONTROL UNIT 23
9.1 Inputs and Outputs 23
9.2 Board Setup 24
10. WASH PERFORMANCE 25
10.1 Recommended chemicals 25
10.2 Recommended chemical dosing 25
10.3 Recommended Temperatures 25
10.4 Troubleshooting 25
11. CABLE REPAIR KITS 27
11.1 Available Cable Kits List 27
27
11.2 Cable Kit Information 27
11.3 Cable Kit Diagram 27
12. QUICK REFERENCE 28
13. MACHINE RATING 29
13.1 Element Ratings 29
13.2 Mains Cable Types 29
13.3 Mains Cable Specification 29
14. WIRING DIAGRAMS 30
14.1 Std 30
14.2 AS 31
14.3 No Neutral 32
15. USEFUL CONTACT DETAILS 33
16. NOTES 34
