WARNING: Read these instructions before using the machine

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0214

NO GAS MIG WELDER

MODEL NO: MIG102NG

PART NO: 6015600

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE MIG Welder.

Before attempting to operate the machine, it is essential that you read this

manual thoroughly and carefully follow all instructions given. In doing so you

will ensure the safety of yourself and that of others around you, and you can

also look forward to the welder giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of

12 months from the date of purchase. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

CONTENTS

INTRODUCTION ............................................................... 2

GUARANTEE .................................................................... 2

ENVIRONMENTAL RECYCLING POLICY ......................... 2

CONTENTS ....................................................................... 3

GENERAL SAFETY INSTRUCTIONS ................................... 4

SAFETY SYMBOLS ............................................................ 7

THE WELDING SHIELD ...................................................... 7

ELECTRICAL CONNECTIONS .......................................... 8

UNPACKING ................................................................... 9

Opening The Cover.............................................................. 9

OVERVIEW ....................................................................... 10

THE CONTROL PANEL ...................................................... 11

PREPARATION FOR USE .................................................. 12

Mounting The Welding Wire Spool...................................... 12

Setting The Drive Roller Size ................................................. 12

Threading The Wire ............................................................... 13

MIG WELDING PRINCIPLES ............................................. 15

OPERATING THE WELDER ................................................ 15

Preparing The Workpiece .................................................... 15

Operation .............................................................................. 15

Thermal Overload................................................................. 16

Duty Cycle............................................................................. 17

ACCESSORIES ................................................................. 17

MAINTENANCE ............................................................... 18

RATING PLATE ................................................................. 19

TROUBLESHOOTING ........................................................ 20

SPECIFICATIONS ............................................................. 22

DECLARATION OF CONFORMITY ................................... 23

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY INSTRUCTIONS

ELECTRIC SHOCK

• Remove the plug from the socket

and wait 5 minutes to allow the

capacitors to discharge before

carrying out any servicing or

maintenance on this welder.

• Do not touch live electrical parts.

• Never use electrode holders or

cables which are damaged.

• Keep working environment,

equipment, cables and clothing

free from grease, oil, moisture and

dirt.

• Ensure welding machine has been

correctly earthed.

• The operator must be insulated

from the floor and work bench

using a dry insulation mat.

• Always ensure a second person is

present in case of accident.

• Never change electrodes with

bare hands or damp gloves.

• Keep welding cables away from

power cables.

• Regularly inspect the condition of

the cables for signs of damage.

• Remove plug from the mains

socket when not in use, do not

leave the machine unattended.

• Ensure earth clamp is secured to

bare metal adjacent to weld

seam, and when not in use is

insulated for safety. - Keep all

equipment well maintained.

• The operator shall prevent any gas

cylinders in the vicinity of the work

piece from becoming part of the

welding circuit.

FUMES & GASES

• The welding process generates

hazardous fumes as a by-product.

Inhalation of these fumes is

hazardous to health.

• Keep your head away from the

weld to avoid breathing the fumes.

• If welding in confined spaces

ensure adequate ventilation and

use a fume extractor.

• By-products of welding can react

to create a toxic/explosive

environment.

FIRE OR EXPLOSION

Welding can cause fire and

explosions. Precautions should be

taken to prevent these hazards.

• Before starting work ensure the

area is clear of flammable

materials.

• Move any combustible materials to

a safe distance, especially

substances likely to generate a

dangerous vapour.

WARNING: WHEN USING ELECTRICAL TOOLS, BASIC SAFETY

PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF

FIRE, ELECTRIC SHOCK AND PERSONAL INJURY

WARNING: READ ALL THESE INSTRUCTIONS BEFORE ATTEMPTING TO

OPERATE THIS PRODUCT AND KEEP THESE INSTRUCTIONS IN A SAFE PLACE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The welding arc can cause serious

burns. Avoid contact with skin.

• Sparks and molten metal are

ejected during welding. Take

precautions to prevent fire.

• Sparks and molten metal can pass

through gaps. Be aware that fire

can start out of sight.

• Do not weld pressurised containers.

or containers containing

flammable vapours e.g. fuel tanks.

• Always have appropriate fire

fighting equipment to hand

suitable for use in electrical

environments.

• Avoid carrying any fuels with you

e.g. cigarette lighters or matches.

PERSONAL PROTECTION

• The body should be protected by

suitable clothing.

• The use of neck protection may be

necessary against reflected

radiation.

• Arc machines generate a

magnetic field which is detrimental

to pacemakers. Consult your

doctor before going near active

welding equipment/operations.

• The UV and IR radiation generated

by welding is highly damaging to

the eye, causing burns. This can

also affect the skin.

• Always use suitable welding shields

equipped with appropriate

protection filters.

• Where there are pedestrians and

traffic ensure a protective screen is

used to avoid accidental arc glare.

• Do not weld in the vicinity of

children or animals and ensure no

one is looking before striking an

arc.

• Wear hearing protection if

required.

• Allow the weld to cool. Hot metal

should never be handled without

gloves.

• Take care when adjusting or

maintaining the torch, that it has

had time to cool sufficiently and

the welder is disconnected from

the mains supply.

• First aid facilities and a qualified first

aid person should be available

unless medical facilities are close

by, for immediate treatment of

flash burns of the eyes and skin

burns.

• A hard hat should be worn when

others are working overhead.

• Flammable hair sprays/gels should

not be used by persons intending

to weld or cut.

PROTECTIVE CLOTHING

• Wear gauntlet gloves designed for

use in welding.

• Wear an apron, and protective

shoes.

• Wear cuffless trousers (not turned

up) to avoid catching sparks and

slag.

• Avoid oily greasy clothing.

• Protective head and shoulder

coverings should be worn when

overhead welding.

• Wear helmet with safety goggles or

glasses with side shields

underneath, appropriate filter

lenses or plates (protected by clear

glass). This is a MUST for welding

(and chipping) to protect the eyes

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

from radiant energy and spatter.

Replace cover glass when broken,

pitted, or spattered.

NOTE: ALL protective wear inc. masks

& head shields MUST comply with PPE

Directive 89/686/EEC

ADDITIONAL SAFETY PRECAUTIONS

FOR MIG WELDING

•ALWAYS ensure that there is ample

free air circulating around the

outer casing of the machine, and

that the louvres are unobstructed.

• ALWAYS inspect the hose before

use to ensure it is in good condition.

• ALWAYS keep the free length of

torch hose outside the work area.

• ALWAYS remove all flammable

materials from the welding area.

• ALWAYS keep a fire extinguisher

handy;-Dry Powder, C02or BCF,

NOT Water.

• NEVER remove any of the panels

unless the machine is

disconnected from the power

supply, AND never use the

machine with any of the panels

removed.

• NEVER attempt any electrical or

mechanical repair unless you are a

qualified technician. If you have a

problem with the machine contact

your local CLARKE dealer.

• Never use or store in a wet/damp

environment.

• NEVER continue to weld, if, at any

time, you feel even the smallest

electric shock. Stop welding

IMMEDIATELY, and DO NOT attempt

to use the machine until the fault is

diagnosed and corrected.

• NEVER point the MIG torch at any

person or animal.

• Never touch the MIG torch nozzle

until the welder is switched OFF and

the nozzle has been allowed to

cool off.

• NEVER allow the earth cable or

hose to become wrapped around

the operator or any person in the

vicinity.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY SYMBOLS

General Warning, indicates that failing to follow these instructions

could result in injury or damage to the machine.

Recycle unwanted materials instead of disposing of them as

waste. All tools, accessories and packaging should be sorted,

taken to a recycling centre and disposed of in a manner which is

compatible with the environment.

Read Instruction Manual before use.

THE WELDING SHIELD

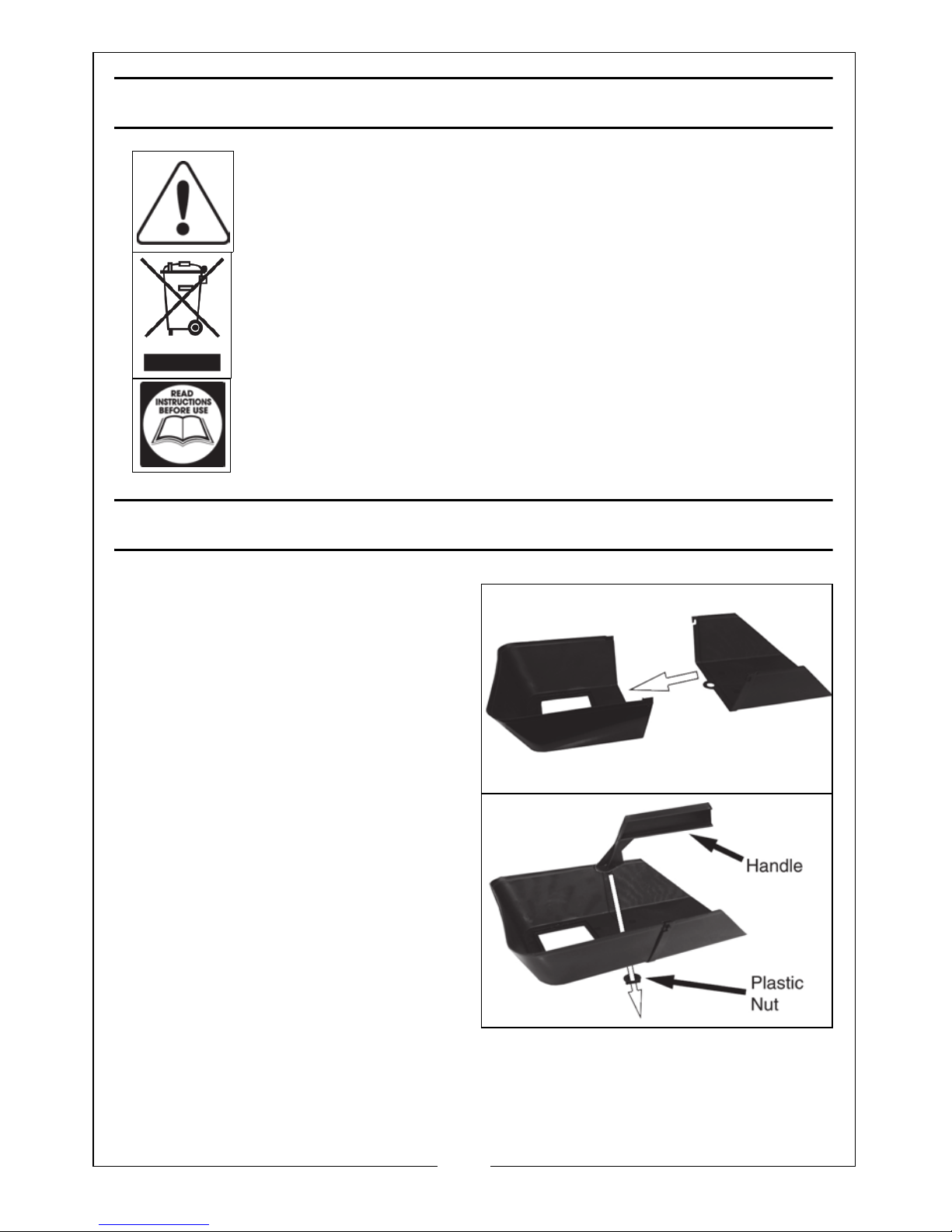

1. Push the two halves of the shield

together as shown, making sure

the hooks and pins on the side

engage correctly.

2. Place the handle into position

and secure using the plastic nut

provided.

3. Working from the inside of the

shield, insert the clear glass panel

into the recess in the shield,

followed by the dark glass panel.

• The clear glass must be inserted

first.

4. Insert the two plastic screws to

clamp the glass panels from the

inside of the mask.

When replacing the glass panels,

only use parts supplied by Clarke International. The dark panel is a certified,

specific optical class, and should not be exchanged for any other type.

The clear glass panel should be replaced when it becomes badly pitted.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity

supply is the same as that indicated on the rating plate. This product is designed to

operate on 230VAC 50Hz. Connecting it to any other power source may cause

damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change

the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost

or damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to

damage, it should be cut off and a replacement fitted, following the wiring

instructions shown below. The old plug must be disposed of safely, as insertion into

a mains socket could cause an electrical hazard.

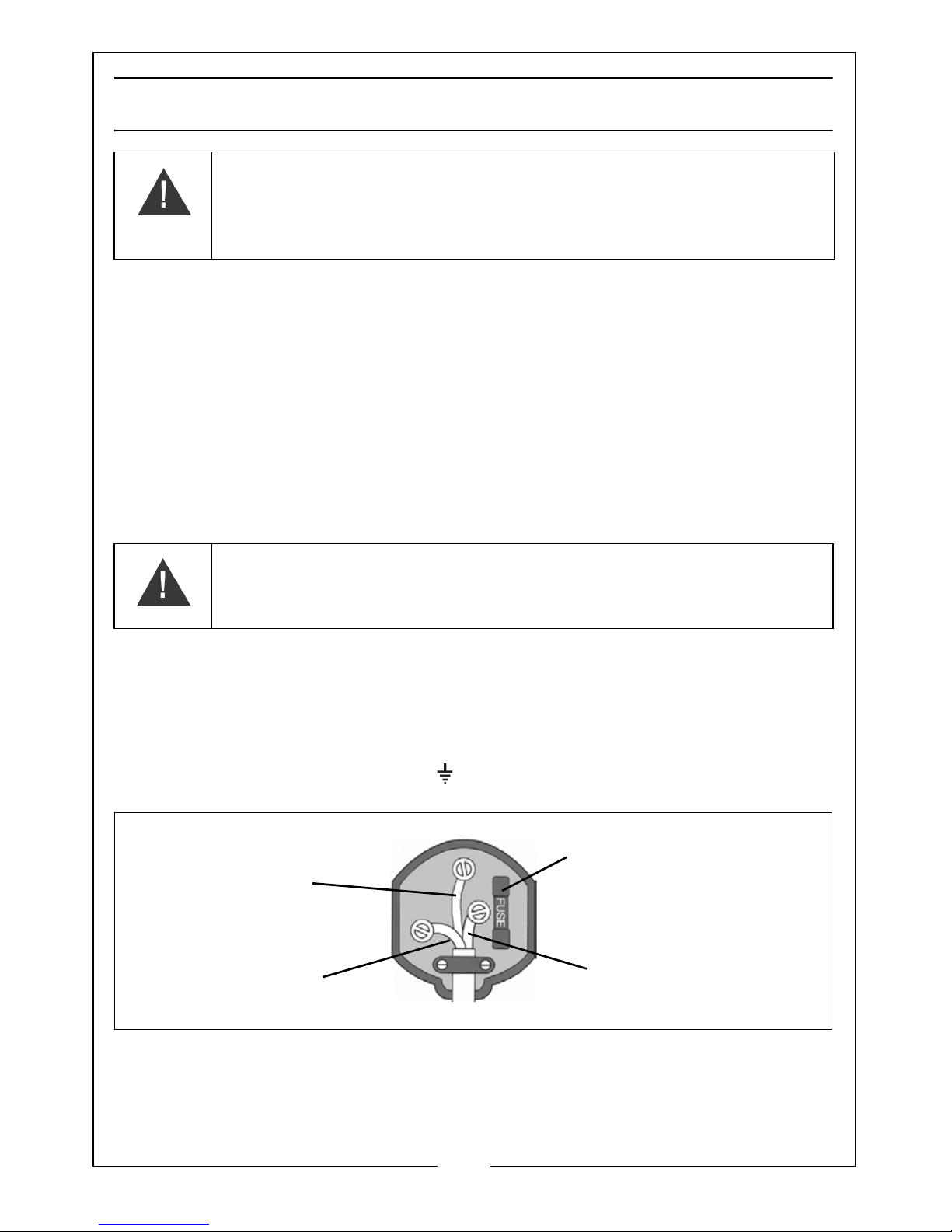

• The wire which is coloured Blue must be connected to the terminal

which is marked Nor coloured Black.

• The wire which is coloured Brown must be connected to the terminal

which is marked Lor coloured Red.

• The wire which is coloured Yellow and Green must be connected to the

terminal which is marked E or or coloured Green.

WE STRONGLY RECOMMEND THAT THIS MACHINE IS CONNECTED TO THE MAINS SUPPLY

VIA A RESIDUAL CURRENT DEVICE (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs

yourself.

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE

MAINS SUPPLY.

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT

ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue) Live

(Brown)

Earth

(Green and Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

UNPACKING

Any damage or deficiency should be reported to your CLARKE dealer

immediately.

The components include the following:

• 1 x Gasless MIG Welder (torch and earth clamp attached)

• 2 x 0.9 mm Torch Tips (one installed in the torch)

• 1 x Spool Of Flux Cored Wire

• 1 x Combination Wire Brush / Hammer

• 1 x Split Welding Mask

• 1 x Instruction Manual

OPENING THE COVER

IMPORTANT: Ensure that the welder is not connected to the mains supply.

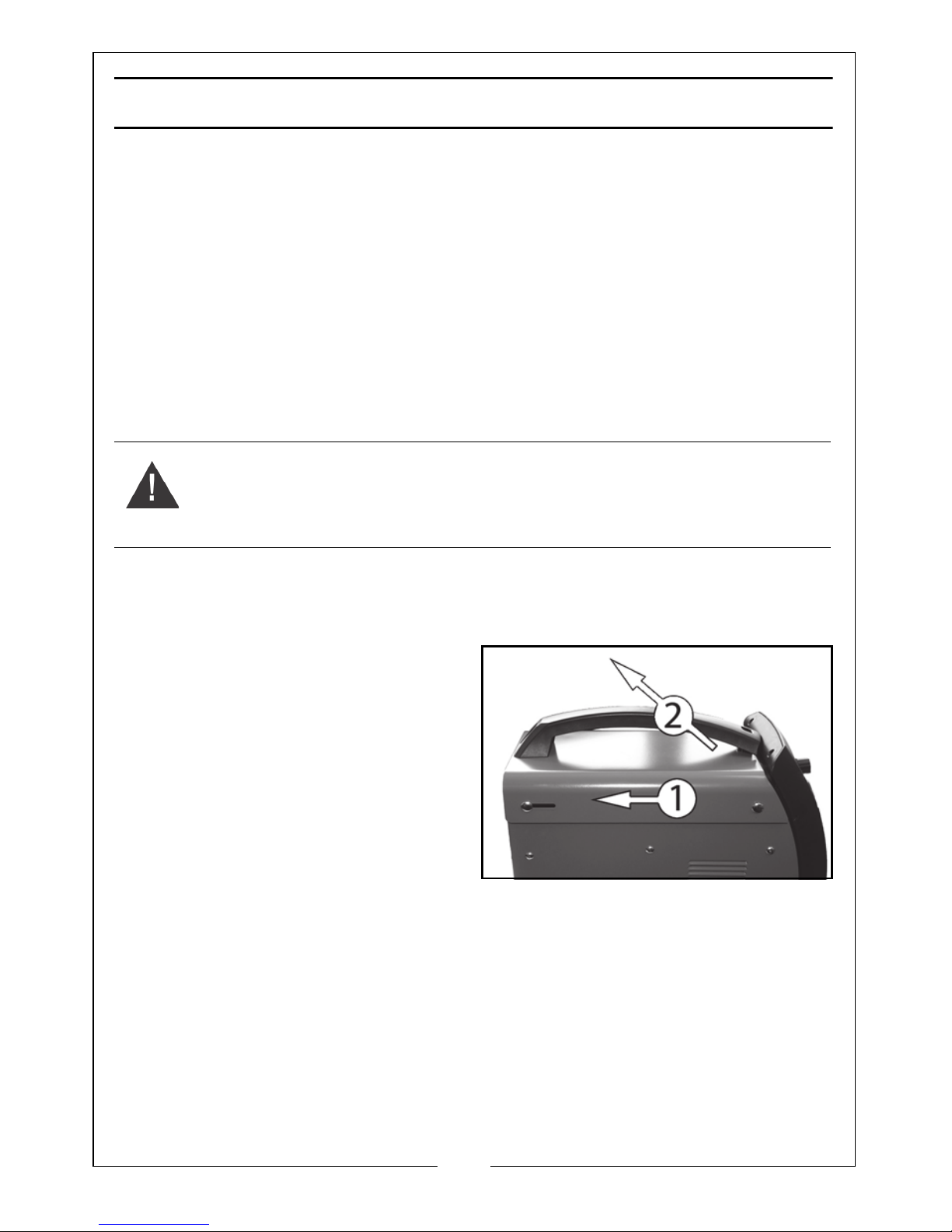

1. Open the cover, by sliding the top

back ,and then lift the cover open

as shown.

2. Remove any loose items that

have been transported inside.

WARNING: NEVER OPERATE THIS MACHINE WITH THE COVER OPENED

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OVERVIEW

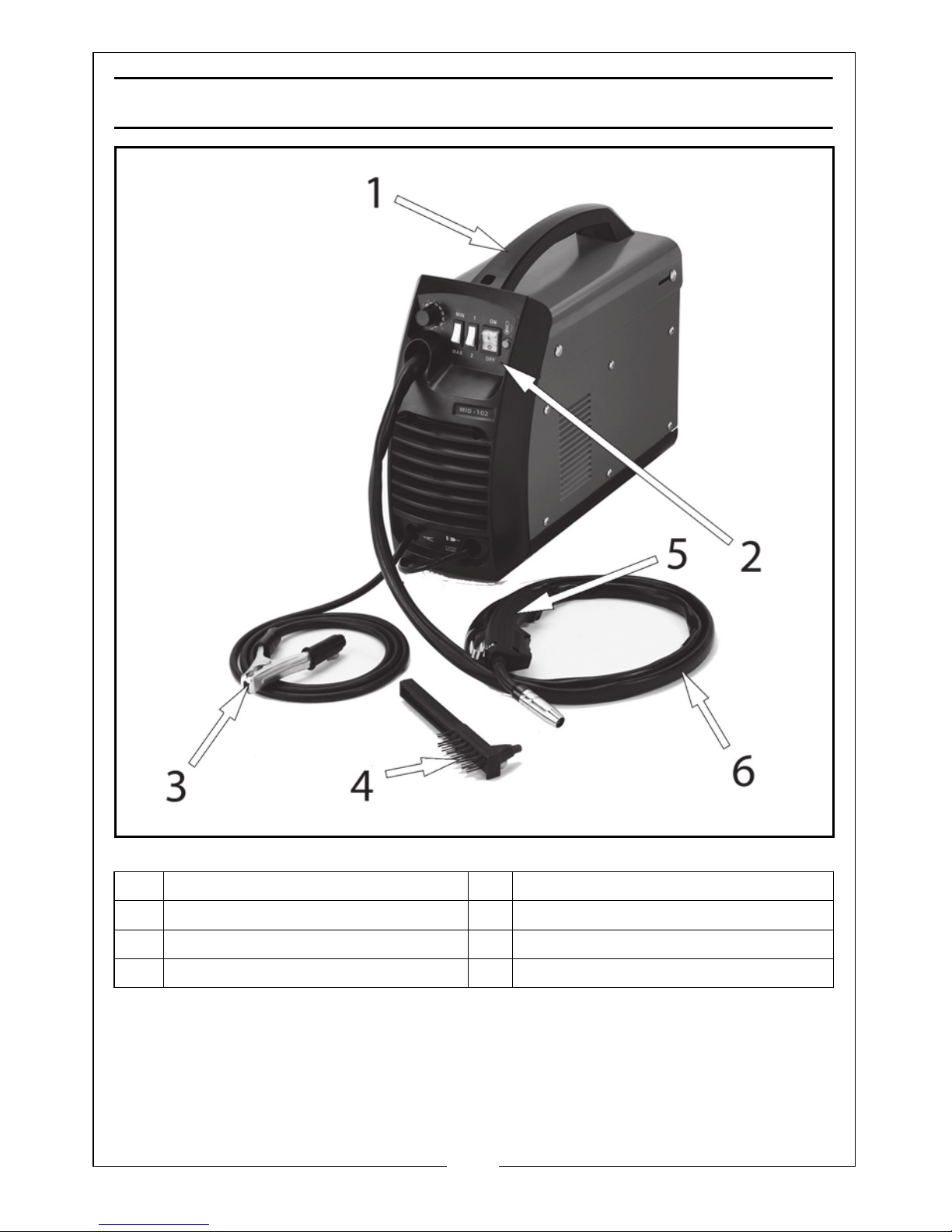

NO DESCRIPTION NO DESCRIPTION

1 Handle 4 Hammer/Brush Tool

2ControlPanel 5Torch

3 Earth Clamp 6 Torch Hose

Table des matières

Autres manuels Clarke Système de soudage

Clarke

Clarke AT135 Mode d’emploi

Clarke

Clarke WE6495E Manuel d'installation et d'exploitation

Clarke

Clarke AT101 Mode d’emploi

Clarke

Clarke ARC Manuel d'installation et d'exploitation

Clarke

Clarke CSW6T Manuel d'installation et d'exploitation

Clarke

Clarke Arc/Tig135 Manuel d'installation et d'exploitation

Clarke

Clarke PLASMA KING 25-SI Mode d’emploi

Clarke

Clarke MIG196 Mode d’emploi

Clarke

Clarke 195TEC Manuel d'installation et d'exploitation

Clarke

Clarke MIG220TE Manuel d'installation et d'exploitation

Clarke

Clarke MIG 160TM Manuel d'installation et d'exploitation

Clarke

Clarke King 35 Manuel d'installation et d'exploitation

Clarke

Clarke Fluxcore/MIG 135sg WE6441 Manuel utilisateur

Clarke

Clarke MIG110E Manuel d'installation et d'exploitation

Clarke

Clarke WE6442 Manuel utilisateur

Clarke

Clarke MIG120 MULTI Mode d’emploi

Clarke

Clarke MIG165TE Manuel d'installation et d'exploitation

Clarke

Clarke weld MIG103NG Mode d’emploi

Clarke

Clarke AT165 Mode d’emploi

Clarke

Clarke WE6494A Manuel utilisateur

Clarke

Clarke CSW6T Manuel d'installation et d'exploitation

Clarke

Clarke Weld MIG 130 TE Turbo Manuel

Clarke

Clarke MIG 240 Mode d’emploi

Clarke

Clarke weld MIG 90EN Manuel d'installation et d'exploitation

Manuels Système de soudage populaires d'autres marques

Berner

Berner PLASMACUT 54 Manuel utilisateur

Pro Spot

Pro Spot PR-155 Manuel utilisateur

Forney

Forney 210 Manuel utilisateur

Thermal Arc

Thermal Arc 400S Manuel utilisateur

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuel utilisateur

GYS

GYS PROTIG 201 AC/DC Manuel utilisateur

TAFA

TAFA 30*8B35 Manuel utilisateur

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuel utilisateur

ESAB

ESAB Buddy Arc 145 Manuel utilisateur

CIGWELD

CIGWELD 636804 Guide rapide

Red-D-Arc

Red-D-Arc DC-400 Manuel utilisateur

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuel utilisateur

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuel utilisateur

WIA

WIA Weldmatic 270 CP132-2 Manuel utilisateur

Sonics

Sonics H520T Manuel utilisateur

Miller

Miller Big Blue 400D Manuel utilisateur

NewArc

NewArc RT2000 Guide de démarrage rapide

Hypertherm

Hypertherm powermax1000 Manuel utilisateur
