HEAVY DUTY BELT SANDER

MODEL NO: CAT70

PART NO: 3110750

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Air Sander.

The CAT70 Sander is ideal for use in garages and workshops. The narrow belt

and adjustable handle allow access in awkward places.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

IMPORTANT

Please read all of the safety and operating instructions carefully before using

this product. The following safety symbols are to be found on the packaging.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

Wear eye protection Wear dust mask.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Do not operate the sander where there are flammable liquids or gases.

USE OF POWER TOOLS

1. Stay alert and use common sense - do not operate the tool when you are

tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using the sander. Eye protectors must

provide protection from flying particles from the front and the side. Ear

protectors should also be worn.

3. Do not overreach - Keep proper footing and balance at all times.

4. Never use oxygen, CO2, combustible gasses or any type of bottled gas as

a source of power for this tool.

5. Do not connect the air supply hose with your finger on the trigger.

6. Do not exceed the maximum pressure for the tool of 90 psi / 6.2 bar.

7. Check hoses for leaks or worn condition before use, and ensure that all

connections are secure.

8. Keep the air supply hose away from heat, oil and sharp edges.

9. Do not use the tool for any purpose than that described in this manual.

10. Do not fit the tool to any stand or clamping device that may damage it.

11. Do not carry out any alterations or modifications to the tool.

12. Always disconnect from the air supply when:

• Performing any maintenance

• The tool is not in use.

• The tool will be left unattended.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• Moving to another work area.

• Passing the tool to another person.

13. Never use the tool if it is defective or operating abnormally.

14. This tool should be serviced at regular intervals by qualified personnel.

15. Avoid damaging the tool by applying excessive force of any kind.

16. Always maintain the tool with care. Keep it clean for the best and safest

performance.

17. Quick change couplings should not be located at the tool. They add

weight and could fail due to vibration.

18. DO NOT force or misuse the tool. It will do a better and safer job at the rate

for which it was designed.

19. Do not remove any labels. Damaged labels should be replaced.

20. This tool vibrates with use. Vibration may be harmful to your hands or arms.

Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek

medical advice before resuming use.

SANDER-SPECIFIC SAFETY RULES

1. Inspect the sanding belt before use. Do not use if frayed.

2. Avoid contact with the moving sanding belt and wear suitable gloves to

protect the hands.

3. Never run the tool unless the abrasive belt is applied to the workpiece.

4. Beware of potentially explosive atmospheres being caused by dust / fumes

resulting from sanding and used dust extraction systems where possible.

5. Always wear a face mask when using the sander as protection from

airborne particles of sanded material. Avoid disturbing existing dust and

minimise the scattering of dust in the workplace environment. Take steps to

control the dust at the point of emission.

TRANSPORT & STORAGE

1. Never carry the tool by the air hose.

2. Never carry the tool with your finger on the trigger.

3. When not in use the tool must be disconnected from the air supply and

stored in a dry place out of the reach of children (preferably in a locked

cabinet).

4. Avoid storing the tool where the temperature is below 0oC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OVERVIEW

When unpacking the tool, any damage or deficiency should be reported to

your CLARKE dealer immediately. The carton contains:

•Sander

• 80 and 100 grit sanding belts

• Allen key

Your sander has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local CLARKE dealer.

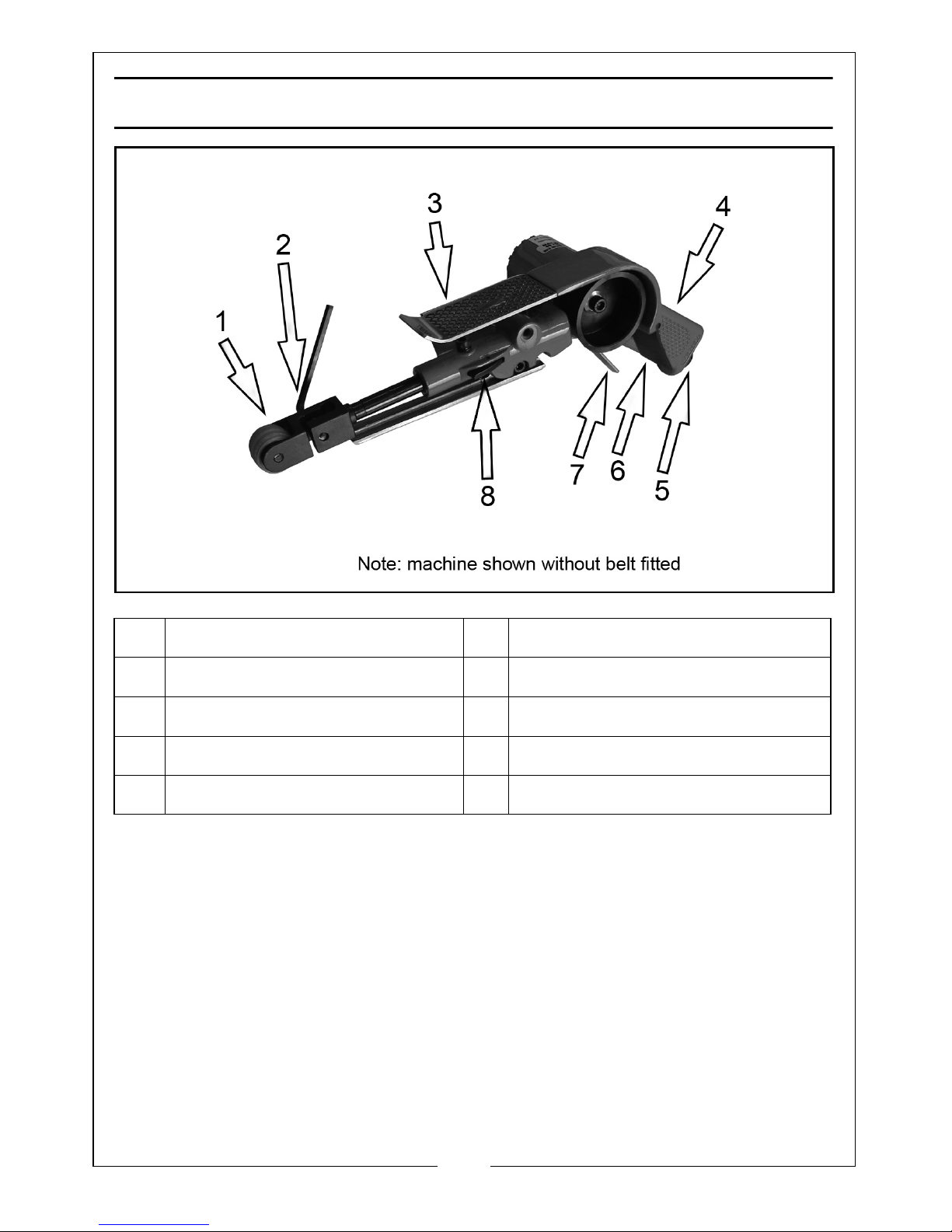

NO DESCRIPTION NO DESCRIPTION

1 Idle Pulley 5 Airline Connector

2 Tracking Screw (Allen Key fitted) 6 Dust Guard

3 Finger Pad 7 Throttle Lever

4 Adjustable Handle 8 Tension Bar Release Button

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMPRESSED AIR REQUIREMENTS

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the tool must comply with the appropriate

European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the tool. Ensure any moisture is drained from

the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used, it will keep the tool in good condition, but should

be regularly checked and topped up with oil. clarke airline oil should

be used, and the lubricator adjusted to approx 2 drops per minute.

• For optimum performance it is recommended that a 3/8” ID hose is

used.

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi

at the tool when running. Higher pressures and dirty air will shorten

the life of the tool due to faster wear and is a possible safety hazard.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

BEFORE USE

CONNECTING THE AIR SUPPLY

1. Pour 2-3 drops of CLARKE airline oil into the air inlet. This should be done

regardless of whether or not a lubricated air supply is to be used.

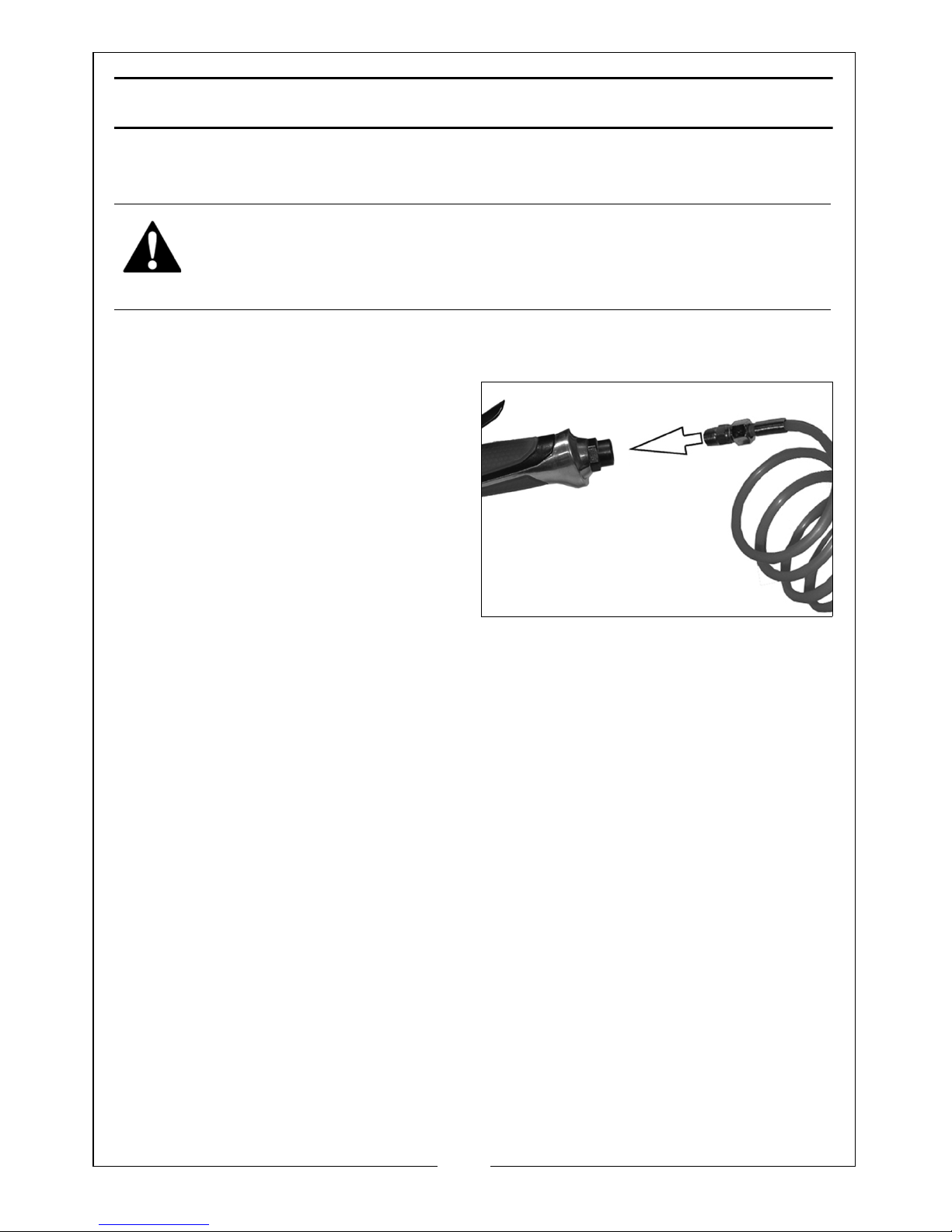

2. Connect a suitable hose to the

tool as shown using the airline

connector supplied with the tool.

3. If required, connect an in-line mini

oiler to the tool.

• A mini oiler helps to prolong the

life of the air tool. Remove the

oil fill screw from the side of the

mini oiler and fill with air-line oil

available from your CLARKE

dealer. Replace the screw before using the tool.

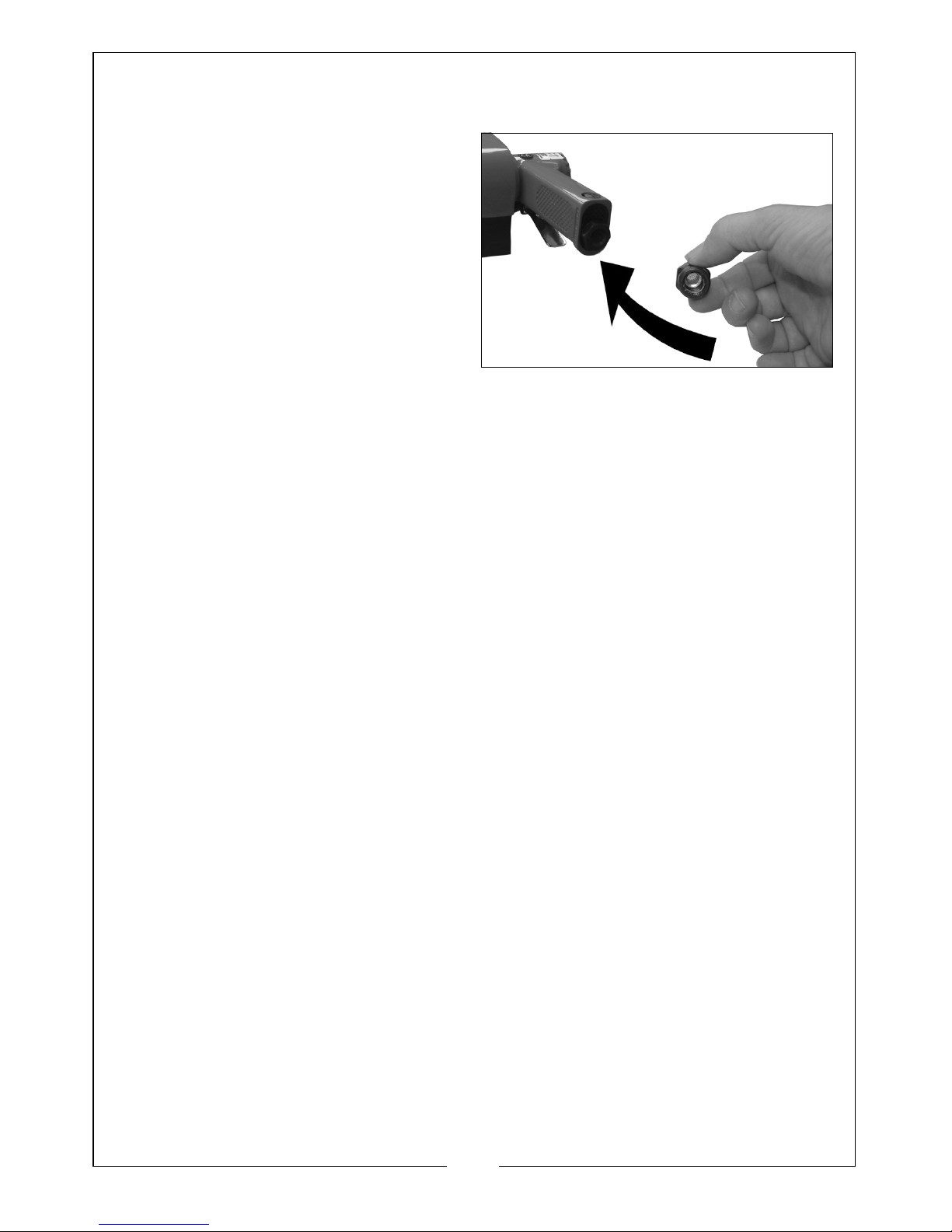

4. If a mini-oiler is not being used, run a few drops of oil through the tool

before use. It can be entered through the inlet strainer or via the hose at

the nearest connection to the air supply.

5. Connect the other end of the hose to the compressor.

6. Turn on the air supply and check for air leaks. Rectify any found before

proceeding. PTFE tape may be useful for sealing threaded connections.

7. Your air tool is now ready for use.

• You can fit a whip hose with a quick fit coupling if required

(available from your Clarke dealer.)

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INSTALLING THE BELT

1. To replace sanding belt, push the idler pulley assembly (Item 2) towards the

handle until it clicks into the secured position. Replace the belt and press

the tension bar (item 14), to re-tension the belt (see Fig 1

2. To track the belt, adjust as required with screw and locknut (2A in Fig 1).

3. To adjust the handle position, slacken the screw (item 11), rotate the

handle to the required position. (Only as far as A or B), then secure by re-

tightening the screw (item 11).

4. Connect to the airline and turn the air on.

5. Ensure your fingers are clear of the sanding belt. Squeeze the throttle lever

to start the motor. Allow the motor to reach max speed before offering the

belt to the workpiece.

6. Do not use the finger pad (Item 4) to exert pressure on the belt; this item is

only for guiding the tool.

7. When finished sanding, release the throttle lever and allow the motor to

stop before carefully putting the tool down.

•Only use sanding belts designed for use with this type of sander

OPERATING

1. Squeeze the trigger against the body of the tool to start the sander and

control the speed. Evaluate the speed and adjust to suit.

2. To begin work, rest the belt on the workpiece and start the sander.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• Let the tool do the work. The actual weight of the machine is

normally sufficient for efficient sanding. Do not put additional

pressure on the machine, which would only slow down the speed of

the belt, reducing efficiency and placing an additional burden on

the motor.

3. Pass the sander back and forth, taking care to keep the sander moving

around at all times. Avoid dwelling in one place for more than a moment.

4. Release the trigger to stop the tool.

5. Always ensure the tool has stopped before putting it down.

DISCONNECTING THE AIR SUPPLY

1. Do not disconnect the air supply hose until the compressor has been shut

down and the compressed air released.

2. Refer to the compressor instruction manual for the procedure to shut down

and vent the compressed air.

3. Once the pressure has been released, disconnect the air supply hose from

the air tool.

MAINTENANCE

DAILY

1. Before use, drain water from the airline filter and compressor.

2. Pour a few drops of Clarke air-line oil, into the tool air inlet. This should be

carried out regardless of whether or not an in-line mini oiler is used. If an in-

line mini oiler is not used, this procedure should be repeated after every

two to three hours of use.

3. Check the air inlet screen filter for blockage and clean if necessary.

CLEANING

1. Keep the body of the tool clean and free from debris.

2. Grit or gum deposits in the tool may also reduce efficiency. This condition

can be corrected by cleaning the air strainer and flushing out the tool with

WARNING: MAKE SURE THAT THE AIR TOOL IS DISCONNECTED FROM THE

AIR SUPPLY BEFORE STARTING ANY CLEANING OR MAINTENANCE

PROCEDURES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

gum solvent oil, or failing this, the tool should be disassembled, thoroughly

cleaned, dried and reassembled. This is better left to your Clarke dealer.

3. After extensive use, remove the

inlet screen filter and flush out the

mechanism with gum solvent oil or

an equal mixture of Clarke air-line

oil and paraffin. Allow to dry

before use.

4. f the tool runs erratically or

becomes inefficient, and the air

supply is of good quality, it may be

necessary to dismantle the air

motor and replace worn or

damaged parts. You may prefer to take the tool to your Clarke dealer if

internal maintenance is required.

PERFORMANCE

Please note that factors other than the tool may effect its operation and

efficiency such as reduced compressor output, excessive drain on the airline,

moisture or restrictions in the air-line, or the use of connectors of improper size

or poor condition which will reduce air supply.

**Clarke Air Line Oil (part no. 3050825) is available from your Clarke dealer.

Your Clarke air tool has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local Clarke dealer.

STORAGE

When not in use, disconnect from air supply, clean & store in a safe, dry place.

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of

Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to

lubricate the internal parts.

ACCESSORIES

A wide range of accessories is available including filter/regulators, lubricators,

high-pressure hoses (5 to 50 metres) etc. Contact your Clarke dealer for further

information.

ABRASIVE BELTS

Replacement abrasive belts are available from your CLARKE dealer:

60 grit (pack of 5) Part no. 3110751

80 grit (pack of 5) Part no. 3110752

Autres manuels pour CAT70

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Clarke Sander

Clarke

Clarke OBS-18DC Manuel utilisateur

Clarke

Clarke COS210 Mode d’emploi

Clarke

Clarke CROS1 Manuel d'installation et d'exploitation

Clarke

Clarke CAT38 Manuel utilisateur

Clarke

Clarke X-PRO CAT165 Manuel d'installation et d'exploitation

Clarke

Clarke 7013A Manuel utilisateur

Clarke

Clarke MP-1800 01207A Manuel utilisateur

Clarke

Clarke FM-1500 HD Manuel utilisateur

Clarke

Clarke OBS-18 Manuel utilisateur

Clarke

Clarke Alto MP-1800 Manuel utilisateur

Clarke

Clarke CAT121 Mode d’emploi

Clarke

Clarke FloorCrafter Guide de démarrage rapide

Clarke

Clarke American Sanders RS-16 HDTR Manuel utilisateur

Clarke

Clarke CONTRACTOR CON320 Mode d’emploi

Clarke

Clarke air CAT49 Manuel d'installation et d'exploitation

Clarke

Clarke CSR310 Mode d’emploi

Clarke

Clarke OBS-18DC Manuel d'installation et d'exploitation

Clarke

Clarke 07012A Manuel utilisateur

Clarke

Clarke EZ Sand Guide d'installation et d'utilisation

Clarke

Clarke Woodworker VRS1 Manuel

Clarke

Clarke CONTRACTOR CON300 Manuel

Clarke

Clarke RS-16 HDTR Manuel utilisateur

Clarke

Clarke l 1600DC Manuel utilisateur

Clarke

Clarke 07057A Manuel utilisateur

Manuels Sander populaires d'autres marques

Oliver

Oliver 6305 Manuel utilisateur

Jet

Jet 22-44 Pro-3 Manuel de service

Makita

Makita M9204 Manuel

Makita

Makita M9204 Manuel utilisateur

Craftsman

Craftsman 351.215131 Manuel utilisateur

Chicago Pneumatic

Chicago Pneumatic CP9778 Manuel utilisateur

Nitto Kohki

Nitto Kohki BB-20 Manuel utilisateur

Ferm

Ferm FEOS-135 Manuel utilisateur

Unior

Unior 1510 Manuel utilisateur

stayer

stayer ls1200 Manuel utilisateur

Jet

Jet JSG-96 Manuel de service

Parkside

Parkside PDS 290 B2 Manuel utilisateur

Status

Status XPA Series Manuel utilisateur

Craftsman

Craftsman 113.22521 Manuel utilisateur

Craftsman

Craftsman 113.225831 Manuel utilisateur

CLAS

CLAS OP 1429 Manuel utilisateur

Parkside

Parkside PEXS 270 Al Manuel utilisateur

Makita

Makita 9207SPB Manuel utilisateur
