Clark SM-619 Manuel utilisateur

SM-619

G127,GP127

Gl27E, GPl27E

CUIRK CONTENTS

SERVICE MANUAL

SM619

GCSl2-15-17s

GCXl2-15E

GPSl2-15-17

GPXl5-17E

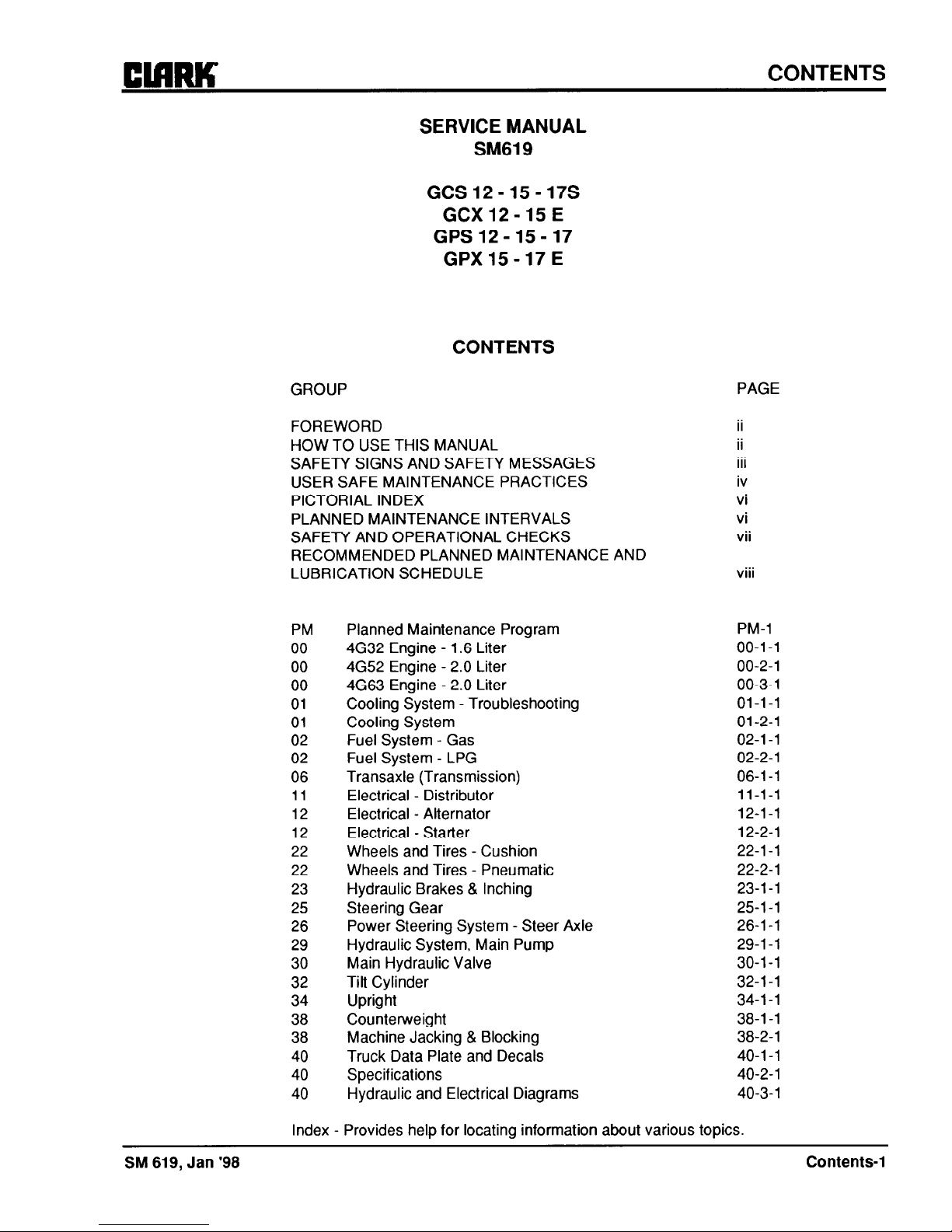

CONTENTS

GROUP PAGE

FOREWORD

HOW TO USE THIS MANUAL

SAFETY SIGNS AND SAFETY MESSAGES

USER SAFE MAINTENANCE PRACTICES

PICTORIAL INDEX

PLANNED MAINTENANCE INTERVALS

SAFETY AND OPERATIONAL CHECKS

RECOMMENDED PLANNED MAINTENANCE AND

LUBRICATION SCHEDULE

Planned Maintenance Program

4G32 Engine - 1.6 Liter

4652 Engine - 2.0 Liter

4663 Engine - 2.0 Liter

Cooling System - Troubleshooting

Cooling System

Fuel System - Gas

Fuel System - LPG

Transaxle (Transmission)

Electrical - Distributor

Electrical - Alternator

Electrical - Starter

Wheels and Tires - Cushion

Wheels and Tires - Pneumatic

Hydraulic Brakes & Inching

Steering Gear

Power Steering System - Steer Axle

Hydraulic System, Main Pump

Main Hydraulic Valve

Tilt Cylinder

Upright

Counterweight

Machine Jacking & Blocking

Truck Data Plate and Decals

Specifications

Hydraulic and Electrical Diagrams

III

vii

...

VIII

PM-l

00-l -1

00-2-l

00-3-l

01-1-l

01-2-l

02-l -1

02-2-l

06-l -1

11-1-l

12-1-1

12-2-l

22-l -1

22-2-l

23-l -1

25-1-l

26-l -1

29-l -1

30-l -1

32-l -1

34-l -1

38-l -1

38-2-l

40-l -1

40-2-l

40-3-l

Index - Provides help for locating information about various topics.

SM 619, Jan ‘98 Contents-l

Grow PS, Periodic Service

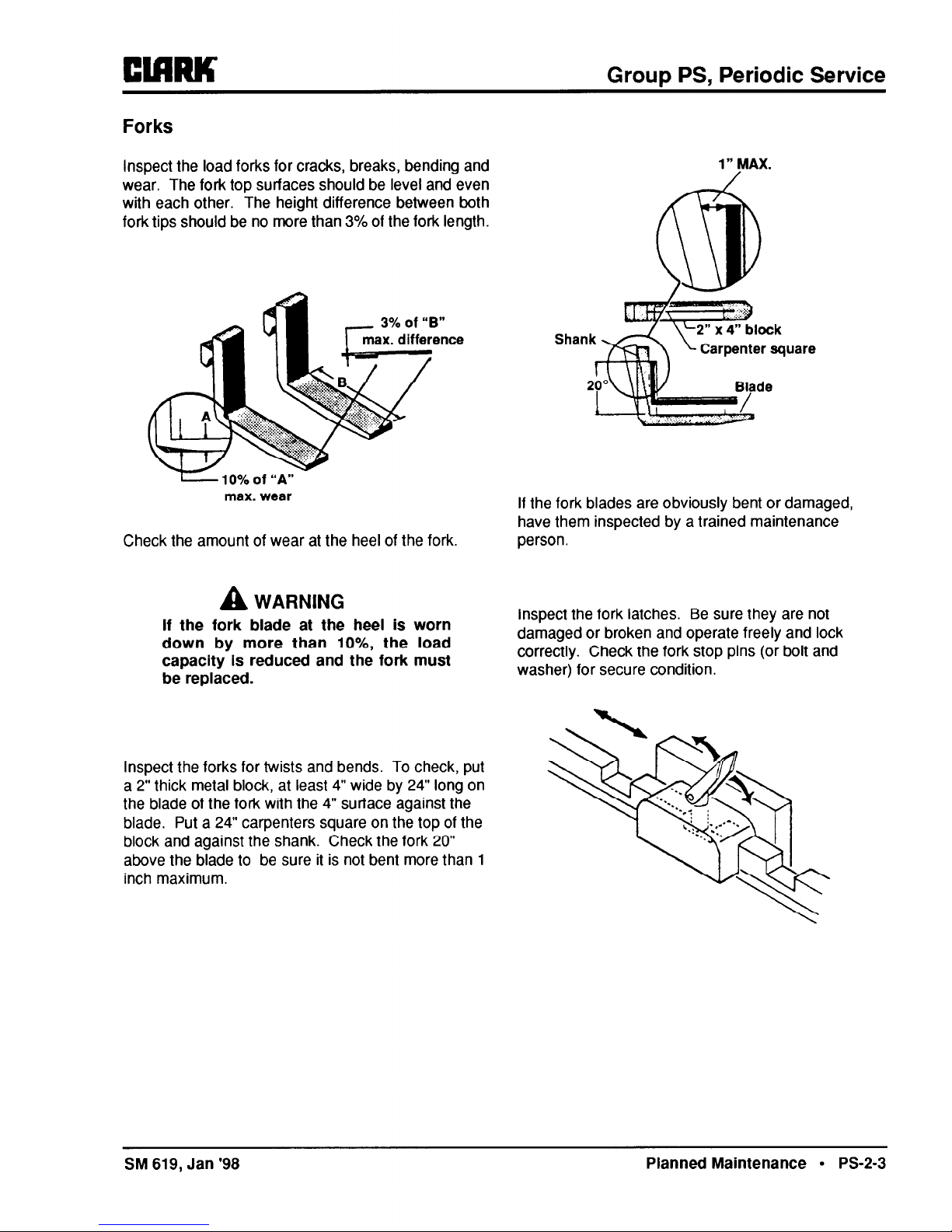

Forks

inspect the load forks for cracks, breaks, bending and

wear. The fork top surfaces should be level and even

with each other. The height difference between both

fork tips should be no more than 3% of the fork length.

max. wear

Check the amount of wear at the heel of the fork.

1" MAX.

If the fork blades are obviously bent or damaged,

have them inspected by a trained maintenance

person.

A WARNING

If the fork blade at the heel is worn

down by more than lo%, the load

capacity Is reduced and the fork must

be replaced.

Inspect the fork latches. Be sure they are not

damaged or broken and operate freely and lock

correctly. Check the fork stop pins (or bolt and

washer) for secure condition.

Inspect the forks for twists and bends. To check, put

a 2” thick metal block, at least 4” wide by 24” long on

the blade of the fork with the 4” surface against the

blade. Put a 24” carpenters square on the top of the

block and against the shank. Check the fork 20”

above the blade to be sure it is not bent more than 1

inch maximum.

SM 619, Jan ‘98 Planned Maintenance l PS-2-3

Group 00, Engine

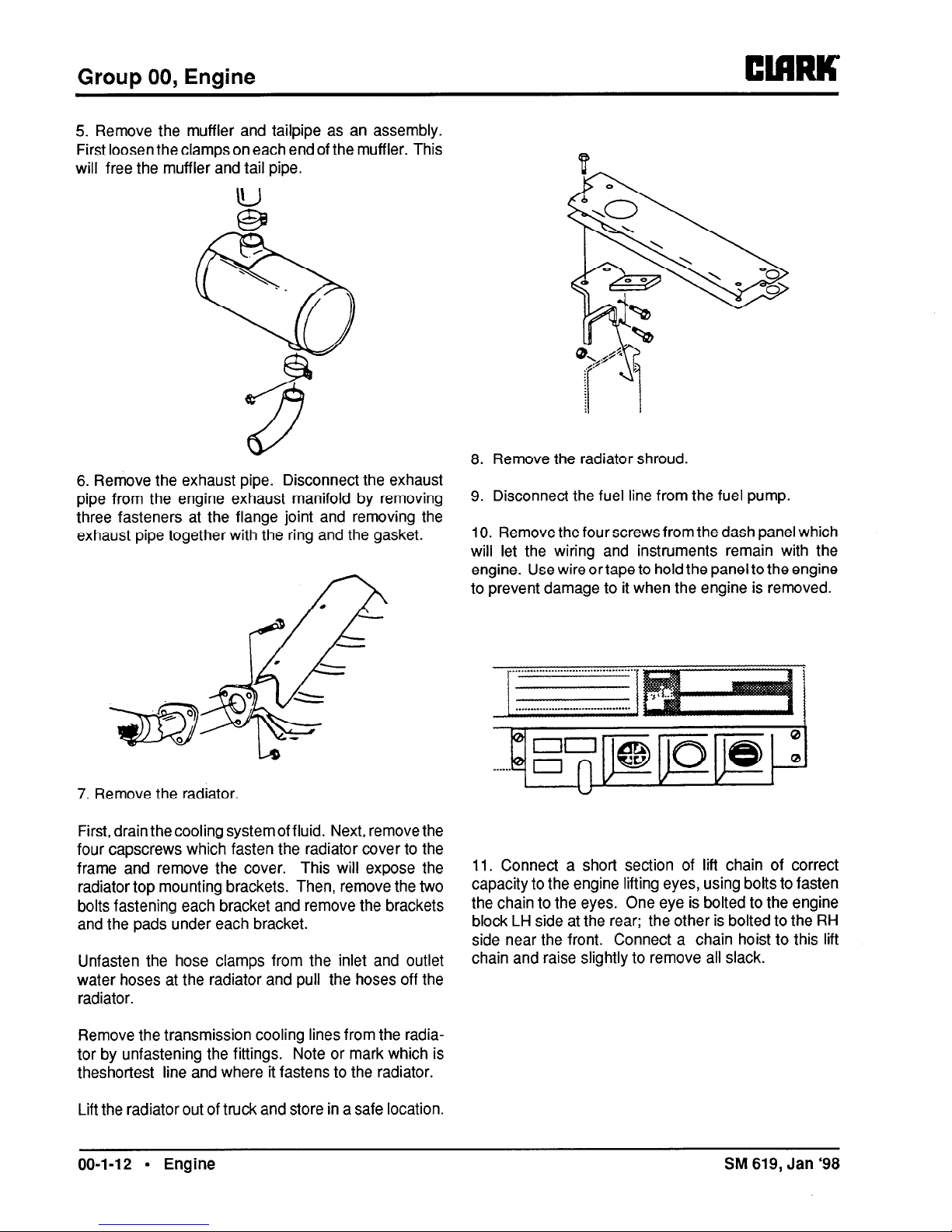

5. Remove the muffler and tailpipe as an assembly.

First loosen the clamps on each end ofthe muffler. This

will free the muffler and tail pipe.

6. Remove the exhaust pipe. Disconnect the exhaust

pipe from the engine exhaust manifold by removing

three fasteners at the flange joint and removing the

exhaust pipe together with the ring and the gasket.

7. Remove the radiator.

First, drain thecooling systemof fluid. Next, remove the

four capscrews which fasten the radiator cover to the

frame and remove the cover. This will expose the

radiator top mounting brackets. Then, remove the two

bolts fastening each bracket and remove the brackets

and the pads under each bracket.

Unfasten the hose clamps from the inlet and outlet

water hoses at the radiator and pull the hoses off the

radiator.

Remove the transmission cooling lines from the radia-

tor by unfastening the fittings. Note or mark which is

theshortest line and where it fastens to the radiator.

Liftthe radiator out of truck and store in a safe location.

8. Remove the radiator shroud.

9. Disconnect the fuel line from the fuel pump.

10. Remove the four screws from the dash panel which

will let the wiring and instruments remain with the

engine. Usewire ortape to hold the panel to the engine

to prevent damage to it when the engine is removed.

11. Connect a short section of lift chain of correct

capacity to the engine lifting eyes, using bolts to fasten

the chain to the eyes. One eye is bolted to the engine

block LH side at the rear; the other is bolted to the RH

side near the front. Connect a chain hoist to this lift

chain and raise slightly to remove all slack.

00-l-12 l Engine SM 619, Jan ‘98

ClflRU Group 00, Engine

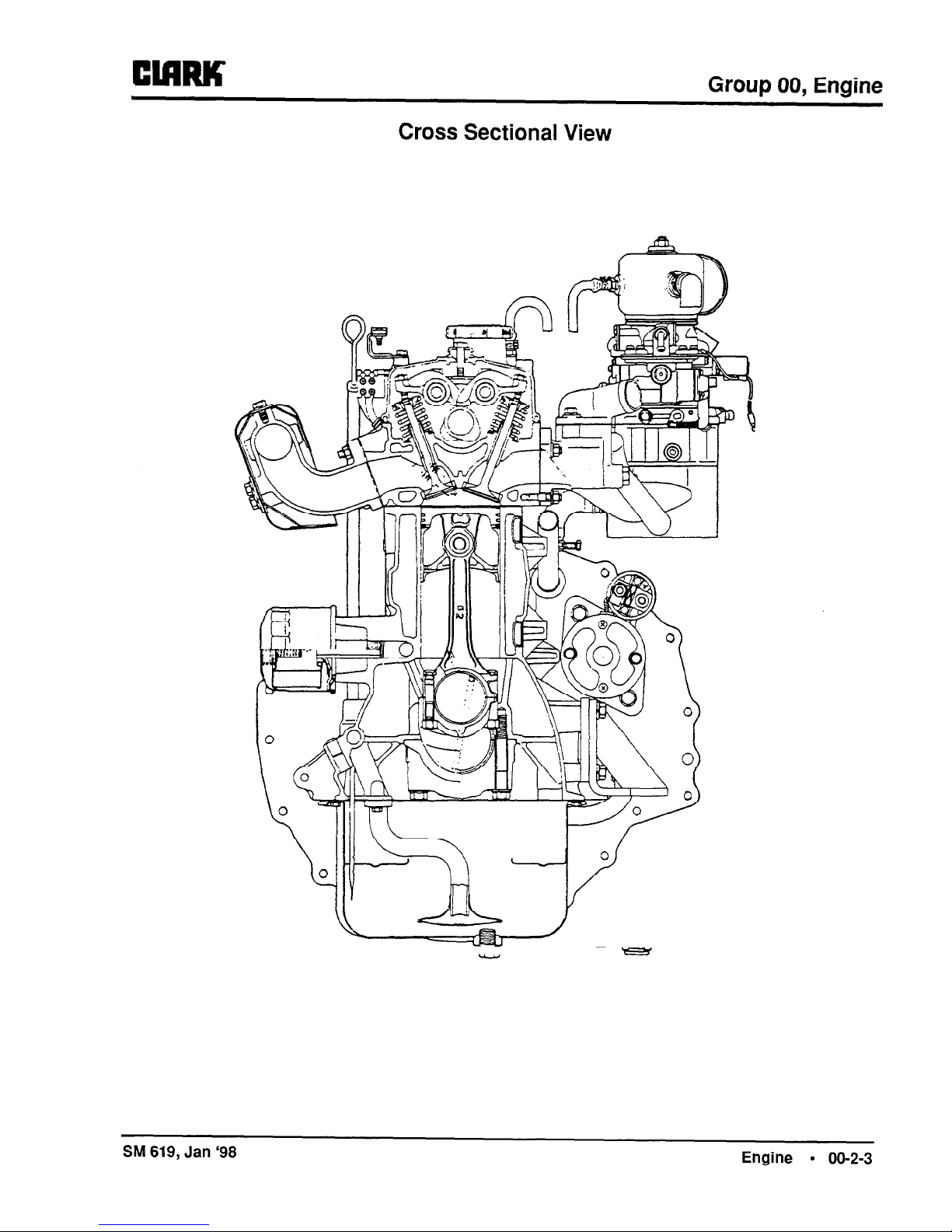

Cross Sectional View

- -w

SM 619, Jan ‘98 Engine l 00-2-3

Group 00, Engine CLCIRK

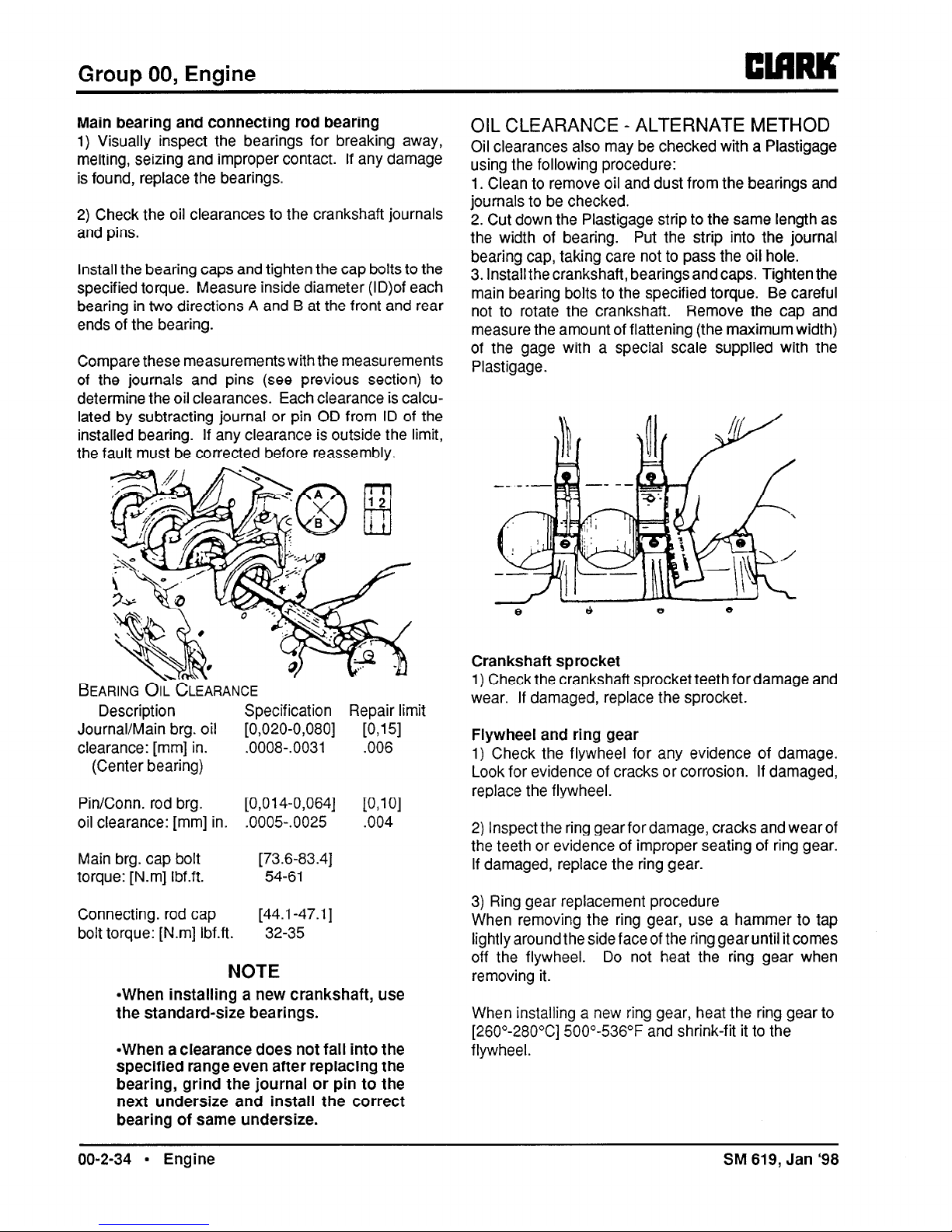

Main bearing and connecting rod bearing

1) Visually inspect the bearings for breaking away,

melting, seizing and improper contact. If any damage

is found, replace the bearings.

2) Check the oil clearances to the crankshaft journals

and pins.

Install the bearing caps and tighten the cap bolts to the

specified torque. Measure inside diameter (ID)of each

bearing in two directions A and B at the front and rear

ends of the bearing.

Compare these measurementswith the measurements

of the journals and pins (see previous section) to

determine the oil clearances. Each clearance is calcu-

lated by subtracting journal or pin OD from ID of the

installed bearing. If any clearance is outside the limit,

the fault must be corrected before reassembly.

BEARINGOIL CLEARANCE

Description Specification Repair limit

Journal/Main brg. oil [0,020-0,080] [0,15]

clearance: [mm] in. .0008-.0031 .006

(Center bearing)

Pin/Corm. rod brg. [0,014-0,064] [O,lO]

oil clearance: [mm] in. .0005-.0025 .004

Main brg. cap bolt [73.6-83.41

torque: [N.m] Ibf.ft. 54-61

Connecting. rod cap [44.1-47.11

bolt torque: [N.m] Ibf.ft. 32-35

NOTE

*When installing a new crankshaft, use

the standard-size bearings.

-When a clearance does not fall into the

specified range even after replacing the

bearing, grind the journal or pin to the

next undersize and install the correct

bearing of same undersize.

OIL CLEARANCE - ALTERNATE METHOD

Oil clearances also may be checked with a Plastigage

using the following procedure:

1. Clean to remove oil and dust from the bearings and

journals to be checked.

2. Cut down the Plastigage strip to the same length as

the width of bearing. Put the strip into the journal

bearing cap, taking care not to pass the oil hole.

3. Install the crankshaft, bearings and caps. Tighten the

main bearing bolts to the specified torque. Be careful

not to rotate the crankshaft. Remove the cap and

measure the amount of flattening (the maximum width)

of the gage with a special scale supplied with the

Plastigage.

Crankshaft sprocket

1) Check the crankshaft sprocket teeth fordamage and

wear. If damaged, replace the sprocket.

Flywheel and ring gear

1) Check the flywheel for any evidence of damage.

Look for evidence of cracks or corrosion. If damaged,

replace the flywheel.

2) Inspect the ring gear for damage, cracks and wear of

the teeth or evidence of improper seating of ring gear.

If damaged, replace the ring gear.

3) Ring gear replacement procedure

When removing the ring gear, use a hammer to tap

lightly around the side face ofthe ring gear until it comes

off the flywheel. Do not heat the ring gear when

removing it.

When installing a new ring gear, heat the ring gear to

[260”-28O”C] 500”-536°F and shrink-fit it to the

flywheel.

00-2-34 l Engine SM 619, Jan ‘98

Group 00, Engine

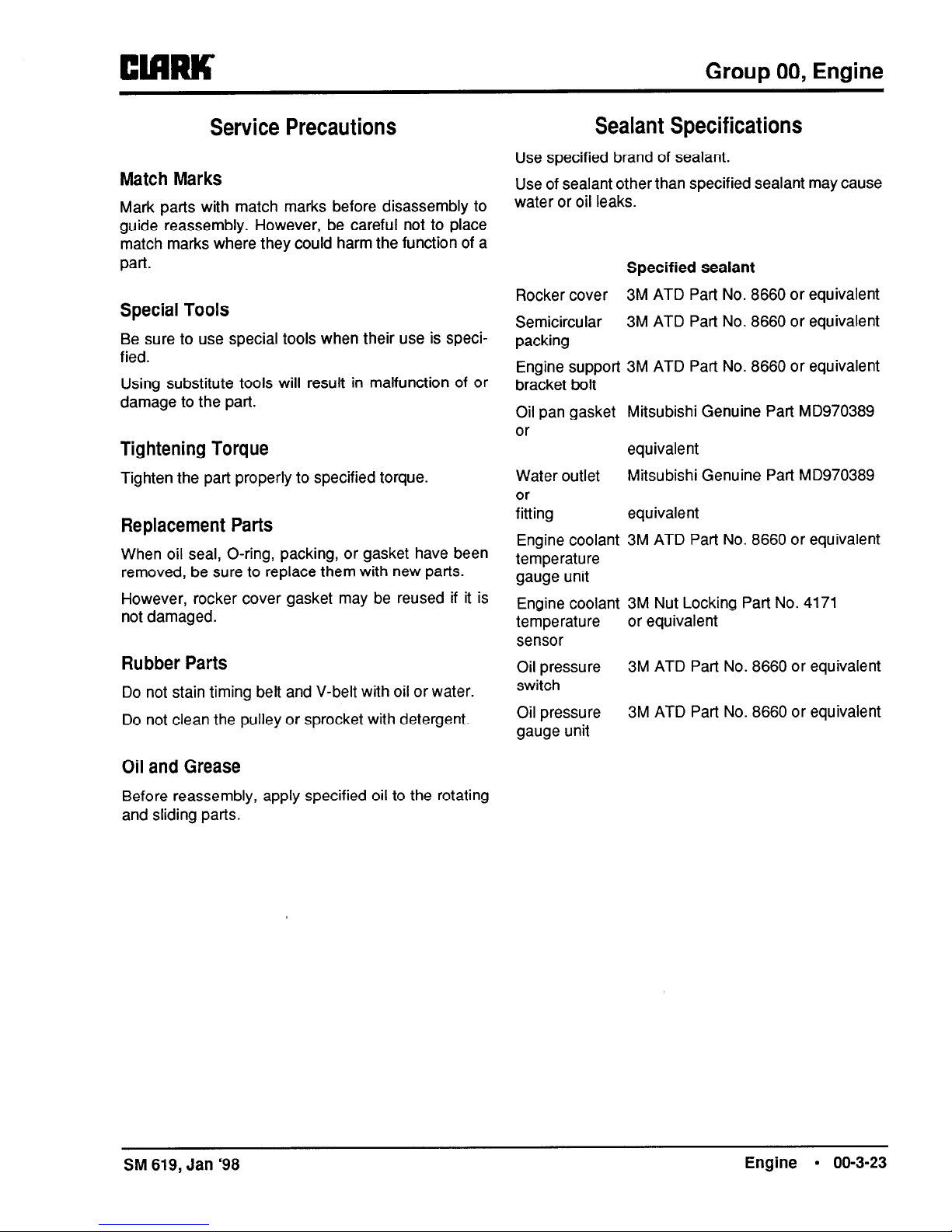

Service Precautions

Match Marks

Mark parts with match marks before disassembly to

guide reassembly. However, be careful not to place

match marks where they could harm the function of a

part.

Special Tools

Be sure to use special tools when their use is speci-

fied.

Using substitute tools will result in malfunction of or

damage to the part.

Tightening Torque

Tighten the part properly to specified torque.

Replacement Parts

When oil seal, O-ring, packing, or gasket have been

removed, be sure to replace them with new parts.

However, rocker cover gasket may be reused if it is

not damaged.

Rubber Parts

Do not stain timing belt and V-belt with oil or water.

Do not clean the pulley or sprocket with detergent.

Oil and Grease

Before reassembly, apply specified oil to the rotating

and sliding parts.

Sealant Specifications

Use specified brand of sealant.

Use of sealant other than specified sealant may cause

water or oil leaks.

Specified sealant

Rocker cover 3M ATD Part No. 8660 or equivalent

Semicircular 3M ATD Part No. 8660 or equivalent

packing

Engine support 3M ATD Part No. 8660 or equivalent

bracket bolt

Oil pan gasket Mitsubishi Genuine Part MD970389

or equivalent

Water outlet Mitsubishi Genuine Part MD970389

fitting equivalent

Engine coolant 3M ATD Part No. 8660 or equivalent

temperature

gauge unit

Engine coolant 3M Nut Locking Part No. 4171

temperature or equivalent

sensor

Oil pressure 3M ATD Part No. 8660 or equivalent

switch

Oil pressure 3M ATD Part No. 8660 or equivalent

gauge unit

SM 619, Jan ‘98 Engine l 00-3-23

Group 00, Engine ClRRU

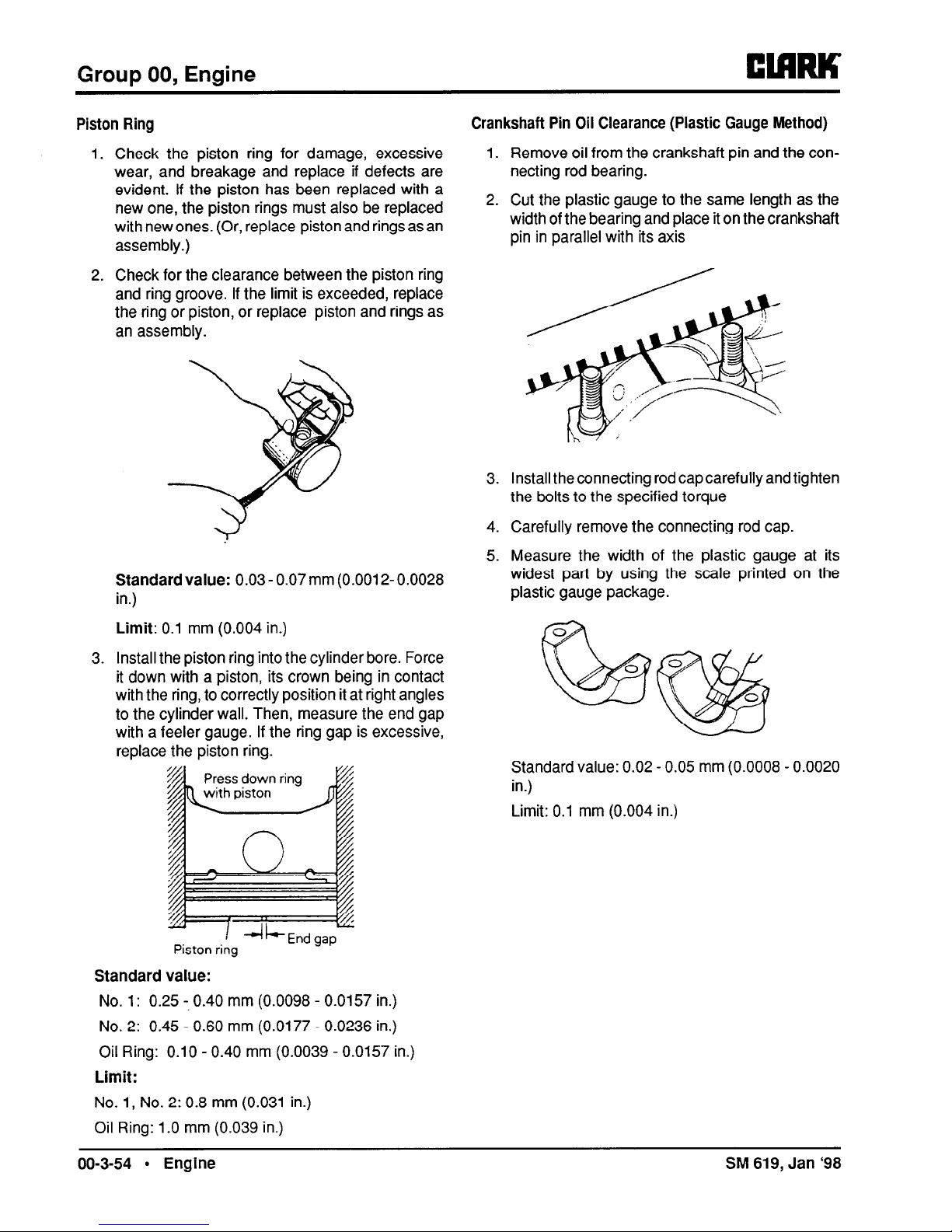

Piston Ring

Check the piston ring for damage, excessive

wear, and breakage and replace if defects are

evident. If the piston has been replaced with a

new one, the piston rings must also be replaced

with new ones. (Or, replace piston and rings as an

assembly.)

Check for the clearance between the piston ring

and ring groove. Ifthe limit is exceeded, replace

the ring or piston, or replace piston and rings as

an assembly.

Standard value: 0.03 - 0.07 mm (0.0012- 0.0028

in.)

Limit: 0.1 mm (0.004 in.)

Install the piston ring into the cylinder bore. Force

it down with a piston, its crown being in contact

with the ring, to correctly position it at right angles

to the cylinder wall. Then, measure the end gap

with a feeler gauge. If the ring gap is excessive,

replace the piston ring.

I 4bEndgap

Piston ring

Standard value:

No. 1: 0.25 -,0.40 mm (0.0098 - 0.0157 in.)

No. 2: 0.45 - 0.60 mm (0.0177 - 0.0236 in.)

Oil Ring: 0.10 - 0.40 mm (0.0039 - 0.0157 in.)

Limit:

No. 1, No. 2: 0.8 mm (0.031 in.)

Oil Ring: 1.Omm (0.039 in.)

Crankshaft Pin Oil Clearance (Plastic Gauge Method)

Remove oil from the crankshaft pin and the con-

necting rod bearing.

Cut the plastic gauge to the same length as the

width ofthe bearing and place iton the crankshaft

pin in parallel with its axis

Install the connecting rodcapcarefully andtighten

the bolts to the specified torque

Carefully remove the connecting rod cap.

Measure the width of the plastic gauge at its

widest part by using the scale printed on the

plastic gauge package.

1 0

Standard value: 0.02 - 0.05 mm (0.0008 - 0.0020

in.)

Limit: 0.1 mm (0.004 in.)

00-3-54 . Engine SM 619, Jan ‘98

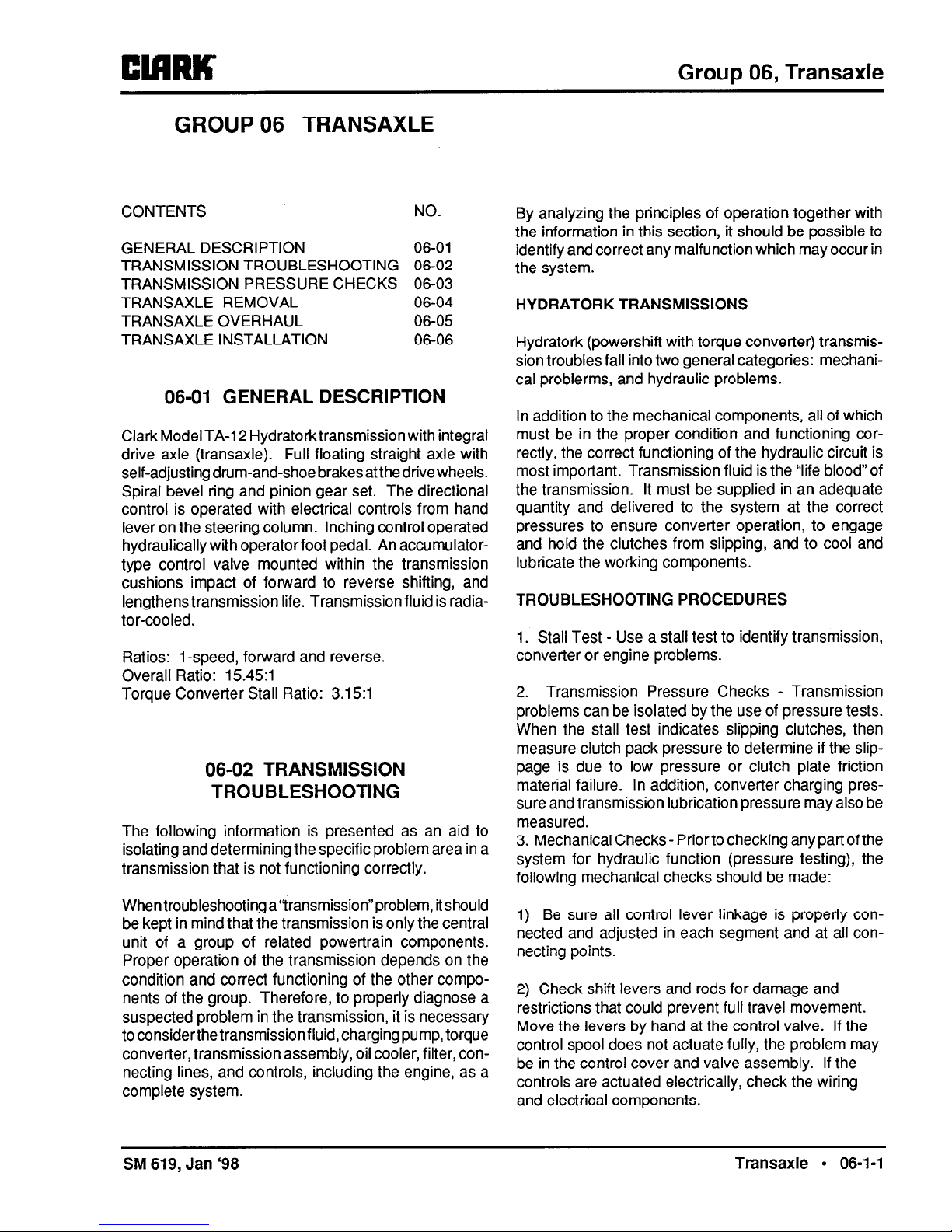

Group 06, Transaxle

GROUP 06 TRANSAXLE

CONTENTS NO.

GENERAL DESCRIPTION 06-01

TRANSMISSION TROUBLESHOOTING 06-02

TRANSMISSION PRESSURE CHECKS 06-03

TRANSAXLE REMOVAL 06-04

TRANSAXLEOVERHAUL 06-05

TRANSAXLE INSTALLATION 06-06

06-01 GENERAL DESCRIPTION

Clark Model TA-12 Hydratorktransmission with integral

drive axle (transaxle). Full floating straight axle with

self-adjusting drum-and-shoe brakesatthedrivewheels.

Spiral bevel ring and pinion gear set. The directional

control is operated with electrical controls from hand

lever on the steering column. Inching control operated

hydraulically with operatorfoot pedal. An accumulator-

type control valve mounted within the transmission

cushions impact of forward to reverse shifting, and

lengthens transmission life. Transmission fluid is radia-

tor-cooled.

Ratios: 1-speed, forward and reverse.

Overall Ratio: 15.45:1

Torque Converter Stall Ratio: 3.15:1

06-02 TRANSMISSION

TROUBLESHOOTING

The following information is presented as an aid to

isolating and determining the specific problem area in a

transmission that is not functioning correctly.

Whentroubleshooting a“transmission”problem, itshould

be kept in mind that the transmission is only the central

unit of a group of related powertrain components.

Proper operation of the transmission depends on the

condition and correct functioning of the other compo-

nents of the group. Therefore, to properly diagnose a

suspected problem in the transmission, it is necessary

to considerthetransmissionfluid, charging pump,torque

converter, transmission assembly, oil cooler, filter, con-

necting lines, and controls, including the engine, as a

complete system.

By analyzing the principles of operation together with

the information in this section, it should be possible to

identify and correct any malfunction which may occur in

the system.

HYDRATORK TRANSMISSIONS

Hydratork (powershift with torque converter) transmis-

sion troubles fall into two general categories: mechani-

cal problerms, and hydraulic problems.

In addition to the mechanical components, all of which

must be in the proper condition and functioning cor-

rectly, the correct functioning of the hydraulic circuit is

most important. Transmission fluid is the “life blood” of

the transmission. It must be supplied in an adequate

quantity and delivered to the system at the correct

pressures to ensure converter operation, to engage

and hold the clutches from slipping, and to cool and

lubricate the working components.

TROUBLESHOOTING PROCEDURES

1. Stall Test - Use a stall test to identify transmission,

converter or engine problems.

2. Transmission Pressure Checks - Transmission

problems can be isolated by the use of pressure tests.

When the stall test indicates slipping clutches, then

measure clutch pack pressure to determine if the slip-

page is due to low pressure or clutch plate friction

material failure. In addition, converter charging pres-

sure and transmission lubrication pressure may also be

measured.

3. Mechanical Checks - Priorto checking any part of the

system for hydraulic function (pressure testing), the

following mechanical checks should be made:

1) Be sure all control lever linkage is properly con-

nected and adjusted in each segment and at all con-

necting points.

2) Check shift levers and rods for damage and

restrictions that could prevent full travel movement.

Move the levers by hand at the control valve. Ifthe

control spool does not actuate fully, the problem may

be in the control cover and valve assembly. Ifthe

controls are actuated electrically, check the wiring

and electrical components.

SM 619, Jan ‘98 Transaxle l 06-l-l

Group 06, Transaxle

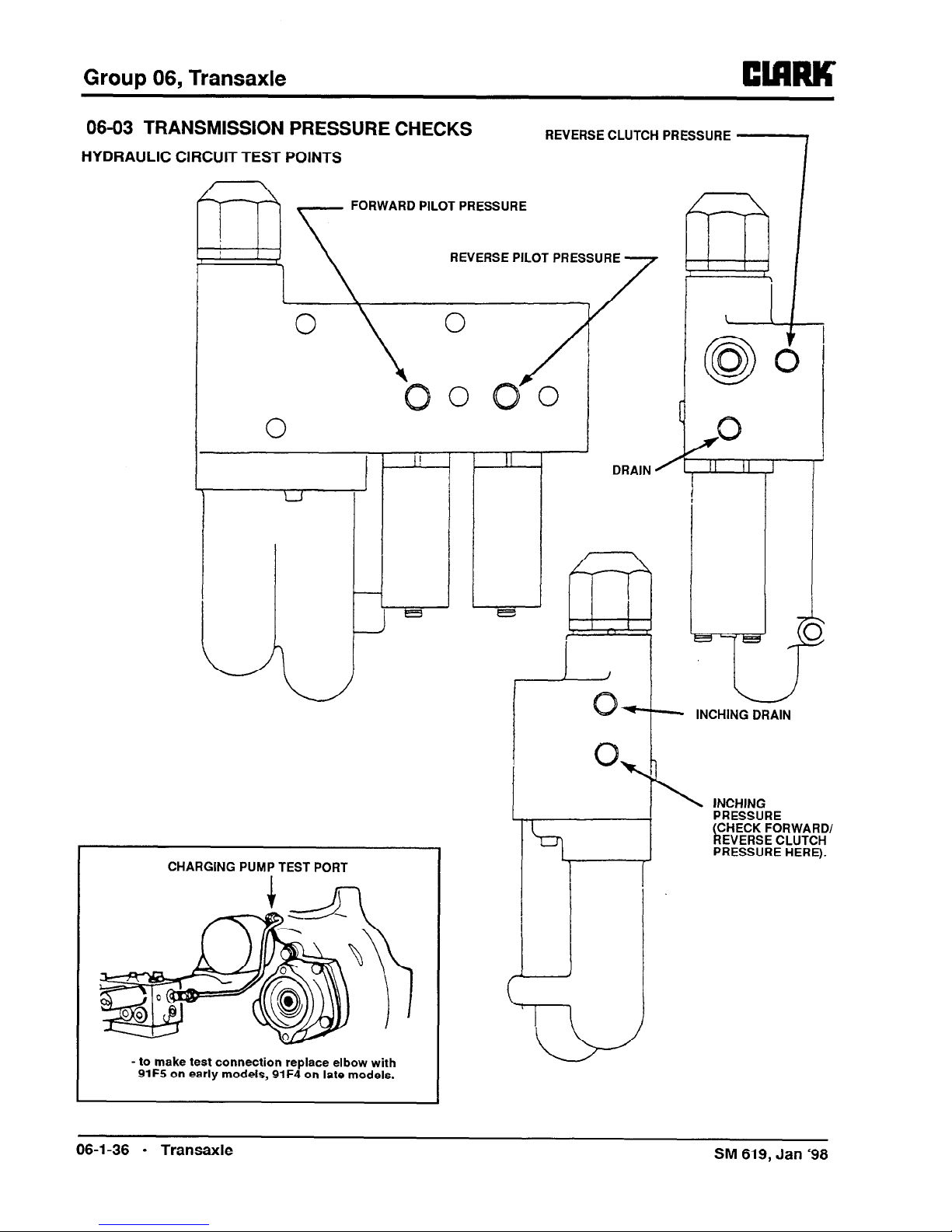

06-03 TRANSMISSION PRESSURE CHECKS

HYDRAULIC

REVERSE CLUTCH PRESSURE -

CIRCUIT TEST POINTS

FORWARD PILOT PRESSURE

REVERSE PILOT PRESSURE

CHARGING PUMP TEST PORT

- to make test connection replace elbow with

91F5 on early models, 91F4 on late models.

DRAIN ‘f

INCHING

PRESSURE

CHECK FORWARD/

k EVERSE CLUTCH

PRESSURE HERE).

06-l -36 l Transaxle SM 619, Jan ‘98

Ce manuel convient aux modèles suivants

Autres manuels Clark Chargeuse compacte

Clark

Clark ECS 17 THRU 30 Manuel utilisateur

Manuels Chargeuse compacte populaires d'autres marques

Toyota

Toyota FORKLIFT 5FGIO Series Manuel utilisateur

Toro

Toro TX 427 Manuel de l'opérateur

Kubota

Kubota B2601 Manuel utilisateur

Allis-Chalmers

Allis-Chalmers TL-16 Manuel utilisateur

Noblelift

Noblelift ECL15B Series Manuel

Ballymore

Ballymore PLD PLUS Manuel

Toro

Toro 22911 Manuel utilisateur

Toro

Toro 22473 Manuel utilisateur

Tigercat

Tigercat 230C Manuel utilisateur

jcb

jcb 1CX Manuel utilisateur

RAMROD

RAMROD PRO 1330 Manuel utilisateur

Case

Case 521F Manuel utilisateur

RAMROD

RAMROD 950 Manuel utilisateur

Terex

Terex Genie GTH-4017 EX Manuel utilisateur

Toro

Toro TX 420 Manuel utilisateur

Barreto

Barreto 825TKL Manuel utilisateur

Komatsu

Komatsu GALEO WA450-5L Guide d'installation

Komatsu

Komatsu WA480-8 Manuel
