Thank you for purchasing this Clarion product.
• Please read this owner’s manual in its entirety before operating this equipment.
• After reading this manual, keep it handy, such as in your glove compartment.
• Save your sales receipt. The warranty at the end of this manual and your sales
receipt are essential for warranty service.
FCC Approval
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
CLARION PRODUCT REGISTRATION INFORMATION
For USA and Canada only
www.clarion.com
Dear Customer:
Congratulations on your purchase of a Clarion mobile electronic product. We are
website at www.clarion.com to register your Clarion product.
We have made product registration simple with our easy to use website. The
registration form is short and easy to complete. Once you’re registered, we can keep
you informed of important product information.
Register at www.clarion.com - it’s easy to keep your Clarion product up to date.
English
XC2510/XC2410/XC2110 3
Contents
1. FEATURES .................................................... 4
2. PRECAUTIONS ................................................ 5
Installation ..................................................... 5
3. CONTROLS ................................................... 6
4. OPERATIONS.................................................. 8
Setting the operating level......................................... 8
Improving bass sound ............................................ 8
Designing a more advanced system................................. 8
Connecting a source unit without RCA outputs......................... 8
Care and maintenance ........................................... 9
5. INSTALLATION AND WIRING..................................... 9
What is included in the box ........................................ 9
Mounting precautions ............................................ 9
Wiring precautions............................................... 10
Power and speaker connections .................................... 11
Applications .................................................... 12
Setting the gain ................................................. 14
Setting the crossover............................................. 15
Setting the bass boost ........................................... 15
Final system checks ............................................. 15
6. TROUBLESHOOTING ........................................... 16
7. GLOSSARY.................................................... 17
8. SPECIFICATIONS .............................................. 17
9. LIMITED WARRANTY INFORMATION .............................. 19
Manuel de L'utilisateur (French)................................... 20
Manual del Propietario (Spanish) .................................. 38
English
XC2510/XC2410/XC21104
The Clarion XC2510, XC2410, and XC2110 amplifiers fit a variety of system
configurations and provide these features:
• Full frequency response with low distortion and exceptional signal-to-noise
performance.
• Advanced circuitry design provides bridgeable outputs for use in a variety of
applications.
• Independent electronic crossovers, each with a 12dB per octave slope and full
adjustment range (from 35Hz to 250Hz) to aid in audio system design.
• Bass boost circuit to reinforce low frequency signals that may be lost due to
subwoofer box design.
• Adjustable input level controls with ground loop isolation to accept a wide range of
input signals.
• Remote turn-on with “soft start” muting to prevent turn-on “thump”.
• Protection circuits for overheating and speaker shorts.
• 2-Ohm load capable of driving a variety of speaker systems.
• Niclel-plated input/output connectors and an on-board ATC-type fuse.
• Nickel heat sink for efficient heat dissipation.
• Low profile, compact footprint to accommodate space limitations.
1. FEATURES
English
XC2510/XC2410/XC2110 5
• Do not operate this product in ways other than those described in this manual.
• Do not disassemble or modify this product.
• Do not pour liquid or poke foreign objects into the unit. Water and humidity will
damage internal circuitry.
• If the unit becomes wet, turn off all power and ask your authorized Clarion dealer
to clean or service the unit.
Failure to observe these precautions may damage your car or the amplifier, and may
void the warranty.
WARNING!
Exposure to continuous sound levels of 85dB or higher may
result in hearing loss. Although Clarion products are capable
of producing high sound pressure levels, please use your
product at reasonable levels.
While operating your vehicle, please observe all local sound
ordinances for your safety.
Installation
Installation of mobile audio and video components requires experience with a
variety of mechanical and electrical procedures. Although this manual provides
general installation and operation instructions, it does not show the exact installation
methods for your particular application.
If you do not have the required knowledge and experience to successfully complete
the installation, consult an authorized Clarion dealer about professional installation
options.
2. PRECAUTIONS
English
XC2510/XC2410/XC21106

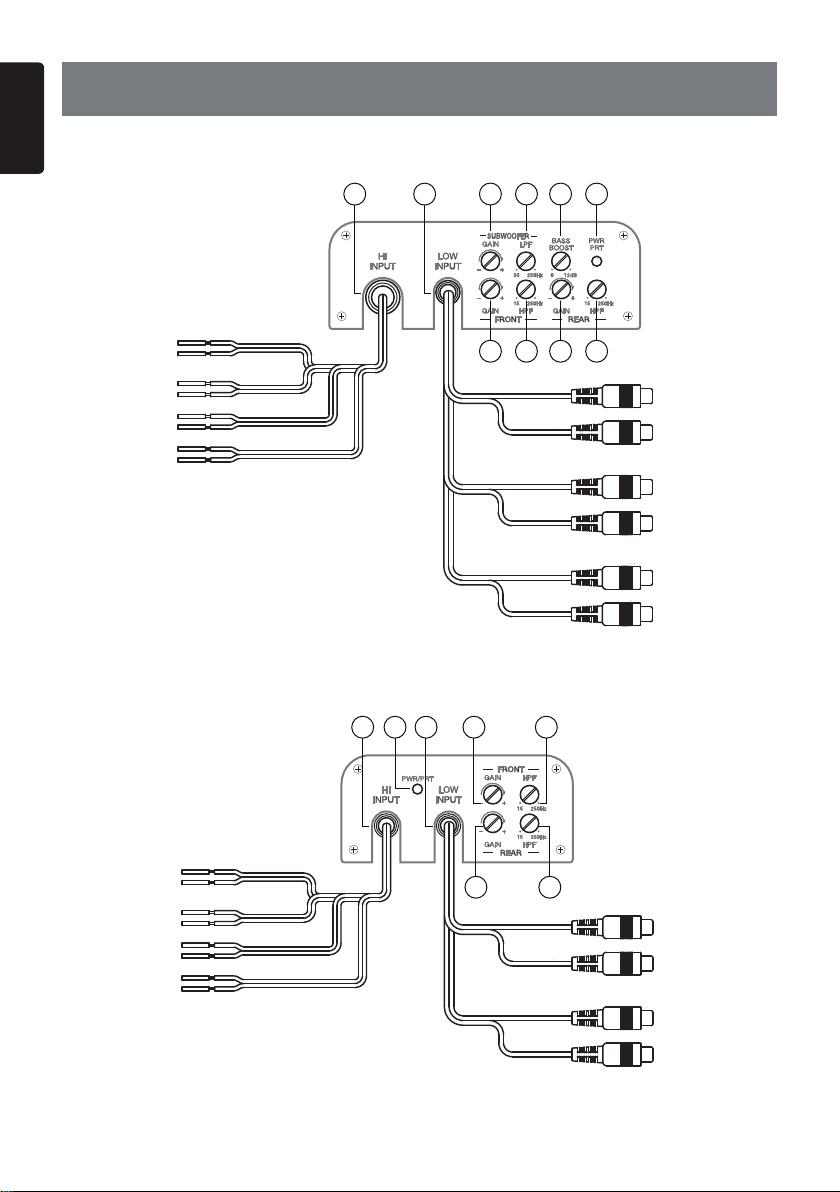

XC2510 controls and input connections
3. CONTROLS
White (+)
White/Black (-)
CH1 (White)
Front Left
CH2 (Red)
Front Right
CH3 (White)
Rear Left
Front Line Input
Gray
Black
Purple
Rear Line Input
SUB Line Input
CH4 (Red)
Rear Right
SUB (White)
Left
SUB (Red)
Right
Gray (+)
Gray/Black (-)
Green (+)
Green/Black (-)
Purple (+)
Purple/Black (-)
FR Left (CH1)
FR Right (CH2)
RR Right (CH4)
RR Left (CH3)
5 6
1
1 2
3 4
3 4 5 6
7 8 9
12
2
12
XC2410 controls and input connections
CH1 (White)
Front Left
CH2 (Red)
Front Right
CH3 (White)
Rear Left
Black
Gray
Front Line Input
Rear Line Input
CH4 (Red)
Rear Right
White (+)
White/Black (-)
Gray (+)
Gray/Black (-)
Green (+)
Green/Black (-)
Purple (+)
Purple/Black (-)
FR Left (CH1)
FR Right (CH2)
RR Right (CH4)
RR Left (CH3)
English
XC2510/XC2410/XC2110 7
3. CONTROLS
XC2110 controls and input connections
Left (White)
Right (Red)
White (+)
White/Black (-)
Gray (+)
Gray/Black (-)
Left
Right
10
9
11
1 2
12
1. HI Input connection cables for CH1
(Front LT), CH2 (Front RT), CH3 (Rear
LT), CH4 (Rear RT)
2. LOW Input RCA jacks for CH1 (Front
LT), CH2 (Front RT), CH3 (Rear LT),
CH4 (Rear RT), Subwoofer
3. Front gain control
4. Front Hi-Pass X-Over control
5. Rear gain control
6. Rear Hi-Pass X-Over control
7. Subwoofer gain control
8. Subwoofer Low-Pass X-Over control
9. Bass Boost control
10.Gain control
11.Low-Pass X-Over control
12.Status indicator light
English
XC2510/XC2410/XC21108
Setting the operating level
The gain controls allow you to set the nominal operating level of the amplifier from
200mV to 8V for RCA inputs or 600mV to 20V for speaker level inputs. This wide
adjustment range accommodates virtually any source unit brand.
Improving bass sound
The amplifiers feature a narrow-frequency band bass boost circuit (known as
“high-Q”). The bass boost control acts much like an equalizer with switchable gain
fixed at 50Hz.
Use this control to tune low-frequency audio response to compensate for a less than
ideal subwoofer enclosure design. The added boost produces rich, full bass tones
that are normally difficult to reproduce in the car audio environment.
Note:
If you don’t want to boost the bass frequencies, set this control to minimum.
Designing a more advanced system
Freq (Hz) controls
The high pass crossover frequency is fully adjustable between 35Hz and 250Hz
(35Hz-250Hz on the low-pass crossover XC2110). Use the high-pass/low-pass filter
controls, along with your speaker manufacturer’s recommended crossover frequencies,
to quickly design a more advanced system.
X-Over mode switches
These switches are equipped with 12dB per octave electronic filters for precise
frequency attenuation with minimal phase distortion.
Connecting a source unit without RCA outputs
The speaker level inputs provide connections for a high-level stereo source. Use
them if your source unit does not have RCA outputs.
4. OPERATIONS
English
XC2510/XC2410/XC2110 9
Care and maintenance
Cleaning the product
Use a soft, dry cloth to gently wipe dust and dirt from the unit.
Do not use window cleaners, household cleaners, aerosol sprays, solvents, alcohol,
ammonia, or other cleaners. These substances may damage the unit.
Servicing the product
In the event that trouble arises, never open the case or disassemble the unit. The
internal parts are not serviceable by the user. Opening any components will void the
warranty.
Read these instructions and the following precautions carefully.
What is included in the box
In addition to this manual, the box contains:
• Amplifier
• (4) Self tapping screws
• (4) Washers
Mounting precautions
If you lack the necessary skills, do not install the amplifier yourself.
See your authorized Clarion dealer for installation recommendations.
• This unit is exclusively for applications with a negative ground, 12V power supply.
• This unit requires additional mobile audio components for proper operation.
• Choose a location in the application that provides adequate ventilation around the
amplifier. Although any moving air dissipates heat, cool air should run along the
length of the fins rather than across them.
5. INSTALLATION AND WIRING
CAUTION!
Changes or modifications to this product not approved by the
manufacturer will void the warranty and will violate FCC approval.
CAUTION!
Although Clarion amplifiers include heat sinks and protection
circuits, mounting an amplifier in a tight space without any air
movement will damage the unit’s internal circuitry over time.
English
XC2510/XC2410/XC211010
• Mount the amplifier on a rigid surface away from subwoofer enclosures or to any
area that is prone to vibration. Do not install the amplifier on plastic or on any
other combustible material.
• For easy system setup, mount the amplifier so that the panel controls are
accessible after installation.
• Always use great care when attaching anything to a surface! Check clearances on
all sides of the planned installation before drilling any holes or installing any
screws.
• Make sure the holes you drill will not cut into the fuel tank, fuel lines, hydraulic lines
(under the chassis) or electrical wiring.
Wiring precautions
Read all wiring precautions. If you are not sure of the connections, contact your
authorized Clarion dealer.
• Before you start, make sure the source unit’s power switch is off.
WARNING!
To prevent short circuits during installation, disconnect the
vehicle’s negative (-) battery lead before making any power
connections.
• Extra cable can cause signal loss and act as an antenna for noise. Use only
high quality RCA cables that are no longer than necessary to make a direct
connection with the source unit and amplifiers.
• Make sure each connection is clean and secure. Insulate final connections with
electrical tape or shrink tubing.
CAUTION!
Improper connections may damage the equipment.
• When routing RCA cables, keep the cables away from the power cables and out
put speaker wires.
• A good chassis ground connection is critical to minimize resistance and avoid
noise problems. Use the shortest wire possible. Clean off any paint prior to making
connections. Securely connect the ground wire to the chassis and the source
unit ground.
• Add an external fuse to the amp’s positive (+) power lead and connect it as close
as possible to the vehicle’s plus (+) battery terminal. Use a fuse rated to the total
current consumption of the amplifier. Adding an external fuse protects the
electrical system from short circuits that can result in a fire.
• Do not open the case. There are no user-serviceable parts inside. If you require
assistance, consult your Clarion dealer or an authorized Clarion service center.
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Clarion Amplificateur
Clarion
Clarion 2/1 Channel Power Amplifier DPX1000.2 Manuel utilisateur
Clarion
Clarion DPX1001.2 Manuel utilisateur
Clarion
Clarion APX400.2M Manuel
Clarion
Clarion APA2001 APA2001 APA2001 Manuel utilisateur
Clarion
Clarion 2/1 Channel Power Amplifier DPX1000.2 Manuel utilisateur
Clarion
Clarion APA2160 Fiche technique
Clarion
Clarion XR2220 Manuel utilisateur
Clarion
Clarion XC6610 Manuel de réparation
Clarion
Clarion XC1410 Guide de démarrage rapide
Clarion
Clarion XC6210 Manuel utilisateur
Clarion
Clarion XC6140 Manuel de réparation
Clarion
Clarion XC1410 Guide de démarrage rapide
Clarion
Clarion APA4320 Manuel utilisateur
Clarion
Clarion XC6420 Manuel de réparation
Clarion
Clarion XC1140 Guide de sécurité
Clarion
Clarion XC6210 Manuel de réparation
Clarion
Clarion APA4204 Manuel utilisateur
Clarion
Clarion APX4241E Manuel utilisateur
Clarion
Clarion APA250 Guide de démarrage rapide
Clarion
Clarion XR2220 Manuel de réparation
