ClairiTech Innovations HumiFresh Hybrid 200 Mode d'emploi
April 2023 HumiFresh® Hybrid 200 Rev. 1.0 En
Installation & Owner’s Manual
English
READ AND SAVE THESE INSTRUCTIONS
Manufactured by:
ClairiTech Innovations Inc.
1095 Ohio Rd.
Boudreau-Ouest, NB
Canada E4P 6N4
Hybrid 200
1
Table of Contents
1.0. INTRODUCTION................................................................................................................................2
2.0. SERVICE AND WARRANTY ..............................................................................................................3
2.1. FOR CUSTOMER ASSISTANCE .........................................................................................................3
2.2. CONSUMER LIMITED WARRANTY..................................................................................................4
2.3. HYBRID-200 LIMITED WARRANTY:...............................................................................................5
3.0. SPECIFICATIONS ...............................................................................................................................6
4.0. HOW IT WORKS................................................................................................................................7
5.0. INSTALLATION SCENARIOS.............................................................................................................8
6.0. PRE-INSTALLATION .......................................................................................................................12
6.3.1. LOCATE THE UNIT.........................................................................................................................12
6.3.2. PLAN THE DUCTWORK..................................................................................................................13
7.0. INSTALLATION INSTRUCTIONS.....................................................................................................13
7.1. INSTALLING EXTERIOR HOODS &VENTS .................................................................................14
7.2. INSTALLING INTERIOR DUCTWORK &VENTS ..........................................................................15
7.3. MOUNTING THE UNIT...................................................................................................................18
7.4. CONNECTING DUCTS TO UNIT....................................................................................................18
8.0. CONTROL ........................................................................................................................................21
WI-FI INTERNET CONNECTION AND MOBILE APPLICATION..................................................................21
SYSTEM REBOOT ..........................................................................................................................................21
9.0. MAINTENANCE...............................................................................................................................22
10.0. TROUBLESHOOTING ......................................................................................................................22
11.0. RETURN AND EXCHANGE POLICY ..............................................................................................24
Hybrid 200
2
1.0. Introduction
Congratulation on the purchase of your new Hybrid 200. The HumiFresh® Hybrid 200 is a complete
all-season, all-climate ventilation system for your whole home. From basement to bedroom, and
everywhere in between, our only dual-core air exchange system available on the market covers all your
needs. The Hybrid 200 replaces contaminated, humid air with fresh air in every level of your home, in
any climate, without unwanted condensation or the need to defrost. Consequently, no unsightly drains
or annoying defrost schedules to hinder your enjoyment of a comfortable, contaminant-free living
environment.
This Installation and Operation Manual will help you get acquainted with the functions and operation
of your 120 Hybrid, as well as ensure an efficient and hassle-free installation of your new ventilation
system.
This manual shows the suggested installation method. Any structural alterations necessary
for installation must comply with all applicable building, health, and safety
This unit is intended for general ventilation only. Do not use to exhaust hazardous or
explosive material and vapors
Caution
Caution
Hybrid 200
3
2.0. Service and Warranty
2.1. For Customer Assistance
To help in answering questions if you call for service or warranty purposes, please record below the
model and serial number located on the side of the unit.
Product Name:
Model #:
Date of Manufacturing:
Date of Purchase:
Serial #:
Dealer Name (If Any):
Please Note the above
information before
contacting us.
IMPORTANT
To properly validate your warranty, you must complete and return the warranty card within 90 days.
For the Following Inquiries:
-Service
-Parts
-Accessories
-Additional Customer Information
Please contact us by:
Phone: 1-888-533-1348
Email: [email protected]
Website: www.humidex.com
Hybrid 200
4
If your device is not registered, proof of purchase will be required if it requires service after approval from
our Service Department. You can also register your warranty using the Hybrid 200 mobile application.
or online http://www.clairitech.com/support/register.
2.2. Consumer Limited Warranty
ClairiTech Innovations Inc. warrants to the first consumer that this product, when shipped in its
original container, will be free from defective workmanship and materials, and agrees that it will, at its
discretion, either repair the defect or replace the defective Product or part thereof with a new or
remanufactured equivalent at no charge to the purchaser for the period(s) set forth below. The
defective part must be returned to the manufacturer ClairiTech Innovations Inc. All transportation
charges are the sole responsibility of the purchaser.
This warranty does not cover any appearance items of the product nor if the items or product have
been damaged, defaced, subjected to improper voltage, abnormal service or handling, has been altered
or modified in design or construction or was installed and has been rendered inoperable for an
extended period of time.
In order to enforce the rights under this limited warranty, the purchaser must fill out and return the
warranty card within 90 days.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties
other than those described herein, or to extend the duration of any warranties beyond the time period
described herein on behalf of ClairiTech Innovations Inc.
The warranties described herein shall be the sole and exclusive warranties granted by ClairiTech and
shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner
and for the period described herein, shall constitute complete fulfillment of all liabilities and
responsibilities of ClairiTech to the purchaser with respect to the Product, and shall constitute full
satisfaction of all claims, whether based on contract, negligence, and strict liability or otherwise. In no
event shall ClairiTech be liable, or in any way responsible, for any damages or defects in the Product
which were caused by repairs or attempted repairs performed by anyone other than an authorized
servicer, unless approved by ClairiTech in writing. Nor shall ClairiTech be liable or in any way
responsible for any incidental or consequential economic or property damage.
Warranty Period for this product:
Two (2) years on all electrical and electrical
components
Five (5) years on cabinet
10 years ERV core
10 years HRV core
Hybrid 200
5
Additional Items Excluded from
Warranty Coverage (If Any):
Appearance items of the product, Exterior
vent, and any printed material.
Where to obtain service:
From the Manufacturer. (Refer to Page 3)
2.3. Hybrid-200 Limited Warranty:
ClairiTech Innovations Inc. offers a one-year limited functionality warranty for Hybrid-200 system.
Liability Limitation:
ClairiTech Innovations inc. cannot be held responsible for any changes, modifications, or updates
made by third parties (platforms, operators, etc.) which could alter the proper functioning of the
system and the Hybrid 200 application.
This warranty is non-transferable and applies to residential use only.
To obtain supply, accessory, or product information, contact us.
Refer to Page 3 for Contact Information.
Hybrid 200
6

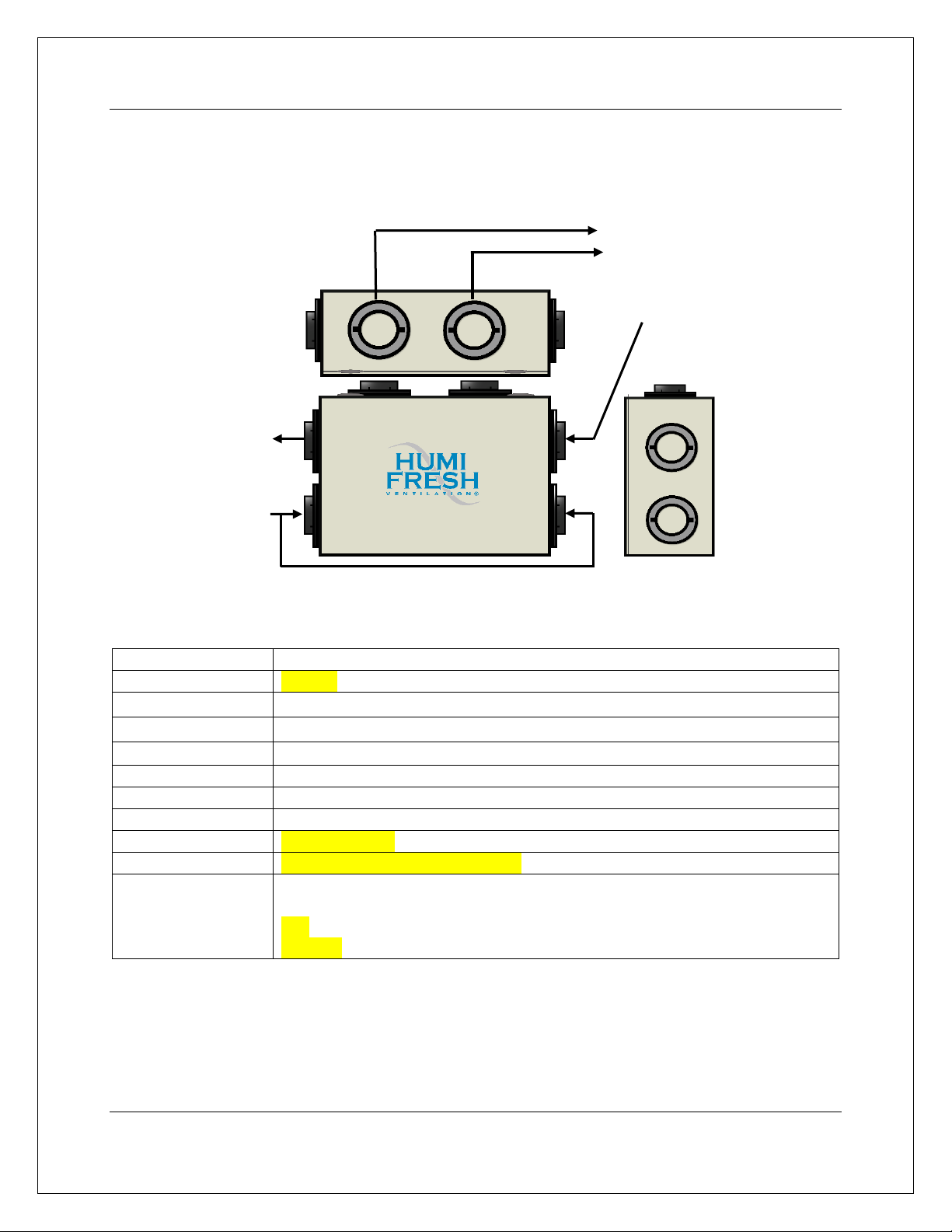

3.0. Specifications
Dimensions
28” W x 23” H x 8” D
Weight
………
Access
Latched and hinged front access to filters and cores
Duct connecting
Six insulating double collars with 6” round connections
Mounting
Mounted from joist
Electrical
25W low / 94W max / 120V @ 60Hz Compatible with 230V 50/60Hz
Filters
Cleanable polyester air filter with easy access
Defrost
Processor controlled balanced frost prevention system
Air Flow
50 to 120 FCM
Capacity
Services up to 3200 square feet
Warranty
Two (2) years on all electrical and electrical components
Five (5) years on cabinet
???? years ERV core
Lifetime HRV core
Top
Basement Intake
Outside Exhaust
House Intake
Processed air
from the house
Fresh air
from outside
Side
Front
Hybrid 200
7

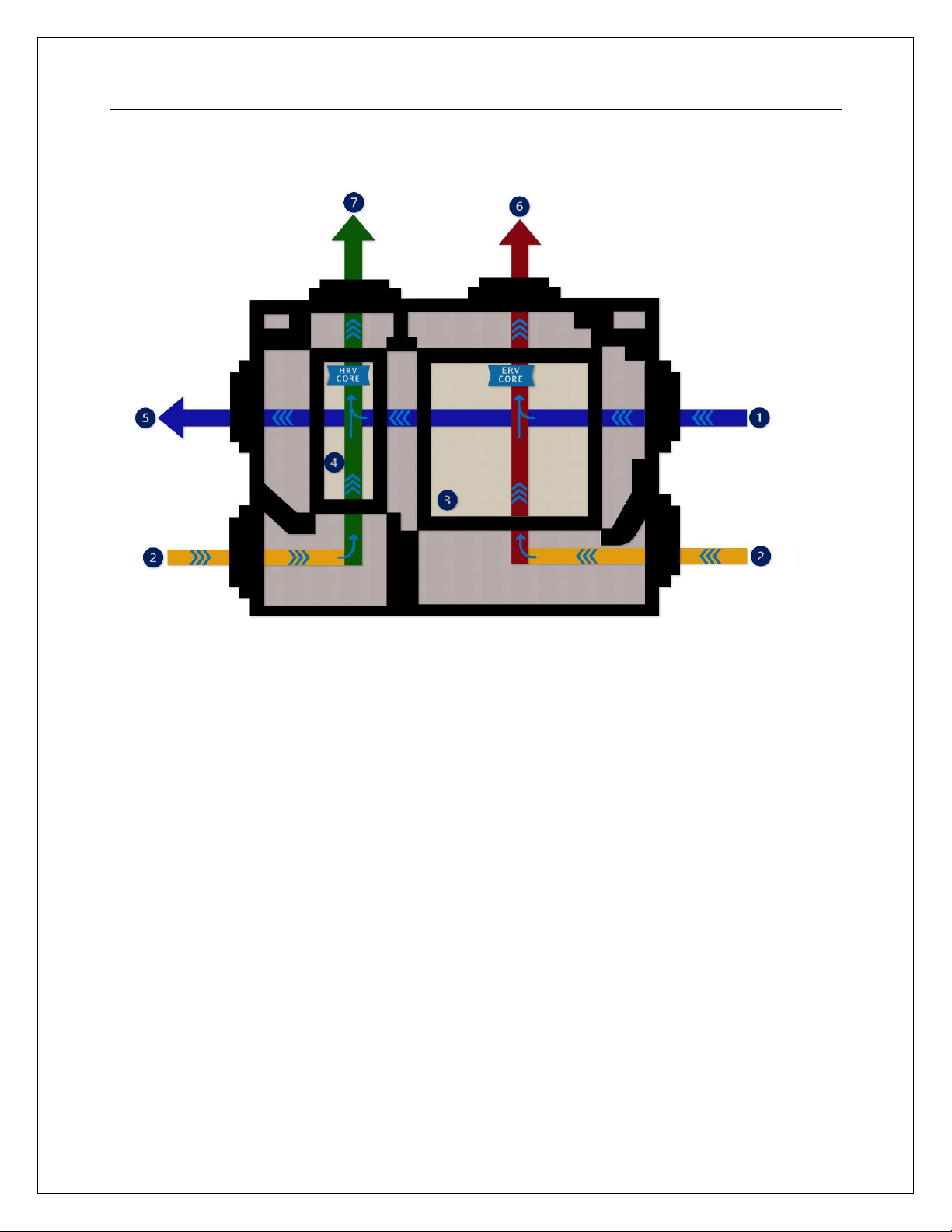

4.0. How It Works
1. Fresh outdoor air enters the unit and flows through the ERV core.
2. Stale air and toxins from upper levels, basement, and crawl spaces enter the unit from the
bottom ports.
3. In the summer, the ERV core transfers the excess humidity and temperature from the
incoming air to the outgoing air. The preferred humidity and temperature level from the inside
environment is then transferred to the incoming fresh air. The process is reserved in winter.
4. The second core, the HRV core, is dedicated completely to the basement. The newly adjusted
humidity level of the fresh air is maintained, but the temperature levels are transferred.
5. The resulting fresh air with temperature and humidity levels similar to the interior environment
is distributed throughout the house.
6. Stale air and toxins are expelled to the outside of the house.
7. The added benefit of the 200 Hybrid circulated air to the basement. This air helps control the
basement’s air quality and virtually eliminates humidity to create a completely livable space.
Hybrid 200
8
5.0. Installation Scenarios

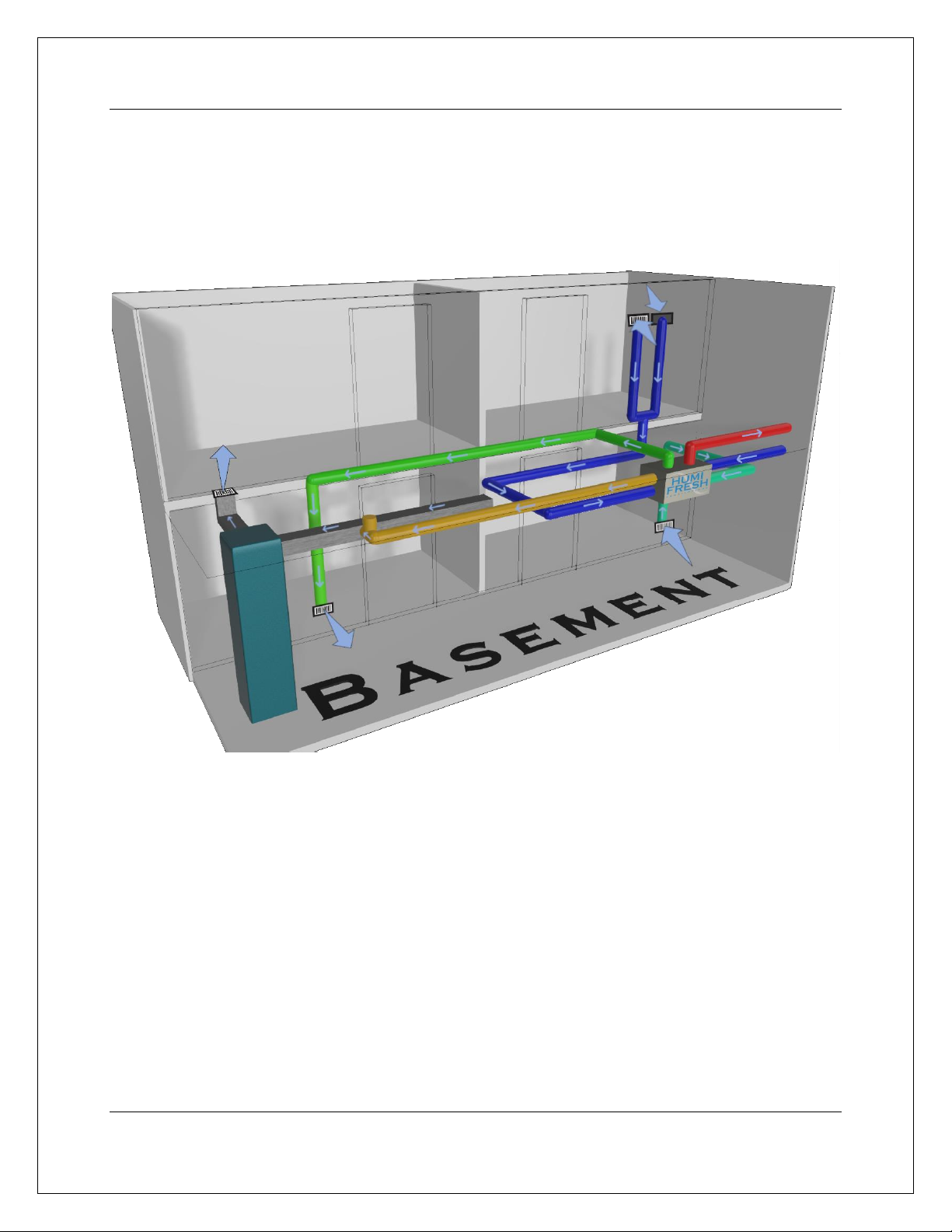

5.1 Fully Ducted System
(For homes without any existing ductwork due to an existing forced-air system)
This installation scenario will require a completely new duct system throughout the entire house.
Stale, humid air is exhausted from the highest humidity areas of the house including the basement,
bathrooms, kitchen, and laundry room. Fresh air taken from outside is filtered and passed through the
ERV and HRV exchange elements where humidity and temperature are exchanged with the stale air
leaving the building. The fresh air is then supplied to the basement, bedrooms, and other principal
living areas to create a comfortable, contaminate-free living environment.
A dedicated air recirculation system for the basement, one of the promising features of the Hybrid
200, will transform the dampest, mustiest basement into a dry, comfortable living area or storage
space. The recirculation system takes fresh, dry air from the upper levels of the house and recirculates
it to the basement before exhausting it back to the outside.
Homes with more than one story require at least one exhaust vent at the highest level of the house.
In the basement, it is recommended to have at least one exhaust vent close to the floor as the humidity
in a basement tends to concentrate near the floor.
Hybrid 200
9

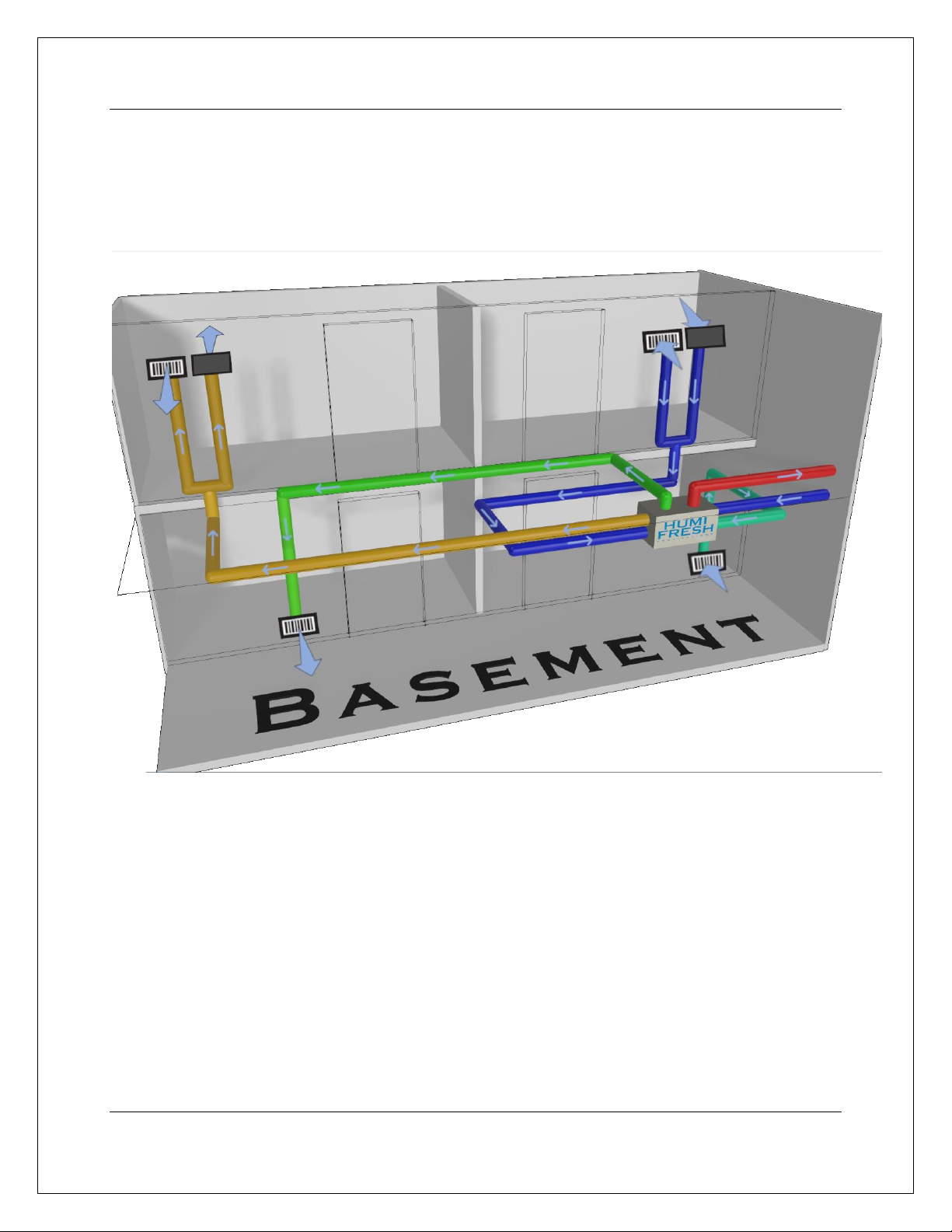

5.2 Pre-existing Ductwork
(For homes with existing ductwork due to an existing forced-air system.)
5.2.1. New Exhaust & Recirculation
This installation scenario will require new ductwork for the exhaust and recirculation systems, and a
tie-in to the existing ductwork of a forced-air system for the fresh air supply.
Stale, humid air is exhausted from the highest humidity areas of the house including the basement,
bathrooms, kitchen, and laundry room. Fresh air taken from outside is filtered and passed through the
ERV and HRV exchange elements where humidity and temperature are exchanged with the stale air
leaving the building. The fresh air is then supplied to the return plenum of the air handler and
distributed to the basement, bedrooms, and other principal living areas via the air handler’s existing
duct system.
A dedicated air recirculation system for the basement, one of the promising features of the Hybrid
200, will transform the dampest, mustiest basement into a dry, comfortable living area or storage
space. The recirculation system takes fresh, dry air from the upper levels of the house and recirculates
it to the basement before exhausting it back to the outside.
