Introduction:
The CKMOVA Vocal M is dual channel wireless
microphone system with independent audio recorder
features the combination of reliability & broadcast-
quality wireless solution for ENG, filmmakers, EEP,
vloggers, Live Podcast, weddings, mobile journalist
and content creators.
The Vocal M system boasts a range of powerful
feature, including mute, keyboard lock and headphone
monitor on both transmitter and receiver; Mic & Line
input switchable, local memory recording and EQ
setting on transmitter; mono & stereo switchable on
receiver.
The compact, lightweight & durable construction is
convenient working for multiple condition. The OLED
screen displays reception quality, battery status, audio
level and more feature.
The CKMOVA is able to provide mature and stable
UHF technical solutions to ensure stable signal
transmission and deliver high-quality audio, it makes
Vocal M become the clients priority choice.
microphone system with independent audio recorder
vloggers, Live Podcast, weddings, mobile journalist
feature, including mute, keyboard lock and headphone
monitor on both transmitter and receiver; Mic & Line
setting on transmitter; mono & stereo switchable on
The compact, lightweight & durable construction is
The OLED
, battery status, audio
is able to provide mature and stable
transmission and deliver high-quality audio, it makes
Cautions:
Do not use the unit underwater or unprotected in
rainy conditions.
Do not use the unit under overheated or supercooled
conditions.
Do not hold the unit close to loudspeakers.
Do not subject to device to violent collisions, as this
can damage the device
Do not over-tighten the antenna onto the devices
Support up to microSD 32GB memory card, avoid
incompatibility
When using auto IR Pairing, please stay within one
meter, otherwise the signal may be too weak and
the sync will not be successful;
When in use, or when storing, avoid contact with
dust and moisture
Regularly clean the memory card to prevent it from
being full during recording
Available Combo:
Vocal M V1(TX+RX):Vocal M V2(TX+TX+RX):
Vocal M V3(TLX+RX):
Vocal M V4(TLX+TX+RX):
One 3.5mm Transmitter + Receiver
Two 3.5mm Transmitters + Receiver
One Plug-on XLR Transmitter + Receiver
One 3.5mm Transmitter + One Plug-on
XLR Transmitter + Receiver
Highlights:
Dual-channel receiver for camera, mobile, computer
& recorder and etc
OLED display on both transmitter and receiver
Detachable and 360°switchable antenna
Operating Range 150M (Line of sight)
Mono & Stereo output switchable
Locking 3.5mm TRS Mic & Line input switchable
Locking 3.5mm TRS real-time headphone monitor
on receiver
Locking 3.5mm TRS real-time & play-back headphone
monitor on transmitter
Local 3.5mm TRS Mic input jack on receiver
Support up to 32GB microSD card for memory
recording
Low cut filter (40Mhz/80Mhz/120Mhz)
High frequency boost (1dB/2dB/3dB/4dB)
Mute & keypad lock function on both transmitter
& receiver
Built-in rechargeable battery with 12 hours life
Durable aluminum alloy construction
Product Structure:
1. Vocal M TX: Body-pack Transmitter
1. Detachable Antenna
2. Mic & Line Input Jack
Connects to the 3.5mm TRS microphone
and line level devices
3. 3.5mm Headphone Monitor Jack
For Real-time & Play-back local memory
file
4. MicroSD Card Port
5. Type-C Charging Port (DC 5V)
6. RF Indicator
Solid Blue: When paired with receiver
Dim Blue: When unpaired with receiver
2
3
4
5
1
6
7
8
9
10
11
12 13
14
15
7. Power Indicator
Solid Blue: The battery is higher than 5%
Solid Red: The battery is lower than 5%
8. Record Indicator
Solid Blue: When recording
Dim Blue: Pause or exsit recording
9. OLED Display
Display details refer to "OLED Display Readouts"
10. Power & Mute Button
Power On & Off : long press button for 2 seconds
Mute On & Off: short press button
11. Set & Lock Button
Set function: short press button to enter the function control
interface, then short press button to confirm
Keypad lock function: long press button for 2 seconds
12. "+" Button
Short press button to select different function on the display
13. "-" Button
Short press button to select different function on the display
14. REC Button
Long press 2 seconds to enter recording model, short press
start recording then press again pause recording, long press
2 seconds exsit and save recording file
15. Belt Clip
Insert one end of the belt clip into one of two holes, and then
insert the other end into the hole on the other side

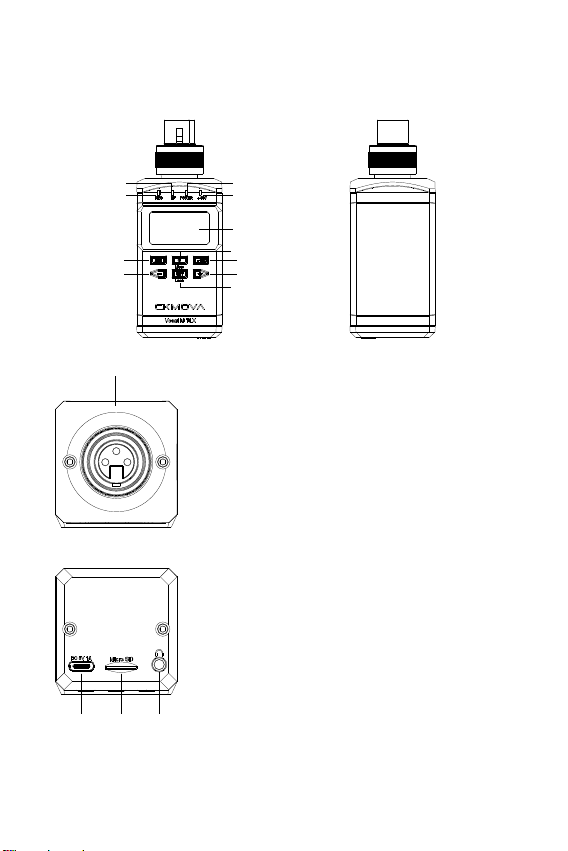

2. Vocal M TLX: Plug-on XLR Transmitter
2. 3.5mm Headphone Monitor Jack
For Real-time & Play-back local memory
file
3. MicroSD Card Port
5. RF Indicator
Solid Blue: When paired with receiver
Dim Blue: When unpaired with receiver
6. Power Indicator
Solid Blue: The battery is higher than 5%
Solid Red: The battery is lower than 5%
4. Type-C Charging Port (DC 5V)
1. 3-pin Female XLR Plug Input Jack
Connects to the XLR microphone
1
2
3
4
56
78
9
10
11
12
13
14 15
8. "+48V"Indicator
Solid Blue: +48V Phantom Power ON
Dim Blue: +48V Phantom Power OFF
9. OLED Display
Display details refer to "OLED Display Readouts"
10. Power & Mute Button
Power On & Off : long press button for 2 seconds
Mute On & Off: short press button
11. Set & Lock Button
Set function: short press button to enter the function control
interface, then short press button to confirm
Keypad lock function: long press button for 2 seconds
12. "+" Button
Short press button to select different function on the display
13. "-" Button
Short press button to select different function on the display
14. REC Button
Long press 2 seconds to enter recording model, short press start
recording then press again pause recording, long press 2 seconds
exsit and save recording file
15. "+48V" Button
Short press button to switch on & off
7. Record Indicator
Solid Blue: When recording
Dim Blue: Pause or exsit recording

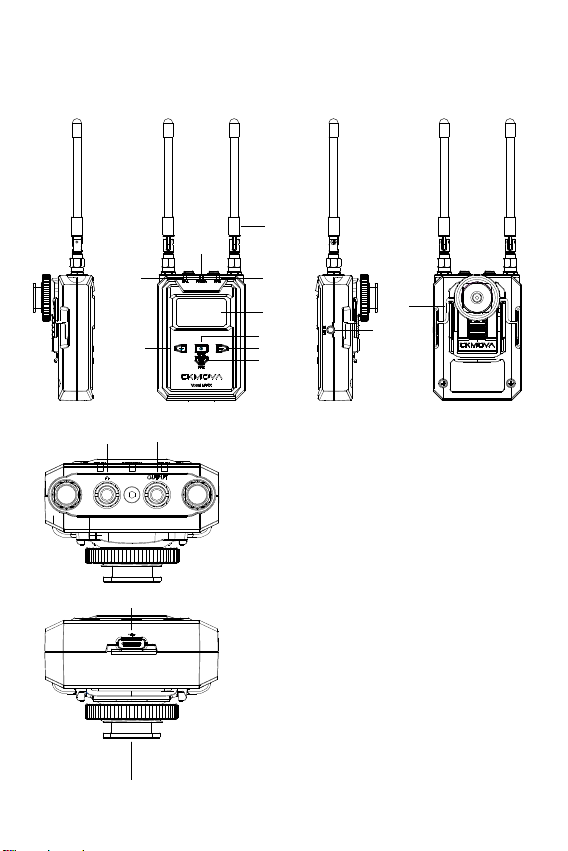

3. Vocal M RX: Portable Receiver
1. Detachable Antenna
2. Audio Output Jack
Connects to the 3.5mm TRS audio
output cable
3. 3.5mm Headphone Monitor Jack
For Real-time headphone monitor
5. Type-C Charging Port (DC 5V)
6. RF-A Indicator
Solid Blue: When paired with Group A
transmitter
Dim Blue: When unpaired with Group A
transmitter
4. Local Mic Input Jack
Connects to the 3.5mm TRS microphone
2
3
4
1
6
7
8
9
10
11
12 13
14
5
15
7. Power Indicator
Solid Blue: The battery is higher than 5%
Solid Red: The battery is lower than 5%
8. RF-B Indicator
Solid Blue: When paired with Group B transmitter
Dim Blue: When unpaired with Group B transmitter
9. OLED Display
Display details refer to "OLED Display Readouts"
10. Power & Mute Button
Power On & Off : long press button for 2 seconds
Mute On & Off: short press button
11. Set & Lock Button
Set function: short press button to enter the function control
interface, then short press button to confirm
Keypad lock function: long press button for 2 seconds
12. "+" Button
Short press button to select different function on the display
13. "-" Button
Short press button to select different function on the display
14. Belt Clip
Insert one end of the belt clip into one of two holes, and then
insert the other end into the hole on the other side
15. Shoe Mount Adapter
Push the shoe mount adapter in fully until the belt clip fits into
the horizontal groove on the adapter’s holder
TRS microphone
