CITYLIFT STACKER 2LHS-6000 Manuel utilisateur
CITYLIFT STACKER™
2LHS-6000

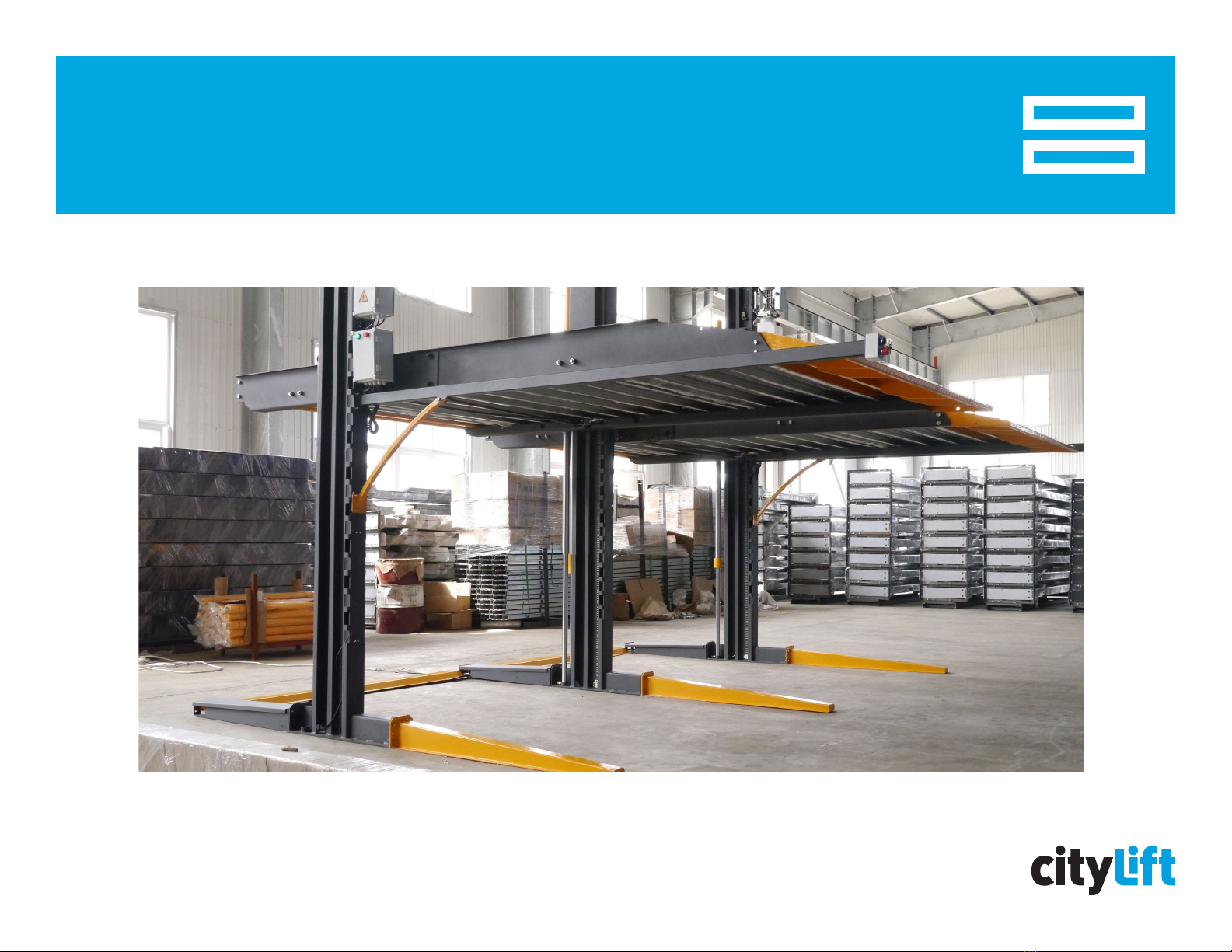

CITYLIFT STACKER™
© CityLift Parking | www.cityliftparking.com | 844.388.0424
33 SECONDS
AVERAGE RETRIEVAL TIME
2-LEVEL CONFIGURATION
DOUBLE CYLINDER HYDRAULIC DRIVEN
EASY INSTALLATION

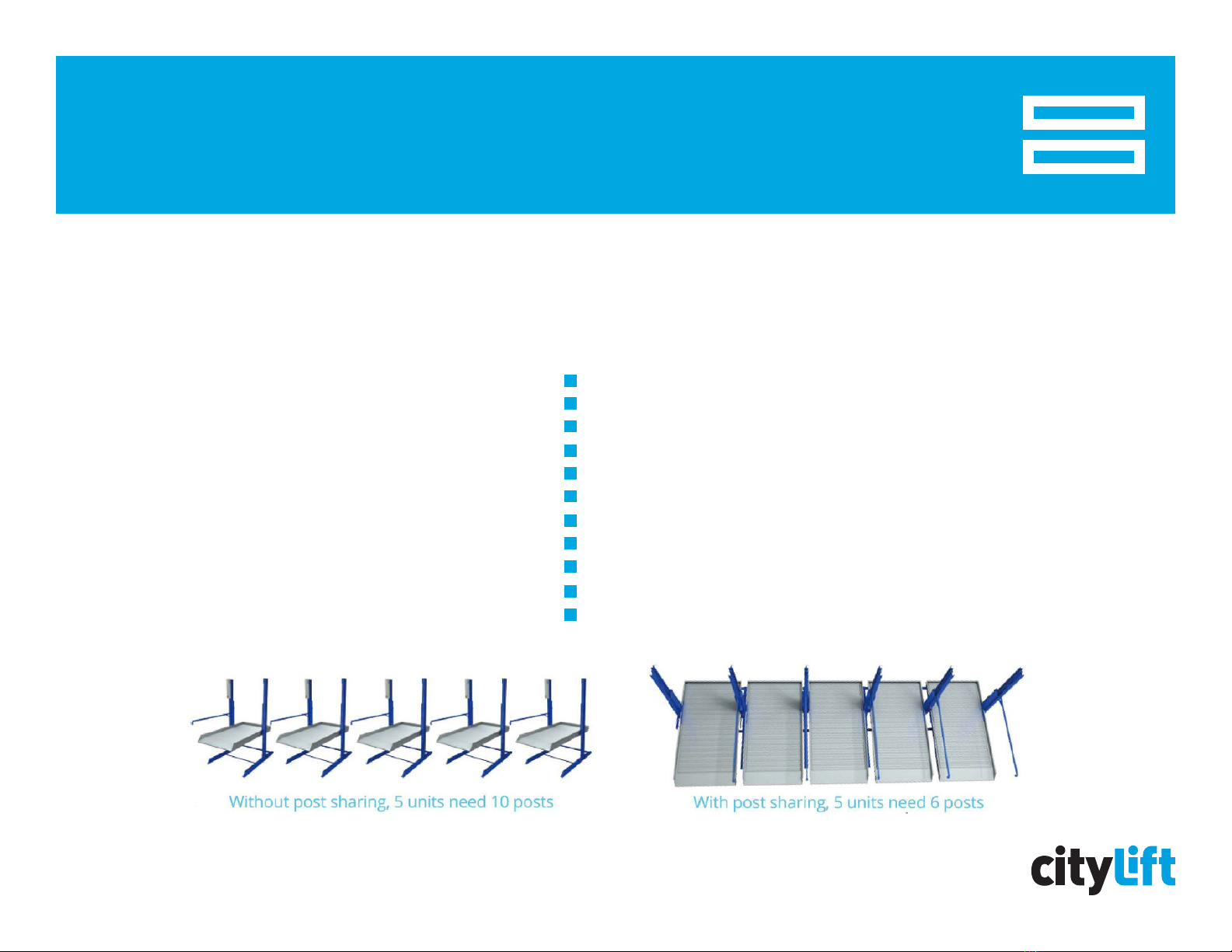

SHARING POST DESIGN AND MULTIPLE SAFETY FEATURES
Highly adaptable, customizable, and cost-efcient car stackers.
These manually operated parking lifts are ideal for valet parking and are a quick
and easy way to double your parking capacity.
Double cylinder
Easy disassembly and relocation
Integrated control box for easy wiring
17 full range anti-fall locks
Emergency stop button
Safety key switch controller
Limit switch
Hydraulic overload protection
Anti-skid ramp and platform
Anti-rust power coating nishing
Adjustable ground level vehicle height
CITYLIFT STACKER™
© CityLift Parking | www.cityliftparking.com | 844.388.0424

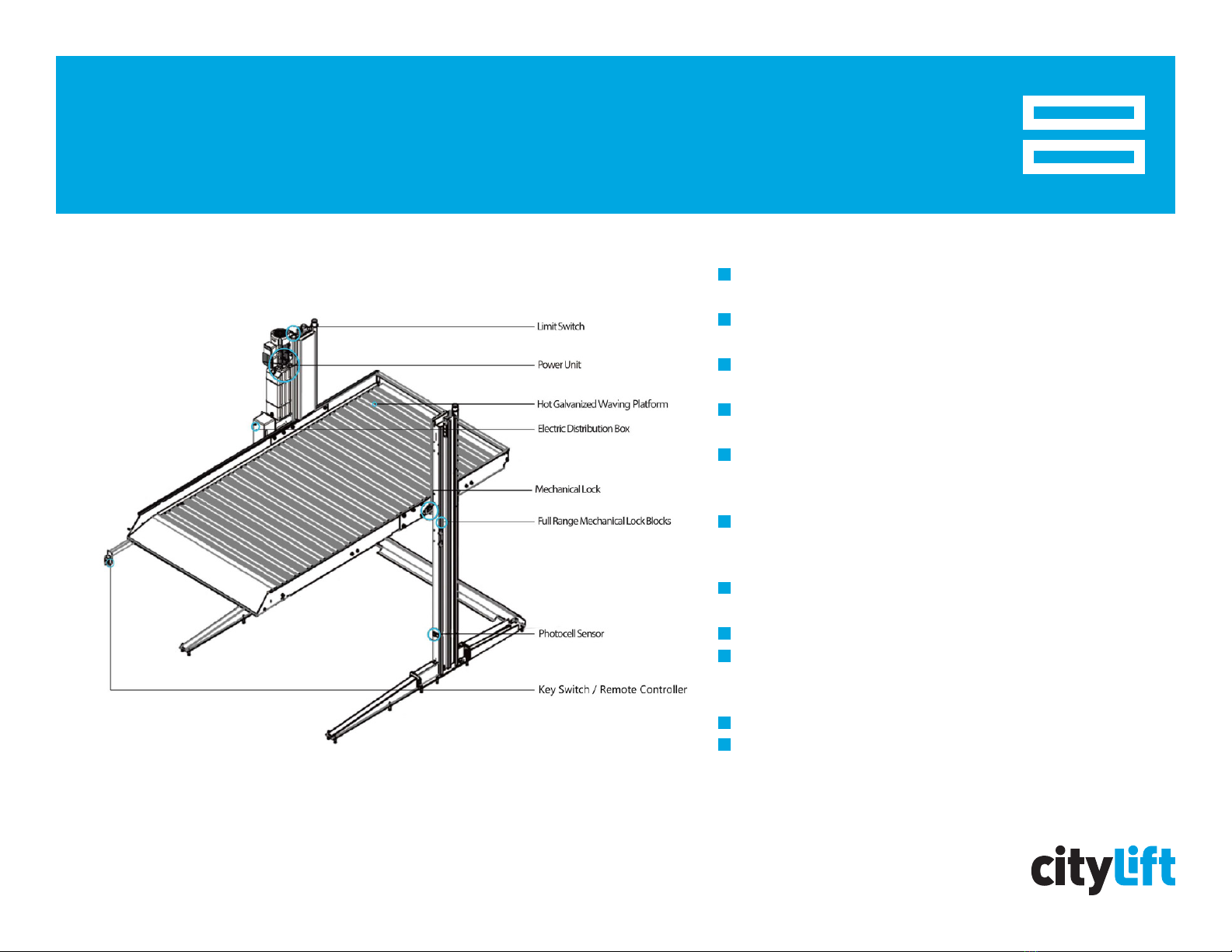

SAFETY FEATURES
© CityLift Parking | www.cityliftparking.com | 844.388.0424
Top limit switch is to restrict the maximum lifting height and
avoid the wrong operation
Power unit comes with pressure relief valve and ow control
valve to tripe ensure safety
Hot galvanized waving platform has the function of anti-slipping
for the vehicle and water proof
Electric distribution box transforms the input voltage into 24v
safety current for the lift user
17 full range anti fall lock blocks are to guarantee safety of the
vehicle during platform moving in any position (other similar
lifts have only 3 - 6 locks)
The photocell sensor will stop the whole system working
immediately when it is triggered by any trespassing object under
the platform during the operation
Both key Switch and remote controller come with emergency
stop button to prevent any accidents
Electric protection for power over load or under voltage
Auto locking system for power cut as safety features
Italian hydraulic seal with double sealing design to ensure the
total quality and longer usage life of Hydraulic cylinders
Overload protection device for hydraulic power pack
The balancing chain and Platform reinforcing rod double ensue
the balance of the platform (The strength is 5 times the weight
capacity)

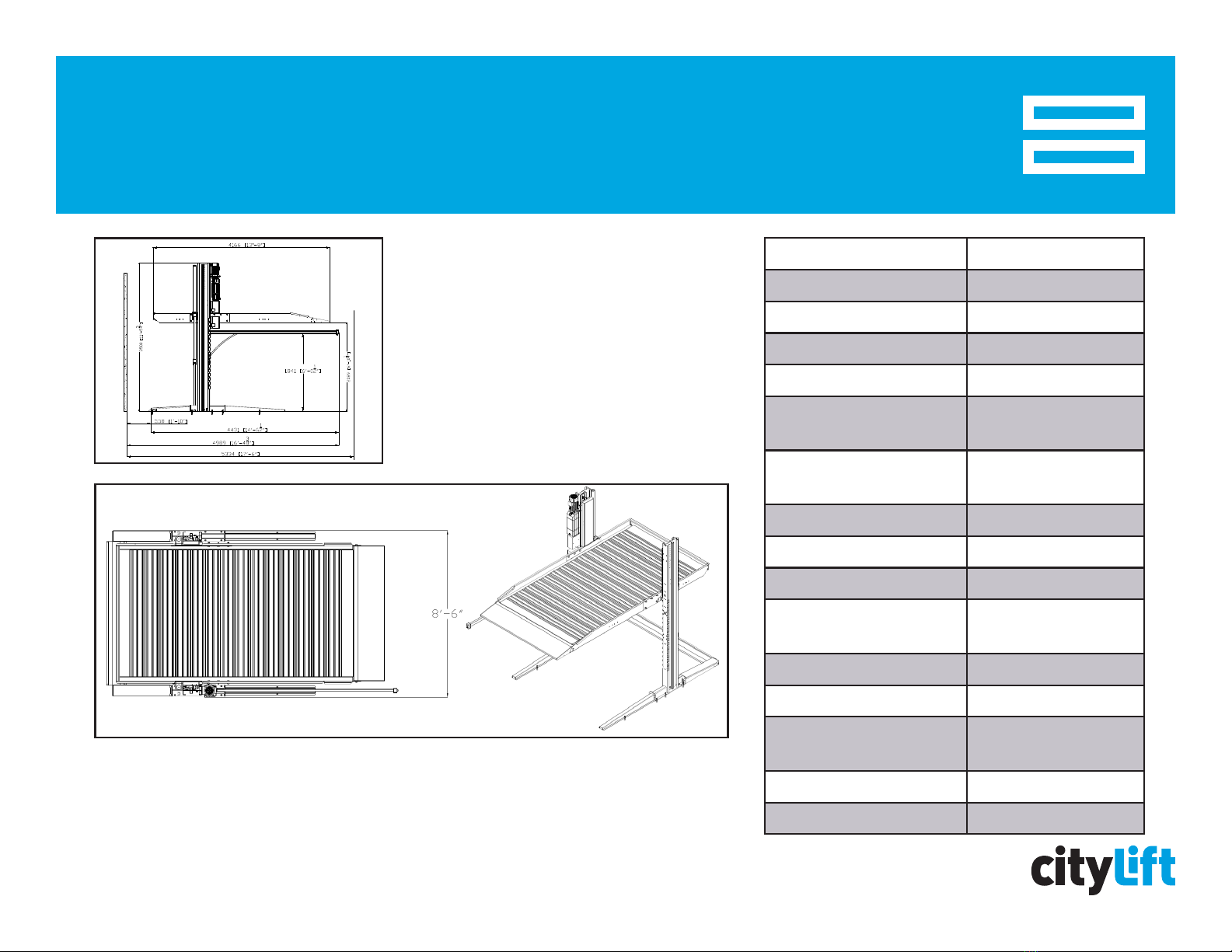

TECHNICAL SPECS
© CityLift Parking | www.cityliftparking.com | 844.388.0424
MODEL 2LHS-6000
EQUIPMENT HEIGHT 11’ - 8”
EQUIPMENT WIDTH 8’ - 6”
EQUIPMENT LENGTH 14’ - 61/2”
EQUIPMENT WEIGHT 2,423 lbs
VEHICLE HEIGHT
(TOP LEVEL)
Dependent on total clear
height
VEHICLE HEIGHT
(GROUND LEVEL)
6’ to 6’ - 8”
(adjustable)
VEHICLE WIDTH (MAX) 6’ - 101/2”
VEHICLE LENGTH (MAX) 17’ - 1”
VEHICLE WEIGHT (MAX) 6,000 lbs
CLEARANCE NEEDED
FROM BACK WALL
1’ - 10”
(if applicable)
CONTROL BOX Integrated Module
POWER PACK 2.2 kw hydraulic power
ELECTRICAL
CONFIGURATION
208-480V, 1 or 3 phase
60 Hz
CONTROL POWER 24V
RETRIEVAL TIME 30 seconds
CITYLIFT STACKER™
© CityLift Parking | www.cityliftparking.com | 844.388.0424
OPERATION INSTRUCTIONS
© CityLift Parking | www.cityliftparking.com | 844.388.0424
Never exceed the rated capacity
Always lift a vehicle according to the manufacturer's recommended lifting points.
In order to avoid death, personal injury and/or property damage, only well trained personnel are permitted to operate lift and accessories. Adult operation is
required.
Observe and heed all CAUTION, SAFETY and WARNING LABELS on the lift. Keep clear of lift while it is being raised or lowered.The platform is designed to rest
on the oor when fully lowered.
Keep feet clear.
After reviewing these instructions, get familiar with lift controls by running the lift through a few cycles before loading.
TO RAISE THE LIFT
1. Lift must be fully lowered and no one in area while the vehicle is brought on lift.
2. Center vehicle tires on platform and carefully back vehicle onto lift until tire contacts rear wheel stop.
Be cautious of low prole vehicles where body may not adequately clear rear wheel stop.
3. Driver and passengers must exit before raising lift!
4. Turn the key switch clockwise. Release switch at desired height, Fig. 1. ONLY OPERATE ONE LIFT AT A TIME
5. Observe lift, vehicle and overhead clearance as it is raising.
PLEASE READ BEFORE OPERATING THE LIFT
DO NOT USE LIFT if any component is found to be defective or worn
OPERATION INSTRUCTIONS
© CityLift Parking | www.cityliftparking.com | 844.388.0424
TO LOWER THE LIFT
1. MAKE SURE NO ONE is in the lift area before operation.
2. Remove all obstacles from under vehicle and lift platform before operation.
3. Turn the key switch counter-clockwise, control system will automatically raise the lift of the locking latch
4. Keep turning the key switch, control system will automatically release locks through solenoid, Fig. 2., and platform will come down
5. The raising time will last for several seconds, please keep turning key switch.
6. Without actuating the lock release lever the lift will only lower onto the locking latch. After you clear the lock bar on the column, you can release the lock
release lever and continue to completely lower the lift to the ground.
7. When platform lower down at the height of 500mm from ground, the buzzer will start to work and
speed will be decreased for safety purpose.
8. Observe lift and vehicle to make sure they are coming down level. If not, stop and raise the lift until it
becomes level again. Check to see if lock lever is releasing all locks. - See trouble shooting.
9. Ensure lift is fully lowered and carefully drive vehicle off the lift.
SAFETY INSTRUCTIONS
© CityLift Parking | www.cityliftparking.com | 844.388.0424

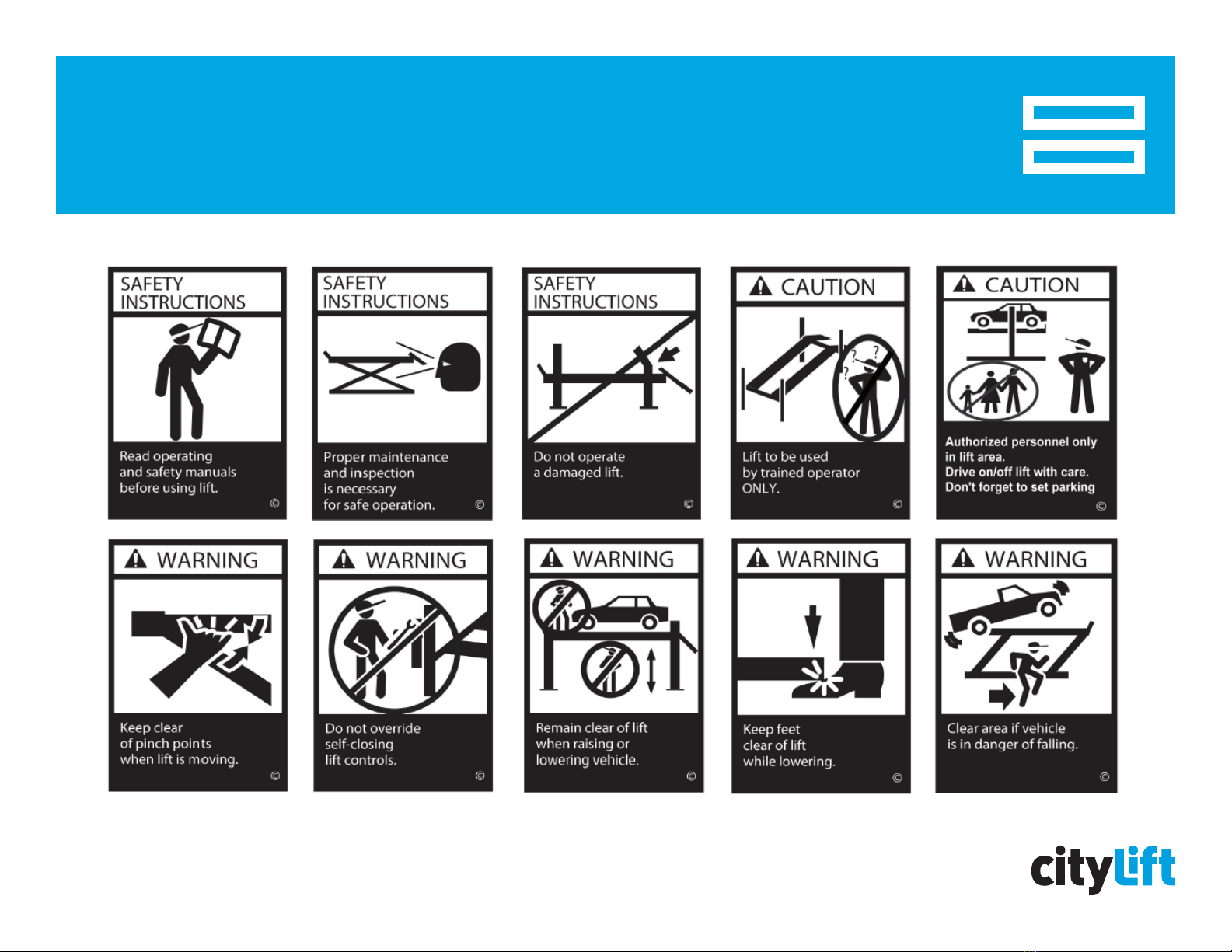

SAFETY INSTRUCTIONS
© CityLift Parking | www.cityliftparking.com | 844.388.0424
PLEASE NOTE: THE CERTIFIED CAPACITY SHOULD NEVER BE EXCEEDED!
SAFE OPERATION OF AUTOMOTIVE LIFTS REQUIRES THAT ONLY TRAINED USERS SHOULD BE ALLOWED TO USE THE LIFT
TRAINING SHOULD INCLUDE, BUT NOT LIMITED TO:
Understanding the lift capacity. Be careful that you do not overload the lift.
Proper positioning of the vehicle on the runway.
Use of the operating controls.
Proper use, understanding and visual identication of safety lock devices and their operation.
Reviewing the safety rules.
Proper housekeeping procedures
A daily inspection of the lift should be completed prior to its use.
All maintenance and repairs of the lift should be completed by the manufacturer’s requirements.
Always make sure you have proper overhead clearance. Additionally, check that attachments, (vehicle signs, campers antennas, etc.) are not in the way.
Be sure that prior to the vehicle being raised, the doors, trunk, and hood are closed securely.
After parking the car on the platform, set the emergency brake, make sure the ignition is off, the doors are closed, overhead obstructions are cleared, and the
transmission is in neutral.
Always consider potential problems that might cause a vehicle to slip, i.e., heavy cargo, undercoating, etc.
Never get into the underneath of the platform after it raised, except parking the car.
Always lower the vehicle down slowly and smoothly.
DO NOT lower the vehicle until people, materials, and tools are clear.
USE LIFT CORRECTLY. Use lift in the proper manner. Never use lifting adapters other than what is approved by the manufacturer.
