Thank you for your purchase of this Citizen watch.
Before using the watch, please read this instruction manual carefully to
ensure correct use.
After reading the manual, store it in a safe place for future reference.
■Before using the watch
This instruction manual explains the usage of calibers 051*, 051C, 0540 and
0560. Confirm your watch’s caliber No. following the instruction below.
To check the movement number
A case number is engraved on the case back.
(Figure on the right)
The first 4 digits of the case number represent
the movement number of the watch.
In the example on the right, “1234” is the
movement number.
Engraving position example
1
2
3
4
-
5
6
7
8
9
0
1234-567890
The engraving position may differ
depending on watch model.
2
CONTENTS
■Before using the watch ..............1
■Main components
Caliber 051* ..................................3
Caliber 051C .................................4
Caliber 0540..................................5
Caliber 0560..................................6
■Setting the watch
Caliber 051*/051C.........................7
Caliber 0540..................................8
Caliber 0560..................................9
■Setting the date
Caliber 051*/051C/0540/0560.....10
■Chronograph operation
Caliber 051* ................................11
Caliber 051C ...............................12
Caliber 0540................................13
Caliber 0560................................14
■Adjusting the chronograph
Caliber 051*/051C/0540..............16
Caliber 0560................................18
■Precautions ...............................20
■Maintenance .............................26
■Battery handling ......................27
■Information ...............................28
■Tachymeter ................................29
■Specifications ...........................30
3

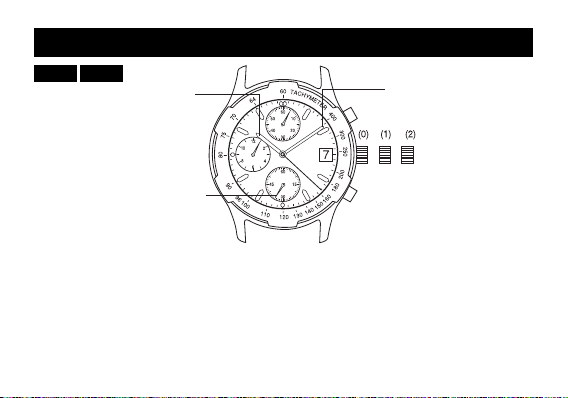

■Main Components
Chronograph
second hand
051*
Chronograph minute
hand
Crown
Hour hand
Chronograph hour
hand
Small second hand
Minute hand
Button B
Button A

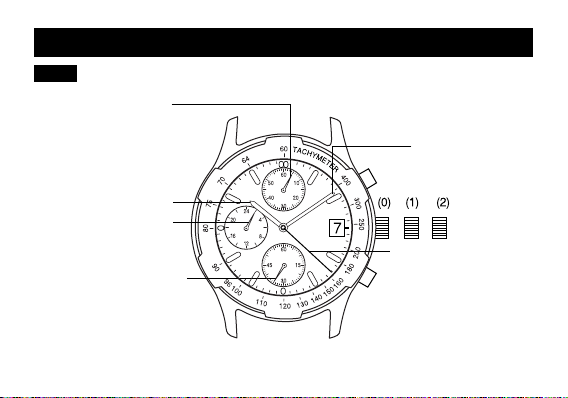

4
Chronograph
second hand
051C
Chronograph minute
hand
Crown
Hour hand
Chronograph hour
hand
Small second hand
Minute hand
Button B
Button A

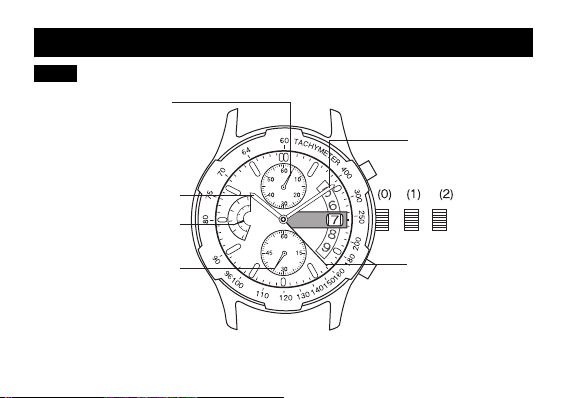

5
Chronograph
second hand
0540
Chronograph minute
hand
Crown
Hour hand
Small second hand
Minute hand
Button B
Button A
24 hour hand

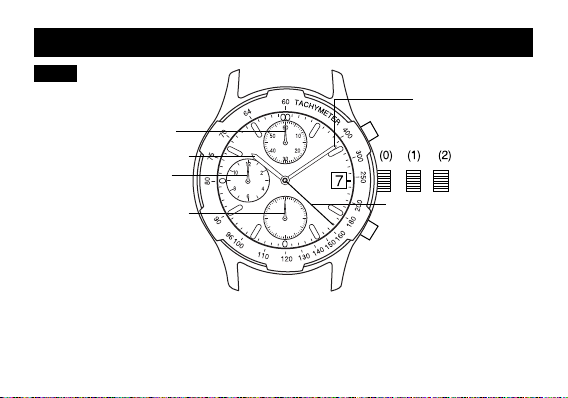

6
The Chronograph 1/20 second hand functions as one step movement to confirm
normal watch operation when the chronograph is not being used.
When stopped, this hand can be re-started by pressing button A.
Chronograph
second hand
0560
Chronograph minute
hand
Crown
Hour hand
Chronograph hour
hand
Chronograph 1/20
second hand
Minute hand
Button B
Button A
7
1. Pull the crown out to position (2) to stop the small second hand at “0” sec.
2. Turn the crown to set the minute/hour hands to the desired time.
* The date changes at 12:00 AM each day. Pay attention to AM and PM when
setting the time.
3. Push the crown in to position (0) to start the hands again.
* To stop the movement and reduce the power consumption, pull the crown
out to position (2).

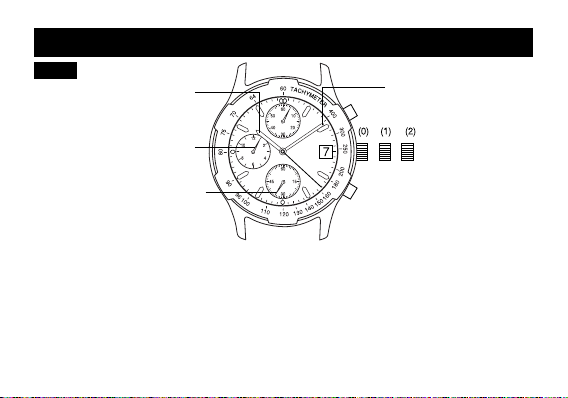

■Setting the watch
051*
Crown
Hour hand
Small second hand
Minute hand
051C
8
1. Pull the crown out to position (2) to stop the small second hand at “0” sec.
2. Turn the crown to set the minute/hour hands to the desired time.
* The 24-hour hand is synchronized with the hour hand.
Use the 24-hour time display as a reference to confirm a.m. and p.m. setting.
3. Push the crown in to position (0) to start the hands again.
* To stop the movement and reduce the power consumption, pull the crown
out to position (2).
0540
Crown
Hour hand
Small second hand
Minute hand
24-hour hand
9
1. Pull the crown out to position (2).
2. Turn the crown to set the minute/hour hands to the desired time.
* The date changes at 12:00 AM each day. Pay attention to AM and PM when
setting the time.
3. Push the crown in to position (0) to start the hands again.
* To stop the movement and reduce the power consumption, pull the crown
out to position (2).
0560
Crown
Hour hand
Minute hand
10
1. Pull out the crown to position (1).
2. Turn the crown until the desired date appears.
* Do not set the date between 9:00PM and 1:00AM. Otherwise, the date may
not change properly.
3. Push the crown back to position (0) after setting the date.

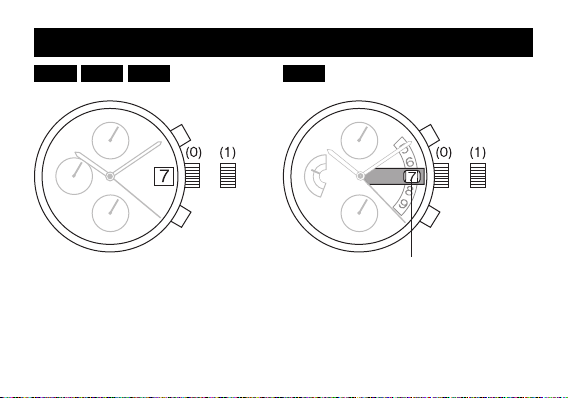

■Setting the date
051*
Crown
0540 0560
Crown
The current date is indicated
here.
051C
