Citizen Cx-77iv Manuel utilisateur

File name: HP5_Cover.doc DATE: 2005/4/1

PRINTING

CALCULATOR

CX-77IV

Instruction Manual

Manual de Instrucciones

Manual de Instrução

Anweisungshandbuch

Mode d'emploi

Instruzioni d'uso

Gebruiksaanwijzing

Manual

Инстpyкция по зксплуатации

Instrnkcja Obsługi

指導說明書

Peraturan pemakaian

تادﺎﺷرﻹا ﻞﻴﻟد

Εγχειρίδιο χρήσης

-E1-

File name: HP5_English.doc DATE: 2005/4/1

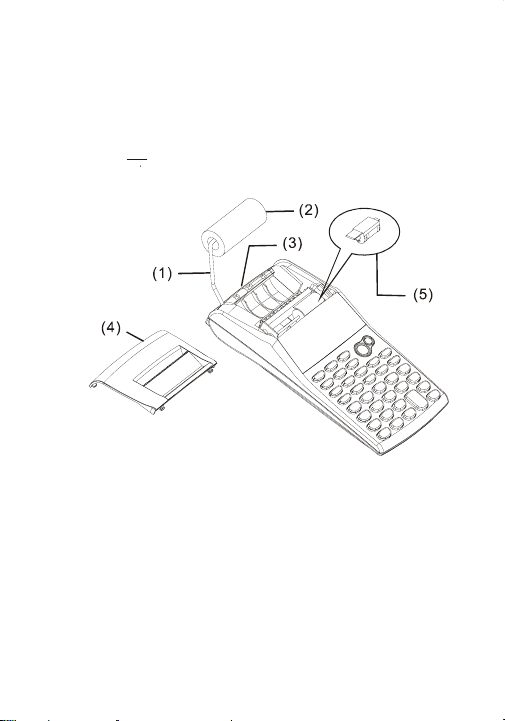

1. HOW TO LOAD THE PAPER-ROLL

1) Push the paper holder (1) backwards.

2) Install the paper roll (2) into to the paper holder (1).

3) Cut the edge of the paper roll (2) straight with scissors and insert the

edge of the paper roll into the paper slot (3).

4) Press [

CE C

] to turn the calculator on. Press the paper feed key [©]

until the paper end comes out from the paper cutter.

2. HOW TO CHANGE THE INK ROLLER

The printer in this model uses a disposable ink roller (IR-30) (cartridge

type). If impressions are too light or illegible, replace the ink roller with a

new one.

1) Press [OFF] to turn the calculator off.

2) Slide the printer cover (4).

3) Remove the ink roller (5) by pulling it up.

4) Install a new ink roller (5) into the holder in the proper position.

5) Replace the printer cover (4) to the original position.

Note:

Never fill the ink roller with fluid ink as it may run or clog the printer. Use

only ink cartridge (IR-30).

-E2-

File name: HP5_English.doc DATE: 2005/4/1

3. TO REPLACE BATTERIES

1) Open the battery compartment cover.

2) Remove the exhausted batteries.

3) Insert new batteries (UM-3 / AA BATTERY x 4) with polarity in correct

directions

4) Replace the cover.

4. TO USE AC ADAPTER

1) Turn the power off.

2) Connect the AC adapter (6V / 300mA , ) to the plug.

5. RESET:

Electromagnetic interference or electrostatic discharge may cause the

display to malfunction or the contents of the memory to be lost or altered.

If it occurs, use the tip of a ball point pen (or similar sharp object) to press

the [RESET

{

] button at the bottom of the battery case..

RESET

-E3-

File name: HP5_English.doc DATE: 2005/4/1

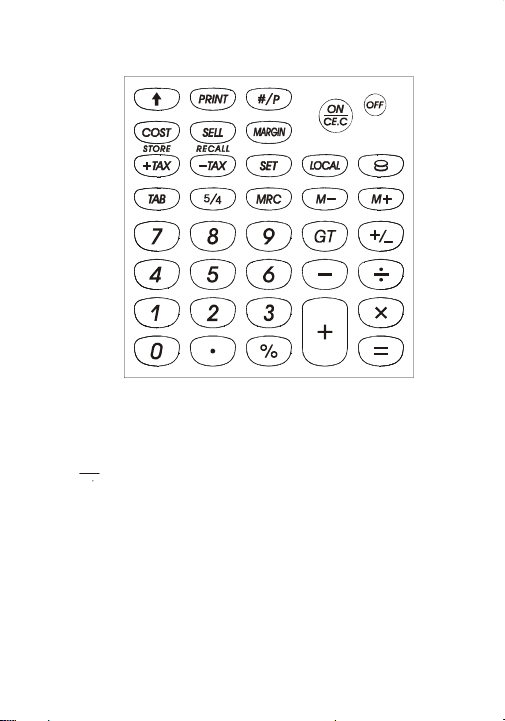

KEYS AND SWITCHES DESCRIPTION

[0]~[9] Number Keys

Set the entered numbers.

[ • ] Decimal Point Key

Set the decimal point.

[

CE C

]Power On / Clear Entry / Clear Key

ON : Turns the calculator on.

CE : Press to clear the last entered number (displayed

number) before any function key is depressed.

C: Press to clear all except memory contents.

[OFF] Power Off

Turns the calculator off.

[+] [–] Arithmetic Keys

[×] [÷] Performs addition, subtraction, multiplication and

division respectively.

-E4-

File name: HP5_English.doc DATE: 2005/4/1

[ = ] Equal Key

Obtains the result.

[%] Percentage Key

Converts percentage to the decimal value. Also, converts

for add-on and discount calculation.

[+/–] Sign Change Key

Uses to change the algebraic sign of a display

number/operand.

[TAB] Decimal Point Selector

F: Floating decimal mode.

0 2 3 : Fixed decimal mode.

A: ADD Mode -- Addition and subtraction calculations

are preformed with an automatic 2-digit decimal so that

decimal point entry is not required.

[5/4] Rounding Selector Key

Used for round-up (S), round-off (5/4), or round-down (T)

to the pre-selected decimal digits in the result.

[GT] Grand Total Key

Obtains grand total value of a series of calculations.

[ ©] Paper Feed Key

Advance the paper roll.

[#/P] Data printout key

Used for printing out displayed content but it does not

affect calculation such as dates and serial numbers.

Figures are printed on the left-hand side of the paper.

[PRINT] Print Mode Selector

Entries and results will appear on the display and will be

printed out.

[M+] Memory Plus Key

Accumulates the displayed number or calculated result

directly into the memory.

[M−] Memory Minus Key

Subtracts the displayed number or calculated result from

the memory storage.

-E5-

File name: HP5_English.doc DATE: 2005/4/1

[MRC] Memory Recall Key / Memory Clear Key

Recalls the content of the memory to the display and/or

the printing paper.

Clears the content of the memory after recalling its

contents to the display and/or to printing paper.

[] [LOCAL] Currency Exchange Key

: Convert Local currency into Universal currency.

LOCAL : Convert Universal currency into Local currency.

[SET] Exchange Rate Setting Key / Tax Rate Setting Key

[

STORE

+TAX

]Add tax key

Used for adding the tax amount to the displayed figure.

[

RECALL

-TAX

] Deduct Tax key

Used for deducting the tax amount from the displayed

figure.

[SELL] Selling Price/ Cost / Margin Key

[COST] Used for calculating the cost, selling price and profit

[MARGIN] margin amount. Enter the value of any 2 items to

obtain the balance item.

-E6-

File name: HP5_English.doc DATE: 2005/4/1

THE SIGNS OF THE DISPLAY MEAN THE FOLLOWING

M : Memory – : Minus ( or negative)

GT : Grand total E : Overflow-error

COST : Cost SELL : Selling price

MARGIN% : Margin percentage

SET : Exchange rate or Tax rate setting

% : Tax rate stored TAX : Amount of tax

+TAX : Price including tax -TAX : Price excluding tax

LOCAL : Local currency : Universal currency

PRINTED SYMBOLS

Various symbols mean the following:

½Total (result) Print ON/Off

Recall Grand Total value M

¨Add to memory

½Clear Grand Total value M

–Subtract from memory

= Equals M

Memory recall

# Non−add or date M

½Memory clear

% Percentage CCost

M Local currency S Sell price

C Universal currency M

%Margin

...... Overflow-error

-S1-

File name: HP5_Spanish.doc DATE: 2005/4/1

1. CÓMO CARGAR EL ROLLO DE PAPEL

1) Empujar hacia atrás el portapapel (1).

2) Instale el rollo de papel (2) al agarradero de papel (1).

3) Corte el filo del rollo de papel con unas tijeras e inserte el filo del rollo

de papel dentro de la ranura

4) Pulse [

CE C

] para encender la calculadora. Pulse la tecla de

alimentación de papel [©] hasta que la punta del papel salga del

cortador de papel.

2. CÓMO CAMBIAR EL RODILLO DE TINTA

La impresora de este modelo utiliza un rodillo de tinta desechable (IR-30)

(tipo cartucho). Si las impresiones son demasiado claras o ilegibles,

reemplace el rodillo de tinta por uno nuevo.

1) Pulse [OFF] para apagar la calculadora.

2) Deslice la tapa de la impresora (4).

3) Remueva el cilindro de tinta tirándolo hacia arriba (5).

4) Instale un nuevo rodillo de tinta (5) en el sostén en la posición apropiada.

5) Coloque nuevamente la tapa de la impresora (4) en su posición

original.

Nota:

No rellene el rodillo de tinta con tinta líquida, ya que esta puede chorrear

o bloquear la impresora. Use sólo un cartucho de tinta (IR-30).

-S2-

File name: HP5_Spanish.doc DATE: 2005/4/1

3. PARA CAMBIAR LAS BATERÍAS

1) Abra la tapa del compartimiento de la batería.

2) Saque las baterías agotadas.

3) Inserte baterías nuevas (4 BATERÍAS UM-3 / AA) con la polaridad en

la dirección correcta

4) Coloque nuevamente la tapa.

4. PARA USAR EL ADAPTADOR DE CORRIENTE ALTERNA

1) Apague la alimentación.

2) Conecte el adaptador de AC (6V / 300mA , ) al enchufe.

5. RESETEO:

La interferencia electromagnética o la descarga electrostática pueden

causar que la pantalla funcione incorrectamente o que los contenidos de

la memoria se pierdan o alteren. Si esto ocurre, use la punta de un

bolígrafo (o de un objeto puntiagudo similar) para pulsar el botón

[RESET

{

] en la parte inferior de la caja de la batería.

RESET

-S3-

File name: HP5_Spanish.doc DATE: 2005/4/1

DESCRIPCIÓN DE LAS TECLAS E INTERRUPTORES

[0]~[9] Teclas de los Números

Determina el número que se introduce.

[ • ] Tecla Coma decimal

Determina la coma decimal.

[

CE C

]Tecla de encendido / Borrar / Tecla de borrar entrada

ON : Enciende la calculadora.

CE : Pulsarla para borrar el último número introducido

(visualizados) antes de volver a pulsar cualquier otra

tecla de función.

C: Borra todos los cálculos excepto los almacenados en

memoria.

[OFF] Apagado

Apaga la calculadora.

[+] [–] [×] [÷] Teclas Operaciones aritméticas

Realizan la suma, resta, multiplicaión y división,

respectivamente.
