Cisco SNS-3400 Series Instructions de montage

Install Cisco ISE Software on Cisco SNS

Appliances

•Cisco SNS 3400 Series Appliance Overview, on page 1

•Cisco SNS 3500 Series Appliance Overview, on page 1

•Before You Begin, on page 9

•Install the Cisco SNS 3515 and Cisco SNS 3595 Hardware Appliances, on page 14

•Install Cisco ISE Software on Cisco SNS Appliances, on page 28

Cisco SNS 3400 Series Appliance Overview

Cisco SNS-3400 series appliance hardware consists of Cisco SNS 3415 and Cisco SNS 3495 appliances.

• For the Cisco SNS 3400 series hardware specifications, see the Cisco Secure Network Server Data Sheet.

• For the LED indicators on the Cisco SNS 3400 series appliances, see the Cisco Identity Services Engine

Hardware Installation Guide, Release 2.0.

Cisco SNS 3500 Series Appliance Overview

Cisco SNS 3500 Series Appliances

The Cisco SNS 3515 or Cisco SNS 3595 appliance is designed for performance and density over a wide range

of business workloads, from web serving to distributed databases.

Cisco ISE, Release 2.0.1 is available on SNS 3515 and SNS 3595 platforms.

The SNS 3515 and SNS 3595 appliances support only Cisco ISE 2.0.1 or later releases. You cannot install a

release earlier than 2.0.1 on the SNS 3515 or SNS 3595 appliance.

Note

Install Cisco ISE Software on Cisco SNS Appliances

Support for UEFI Secure Boot

The SNS 3515 and SNS 3595 appliances support the Unified Extensible Firmware Interface (UEFI) secure

boot feature. This feature ensures that only a Cisco-signed ISE image can be installed on the SNS 3515 and

SNS 3595 appliances, and prevents installation of any unsigned operating system even with physical access

to the device. For example, generic operating systems, such as Red Hat Enterprise Linux or Microsoft Windows

cannot boot on this appliance.

LED Indicators on Cisco SNS 3515 and 3595 Appliances

This section describes the front- and rear-panel controls, ports, and LED indicators on the Cisco SNS 3515

and Cisco SNS 3595 appliances.

Cisco SNS-3515 and SNS-3595 Appliances Hardware Specifications

The following table describes the hardware specifications of Cisco SNS-3515 and Cisco SNS-3595 appliances.

DiagramsHardware SpecificationsCisco Identity Services

Engine Appliance

Cisco SNS-3515 or 3595 Appliance

Front Panel View, on page 3

Cisco SNS 3515 or SNS 3595

Appliance Back Panel View, on

page 5

• Cisco UCS C220 M4

• Single socket Intel Xeon E5-2620

v3 series CPU @ 2.40GHz, 12 total

cores, 6*2 total threads

• 16 GB RAM

• 1 x 600-GB disk

• 6 GbE network interfaces

• For physical, environmental, and

power specifications, see Server

Specifications, on page 12

Cisco SNS-3515-K9

• Cisco UCS C220 M4

• Dual socket Intel Xeon E5-2640 v3

series CPU @ 2.60GHz, 16 total

cores, 8*2 total threads

64 GB RAM

4 x 600-GB disks

RAID 10

6 GbE network interfaces

For physical, environmental, and

power specifications, see Server

Specifications, on page 12.

Cisco SNS-3595-K9

Install Cisco ISE Software on Cisco SNS Appliances

LED Indicators on Cisco SNS 3515 and 3595 Appliances

Cisco SNS-3515 or 3595 Appliance Front Panel View

The following figure shows the components of the Cisco SNS-3515 or Cisco SNS-3595 appliance front panel

view.

Figure 1: Front Panel LEDs

System status LED7Drive bays 1-8 support SAS/SATA drives1

Fan status LED8Drive bays 1 and 2 support SAS/SATA

and NVMe PCIe solid state drives (SSDs)

Temperature status LED9Pull-out asset tag3

Power supply status LED10Operations panel buttons and LEDs4

Network link activity LED11Power button/power status LED5

KVM connector (used with KVM cable that

provides two USB 2.0, one VGA, and one

serial connector)

12Unit identification button/LED6

The following table describes the LEDs located on the front panel of the Cisco SNS-3515 or Cisco SNS-3595

appliance.

Front Panel LEDs

• Off—The hard drive is operating properly.

• Amber—Drive fault detected.

• Amber, blinking—The device is rebuilding.

• Amber, blinking with one-second

interval—Drive locate function activated.

Hard drive fault

Install Cisco ISE Software on Cisco SNS Appliances

Cisco SNS-3515 or 3595 Appliance Front Panel View

Front Panel LEDs

• Off—There is no hard drive in the hard drive

tray (no access, no fault).

• Green—The hard drive is ready.

• Green, blinking—The hard drive is reading or

writing data.

Hard drive activity

• Off—There is no AC power to the server.

• Amber—The server is in standby power mode.

Power is supplied only to the Cisco IMC and

some motherboard functions.

• Green—The server is in main power mode.

Power is supplied to all server components.

Power button/LED

• Off—The unit identification function is not in

use.

• Blue—The unit identification function is

activated.

Unit identification

• Green—The server is running in normal

operating condition.

• Green, blinking—The server is performing

system initialization and memory check.

• Amber, steady—The server is in a degraded

operational state. For example:

• Power supply redundancy is lost.

• CPUs are mismatched.

• At least one CPU is faulty.

• At least one DIMM is faulty.

• At least one drive in a RAID configuration

failed.

•Amber, blinking—The server is in a critical fault

state. For example:

• Boot failed.

• Fatal CPU and/or bus error is detected.

• Server is in an over-temperature condition.

System status

• Green—All fan modules are operating properly.

• Amber, steady—One or more fan modules

breached the critical threshold.

• Amber, blinking—One or more fan modules

breached the non-recoverable threshold.

Fan status

Install Cisco ISE Software on Cisco SNS Appliances

Cisco SNS-3515 or 3595 Appliance Front Panel View

Front Panel LEDs

• Green—The server is operating at normal

temperature.

• Amber, steady—One or more temperature

sensors breached the critical threshold.

• Amber, blinking—One or more temperature

sensors breached the non-recoverable threshold.

Temperature status

• Green—All power supplies are operating

normally.

•Amber, steady—One or more power supplies are

in a degraded operational state.

• Amber, blinking—One or more power supplies

are in a critical fault state.

Power supply status

• Off—The Ethernet link is idle.

• Green—One or more Ethernet LOM ports are

link-active, but there is no activity.

• Green, blinking—One or more Ethernet LOM

ports are link-active, with activity.

Network link activity

Cisco SNS 3515 or SNS 3595 Appliance Back Panel View

The following figure shows the components of the Cisco SNS-3515 and Cisco 3595 appliance back panel

view.

Figure 2: Back Panel LEDs

1-GbE Ethernet dedicated management port;

used to access CIMC

9Grounding-lug hole (for DC power

supplies)

Serial port (RJ-45 connector)10PCIe riser 1/slot 12

1-GbE Ethernet port (Eth 0)11PCIe riser 2/slot 23

1-GbE Ethernet port (Eth 1)121-GbE Ethernet port (Eth 2)4

VGA video port (DB-15)131-GbE Ethernet port (Eth 3)5

Rear unit identification button/LED141-GbE Ethernet port (Eth 4)6

Power supplies (up to two, redundant as

1+1)

151-GbE Ethernet port (Eth 5)7

Install Cisco ISE Software on Cisco SNS Appliances

Cisco SNS 3515 or SNS 3595 Appliance Back Panel View

USB 3.0 ports (two)8

The following table describes the LEDs located on the back panel of the Cisco SNS 3515 or Cisco SNS 3595

appliance.

StateLED Name

• Off—No link is present.

• Green, steady—Link is active.

• Green, blinking—Traffic is present on the active

link.

Optional mLOM 1-GbE SFP+ (there is a single status

LED)

• Off—Link speed is 10 Mbps.

• Amber—Link speed is 100 Mbps/1 Gbps.

• Green—Link speed is 10 Gbps.

Optional mLOM 1-GbE BASE-T link speed

• Off—No link is present.

• Green—Link is active.

• Green, blinking—Traffic is present on the active

link.

Optional mLOM 1-GbE BASE-T link status

• Off—Link speed is 10 Mbps.

• Amber—Link speed is 100 Mbps.

• Green—Link speed is 1 Gbps.

1-GbE Ethernet dedicated management link speed

• Off—No link is present.

• Green—Link is active.

• Green, blinking—Traffic is present on the active

link.

1-GbE Ethernet dedicated management link status

• Off—Link speed is 10 Mbps.

• Amber—Link speed is 100 Mbps.

• Green—Link speed is 1 Gbps.

1-GbE Ethernet link speed

• Off—No link is present.

• Green—Link is active.

• Green, blinking—Traffic is present on the active

link.

1-GbE Ethernet link status

• Off—The unit identification LED is not in use.

• Blue—The unit identification LED is activated.

Rear unit identification

Install Cisco ISE Software on Cisco SNS Appliances

Cisco SNS 3515 or SNS 3595 Appliance Back Panel View

StateLED Name

AC power supplies:

• Off—No AC input (12 V main power off, 12 V

standby power off).

• Green, blinking—12 V main power off; 12 V

standby power on.

•Green, solid—12 V main power on; 12 V standby

power on.

• Amber, blinking—Warning detected but 12 V

main power on.

•Amber, solid—Critical error detected; 12 V main

power off.

Power supply status

Internal Diagnostic LEDs

The server has internal fault LEDs for CPUs, DIMMs, fan modules, SD cards, the RTC battery, and the mLOM

card. These LEDs are available only when the server is in standby power mode. An LED lights amber to

indicate a faulty component.

Power must be connected to the server for these LEDs to be operate.

Note

The following figure shows the locations of these internal LEDs in Cisco SNS-3515 or Cisco SNS-3595

appliance.

Install Cisco ISE Software on Cisco SNS Appliances

Internal Diagnostic LEDs

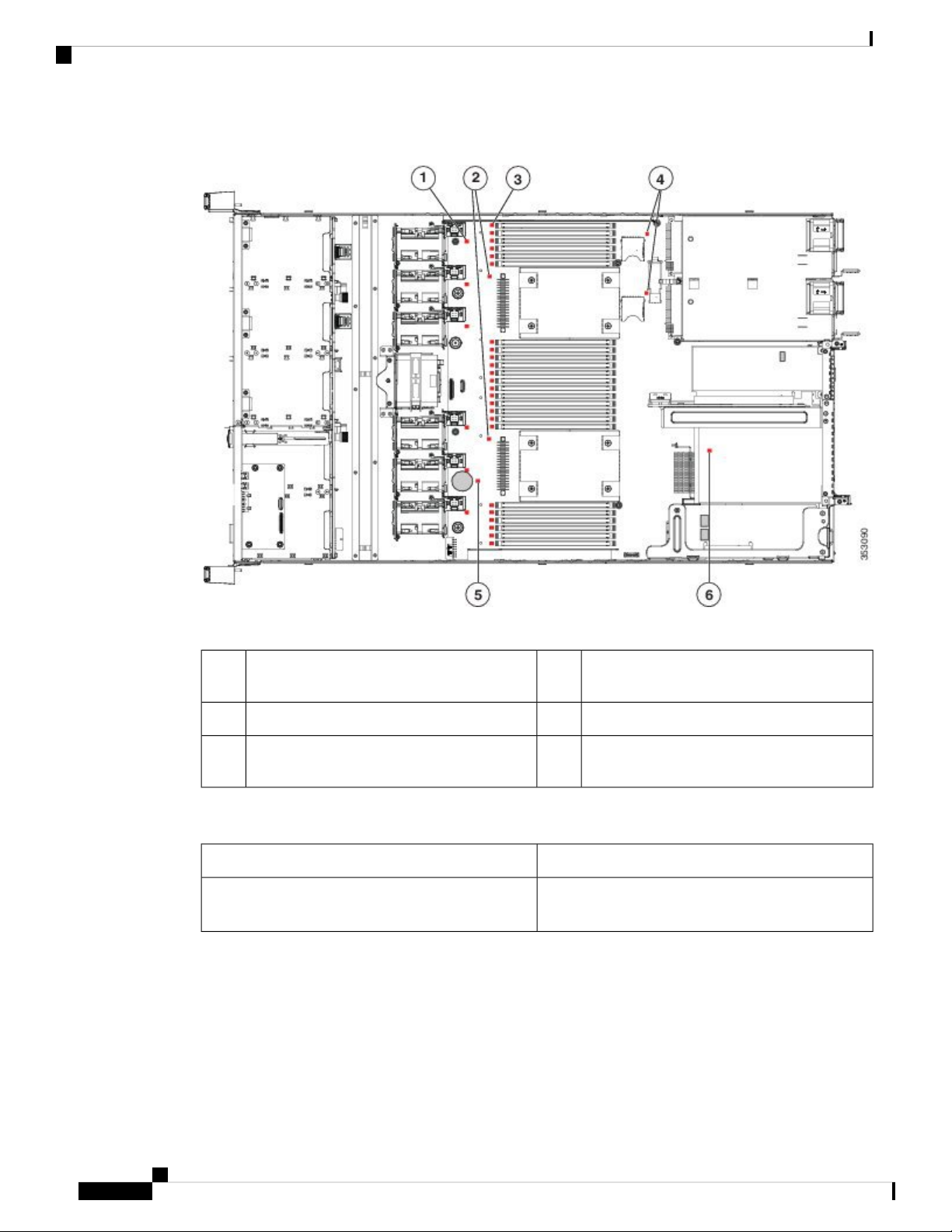

Figure 3: Cisco SNS-3515 or 3595 Internal Diagnostic LED Locations

The following table describes the callouts in the above figure.

SD card fault LEDs (one next to each bay)4Fan module fault LEDs (one next to each fan

connector on the motherboard)

RTC battery fault LED5CPU fault LEDs (one in front of each CPU)2

mLOM card fault LED (on motherboard next

to mLOM socket)

6DIMM fault LEDs (one in front of each DIMM

socket on the motherboard)

The following table describes the internal diagnostic LEDs located inside the Cisco SNS-3515 or Cisco

SNS-3595 appliance.

StateLED Name

• Off—Component is functioning normally.

• Amber—Component has failed.

Internal diagnostic LEDs (all)

Regulatory Compliance

For regulatory compliance and safety information, see Regulatory Compliance and Safety Information for

Cisco SNS-3415, Cisco SNS-3495, Cisco SNS-3515, and Cisco SNS-3595 Appliances.

Install Cisco ISE Software on Cisco SNS Appliances

Regulatory Compliance

Before You Begin

This section provides information on how you can prepare your site for safely installing the Cisco SNS-3515

or Cisco SNS-3595 appliance.

Safety Guidelines

Before you install, operate, or service a Cisco SNS-3515 or Cisco SNS-3595 appliance, review the Regulatory

Compliance and Safety Information for Cisco SNS-3415, Cisco SNS-3495, Cisco SNS-3515, and Cisco

SNS-3595 Appliances for important safety information.

Note

Warning: IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work

on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard

practices for preventing accidents. Use the statement number provided at the end of each warning to locate

its translation in the translated safety warnings that accompanied this device.

Statement 1071

Warning

Warning: To prevent the system from overheating, do not operate it in an area that exceeds the maximum

recommended ambient temperature of: 40° C (104° F).

Statement 1047

Warning

Warning: The plug-socket combination must be accessible at all times, because it serves as the main

disconnecting device.

Statement 1019

Warning

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the

protective device is rated not greater than: 250 V, 15 A.

Statement 1005

Warning

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

Warning

Install Cisco ISE Software on Cisco SNS Appliances

Before You Begin

When you are installing a server, use the following guidelines:

• Plan your site configuration and prepare the site before installing the server. See the Cisco UCS Site

Preparation Guide for the recommended site planning tasks.

• Ensure that there is adequate space around the server to allow for servicing the server and for adequate

airflow. The airflow in this server is from front to back.

• Ensure that the air-conditioning meets the thermal requirements listed in the Server Specifications, on

page 12.

• Ensure that the cabinet or rack meets the requirements listed in the Rack Requirements, on page 12.

• Ensure that the site power meets the power requirements listed in the Power Specifications, on page 13.

If available, you can use an uninterruptible power supply (UPS) to protect against power failures.

Avoid UPS types that use ferroresonant technology. These UPS types can become unstable with systems such

as the Cisco UCS, which can have substantial current draw fluctuations from fluctuating data traffic patterns.

Caution

Unpack and Inspect the Server

When handling internal server components, wear an ESD strap and handle modules by the carrier edges only.

Caution

Keep the shipping container in case the server requires shipping in the future.

Note

The chassis is thoroughly inspected before shipment. If any damage occurred during transportation or any

items are missing, contact your customer service representative immediately.

Note

To inspect the shipment:

Step 1 Remove the server from its cardboard container and save all packaging material.

Step 2 Compare the shipment to the equipment list provided by your customer service representative and the list given below.

Verify that you have all items.

Step 3 Check for damage and report any discrepancies or damage to your customer service representative. Have the following

information ready:

• Invoice number of shipper (see the packing slip)

• Model and serial number of the damaged unit

• Description of damage

• Effect of damage on the installation

Install Cisco ISE Software on Cisco SNS Appliances

Unpack and Inspect the Server

Autres manuels pour SNS-3400 Series

Ce manuel convient aux modèles suivants

Autres manuels Cisco Serveur

Cisco

Cisco CPS-UCS-2RU-K9 Manuel utilisateur

Cisco

Cisco TelePresence Server 7010 Manuel utilisateur

Cisco

Cisco UCS C460 Manuel utilisateur

Cisco

Cisco CSACS-1121-K9 Manuel utilisateur

Cisco

Cisco UCS B440 M2 Manuel du système

Cisco

Cisco UCS E Series Instructions d'utilisation et de sécurité

Cisco

Cisco UCS C Series Mode d’emploi

Cisco

Cisco Profile Series Manuel utilisateur

Cisco

Cisco UCS C Series Manuel utilisateur

Cisco

Cisco UCS B460 M4 Manuel utilisateur

Cisco

Cisco UCS X9508 Guide de démarrage rapide

Cisco

Cisco UCS Invicta C3124SA Manuel

Cisco

Cisco TelePresence Video Communication Server Manuel de service

Cisco

Cisco AS5300 - Universal Access Server Manuel utilisateur

Cisco

Cisco ONS 15454 SDH Manuel utilisateur

Cisco

Cisco UCS C22 M3 Manuel utilisateur

Cisco

Cisco UCS C220 M4 Instructions d'installation et d'entretien

Cisco

Cisco UCS C22 Instructions d'installation et d'entretien

Cisco

Cisco 5100 Manuel utilisateur

Cisco

Cisco UCS B460 M4 Manuel

Cisco

Cisco UCS C240 M4 Instructions d'installation et d'entretien

Cisco

Cisco UCS 5100 Guide rapide

Cisco

Cisco UCS Series Manuel utilisateur

Cisco

Cisco UCS C240 M5 Instructions d'installation et d'entretien

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
