CHAPTER

5-1

Cisco 6400 Hardware Installation and Maintenance Guide

OL-2133-02

Maintaining the Cisco 6400

This chapter provides maintenance information for the Cisco 6400 carrier-class broadband aggregator.

All cards, modules, and components support online insertion and removal (often referred to as

hot-swapping). Hot-swapping allows you to remove, replace, and rearrange cards without turning off the

system power. When the system detects that a card or module is added or removed, it automatically runs

diagnostic and discovery routines, acknowledges the presence or absence of the card or module, and

resumes system operation without any operator intervention.

Note If you are a network administrator and need personal technical assistance with a Cisco product that

is under warranty or covered by a maintenance contract, refer to the “Obtaining Technical

Assistance” section on page xiv.

Note The illustrations in this guide depict the original Cisco 6400 chassis. Your chassis may appear or look

slightly different.

Contents

This document includes the following sections:

•Tools and Equipment Required, page 5-2

•General Safety Precautions and Maintenance Guidelines, page 5-2

•Cisco 6400 System Components—Front View, page 5-5

•Replacing the Front Cover, page 5-5

•Powering Down the System, page 5-8

•Backing Up the PCMCIA Card, page 5-9

•Maintaining the Air Filter, page 5-9

•Replacing an NSP Module, page 5-11

•Replacing an NRP Module, page 5-18

•Installing or Replacing a Half-Height Node Line Card, page 5-28

•Installing or Replacing a Full-Height Node Line Card, page 5-36

•Replacing a DC Power Entry Module, page 5-41

5-2

Cisco 6400 Hardware Installation and Maintenance Guide OL-2133-02

Chapter 5 Maintaining the Cisco 6400

Tools and Equipment Required

•Replacing an AC Power Entry Module, page 5-44

•Replacing the Blower Module, page 5-47

•Verifying Plug-In Module and Component Installation, page 5-51

Tools and Equipment Required

You need the following tools and equipment to remove and replace modules. If you need additional

equipment, see the “Obtaining Technical Assistance” section on page xiv.

•One number 2 Phillips screwdriver and one flat-blade screwdriver

•Electrostatic discharge (ESD) grounding strap (disposable ESD strap provided with system)

General Safety Precautions and Maintenance Guidelines

General Safety Precautions

ESD, EMI, and Safety Precautions

Caution Static voltages as low as 30 volts can cause latent damage to circuitry. Be sure to observe all standard

anti-static procedures (for example, wear a grounding strap) when handling electronic equipment and

components.

Warning

Blank faceplates (filler panels) serve three important functions: they prevent exposure to

hazardous voltages and currents inside the chassis; they contain electromagnetic interference

(EMI) that might disrupt other equipment; and they direct the flow of cooling air through the

chassis. Do not operate the system unless all cards and faceplates are in place. Translations of

this warning can be found in the

Regulatory Compliance and Safety Information

document that

accompanied this device.

Laser Safety Precautions

Warning

Class 1 laser product. Translations of this warning can be found in the

Regulatory Compliance and

Safety Information

document that accompanied this device.

Warning

Because invisible radiation may be emitted from the aperture of the port when no fiber cable is

connected, avoid exposure to radiation and do not stare into open apertures. Translations of this

warning can be found in the

Regulatory Compliance and Safety Information

document that

accompanied this device.

5-3

Cisco 6400 Hardware Installation and Maintenance Guide

OL-2133-02

Chapter 5 Maintaining the Cisco 6400 General Safety Precautions and Maintenance Guidelines

Warning

Invisible laser radiation present. Translations of this warning can be found in the

Regulatory

Compliance and Safety Information

document that accompanied this device.

Warning Statement for Sweden

Warning Statement for Finland

Lifting and Reaching Safety Precautions

Warning

To prevent personal injury or damage to the chassis, never attempt to lift or tilt the chassis using

the handles on modules (such as power supplies, fans, or cards); these types of handles are not

designed to support the weight of the unit. Lift the unit only by using handles that are an integral

part of the chassis, or by grasping the chassis underneath its lower edge. Translations of this

warning can be found in the

Regulatory Compliance and Safety Information

document that

accompanied this device.

Warning

Two people are required to lift the chassis. To prevent injury, keep your back straight and lift with

your legs, not your back. Translations of this warning can be found in the

Regulatory Compliance

and Safety Information

document that accompanied this device.

Figure 5-1 shows the proper way to lift the Cisco 6400 chassis.

Varning!

Osynlig laserstrålning när denna del är öppen och förregleringen är urkopplad. Rikta inte blicken

in mot strålen.

Varoitus

Alleviates ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Äjä katso

säteeseen.

5-4

Cisco 6400 Hardware Installation and Maintenance Guide OL-2133-02

Chapter 5 Maintaining the Cisco 6400

General Safety Precautions and Maintenance Guidelines

Figure 5-1 Lifting the Cisco 6400 Chassis

Hot-Swapping Modules and Line Cards

The Cisco 6400 system has a hot-swap feature that allows you to install and remove modules andline

cards while the system is operating. With hot swapping, you do not need to power down the system.

When unconfigured node line cards (NLCs) are installed for the first time, the system identifies them as

present but unconfigured. Read the instructions for initial interface configurations in the Cisco 6400

Software Setup Guide.

If a card or module similar to the one that was removed is reinserted into a slot, the Cisco 6400

automatically configures its ports and brings it online up to the port count of the original card.

Note You must administratively shut down the card or module; otherwise alarms are activated.

Caution To avoid erroneous failure messages, allow at least 15 seconds for the system to reinitialize. Note the

current configuration of all interfaces before you remove or insert another card.

Plug-In Module or Card Replacement Suggestions

The following are examples of recommended module and card insertion practices:

•Do not force the faceplate into its slot. This action can damage the pins on the backplane if they are

not aligned properly with the module or card.

•Fully depress the ejector levers to ensure that the card connector mates with the backplane correctly.

Ensure that the card or module is firmly seated in the slot.

•Use the installation screws (top and bottom of carrier) to secure the module or card firmly in place

in the chassis.

NRP

STATUS

FAIL

NSP

CON

AUX

ETH

ACT

LNK

POWER

FAULT

MISWIRE

FANS

OK FAN

FAILURE MULTI-

FAN

FAILURE

12340A

PROCESSOR ONLY

0B 5678

SUB

SLOT

PCMCIA

NSP

CON

AUX

ETH

ACT

LNK

Slot 1

Slot 0

ACO

CRITICAL

MAJOR

MINOR

ALARMS

STATUS

FAIL

SUB

SLOT

CON

AUX

NRP

FAIL

STATUS

LNK

ACT

LNK

ACT

CON

AUX

LNK

ACT

LNK

ACT

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

PROCESSOR ONLY

POWER

FAULT

MISWIRE

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT0

PORT1

STATUS

FAIL

STATUS

TX RX

CON

AUX

NRP

FAIL

STATUS

LNK

ACT

LNK

ACT

Whenhot swapping this fan tray,

removaland replacement must

bedone in under two minutes or

systemshutdown will occur.

CAUTION

PCMCIA

Slot 1

Slot 0

ACO

CRITICAL

MAJOR

MINOR

ALARMS

STATUS

FAIL

14487

5-5

Cisco 6400 Hardware Installation and Maintenance Guide

OL-2133-02

Chapter 5 Maintaining the Cisco 6400 Cisco 6400 System Component Identification

Note Any module that is only partially connected to the backplane can disrupt system operation.

Cisco 6400 System Component Identification

Figure 5-2 identifies the major components of the Cisco 6400 system. Card slots 1 through 8 can contain

a combination of node route processor (NRP) and node line card (NLC) modules; only node switch

processor (NSP) modules can be inserted into card slots 0A and 0B.

Figure 5-2 Cisco 6400 System Components—Front View

Replacing the Front Cover

Note The Cisco 6400 no longer ships with the plastic front cover that was included in shipments made

before June 2002. This section covering removal and replacement procedures is included only for

reference purposes.

NRP

STATUS

FAIL

NSP

CON

AUX

ETH

ACT

LNK

POWER

FAULT

MISWIRE

FANS

OK FAN

FAILURE MULTI-

FAN

FAILURE

12340A

PROCESSOR ONLY

0B 5678

SUB

SLOT

PCMCIA

NSP

CON

AUX

ETH

ACT

LNK

Slot 1

Slot 0

ACO

CRITICAL

MAJOR

MINOR

ALARMS

STATUS

FAIL

SUB

SLOT

CON

AUX

NRP

FAIL

STATUS

LNK

ACT

LNK

ACT

CON

AUX

LNK

ACT

LNK

ACT

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

PROCESSOR ONLY

POWER

FAULT

MISWIRE

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

CON

AUX

NRP

FAIL

STATUS

LNK

ACT

LNK

ACT

When hot swapping this fan tray,

removal and replacement must

be done in under two minutes or

system shutdown will occur.

CAUTION

PCMCIA

Slot 1

Slot 0

ACO

CRITICAL

MAJOR

MINOR

ALARMS

STATUS

FAIL

Blower

module

PEM

Cable

management

bracket

PEM

Air filter

13070

Slot 1 Slot 8

Slot 2 Slot 0A Slot 0B

Slot 3 Slot 5

Slot 6

Slot 7

Slot 4

5-6

Cisco 6400 Hardware Installation and Maintenance Guide OL-2133-02

Chapter 5 Maintaining the Cisco 6400

Replacing the Front Cover

Removing the Front Cover

To remove the front cover, first remove the bezel plugs:

Step 1 Insert the tip of a flat-blade screwdriver into the indentation between the top and bottom of the plug.

Step 2 Rotate the screwdriver blade 90 degrees, pushing out the top of the plug (Figure 5-3).

Step 3 Remove the plug with your fingers.

Step 4 Then firmly grasp the cover with both hands, lift upward as far as possible (about one inch), and pull

forward.

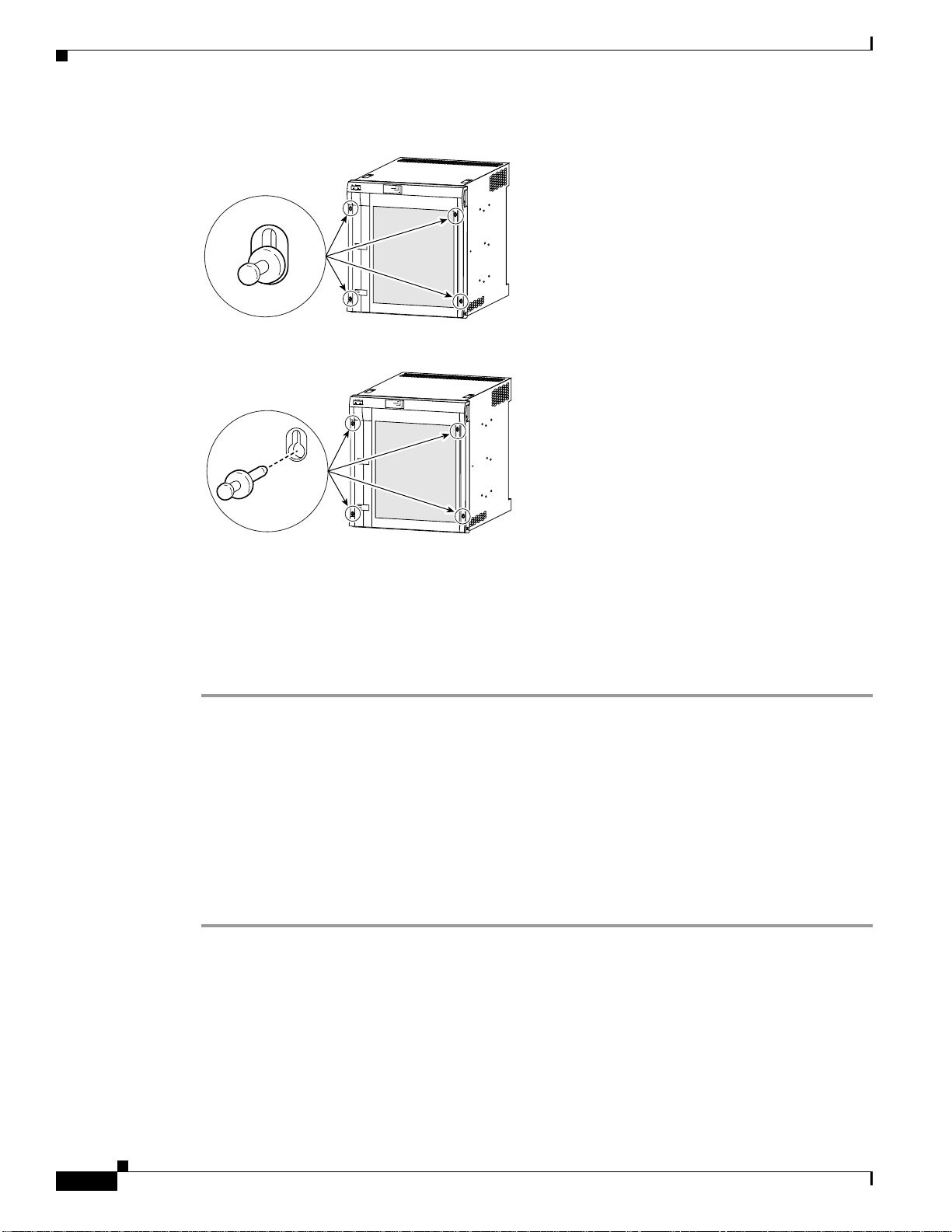

Figure 5-3 Removing Bezel Plugs

Note The cover is secured by four posts. Avoid bending or twisting cables and connectors.

Installing the Front Cover

To install the front cover:

Step 1 Line up the hole in each corner of the cover with the four posts on the chassis (Figure 5-4).

Step 2 Gently but firmly push the cover onto the posts and slide downward to secure.

Step 3 Insert one of the bezel plugs into a corner hole, below the post.

22959

POWER

FAULT

MISWIRE

POWER

FAULT

MISWIRE

FANSOK

FANFAILURE

MULTI-FANFAILURE

POWER

FAULT

MISWIRE

Cisco 6400

22960

POWER

FAULT

MISWIRE

POWER

FAULT

MISWIRE

FANSOK

FANFAILURE

MULTI-FANFAILURE

POWER

FAULT

MISWIRE

Cisco 6400

5-7

Cisco 6400 Hardware Installation and Maintenance Guide

OL-2133-02

Chapter 5 Maintaining the Cisco 6400 Replacing the Front Cover

Step 4 When the plug is lined up in the hole (Figure 5-5), use your thumb to gently but firmly press on the top

of the plug until the top collapses against the bottom.

Step 5 Repeat Steps 3 and 4 for the remaining three corners. Avoid bending or twisting cables and connectors.

Figure 5-4 Installing the Front Cover

14477

NRP

STATUS

FAIL

NSP

CON

AUX

ETH

ACT

LNK

POWER

FAULT

MISWIRE

FANS

OK FAN

FAILURE MULTI-

FAN

FAILURE

12340A

PROCESSOR ONLY

0B 5678

SUB

SLOT

PCMCIA

NSP

CON

AUX

ETH

ACT

LNK

Slot 1

Slot 0

ACO

CRITICAL

MAJOR

MINOR

ALARMS

STATUS

FAIL

SUB

SLOT

CON

AUX

NRP

FAIL

STATUS

LNK

ACT

LNK

ACT

CON

AUX

LNK

ACT

LNK

ACT

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

PROCESSOR ONLY

POWER

FAULT

MISWIRE

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

CON

AUX

NRP

FAIL

STATUS

LNK

ACT

LNK

ACT

When hot swapping this fan tray,

removal and replacement must

be done in under two minutes or

system shutdown will occur.

CAUTION

PCMCIA

Slot 1

Slot 0

ACO

CRITICAL

MAJOR

MINOR

ALARMS

STATUS

FAIL

FANS OK

FAN FAILURE

MULTI-FAN FAILURE

POWER

FAULT

MISWIRE

POWER

FAULT

MISWIRE

5-8

Cisco 6400 Hardware Installation and Maintenance Guide OL-2133-02

Chapter 5 Maintaining the Cisco 6400

Powering Down the System

Figure 5-5 Installing Bezel Plugs

Powering Down the System

To power down the Cisco 6400 system:

Step 1 Notify appropriate personnel that you plan to shut down the Cisco 6400 system and that this will result

in total loss of service. Appropriate personnel includes the regional alarm or network monitoring

center, central office personnel, and key customers.

Step 2 Before shutting down the Cisco 6400, use the copy command to save any configuration changes to

NVRAM and also to a PCMCIA card. (Refer to the Cisco 6400 Command Reference for instructions on

using the copy command.)

Step 3 Complete all copy or write operations involving Flash media (PCMCIA slots or boot Flash) before you

power down the Cisco 6400.

Step 4 To power down the Cisco 6400, turn off the switch on all PEMs (your system can be configured with

one or two PEMs).

22958

POWER

FAULT

MISWIRE

POWER

FAULT

MISWIRE

FANSOK

FANFAILURE

MULTI-FANFAILURE

POWER

FAULT

MISWIRE

Cisco 6400

22957

POWER

FAULT

MISWIRE

POWER

FAULT

MISWIRE

FANSOK

FANFAILURE

MULTI-FANFAILURE

POWER

FAULT

MISWIRE

Cisco 6400

5-9

Cisco 6400 Hardware Installation and Maintenance Guide

OL-2133-02

Chapter 5 Maintaining the Cisco 6400 Backing Up the PCMCIA Card

Backing Up the PCMCIA Card

We recommend that you create a duplicate PCMCIA card that contains the current boot software image

and the current software configuration. You can use the duplicate to recover from a major system failure

with less disruption. If you have a backup PCMCIA card, you can use that card to load a new node switch

processor (NSP) module and avoid a time-consuming reconfiguration process. For instructions on

creating a backup PCMCIA card, refer to Cisco 6400 Software Setup Guide.

Maintaining the Air Filter

The Cisco 6400 automatically powers down if the system overheats. If the blower module’s air filters are

too dirty or clogged, the system might have insufficient air flow and might overheat.

You should replace the Cisco 6400 air filters every six months. In certain environments, you might have

to replace the air filter more frequently.

Removing the Air Filter

The Cisco 6400 ships with either a screw-type or tab-type air filter.

To remove a tab-type air filter, press the release tabs on each side of the chassis to release the air filter

and slide it out of the chassis. (See Figure 5-6.)

Figure 5-6 Tab-type Air Filter Release Tabs

To remove a screw-type air filter, refer to Figure 5-7 and perform the following steps.

Step 1 Locate the filter tray at the bottom front of the chassis, below the plug-in modules. Use a number 2

Phillips screwdriver to unlock the filter tray.

Step 2 Gently pull the filter toward you to remove it from the chassis.

Step 3 If you are replacing the filter, discard the old filter and go to the section "Replacing the Air Filter."

PROCESSOR ONLY

POWER

FAULT

MISWIRE

GIGABIT ETHERNET

CH OC-12-DSO SM-IR

6XCT3–DS0

FAIL

PERFORMANCE ROUTING ENGINE

STATUS

ACO

CRITICAL

MINOR

MAJOR

FAIL

PERFORMANCE ROUTING ENGINE

STATUS

ACO

CRITICAL

MINOR

MAJOR

6XCT3–DS0

OC–12/STM–4 POS SM–IR

76219

Air filter

release tabs

5-10

Cisco 6400 Hardware Installation and Maintenance Guide OL-2133-02

Chapter 5 Maintaining the Cisco 6400

Maintaining the Air Filter

Figure 5-7 Removing a Screw-type Air FIlter from the Chassis

Replacing the Air Filter

The Cisco 6400 ships with either a screw-type or tab-type air filter.

To install a new tab-type air filter, slide the new filter all the way into the chassis and lift it up until it

snaps into place. The directional arrows located on the metal frame of the filter should be pointing up.

(See Figure 5-8.)

NRP

STATUS

FAIL

NSP

CON

AUX

ETH

ACT

LNK

POWER

FAULT

MISWIRE

FANS

OK FAN

FAILURE MULTI-

FAN

FAILURE

12340A

PROCESSOR ONLY

0B 5678

SUB

SLOT

PCMCIA

NSP

CON

AUX

ETH

ACT

LNK

Slot 1

Slot 0

ACO

CRITICAL

MAJOR

MINOR

ALARMS

STATUS

FAIL

SUB

SLOT

CON

AUX

NRP

FAIL

STATUS

LNK

ACT

LNK

ACT

CON

AUX

LNK

ACT

LNK

ACT

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

PROCESSOR ONLY

POWER

FAULT

MISWIRE

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

OC-3

STM-1

PORT 0

PORT 1

STATUS

FAIL

STATUS

TX RX

CON

AUX

NRP

FAIL

STATUS

LNK

ACT

LNK

ACT

When hot swapping this fan tray,

removal and replacement must

be done in under two minutes or

system shutdown will occur.

CAUTION

PCMCIA

Slot 1

Slot 0

ACO

CRITICAL

MAJOR

MINOR

ALARMS

STATUS

FAIL

30257

Autres manuels pour 6400

Table des matières

Autres manuels Cisco Serveur

Cisco

Cisco NAC-3300 Series Manuel utilisateur

Cisco

Cisco Meraki MX65 Manuel utilisateur

Cisco

Cisco SCE 8000 10GBE Manuel utilisateur

Cisco

Cisco UCS C240 M5 Instructions d'installation et d'entretien

Cisco

Cisco Firepower Management Center 750 Manuel utilisateur

Cisco

Cisco C880 M5 Manuel utilisateur

Cisco

Cisco S195 Manuel utilisateur

Cisco

Cisco UCS C220 M3 Manuel d'installation et d'exploitation

Cisco

Cisco UCS Invicta C3124SA Manuel

Cisco

Cisco TelePresenceMCU 5300 Series Manuel utilisateur

Cisco

Cisco UCS C240 M4 Instructions d'installation et d'entretien

Cisco

Cisco UCS C3160 Instructions d'installation et d'entretien

Cisco

Cisco ONS 15454 Series Manuel utilisateur

Cisco

Cisco MCS-78 Series Guide de l'administrateur

Cisco

Cisco APP1000 - One Application Server Appliance Mode d’emploi

Cisco

Cisco UCS C200 Instructions d'installation et d'entretien

Cisco

Cisco UCS C460 Manuel utilisateur

Cisco

Cisco TelePresence MSE 8710 Manuel utilisateur

Cisco

Cisco ACE-4710-1F-K9 Manuel utilisateur

Cisco

Cisco UCS C22 M3 Manuel du système

Cisco

Cisco Sourcefire Defense Center 750 Manuel utilisateur

Cisco

Cisco UCS C200 Instructions d'installation et d'entretien

Cisco

Cisco Profile Series Manuel utilisateur

Cisco

Cisco UCS 6454 Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
