Cisco MS410-16 Manuel utilisateur

MS410 Series Installation Guide

Models

Model number Description

MS410-16

Layer-3 16-port 1Gbe SFP and 2-port

10Gbe SFP+ aggregation switch with 1

management interface and hot-swappable power

supplies / fans

MS410-32

Layer-3 32-port 1Gbe SFP and 4-port 10Gbe

SFP+ aggregation switch with 1 management

interface and hot-swappable power supplies / fans

Package contents

In addition to the MS switch, the following are provided (mounting kit provided with 1U models only):

Rack Mount Kit includes:

• US 12-24 mounting screws and cage nuts, 5 of each

• INTL M5 mounting screws and cage nuts, 5 of each

• INTL M6 mounting screws and cage nuts, 5 of each

• Mounting washers

MS410-16 Series front panel

MS410-32 Series front panel

Power input The MS comes standard with US power cord. EU/

UK/AU power cords may be ordered separately.

MS410 Series Back Panel

Ports and Status Indicators

The MS uses LEDs to inform the user of the device's status. When the device powers on, the main LED will be amber.

Additional functions are described below, from left to right.

Item Function LED Status Meaning

1 Restore N/A

Restore button to clear

switch IP and local

configuration settings

2 Fan Orange

One or more of the

system fans has

malfunctioned or is

missing

3 Power (PSU) Orange

One of the system

PSUs (power supplies)

has malfunctioned or is

missing

2Status Orange

Switch is unable to or

has not yet connected

to the Meraki cloud

Flashing green Firmware upgrade in

process

White

Switch is fully

operational and

connected to the

Meraki cloud

Alternating

Switch is booting,

searching for uplink to

Meraki Cloud

Off Switch does not have

power

3 Switch Port LEDs Off No client connected

Solid orange 10/100/1000 Mbps

Solid green 10,000 Mbps (10Gbps)

In addition, there is a RESTORE button available on the front panel.

Insert a paper clip if a restore is required.

• A brief, momentary press: To delete a downloaded configuration and reboot.

• Press and hold for more than 10 sec: To force the unit into a full factory restore.

Management Port

This port is designed to access the local switch configuration page only. For more information on local configuration,

please see Local Configuration.

The management port can not be used as a standard switched port

The MS410 series will ship with all fans and a single power supply included. Any additional parts, including fans and

power supplies, can be purchased separately.

Equipment is to be used only in a restricted access location and installed/operated only by trained service personnel.

Bringing your Stack Online

When connecting up your MS410 stack the recommended cabling method is to connect one uplink and then connect the

stacking cables from stack port 1 to stack port 2 of the next switch. When at the bottom switch stack port 1 should

connect back up to stack port 2 of the top switch. With this setup the switches will be able to connect to dashboard and

update themselves and received any configuration necessary. Once the switches are up to date you may cable and

configure as necessary.

It's recommended for bring-up to connect all of the stacking cables and a single uplink on the stack before powering the

switches on. This will allow all switches to connect and download any necessary firmware and configuration. The Status

LED will blink during firmware updates so that it will be visible if a switch is upgrading. Once all switches have had a

chance to update and are displaying solid White Status LEDs feel free to connect up the rest of the cables. More

information on dashboard for stacks can be found here.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cisco Système de sécurité

Cisco

Cisco NCS 4000 Series Manuel utilisateur

Cisco

Cisco MARS Instructions d'utilisation

Cisco

Cisco Firepower 2100 Series Manuel

Cisco

Cisco C395 Manuel

Cisco

Cisco ISA 3000 Manuel de l'opérateur

Cisco

Cisco PIX-515-RPS - PIX 515-R - Firewall Manuel utilisateur

Cisco

Cisco WVC200 - Wireless-G PTZ Internet Camera Mode d’emploi

Cisco

Cisco 6400E Manuel utilisateur

Cisco

Cisco ASA 55 Series Guide de démarrage rapide

Cisco

Cisco IronPort S670 Manuel utilisateur

Cisco

Cisco Telepresence MX200 Mode d’emploi

Cisco

Cisco M5 Manuel utilisateur

Cisco

Cisco PIX 525 Manuel utilisateur

Cisco

Cisco Firepower 2100 Series Manuel

Cisco

Cisco Firepower 1100 Series Manuel utilisateur

Cisco

Cisco Small Business Pro SA 500 Series Manuel utilisateur

Cisco

Cisco ISA550 Mode d’emploi

Cisco

Cisco PIX 501 - Security Appliance Manuel utilisateur

Cisco

Cisco MEDVIEW-C-30XS-A01 Manuel utilisateur

Cisco

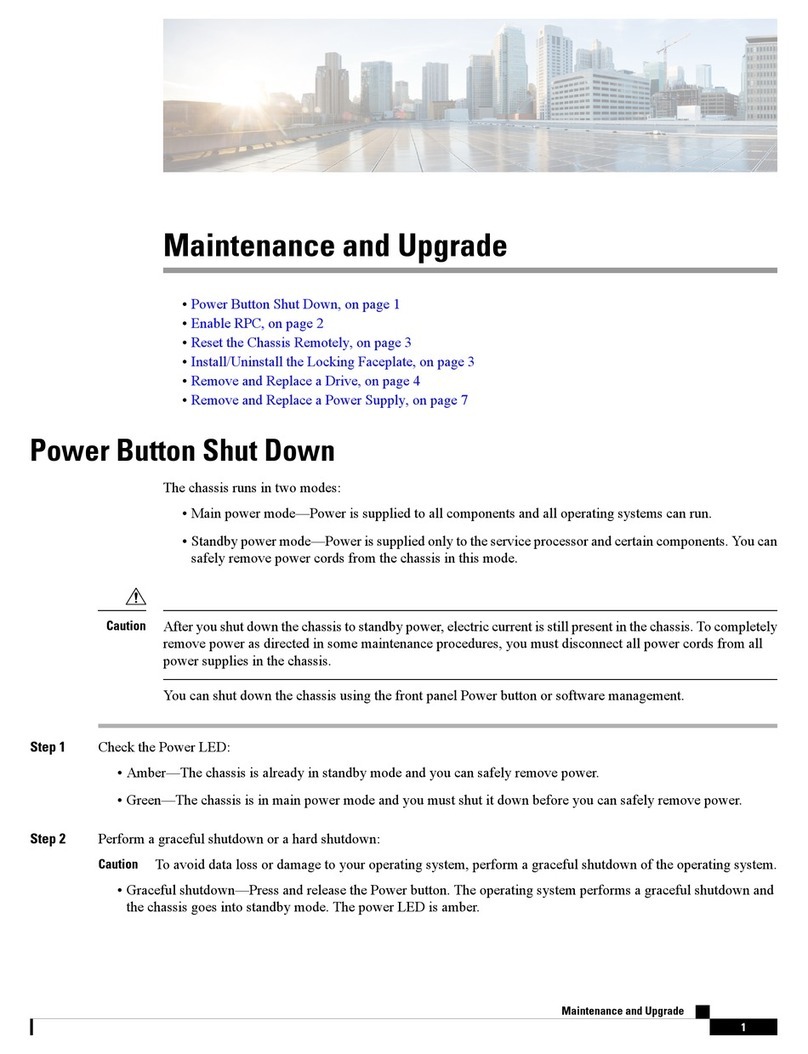

Cisco C195 Guide de démarrage rapide
