Phone Hardware Installation

Before you can use your phone, you must install and charge the battery. The battery may already be installed

in your phone, or you may have to install it yourself.

You must read the safety information in Product Safety and Security before you use, install, or charge the

phone.

The battery may already be charged using one of the supported charging methods. If the battery isn't charged,

you must charge the battery before you can set up the phone.

Install the Cisco Wireless IP Phone 8821 Battery

IP54 compliance mean that the phone is sealed from dust and water. When the phone leaves the factory, it is

completely sealed.

If you need to open the battery compartment, don't open it in a dusty or wet environment.

You should make sure that the battery cover is closed to ensure that dust and water cannot enter the battery

compartment.

Dirt, oil, or other products can damage the gasket on the battery compartment cover, resulting in a poor seal.

Every time you change the battery, inspect the gasket for damage. If the gasket is damaged, you can order a

replacement cover.

Note

Phone Setup

Phone life and functions could be compromised if:

• The battery is installed incorrectly.

• The battery cover is not closed properly.

• The rubber gasket on battery cover is poorly maintained.

• The rubber gasket on battery cover is damaged.

• The phone is dropped on a hard surface on a regular basis.

Caution

Procedure

Step 1 Remove the cover from the battery compartment.

a) Push the locking catch to the left to release the cover.

b) Lift and remove the cover of the battery compartment.

Step 2 Install the battery.

If you install the battery incorrectly in the battery compartment, the battery and the battery

compartment will be damaged.

Caution

Phone Setup

Install the Cisco Wireless IP Phone 8821 Battery

The battery has metal contacts that must connect to the contacts in the battery compartment. The battery also

has an arrow at the bottom and the Cisco logo at the top.

When the battery is correctly inserted, the logo and arrow are visible. The arrow points towards the connector

on the base of the phone and the logo is close to the locking catch.

The battery compartment has small tabs in the bottom corners. The battery must slide under these tabs. The

following graphic shows the battery compartment without and with the battery correctly installed.

a) Hold the battery so that the lower edge is close to the bottom of the compartment. Make sure that the

metal contacts on the phone and battery face each other. On the battery, the Cisco logo must be near the

locking catch and the arrow must point to the base of the phone.

Phone Setup

Install the Cisco Wireless IP Phone 8821 Battery

Do not force the battery into the compartment or you will damage the compartment and the

battery.

Caution

b) Slide the bottom of the battery under the tabs in the bottom of the battery compartment.

c) Press the battery into the battery compartment until it locks in place. Make sure that it is flat in the

compartment.

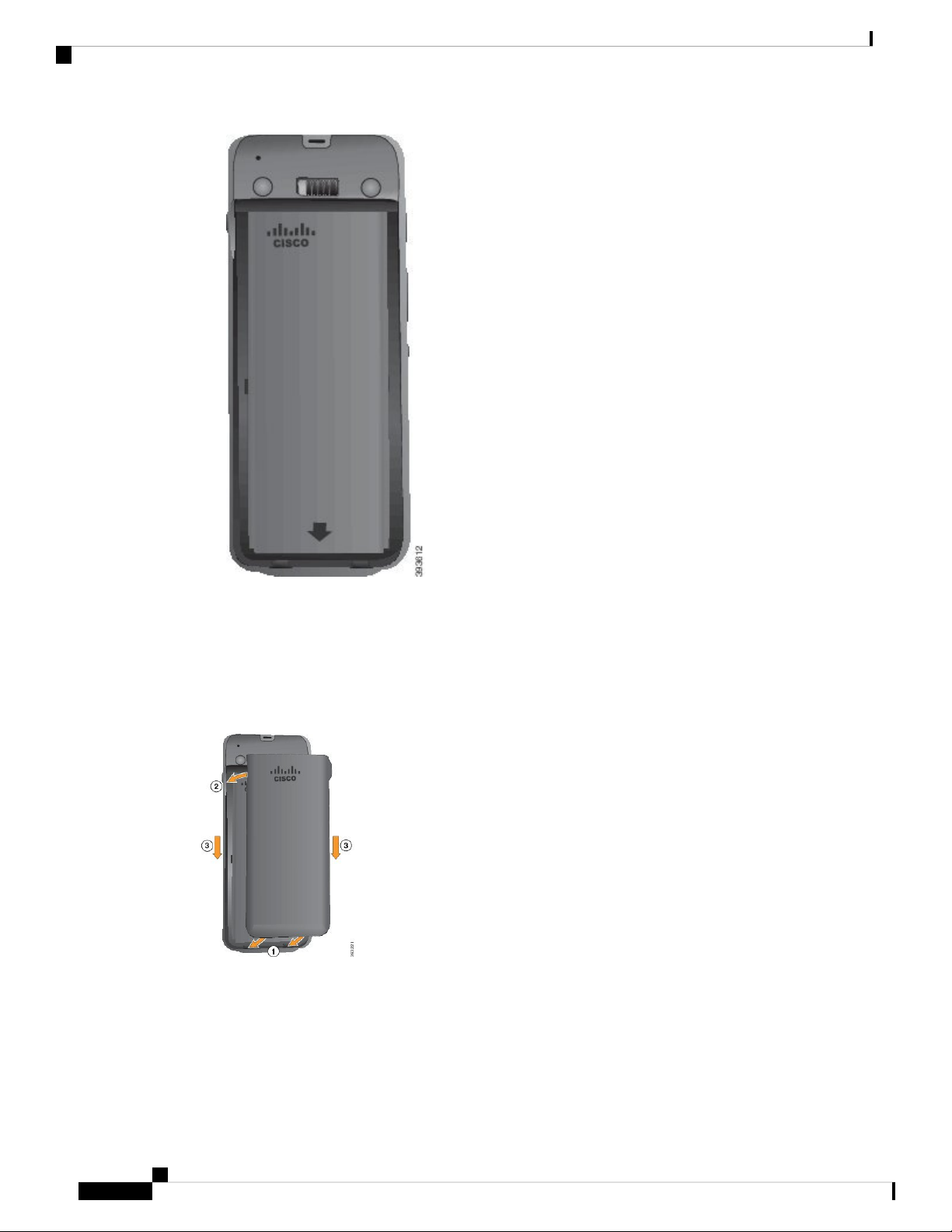

The following graphic shows a properly-installed battery.

Step 3 Inspect the gasket on the inside of the battery compartment cover and, if necessary, clean it with a cloth

dampened with water.

Do not use oil- or alcohol-based cleaners on the gasket. These cleaners will damage the gasket and

void the phone warranty.

Caution

Step 4 Replace the cover to the battery compartment.

Phone Setup

Install the Cisco Wireless IP Phone 8821 Battery

When you close the battery cover, make sure that it is completely closed. Otherwise dust and water

can enter the battery compartment.

Caution

a) Align the tabs at the bottom of the cover into the notches on the phone.

The tabs slide into the phone.

b) Press the cover firmly against the phone until it clicks in place. Press at the top, middle, and bottom of

the cover on each side.

Press at the top, middle, and bottom of the cover on each side.

Phone Setup

Install the Cisco Wireless IP Phone 8821 Battery

Do not force the cover. If it doesn't click into place easily, remove the cover and check that the

battery is inserted correctly.

Caution

c) Check that the cover is flush with the phone, then slide the lock to the right to lock the cover in place.

Replace the Cisco Wireless IP Phone 8821 Battery

If you have a spare battery, you can replace a depleted battery with a charged battery.

IP54 compliance mean that the phone is sealed from dust and water. When the phone leaves the factory, it is

completely sealed.

If you need to open the battery compartment, don't open it in a dusty or wet environment.

You should make sure that the battery cover is closed to ensure that dust and water cannot enter the battery

compartment.

Phone Setup

Replace the Cisco Wireless IP Phone 8821 Battery

Dirt, oil, or other products can damage the gasket on the battery compartment cover, resulting in a poor seal.

Every time you change the battery, inspect the gasket for damage. If the gasket is damaged, you can order a

replacement cover.

Note

Phone life and functions could be compromised if:

• The battery is installed incorrectly.

• The battery cover is not closed properly.

• The rubber gasket on battery cover is poorly maintained.

• The rubber gasket on battery cover is damaged.

• The phone is dropped on a hard surface on a regular basis.

Caution

Procedure

Step 1 Remove the cover from the battery compartment.

a) Push the locking catch to the left to release the cover.

b) Lift and remove the cover of the battery compartment.

Step 2 Hold the phone in one hand with the screen towards the palm of your hand. Cup your other hand near the base

of the phone. Shake the phone to make the battery fall into your hand.

Phone Setup

Replace the Cisco Wireless IP Phone 8821 Battery

Step 3 Install the battery.

If you install the battery incorrectly in the battery compartment, the battery and the battery

compartment will be damaged.

Caution

Phone Setup

Replace the Cisco Wireless IP Phone 8821 Battery
