Cisco Unified IP Phone 3905 User Guide for
Cisco Unified Communications Manager Express Version 8.8 (SIP)
First Published: July 22, 2011
Last Modified: July 22, 2011
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
Text Part Number: OL-24411-01
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at http://
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1005R)
©2011 Cisco Systems, Inc. All rights reserved.
CONTENTS
Overview 1
Physical Description of Cisco Unified IP Phone 3905 1
Phone Connections 3
Adjusting the Handset Rest 3
Operating Your Phone 5
Adjust the Volume 5
Answer a Call 6
Auto Answer 6
Auto Answer with Your Speakerphone 6
Call Forward All 6
Call Pickup 7
Conference 7
End a Call 7
Hold/Resume a Call 8
Manage Call Waiting 8
Mute a Call 8
Place a Call 8
Redial a Number 9
Shared Lines 9
Transfer a Call 9
Voice Messages 10
Personalize Your Voicemail 10
Check for Voice Messages 10
Cisco Unified IP Phone 3905 User Guide for Cisco Unified Communications Manager Express Version 8.8 (SIP)
OL-24411-01 iii
Cisco Unified IP Phone 3905 User Guide for Cisco Unified Communications Manager Express Version 8.8 (SIP)
iv OL-24411-01
Contents
CHAPTER 1
Overview
This guide provides phone layout and feature descriptions for the Cisco Unified IP Phone 3905.
•Physical Description of Cisco Unified IP Phone 3905, page 1

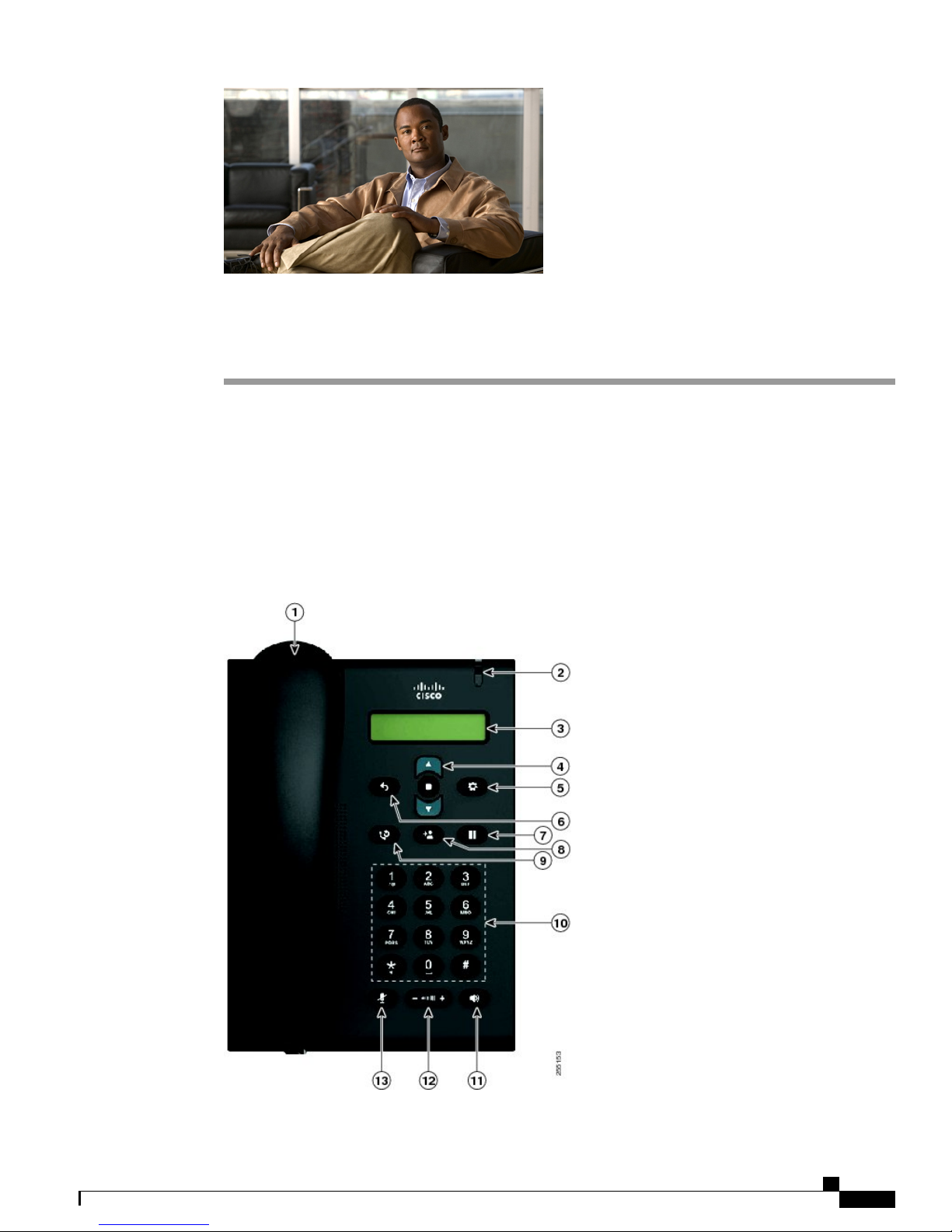

Physical Description of Cisco Unified IP Phone 3905
The Cisco Unified IP Phone 3905 is a single-line phone. Buttons near the handset provide direct access to
several features.
Cisco Unified IP Phone 3905 User Guide for Cisco Unified Communications Manager Express Version 8.8 (SIP)
OL-24411-01 1
DescriptionItem
Functions as traditional phone handset.Handset1
Indicates new voice message (steady red) or an incoming call (blinking).Message waiting
indicator
2
Displays phone menus and call activity including caller ID (phone number), call
duration, and call state.
Phone screen3
Allows you to scroll through menu items and highlight items. When the phone
is on-hook, displays the call logs (Missed Calls, Received Calls, Placed Calls)
and your Speed Dials.
Navigation Pad and
Select (center)
button
4
Provides access to phone settings such as call history, user preferences, phone
configuration (including administration settings, device configuration, network
configuration, and other common configurations), and phone model information.
Application button5
Toggles back to the previous setting.Previous button6
Places an active call on hold.Hold button7
Transfers active calls to another extension.Transfer button8
Dials the last dialed number.Redial button9
Allows you to dial phone numbers and enter numbers or letters.Keypad10
Selects the speakerphone. When the speakerphone is on, the button is lit.Speakerphone
button
11
Controls the handset and speakerphone volume (off-hook) and the ringer volume
(on-hook).
Volume button12
Mutes the speakerphone and handset. If the button is lit, the speaker and handset
are muted.
Mute button13
Cisco Unified IP Phone 3905 User Guide for Cisco Unified Communications Manager Express Version 8.8 (SIP)
2OL-24411-01
Overview
Physical Description of Cisco Unified IP Phone 3905
Phone Connections
For your phone to work, it must be connected to the corporate IP telephony network. Your system administrator
can help you connect your phone.
Network port (10/100 SW) connection.
IEEE 802.3af power enabled.
4DC adaptor port (DC48V)1
Access port (10/100 PC) connection5AC-to-DC power supply (optional)2
Handset connection6AC power wall plug (optional)3
Adjusting the Handset Rest
You can adjust the handset rest of a wall-mounted phone so that the receiver does not slip out of the cradle.
Cisco Unified IP Phone 3905 User Guide for Cisco Unified Communications Manager Express Version 8.8 (SIP)
OL-24411-01 3
Overview
Phone Connections
Procedure
Step 1 Set the handset aside and pull the square plastic tab from the handset rest.
Step 2 Rotate the tab halfway (180 degrees).
Step 3 Hold the tab between two fingers, with the small notches (in the corners) facing you.
Step 4 Make sure the tab lines up evenly with the slot in the cradle.
Step 5 Slide the tab back into the handset rest. An extension protrudes from the top of the rotated tab. Return the
handset to the handset rest.
Cisco Unified IP Phone 3905 User Guide for Cisco Unified Communications Manager Express Version 8.8 (SIP)
4OL-24411-01
Overview
Adjusting the Handset Rest
CHAPTER 2
Operating Your Phone
This section describes how to operate your Cisco IP Phone and includes information on phone features.
Because there are differences in phone and site configurations, not all features described here might apply
to your phone. Consult your system administrator for more information.
Note
•Adjust the Volume, page 5
•Answer a Call, page 6
•Call Forward All, page 6
•Call Pickup, page 7
•Conference, page 7
•End a Call, page 7
•Hold/Resume a Call, page 8
•Manage Call Waiting, page 8
•Mute a Call, page 8
•Place a Call, page 8
•Redial a Number, page 9
•Shared Lines, page 9
•Transfer a Call, page 9
•Voice Messages, page 10
Adjust the Volume
• During a call, press the +or -on the VOLUME button to increase or decrease the volume respectively.
• Press the +or -on the VOLUME button while the handset is in its cradle and the phone is idle.
Cisco Unified IP Phone 3905 User Guide for Cisco Unified Communications Manager Express Version 8.8 (SIP)
OL-24411-01 5
Answer a Call
• Lift the handset.
• If you are using the speakerphone, press the Speaker button.
Auto Answer
Auto Answer prompts your phone to automatically answer incoming calls after one ring.
Your system administrator sets up Auto Answer to work with your speakerphone.
Auto Answer with Your Speakerphone
Auto Answer prompts your phone to automatically answer incoming calls after one ring.
Keep the handset in the cradle to auto answer with your speaker phone. Otherwise, calls ring normally and
you must manually answer them. Your system administrator sets up Auto Answer to work either with your
speakerphone.
Call Forward All
Call Forward All allows you to forward calls on your phone to another number. You can set up Call Forward
All directly on your phone. To access Call Forward All remotely, go to your User Options web pages.
There are two types of call forwarding features that your system administrator might set up on your phone:
1Unconditional call forwarding (Call Forward All)—Applies to all calls that you receive.
2Conditional call forwarding (Call Forward No Answer, Call Forward Busy, Call Forward No
Coverage)—Applies to certain calls that you receive, according to conditions, and is accessible only from
your User Options web pages.
Your system administrator can set up other call forward options that:
1Allows calls placed from the call forward target number to your phone to ring through, rather than be
forwarded.
2Prevents you from creating a call forward loop or exceeding the maximum number of links in a call
forwarding chain.
Procedure
Step 1 Press the center button of the Navigation Pad button.
Step 2 Navigate for the “Call Forward All” option.
Step 3 Enter the call forward target number exactly as you would dial it from your phone. For example, enter an
access code or the area code, if necessary.
Cisco Unified IP Phone 3905 User Guide for Cisco Unified Communications Manager Express Version 8.8 (SIP)
6OL-24411-01
Operating Your Phone
Answer a Call
