Cisco TelePresence IX5000 Guide de configuration

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

Quickstart

User Guide

Cisco TelePresence

IX5000 and IX5200

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

Touch 10 Home screen overview

Call – Place calls

(page 3)

Change IX5000

ll light level

Mute

Self view - Check

the camera view

before a meeting

Share – Share

presentation and

whiteboard content

(page 9)

Meetings – Access

scheduled meetings

(page 4)

The Share button also enables

the Layout Control feature, which

allows you to:

• share two separate

presentation and whiteboard

content sources on multiple

screens

• share duplicate content on

multiple screens.

For more information, see “Move,

Copy, & Replace Presentation and

Whiteboard Content Using Layout

Control” on page 8.

Tips

Volume Up/Down

View system

information (page 15)

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

3 4

To place a

call, tap Call.

To end a call, tap End.To call a directory contact, tap Call and

type the contact’s name. The search

result(s) appears above the keypad. Tap

the icon of the contact to place the call.

Place and end calls

Enter the number or URI

and tap Call.

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

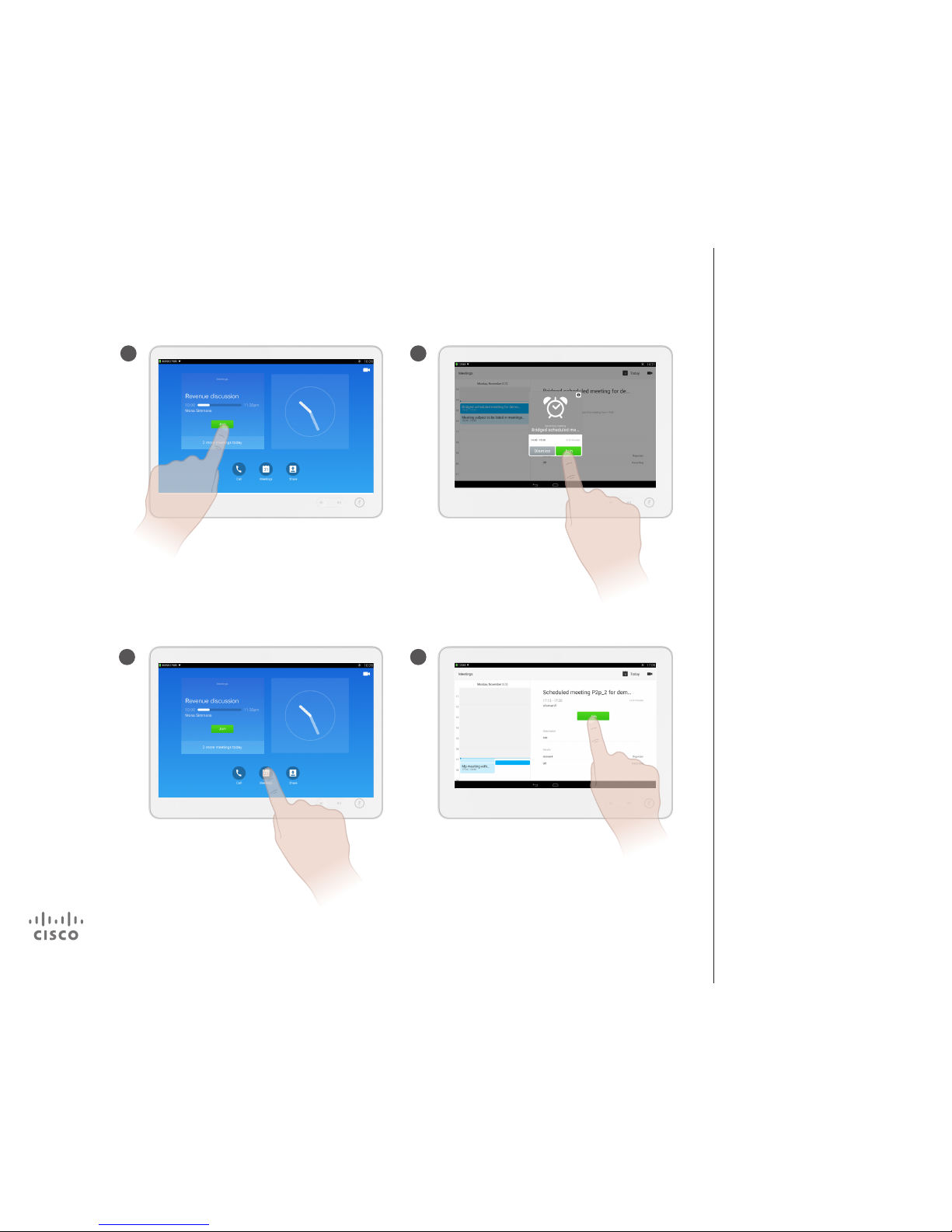

Join meetings

Or tap Join in the

pop-up window.

From the home screen, view the

meeting and tap Join.

Or tap Meetings in

the home screen... ...select the meeting, and tap

Join.

3 4

1 2

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

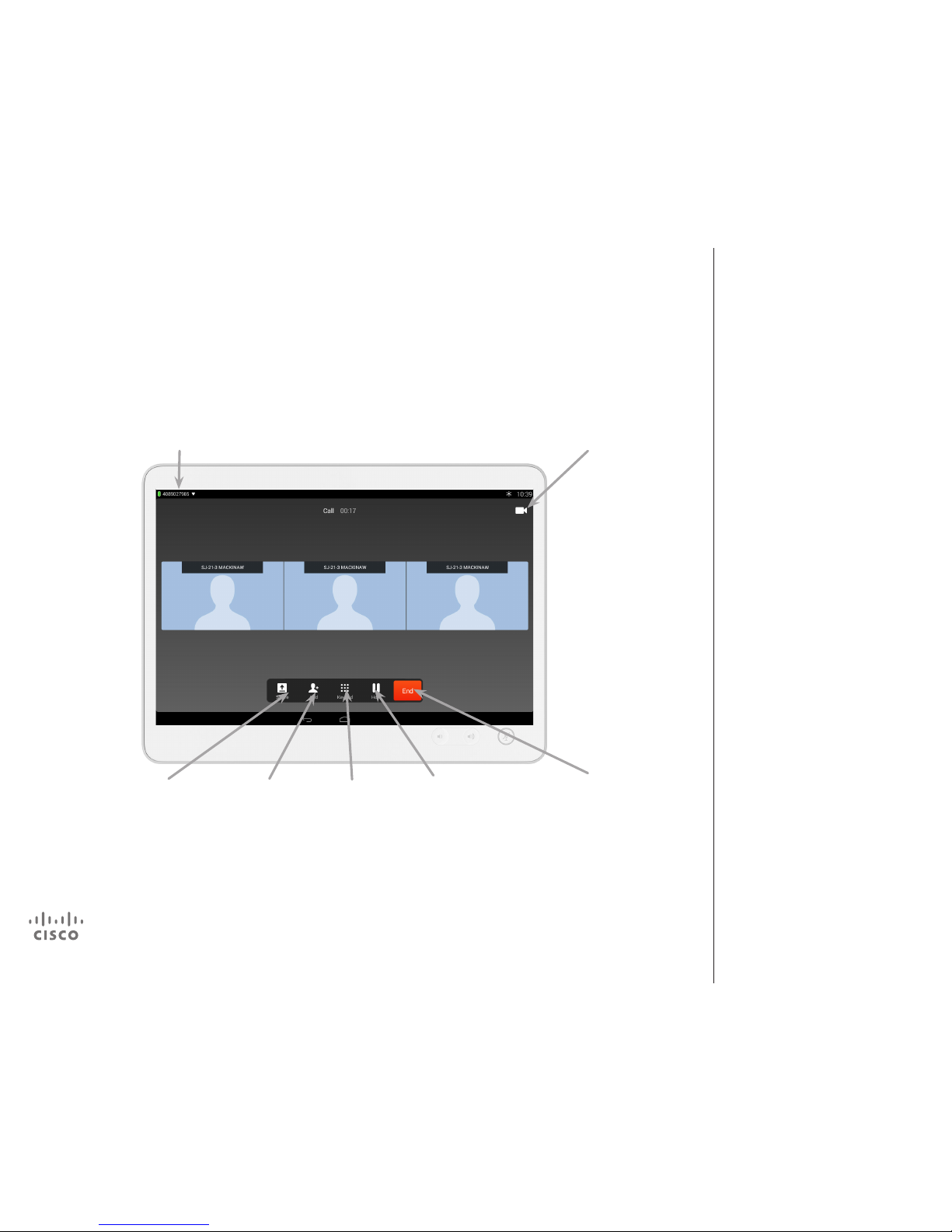

Touch 10 In Call screen overview

Place and receive calls, join

meetings, and share presentations

locally from the Home Screen.

Mute or increase/decrease the

volume of your system using the

physical buttons on the Touch 10.

You can also change the brightness

of the screen and specify if

participants will be sitting down or

standing up.

Tips

Keypad - Enter

touch-tones

Camera presets –

Specify stand-up or

sit-down mode

System information -

Also provides call status

Hold – Places

the call on hold

Add – add

an audio

participant

Share – Share

presentation

content

End – Ends the call

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

Select the

caller to drop

and tap Drop.

To remove an audio

participant, tap the

participant list.

Add and remove audio participants

Enter the

number, URI, or

directory entry,

and tap Call.

To add

an audio

participant

to an

existing call,

tap Add.

Tap

Merge to

merge the

audio call.

2 31

You can add a maximum of

one additional endpoint. Video

endpoints are added as an audio-

only endpoint.

Tips

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

Move to and from the home screen during a call Tips

To return to the Home screen from the

In Call screen, tap the Return or Home

buttons on the bottom of the screen.

To access the In Call screen from the

Home screen, tap Return to Call at the

top of the screen.

Return to the In Call screen to view

and drop call participants, to use

the keypad for touch-tones, or to

add an audio participant.

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

Move, Copy,

& Replace

Presentation

and

Whiteboard

Content Using

Layout Control

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

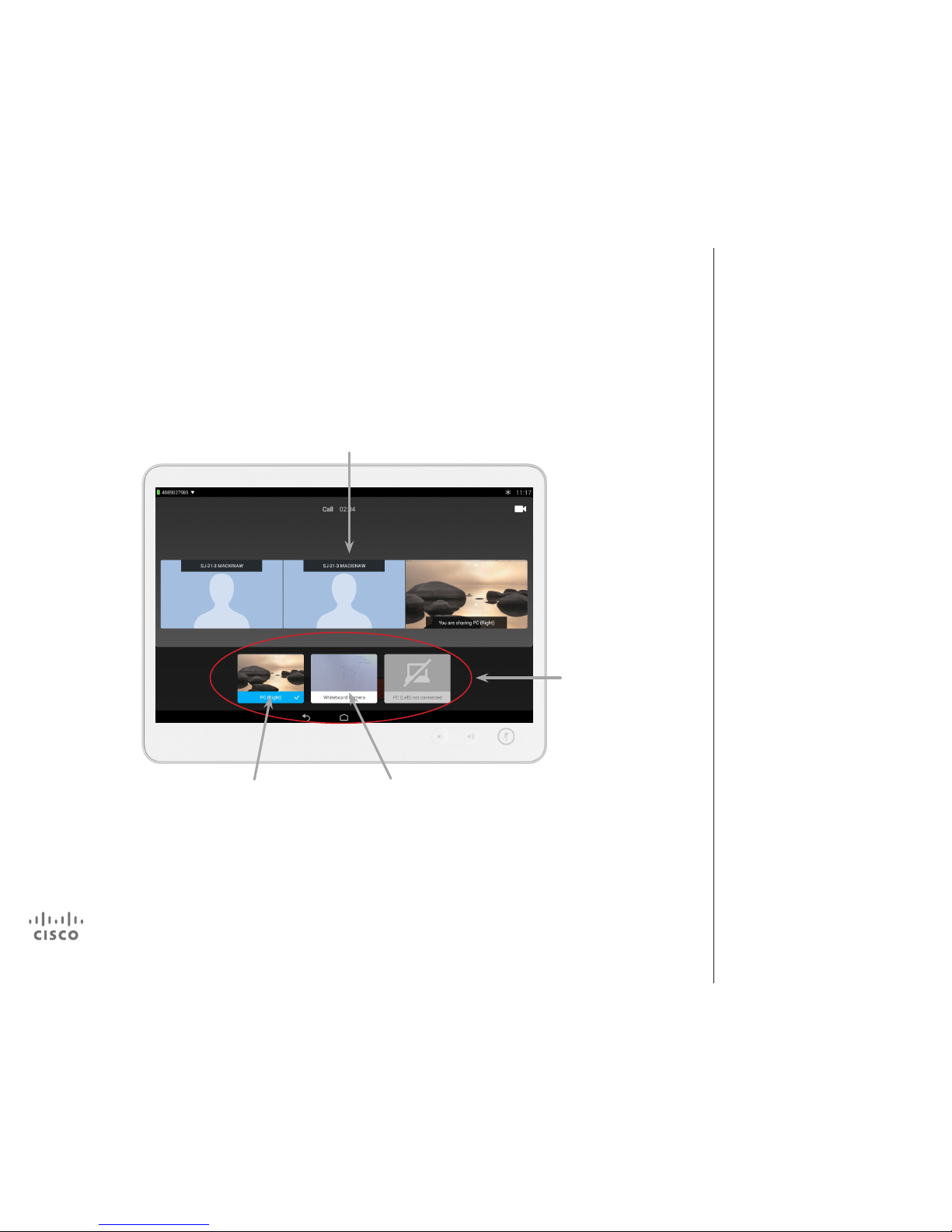

Share tray overview (for presentation &

whiteboard content)

Share tray – Move

presentation

content, including

whiteboard content,

to and from the

screen.

The share tray allows you to move and

duplicate content to and from the main

and presentation displays.

•

To show the share tray, tap Share.

•

To add content to the conference,

drag the content from the share

tray to the presentation area.

•

To remove content from the

conference, drag the content from

the presentation area to the share

tray.

•

To duplicate content, touch the

content in the share tray, then

move the content to an available

display in the presentation area.

•

To move content, touch the

content in the presentation area,

then move the content from one

display to another.

•

You can move and/or copy up to

two presentations using the share

tray.

Tips

Presentation area – Shows the content being

shared and the main and presentation displays.

Presentation content in

share tray

Whiteboard content in

share tray

Quick Start Guide English

Cisco TelePresence IX5000/IX5200

Produced: November 2014

Updated: October 2015

Share content

To remove the content from sharing, drag the

content away from the presentation area.

Connect your presentation source (for example, a

laptop) to the presentation cable. If prompted, tap

Share to share the content.

To view the share tray, tap Share.
