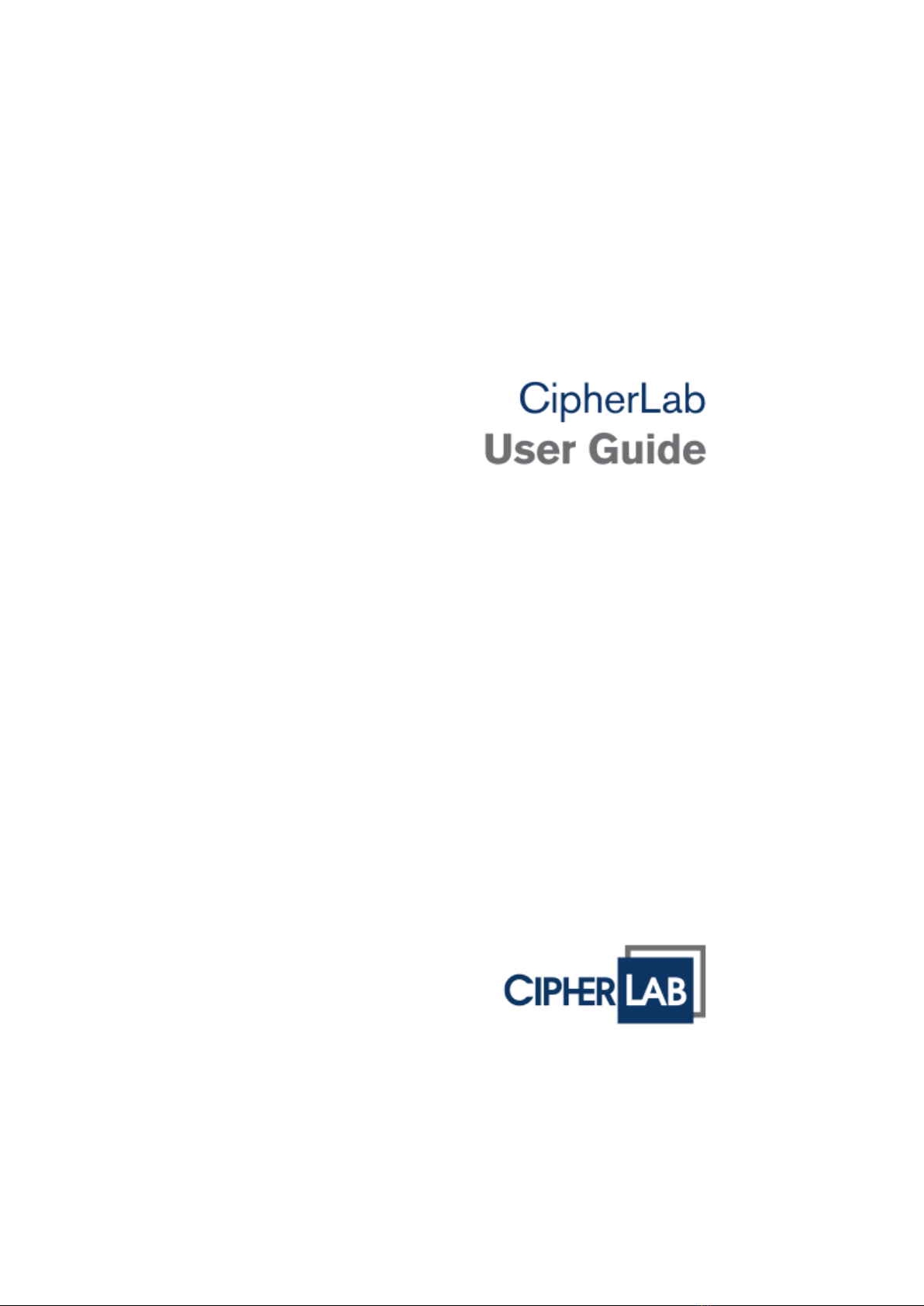

CipherLab 1504A Manuel utilisateur

1504A DPM Barcode Scanner

Setup barcodes included.

Version 1.00

The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided

under a license agreement containing restrictions on use and disclosure and is also

protected by copyright law. Reverse engineering of the software is prohibited.

Due to continued product development this information may change without notice. The

information and intellectual property contained herein is confidential between CIPHERLAB

and the client and remains the exclusive property of CIPHERLAB CO., LTD. If finding any

problems in the documentation, please report them to us in writing. CIPHERLAB does

not warrant that this document is error-free.

No part of this publication may be reproduced, stored in a retrieval system, or

transmitted in any form or by any means, electronic, mechanical, photocopying,

recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.

For product consultancy and technical support, please contact the local sales

representative. Alternatively, visit our web site for more information.

The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD.

All brand, product and service, and trademark names are the property of their registered

owners.

The editorial use of these names is for identification as well as to the benefit of the

owners, with no intention of infringement.

CIPHERLAB CO., LTD.

Website: http://www.cipherlab.com

FOR USA

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

FOR CANADA

This digital apparatus does not exceed the Class B limits for radio noise emissions from

digital apparatus as set out in the interference-causing equipment standard entitled

"Digital Apparatus," ICES-003 of Industry Canada.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux

appareils numeriques de Classe B prescrites dans la norme sur le material brouilleur:

"Appareils Numeriques," NMB-003 edictee par l'Industrie.

IMPORTANT NOTICES

FOR PRODUCT WITH LASER

CAUTION

This laser component emits FDA / IEC Class 2 laser light at the exit port. Do not

stare into beam.

SAFETY PRECAUTIONS

DO NOT expose the scanner to any flammable sources.

Under no circumstances, internal components are self-serviceable.

For AC power adaptor, a socket outlet shall be installed near the equipment and shall

be easily accessible. Make sure there is stable power supply for the scanner or its

peripherals to operate properly.

CARE & MAINTENANCE

Use a clean cloth to wipe dust off the scanning window and the body of the scanner.

DO NOT use/mix any bleach or cleaner.

Keep the scanner away from any magnets and magnetic fields to prevent the laser

engine from malfunctioning.

If finding the scanner malfunctioning, write down the specific scenario and consult the

local sales representative.

Version

Date

Notes

1.00 Nov. 02, 2018 Initial release

RELEASE NOTES

CONTENTS

IMPORTANT NOTICES

........................................................................................................- 3 -

For USA........................................................................................................................................ - 3 -

For Canada................................................................................................................................. - 3 -

For Product with Laser........................................................................................................... - 4 -

Safety Precautions.................................................................................................................. - 4 -

Care & Maintenance................................................................................................................ - 4 -

RELEASE NOTES

....................................................................................................................- 5 -

QUICK START

............................................................................................................................. 3

Scanning Conditions................................................................................................................... 3

Decoding Illumination................................................................................................................ 4

Automatic Exeposure................................................................................................................. 5

SCANNING CONDITIONS

QUICK START

1504A DPM Barcode Scanner User Guide

DECODING ILLUMINATION

Have the scanner read the barcodes below to enable/disable the LED illumination.

Enable Illumination

*Disable Illumination

Decoding Illumination Sets

Scan the barcodes below to select a set which controls

illumination on every image capture to aid

decoding.

Enabling illumination usually results in superior i

mages. The effectiveness of the illumination

decreases as the distance to the target increases.

Decode Set 0:

Normal illumination

Decode Set 1:

Twice the normal illumination

Decode Set 2:

70% of the Set 1 illumination

Decode Set 3:

50% of the Set 1 illumination

*Decode Set 4:

Illumination disabled

Quick Start

AUTOMATIC EXEPOSURE

Have the scanner read the barcodes below to enable/disable the automatic exposure

function.

Enable Autoexposure

*Disable Autoexposure
