CIC 100 SERIES Manuel utilisateur

OWNER’ S MANUAL: CIC-100-DVT-8·CIC-100-DVT-6·CIC-100-IC-8

CIC-100-IC-6·CIC-100-POINT-6

Thank you for purchasing CIC AudioTM 100 series speakers. These speakers offer exceptional performance and power

handling in flush-mounted designs. Each model features extra-high sensitivity to assure concert volume levels, even

with low-powered distribution systems.

The 100 Series is engineered to handle the dynamic range of multi-channel audio technologies like Dolby Digital and

DTS as well as traditional two-channel sources. These in-ceiling speakers deliver high-end tonal balance and a clear

distinction between musical notes.

The line comprises two-way models including 6.5’and 8’glass fiber with NBR surrounds for lasting performance,

indoors or out, and dual voice coil, Black Pearl tweeter configurations permit one 100 series speaker to

deliver stereo sound to any room.

Regardless of application, serious audiophile listening or home theater, we recommend that you take the time to read

this manual thoroughly before connecting speakers to your amplifier or receiver. In the highly unlikely event that you

should experience a problem with set-up or operation, please contact one of our authorized dealers for assistance, or

SAFETY INSTRUCTIONS

INSTALLATION GUIDELINES

SPEAKER INSTALLATION

CARING FOR YOUR SPEAKER

MAINTENANCE AND SERVICE

WARRANTY

SPECIFICATIONS

[SAFETY INSTRUCTIONS]

1. Read Instructions - All the safety and operating instruc-

tions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instruc-

tions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in

the operating instructions should be adhered to.

4. Follow Instructions - All operating and other instruc-

tions should be followed.

5. Water and Moisture - The appliance should not be used

near water - for example, near a bathtub, washbowl, kitchen

sink, laundry tub, in a wet basement, or near a swimming

pool, etc.

6. Carts and Stands - The appliance should be used only

with a cart or stand that is recommended by the manufac-

turer. PORTABLE CART WARNING

7. Wall or Ceiling Mounting - The appliance should be

mounted to a wall or ceiling only as recommended by the

manufacturer.

8. Ventilation - The appliance should be situated so that its

location or position does not interfere with its proper venti-

lation. For example, the appliance should not be situated on

a bed, sofa, rug, or similar surface that may block the

ventilation openings; or placed in a built-in installation, such

as a bookcase or cabinet that may impede the flow of air

through the ventilation openings.

9. Heat - The appliance should be situated away from heat

sources such as radiators, stoves, or other appliances that

produce heat.

10. Power Source - The appliance should be connected to

a power supply only of the type described in the operating

instructions or as marked on the appliance.

11. Power Cord Protection - Power supply cords should

be routed so that they are not likely to be walked on or

pinched by items placed up or against them, paying partic-

ular attention to cords at plugs, convenience receptacles,

and the point where they exit from the appliance.

12. Cleaning - The appliance should be cleaned only as

recommended by the manufacturer.

13. Nonuse Periods - The power cord of the appliance

should be unplugged from the outlet when left unused for

a long period of time.

14. Object and Liquid Entry - Care should be taken so

that neither objects fall nor liquids spill into the inside of the

appliance.

15. Damage Requiring Service - The application should

be serviced by qualified service personnel when:

a. the power supply cord or the plug has been damaged,

b. objects have fallen onto or liquid has been spilled into the

appliance,

c. the appliance has been exposed to rain,

d. the appliance does not appear to operate normally or

exhibits a marked change in performance, or

e. the appliance has been dropped or the cabinet damaged.

16. Servicing - The user should not attempt to service the

appliance beyond those means described in the operating

instructions. All other servicing should be referred to quali-

fied service personnel.

17. Grounding or Polarization - Precautions should be

taken so that the grounding or polarization means of an

appliance is not defeated.

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to alert

you to the presence of un-insulated’dangerous

voltage: within the product’s enclosure that

may be off sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral

triangle is intended to alert you to the presence

of important operating and maintenance (servic-

ing) instructions in the literature accompanying

the appliance.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove

cover (or back). No user-serviceable parts inside. Refer servic-

ing to qualified service personnel.

APPLICABLE FOR USA, CANADA OR WHERE APPROVED

FOR USAGE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE PLUG TO WIDE SLOT, INSERT FULLY.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS

LA BORNE CORRESPONDANTE DE LA PRESE ET POUSSER

JUSQU AU FOND.

CIC 100 SERIES

BLACK

PEARL

TWEETER

FLANGE CLAMP

SCREWS (4x)

FLANGE

MICRO-FLANGE GRILLE

CIC-100-IC-8

CIC-100-IC-6

MICRO-FLANGE GRILLE

CIC-100-POINT-6

MICRO-FLANGE GRILLE

CIC-100-DVT-8

CIC-100-DVT-6

FLANGE CLAMP

SCREWS (4x)

FLANGE

[FIG. 3]

CIC-100-DVT-8 CIC-100-DVT-6 CIC-100-IC-8 CIC-100-IC-6 CIC-100-POINT-6

[INSTALLATION GUIDELINES]

For proper connection and therefore full enjoyment of your new CIC AudioTM 100

series speakers, we encourage you to read this owners’ manual thoroughly, even if

you are very familiar with installing speakers. Speaker placement is very subjective.

Placement follows the guidelines for the developers of in- ceiling speakers, yet is also

guided by personal preferences. The proper spacing, location and adjustment of

in-ceiling speakers are critical for complete enjoyment of your new speakers. This

manual covers these topics thoroughly. Choose the appropriate mounting location for

each speaker.

NOTE: When deciding upon a location, consider the following:

· Be certain your speaker wires can be run to or are accessible from these locations.

· Make certain the wall or ceiling material is sturdy enough to support the weight and

vibration of the speakers.

· Be certain the area behind the speaker is free of obstacles such as wall studs,

electrical wiring, pipes, etc.

· Each speaker should be positioned properly, relative to the listening area for good

coverage.

· Audio performance and room-to-room isolation will be improved if there is some

fiberglass insulation placed loosely behind the speaker.

[SPEAKER INSTALLATION]

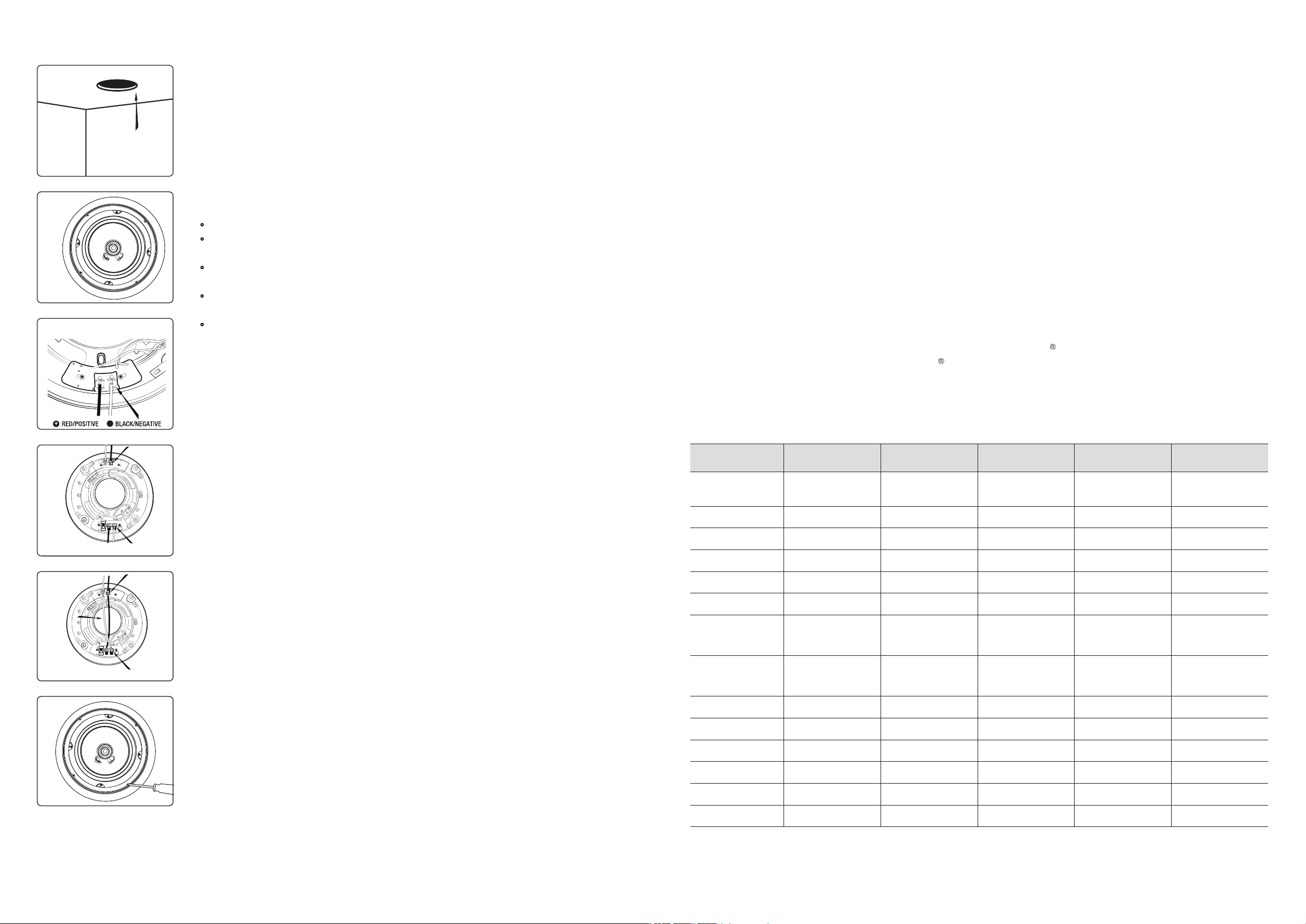

STEP 1: Using the supplied cutout template,carefully mark the area to be cut out.

Using a drywall knife or saw, cut a hole in the drywall and prepare the speaker wires

for connec-tion to the speaker terminals. (Fig. 1 for CIC-100-DVT-8, CIC-100-DVT-6,

CIC-100-IC-8, CIC-100-IC-6 & CIC-100-POINT-6).

STEP 2: Remove the grille from the speaker assembly (Fig. 2). If it is necessary to

paint the speaker grille to match the ceiling, we recommend that you do so with sever-

al light coats of matching spray paint.

STEP 3: Connect the speaker wires to the input terminals on the rear of the speaker,

making sure no loose strands are exposed (Fig. 3).

STEP 4: NOTE: For the CIC-100-DVT-6 there are several hookup options. For stereo

point-source operation, connect the speaker wires to the left AND right channel input

terminals on the rear of the speaker (Fig. 4). Make sure no loose strands are exposed.

Please make sure to check your hookup polarity for proper operation.

For Surround/Mono: The CIC-100-DVT-6 may also be used as a surround speaker

for home theater applications. For the SURROUND or MONO mode of operation,

connect your speaker wire to either the left OR right channel input as above (Fig. 5).

Next, connect 2 jumper wires from this same input terminal to the corresponding input

terminals on the opposite side of the speaker. Connect the red positive terminal to

opposite red terminal and black negative terminal to opposite black terminal.

This speaker may be set to either the bipole OR dipole mode of operation using the

selector switch on the rear panel.

Please note that the speaker is a 6 ohm speaker in this configuration.

STEP 5: Carefully position the speaker in the cutout hole. Using a screwdriver, rotate

the four clamps to secure the speaker to the drywall (Fig. 6). CAUTION: DO NOT

OVER-TIGHTEN.

Note: The CIC-100-POINT-6 have an angled baffle which allows the speaker to be

pointed toward the listening position. Rotate the baffle in the cutout until it is pointing

in the desired direction prior to tightening the clamping screws.

STEP 6: Carefully replace the grille by pressing it into the gap between the flange and

the baffle. Enjoy!

Description

Nominal Impedance

[SPECIFICATIONS]

Rms Power

Max Power

Sensitivity (1W@1m)

Frequency Response

Tweeter

Woofer

Standard

Finish Dims

Cutout Dims

Mounting Depth

Grille

Weight(speaker only)

Wide Sweet PointWide Sweet Point

Hi-Fi 6.5' In-Ceiling

Speaker

Hi-Fi 8' In-Ceiling

Speaker

Hi-Fi 6.5’In-Ceiling

LCR Speaker

Hi-Fi 6.5' Dual Voice

Tweeter Speaker

Hi-Fi 8' Dual Voice

Tweeter Speaker

400-058-5288 | www.cicaudio.com

[CARING FOR YOUR CIC AudioTM SPEAKER]

All CIC AudioTM speakers are finished with a high degree of craftsmanship in either hand polished paint or vinyl

laminates. We recommend using a lint-free rag with a small amount of glass cleaner to maintain the long-lasting beauty

of the finish. Avoid products containing silicones, oils, oil derivatives, or solvents. Use a damp cloth on enclosures

finished in vinyl laminates.

[MAINTENANCE AND SERVICE]

Because of CIC AudioTM speaker's uncompromising quality control programs, it’s unlikely that your speakers will ever

need service if connected and used as outlined in this Owners’Manual. In the unlikely event that a problem does occur,

please contact your CIC AudioTM dealer. Your dealer has the necessary factory-authorized parts and trained tech-

ni-cians to quickly restore your speaker to its original performance specifications.

[WARRANTY]

LIMITED WARRANTY: CIC AudioTM provides a limited lifetime warranty for its speakers and electronic components to

the original purchaser. Purchase must be made from an authorized CIC AudioTM dealer.

This warranty does not cover service or parts to repair damage caused by misuse, abuse, damage while in transit, alter-

ations, unauthorized repairs, failure to follow instructions, fire, flood or any other cause beyond the reasonable control

of CIC AudioTM. Defects in speaker cabinets or grilles must be brought to the attention of your dealer immediately after-

purchase. This warranty will be void if the products’serial number has been altered or removed.

Should your CIC AudioTM product require service, please call the DVACOR customer service department for a return

authorization. All merchandise returned to DVACOR Group without prior authorization will be refused. For your return

authorization number, please call 400-058-5288.

[FIG. 2]

[FIG. 1]

[FIG. 6]

[FIG. 5]

1u6 1u6

100 v 100 v

1u6 1u6

100 v 100 v

SURROUND OR MONO CONFIGURATION

[FIG. 4]

1u6 1u6

100 v 100 v

1u6 1u6

100 v 100 v

STEREO POINT-SOURCE CONFIGURATION

6Ohms + 6Ohms 6Ohms

10W + 10W 10W

60W + 60W 120W

6Ohms

10W

150W

86dB 88dB

6Ohms + 6Ohms

10W + 10W

80W + 80W

86dB88dB

60Hz - 20kHz 60Hz - 20kHz60Hz - 20kHz60Hz - 20kHz

Dual 0.75' Black

Pearl silk tweeter

Dual 0.75' Black

Pearl silk tweeter

0.75' Black Pearl

silk tweeter

360 °variable

0.75' Black Pearl

silk tweeter

360 °variable

0.75' Black Pearl

silk tweeter

360 °variable

8.89’ (226mm)

8.11’ (206mm)

3.3’ (84mm)

10.5’ (265mm)

9.65’ (245mm)

3.7’ (95mm)

White White White WhiteWhite

1.3KG

Wide Sweet Point

8.89’ (226mm)

8.11’ (206mm)

3.3’ (84mm)

1.2KG

Wide Sweet Point

10.5’ (265mm)

9.65’ (245mm)

3.7’ (95mm)

1.52KG

6Ohms

10W

120W

86dB

60Hz - 20kHz

Wide Sweet Point

9.38’ (238mm)

8.19’ (208mm)

4.5’ (115mm)

1.32KG1.6KG

8' Graphite-Injected

Woofer

NBR surround

6.5' Graphite-Injected

Woofer

NBR surround

8' Graphite-Injected

Woofer

NBR surround

6.5' Graphite-Injected

Woofer

NBR surround

6.5' Graphite-Injected

Woofer

NBR surround

Ce manuel convient aux modèles suivants

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
