Chore-Time MV1600B Instructions de montage

48'' Belt Drive

Cone Fan

Installation & Operator’s Instruction Manual

MV1600-16/99

MV1600BAugust 1999

Chore-Time Warranty 48'' Belt Drive Cone Fan

2MV1600B

Chore-Time Equipment warrants each new product manufactured by it to be free from defects in material or

workmanship for one year from the date of initial installation by the original purchaser. If such a defect is found

by Chore-Time to exist within the one year period, Chore-Time will, at its option, (a) repair or replace such

product free of charge, F.O.B. the factory of manufacture, or (b) refund to the original purchaser the original

purchase price, in lieu of such repair or replacement.

Conditions and limitations:

1. The product must be installed and operated in accordance with instructions published by Chore-Time or

warranty will be void.

2. Warranty is void if all components of a system are not supplied by Chore-Time.

3. This product must be purchased from and installed by an authorized Chore-Time dealer or certified

representative thereof, or the warranty will be void.

4. Malfunctions or failure resulting from misuse, abuse, negligence, alteration, accident, or lack of proper

maintenance shall not be considered defects under this warranty.

5. This warranty applies only to systems for the care of poultry and livestock. Other applications in industry

or commerce are not covered by this warranty.

Chore-Timeshall not be liable for any Consequential or Special Damage which any purchaser may suffer or

claim to have suffered as a result of any defect in the product. “Consequential” or “Special Damages” as used

herein include, but are not limited to, lost or damaged products or goods, costs of transportation, lost sales, lost

orders, lost income, increased overhead, labor and incidental costs and operational inefficiencies.

THIS WARRANTY CONSTITUTES CHORE-TIME’S ENTIRE AND SOLE WARRANTY AND CHORE-

TIME EXPRESSLY DISCLAIMS ANY AND ALL OTHER WARRANTIES, INCLUDING, BUT NOT

LIMITED TO, EXPRESS AND IMPLIED WARRANTIES AS TO MERCHANTABILITY, FITNESS FOR

PARTICULAR PURPOSE SOLD AND DESCRIPTION OR QUALITY OF THE PRODUCT FURNISHED

HEREUNDER.

Any exceptions to this warranty must be authorized in writing by an officer of the company. Chore-Time reserves

the right to change models and specifications at any time without notice or obligation to improve previous models.

CHORE-TIME EQUIPMENT, A Division of CTB, Inc.

P.O. Box 2000

Milford, Indiana 46542-2000 U.S.A.

Chore-Time Warranty

Contents

Topic Page User

MV1600B 3

* Legend: C = Customer (end user), D = Distributor (sales), I = Installer of equipment

Chore-Time Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2C, D

Support Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4C, D, I

Distributor and Installer Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

About This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5C, D, I

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6C, D, I

Safety–Alert Symbol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Follow Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8C, I

Fan Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9C, I

Fan Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 I

Fan Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 I

Cone Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 I

Grill Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Motor Installation For Belt Drive Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 I

Sheave Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Belt Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 I

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 C, I

Itemized 48'' Belt Drive Cone Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 C, D, I

Motor Specifications and Parts Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 C, D, I

General 48'' Belt Drive Cone Fan

4MV1600B

Support Information

The Chore-Time 48" Galvanized Cone Fans are designed to be used as exhaust fans. The Fans are shipped

assembled. Using this equipment for any other purpose or in a way not within the operating recommendations

specified in this manual will void the warranty and may cause personal injury.

This manual is designed to provide comprehensive planning, installation, operation, and parts listing information.

The Table of Contents provides a convenient overview of the information in this manual. The Table of Contents

also specifies which pages contain information for the sales personnel, installer, and consumer (end user).

IMPORTANT: CE stands for certified Europe. It is a standard which

equipment must meet or exceed in ordered to be sold in Europe.CE provides

a benchmark for safety and manufacturing issues. CE is required only on

equipment sold in Europe.

Chore-Time Equipment recognizes CE Mark and pursues compliance in all

applicable products. Fill in the CE-Mark serial number in the blank space

provided for future reference.

Distributor and Installer Information

General

(CE-mark serial number)

Please fill in the following information about your Product.

Keep this manual in a clean, dry place for future reference.

Distributor’s Name___________________________________________________

Distributor’s Address ________________________________________________

Distributor’s Phone _______________________ Date of Purchase ___________

Installer’s Name _____________________________________________________

Installer’s Address___________________________________________________

Installer’s Phone _______________________ Date of Installation ___________

System Specifications________________________________________________

___________________________________________________________________

48'' Belt Drive Cone Fan About This Manual

MV1600B 5

The intent of this manual is to help you in two ways. One is to follow step-by-step in

the order of assembly of your product. The other way is for easy reference if you have

questions in a particular area.

Important ! Read ALL instructions carefully before starting construction.

Important ! Pay particular attention to all SAFETY information.

•Metric measurements are shown in millimeters and in square brackets, unless

otherwise specified. “"”equals inches and “ ' ” equals feet in English

measurements.

Examples:

1'' [25.4] 4' [1 219]

•Optional equipment contains necessary instructions for assembly or operation.

•Major changes from the last printing will be listed on the back cover.

•This Planning Symbol is used in areas where planning needs to take place before

construction continues.

•Verysmall numbersnear anillustration (i.e.,1257-48) are identification of the graphic,

not a part number.

About This Manual

Safety Information 48'' Belt Drive Cone Fan

6MV1600B

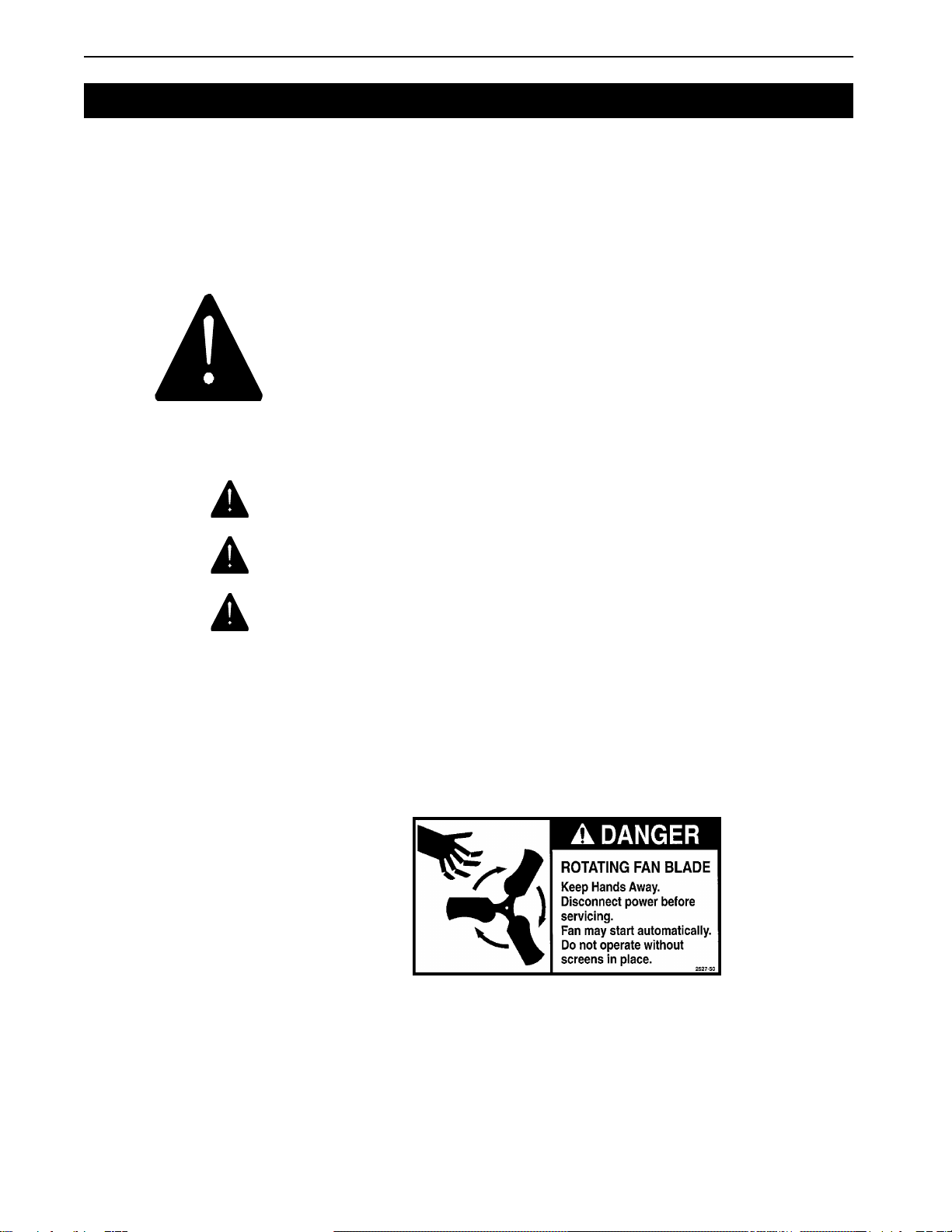

Caution, Warning, Danger Decals have been placed on the equipment to warn of

potentially dangerous situations. Care should be taken to keep this information intact

and easy to read at all times.

Replace missing or damaged safety signs.

Using the equipment for purposes other than specified in this manual may cause

personal injury and or damage to the equipment.

Safety–Alert Symbol

This is a safety–alert symbol.When you see this symbol on your equipment, be alert

to the potential for personal injury. This equipment is designed to be installed and

operated as safely as possible...however, hazards do exist.

Understanding Signal Words

Signal words are used in conjunction with the safety–alert symbol to identify the

severity of the warning.

DANGERindicates an imminently hazardous situation which, if not avoided,WILL

result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided,

COULD result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, MAY result in

minor or moderate injury.

Follow Safety Instructions

Carefully read all safety messages in this manual and on your equipment safety signs.

Follow recommended precautions and safe operating practices.

Keep safety signs in good condition. Replace missing or damaged safety signs.

Decal Descriptions

DANGER: Rotating Fan Blade

This Decal is placed on both sides of the shroud.

•Keep hands away.

•Disconnect power before servicing.

•The Fan may start automatically.

•Do not operate the Fan without the screens in place.

Safety Information

MV1600-0116/99

48'' Belt Drive Cone Fan Technical Information

MV1600B 7

Disregard to DANGER Decalinformation will cause serious injury including death.

Decal Placement

This diagram shows the proper location of the safety decal “DANGER—

ROTATING FAN BLADE” as shipped from the factory. Replace damaged or

missing decals. Make sure the decals may be seen at all times.

NOTE: These decals are on placed on both sides of shroud.

Important! Chore-Time Equipment strongly recommends that a good alarm system

should be installed in confinement buildings to warn of power failure

andhigh temperature. Chore-TimeEquipment also recommends that an

alternate power source be available for confinement buildings in case

of power failure.

Motor choices and specifications are provided in the Parts List section of this manual.

See Page 23Fan Motor specifications.

Important! Chore-Time Equipment strongly recommends that a good alarm system

should be installed in confinement buildings to warn of power failure

and high temperature.

Chore-Time Equipment also recommends that an alternate power

source be available for confinement buildings in case of power failure.

Tools Required

•Regular Screwdriver

•Hammer

•1/2'' Open End Wrench or Socket Wrench with 1/2'' Socket

•Wire Cutters & Strippers

•Adequate Size & Quantity of Electrical Wire

•5/16'' Hex Key Wrench

•5/16'' Open End Wrench or a 12 Point 3/8'' Socket and Ratchet

MV1600-011B6/99

1399-10 11/98

MV1600-0026/99

Figure 1. Decal Placement

Technical Information

Fan Installation 48'' Belt Drive Cone Fan

8MV1600B

Important! The 48'' Cone Fan must be installed in a side wall.

Build fan framing out of 2'' [50 mm] lumber (not supplied). The required rough

opening is provided in the table below.

Insert the Fan Assembly in the framed opening in the side wall

Center the Fan Assembly in the framed opening, left to right. Allow the Fan Housing

to set on the bottom of the framed opening.

Secure the Fan Assembly to the framed opening, using the included 1/4'' x 1-3/4'' Lag

Screws starting with the center holes in each panel. The end holes will also be used

for attaching the Corner Flange Angles.

Fan Installation

MV1600-007 6/99

MV1600-008B 6/99

Figure 3. Fan (side view)

Figure 2. Framing Diagram

(front view)

Table 1. Framing Size

Rough

Opening

Rough

Opening C D EF

55" 57 1/2" 33-3/8" 60-7/8" x 58.3" 5-3/4" 21"

48'' Belt Drive Cone Fan Fan Dimensions

MV1600B 9

Planning the layout of the spacing between Cone Fans is very

important. SPACING TO CLOSE TOGETHER WILL CAUSE

INTERFERENCE with the cones.

Allow a minimum 4'' spacing between framed openings for adjacent

fans. This will provide clearance for the mounting flange.

Fan Dimensions

MV1600-003 6/99 MV1600-006 6/99

Table 2.

Fan Dimensions

“A” “B” “C” “D” "E" "F"

48'' BD

Cone Fan 57''

[144.8 cm] 54.5''

[138.4 cm] 57''

[144.8 cm] 58.25''

[148.0 cm] 9.5''

[24.13 cm] 4'' Minimum Spacing

[10.16 cm]

Figure 4. Fan/Cone Dimensions

Figure 5. Cone Fan allow 4'' spacing between framed openings.

Fan Assembly 48'' Belt Drive Cone Fan

10 MV1600B

Assemble the Corner Flange Angles in each corner of the Fan, by sliding the Corner Flange Angle under

all edges of Flange Corners, secure with lag screws.

Fan Assembly

Blade

Rotation

MV1600-B01 8/99

Figure 6. Fan Assembly (side view)

1600-010 6/99

Item Description

1Fan Assembly

2Side Wall of Building

31/4''x1-3/4'' Lag Screw

4Corner Flange Angles

Table des matières

Autres manuels Chore-Time Ventilateur

Chore-Time

Chore-Time 27140-115 Manuel utilisateur

Chore-Time

Chore-Time Endura 56911 Series Guide de configuration

Chore-Time

Chore-Time 14843 Caractéristiques techniques

Chore-Time

Chore-Time PIGTEK PT5048 Manuel utilisateur

Chore-Time

Chore-Time Endura 56555-1 Series Guide de configuration

Chore-Time

Chore-Time Endura 57" Fan Guide de configuration

Chore-Time

Chore-Time Vanguard plus 48318 series Manuel utilisateur

Chore-Time

Chore-Time MV1666B Manuel utilisateur

Chore-Time

Chore-Time TURBO series Guide de l'administrateur

Chore-Time

Chore-Time TURBO MV1864P Guide de l'administrateur

Chore-Time

Chore-Time 50576 Caractéristiques techniques

Chore-Time

Chore-Time Endura 57" Fan Caractéristiques techniques

Chore-Time

Chore-Time Hyflo 53096-52 Guide de configuration

Chore-Time

Chore-Time TURBO Caractéristiques techniques

Chore-Time

Chore-Time 35000-0 Manuel utilisateur

Chore-Time

Chore-Time Hyflo Manuel utilisateur

Chore-Time

Chore-Time Hyflo Manuel utilisateur

Chore-Time

Chore-Time Mv1680-001 Caractéristiques techniques

Chore-Time

Chore-Time E-Z Manuel utilisateur

Chore-Time

Chore-Time TURBO Manuel utilisateur

Chore-Time

Chore-Time 27140-115 Manuel utilisateur

Chore-Time

Chore-Time Endura 57" Flush Mount Fan Manuel utilisateur

Chore-Time

Chore-Time Hyflo 50485 Caractéristiques techniques

Chore-Time

Chore-Time Hyflo Caractéristiques techniques

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
