ChipER Technology HLC-84BD/P Manuel utilisateur

1/46

User Manual

IP CAMERA

2/46

WARINGS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED

TO THEIR RESPECTIVE COMPANIES.

3/46

Content

I. PREFACE....................................................................................................................................... 4

II. PRODUCT SPECIFICATIONS....................................................................................................... 4

III. PRODUCT INSTALLATION........................................................................................................... 7

A. MONITOR SETTING.....................................................................................................................................7

B. HARDWARE INSTALLATION ASSIGNMENT...................................................................................................8

C. IPASSIGNMENT .......................................................................................................................................10

D. INSTALLACTIVEXCONTROL:...................................................................................................................12

IV. LIVE VIDEO.................................................................................................................................. 14

V. CONFIGURATION........................................................................................................................ 16

A. SYSTEM....................................................................................................................................................17

B. NETWORK................................................................................................................................................20

C. A/VSETTING ...........................................................................................................................................32

D. EVENT LIST..............................................................................................................................................38

VI. NETWORK CONFIGURATION.................................................................................................... 43

VII. FACTORY DEFAULT.................................................................................................................... 45

VIII. PACKAGE CONTENTS ............................................................................................................... 45

IX. MICRO SD CARD ........................................................................................................................ 46

V1.1_120515

4/46

I. Preface

This is a 1/2.7’’ 2M CMOS IP camera with the web server built in. User can view

real-time video via IE browser. It supports H.264, JPEG and MPEG4 video

compression which provides smooth and high video quality. The video can be

stored in the Micro SD card and playback remotely.

With user friendly interface, it is an easy-to-use IP camera which is designed for

security application.

II.Product Specifications

1/2.7” 2M CMOS Sensor

Digital Noise Reduction

Digital Wide Dynamic Range

Shutter Speed adjustion

Sense Up adjustion

Power over Ethernet available (Option)

H.264/ JPEG / MPEG4 compression

Micro SD card backup

DI/DO

Support iPhone/ Android/ Symbian /Blackberry/Mac

Triple Streaming

SDK for Software Integration

Free Bundle 36 Channel Recording Software

Specifications

Hardware

CPU

ARM 9 ,32 bit RISC

RAM

256MB

Flash

16MB

Image sensor

1/2.7” 2M CMOS sensor

Lens Type

4.2mm @ F1.6

Sensitivity

1.0 Lux @ 25fps

5/46

Shutter Time

1 / 5 ~ 1 / 10,000 sec

Audio

G.711(64K) and G.726(32K,24K) audio

compression

Input : Mic built-in

Output : 3.5mm phone jack, Support 2-way

audio

DI / DO

Power over Ethernet

Optional

Operating Temperature

0℃~40℃

Dimensions

59mm x 93.7(mm)x 45.5(mm)

Weight

240g

Network

Ethernet

10/ 100 Base-T

Network Protocol

HTTP, HTTPS, SNMP, QoS/DSCP, Access list,

IEEE 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP,

PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP,

SAMBA

Wireless (Optional)

Wireless

802.11 n/b/g

Security

WEP,WPA-PSK,WPA2-PSK

System

Video Resolution

1920x1080@25fps,

1280x720@25fps, ,640x480@30fps,

320x240@30fps, 176x144@30fps

Triple Streaming

Yes

CMOS setting

Brightness, Contrast, Hue, Saturation,

Sharpness, AGC, Shutter Speed adjustment,

Sense-Up, D-WDR, Flip, Mirror, Noise reduction

Image snapshot

Yes

Full screen monitoring

Yes

Zoom

Yes

Privacy Mask

Yes, 3 different areas

Compression format

H.264/ M-JPEG/ MPEG4

Video bitrates adjust

CBR, VBR

Motion Detection

Yes, 3 different areas

Triggered action

Mail, FTP, Save to SD card, DO, SAMBA

6/46

Pre/ Post alarm

Yes, configurable

Security

Password protection, IP address filtering,

HTTPS encrypted data transmission, 802.1X

port-based authentication for network protection,

QoS/DSCP

Firmware upgrade

HTTP mode, can be upgraded remotely

Simultaneous connection

Up to 10

Micro SD card management

Recording trigger

Motion Detection, IP check, Network break down

(wire only),schedule, DI

Video format

AVI, JPEG

Video playback

Yes

Delete files

Yes

Web browsing requirement

Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or

above

Hardware

Suggested

Intel Dual Core 2.53G,RAM: 1024MB, Graphic

card: 128MB

Minimum

Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB

7/46

III. Product Installation

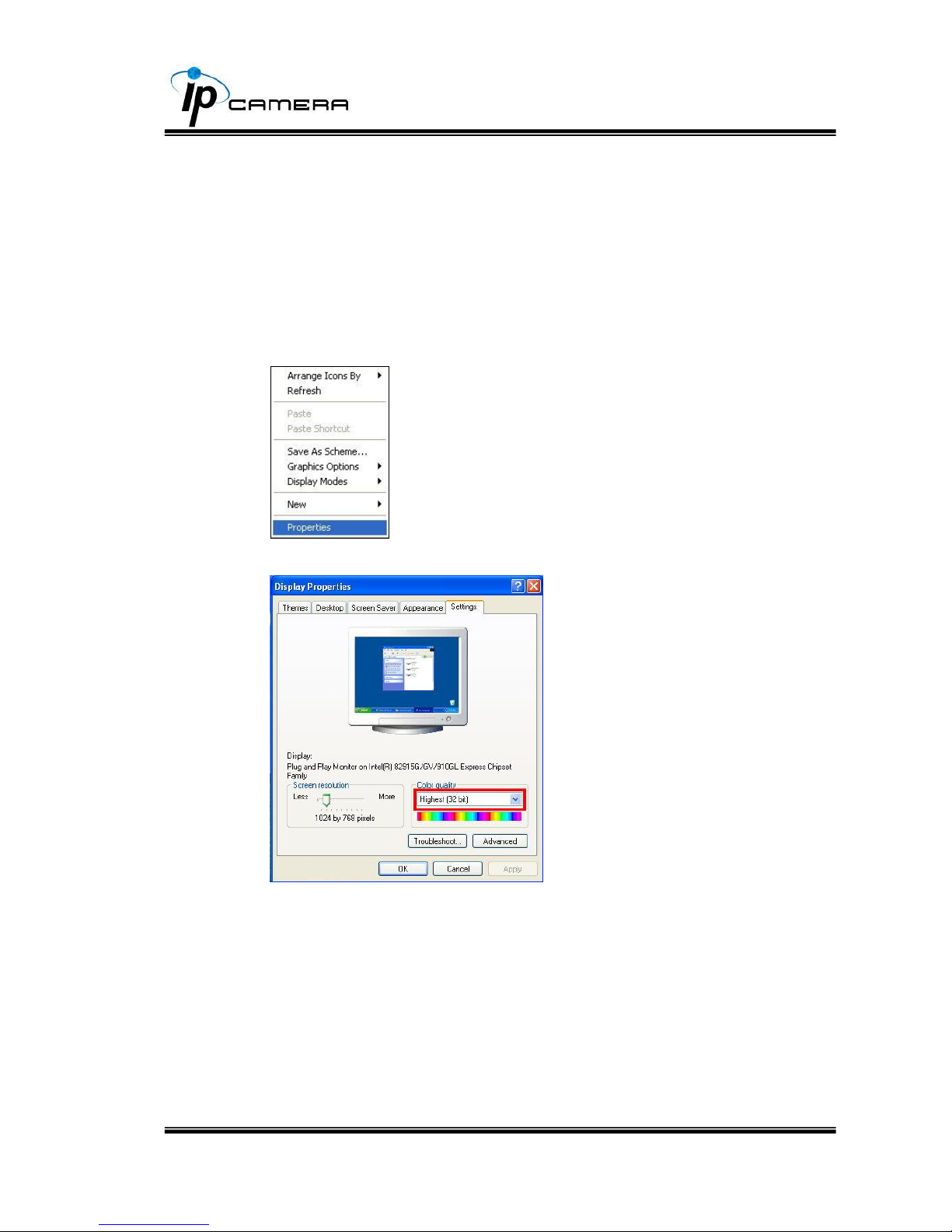

A. Monitor Setting

i. Right-Click on the desktop. Select “ Properties”

ii. Change color quality to highest (32bit).

8/46

B. Hardware Installation Assignment

i. Camera Construction

Please refer to the picture for camera installation. Use the screws to

lock the bracket to the wall or ceiling, and then connect the camera to

the bracket. There’s a knob on the back of the bracket. Loosen the

knob and you can adjust the angle of camera. Tighten it to fix the

angle.

ii. Connect power adaptor.

Connect IP Cam to PC or network with Ethernet cable.

Set up the network configurations according to the network

environment. For further explanation, please refer to chapter VI,

“Network Configuration for IP CAMERA”.

9/46

iii. PoE ( Power Over Ethernet)(Optional) 802.3af, 15.4W PoE Switch is

recommended

Power over Ethernet (PoE) is a technology that integrates power into a

standard LAN infrastructure. It enables power to be provided to the

network device, such as an IP phone or a network camera, using the

same cable as that used for network connection. It eliminates the need

for power outlets at the camera locations and enables easier application

of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days

a week operation.

Ethernet

PoE Switch

PoE IP Camera

Ethernet Cable

10/46

C. IP Assignment

i. Use the software, “IP Installer” to assign the IP address of IP CAMERA.

The software is in the attached software CD.

ii. IP installer supports two languages

a. IPInstallerCht.exe：Chinese version

b. IPInstallerEng.exe：English version

iii. There are 3 kinds of IP configuration.

a. Fixed IP (Public IP or Virtual IP)

b. DHCP (Dynamic IP)

c. Dial-up (PPPoE)

iv. Execute IP Installer

v. For Windows XP SP2 user, it may popup the following message box.

Please click “Unblock”.

vi. IP Installer configuration:

vii. IP Installer will search all IP Cameras connected on Lan. The user can
