Chinavasion BSJ-H1 Manuel utilisateur

GPS Handle telephone

BSJ-H1

User manual

Dear clients,

Thanks to use the GPS tracker systems

Please read the user manual carefully.

Please keep the user manual carefully, then for reference.

Before use the product, please put it on the stable platform.

Before the connection of the equipment and the terminal, make sure that the voltage,

the connection is placed will not be trampled.

Before inserting any module or connection, please disconnect the power.

Please note that all the attention and warnings mentioned in the manual.

Keep this device dry, shall not pour any liquid into the seam slot, otherwise it will cause

serious damage or paralysis circuit.

2010/05/30

chapter 1 Products introduce

1.1 outline

BSJ-H1 car phone is connected with a host of vehicle equipment for voice, SMS communications and

terminal settings. Handle calls as the visual interface of the GPS mobile terminal products, the main

function of sending and receiving text messages, read messages, call answer (hands free) phone, to

look at cars. With simple, safe, reliable, clear and so on.

1.2 parameter

a．Display characteristics

Dots: 128 X 64

The LCD duty.: 1/65

Bias :: 1/9 bias

Viewing angle: 6 o 'clock

Backlight color: blue

b．The Power the Requirements

5VDC Voltage range: 5VDC

Operating current: less than 100mA

c．Environmental requirements

Operating temperature: -10 ℃~ +55 ℃

Storage Temperature: -25 ° C to +70 ° C

Relative humidity: 5% ~ 95%

1.3 function

※Built-in backlight: yellow

※Positioning status display: Displays the status of GPS positioning

※Communication status display: shows the GPS on / off state

※Editorial input methods: Chinese input, character input, symbols input, five strokes input.

※Messaging capabilities (storage capacity: fixed information 128, 128 + edit information + received

128 of the center information)

※check the call record: dialed phone 200 + answered phone 200 + 200 missed calls

※200 records edit stored telephone number: You can store phone

※Group call: can store 200 phone number within the group

※Dial, call, caller ID, ring features: dialing, call according to user requirements, set by the supply-side

※Manual / Auto answer the phone when the call switch (call, speakerphone, and scheduling screen

switching between)

※Call barring: set by the user or the supplier factory settings

※monitor the cars (lock your car) setting

※Concealment (privacy) mode setting

※Owners alarm number associated function

1.4 Phone instructions

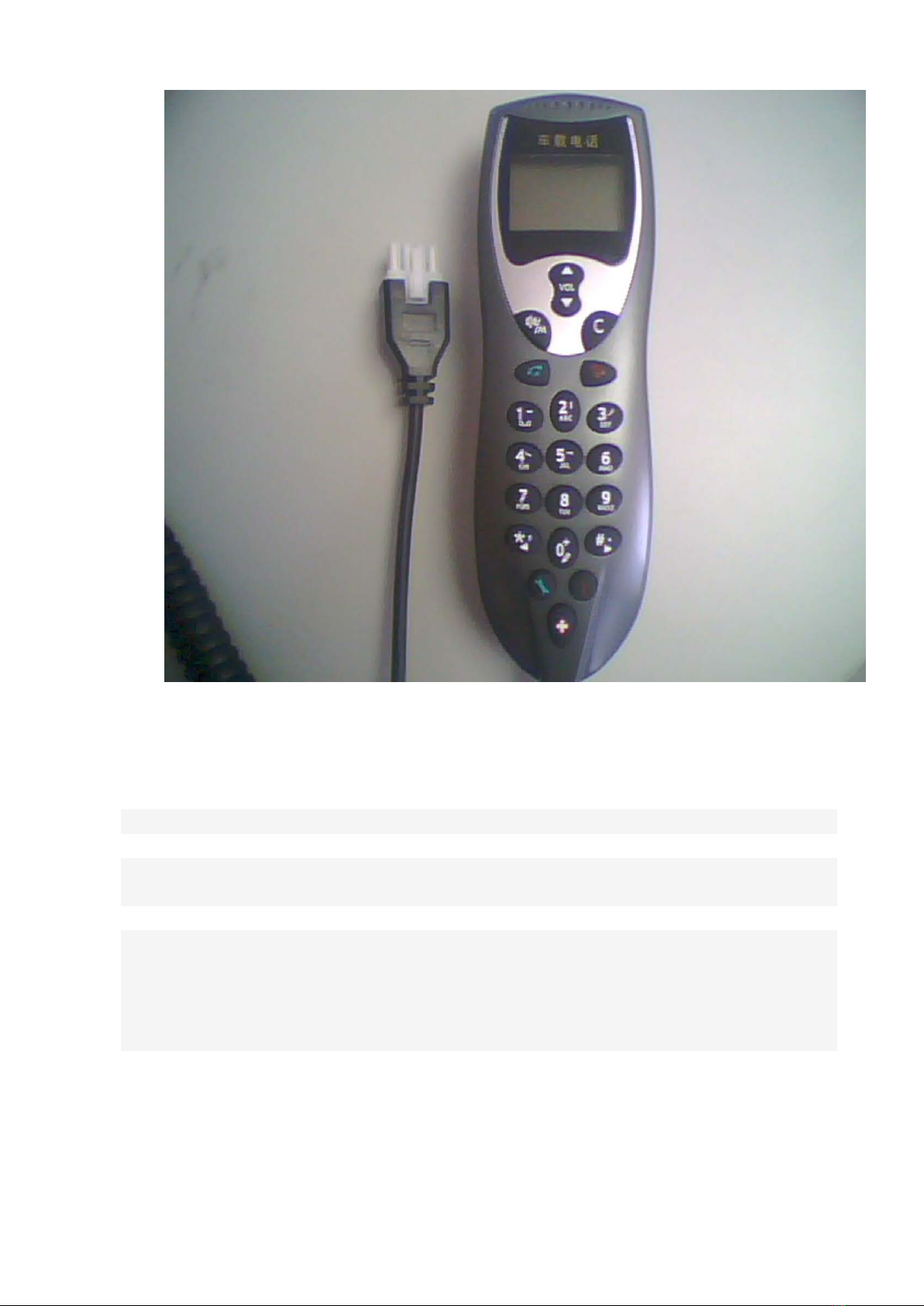

1.4. Phone instructions diagram

Vehicle phone instructions Figure

图1

1.4.2 电话机菜单

图2

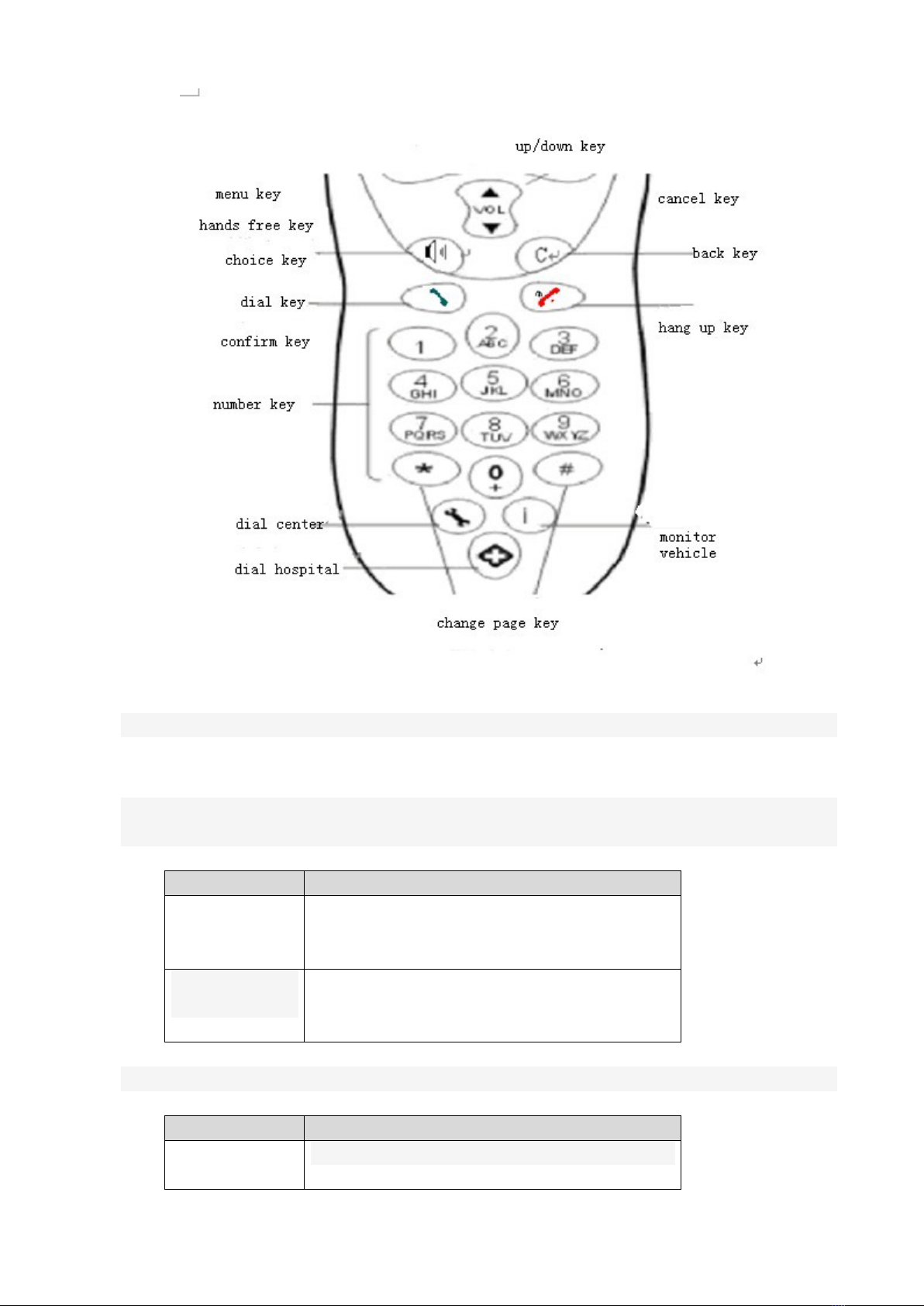

Vehicle phone button Figure

Display phone status indicator, use the phone, the corresponding indicator appears on the display.

Information, phone number, menu options in the lower half of the screen.

①Signal strength indicator to show your phone and the communication network to connect the signal

②GPS positioning indicates that your device is positioned when the positioning icon appears.

③Connect GPRS network.

④GPS time when the GPS positioning time is displayed.

⑤Menu

图3

Method of operation

Dial and answer calls

input the phone number in the standby mode

button function

press

dial

button

dial

Press the hang

up key

cancel dial

redial

In standby mode, you can redial an outgoing number.

button function

press dial

button

Directly into the outgoing calls list

press up/dawn

button

find the phone number you want to call

press dial

button

Re-dial the selected number

press the hang

up button

cancel dial

reply the not answer phone and answered

The phone will be retained not answer the phone records and the answered phone record

button function

press menu key

View call records and choose not answer the phone

or answered phone,

enter the incoming calls or

answered phone list, most recent incoming calls or

answered phone in the top of the list.

press up/down

key

Browse the list, select the call back number

Press dial key send the number

ress hang up

key cancel the number

Dial the emergency phone

button function

press number key dial the emergency phone

press key dial emergency number

cut off the calls

button function

press hang up key cut off the coming calls

Answer incoming calls: when the phone rings:

button function

Press dial key answer the call

Note: When the user has downloaded the phone number of the Group, the only dial and receive group

telephone number in the phone number and emergency telephone. (This function is limited to GPRS

system, GSM car system is not valid)

1.5.2 use menu

在待机时 Shortcuts: in standby

button function

1press UP key check location information and the version

information of the phone

2press down key Directly into the reading information

3press dial key Direct into dialed list

press Hands-free

switching key

Direct into menu options

This part will tell you to find a specific menu and function.

1.5.2.1 phone book

> look for phone number

> add the phone number

> group phone number

You can add the phone number to find the phone book and view the Group group (to download)

※add the phone number

A record must enter a phone number and name (phone book can store a total of 160 records)

button function

1press key Enter into main menu

2 press key Enter into phone book

3press key Enter into phone edit menu

4press key Enter the name edit interface

input name

press key

input name

5press key Save the entries already entered and return to the

phonebook menu

6press C key back to the last order

※Find phone and check the number of Group

button function

1press key Select a location number, enter the checking phone

list or group number list.

press up/down

key

Select the phone number you want to check

3press key dial the number

4press key back to the last menu

※cancel record

Press the Menu key to enter to find a phone list, check the phone records of number of options

> dial back

> cancel

> Delete all

button function

press up/down

key

Choose to operate the project (highlight display)

2press key Delete or dial the phone number

3press C key Back to the last menu

1.5.2.2 message

read message

write new message

※

button function

press or key

Enter the main menu, select the part of the read

information

2press key Enter to read the message list, select the type of

information you want to check ( highlighted), select

the information you want to check.

3press key Select the information，press key

4press C key back to the last menu

Note: The fixed information from the factory setting (can be saved 99)

Saved information is the user edit the information stored (can be saved 20)

Income central information is sent over the dispatch center (can be saved20)

Received phone information is sent over the other mobile phone users (can be saved 20)

※write message

button function

1press key

enter into the main menu, select to write the new

information section

2press key enter into to the information edit screen

press

number key

input the message

4 press key

Choose to send or save the message

5 press C

key

back to the last menu

Note: The information input, please see 1.5.3 Keyboard Input Method

※delete information

enter Into the store information list or the list of recycling center or have received phone list. Press

to select Sending options:

> Send to a central

> Send to phone

> Delete this section, information

> Delete all

button function

press up/down

key

Select the operating information

2press key Delete, or send the information or delete all

3press C key back to the last menu

1.5.2.3 Call History

> dialed phone

> answered the phone

> Missed calls

Allows you to check the recent dialed phone or answered phone or missed calls.

button function

1．press key To enter the record, select and press to

enter into

press up/down

key

Select the record you want to check (Highlight)

3press key redial the group number

4press C key back to the last menu

1.5.2.4 phone settings

※factory settings

Phone factory settings are set at the factory and can not be changed by the user.

※contrast

※

button function

Into the phone settings

Contrast column is selected, press key

from the main menu

press up/down key Adjust the contrast

3press key To save current settings

4press C key back to the last menu

※monitor the car set

> On

> Off

> Setting mode

> Change Password

Enter the user set the password

Note: The default password is 888888 For your safety, please change your password

button function

1press key input password

2press key Into the setting to check the car menu

press up/down

key

Select the project (Highlight)

4presskey Set up to monitor the cars or lifted to monitor the t

cars or change your password

5press C key back to the last menu

※Ring tones to select

button function

1press key To enter the ring tone options

2press

up/down key

Select ring tones (Highlight)

3press key Saved ring tones

3press C key back to the last menu

※hidden mode

If the owner has set up a hidden mode, the monitoring center can not be found in the vehicle location.

Once the vehicle alarm monitoring center can receive the vehicle hidden mode automatically eliminated.

※user number associated

Settings and owners associated with the user phone number, when the vehicle alarm, car to the center

to send the alarm information to the user to send alarm information.

※not anti-alarm time

The user can set a given time, turn off the vehicle at a given time not related to protection, the terminal

will automatically prompt.
