MIG-100 WELDERMIG-100 WELDER

MIG-100 WELDER

WITH THERMAL OVERLOADWITH THERMAL OVERLOAD

WITH THERMAL OVERLOAD

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or

form without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts, please call 1-800-444-3353.

91124

REVISED 12/04

Page 2SKU 91124

Specifications

SaveThis Manual

You will need the manual for the safety warnings and precautions, assembly instructions,

operating and maintenance procedures, parts list and diagram. Keep your invoice with this

manual. Write the invoice number on the inside of the front cover. Keep the manual and

invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to

reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp or wet

locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically

powered tools in the presence of flammable gases or liquids.

3. Keep children away. Children must never be allowed in the work area. Do not let them

handle machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit

rust. Always lock up tools and keep out of reach of children.

5. Do not force tool. It will do the job better and more safely at the rate for which it was

intended. Donotuseinappropriate attachments in an attempt toexceedthetoolcapacity.

ITEM DESCRIPTION

Welding Current 90 AMPs

Duty Cycle 10%@90AMPs

Power Consumption 110VAC, 23 amps

Heat Control Switch on Unit This model is not adjustable

Ground Cable 4 AWG, single insulation, 6 foot

Torch Power Cable 8 AWG, single insulation, 6 foot

Power Cord 3-core, double insulated, 14 AWG, U.L. approved

Power Cord Plug UL Approved

Thermal Overload Both settings: 10 min. shutdown, 3 min. back on with Light

WelderTip 0.030”;Spare:WelderTip 0.035 inch;

Will also accept 0.023” welder tip

Wire Size 0.030 inch flux core wire when using 0.030”WelderTip

Wire Spool Size 4 inches diameter

Overall Dimensions 14-1/2 (L) x 8-1/2 (W) x 15-1/2 (H) inches

Weight 34.45 lbs.

Accessories SpareWelderTip

Welding Face Shield

Wire Brush / Hammer combination

REV 06/04

Page 3SKU 91124

6. Use the right tool for the job. Do not attempt to force a small tool or attachment to do

the work of a larger industrial tool.There are certain applications for which this tool was

designed. Do not modify this tool and do not use this tool for a purpose for which it was

not intended.

7. Dress properly. Do not wear loose clothing or jewelry as they can be caught in moving

parts. Protective, electrically nonconductive clothes and nonskid footwear are

recommended when working. Wear restrictive hair covering to contain long hair.

8. Use eye and ear protection. Always wear ANSI approved, arc shaded, impact safety

face shield. Always use the full face shield (provided) when arc welding.Wear an ANSI

approved dust mask or respirator when working around metal, chemical dusts, fumes

and mists.

9. Do not overreach. Keep proper footing and balance at all times. Do not reach over or

across running machines.

10. Maintain tools with care. Keep tools sharp and clean for better and safer performance.

Followinstructionsforlubricatingandchangingaccessories.Inspecttoolcordsperiodically

and, if damaged, have them repaired by an authorized technician.The handles must be

kept clean, dry, and free from oil and grease at all times.

11. Disconnect power.Unplug tool when not in use.

12. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches are

removed from the tool or machine work surface before plugging it in.

13. Avoid unintentional starting. Be sure the switch is in the Off position when not in use

and before plugging in.Do not carry any tool with your finger on the trigger, whether it is

plugged in or not.

14. Stay alert. Watch what you are doing, use common sense. Do not operate any tool

when you are tired.

15. Check for damaged parts. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform its

intended function.Check for alignment and binding of moving parts;any broken parts or

mounting fixtures; and any other condition that may affect proper operation. Any part

that is damaged should be properly repaired or replaced by a qualified technician. Do

not use the tool if any switch does not turn On and Off properly.

16. Guard against electric shock. Prevent body contact with grounded surfaces such as

pipes, radiators, ranges, and refrigerator enclosures.

17. Replacement parts and accessories. When servicing, use only identical replacement

parts. Use of any other parts will void the warranty. Only use accessories intended for

use with this tool. Approved accessories are available from Harbor Freight Tools.

18. Do not operate tool if under the influence of alcohol or drugs. Read warning labels

on prescriptions to determine if your judgment or reflexes are impaired while taking

drugs. If there is any doubt, do not operate the tool.

19. Maintenance. For your safety, service and maintenance should be performed regularly

by a qualified technician.

Page 4SKU 91124

20. Use proper size and type extension cord.If an extension cord is required, it must be of

the proper size and type to supply the correct current to the tool without heating up.

Otherwise, the extension cord could melt and catch fire, or cause electrical damage to

the tool.This tool requires use of an extension cord of 20 amps minimum capability (up

to 30 feet), with wire size rated at 12 AWG. Longer extension cords require larger size

wire. If you are using the tool outdoors, use an extension cord rated for outdoor use

(signified by “WA” on the jacket).

Note: Performance of this tool may vary depending on variations in local line voltage.Exten-

sion cord usage may also affect tool performance.

Warning:The warnings,cautions,and instructions discussed in this instruction manual

cannot cover all possible conditions and situations that may occur. It must be under-

stood by the operator that common sense and caution are factors which cannot be

built into this product, but must be supplied by the operator.

Arc Welding Safety Warnings and Precautions

Warning:This product,when used for welding and similar applications,produces chemi-

cals known to the State of California to cause cancer and birth defects (or other repro-

ductive harm). California Health & Safety Code 25249.5, et seq.

1. Avoid electrical shock. Do not permit electrically live parts, cables, or electrodes to

contact skin, clothing, or gloves. Protective clothing should be hole-free, dry, and ANSI

approved.

Thisunitdrawsenoughcurrenttocause serious injury or death.Beforeturning the welder

on, check the electrode holder to be sure that there are no protruding screw heads, and

that all insulation is secure. Do not weld unless you are insulated from ground and the

work piece.

2. Avoid breathing fumes or gases. They can cause serious health problems. Use an

active ventilation system directly above the welding area. Keep your head out of the

fumes.

REV 05/04

Page 5SKU 91124

Assembly

1. Attach the Handle (30) to the Cover (31) using screw (29) inserted from the Handle

top-rear. Refer to the photo at the top of page 6, and the Assembly Drawing on page

10.

2. Attach the Cover Locking Spring (8) to the front of the Base Frame (14) using the

supplied self-tapping screw.

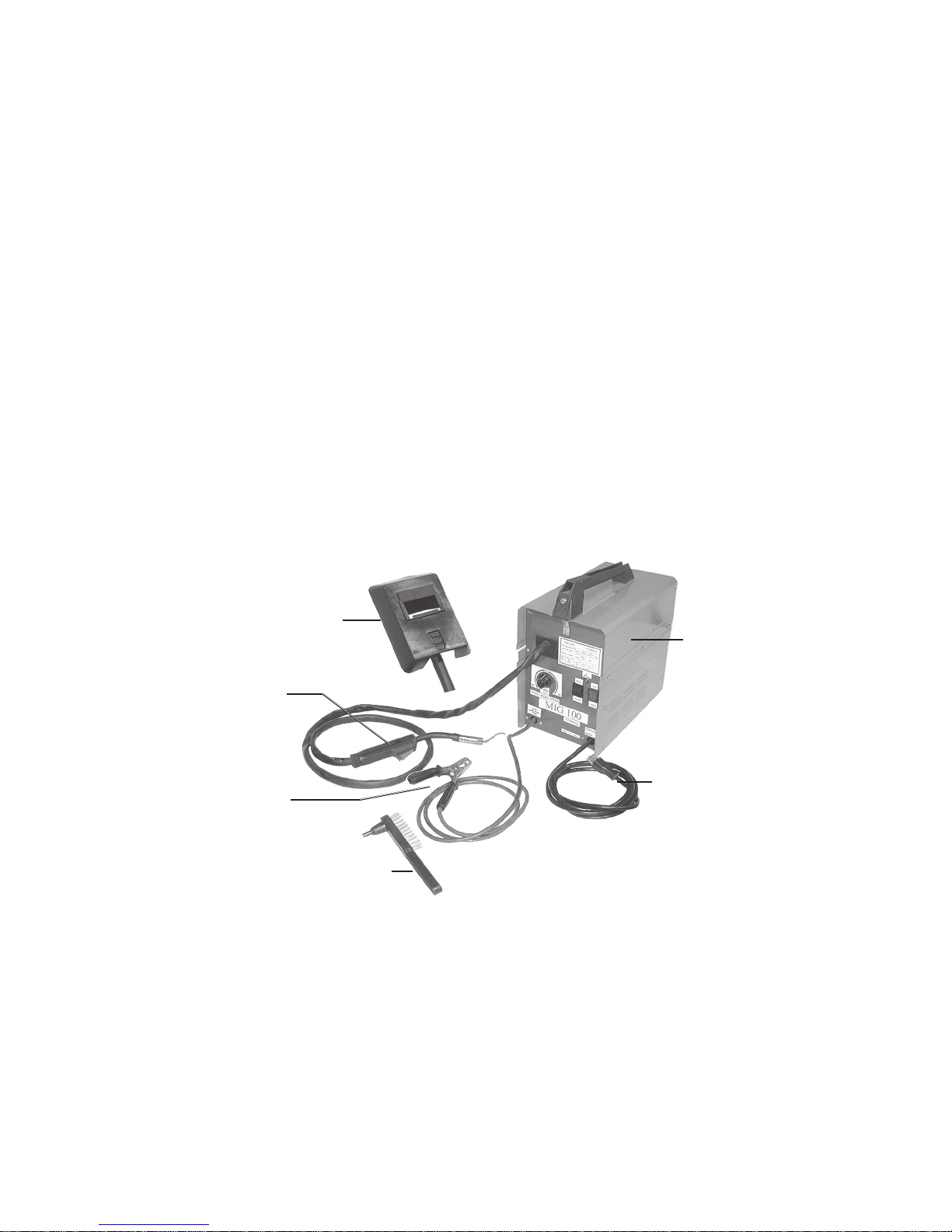

Unpacking

When unpacking, check to make sure the following parts are included.

If any parts are missing or broken, please call Harbor Freight Tools at the number on the

cover of this manual as soon as possible.

Wire Spool and Spare

Welding Tip not shown here.

Torch (1)

Face Shield (38) MIG-100 Welder

Power Cord (32)

Wire Brush / Hammer (39)

Ground Cable (33)

3. Avoid eye and body damage. Arc rays and infrared radiation can injure eyes and burn

skin. Wear ANSI approved eye and body protection. Do not allow viewing by visitors

without proper eye and body protection. Use the provided Face Shield with arc shaded

filter plate.

4. Know proper arc welding practices. Read and understand the manufacturer’s

instructions, as well as your employer’s safety practices for arc welding.

5. Connect only to a code approved power source. Connect only to a grounding power

source conforming to the National Electrical Code and Local Codes.

6. Avoid fire and explosion. Remove flammable and explosive material from at least 35

feet from the welding arc to prevent welding sparks or molten metal from starting a fire.

Keep a type ABC fire extinguisher within easy reach.Thoroughly clean the object being

welded of any paint, grease, or other foreign material.

7. Avoid being burned. Always wear ANSI approved welding gear:leather gloves, leather

apron, and shoes.

Page 6SKU 91124

Note:

What does the term“duty cycle mean?

Duty cycle is a welding equipment specification, which defines the number of minutes, within

a 10-minute period, during which a given welder can safely produce a particular welding

current. For example, this 90 amp welder with a 10% duty cycle must be rested for at least 9

minutes after 1 minute of continuous welding.

Failureto carefully observedutycycle limitations can easilyoverstress a welder’s power

generation system contributing to premature welder failure. Many welders do not have

internal protection systems that prevent this sort of over stress -- leaving the task to the

owner or operator.

Operation

The MIG 100 Welder is used to weld sheet metal and light carbon steel.

Cover Locking Spring (8)

Cover(31)

Handle(30)

Wire Reel (27)

Switch (7) Power On / Off

Switch (7) Current Min. / Max.*

Overload Indicator Light (22)

Wire Feed Speed Knob (9)

Torch (1) Cable

Ground Cable (33) Power Cord (32)

* NOTE:THIS UNIT IS

NOT ADJUSTABLE.

Page 7SKU 91124

Caution: Before arc welding, read and understand all safety precautions and warnings

listed on pages 2 through 5.

1. Securely clamp the Ground Cable Clamp (33) as close as possible to the metal object

to be welded, or to the metal work bench where the object is mounted and electrically

connected.

2. This unit is not adjustable. Current switch is set at 90 AMPs.

3. Verify that the Power Switch is in the OFF position, then plug the MIG-100 Welder plug

into a dedicated, 110 VAC, 20 amp line with delayed action type circuit breaker or

fuses.

If an extension cord is used, it must have the following wire size: up to 30 feet, use 12

AWG size wire; 30 to 50 feet, use 10 AWG wire; Over 50 feet, use 8 AWG wire.

4. While holding the Torch Cable Clamp with electrode wire clearly out of the way of any

grounded objects, turn the Power Switch to the ON position.

5. Momentarily press the Torch switch to test the wire feed speed.

Adjust the speed by turning the Wire Feed Speed Knob

(9).

6. Orient yourself on the area to be welded, then place the

Face Shield over your eyes.

Warning:Never look attheignited arcwithout ANSI approved,

arc shaded, eye protection in a full face shield. Permanent

eye damage or blindness can occur. Skin burns can occur.

Never breath arc fumes.

7. Press (and hold) theTorch button and stroke the area to be

welded with the electrode wire to ignite the arc.

Never tap the electrode wire into the welding surface to ignite the arc.This damages its

external coating on the electrode which prevents oxygen in the air from coming into

contact with the molten metal, causing it to oxidize.

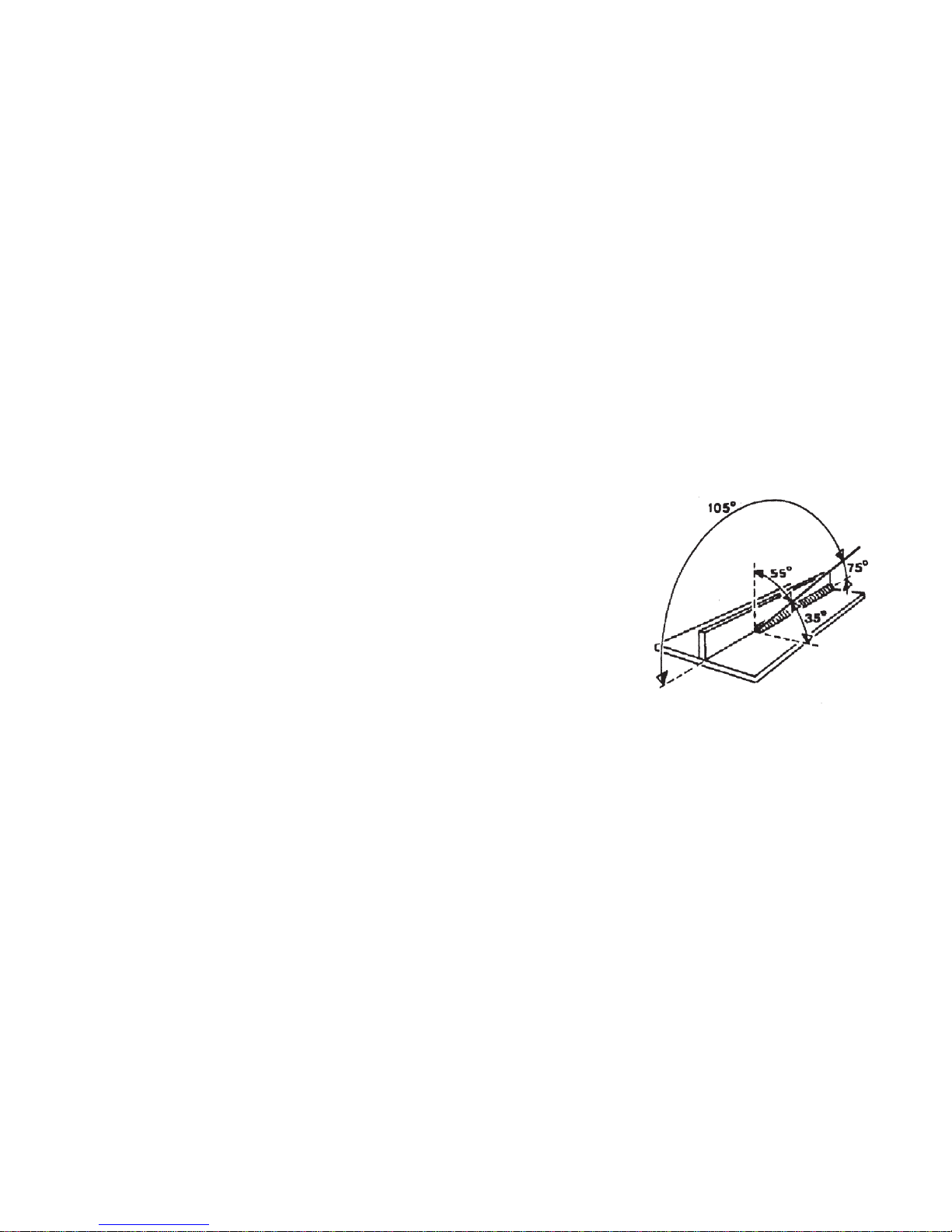

8. Once the arc is ignited, tilt the electrode wire forward at an angle of approximately 35°.

The wire feeds automatically at a speed dependent on the Min. or Max. current setting.

Note: If too much current is drawn from the MIGWelder, theThermal Overload protector will

activate, the amber indicator will light, and the Arc Welder will turn off until it cools down.If this

happens, turn the Power Switch to the OFF position and wait about 3 ~ 5 minutes.

9. When the weld is complete, lift the electrode wire clearly away from any grounded

object, set the Face Shield down and turn toward the MIG-100 Welder and turn the

Power Switch to the OFF position.

10. Unplug the Power Cord from the electrical outlet.

Page 8SKU 91124

Maintenance

Caution:Before performing any maintenance on the MIGWelder,unplug the Power Cord

from the electrical outlet.

1. Periodically remove the Right and Left side panels (12 and 13), and using compressed

air, blow out all dust from the interior.

2. Store in a clean and dry location.

Replacing theWire Reel

When the wire on the Feed Reel is used up, you will need to replace it as follows.

1. Press on the Cover Locking Spring (8), then lift the Cover (31) using Handle (30) to

expose the Wire Feed Unit (23).

2. Unscrew the Wing Nut (25) and remove the Reel Locking Knob (26).

3. Remove the empty Wire Reel (27).

4. Place the newWire Reel over the shaft and onto the Reel Spring (24).

The wire on the reel should unwind counterclockwise

(see photo above).

5. Replace the Reel Locking Knob and the Wing Nut.

Tighten well.

6. Lift the Wire Feed Adjusting Spring (36) to remove

tension.

7. Guide at least 12 inches of wire into theTorch Sheath.

If the end of the wire is crimped or bent, cut it off.

8. Replace tension to the Wire Feed Adjusting Spring (36).

WireSheath

WireFeed Adjusting Spring(36) TensionAdjusting

Screw(37)

Page 9SKU 91124

9. Turn the Torch Handle Nozzle counterclockwise and pull to remove.

10. Turn the Contact Tip counterclockwise and remove.

11. Lay theTorch Sheath out in a straight line so that the wire moves through it easily.

Warning:The following steps require applying power to the welder. Do not touch any-

thing with theTorch Handle or an arc may be ignited.

12. Plug the Power Cord into its electrical outlet, press the Current Switch to Max., and turn

the welder ON.

13. Lift the Torch Handle and continue pressing the Trigger until the wire feeds through two

inches.

If the wire does not feed, view the Wire Feed Unit and see if the wire is being pushed.

If it is not, turn the welder OFF and add more tension to the Wire Feed Adjusting

Spring (36).

14. Turn the welder ON again and press the Trigger.

15. Once the wire is exposed, turn the welder OFF and unplug it.

16. Slide the Contact Tip over the wire and screw it into Torch Handle.

17. Replace the Nozzle and cut off any excess wire over two inches.

18. Secure the Cover.

PLEASE READTHE FOLLOWING CAREFULLY

THEMANUFACTURERAND/OR DISTRIBUTORHAS PROVIDEDTHEPARTSDIAGRAMINTHIS

MANUALASA REFERENCETOOLONLY. NEITHERTHEMANUFACTURERNORDISTRIBUTOR

MAKES ANY REPRESENTATION OR WARRANTY OF ANY KINDTOTHE BUYERTHAT HE OR

SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS

QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER

AND/ORDISTRIBUTOREXPRESSLY STATESTHATALLREPAIRSANDPARTSREPLACEMENTS

SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSEDTECHNICIANS AND NOT BYTHE

BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER

REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING

OUTOF HIS OR HER INSTALLATIONOF REPLACEMENTPARTSTHERETO.

Page 10SKU 91124

Welder Parts List

Item # Description Qty

1Torch 1

2 Contact Tip 1

3Nozzle 1

4Liner 1

5 Fixing Pole (A) for Gun Body 1

6 Fixing Pole (B) for Gun Body 1

7Switch 2

8 Cover Locking Spring 1

9Knob 1

10 Nut 1

11 Speed Control Circuit Board 1

12 Right Side Panel 1

13 Left Side Panel 1

14 Base Frame 1

15 Foot 4

16 Washer 4

17 Self-tapping Screw, ST4.2*13 4

18 Transformer Carriage 2

19 Thermostat 1

20 Transformer 1

Item # Description Qty

21 Middle Partition Board 1

22 Overload Indicator Lamp 1

23 Wire Feed Unit 1

24 Reel Spring 1

25 Wing Nut, M6 1

26 Reel Locking Knob 1

27 Wire Reel 1

28 Reel Holder 1

29 Self-tapping Screw, ST4.2*25 1

30 Handle 1

31 Cover 1

32 Power Cord 1

33 Ground Cable 1

34 Wire Feed Roller 1

35 Wire Feed Bearing 1

36 Wire Feed Adjusting Spring 1

37 Adjustment Screw 1

38 Face Shield 1

39 Wire Brush / Hammer 1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Chicago Electric Système de soudage

Chicago Electric

Chicago Electric 91814 Manuel utilisateur

Chicago Electric

Chicago Electric 68888 Manuel utilisateur

Chicago Electric

Chicago Electric 45690 Manuel utilisateur

Chicago Electric

Chicago Electric 69029 Manuel utilisateur

Chicago Electric

Chicago Electric MIG 180 Manuel utilisateur

Chicago Electric

Chicago Electric MIG 170 Instructions de montage

Chicago Electric

Chicago Electric 98870 Manuel d'installation

Chicago Electric

Chicago Electric 61888 Manuel utilisateur

Chicago Electric

Chicago Electric 91110 Manuel utilisateur

Chicago Electric

Chicago Electric 64057 Manuel utilisateur

Chicago Electric

Chicago Electric 96712 Instructions de montage

Chicago Electric

Chicago Electric 8878 Manuel de la liste des pièces

Chicago Electric

Chicago Electric 90648 Manuel utilisateur

Chicago Electric

Chicago Electric 97994 Manuel d'installation

Chicago Electric

Chicago Electric 92652 Manuel utilisateur

Chicago Electric

Chicago Electric 91811 Manuel utilisateur

Chicago Electric

Chicago Electric 44567 Assembly and Manuel utilisateur

Chicago Electric

Chicago Electric Chicago Electric Welding Torch Mini-Kit... Manuel utilisateur

Chicago Electric

Chicago Electric 2665 Manuel utilisateur

Chicago Electric

Chicago Electric 97503 Manuel d'installation

Chicago Electric

Chicago Electric MIG 200 93804 Manuel utilisateur

Chicago Electric

Chicago Electric 68888 Instructions de montage

Chicago Electric

Chicago Electric 98958 Instructions de montage

Chicago Electric

Chicago Electric 61205 Instructions de montage

Manuels Système de soudage populaires d'autres marques

Berner

Berner PLASMACUT 54 Manuel utilisateur

Pro Spot

Pro Spot PR-155 Manuel utilisateur

Forney

Forney 210 Manuel utilisateur

Thermal Arc

Thermal Arc 400S Manuel utilisateur

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuel utilisateur

GYS

GYS PROTIG 201 AC/DC Manuel utilisateur

TAFA

TAFA 30*8B35 Manuel utilisateur

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuel utilisateur

ESAB

ESAB Buddy Arc 145 Manuel utilisateur

CIGWELD

CIGWELD 636804 Guide rapide

Red-D-Arc

Red-D-Arc DC-400 Manuel utilisateur

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuel utilisateur

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuel utilisateur

WIA

WIA Weldmatic 270 CP132-2 Manuel utilisateur

Sonics

Sonics H520T Manuel utilisateur

Miller

Miller Big Blue 400D Manuel utilisateur

NewArc

NewArc RT2000 Guide de démarrage rapide

Hypertherm

Hypertherm powermax1000 Manuel utilisateur
