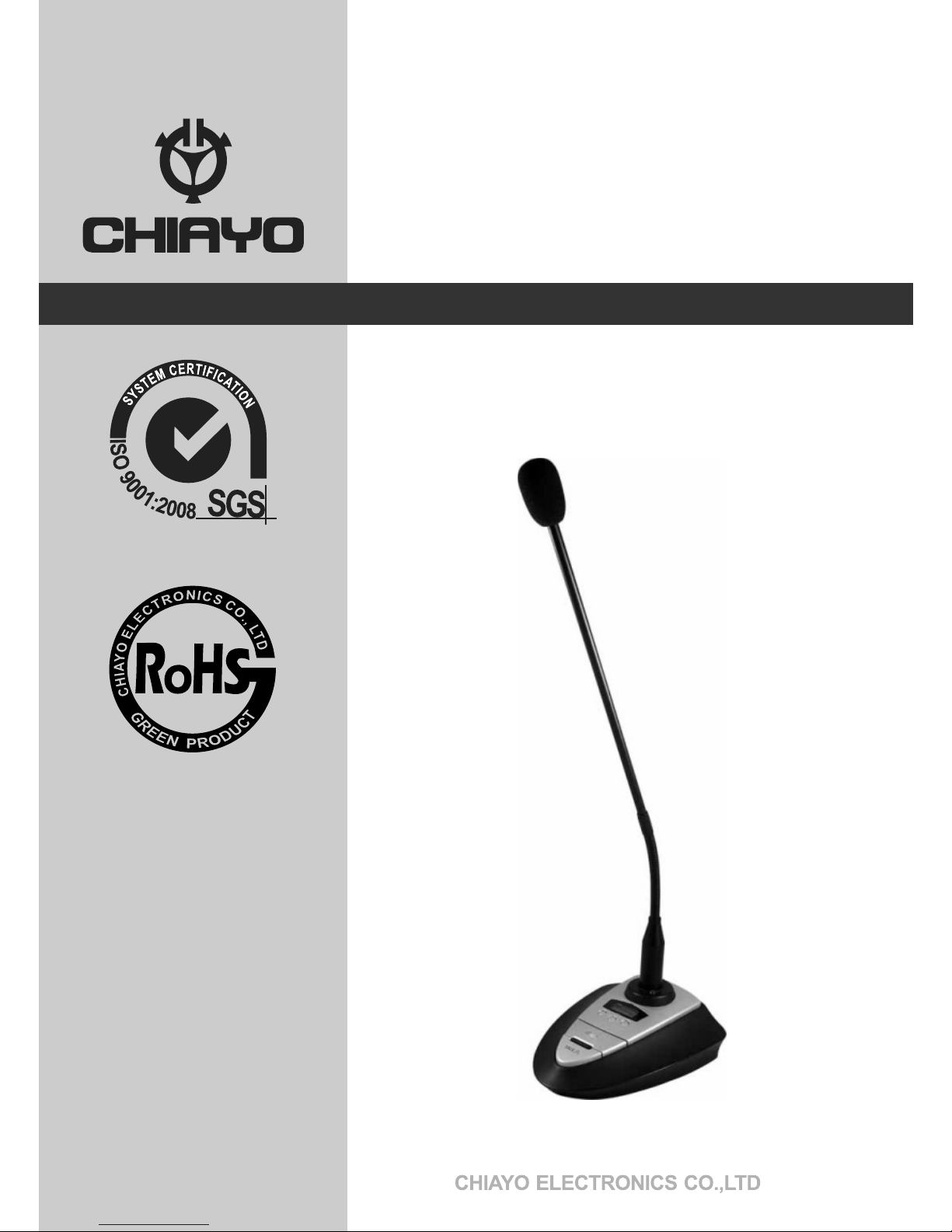

OPERATION MANUAL

Professional Desktop Gooseneck Microphone

GMW-216/GMW-200/GM-200

GREEN PRODUCT

ISO 9001:2008

1. Gooseneck microphone input

2. LCD display

3. UP button

4. DOWN button

5. SET button

6. TALK button: Press to talk, for short speaking.

7. LOCK button: Switch of long/temporary speaking.

8. POWER on/off LED

9. POWER on/off switch

10. Gain control:

Standard Configuration

1. Gooseneck microphone + base

2. Operation manual

3. Switching adaptor

User can rotate the knob until a desired acoustic quality

is reached

11. High impedance audio input/low impedance audio output connector

12. DC in/charging port

13. DC on/off switch:

To be powered by DC input, please remove the batteries, slide to ON, and

connect the switching adaptor. The DC on/off indicator will light up.

To recharge the NiMH batteries inside, please slide to ON and connect the

switching adaptor. The DC on/off indicator will light up.

When the switching adaptor is not connected, please slide to OFF.

14. DC on/off indicator

15. Battery compartment

Parts and functions of GMW-216/GMW-200

10 12

ON OFF

GMW-216/GMW-200

LCD menu settings

1. Changing CHANNEL / FREQUENCY:

Use UP or DOWN button to go to the CHANNEL / FREQUENCY page.

The cursor will flash to allow changes to be made. Pressing UP or DOWN

button will increase or decrease the channel number. The corresponding

frequency will change accordingly. When a desired channel(frequency) is

being selected, it will be automatically saved and stored in the memory.

2. Changing Battery selection:

Use UP or DOWN button to go to the Battery selection page.

Press SET for about 2 seconds to activate the cursor. Press UP or DOWN

button to move the cursor to either NiMH ( rechargeable battery ) or AKLN

( Alkaline battery ) position.

When the desired option has been selected, press SET for about 2 seconds to

save and store the data in the memory.

Application

GMW-216/200 is compatible with any of CHIAYO's UHF 16/100- channel

receivers and portable PA system whichever is equipped with built-in 16/100-

channel wireless receiver module. Besides handheld and beltpack types, it is

another stylish hands free alternative.

Remark : When changing transmitter frequencies, user should take

care not to cause interference to other channels / users.

Remark : Do not connect the adaptor when AKLN batteries are

being used. Wrong selection of battery will cause battery sensing

electronics to display wrong information and mislead charging

status.

Professional Wireless & Wired Gooseneck Microphone

1. Gooseneck microphone input

2. LOCK button: Switch of long/temporary speaking.

3. TALK button: Push to talk, for short speaking.

Standard Configuration

1. Gooseneck microphone + base

2. Operation manual

Application

Operation is the same as common wired microphones.

. High impedance audio input/low impedance audio output connector.

5. Battery compartment

FCC Caution: To assure continued compliance, any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate

this equipment. (Example - use only shielded interface cables when connecting to computer

or peripheral devices).

THIS DEVICE COMPLIES WITH PART 74 OF THE FCC RULES. This equipment complies

with FCC RF radiation exposure limits set forth an uncontrolled environment.

Parts and functions of GM-200

12I2175

GM-200 Professional Wired Gooseneck Microphone
