CHERUBINI Plug&Play Manuel utilisateur

ISTRUZIONI - INSTRUCTIONS - EINSTELLANLEITUNGEN

INSTRUCTIONS - INSTRUCCIONES

Plug&Play

MOTORE TUBOLARE CON REGOLAZIONE AUTOMATICA

DEL FINECORSA ELETTRONICO

TUBULAR MOTOR WITH AUTOMATIC ADJUSTMENT

OF THE ELECTRONIC LIMIT SWITCH

ROHRMOTOR MIT AUTOMATISCHER EINSTELLUNG

DER ELEKTRONISCHEN ENDLAGEN

MOTEUR TUBULAIRE AVEC RÉGLAGE AUTOMATIQUE

DES FINS DE COURSE ÉLECTRONIQUES

MOTOR TUBULAR CON REGULACIÓN AUTOMÁTICA

DEL FIN DE CARRERA ELECTRONICO

- To prevent any danger or malfunction, the size of electrical control components

connected to the motor must be compatible with the electrical features of the motor.

- Means for disconnection must be incorporated in the xed wiring in accordance with

the national installation standards.

- For outdoor use, provide the appliance with a supply cord with designation H05RN-F

containing at least 2% of carbon.

- Cable length between motor and control-switch maximal 50 m.

In case of cable length more than 50 m an interface-relay have to be used.

ELECTRICAL CONNECTIONS

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

ENGLISH

1- brown

2- black

3- blue

4- yellow-green

HOW TO PREPARE THE MOTOR

NB: If you use tubes with a round form, the driving pulley must be xed to the tube, and

the installation is to be paid by the person who installs the system. For other tube sections

the tting is optional, but strongly recommended.

STOP RING NUT ADAPTOR

DRIVING PULLEY

STOP RING NUT

1. Insert the adaptor in the stop ring nut

mating the groove with the reference notch

and push till they touch.

2. Fix the driving pulley on the motor pin

until the stop pin clicks.

3. Insert the motor fully in the rolling tube.

ENGLISH

INSTRUCTION FOR USE

The tubular motor is very simple to be used and installed, it does not need any regulation

as it automatically detects the position of limit switch.

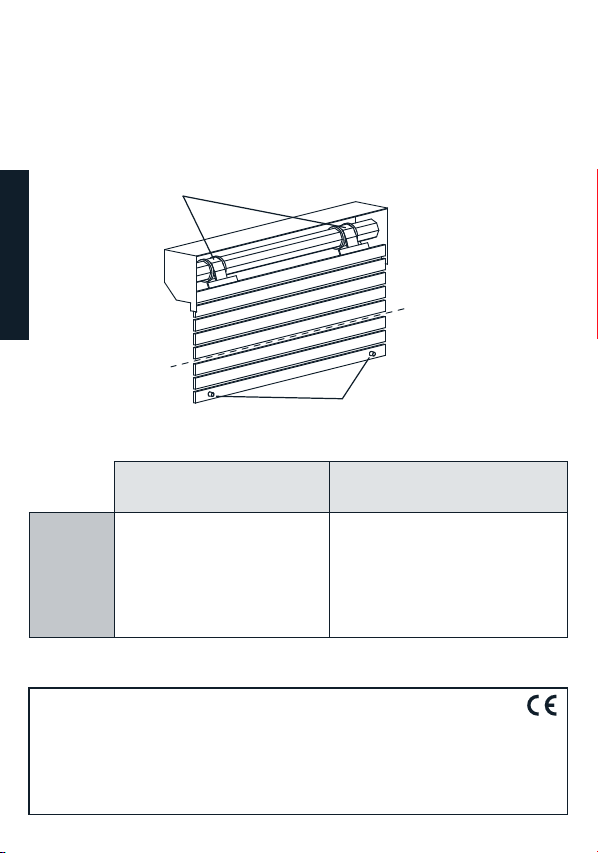

The rolling shutter must be equipped with:

A - security locks or stiff xing springs,

B - xed or removable stoppers for end slats.

It is very important to check the sturdiness of the rolling shutter.

CHERUBINI S.p.A. declares that the product is in conformity with the relevant Union

harmonisation legislation:

Directive 2014/35/EU - Directive 2014/30/EU - Directive 2011/65/EU

The full text of the EU declaration of conformity is available upon request at the following

website: www.cherubini.it.

EU DECLARATION OF CONFORMITY

ENGLISH

STOP AT LIMIT SWITCH

(OPENING AND CLOSING)

OBSTACLE DETECTION DURING

MOVEMENT

Plug&Play

Normally it stops few mm before

touching the stop.

It moves periodically to the end

stop and performs a slight back-

reverse movement to relieve the

load.

It stops and slightly reverses itself to

decrease the force.

MOTOR OPERATION

When an obstacle is detected in one direction, the movement is inhibited in that direction.

Please operate the motor in the opposite direction to restore normal operation.

Note - Bem - Notes - Notas:

Rev: 01 05/2020- Cod: A4518_6M06

CHERUBINI Deutschland GmbH

Siemensstrasse, 40 - 53121 Bonn - Deutschland

Tel. +49 (0) 228 962 976 34 / 35 | Fax +49 (0) 228 962 976 36

info@cherubini-group.de | www.cherubini-group.de

CHERUBINI France S.a.r.l.

ZI Du Mas Barbet

165 Impasse Ampère

30600 Vauvert -France

Tél. +33 (0) 466 77 88 58 | Fax +33 (0) 466 77 92 32

info@cherubini.fr | www.cherubini.fr

CHERUBINI Iberia S.L.

Avda. Unión Europea 11-H

Apdo. 283 - P. I. El Castillo

03630 Sax Alicante - Spain

Tel. +34 (0) 966 967 504 | Fax +34 (0) 966 967 505

info@cherubini.es | www.cherubini.es

CHERUBINI S.p.A.

Via Adige 55

25081 Bedizzole (BS) - Italy

Tel. +39 030 6872.039 | Fax +39 030 6872.040

info@cherubini.it | www.cherubini.it
