Chauvet Professional STRIKE Array 4C Manuel utilisateur

Model ID: STRIKEARRAY4C

User Manual

STRIKE Array 4C User Manual Rev. 1

Edition Notes

The STRIKE Array 4C User Manual includes a description, safety precautions, installation, programming,

operation, and maintenance instructions for the STRIKE Array 4C as of the release date of this edition.

Trademarks

Chauvet, Chauvet Professional, the Chauvet logo, and STRIKE are registered trademarks or trademarks

of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.

Other company and product names and logos referred to herein may be trademarks of their respective

companies.

The works of authorship contained in this manual, including, but not limited to, all designs, text, and images

are owned by Chauvet.

Electronically published by Chauvet in the United States of America.

Manual Use

Chauvet authorizes its customers to download and print this manual for professional information purposes

only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this

manual or its content for any other purpose without written consent from Chauvet.

Document Printing

For best results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4

paper (210 x 297 mm), configure the printer to scale the content accordingly.

Intended Audience

Any person installing, operating, and/or maintaining this product should completely read through the guide

that shipped with the product, as well as this manual, before installing, operating, or maintaining this

product.

Disclaimer

Chauvet believes that the information contained in this manual is accurate in all respects. However,

Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,

damage or disruption caused by any errors or omissions in this document, whether such errors or

omissions result from negligence, accident, or any other cause. Chauvet reserves the right to revise the

content of this document without any obligation to notify any person or company of such revision, however,

Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest

version from www.chauvetprofessional.com.

Document Revision

Go to www.chauvetprofessional.com for the latest version.

Revision Date Description

1 01/2024 Initial release.

STRIKE Array 4C User Manual Rev. 1

Table of Contents

TABLE OF CONTENTS

1. Before You Begin ....................................................................... 1

What Is Included ........................................................................................... 1

Claims ........................................................................................................... 1

Text Conventions .......................................................................................... 1

Symbols ........................................................................................................ 1

Safety Notes.................................................................................................. 2

FCC Statement of Compliance ..................................................................... 3

Expected LED Lifespan................................................................................. 3

2. Introduction ................................................................................ 4

Description .................................................................................................... 4

Features........................................................................................................ 4

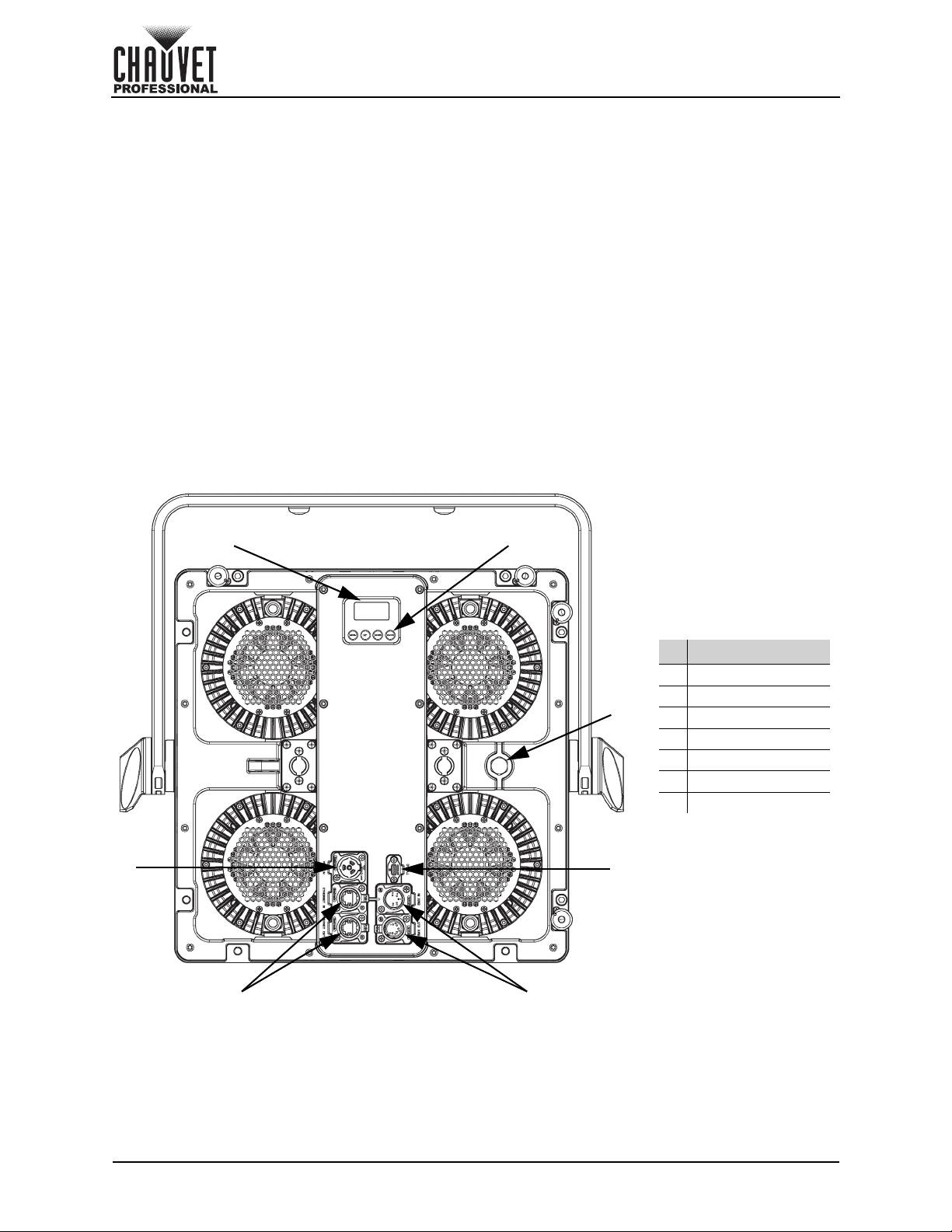

Product Overview.......................................................................................... 4

Product Dimensions ...................................................................................... 5

3. Setup ........................................................................................... 6

AC Power...................................................................................................... 6

AC Plug .............................................................................................................. 6

USB Software Update ................................................................................... 6

Signal Connections ....................................................................................... 7

Control Personalities .......................................................................................... 7

DMX Linking....................................................................................................... 7

Remote Device Management .................................................................................. 7

Art-Net™ Connection ......................................................................................... 7

sACN Connection............................................................................................... 7

Ethernet Connection Diagram............................................................................ 7

Mounting ....................................................................................................... 8

Orientation.......................................................................................................... 8

Rigging ............................................................................................................... 8

Procedure........................................................................................................... 8

Mounting Diagram.............................................................................................. 8

Multi-Product Mounting ...................................................................................... 9

Multi-Product Mounting Diagram ............................................................................. 9

Mounting Products Attached in Series .................................................................... 10

Vertical Mounting Stability ....................................................................................... 11

4. Operation .................................................................................... 12

Control Panel Description ............................................................................. 12

Programming................................................................................................. 12

Passcode ...................................................................................................... 12

Menu Map ..................................................................................................... 12

Control Configuration .................................................................................... 15

Control Mode...................................................................................................... 15

Control Personalities .......................................................................................... 15

Starting Address................................................................................................. 16

Ethernet Settings................................................................................................ 16

IP Mode ................................................................................................................... 16

Universe .................................................................................................................. 16

Start Channel........................................................................................................... 16

IP Address ............................................................................................................... 16

Table of Contents

STRIKE Array 4C User Manual Rev. 1

Ethernet to DMX ...................................................................................................... 16

Virtual Color Wheel ....................................................................................... 17

Virtual Color Wheel Chart .................................................................................. 17

Color Temperature Chart ................................................................................... 18

DMX Channel Assignments and Values ....................................................... 18

Control Chart...................................................................................................... 18

22Ch................................................................................................................... 18

16Ch / 13Ch / 12Ch / 10Ch / 7Ch / 5Ch / 3Ch ................................................... 19

HSV.................................................................................................................... 19

1Ch..................................................................................................................... 19

Standalone Configuration.............................................................................. 20

Static Mode ........................................................................................................ 20

Virtual Color Wheel.................................................................................................. 20

Color Temperature .................................................................................................. 20

Manual Color Mixer ................................................................................................. 20

Color X-Fade Speed .......................................................................................... 20

Auto Show.......................................................................................................... 20

Settings Configuration................................................................................... 20

Red Shift ............................................................................................................ 20

Master/Slave ...................................................................................................... 20

Dimmer Curve .................................................................................................... 20

Dimmer Speed Mode ......................................................................................... 21

Color Calibration ................................................................................................ 21

Pulse Width Modulation ..................................................................................... 21

Display Invert ..................................................................................................... 21

Fan Mode ........................................................................................................... 21

Display Backlight................................................................................................ 21

Key Lock ............................................................................................................ 21

Information ......................................................................................................... 21

Temperature....................................................................................................... 21

Factory Reset..................................................................................................... 21

Web Server ................................................................................................... 22

Home.................................................................................................................. 22

Settings .............................................................................................................. 22

Output ................................................................................................................ 22

Security .............................................................................................................. 22

5. Maintenance................................................................................ 23

Product Maintenance .................................................................................... 23

Torque Measurements.................................................................................. 23

Vacuum Test Measurements ........................................................................ 23

6. Technical Specifications ........................................................... 24

Warranty & Returns....................................................................................... 25

STRIKE Array 4C User Manual Rev. 1

Before You Begin

1. Before You Begin

What Is Included

Claims

Carefully unpack the product immediately and check the container to make sure all the parts are in the

package and are in good condition.

If the box or the contents (the product and included accessories) appear damaged from shipping, or show

signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier

immediately may invalidate a claim. In addition, keep the box and contents for inspection.

For other issues, such as missing components or parts, damage not related to shipping, or concealed

damage, file a claim with Chauvet within 7 days of delivery.

Text Conventions

Symbols

• STRIKE Array 4C

• Seetronic Powerkon IP65 power cable

• Omega bracket with mounting hardware

• Quick Reference Guide

Convention Meaning

1–512 A range of values

50/60 A set of values of which only one can be chosen

Settings A menu option not to be modified

<ENTER> A key to be pressed on the product’s control panel

Symbol Meaning

Critical installation, configuration, or operation information. Not following these

instructions may make the product not work, cause damage to the product, or cause

harm to the operator.

Important installation or configuration information. The product may not function correctly

if this information is not used.

Useful information.

Any reference to data or power connections in this manual assumes the use of Seetronic

IP rated cables.

The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data

transmission protocol.

Before You Begin

STRIKE Array 4C User Manual Rev. 1

Safety Notes

Read all the following safety notes before working with this product. These notes contain important

information about the installation, usage, and maintenance of this product.

• The luminaire is intended for professional use only.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer

than 7.5 ft (2.3 m) is not expected.

• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special

cord or cord exclusively available from the manufacturer or its service agent.

• The light source contained in this luminaire shall only be replaced by the manufacturer or its service

agent or a similar qualified person.

• CAUTION:

• This product’s housing may be hot when operating. Mount this product in a location with

adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• When transferring the product from extreme temperature environments, (e.g., cold truck to

warm humid ballroom) condensation may form on the internal electronics of the product. To

avoid causing a failure, allow the product to fully acclimate to the surrounding environment

before connecting it to power.

• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding

notification of strobe use.

• ALWAYS:

• Disconnect from power before cleaning the product.

• When using an IP65-rated product in an outdoor environment, use IP65- (or higher) rated power

and data cable.

• Replace and secure IP-rated protective covers to all power, data, USB, or other ports when not

in use.

• Use a safety cable when mounting this product overhead.

• Connect this product to a grounded and protected circuit.

•DONOT:

• Open this product. It contains no user-serviceable parts.

• Look at the light source when the product is on.

• Leave any flammable material within 1 m of this product while operating or connected to power.

• Connect this product to a dimmer or rheostat.

• Operate this product if the housing, lenses, or cables appear damaged.

• Submerge this product (adhere to standards for the published IP rating). Regular outdoor

operation is fine.

• Permanently install outdoors in locations with extreme environmental conditions. This includes,

but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Locations where normal temperatures exceed the temperature ranges in this manual.

• Locations that are prone to flooding or being buried in snow.

• Other areas where the product will be subject to extreme radiation or caustic substances.

• ONLY use the hanging/mounting bracket to carry this product.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.

• The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely

disconnect the product from power via breaker or by unplugging it.

• In the event of a serious operating problem, stop using immediately.

This product contains no user-serviceable parts. Any reference to servicing in this User

Manual will only apply to properly trained, certified technicians. Do not open the housing

or attempt any repairs.

All applicable local codes and regulations apply to proper installation of this product.

If this Chauvet product requires service, contact Chauvet Technical Support.

STRIKE Array 4C User Manual Rev. 1

Before You Begin

FCC Statement of Compliance

This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

Expected LED Lifespan

Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than

single LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is

40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit

the overall intensity.

Introduction

STRIKE Array 4C User Manual Rev. 1

2. Introduction

Description

The STRIKE Array 4C is an IP65-rated audience blinder with four independently focusable pods. Intense

RGBA-WW LED output delivers a full range of color as well as a wide choice of white color temperatures

with exceptional color rendering. Industry leading low end dimming performance includes Red Shift which

warms the color temperature of the output as it dims to emulate a classic tungsten look. Variable PWM and

high CRI make the product ideal for broadcast applications. A proprietary Tool-Free interlocking system

enables the STRIKE Array 4C to be interconnected easily with other STRIKE Array-series products for

scalable configurations. Omega-Bracket locks installed on both the yoke and the rear of the product

streamline the truss mounting process.

Features

• Intense 4 pod color blinder/strobe rated IP65 for all-weather use

• Full range of color and excellent rendition of any color temperature of white

• Emulated “red shift” to mimic incandescent fixtures perfectly

• Individual pan (or tilt depending on mount orientation) of each head to allow for directional

adjustment of light output

• Innovative interlocking system to connect multiple Strike Array family fixtures together

• Multiple mounting locations and re-positionable yoke with ¼ turn adapters for creative and

convenient rigging options

• Independent pod control and strobe functionality for high-impact effects on the fly

Product Overview

#Name

1Display

2Menu buttons

3Condensation valve

4Power in

5USB-C port

6Ethernet ports

7DMX in/out

STRIKE Array 4C User Manual Rev. 1

Introduction

Product Dimensions

0.51 in

13 mm

15.09 in

383.3 mm

16.70 in

424.21 mm

6.45 in

163.84 mm

8.10 in

205.84 mm

15.09 in

383.3 mm

19.17 in

487.2 mm

4.55 in

115.6 mm

16.65 in

423 mm

2.17 in

55 mm

Setup

STRIKE Array 4C User Manual Rev. 1

3. Setup

AC Power

The STRIKE Array 4C has an auto-ranging power supply and it can work with an input voltage range of

100 to 240 VAC, 50/60 Hz.

To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current

value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

The listed current rating indicates the product’s average current draw under normal conditions.

AC Plug

The STRIKE Array 4C comes with a power input cable terminated with a Seetronic Powerkon A connector

on one end and an Edison plug on the other end (U.S. market). If the power cable which came with the

product has no plug, or if it is necessary to change the plug, use the table below to wire a plug.

USB Software Update

The STRIKE Array 4C allows for software update through USB using the built-in USB port. To update the

software using a USB flash drive, do the following:

1. Power on the product and plug the flash drive into the USB port.

2. Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed.

Press <ENTER>. If a different message appears on the display, search for the updated software in

the menu (Update Firmware) and select from Only This Fixture, Multiple Fixture, or Other

Fixture Type. A list of the updated software files will be displayed.

3. Select the file that needs to be uploaded.

4. If the selected file is correct, the update will start. DO NOT turn off power or disconnect the USB

during the process. The USB update can take several minutes to complete.

5. When the update is complete, the product will automatically reboot.

6. Go to the Information level of the product main menu and confirm the firmware revision.

7. When the boot-up process is finished, restart the product manually.

• Always connect the product to a protected circuit (a circuit breaker or fuse). Ensure the

product has an appropriate electrical ground to avoid the risk of electrocution or fire.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use

completely disconnect the product from power via breaker or by unplugging it.

Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the

rheostat or dimmer channel serves only as a 0 to 100% switch.

Connection Wire (U.S.) Wire (Europe) Screw Color

AC Live Black Brown Yellow or Brass

AC Neutral White Blue Silver

AC Ground Green/Yellow Green/Yellow Green

• Be sure to select the correct file before pressing <ENTER>. DO NOT turn off the power or

disconnect the USB during the process. The USB update can take several minutes to

complete.

• If the selected file is incorrect, the upgrade will fail, and the display will go back to the

main interface. Repeat steps 1–3 using the correct file.

• Place the .chl file in the root directory of the USB drive.

• The product's USB port supports up to 32GB capacity and only works with FAT32 file

format.

Turning off the power, removing the USB, or not setting the fixture to the correct protocol

during the update can cause partial or total firmware failure in the targeted fixture(s).

Please refer to the Upload 25 Instructions to fix firmware failure issues.
