Channel Vision SIM Series Manuel utilisateur

IP Intercom System

Quick Start Guide

SIM/MDU Series

Table of Contents

Introduction

Specifications & Package contents.....................................

Dimensions ........................................................................

Installation and Connections ..............................................

System Diagram ….............................................................

Basic functions and operation …........................................

1. Detect & Verify Network Settings .........................................

Search for devices with C T upgrade tool .........................

Getting to a command prompt in Windows ….....................

erify your computer's network settings …..........................

Compare your computer's IP address with

your SIMs IP address ….....................................................

. Accessing and configuring the setup interface ..................

Launching the user interface …...........................................

Enter login credentials ….....................................................

LAN settings …....................................................................

Device Settings …................................................................

Access Settings …...............................................................

SIP Settings …......................................................................

Forward Account Settings ….................................................

External Module Settings …..................................................

Advanced Settings …............................................................

Phone Book …......................................................................

Default, Restore, & Backup …..............................................

Logout …..............................................................................

Warranty and Contact Info …...............................................

3-5

15-16

back

Specifications

CPU: 350MHz

RAM: DDR2 (1GB x 2)

Flash: 2GB

Power: 12vDC

IP Rating: IP66

Rated power: 6W

Standby power consumption: 3W

Operating temperature: 14°F ~ 131°F

Relative humidity: 20% ~ 93%

Screen: 3.5” dot matrix

Dimensions: Height = 14.75” Width = 6.5” Depth = 2”

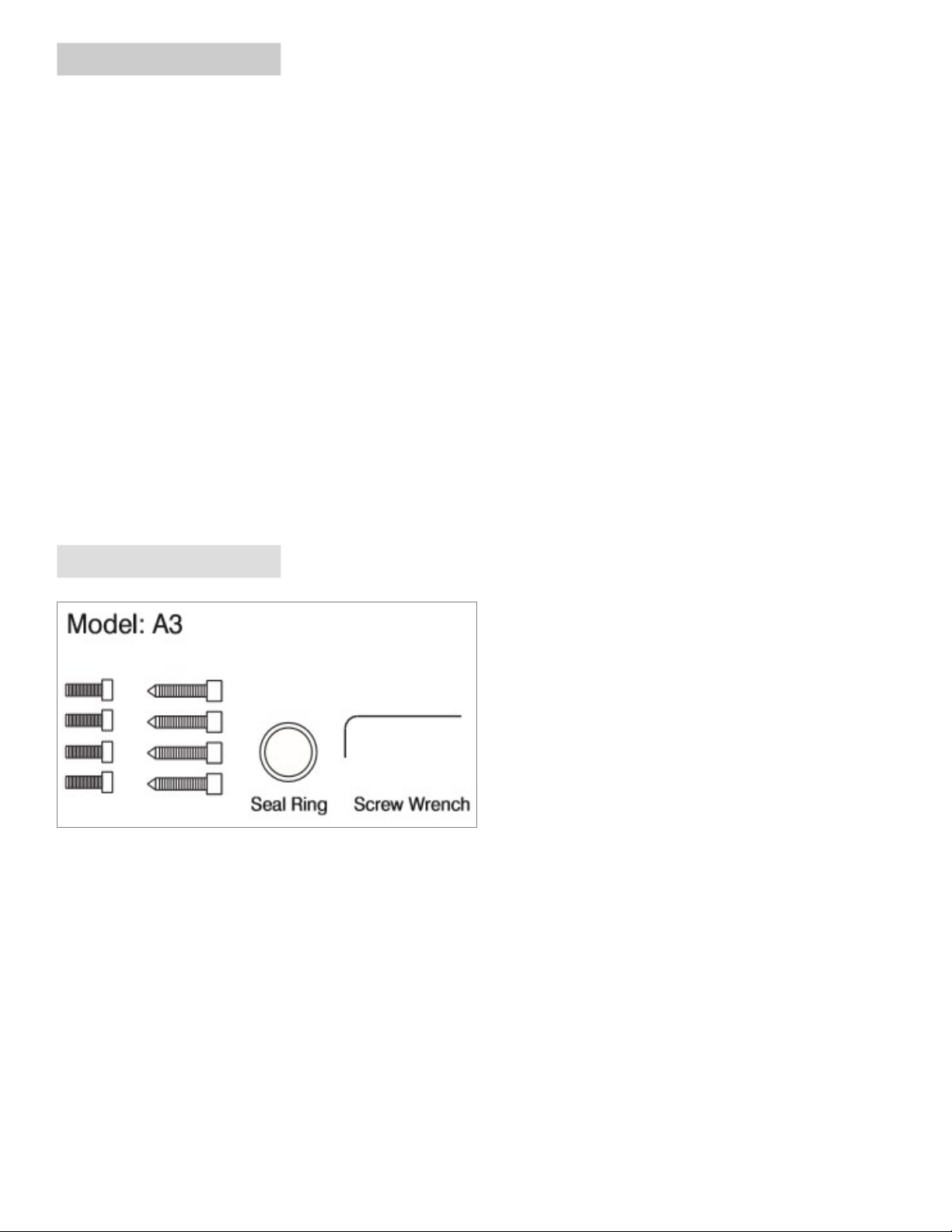

Package contents

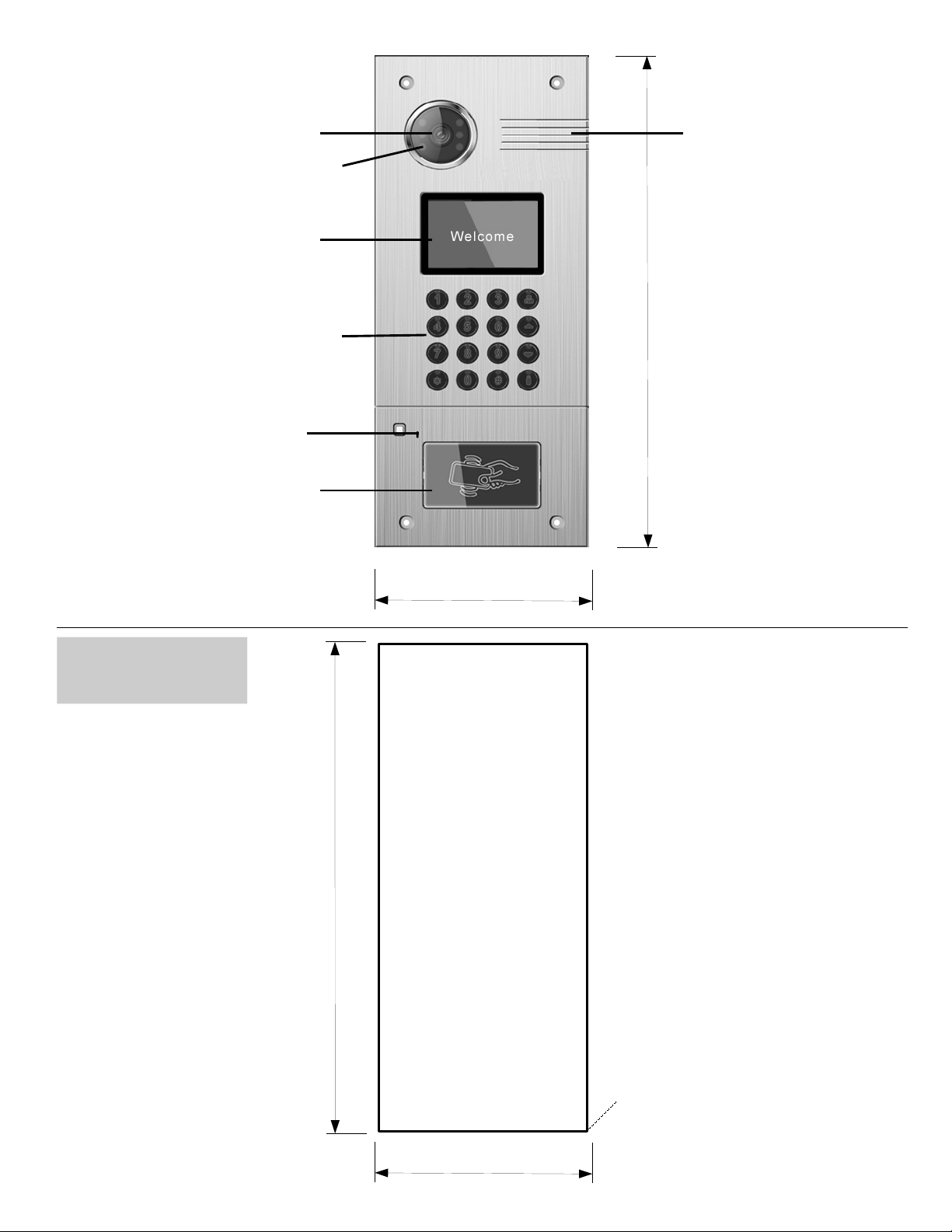

5.5 "

13.75 "

Card reader

Camera

LEDs

Microphone

Speaker

Display

Digital Keypad

2” deep

Flush mount box

dimensions

14.75 "

6.5 "

Installation

Electrical

Back Panel

Exit/Door-detector

Power/ Unlock Signal Output

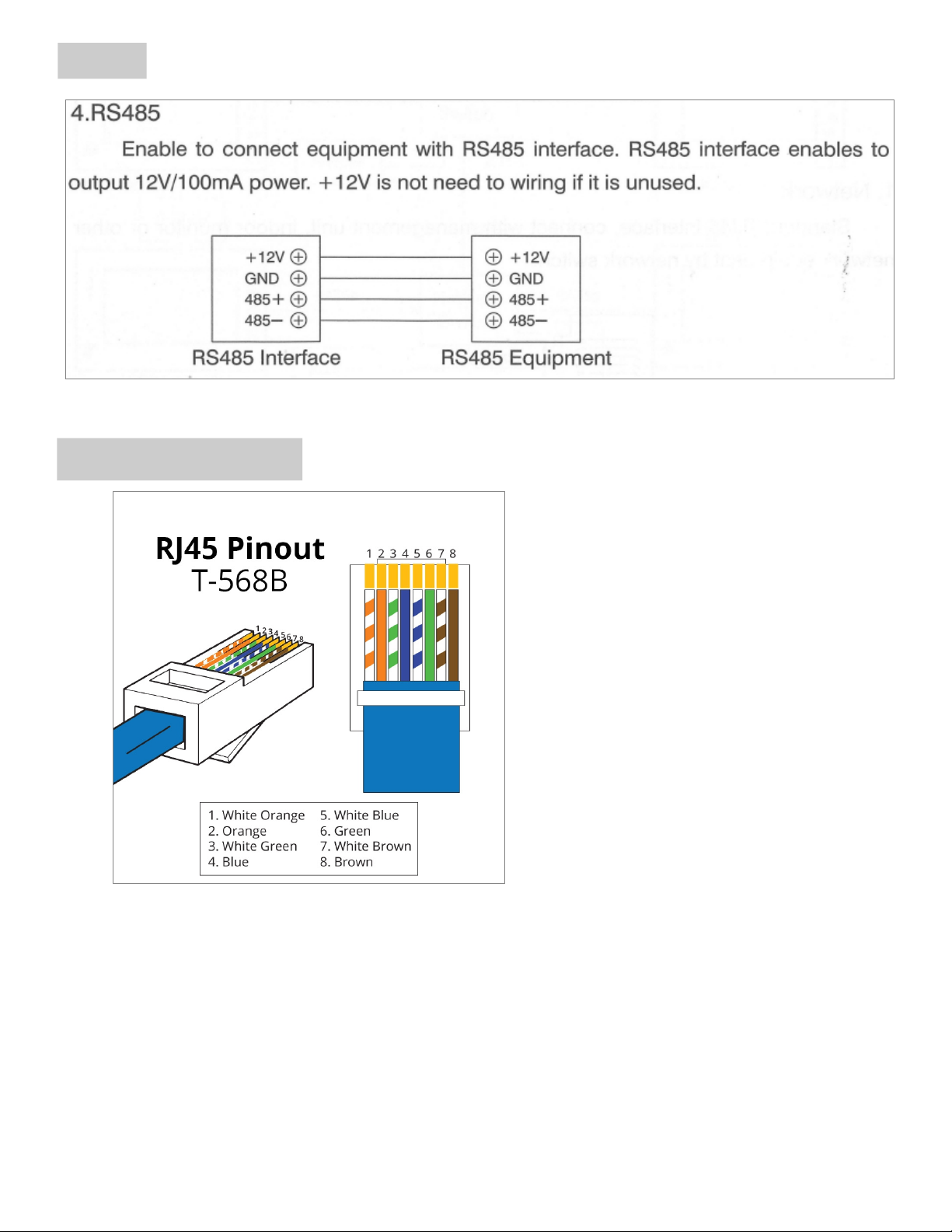

RS485

RJ45 Pin out - T-568B

System Diagram

Basic Functions

●ideo intercom with indoor monitor & management center.

●ID card reader. Supports a maximum of 10,000 cards.

●Access password unlocking.

●Supports standard SIP protocol to communicate with IP phones and SIP software.

●Phone book search and direct dial.

Basic Operation

- Calling indoor monitor

●Input floor and room number (at least 3 digits), then press # to confirm. If you do not press

pound the unit will automatically call after 2 seconds.

●You can also make a call by searching through the phone book. To search the phone book

press the up or down arrow on the keypad, then press # once you have found the

person you want to call.

●If the indoor monitor you are trying to reach is unavailable, the outdoor panel will display

“Busy”, then auto return to standby mode.

●Press the “*” button to end communication at any time during the call.

-Calling management center

●Dial “0000” then press # to call the management center.

●If the management center is busy or unavailable, the outdoor panel will display “Busy”, then

auto return to standby mode.

●Press the “*” button to end communication at any time during the call.

-Unlocking the door

1. Unlocking by access password

●Press the # key, enter the access password (default is 000), then press the # key to confirm.

. Unlocking by IC/ID card.

●Hold the IC/ID card up against the card reader area of the SIM intercom.

Instruction

Center : 0000 + #

Call : RoomNo + #

Unlock : # + PSW + #

Name : ▲ or ▼

Call guard/management

call a room direct

ex. = 1111#

Unlock door from key pad

ex. = #123456#

Search directory

Front Display

1. Detect Door Station & Verify Network settings

1-1. Connect a 12vDC power supply to your SIM/MDU, then connect your SIM/MDU to your switch or router via cat5e

or cat6, then launch the Channel ision IP upgrade tool. Click on the search button to find the IP address of your

SIM/MDU intercom. 192.168.1.200 by default.

1- . Verify your computer's LAN settings from a command prompt.

- The easiest way to get to a command prompt on a Windows machine is to press

win+R on your keyboard. Hold the windows key down and then press R.

After pressing the win+R key combination, you will type “cmd” and press OK to

get to the command prompt.
