Champion SVPRO Series Manuel technique

Champion Tool Storage

3070 Lower Mill Dr.

Hood River Oregon 97031

W: www.championbuilt.com

E-mail: [email protected]

PROPER USE AND INSTALLATION FOR CHAMPION SVPRO SERIES

QUESTIONS

Phone: 866-391-4200

8 AM - 5PM, PST, Monday-Friday

The following instructions will provide you with a guide for installation and usage

for the SVPRO Series cabinets. If at any time you need guidance or help, please

do not hesitate to call us. Thanks again for choosing Champion Tool Storage.

THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629

Table Of Contants

Before You Begin 3

Installation Site Prep 4

Installation 7

Proper Use 11

Lock Use 12

Warranty 12

Proper Care / Safety 12

Check your inventory to be sure you received your entire order. If there are

any missing or damaged parts, contact Champion Customer Service at 541-

386-7700

Only use the provided hardware during assembly.

Read and understand the entire installation instructions prior to beginning

the install.

THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629

Before You Begin

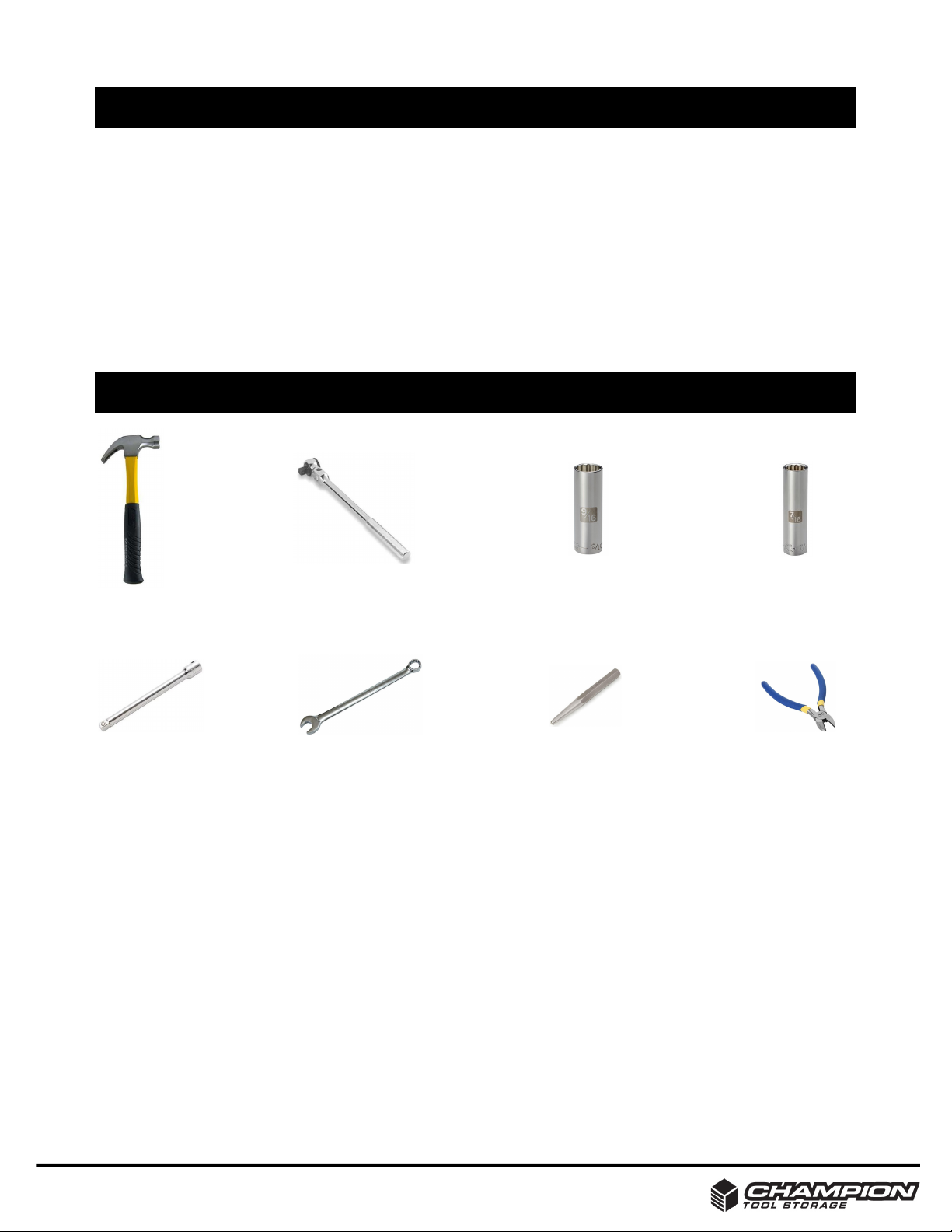

Tools Required

Hammer Socket Wrench

Punch ToolBox Wrench 7/16

9/16 Deep Socket 7/16 Deep Socket

6" Extension Wirecutters

THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629

Site Prep

1. A level concrete pad is recommended that is 6" larger in width and 6" larger in depth

of the total number of cabinets being installed. See below for recommended pad size

for one, two, and three units. A single unit template is available for purchase if

needed, part #4003551 Locker Base Drill Template.

Install (4) 3/8" X 3-3/4" Concrete Wedge Anchors(not included) per unit into the drilled

holes on the concrete pad.

Remove the nut and washers on the Concrete Wedge Anchors before installing the

SVPRO units.

Before installing the units, make sure your site is ready.

Single Locker Pad

THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629

Site Prep

Double Locker Pad

THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629

Site Prep

Triple Locker Pad

Installation

THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY

1. Use a forklift or pallet jack to move the following Models

into place, SVP2, SVP5, and SVP8.

Remove all packaging.

Set the unit on the pad and align the holes over the studs in

the Concrete Pad.

See Step 5 for installation instructions for the SVP3. Note,

All locker doors must be locked while moving. If your locks

are not installed before setting the unit in place, make sure

the zip ties are in place to prevent the door from opening

while moving.

PART NO. 1000629

Open the lower locker doors by cutting the temporary zip

tie in the lock hasp hole.

Remove the false floor from the locker.

Using a socket wrench, 6" extension, and deep well 9/16"

socket, install the anchor washer and nut.

Install the false floor.

Installation

THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629

Remove nuts from the (4) studs.

Install the Slope Top.

Open Door or Doors on top units and place slope top on the

aligning holes.

Install locking nuts and secure to cabinet.

Installation

THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY

PART NO. 1000629

Punch knock outs as shown in Detail A.

Use touch up paint to cover bare metal after knock outs are removed.

Postion the cabinets in place with the doors in the open position.

Ganging Hardware Kit requirred, 1 per pair of units ganged. Part #7001228

Repeat as needed for multiple units.

Ganging multiple units.

Tilt the unight to the upright position using the 4 eyelets at the top of the unit with a

forklift and sling/chain. The operator should be a certified forlift operator.

Lift the unit from the shipping pallet and position on the pad.

Secure the unit to the pad, see Step 2.

Gang the unit the the ajoining cabinets, see step 4.

Install the Slope Top, see Step 3.

Installation of the SVP3

Installation

THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY

PART NO. 1000629

6This completes Installation.

Lifting Eyelets
