CPS-OPEN4

MONITORED DUAL-SIDED PHOTO EYES

LiftMaster.com

LiftMaster’s®CPS-OPEN4 Monitored Dual-Sided Photo Eyes are weatherproof

and durable. The exible rubber housings absorb minor contact allowing the

photo eyes to maintain alignment. With its NEMA 4X safety rating, the CPS-

OPEN4 provides moisture protection, corrosion resistance, making it the perfect

addition to LiftMaster’s quality line of safety sensors. Our photoelectric eyes and

edge sensor models are UL/cUL Listed for use with all LiftMaster Commercial

Door Operators. The CPS-OPEN4 can be used as a primary and/or ancillary

entrapment device and meets UL 325 2010 safety standards.

Weatherproof, Durable and Dependable

Available Accessories:

Interface Card

(CPS3CARD)

Provides the option of adding a

second set of monitored photo

eyes or a monitored edge to a

door opening. For extra door

protection.

•Flexible housing maintains alignment position after minor contact

•NEMA 4X enclosure protects against direct water–spray and corrosion

•Dual-sided infrared sensors

•For indoor/outdoor use

•Maximum range of 45 feet

•Solid sensor lights indicate correct sensor alignment

•Polarized cables for proper signal continuity and feedback

UL 325 requires all commercial door operators to be either constant pressure to

close or be equipped with a primary external monitored entrapment protection

device. The CPS-OPEN4 meets this requirement. Failure to use the appropriate

sensor or failure to install the sensor properly, may expose the installer and

customer to liability, should an accident occur.

LiftMaster’s full line of Monitored Photo Eyes

CPS-UCPS-UN4 CPS-RPEN4 CPS-OPEN4

CPS-OPEN4

MONITORED DUAL-SIDED PHOTO EYES

300 Windsor Street, Oakbrook, IL 60523

LiftMaster.com

LMCDCAOPEN 3/14-5

QUICK INSTALL GUIDE

PREPARE

Be sure to disconnect power to the operator BEFORE installing the photo

eyes. The door MUST be in the fully opened or closed position before installing

the photo eye.

INSTALL

Set up the photo eyes no higher than 6" (15 cm) above the oor and no farther

than 6" from the center plane of the door. For installation ease, both photo

eyes should be on the same horizontal plane.

COMPLETE

Make sure the photo eyes are powered on properly. photo eyes must be at

least 36" (3 ft.) apart for alignment verication.

For additional product information and installation procedures please see

comprehensive installation manual inside the box.

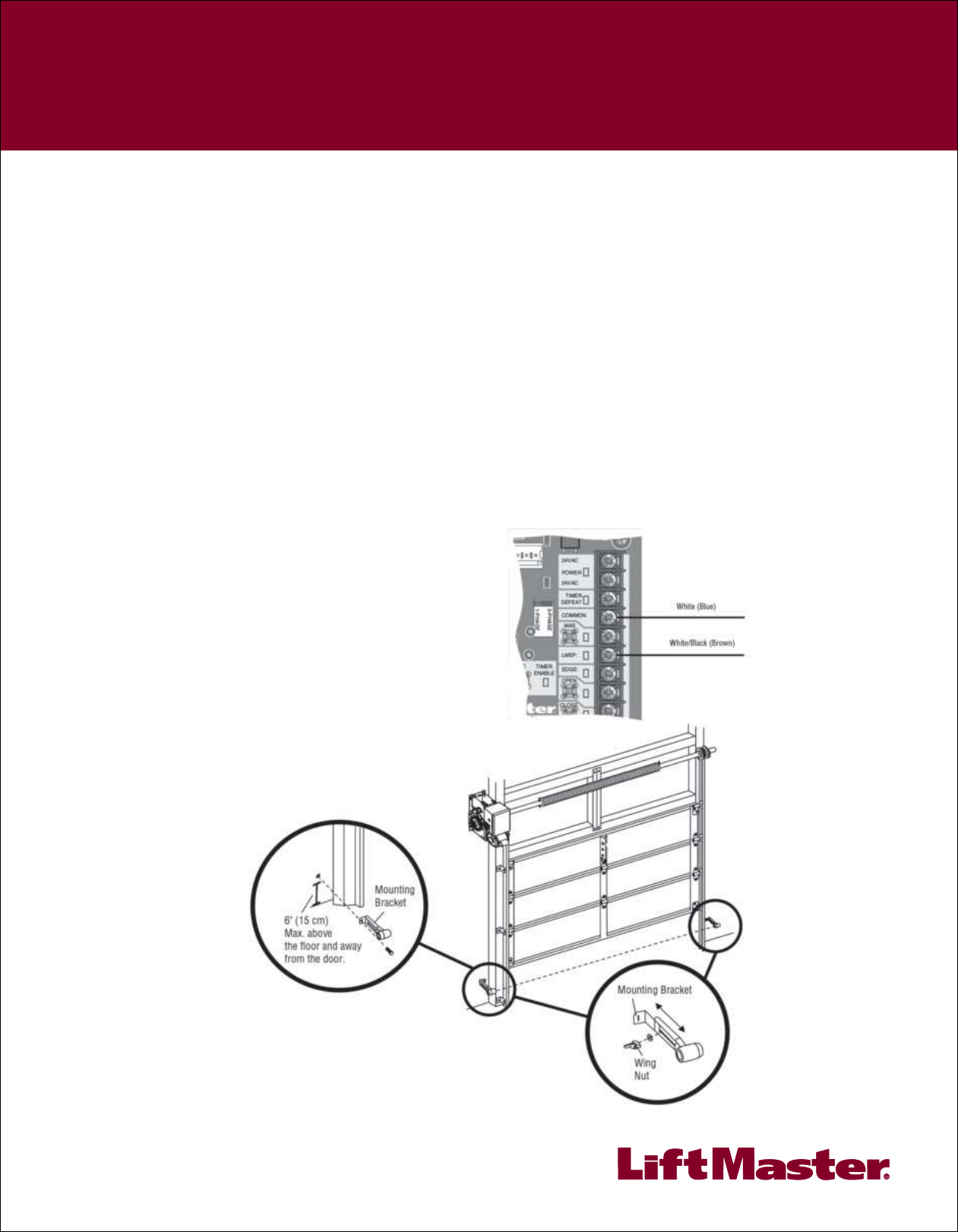

Door shown with

photo eyes installed.

(See product installation

manual for complete

installation instructions)

Wiring Connections

(Logic 4 board shown)

SPEC SHEET

STANDARD SPECIFICATIONS

DIMENSIONS

Length: (35mm/1.38")

Width: (30.40mm/1.12")

Height: (152mm/5.98")

CARTON

Dimensions:

- Height: 2.25"

- Width: 7.75"

- Length: 8.5"

- Weight: 1.0 lb

WARRANTY

One year limited warranty

TECHNICAL SPECIFICATIONS

Technical Data Range

13.7m/45ft.

Angle of Adjustment

Min. 2 Degrees

Min. Alignment Distance

36" (3 ft.)

Outdoor Rating

IP65, NEMA 4X

Temperature Range

-25 to +70C, -4°F – 158°F

Terminal Interface

Monitored 2-Wire (Polarized)

Color Code Sensors

Transmitter: Red LED

Receiver: Green LED
