Installation Manual

Chain Drive Garage Door Opener

Model C2102

FOR RESIDENTIAL USE ONLY

PREǫPROGRAMMED REMOTE

CONTROL INCLUDED

To register your garage door opener to receive

updates and offers from Chamberlain, visit

chamberlain.registria.com or use the icon below:

www.chamberlain.com

1. Take a photo of the camera icon including

the points ( ).

2. Send it in by texting the photo to 71403 (US).

• Please read this manual and the enclosed safety materials carefully!

• Fasten the manual near the garage door after installation.

• The door WILL NOT CLOSE unless the Protector System® is connected and properly aligned.

• Periodic checks of the garage door opener are required to ensure safe operation.

• The model number label is located on the back panel of your garage door opener.

• This garage door opener is compatible with myQ® and Security+2.0® accessories.

• DO NOT install on a one-piece door if using devices or features providing unattended close.

Unattended devices and features are to be used ONLY with sectional doors.

ContentsPreparation 3

Assembly 7

Installation 12

Install the Door Control 22

Install the Protector System® 24

Connect Power 28

Adjustments 30

Operation 33

Using your Garage Door Opener 33

Using your Door Control 34

Remote Control and Keyless Entry 34

HomeLink® 34

Erase the Memory 35

To Open the Door Manually 35

Maintenance 36

Troubleshooting 37

Warranty 39

Automatic Garage Door Opener Safety & Maintenance Guide 40

Repair Parts 42

Rail Assembly Parts 42

Installation Parts 42

Garage Door Opener Parts 43 SafetySymbolandSignalWordReviewThis garage door opener has been designed and tested to offer safe service provided it is installed, operated,

maintained and tested in strict accordance with the instructions and warnings contained in this manual.

Mechanical

Electrical

When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the

possibility of serious injury or death if you do not comply with the warnings that accompany them. The

hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your

garage door and/or the garage door opener if you do not comply with the cautionary statements that

accompany it. Read them carefully.

WARNING: This product can expose you to chemicals including lead, which are known to the State of

California to cause cancer or birth defects or other reproductive harm. For more information go to

www.P65Warnings.ca.gov

UnattendedOperationThe Timer-to-Close (TTC) feature, the myQ® App, and myQ® Garage Door and Gate Monitor are examples of

unattended close and are to be used ONLY with sectional doors. Any device or feature that allows the door to

close without being in the line of sight of the door is considered unattended close. The Timer-to-Close (TTC)

feature, the myQ® App, and any other myQ® devices are to be used ONLY with sectional doors.

The images throughout this manual are for reference only and your product may

look different.

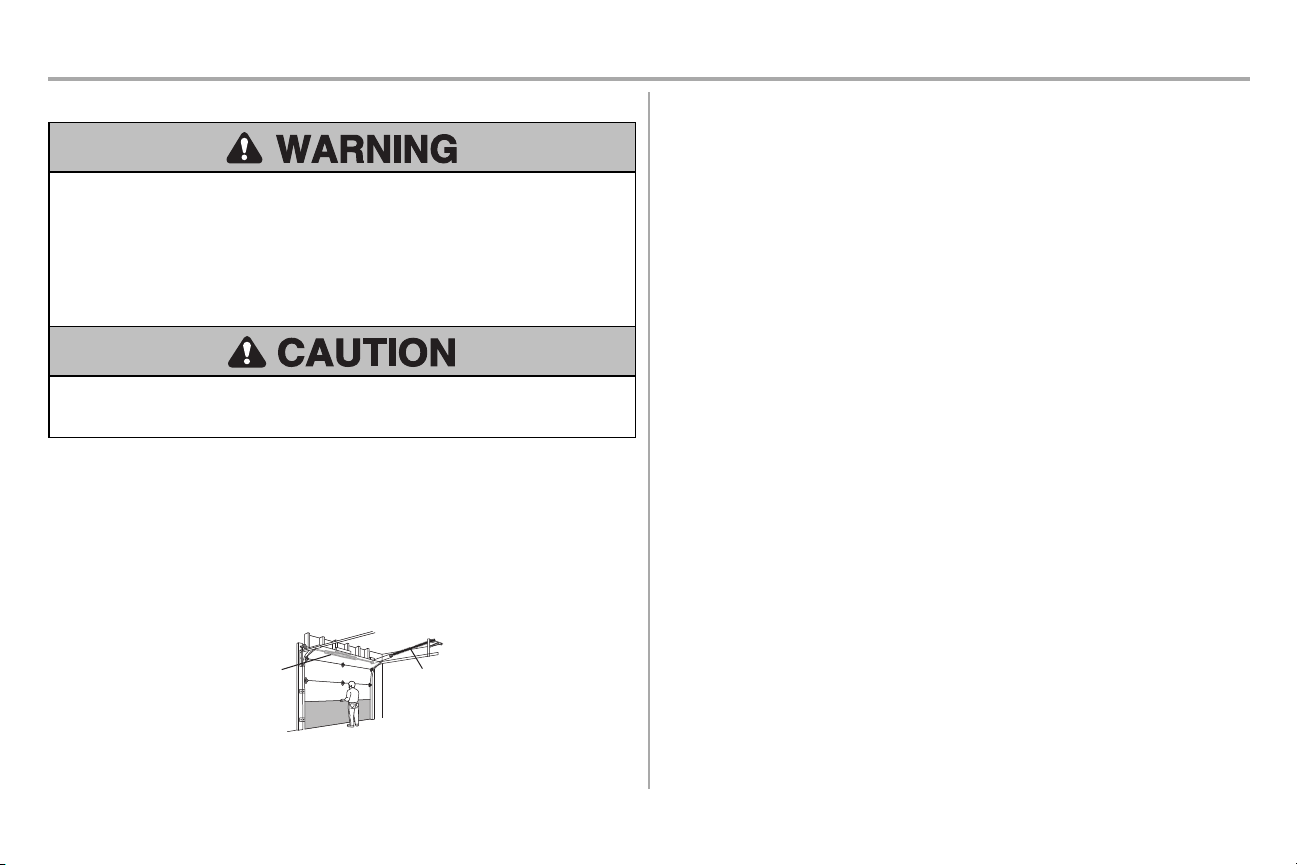

ChecktheDoorTo prevent possible SERIOUSINJURYor DEATH:

lALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An

unbalanced garage door may NOT reverse when required.

lNEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their

hardware, ALLof which are under EXTREME tension.

lDisable ALLlocks and remove ALLropes connected to garage door BEFORE installation and operating

garage door opener to avoid entanglement.

lDO NOT install on a one-piece door if using devices or features providing unattended close.

Unattended devices and features are to be used ONLY with sectional doors.

To prevent damage to garage door and opener:

lALWAYS disable locks BEFORE installing and operating the opener.

lONLY operate garage door opener at 120V, 60Hz to avoid malfunction and damage.

Before you begin:

1. Disable locks and remove any ropes connected to the garage door.

2. Lift the door halfway up. Release the door. If balanced, it should stay in place, supported entirely by its

springs.

3. Raise and lower the door to check for binding or sticking. If your door binds, sticks, or is out of balance,

call a trained door systems technician.

4. Check the seal on the bottom of the door. Any gap between the floor and the bottom of the door must

not exceed 1/4" (6 mm). Otherwise, the safety reversal system may not work properly.

5. The opener should be installed above the center of the door. If there is a torsion spring or center

bearing plate in the way of the header bracket, it may be installed within 4feet (1.2 m) to the left or

right of the door center. See page 13.

Torsion

Spring Extension

Spring

Preparation

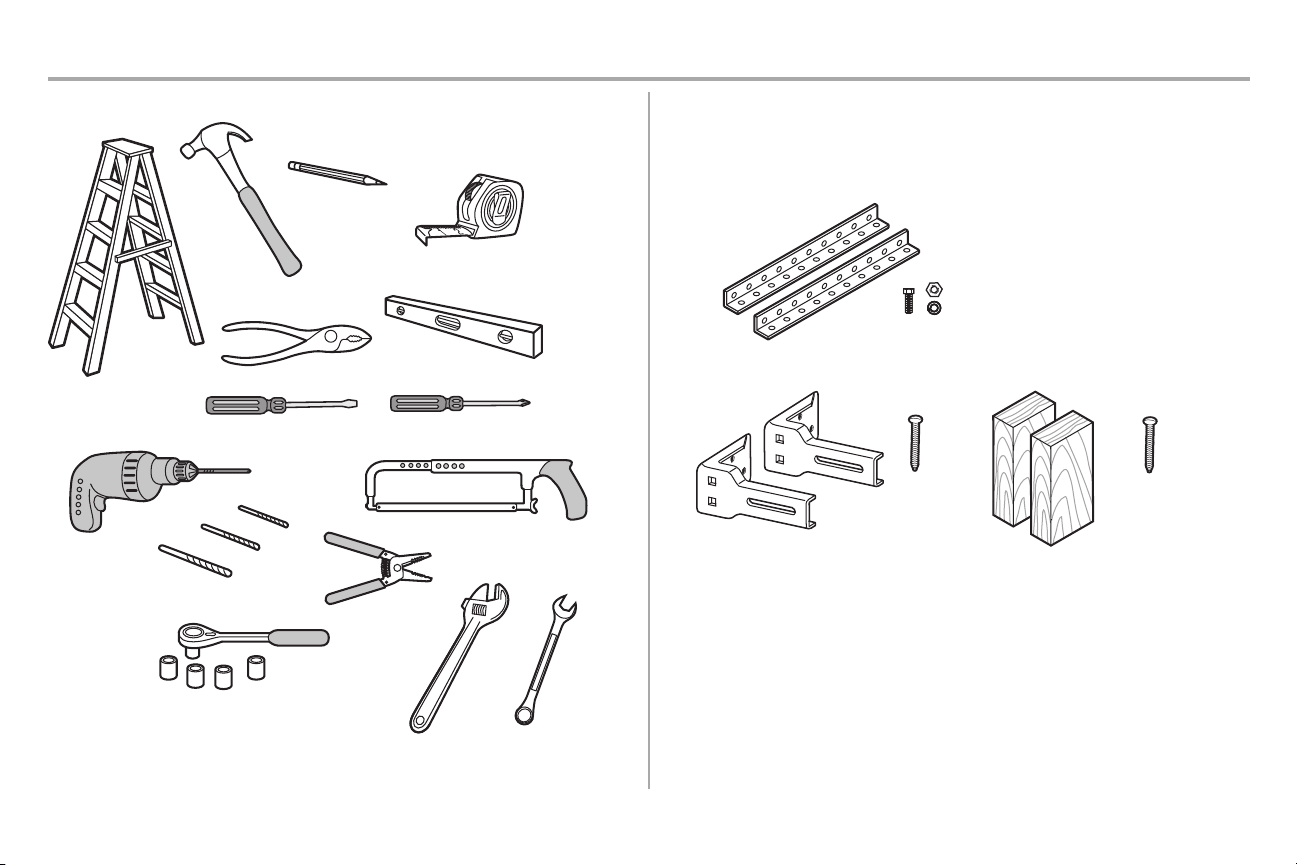

ToolsNeeded

3/16

7/16

1/2

5/32

5/16

9/16

1/4

7/16

AdditionalItemsYouMayNeed:Survey your garage area to see if you will need any of the following items:

l(2) 2X4 Pieces of wood : May be used to fasten the header bracket to the structural supports. Also

used to position the garage door opener during installation and for testing the safety reversing

sensors.

lSupport bracket and fastening hardware: Must be used if you have a finished ceiling in your garage.

Support Brackets

Hardware x2 (each)

lExtension brackets (Model 041A5281-1) or wood blocks: Depending upon garage construction,

extension brackets or wood blocks may be needed to install the safety reversing sensor.

Extension Brackets –Ê041A5281-1

Lag screws x4 Lag screws x12

Wood Blocks

lFastening hardware: Alternate floor mounting of the safety reversing sensor will require hardware not

provided.

lDoor reinforcement: Required if you have a lightweight steel, aluminum, fiberglass or glass panel door.

lRail extension kit: Required if your garage door is more than 7 feet (2.13 m) high.

Preparation

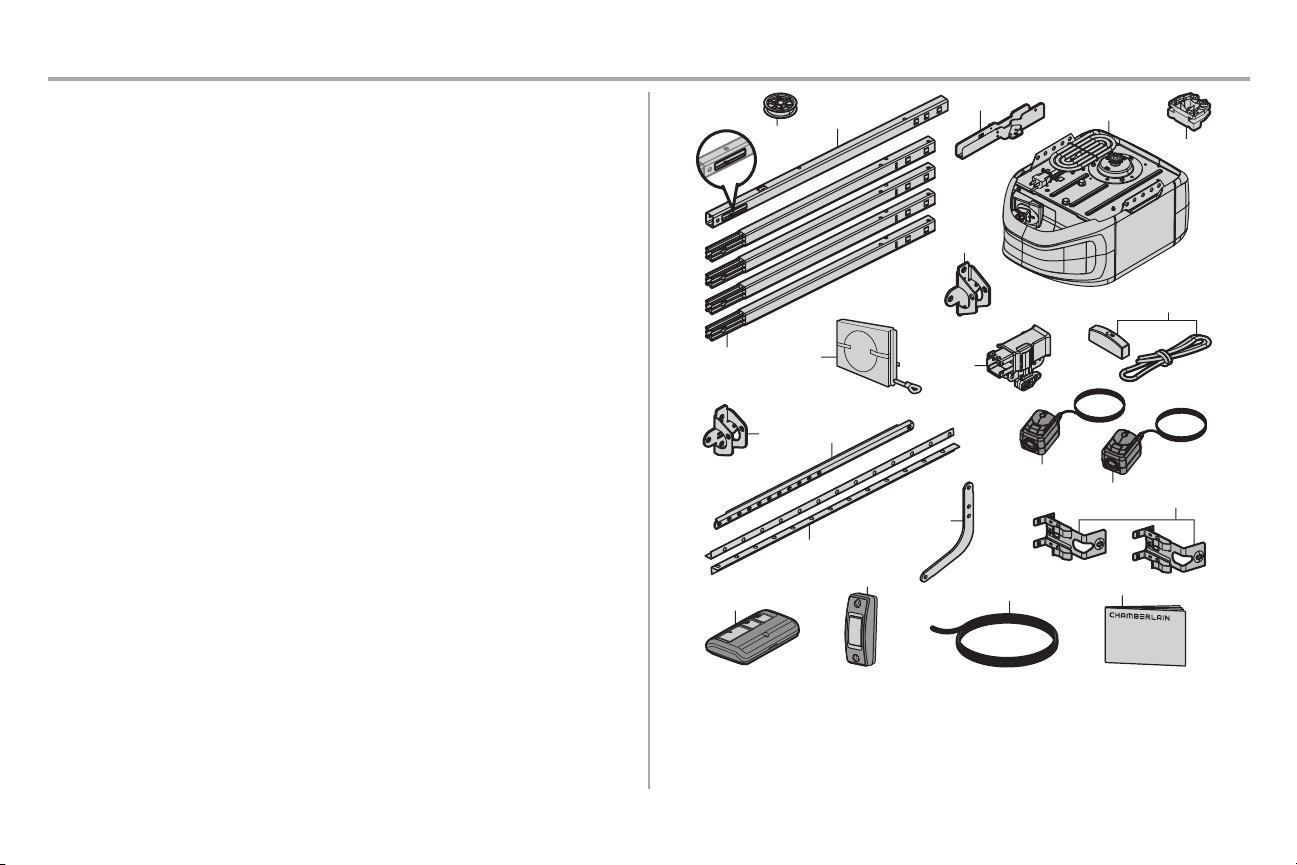

CartonInventorySave the carton and packing material until the installation and adjustment is complete. Instructions for the

accessories will be attached to the accessory and are not included in this manual. The images throughout this

manual are for reference only and your product may look different.

1. Header bracket

2. Pulley

3. Door bracket

4. Curved door arm

5. Straight door arm

(Packaged inside front rail section)

6. Trolley

7. Emergency release rope and handle

8. Rail (1 front and 4 center sections)

9. Hanging brackets (2)

(Packaged inside the front rail section)

10. Garage door opener (motor unit)

11. Chain spreader with screws

12. “U” bracket

13. Chain and cable

14. The Protector System®

Safety reversing sensors with 2 conductor white and white/black wire attached: sending sensor (1),

receiving sensor (1), and safety sensor brackets (2)

15. Remote control

16. Push button door control

17. White and red/white wire

18. Installation manual and all warning labels

See Hardware page 6.

Go to chamberlain.com for replacement or additional accessories:

3-button remote control model 953EV-P2

Wireless keypad model 940EV-P2

9 x2

8 x1

8 x4

14 x1 14 x1

16 17

Preparation

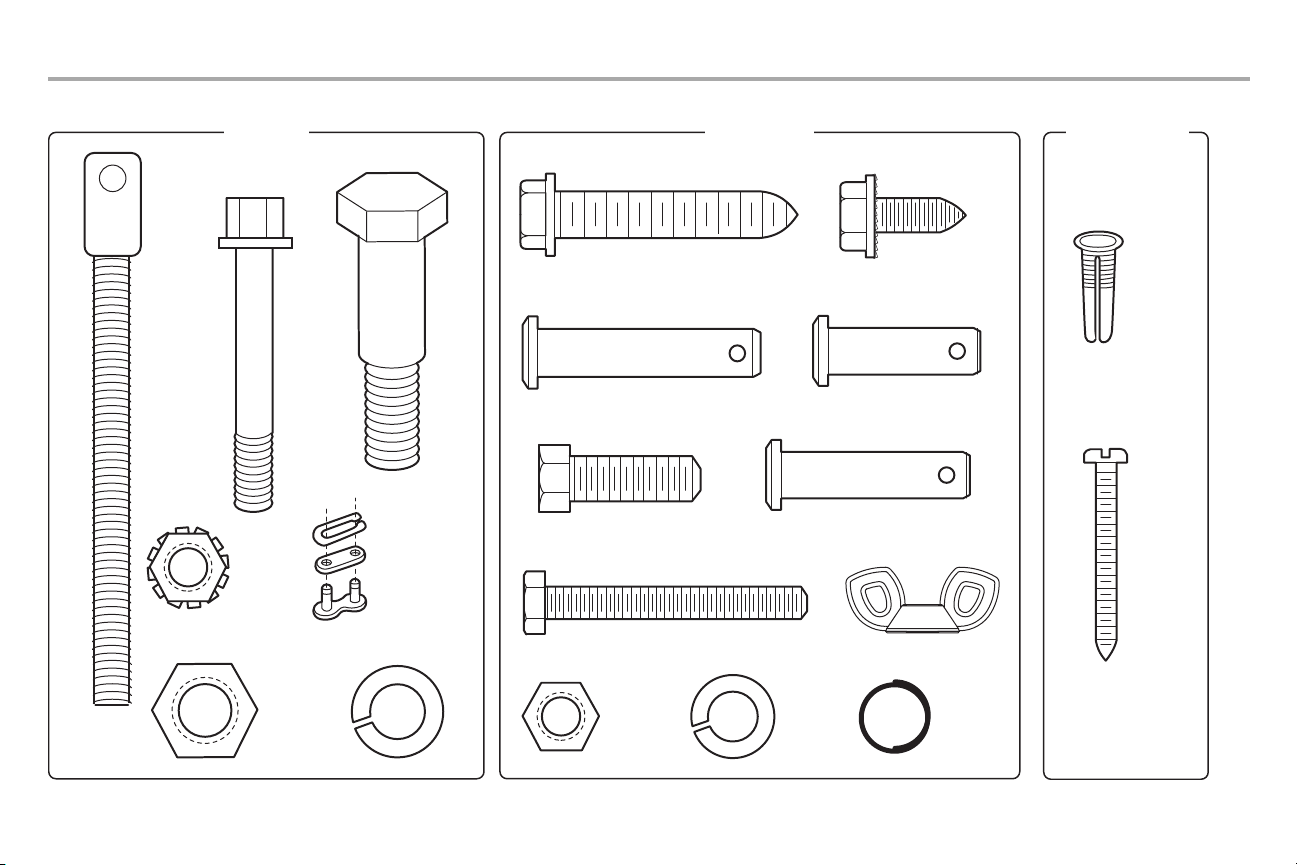

Hardware

ASSEMBLY INSTALLATION DOOR CONTROL

Insulated Staples

(Not Shown)

Bolt

1/4"-20x1-3/4"

Lock Nut

1/4"-20

Bolt

Nut 3/8" Lock Washer 3/8"

Master Link (2)

Threaded

Shaft Clevis Pin 5/16"x1-1/2"

Ring

Fastener (3)

Hex Bolt 5/16"-18x7/8" (4)

Lock Washer

5/16"-18 (5)

Nut

5/16"-18 (6)

Self-Threading Screw

1/4"-14x5/8" (2)

Clevis Pin 5/16"x1"

Clevis Pin 5/16"x1-1/4"

Lag Screw 5/16"-9x1-5/8" (4)

Screw

6ABx1-1/2" (2)

Drywall

Anchors (2)

Hex Screw 10-24 (2) Wing Nut (2)

Preparation

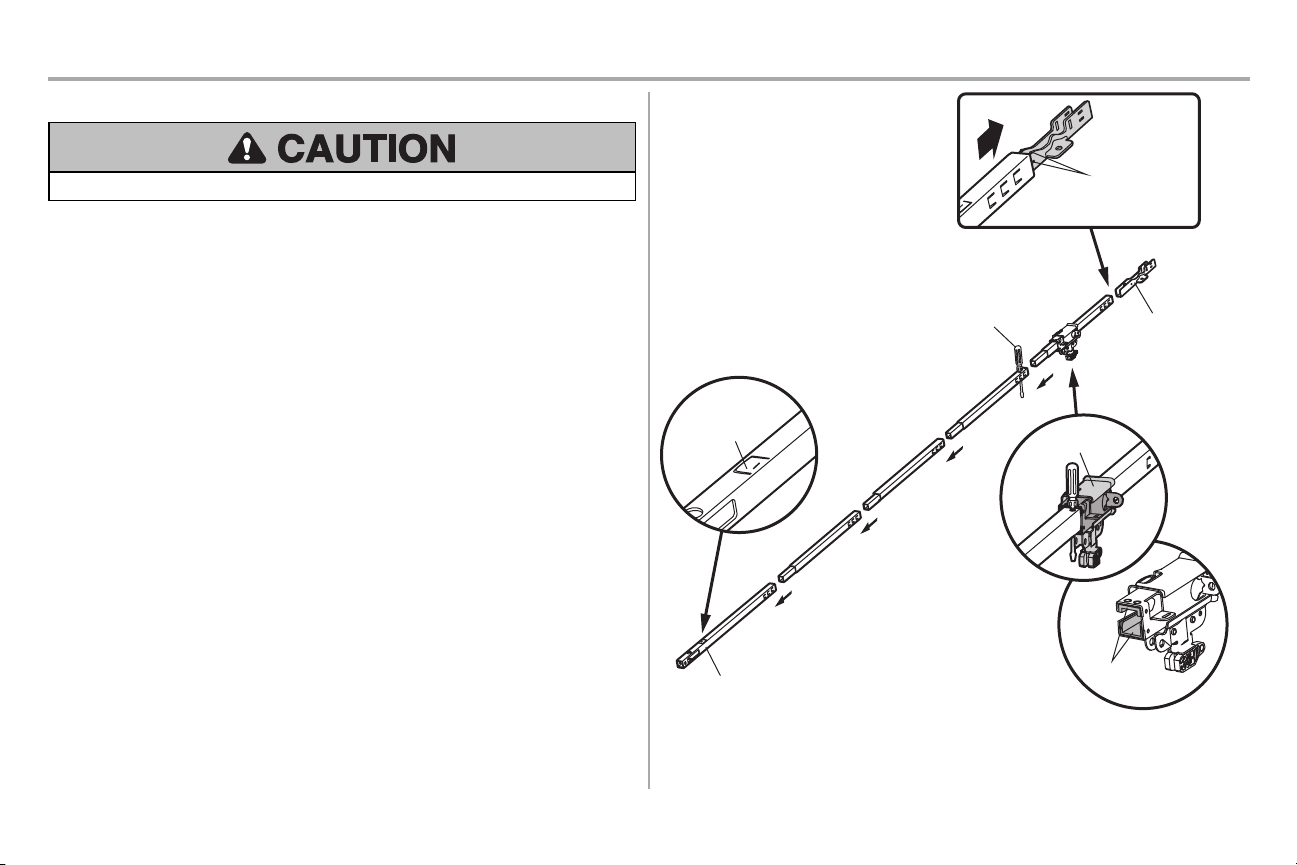

AssemblySTEP1AssembletheRailandInstalltheTrolleyTo prevent INJURY from pinching, keep hands and fingers away from the joints while assembling the rail.

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

The front rail has a cut out “window” at the door end. The rail tab MUST be on top of the rail when assembled.

1. Remove the straight door arm and hanging bracket packaged inside the front rail and set aside for

Installation Step 5 and 9. NOTE: To prevent INJURY while unpacking the rail carefully remove the

straight door arm stored within the rail section.

2. Align the rail sections on a flat surface as shown and slide the tapered ends into the larger ones. Tabs

along the side will lock into place.

3. Place the motor unit on packing material to protect the cover, and rest the back end of the rail on top.

For convenience, put a support under the front end of the rail.

4. As a temporary stop, insert a screwdriver into the hole in the second rail section from the motor unit,

as shown.

5. Check to be sure there are 4 plastic wear pads inside the inner trolley. If they became loose during

shipping, check all packing material. Snap them back into position as shown.

6. Slide the trolley assembly toward the screwdriver as shown.

7. Slide the rail onto the “U” bracket, until it reaches all the stops on the top and sides of the “U” bracket.

Wear Pads

Front Rail Section

(TO DOOR)

“U” Bracket

(TO MOTOR UNIT)

Trolley

Rail Tab

On Top

Slide to stops

on top and sides

of “U” bracket

Screwdriver

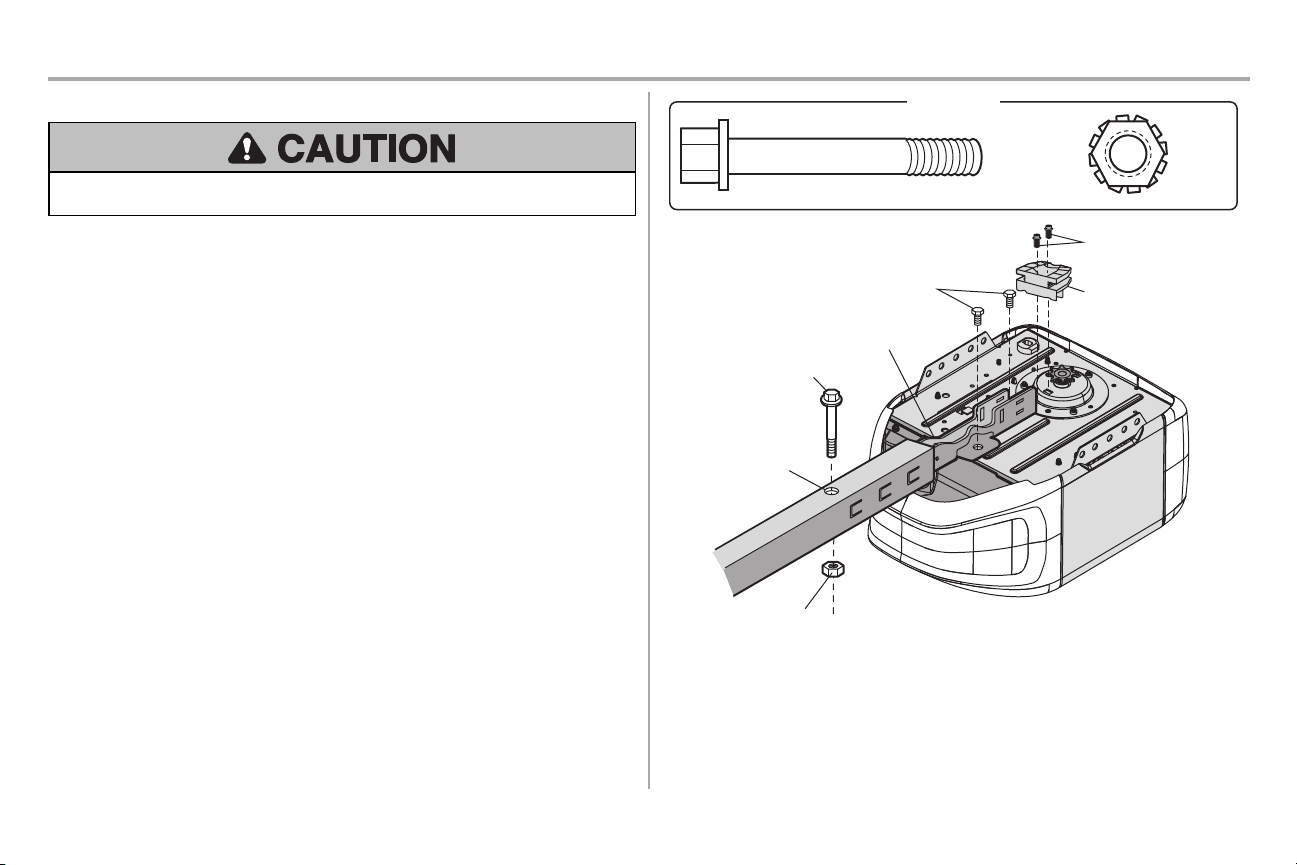

AssemblySTEP2FastentheRailtotheMotorUnitTo avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of

the opener.

1. Insert a 1/4"-20 x 1-3/4" bolt into the cover protection bolt hole on the back end of the rail as shown.

Tighten securely with a 1/4"-20 lock nut. DO NOT overtighten.

2. Remove the bolts from the top of the motor unit.

3. Use the carton to support the front end of the rail.

4. Place the “U” bracket, flat side down onto the motor unit and align the bracket holes with the bolt

holes.

5. Fasten the “U” bracket with the previously removed bolts; DO NOT use any power tools. The use of power

tools may permanently damage the garage door opener.

6. Attach chain spreader to the motor unit with two screws.

Bolt

1/4"-20x1-3/4"

Lock Nut

1/4"-20

HARDWARE

“U” Bracket

Hex Screws

8-32x7/16

Cover Protection

Bolt Hole

Bolt

Lock Nut

Bolts (Mounted in the

garage door opener) Chain

Spreader

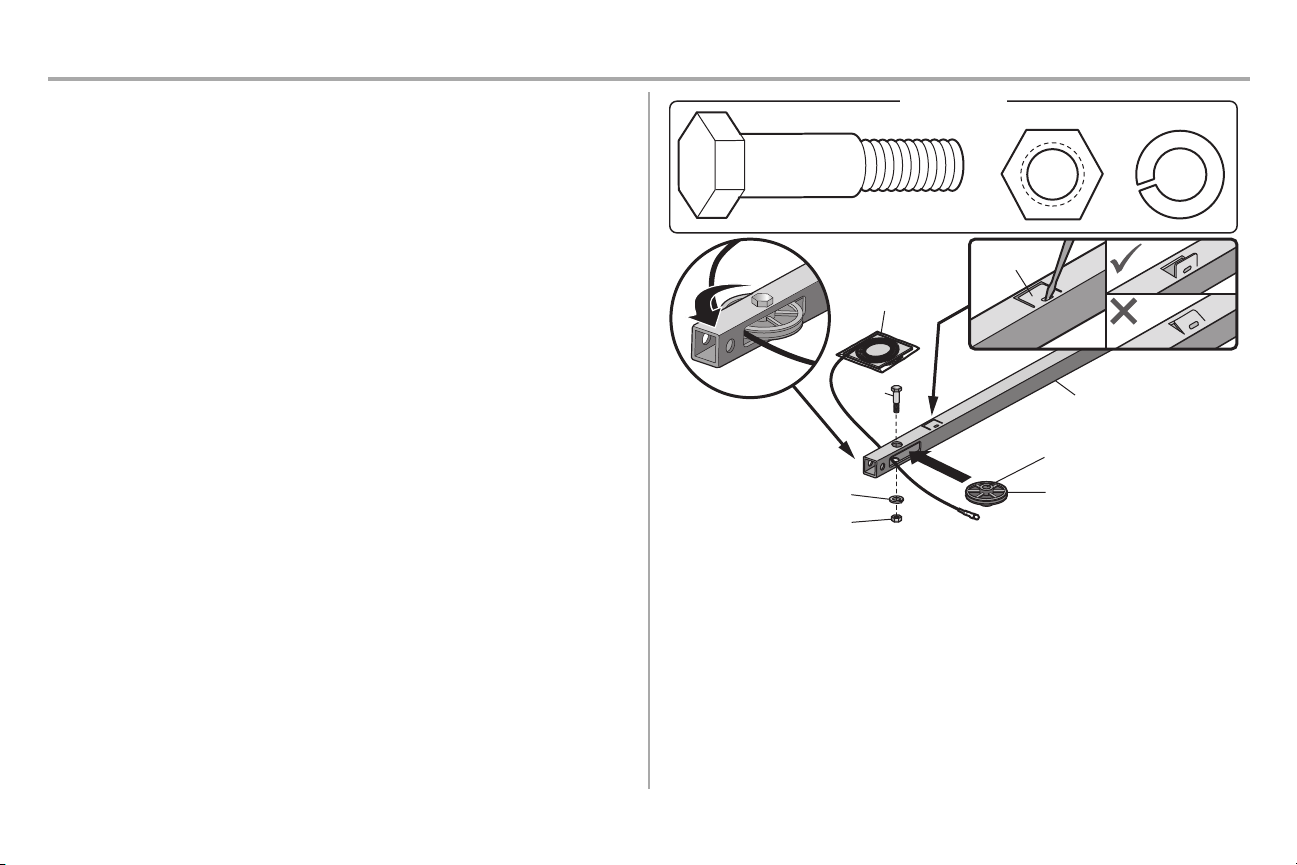

AssemblySTEP3InstalltheIdlerPulley1. Lay the chain/cable beside the rail, as shown. Grasp the end of the cable and pass approximately 12"

(30 cm) of cable through the window. Allow it to hang until Assembly Step4.

2. Remove the tape from the idler pulley. The inside center should be pre-greased. If dry, regrease to

ensure proper operation.

3. Place the idler pulley into the window as shown.

4. Insert the idler bolt from the top through the rail and pulley. Tighten with a 3/8" lock washer and nut

underneath the rail until the lock washer is compressed.

5. Rotate the pulley to be sure it spins freely.

6. Locate the rail tab. The rail tab is near the idler pulley on the front rail section. Use a flat head

screwdriver and lift the rail tab until the tab is vertical (90º).

Rail

Idler Pulley

Grease Inside Pulley

Bolt

Chain/cable

Lock Washer

Nut

Bolt Nut 3/8" Lock Washer 3/8"

HARDWARE

Rail Tab

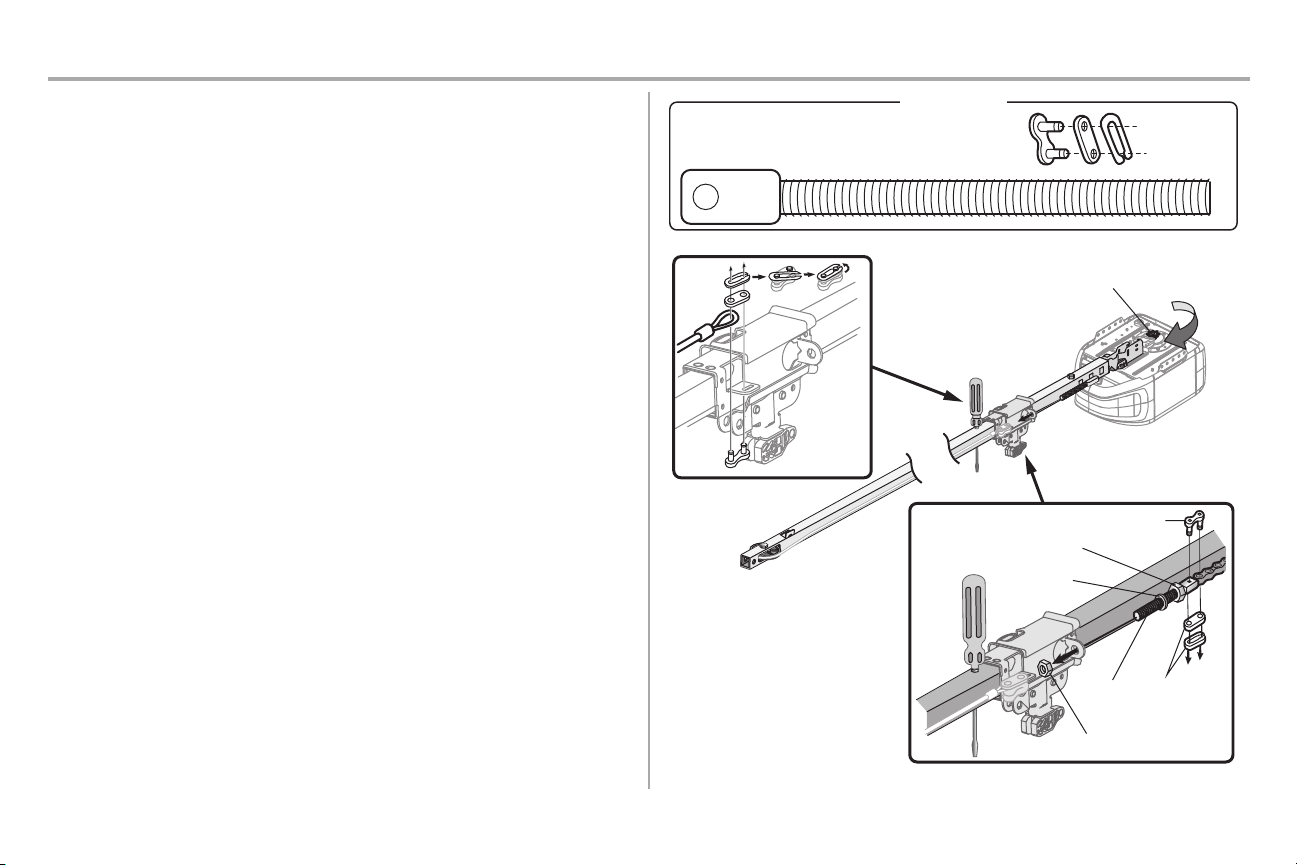

AssemblySTEP4InstalltheChain1. Pull the cable around the idler pulley and toward the trolley.

2. Connect the cable to the retaining slot on the trolley, as shown. (Figure 1)

a. Push pins of master link bar through cable link and trolley slot.

b. Push master link cap over pins and past pin notches.

c. Slide the closed end of the clip-on spring over one of the pins. Push the open end of the clip-on

spring onto the other pin.

3. With the trolley against the screwdriver, dispense the remainder of the cable/chain along the rail

toward the motor unit around the sprocket and continuing to the trolley assembly. The sprocket teeth

must engage the chain. (Figure 2)

4. Check to make sure the chain is not twisted, then connect it to the threaded shaft with the remaining

master link.

5. Thread the inner nut and lock washer onto the trolley threaded shaft.

6. Insert the trolley threaded shaft through the hole in the trolley. Be sure the chain is not twisted. (Figure

7. Loosely thread the outer nut onto the trolley threaded shaft.

8. Remove the screwdriver.

Sprocket

Figure 1

Figure 2

HARDWARE

Master

Link

Threaded Shaft

Threaded

Shaft

Outer Nut

Inner Nut

Lock Washer

Master Link

Master

Link

Figure 3

Table des matières

Autres manuels Chamberlain ouvre-porte de garage

Chamberlain

Chamberlain LiftMaster Security+ 3280M Manuel utilisateur

Chamberlain

Chamberlain LiftMaster Pro Security + 3265 Manuel utilisateur

Chamberlain

Chamberlain AccessMaster Security+ M200 Manuel utilisateur

Chamberlain

Chamberlain 8550W Manuel utilisateur

Chamberlain

Chamberlain Liftmaster Elite LA500 Manuel utilisateur

Chamberlain

Chamberlain 1260 - 1/2HP Manuel utilisateur

Chamberlain

Chamberlain 1200 Manuel utilisateur

Chamberlain

Chamberlain LiftMaster 3280cm 1/2 HP Manuel utilisateur

Chamberlain

Chamberlain 8500W Manuel utilisateur

Chamberlain

Chamberlain SECURITY+ CG40CDM Manuel utilisateur

Chamberlain

Chamberlain 8550 Manuel utilisateur

Chamberlain

Chamberlain CS100EVO Manuel utilisateur

Chamberlain

Chamberlain 4400E Manuel utilisateur

Chamberlain

Chamberlain Merlin MS105MYQ Manuel utilisateur

Chamberlain

Chamberlain Whisper Drive Security+ WD822KCS Manuel utilisateur

Chamberlain

Chamberlain ELITE Series Manuel utilisateur

Chamberlain

Chamberlain Merlin Professional MR600 Manuel utilisateur

Chamberlain

Chamberlain LiftMaster Professional ECO300K Manuel utilisateur

Chamberlain

Chamberlain MT Manuel utilisateur

Chamberlain

Chamberlain Series 5000 1/2HP Manuel utilisateur

Chamberlain

Chamberlain GT Manuel utilisateur

Chamberlain

Chamberlain Whisper Drive Security+ HD800D Manuel utilisateur

Chamberlain

Chamberlain Power Drive PD600 Series Manuel utilisateur

Chamberlain

Chamberlain HD520EVG Manuel utilisateur

Manuels ouvre-porte de garage populaires d'autres marques

Dorma

Dorma ES 90 Manuel utilisateur

Garaga

Garaga SECURITY+ 3265GCM 1HP Manuel utilisateur

Chase Doors

Chase Doors DuraShield Manuel utilisateur

CSI

CSI Classic Manuel utilisateur

HATO

HATO 120 Manuel utilisateur

Richmond

Richmond GTR156 Manuel utilisateur

Raynor

Raynor 1280RGD Manuel utilisateur

CAME

CAME F4000 Series Manuel utilisateur

B&D

B&D Controll-A-Door 5 Manuel utilisateur

BFT

BFT PRV AA SL Manuel utilisateur

Craftsman

Craftsman 139.53924 Manuel utilisateur

Automatic Technology

Automatic Technology GDO-9V1 SecuraLift Manuel utilisateur

Westfalia

Westfalia 19 36 07 Manuel utilisateur

Cardin

Cardin BL Series Manuel utilisateur

Craftsman

Craftsman 139.53997D Manuel utilisateur

Bauer

Bauer CROSS18 Mode d’emploi

Wayne-Dalton

Wayne-Dalton 8124 Guide de démarrage rapide

Craftsman

Craftsman 139.18867 Manuel utilisateur
