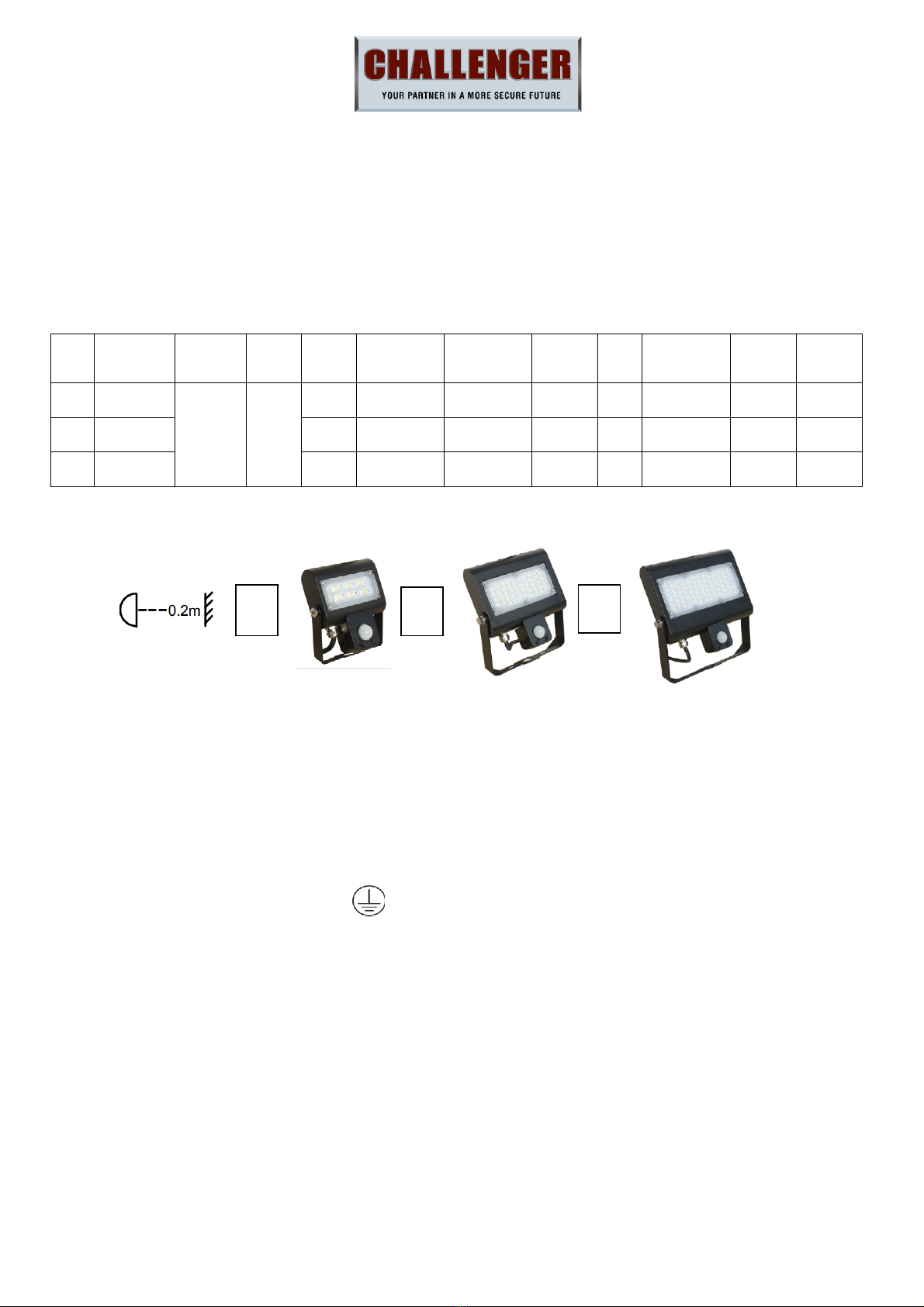

Challenger_SLFLF15P2_30P2_50P2_Instructions_Rev01
1. Do not remove any part of the fixture; there are no serviceable parts inside.
2. Use suitable fixing to secure the luminaire to the mounting surface.
3. Keep enough slack in the cable to ensure adjusting angle of the luminaire unhindered.
Connect the wires into a suitable IP rated connection box; B ue wire to “Neutra ”, Brown wire to “Live”,
Green/Ye ow wire to “Earth”.
4. The sensor is designed for optimum performance when mounted 2.0-2.5 meters above ground level.
5.
Any external connections need to be made in suitable IP rated enclosure, preferably with cable entry at the
bottom.
PIR Specification
Detection: 180°
Range: Max. 10m
Installation Height: 2.0-2.5m
Time: 8 ± 5 seconds to 12 ± 2minutes adjustable
Light Control: 3~1000lux adjustable
Detection Motion Speed: 0.6-1.5m s
Operating Temp: -20 ~ +40°C
PIR FUNCTION :
Day and night settings: If required for the luminaire to work in the daytime and also at night, rotate
the adjuster to the position. For night time operation only, adjust to the position, until
satisfactory operation. If fully adjusted to the position then it will only work in ambient light
less than 3LUX
SENS adjustab e: It can be adjusted according to user location. The detection distance of low
sensitivity could be 5m and high sensitivity could be 10m dependent of mounting height and angle of
the sensor flood light. The PIR is more sensitive with movement across the PIR and is less sensitive
with movement towards the PIR sensor.
Time adjustab e: The time duration can be adjusted between 5 seconds to 12 minutes. If adjusted to
the position, the time will be 5 seconds, when adjusted to the position will be 12 minutes.
MANUAL OVERRIDE FUNCTION:
1. To override the automatic mode, the sensor must be switched ON in the automatic mode. Now switch
wall the switch OFF-ON, OFF-ON powering the light twice within 2 seconds. The sensor will now hold the
light ON continuously for 5 hours.
2. To return your sensor to the automatic mode, switch your wall switch OFF, then switch ON after 10
seconds, or switch OFF-ON, OFF-ON powering the light twice.
