CES 4700VP Manuel utilisateur

Model 4700VP

Versatile Telephone Interconnect

CES Wireless Technologies

925-122 South Semoran Blvd., Winter Park, FL 32792

(407) 679-9440

MAN71 Version 1.6

Friday, August 20, 2010

Printed in USA

CES SUPPORT 407-679-9440 Page 2MAN71© CES 2010

Table of Contents

INTRODUCTION........................................................................................................................................................................... 5

1.0 GENERAL DESCRIPTION .................................................................................................................................................. 6

2.0 INSTALLATION INSTRUCTIONS .................................................................................................................................... 7

2.1 GENERAL INFORMATION......................................................................................................................................................... 7

2.2 MATERIAL AND EQUIPMENT REQUIRED FOR INSTALLATION................................................................................................. 7

2.3 MECHANICAL INSTALLATION................................................................................................................................................. 7

2.4 ELECTRICAL INSTALLATION................................................................................................................................................... 7

2.5 COMPONENT LAYOUT............................................................................................................................................................. 8

2.6 RADIO INTERFACE CONNECTION............................................................................................................................................ 9

2.7 JUMPER SELECTIONS............................................................................................................................................................... 9

Internal COR Mobile Detector (R55)..................................................................................................................................11

DTMF RX (R51).................................................................................................................................................................... 11

Receive Audio (R50).............................................................................................................................................................. 11

Transmit Audio (R43) ........................................................................................................................................................... 11

Repeat Audio (R52)............................................................................................................................................................... 11

VOX (R42)............................................................................................................................................................................. 11

Regenerated DTMF -Phone Tone (R53)............................................................................................................................. 11

Ringout and Beeps -Radio Tone (R54) .............................................................................................................................. 11

3.0 PROGRAMMING PROCEDURES...................................................................................................................................12

3.1 PROGRAMMING THE 4700VP............................................................................................................................................... 12

3.2 LOCAL PROGRAMMING ........................................................................................................................................................ 12

3.3 PROGRAMMING PARAMETERS EXPLAINED........................................................................................................................... 12

Speed Dial Locations (01# through 25#)............................................................................................................................. 12

Factory Defaults Settings (30#)............................................................................................................................................ 12

Lead in Delay (31#).............................................................................................................................................................. 12

Mobile Activity Timer (32#).................................................................................................................................................. 13

Call Limit Timer (33#).......................................................................................................................................................... 13

CWID Time Interval (34#).................................................................................................................................................... 13

Repeater Hang Time (35#)................................................................................................................................................... 13

COR (40#) ............................................................................................................................................................................. 13

External COR Polarity (41#)................................................................................................................................................ 14

CTCSS Polarity Logic Input (42#)....................................................................................................................................... 14

Gate COR with CTCSS (43#)................................................................................................................................................ 14

DTMF Regeneration (45#)................................................................................................................................................... 14

Repeat Mode Enable (46#)................................................................................................................................................... 15

Rroger Beep (47#).................................................................................................................................................................15

CW ID Interval (49#)............................................................................................................................................................ 15

Mode of Operation (50#)...................................................................................................................................................... 15

Sample Rate for Sample Mode and for VOX active (51#)................................................................................................... 16

Sample Rate for VOX Inactive (52#).................................................................................................................................... 16

Maximum Vox Timer (53#)................................................................................................................................................... 16

Vox Hang Time (54#)............................................................................................................................................................ 16

Sampling Window Setup (55#) ............................................................................................................................................. 16

Dialing mode (56#)............................................................................................................................................................... 17

Ignore COR to Ring Out (57#)............................................................................................................................................ 17

Answering a Call (58#)........................................................................................................................................................ 17

Hook Flash Period (59#)...................................................................................................................................................... 17

Connect / Access Code (60#)................................................................................................................................................ 17

Toll Restrict Override Code (61#)........................................................................................................................................ 17

Remote Programming Code (62#) ....................................................................................................................................... 18

Speed Dial Remote Program Code (63#)............................................................................................................................. 18

CW ID Call Letters (64#)...................................................................................................................................................... 18

Toll Restrict (70# ~ 79#)....................................................................................................................................................... 18

CES SUPPORT 407-679-9440 Page 3MAN71© CES 2010

Last Number Re-dial (0#)..................................................................................................................................................... 19

4.1 CIRCUIT DIAGRAM............................................................................................................................................................ 22

5.1 USER CODE CHART............................................................................................................................................................23

6.2 AMENDMENTS....................................................................................................ERROR! BOOKMARK NOT DEFINED.

CES SUPPORT 407-679-9440 Page 4MAN71© CES 2010

Warranty

CES Wireless Technologies warrants this product to be free from defects in material and workmanship for three

years from date of shipment. If such malfunction occurs, it will be repaired or replaced (at our option) without

charge for materials or labor if returned to the factory. This warranty does not apply to parts damaged due to

improper use-including accident, neglect, unreasonable use, and improper installation -or to unauthorized

alterations or modifications of the equipment. It does not extend to damage incurred by natural causes such as

lightening, fire, floods, or other such catastrophes, nor to damage caused by environmental extremes, such as power

surges and or transients. It does not extend to microprocessors if is determined that the failure of a micro is due to

static damage, application of improper voltages to the unit, or other problems nor related to circuit design. In such

case or in the case of a desire to update the micro to a different version of software, such request must be specified

in writing, and there will be a charge agreed upon by both parties.

This product is warranted to meet published specification and to operate as specified only when properly installed in

radio equipment which complies with US FCC specification and the applicable radio manufacturer’s specifications.

CES is not responsible for any operational problems caused by system design, outside interference, or improper

installation. Installation and programming of this CES product must be completed by a qualified two-way radio

technician or engineer.

Equipment for repair may be returned to the factory, freight prepaid, only with prior authorization. Please call 407-

679-9440 for an RMA number. A brief letter describing the nature of the defect should be included with the

merchandise. Repair by other than CES will void this guarantee. In-warranty merchandise must be shipped, freight

prepaid, to CES. CES will return the repaired or replaced equipment to purchaser, within the United States.

This warranty applies to the original purchaser of the equipment only. CES is not liable under this warranty, or any

implied warranty, for loss of use or for other consequential loss or damage experienced by the purchaser. Some

states do not permit the exclusion or limitation of implied warranties or consequential damages. This warranty

provides special legal rights, and the purchaser may have other rights that vary from state to state.

The information in this manual, and any software in this product remains the property of CES. Reproduction,

duplication, or disclosure is not permitted without the prior written consent of CES. CES reserves the right to

change products, specifications, and installations data at any time, without notice.

All information contained in this document is carefully prepared and offered in good faith as a guide in the

installation, operation, use and servicing of our products. Installers must insure that the final installation operates

satisfactory, within relevant regulatory requirements. We accept no responsibility for incorrect installation.

ARIS™, autoCALL™, Smart Sampling™ and Veratec™ are trademarks of CES

LTR™ is a registered trademark of E.F. Johnson Company

Smartnet™ is a trademark of Motorola Communications

Windows and Windows ‘95 is a registered trademark of Microsoft

IBM is a trademark of International Business Machines

Call Waiting is a registered trademark of Bell South

A CES PUBLICATION Copyright CES 1996-2010

CES SUPPORT 407-679-9440 Page 5MAN71© CES 2010

Introduction

Thank you for choosing the 4700VP Telephone Interconnect.

The 4700VP is but one of a range of premium telephone interconnect products from CES. This product family

offers a complete suite of devices to choose from in order to provide the necessary level of functionality for a given

system requirement.

This product has been carefully engineered and manufactured to provide reliable service in virtually any wireless

communications system. Occasionally, particular systems may require special functions not available in standard

products. Please call your CES Applications Engineer to discuss special applications to meet other needs.

Because we are engaged in a program of continual product development, the specifications and descriptions outlined

in this manual are subject to change. Please consult the amendment section for changes.

When you call CES for support, you will be asked for the version number of this manual. A manual is shipped free

with each 4700VP. If you do not have a manual, we are unable to provide telephone support. Manuals can be

ordered from the CES Sales Department.

At CES, we strive to bring you products that meet your needs. If you have any comments about our products,

manuals or service please call CES at 407 -679-9440, and thank you for your continued support.

CES SUPPORT 407-679-9440 Page 6MAN71© CES 2010

1.0 General Description

This service manual provides detailed information regarding the installation, operation, and maintenance of the

CES model 4700VP telephone interconnect.

The simplex or semi-duplex 4700VP was designed specifically for two way radio applications. The unit is

controlled by DTMF (Dual Tone Multi Frequency) audio from mobiles, and contains exclusive interface circuitry

and operating software which allows for operation with a wide variety of radio and telephone systems.

The 4700VP has a number of other useful features, including:

User Programmable Toll Restriction with Allow & Deny Table.

Toll Restriction Override Code

User Programmable CWID

User Programmable Connect / Access code

Local or Over the Air Programming

25 Speed Dial Locations

Last Number Re-dial

Factory Default Settings

Hook Flash Feature for use with Call Waiting™ Services

Enhanced Sampling or VOX with VeraTec™ Smart Sampling

Half Duplex Operation

Automatic Setup (sampling window)

Roger Beep

Internal & External COR, and CTCSS Logic Input

User Programmable Call Limit & Activity Timers

Repeat Mode

Regenerated DTMF & Pulse Dial

Busy Channel Inhibit

High Intensity LED Front Panel Indicators for DC Power, Mobile Detection, DTMF

Detection, Transmitter PTT, and Telephone Line Connection

9-pin “D” connector on rear panel for easy installation and maintenance

CES SUPPORT 407-679-9440 Page 7MAN71© CES 2010

2.0 Installation Instructions

2.1 General Information

Installation of the model 4700VP should be performed by a qualified two-way radio or communications technician.

Ensure that static precautions are observed and that power is not applied during installation.

Shielded audio cable should be used for all audio signal line connections to the transmitter-receiver combination.

Terminate ground shields at the DB9 connector only to prevent hum and noise due to ground loops. The shield at

the other end of the cable must be left unconnected. The best location for the interconnect is as close as possible to

the transmitter-receiver combination, thus allowing the shielded cables and wires to be as short as possible.

2.2 Material and Equipment Required for Installation

The following items are needed in order to install the 4700VP:

# 2 Phillips Screwdriver

Solder and Soldering Iron

Service Monitor or Deviation Meter (optional, for transmitter deviation adjustments)

1/8” flat blade adjustment tool (or a jeweler’s screwdriver).

Digital Multimeter (recommended)

Radio Transceiver (in addition to the radio (s) being used for the interconnect itself)

2.3 Mechanical Installation

Place the 4700VP on any surface away from sources of extreme heat or cold. The 4700VP should be located close to

a good grounding system (cold water pipe or grounded metal cabinet) if at all possible for maximum lightning

protection.

2.4 Electrical Installation

Electrical installation of the model 4700VP involves connection to the radio (s) by supply cable, and connection to

the telephone line via supplied modular cord. Fig. 2.4.1 shows the rear panel of the 4700VP. Table 2.6.1 shows

functional information for each pin of the DB-9 (Radio Interface Connector) on the rear panel. Table 2.7.1 shows

the internal jumper selections, and Figure 2.5.1 shows the internal component layout and test point locations.

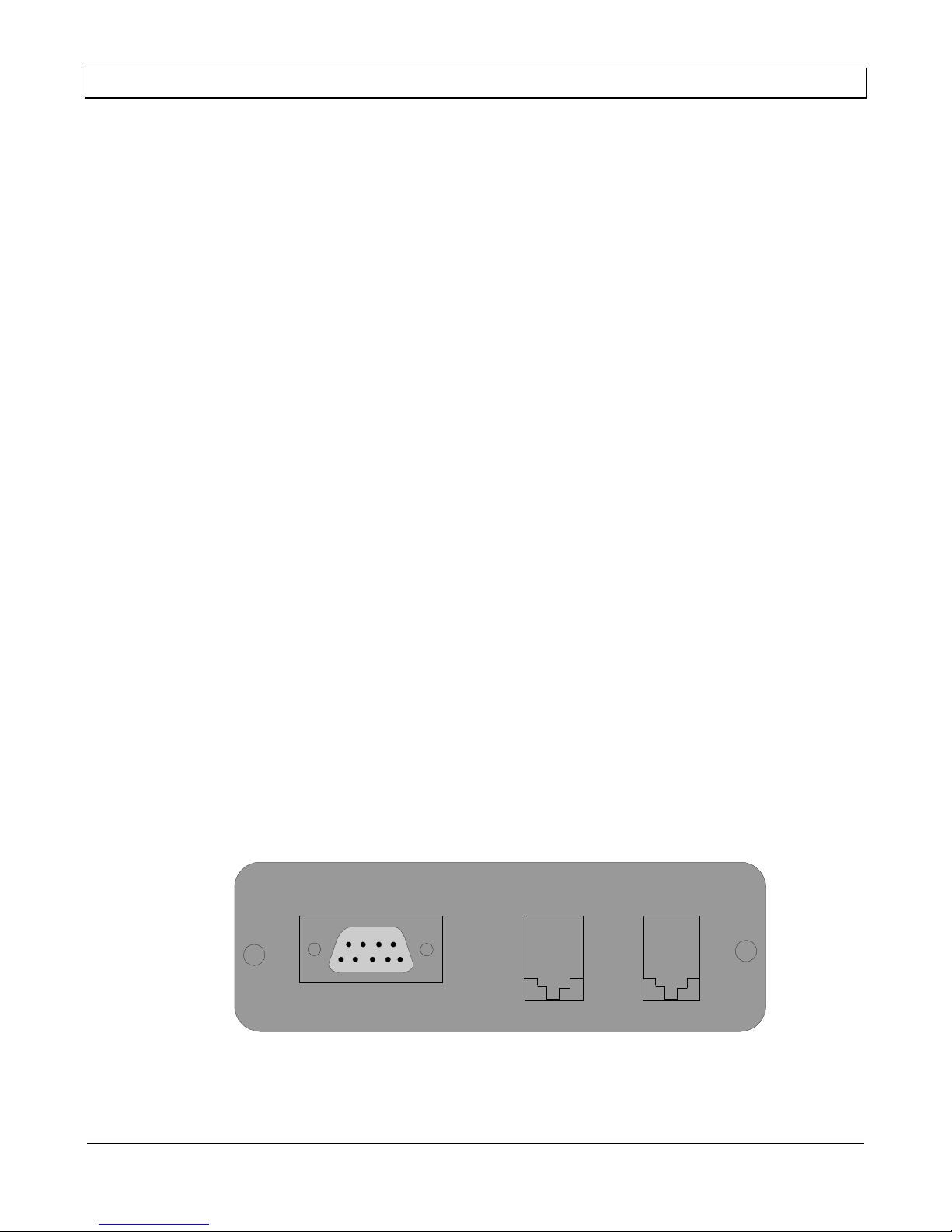

Fig. 2.4.1 4700VP Rear Panel Diagram

RADO INTERFACE

J4 PROGRAM

J2 PHONE

CES SUPPORT 407-679-9440 Page 8MAN71© CES 2010

2.5 Component Layout

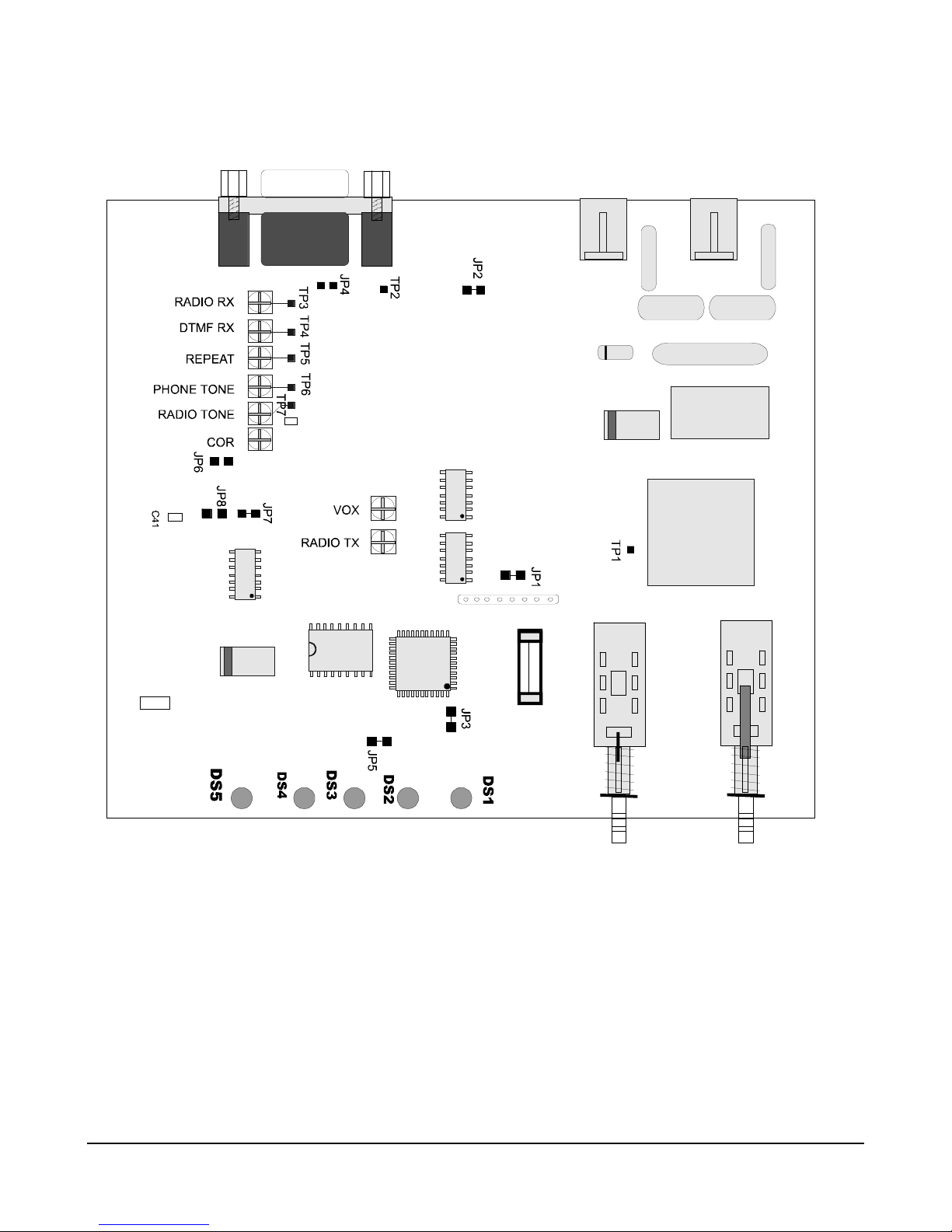

Fig. 2.5.1 4700VP Component Layout

CES SUPPORT 407-679-9440 Page 9MAN71© CES 2010

2.6 Radio Interface Connection

Table 2.6.1 DB-9 Radio Interface Connector

Pin Function Signal Description

1PTT output Digital.

Open

Collector

Connect to the radios Push to Talk input to control the radio transmit function.

2RX Audio Analog Connect to the radios discriminator or detector. Although NOT recommended,

squelched/speaker audio can be used.

******SEE NOTE ON FOLLOWING PAGE******

3N/C N/A

4CTCSS logic i/p Digital This input is normally connected to a radio or external CTCSS/DPL decoder output to

provide additional system security. When installed, the 4700VP will only connect when

the proper CTCSS/DPL is detected by the decoder and its output changes state. This input

is user programmable for active high or active low.

5Ground Power Connect to a suitable ground point in the radio

6TX Audio Analog Connect to the microphone/audio input of the transceiver / transmitter.

7N/C N/A

8External COR Digital Use this pin on applications where discriminator audio is not used (squelched audio is

used). This input is user programmable for active high or active low, and can also be

connected to an external CTCSS/DCS decoder output.

9Power (12vdc) Power Connect to switched radio voltage. Range 10 - 15 V DC.

2.7 Jumper Selections Table 2.7.1 Jumper Configuration

Jumper No. Function Description Default Position

JP1 Voice audio delay (optional) No voice audio delay installed

Voice audio delay installed IN IN

OUT

JP2 Emphasize audio Discriminator audio

Squelched audio ( speaker) IN IN

OUT

JP3 CTCSS logic input Active Low

Active High IN IN

OUT

JP4 TX audio output High Z

Low ZOUT OUT

JP5 External COR Active Low

Active High IN IN

OUT

JP6 RX audio input High Z

Low ZOUT OUT

Important Note

The 4700VP requires a signal from the radio receiver to determine the presents or absence of a mobile carrier, i.e. when the

channel is busy or not. This is accomplished in one of two ways.

1. The 4700 has an internal squelch circuit to determine channel activity. This circuitry only functions if the receive audio

connection (pin 2) is connected to the discriminator of the radio. The discriminator provides un-squelched and unfiltered

audio for the 4700’s squelch circuitry and audio that is fed to the phone line. This setting is factory default and is referred

to as internal COR operation. See page 11 for COR adjustment.

2. If a squelched audio source (speaker audio) is used for pin 2, then an additional wire called External COR (pin 8) MUST

BE CONNECTED. This signal is a DC signal that changes in level when the squelch control of the radio is opened or

CTCSS is decoded. This signal can usually be obtained from the radios squelch circuitry or busy channel indicator. This

signal can also be obtained from the CTCSS decoder if so equipped. When this connection is used, the 4700VP must be

programmed for External COR (program code 40) and the correct active state set (code 41). See page 18 for External COR

polarity.

Both of the connections talked about above are very often not available from a radios accessory jack and usually requires an

internal connection to the radio. Correct operation of DS5 (4700VP COR /channel activity LED) is essential for proper

operation.

In Short, the COR LED must be normally OFF, and only come on when the radios receiver is actively receiving a

signal / carrier.

Table des matières

Manuels Accessoires pour téléphone populaires d'autres marques

IAI

IAI CON-T Manuel utilisateur

BT DIVERSE 5400 Manuel utilisateur

Tadiran Telecom

Tadiran Telecom EMERALD ICE Manuel utilisateur

Musicam

Musicam FieldFone II Manuel utilisateur

Polycom

Polycom KIRK KIRK 4040 Fiche technique

TIPTEL

TIPTEL DECT Set 50 Manuel utilisateur

Panasonic

Panasonic KX-UDS124 Manuel utilisateur

BT BT7600 Fiche technique

Panasonic

Panasonic KX-TVP100E Manuel utilisateur

View

View VP-PC Manuel utilisateur

Baldwin Boxall

Baldwin Boxall BT8 Manuel utilisateur

SMC Networks

SMC Networks SMCDPCR-AP Manuel utilisateur

SkyLink

SkyLink SD-001 Manuel utilisateur

Nera

Nera ISDN Manuel utilisateur

MCheeta

MCheeta CT-CID803 Plus Manuel utilisateur

YASKAWA

YASKAWA YRC1000 Manuel utilisateur

Intellitouch

Intellitouch MOH-500E Manuel utilisateur

Viking

Viking SQRG-12 Instructions d'utilisation
