Certa CTSTMCLN2000A Manuel utilisateur
2000W Handheld Steam Cleaner
CTSTMCLN2000A
Quick Start Guide

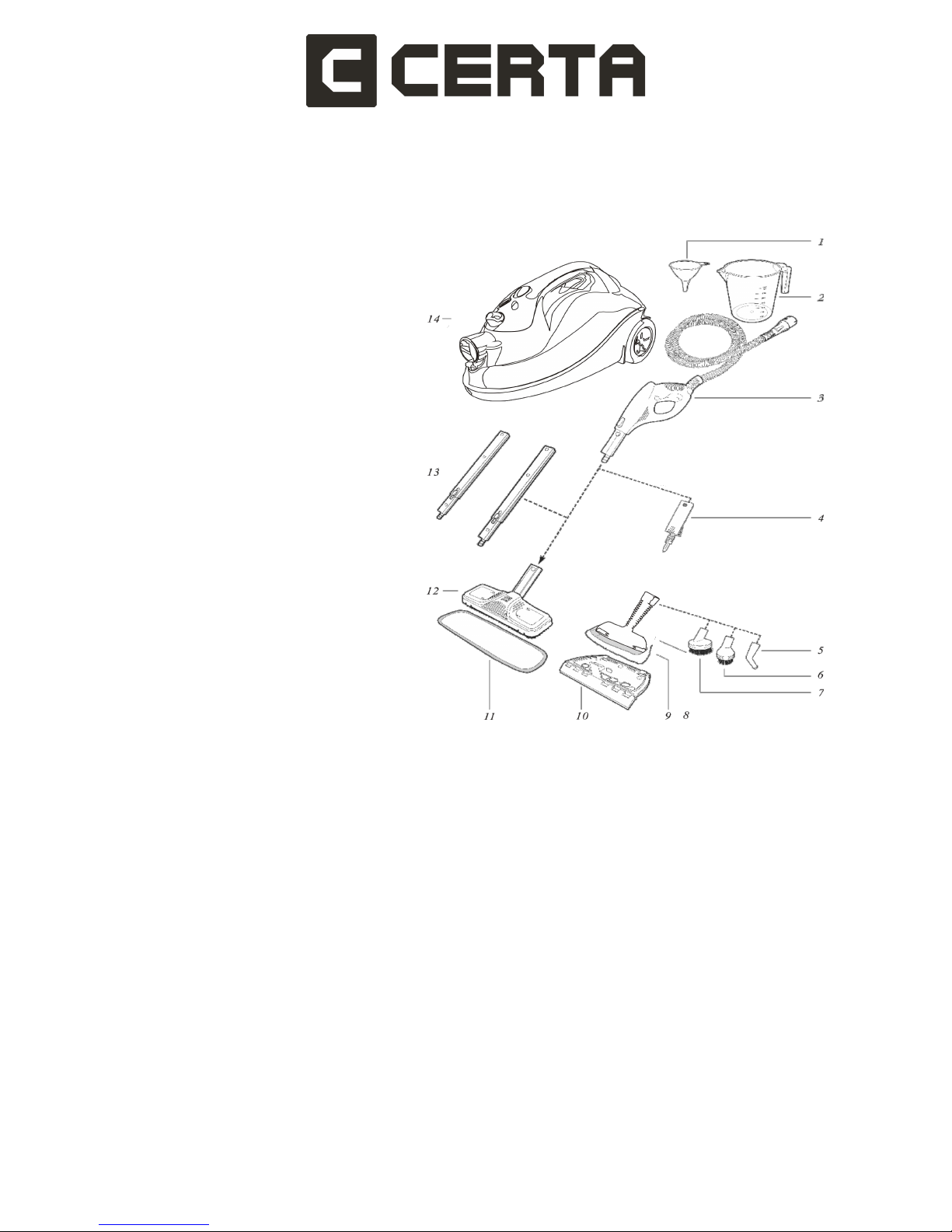

Product Layout
1. Funnel
2. Measuring jug
3. Steam gun with steam hose and
steam connector
4. Accessory adapter
5. Jet no le
6. Metal brush
7. Nylon brush
8. 2-in-1 attachment (window)
9. Cotton cover
10. 2-in-1 attachment (window)
11. Large cleaning cloth
12. Floor no le
13. Extension tubes
14. Steam cleaner with mains plug and
connection cable
Safety
•Do not allow children to use this machine. Keep the unit out of reach of
children when not in use.
•This device is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person who is responsible for their
safety.
•To prevent electric shock, do not immerse power cord or power plug in
water or other liquids.
•The power cord and power plug should be in good condition and should
not be damaged. Damaged or defective power cords and power plugs
must not be used, and must be repaired or replaced.
•The product is designed only for use in households and is not suitable for
industrial applications.
1
•Do not turn on the power supply until the tank is full of water.
•During operation, the tank mouth must be plugged hermetically and the
safety cap should be tightened in position.
•While in use, the body of the unit should not be included at an angle
greater then 45 degrees. Otherwise the boiling water may be sprayed out
together with the steam.
•Do not direct steam towards other people, animals or electrical products.
•Before refilling the water, ensure the power cord has been unplugged
from the power supply. It is necessary to unplug the power cord after the
machine has been used, before it is cleaned and while it is being repaired.
•Do not add rust remover, odour counteracting agents, alcohol or
detergents into the water tank.
•The filling aperture must not be opened during use.
•Never overfill the tank as the steam generation may be effected.
Product S ecifications
Power supply rating: AC 220-240V~ 50H
Tank capacity: 1.85L
Mac Capacity of Water Cup: 1.45L
Rated power: 2000W nominal
Steam pressure: 4-4.5bar
Steam availability: Max. 32minutes/tank
Heating time: Approx 8 minutes
Injected steam capacity: 44g/min
Overall dimensions: 430 x 250 x 260mm
Net weight: 3.45kg (without accessories)
Filling the Water Tank
The steam cleaner has a built-in water tank that will hold 1.5 litres. The steam
cleaner must be switched off and disconnected from the mains when filling or
topping up the water.
Unscrew the tank cap (Fig. 1) by pressing the cap down and simultaneously
turning it anti-clockwise. Use the funnel and measuring jug supplied when filling
with water (Fig. 2).
Fig. 1 Fig. 2
CAUTION: Always test the steam cleaner first on a hidden or concealed area of
the surface or fabric to be cleaned to check its tolerance to the steam.
•Steam may result in bleaching of painted/varnished wood.
•Steam may discolour shiny plastics.
•Acrylic, velvet or linen react very sensitively to the temperature of steam.
Do not use the steam cleaner on products without having first carried out a
2
suitability test on a concealed area. Kogan.com cannot be held responsible for
damage to objects, materials, people, animals or plants that occurs due to the
unsuitable use of steam or improper use of the appliance.
Only fill tank with pure water. Do not use any additives at all, as they can
damage the unit. It is advisable to use distilled water to prevent limescale
deposits if you water is hard. Otherwise boil the water first to extend the
products service life.
CAUTION: Do not exceed the maximum quantity of 1.5 litres when filling the
tank.
Using the Steam Cleaner
•WARNING: Never aim the steam outlet at people, animals, plants or
electrical systems).
Release the child-proof locking device by pushing the black triangular pin on the
right-hand side of the steam gun towards the left (Fig 3). Hot steam will now
escape if the steam button is operated. To start with, hold the steam gun over
an old cloth to absorb any initial water spray. Operate the steam button until the
steam is being emitted evenly. Cleaning can now begin.
Fig. 3
Do not aim the steam outlet as a single spot for too long. Loosen dirt by moving
the steam jet back and forth.
Do not tip the appliance by more than 45° during use, and ensure that the
appliance always stands on a firm base. One full tank is enough for a maximum
of 50 minutes use. Do not leave the unit unsupervised while switched on, and if
children are nearby, be sure to use the child-proof lock to secure the steam
switch. To do this, press the triangular black pin on the left-hand side of the
steam gun to the right.
WARNING: Housing and accessories will become hot during use! Allow products
to cool down before changing any accessories. Never open the tank cap while
the unit is switched on, as the tank will be under pressure!
NOTE: The steam cleaner is fitter with an overheating cut-out switch. The unit
will switch off automatically on reaching a temperature of 180°C to prevent
overheating. Disconnect unit from the mains immediately by removing the plug
from the socket. Allow the unit 30 minutes to cool down before plugging it in
again.
NOTE: Residual steam will continue to escape for a few seconds after you switch
off the steam function.
3
To ing U the Water
The tank must be topped up if the steam flow being emitted starts to decrease.
Switch the steam cleaner off by pressing the ON/OFF switch. The green
operating lamp will go out. Then press the steam release button on the steam
gun to release all remaining pressure inside the tank, then lock the gun.
Remove the plug from the mains and allow the unit to cool down.
Take care when opening the plug as the water in the tank may still be slightly
under pressure even after the unit has cooled down. Press the cap downwards
and turn anti-clockwise, allowing any pressure to escape before removing the
cap fully from the unit. As the air escaping may still be hot, you should use a
cloth in your hand when opening the cap.
Top the unit up with water by using the measuring jug and funnel, then carefully
close the tank cap again. The steam cleaner can now be plugged in and
switched on again. The unit will be ready to use once the red heating lamp goes
out again.
Cleaning and Maintenance
WARNING: Always ensure that the unit is switched off and unplugged before carrying out any
cleaning or maintenance.
Only clean the appliance by wiping over the housing with a damp cloth. Do not use any cleaning
agents or detergents as these may damage the housing.
Troubleshooting
If the problems you encounter are not remedied by the solutions offered below
or your issue is not covered here, please contact the Kogan customer support
team.
Fault Possible Cause Possible Solution
Operating light fails to light up. •The appliance is either not
plugged into a power socket,
or is not turned on.
•The power socket is faulty.
•The power cable is damaged.
•Insert the mains plug into a
power socket and switch the
unit on.
•Check the socket by plugging
a different appliance into it.
•Have the cable replaced by a
Kogan technician.
No steam is emitted when the steam
button is operated.
•The child-proof lock is
preventing release of the
steam button.
•The water tank is empty.
•Push the black pin on the
right hand side of the steam
gun to the left.
•Top unit up with water.
Only a small amount of steam flows
out.
•The steam controller is set to
the minimum.
•Turn the steam controller
anti-clockwise until sufficient
steam is emitted.
The appliance takes a very long time
to heat up.
•Water tank has excessive
lime scale.
•Descale the water tank.
If you have any further issues or questions regarding use of this roduct,
lease contact the Kogan customer su ort team.
4
