Centro Natural Gas Conversion Kit Manuel utilisateur

WARNING

Failure to follow all of the manufacturer’s

instructions could result in hazardous

fires, explosions, property damage,

or serious personal injury or even death.

WARNING

Follow all leak check procedures carefully

prior to operation of barbecue,

even if barbecue was store assembled.

Do not try to light this barbecue

without reading the Lighting Instructions

section of this manual.

WARNING

1. Do not store or use gasoline or other

flammable liquids or vapors in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use

shall not be stored in the vicinity of

this or any other appliance.

DANGER

If You Smell Gas

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your

gas supplier or your fire department.

THIS BARBECUE IS FOR

OUTDOOR USE ONLY

Read and save this manual for future reference.

If pre-assembled, leave this manual with

unit for consumer’s future reference.

Centro Customer Care Hotline

1-877-707-5463

SERIAL #:

Natural Gas Conversion Kit

FOR USE WITH MODEL: 85-1620-6 ONLY / FOR OUTDOOR USE ONLY

THIS NATURAL GAS CONVERSION KIT

CAN ONLY BE USED WITH CENTRO

ENTERTAINMENT ISLAND 6000SI

MODEL 85-1620-6.

Attention: Centro® recommends that a

qualified gas technician perform the

gas supply conversion and orifice replacement

for this BBQ model.

 WARNING 

Indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

i i

• This kit converts your grill to natural gas at 7 inch water column supply pressure.

Verify supply pressure with your local gas company. If supply pressure is different than

7 inch, contact a certified plumber for assistance. Not for use with LP gas.

• Grill installation must conform with local codes, or in their absence to National

Fuel Gas Code, NFPA 54 / ANSI Z223.1. Grill is not for use in or on recreational

vehicles and/or boats.

• All electrical accessories (such as rotisserie) must be electrically grounded in

accordance with local codes, or National Electrical Code, ANSI / NFPA 70.

Keep any electrical cords and/or fuel supply hoses away from any hot surfaces.

• This grill is safety certified for use in the United States and Canada only. Do not

modify for use in any other location. Modification will result in a safety hazard.

INSTALLATION

SAFETY PRECAUTIONS

The symbols and boxes shown below explain what each heading means. Read and follow

all of the messages found throughout the manual.

SAFETY

SYMBOLS

 DANGER 

Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

 WARNING 

Indicates a potentially hazardous situation or unsafe practice which,

if not avoided, may result in minor or moderate injury.

 CAUTION 

Do not attempt to repair or alter the hose/valve/regulator

for any “assumed” defect. Any modification to this assembly will void

your warranty and create the risk of a gas leak and fire.

Use only authorized replacement parts supplied by manufacturer.

This conversion kit shall be installed in accordance with the manufacturer’s instructions and

all applicable codes and requirements of the authority having jurisdiction. If the informa-

tion in these instructions is not followed exactly, a fire, explosion or production of carbon

monoxide may result causing property damage, personal injury or loss of life. The assembler

or qualified service agency is responsible for the proper installation of this kit. The instal-

lation is not proper and complete until the operation of the converted appliance is

checked as specified in the manufacturer’s instructions supplied with the kit.

 WARNING 

USE AND CARE Natural Gas Connections and Service Regulators Above 1/2 psi.

Prior to 1998, all residual gas service regulators were set with an outlet pressure of 7 inches

water column.

In the 1998 edition of NFPA 54, the National Fuel Gas Code, a change was made allowing

service regulators of 2 and 5 psi.

With this change it was also required that an in line regulator be connected between the

service regulator and the appliance regulator if the 2 or 5 psi system is used. This additional

regulator is not supplied with the product.

It is possible for a consumer, making the connection themselves, or a plumber, not check-

ing, to tap into a 2 or 5 psi line. If a pressure of 2 psi or greater is supplied to the appliance

regulator on certain grills it will shut down and not deliver any gas to the grill. Other con-

cerns are the quick disconnect socket and hose which are only rated to 1/2 psi.

If the quick disconnect socket, hose, and grill are properly connected and still not getting

gas, delivery pressure needs to be verified. If pressure is greater than 1/2 psi, make sure that

an in line regulator is present.

Once the grill has been over-pressured, the regulator may or may not have been damaged.

The best practice is to replace the regulator.

This grill is designed for natural gas use at 7 inch water

column supply pressure. Verify supply pressure with your local gas company.

If supply pressure is different than 7 inch,

contact a certified plumber for assistance. Not for use with LP gas.

Incorrect connection can result in a gas leak with possibility of fire.

 DANGER 

For residential use only. Do not use for commercial cooking.

 CAUTION 

CONNECTING YOUR

GRILL TO THE

NATURAL GAS SOURCE

1. A professionally-installed shut-off valve between the supply piping and the

socket is recommended, but not required, by the National Fuel Gas Code.

Socket connection must be made outdoors.

2. Coat the gas supply pipe nipple with gas resistant dope or Teflon tape.

Screw socket onto gas supply pipe (house gas source) as shown in Figure A below,

and wrench-tighten.

The quick disconnect socket should never be connected to the grill.

Direction of gas flow is indicated on the socket.

 CAUTION 

3. Pull back the sleeve on the quick disconnect socket and insert the unattached

end of the gas hose into the socket. Release the sleeve and continue pushing the

hose into the socket until the sleeve snaps into the locked position. See Figure B.

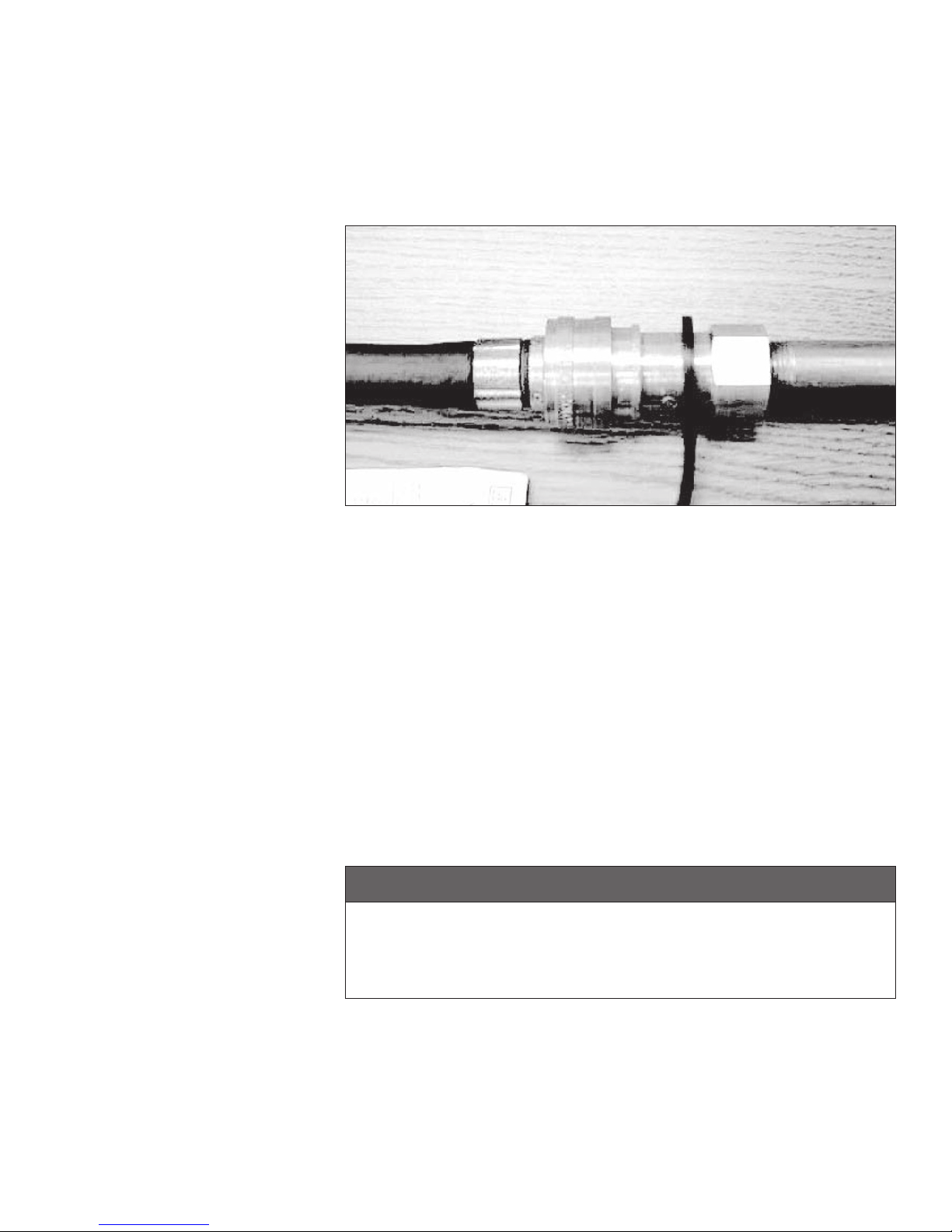

Fig. A

Fig. B

Gas hose

Quick disconnect socket House piping

Sleeve

4. When the quick disconnect socket and the gas hose are connected, a valve in the sock-

et opens automatically to permit full gas flow. When the gas hose is disconnected, the

valve in the socket instantly and positively shuts off the flow of gas. Because the valve

in the socket positively shuts off the flow of gas, the grill can be disconnected from the

gas source by disconnecting the gas hose from the quick disconnect socket. The socket

should be left attached to the gas source (house piping). Figure C, on the following

page, shows properly connected hose and socket.

Fig. C

With proper assembly, the gas hose cannot be removed without pushing the quick

disconnect sleeve back. To disconnect, push sleeve back and pull plug out of sleeve (this

automatically shuts off gas).

Please Note: Hose and assembly are C.S.A. listed for natural gas, manufactured

gas, mixed gas and for liquefied petroleum and for LP Gas-Air mixtures on basis

of 0.64 specific gravity for 1000 BTU’s per cubic foot of gas at 0.3 in. water column

pressure drop. Only ANSI Z21.54 approved hoses should be used with this grill.

Pressure Tests: The appliance and its individual shut off valve must be disconnect-

ed from the gas supply piping system during any pressure testing on that system

at test pressures in excess of 1/2 psig (3.5kPa).

The appliance must be isolated from the gas supply piping system by closing its

individual manual shutoff valve during any pressure testing of the gas supply pip-

ing system at test pressures equal to or less than 1/2 psi (3.5kPa).

 WARNING 

Do not use hard metal piping of any kind to connect this

type of grill to natural gas source. Use only hose specified by manufacturer.

Using hard metal piping or convoluted metal tubing is an

unsafe practice. Movement of the grill can cause breakage of metal pipe.

Although all gas connections on the grill are leak tested at the factory prior to shipment,

a COMPLETE gas tightness check must be performed following the installation of the NG

conversion Kit. Periodically check the whole system for leaks, or immediately check if the

smell of gas is detected.

 WARNING 

Do not smoke while leak testing. Extinguish all flames. Never leak test with

an open flame.

Leak Testing

1. Turn all grill control knobs to OFF.

2. Be sure gas hose is tightly connected to gas source.

3. Completely open gas source. If you hear a rushing sound, turn gas off immediately.

There is a major leak at the connection. Correct before proceeding.

4. Make a soap solution of one part liquid detergent and one part water.

You will need a spray or brush to apply the solution to the fittings. Apply solution.

5. If “growing” bubbles appear, there is a leak. Close gas source immediately

and retighten connection. If leaks cannot be stopped do not try to repair.

Call for replacement parts. Order new parts by giving the serial, model number

and name of items needed to the Grill Service Center at 1-877-707-5463

6. Always close gas source after performing leak test.

Hose Check

• Before each use, check to see if hoses are cut or worn. Replace damaged hoses before

using grill. Use only valve/hose/regulator specified by manufacturer.

 WARNING 

Do not use hard metal piping of any kind to connect this

type of grill to natural gas source. Use only hose specified by manufacturer.

Using hard metal piping or convoluted metal tubing is an

unsafe practice. Movement of the grill can cause breakage of metal pipe.

Storing Your Grill

• Clean cooking grates.

• Store in dry location.

• Cover grill if stored outdoors. Choose from a

variety of grill covers offered by manufacturer.

• Store grill indoors ONLY if gas source is turned off and disconnected.

• When removing grill from storage, follow the Burner Maintenance

instructions in the Grilling Guide before starting grill.

 CAUTION 

Natural Hazard – Spiders

FACT: Sometimes spiders and other small insects climb into the burner tubes attached to

the burners. The spiders spin webs, build nests and lay eggs. The webs or nests can be

very small, but they are very strong and can block the flow of gas. Clean burners prior to

use after storing, at the beginning of grilling season, or after a period of one month not

being used.

An obstruction can result in a “flashback” (a fire in the burner tubes). The grill may still

light, but the obstruction does not allow full gas flow to the burners.

If you experience the following:

1. Smell gas.

2. Burner(s) will not light.

3. A small yellow flame from burner (should be blue).

4. Fire coming from around or behind control knob.

STOP!

Immediately turn off gas at gas source!

SOLUTION: Wait for grill to cool.

Follow the Burner Maintenance instructions in the Grilling Guide. Clean burners often.

Use a 12” pipe cleaner to clean out the burner tubes. You may also force a stream of

water from a hose nozzle through burner tubes to clean them.

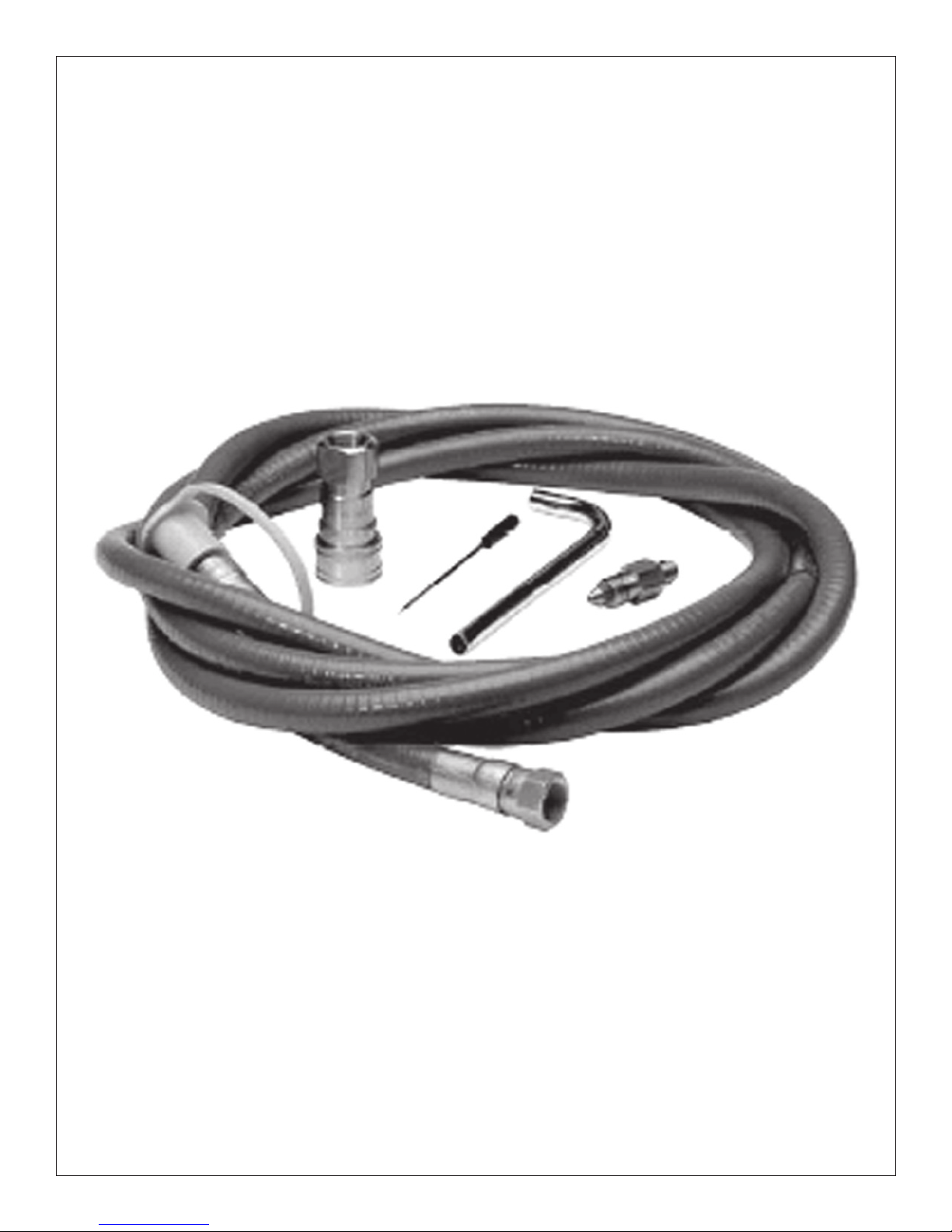

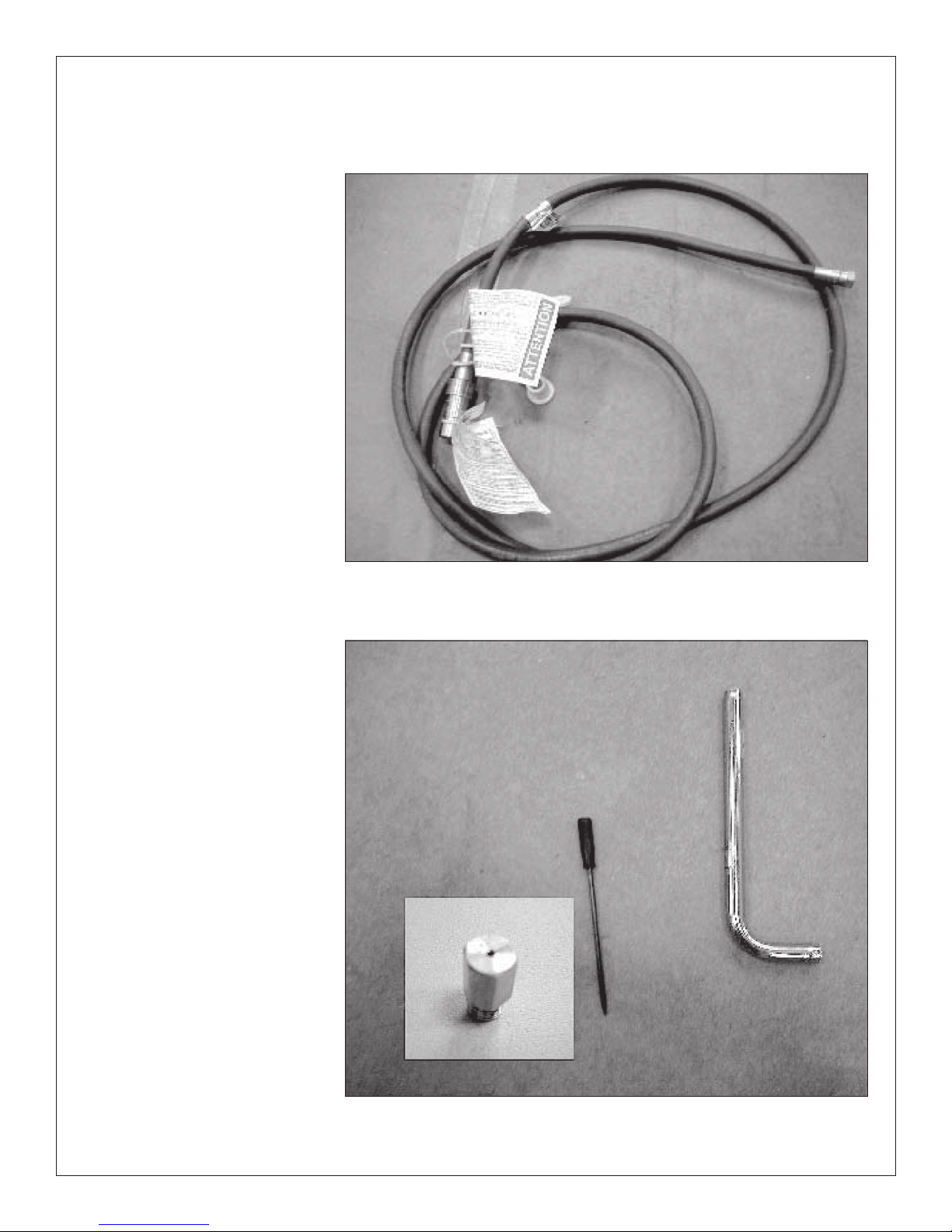

PARTS LIST AND DIAGRAM (85-1621-4)

The Natural Gas

Conversion Kit includes:

1. NG hose

2. Orifice removal tool

3. Screw driver

4. NG orifice

ASSEMBLY INSTRUCTIONS

Remove warming rack, cooking grates, flame tamers, and control

knobs from Centro 6000SI BBQ.

Table des matières

Autres manuels Centro Accessoires pour barbecue

Centro

Centro A01301 Manuel utilisateur

Manuels Accessoires pour barbecue populaires d'autres marques

FEUERHAND

FEUERHAND PYRON PLATE Manuel utilisateur

STOK

STOK SIS1030 Manuel utilisateur

Broil King

Broil King 60938 Manuel utilisateur

BREEO

BREEO OutRig Post Manuel utilisateur

Weber

Weber iGrill 3 Manuel utilisateur

STOK

STOK SGA3070 Manuel utilisateur

STOK

STOK SIS4000 Manuel utilisateur

Kenmore

Kenmore 30800334/30611 Manuel utilisateur

Kenmore

Kenmore 10478 Manuel utilisateur

Landmann

Landmann AG-VI-103BKXX Manuel utilisateur

Otto Wilde

Otto Wilde GRILL STAND Manuel utilisateur

Charcoal Companion

Charcoal Companion Fire UP! Manuel utilisateur

Ecco

Ecco ED5051 Series Manuel utilisateur

GHP Group

GHP Group Dyna-Glo DG4WB Manuel utilisateur

Bartscher

Bartscher KD-30 Manuel utilisateur

Otto Wilde

Otto Wilde S90 Manuel utilisateur

Dangrill

Dangrill 86307 Manuel utilisateur

Weber

Weber IGRILL 2 Manuel utilisateur
