CENTREGO 5K40 Manuel utilisateur

Centrego

5K40

User

Manual

This manual covers the daily operation of the device using photographs and step-by-step guides.

There is also technical information on the Centrego 5K40 device and other information to support

device use.

If any further information is needed, please contact the manufacturer.

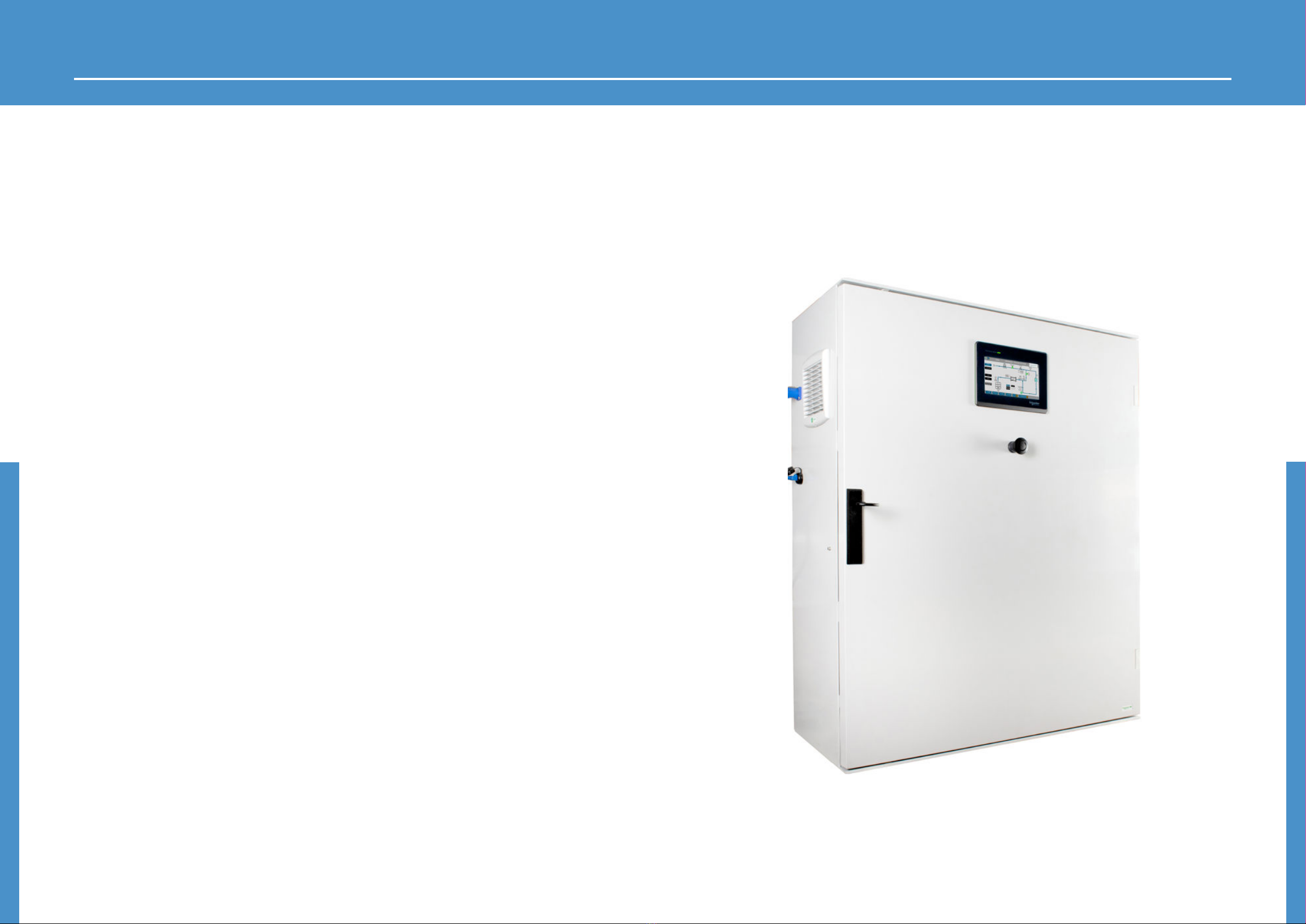

On-site ECA solution generator

Once the Centrego 5K40 device has been

installed on location, there is only the

need to check salt and water

levels for optimum operation.

The machine will produce disinfectant

solution on-site at a very low cost.

This significantly reduces the need

for purchasing synthetic chemical

disinfection products.

Centrego 5K40

P 2 P 3CENTREGO 5K40CENTREGO 5K40

Table of Contents

1.0 General .................................................... 4

1.1 Installation of 5K40 system...........................4

1.2 Introduction and intended use ...................4

1.3 Design and compliance .................................4

1.4 Symbols and meanings..................................4

2.0 Safety ...................................................... 5

2.1 Caution Use Only As Directed......................5

2.2 Directions for Safe Use....................................5

2.3 Water quality......................................................5

2.4 General safety ...................................................6

3.0 Machine overview .................................. 6

3.1 Machine description........................................6

3.2 Intended use of device...................................6

3.3 Intended use of ECA soluton........................6

5.0 Device layout .......................................... 10

5.1 Front and right side .........................................10

5.2 Right side detail ................................................12

5.3 Front and left side ............................................14

5.4 Key for door .......................................................16

5.5 Using the door key ..........................................17

6.0 Handling.................................................. 18

6.1 Handling the product ....................................18

6.2 Transportation...................................................19

7.0 Casing and door...................................... 20

7.1 Back of the control screen.............................21

8.0 Screen layout .......................................... 22

8.1 Normal Running screen .................................22

8.2 Home screen ......................................................24

8.3 Process screen ...................................................24

8.4 Alarms screen.....................................................25

8.5 Trends screen .....................................................25

8.6 Manual PPM control ........................................25

9.0 Stop/reset button ................................... 26

9.1 Where is the button.........................................26

9.2 Operating the stop button............................26

10.0 Internal layout ...................................... 28

10.1 Top half of internal layout...........................28

10.2 Bottom half of internal layout ..................30

11.0 ECA cell information............................. 32

12.0 Brine Pump VE3-MF.............................. 34

12. 1 Location of pump in device ......................34

12. 2 Pump manual links.......................................35

13.0 Troubleshooting ................................... 36

2.0 Safety

2.1 Caution Use Only As Directed

• Use solution only for disinfection.

• DO NOT use in an enclosed space. Use only in a well-ventilated area.

• For industrial use only.

• DO NOT spray into your eyes. In case of contact with eyes, rinse immediately with

plenty of water and seek medical advice.

• DO NOT swallow the activated solution. If swallowed, seek medical advice.

• DO NOT use this unit and activated solution near fire.

• Wash hands after use. People with sensitive or damaged skin should avoid

prolonged contact with the product.

• Keep out of the reach of children and pets.

2.2 Directions for Safe Use

• DO NOT move the unit during operation.

• STORE SOLUTION SAFELY – Do not keep the activated ECA solution in the refrigerator or kitchen, catering areas

xxxxxxgxxxxxxgwhere it can be confused with drinking water.

• Produce only as much fluid as necessary and use as instructed. Use activated solutions

within 1 week – sterilising and deodorising power is reduced gradually over time.

• Unused solutions can be disposed of with care.

• Avoid direct exposure of the unit to the sun or central heating. This might cause fire or damage.

• DO NOT use ground water, polluted water or excessively hard water with the machine.

• DO NOT use any other input apart from normal mains/tap water.

2.3 Water quality

• The water supply MUST be from potable tap water with limited hardness.

• If in a hard water area, a water softener is recommended.

• Low calcium water is recommended.

• DO NOT use ground water, polluted water or excessively hard water.

CAUTION - Potentially Hazardous Situation

DANGER - Electric shock risk

1.0 General

1.1 Installation of 5K40 system

The installation and commissioning of the 5K40 system should only be carried out by qualified

Centrego technicians or fully trained partners.

Any questions relating to the installation and commissioning of these systems should be directed

to Centrego Ltd.

1.2 Introduction and intended use

Congratulations on the purchase of the Centrego 5K40. Before using this unit for the first time, please read

the instruction manual carefully and keep all information for future referance. These instructions will show

you how to use the device safely and protect you from danger or damaging the unit.

This device produces mixed oxidant disinfection solution on site from salt and water. The solution from the

device can replace most disinfection products that may already be used at your buisness.

1.3 Design and compliance

The ECA solution produced by the machine has the following compliance listings.

The compliance listings for the machine are on the last page of this manual.

1.4 Symbols and meanings

Below are explanations of symbols and meanings used in this manual.

DANGER - is reserved for conditions and actions that are likely to cause serious or fatal injury

WARNING - Is reserved for conditions and actions that can cause serious or fatal injury

CAUTION - is reserved for conditions and actions that can cause injury or instrument damage

On-site ECA solution generator

SYSTEM CERTIFICATION

European Chemicals Agency (ECHA) listed IE CEE Certified

UK Health & Safety Executive (HSE) listed FCC certified

US Environmental Protection Agency Approved UKCA Certified

CE Certified

P 4 P 5CENTREGO 5K40CENTREGO 5K40

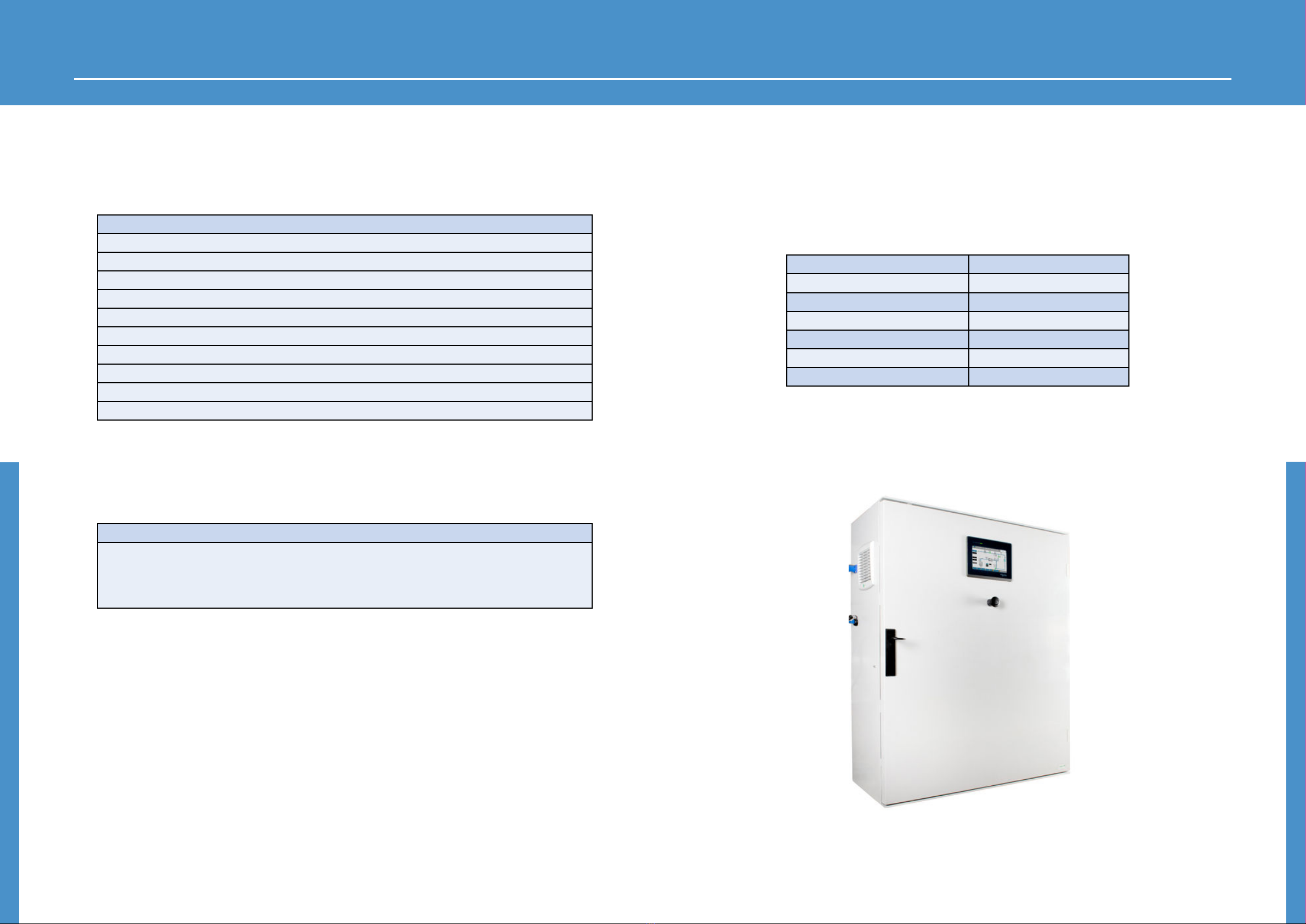

Mixed oxidant solution production 40ls/hr

Free Chlorine (HOCL + OCL) 4500 - 5000mg/L (4500-5000ppm)

Oxidation Reduction Potential (ORP) ≥00 mv

EC - depending on free Available Chlo-

rine (FAC)

mS <5

pH range ph8.5-9.5

Water Supply 40L per hour

Water Pressure Supply 2-5 bar

Water Hardness <17CaCo3/ppm

Salt Consumption 25 gram per litre

Electrical Current Supply 100-253v 13A

Space Ventilation >0M3/H

Ambient Temperature min/max 5°C to 30 °C

4.0 5K30 Machine data

SYSTEM TECHNOLOGY

Electrochemical Activation (ECA) cell system generating mixed oxidant solution at

pH8.5-9.5.

• After 5 to 7 days pour the solution away and simply make some more.

• After use, carefully wipe surfaces and leave to dry

• Always use the power cable and plug supplied.

The Centrego 5K40 generates a disinfection solution by the electrolysis of

water and salt.

It is manufactured by Centrego Limited, of Unit N4 Marshall Way, Frome, Somerset,

BA112FB, United Kingdom.

KEEP OUT OF REACH OF CHILDREN AND UNAUTHORISED PERSONNEL

2.4 General safety

3.0 Machine overview

3.1 Machine description

The Centrego 5K40 produces ECA (Electro chemically activated) disinfection solution on-site using salt and

water. Sea water can also be used. ECA disinfectant solution is an eco-alternative to most disinfection

products.

The Centrego 5K40 is capable of producing 40 litres of solution every hour. The device will acept table and

granulated salt mixed with water (brine), or sea water which is activated in the cell through electrolysis.

3.2 Intended use of device

The Centrego 5K40 is intended to be used in large industrial facilities where disinfection is require part of

cleaning-in place practices.

3.3 Intended use of ECA soluton

The intention of using ECA solution for disinfection is an evironmentaly responsable system in that it can

reduce a company's way that it reduces a companies carbon footprint due to negating the need for

disposable disinfection products and the plastic that comes with it. It also means that staff are safer due to

the solution being hypoallergenic and not harmfull to the skin.

P 6 P 7CENTREGO 5K40CENTREGO 5K40

INPUTS

Water (HO): potable water, minimum requirement for ltered softened water, or reverse

osmosis water. Maximum 70ppm TDS, conductivity 140uS/cm

Salt (NaCl): Crystalline form, listed with European Chemicals Agency (ECHA) for the

production of active chlorine by electrolysis.

On-site ECA solution generator

SOLUTION CERTIFICATION EN13727

EN14476 EN13624

EN16777 EN1656

EN13697 EN1500

EN1650 EN17126

EN14348 EN1276

EN14675

SYSTEM SPECIFICATIONS & FUNCTIONALITY

HMI touch screen controls

User adjustable PPM output

Automated brine control to maintain selected PPM output

Inputs - Potable water input and salt brine, or sea water

Onscreen notication from sensors to track progress

Lockable Door

Remote monitoring systems controls via laptop or mobile phone

Volume output real-time and cumulative

Flow rate & salinity monitoring and recording

Voltage/current & Alarms monitoring and recording

P 8 P 9CENTREGO 5K40CENTREGO 5K40

P 10 P 11CENTREGO 5K40CENTREGO 5K40

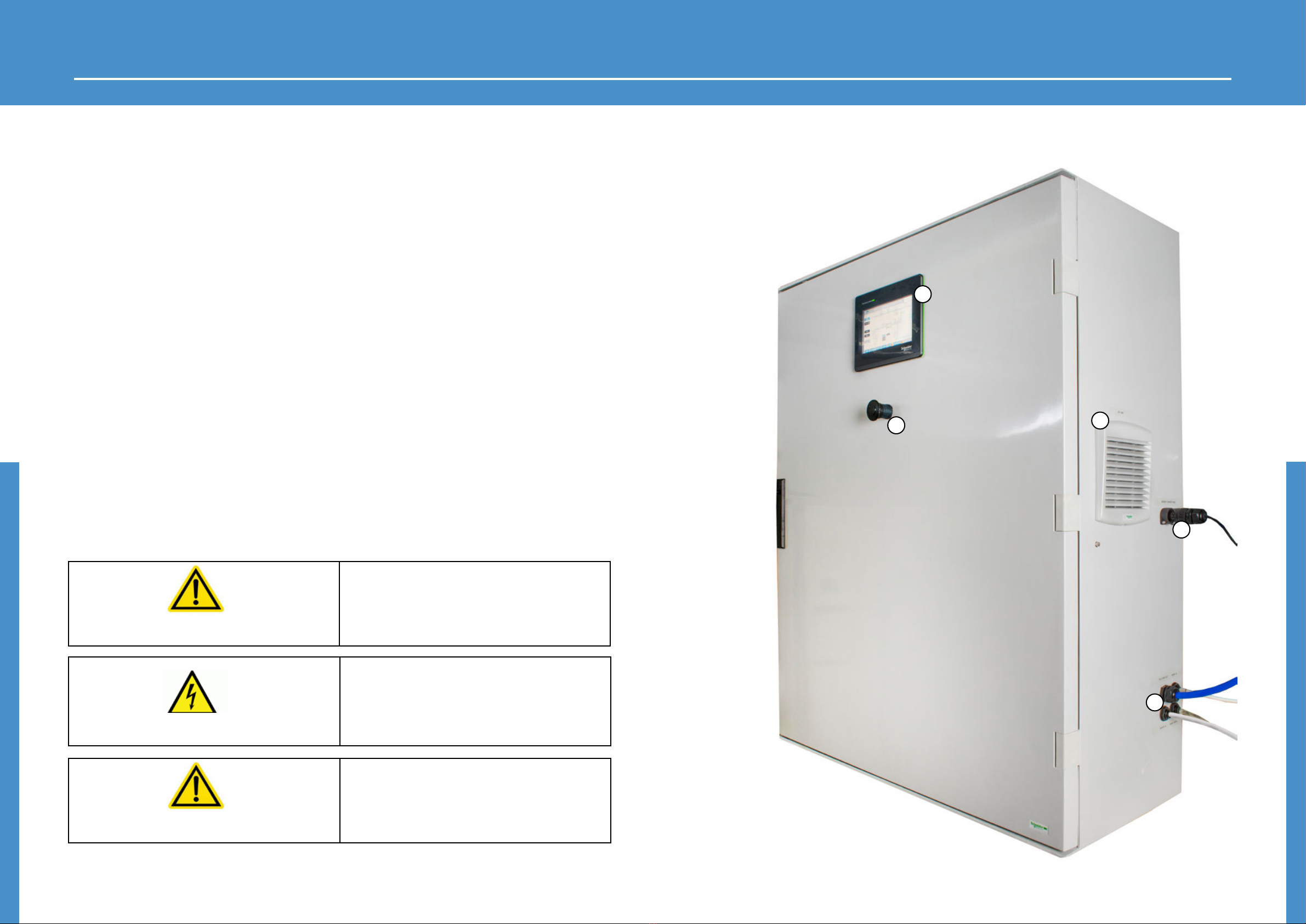

5.0 Device layout

5.1 Front and right side

1 - Touch Screen

2 - Stop/Reset button

3 - Air vent

4 - Sensor connections

5 - Fluid connections

CAUTION: The 5K40 device is very heavy. Do not

handle this machine without the

appropriate health and safety training from your

organisation.

DANGER - Electric shock risk. Do not hande the

power cable or internal components without full

training from the manufacturer. Failiure to do may

cause electricution or death.

CAUTION: Do not use salt tablets with this

device. Only use salt granules or table salt in brine

water.

P 12 P 13CENTREGO 5K40CENTREGO 5K40

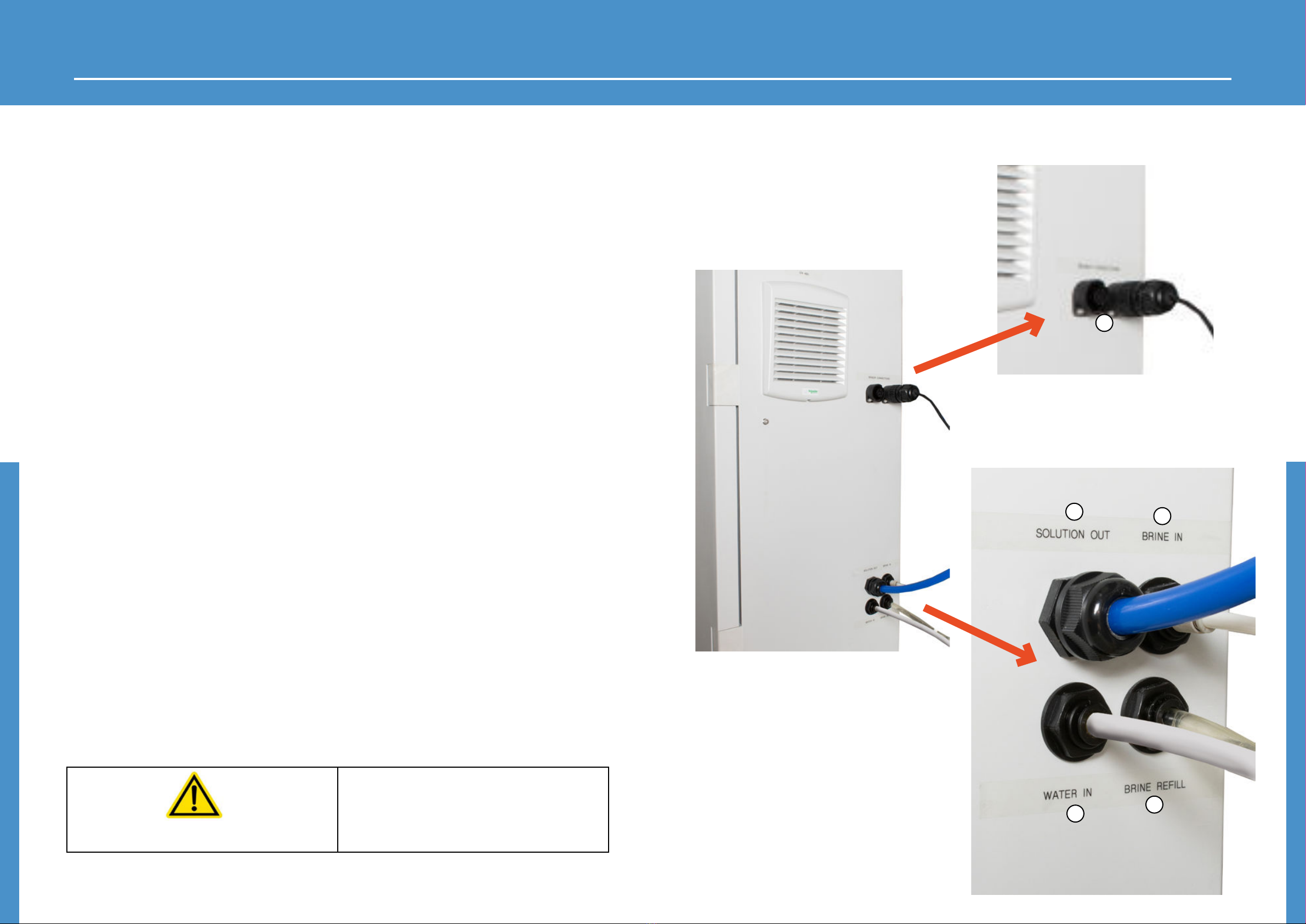

5.2 Right side detail

1 - Sensor control inputs

2 -Solution output

3 - Brine Input

4 - Water input

5 - Brine refil

CAUTION: The 5K40 device is very heavy.

Do not handle this machine without the

appropriate health and safety measures.

P 14 P 15CENTREGO 5K40CENTREGO 5K40

CAUTION: before handling the water softener on

the back of the 5K40 ensure that you read the full

manufacturers manual for the device.

Ensure the water softener goes through its cleaning

process three times before using the device.

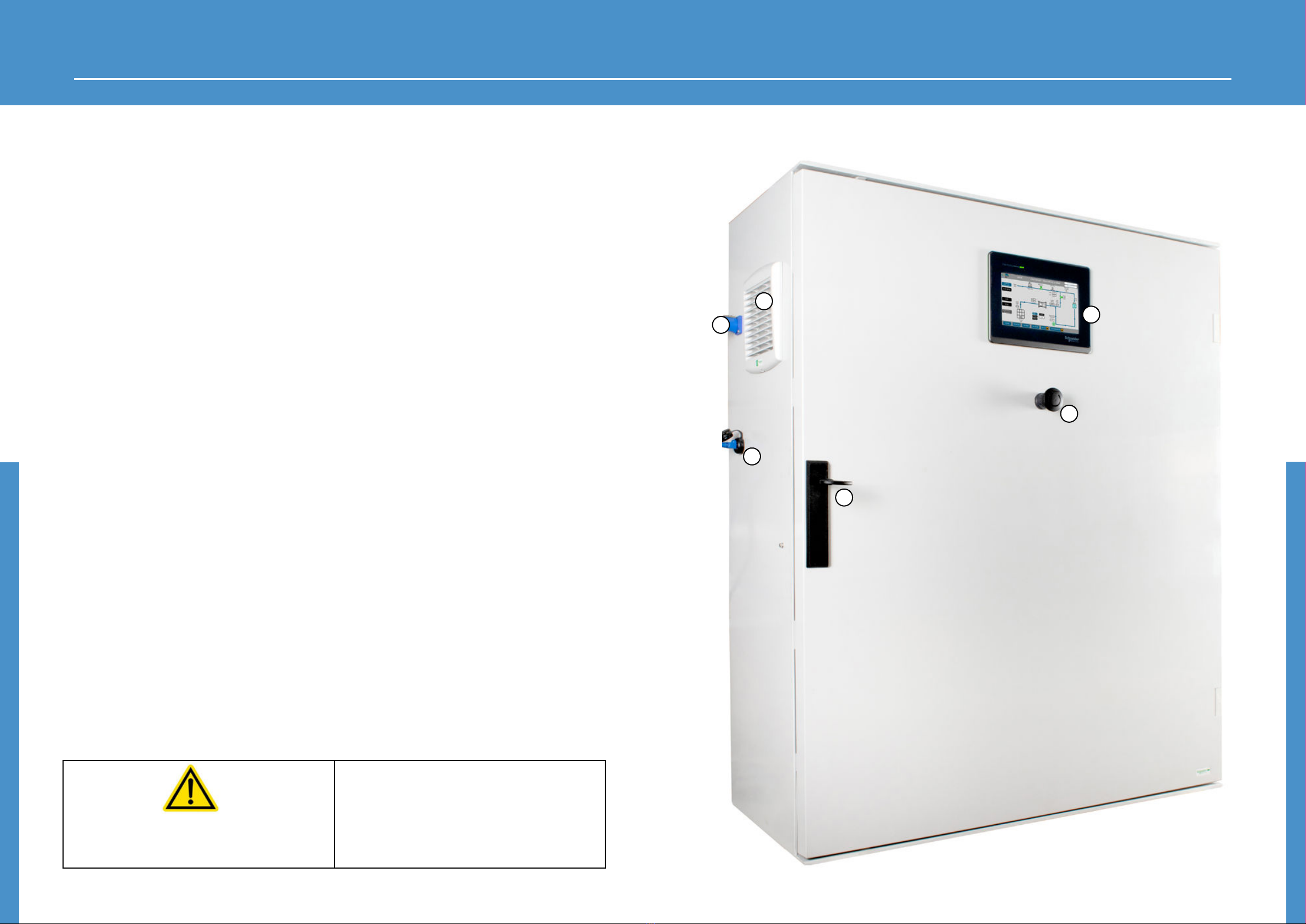

5.3 Front and left side

1 - Mains power input

2 - Air vent

3 - Touch screen

4 - Ethernet port for internet

connection for remote use

via Schneider software.

5 - Door lock

6 - Stop/reset button

P 16 P 17CENTREGO 5K40CENTREGO 5K40

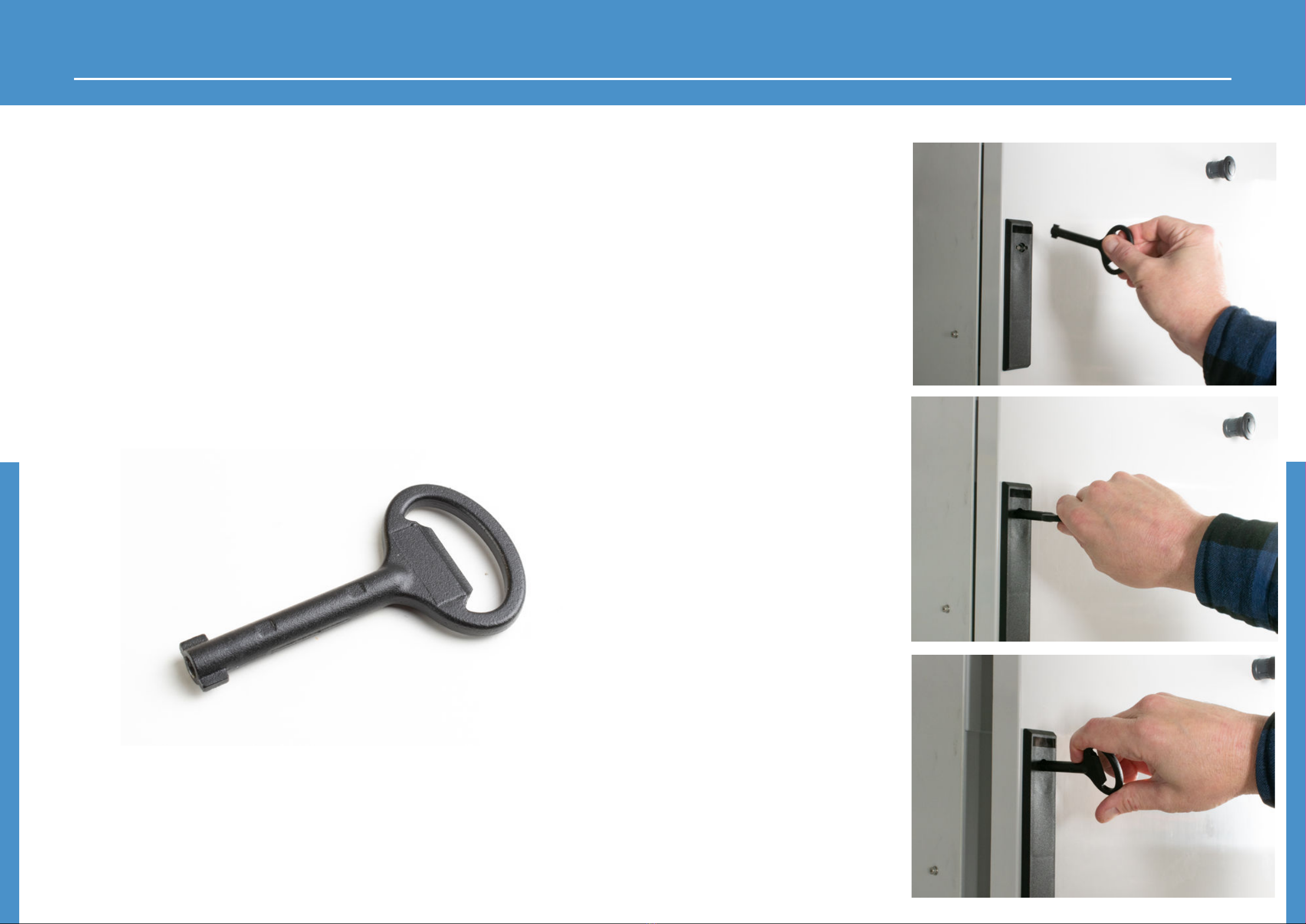

5.4 Key for door

The key to lock and unlock the door of the device is shown below.

This may vary slightly in colour and shape to the example below.

Note:

Do not attempt to lock and unlock the door in

anyway without this key.

5.5 Using the door key

To unlock the door push the key into

the hole as shown.

Note: Do not use any other keys for

this device or try to unlock the door

forcefully.

Turn the key to unlock the door.

It will only go one way to unlock.

The door will open when it has

unlocked.

CAUTION - When operating this device, follow all

appropriate health and safety training.

6.0 Handling

6.1 Handling the product

ALWAYS make sure that the device is clean at all times to reduce possible salt build up on all surfaces on

and near the device.

DANGER - Do not get the power cable wet in any way before during or after use.

DANGER - Do not handle any electrical contact or power adapter with wet hands.

DANGER - Do not use abrasive chemical to clean the machine.

When handling the device:

Follow all health and safety training that you have had from your employer and or the manufacturer.

Do not touch or use the device without full training from Centrego trained personel.

When installing or relocating the device:

Do not install or relocate this device unless fully trained by the manufacturer. If this is done without full training the

machine may be damaged and injury may occur, and it may invalidate the warranty.

When using the device:

Ensure that your hands are free from moisture before touching the power cable, and mains plug. Handling

electrical components with wet or moist hands can cause electrical shock.

6.2 Transportation

After testing and quality control the Centrego 5K40 is packaged for disptach.

This device is designed to be installed by a professional onto a wall for frame and left in-situ. In the

unlikely event that the device will need to be moved it is reccommended that a member of staff who has

been trained by the manufacturer does this. In most cases the manufacturer will carry this out as part of a

contract.

If the device is relocated, make sure that all parts of the device are dry before packaging into an appropraite

box.

CAUTION - Ensure a technician that has

qualifications in electonics and plumbing installs

and or uninstalls this device.

Do not attempt to install or uninstall if you are not

qualified in these areas.

Do not attemp anything unless trained by the

manufacturer fully.

DANGER - Electric shock risk.

P 18 P 19CENTREGO 5K40CENTREGO 5K40

Table des matières

Autres manuels CENTREGO Générateur portable

CENTREGO

CENTREGO Renew CR763 Manuel utilisateur

Manuels Générateur portable populaires d'autres marques

Kohler

Kohler 20EORZ Mode d’emploi

Powerhorse

Powerhorse 83171 Manuel utilisateur

HURST

HURST ML-630-SI Manuel utilisateur

ETQ

ETQ TG4000 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton 40265 Guide de configuration

ConMed

ConMed 7550 Manuel utilisateur

Owon

Owon Waveform Generator Manuel utilisateur

evertz

evertz 7700 Series Manuel utilisateur

Power Stroke

Power Stroke PS906025 Manuel utilisateur

Firefly

Firefly Cygnus CYG2400/460/24 Manuel utilisateur

Draper

Draper PG950S Mise à jour du firmware

PowerBoss

PowerBoss PowerBoss Manuel utilisateur

SDMO

SDMO SH 4000 Manuel utilisateur

EINHELL

EINHELL STE 5500 Manuel utilisateur

Wanco

Wanco WI3000P Manuel utilisateur

Full Boar

Full Boar FBT-3300 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments ASG Manuel utilisateur

Westinghouse

Westinghouse WH1000i Series Manuel utilisateur
