BIO X Autocalibration Kit
Installation and Quick-start Guide
The Autocalibration Kit enables Automatic Bed Leveling (ABL) and automatic X, Y and Z
calibration. These features are available on HeartOS software version 1.7 and above.
The BIO X autocalibration removes the potential for user error when calibrating the tip of the
nozzle relative to the printing surface or to another nozzle. It does this by probing and
aligning all printhead nozzle tips in all axes (X, Y and Z), and includes ABL.
ABL measures the print bed surface and adjusts all movements to follow its tilt and contours
to improve the quality of bioprinted structures. ABL compensates for any height differences
present in a print bed or printing surface. After a brief calibration procedure, the print bed
adjusts the Z height while running the bioprinting protocol, ensuring the construct is level
relative to the printing surface. ABL requires a surface probe to automatically measure the
print bed’s height at various points.
Boston, U.S.
100 Franklin St.，
Boston, MA 02110
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
Gothenburg, 41346
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
www.cellink.com | +1 (833) CELLINK
2

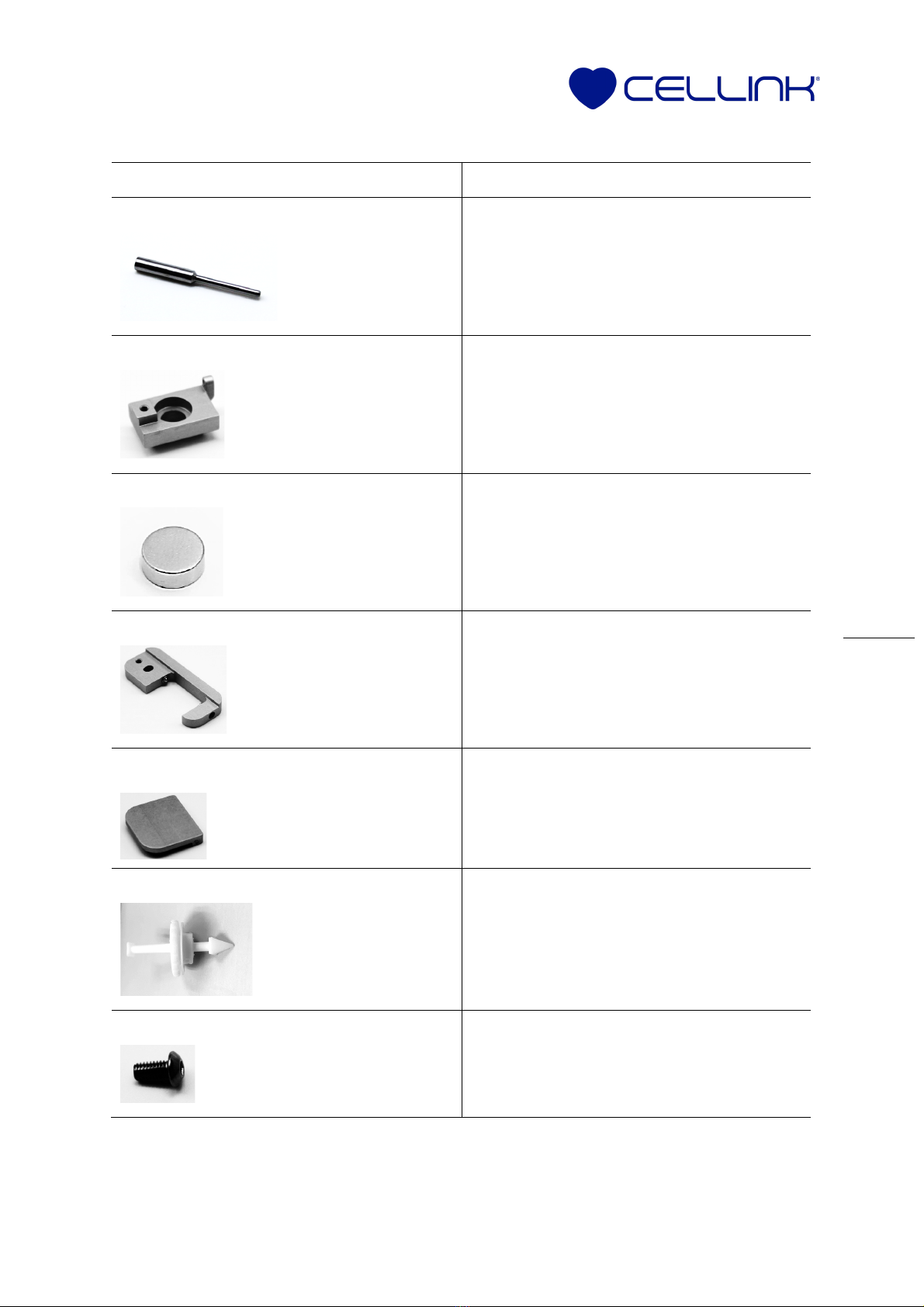

BIO X Autocalibration Kit (Barcode: D16110021178)
Part
Quantity/Barcode
Surface probe
1
000000020628
Surface probe stabilizer
1
000000020627
Surface probe magnet
1
D16110021355
Z-station base
1
000000020625
Z-station plate
1
000000020624
XY printhead calibration lever
3
000000020629
M4 screw
1
000000020419
Boston, U.S.
100 Franklin St.，
Boston, MA 02110
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
Gothenburg, 41346
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
www.cellink.com | +1 (833) CELLINK
3
Tools needed:
1) Hex 2.5 screwdriver (Barcode: D16110021180)
2) T6 screwdriver (Barcode: D16110021179)
Before installing the BIO X Autocalibration Kit
NOTE: Before installing the BIO X Autocalibration Kit, make sure that your BIO X is running
HeartOS 1.7 or above. If the HeartOS software installed on the BIO X is version 1.6 or older,
your system will not be compatible with the Autocalibration Kit.
To download the most recent version of HeartOS:
1. Visit dna.cellink.com.
2. Create an account if you haven’t already.
3. Download the HeartOS 1.7 update file. Transfer the file to a USB flash drive.
4. Plug the USB flash drive into the BIO X.
5. Navigate to the Utilities menu and select Updates.
6. Select and install the downloaded HeartOS.
NOTE: Before installing the Autocalibration Kit, verify that the autocalibration endstops are
functional. Follow the steps below:
1. Visually inspect the following endstops:
- The surface probe endstop. This is the red button switch under the print box.
- The Z-probe endstop. This is the metal or plastic switch on the top-right side of
the print bed.
- The X-Y endstops. These are in the hole on the top-left side of the print bed.
2. To check for proper activation of the autocalibration endstops, navigate to the
Utilities menu. Select Printer, Hardware then Sensors.
a. Press your finger on the surface probe endstop. Verify that the status light
turns blue to indicate a status change for the surface probe.
b. Press your finger on the Z probe. Verify that the status light turns blue to
indicate a status change for the Z-probe.
c. Use a cartridge with a nozzle attached to reach inside the hole on the top-left
side of the print bed and activate the X and Y endstops. Verify that the status
light turns blue to indicate a status change for the X-probe and Y-probe.
Boston, U.S.
100 Franklin St.，
Boston, MA 02110
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
Gothenburg, 41346
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
www.cellink.com | +1 (833) CELLINK
4
NOTE: If any endstop components are misaligned, absent or not activating, contact the
CELLINK Support team at support@cellink.com.
Boston, U.S.
100 Franklin St.，
Boston, MA 02110
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
Gothenburg, 41346
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
www.cellink.com | +1 (833) CELLINK
5
Installation of BIO X Autocalibration Kit
Step 1: Installing the surface probe station
Step 2: Installing the Z-probe station
NOTE: Be careful not to damage the Z probe endstop during the hardware installation.
Excessive force can cause the lever to detach.

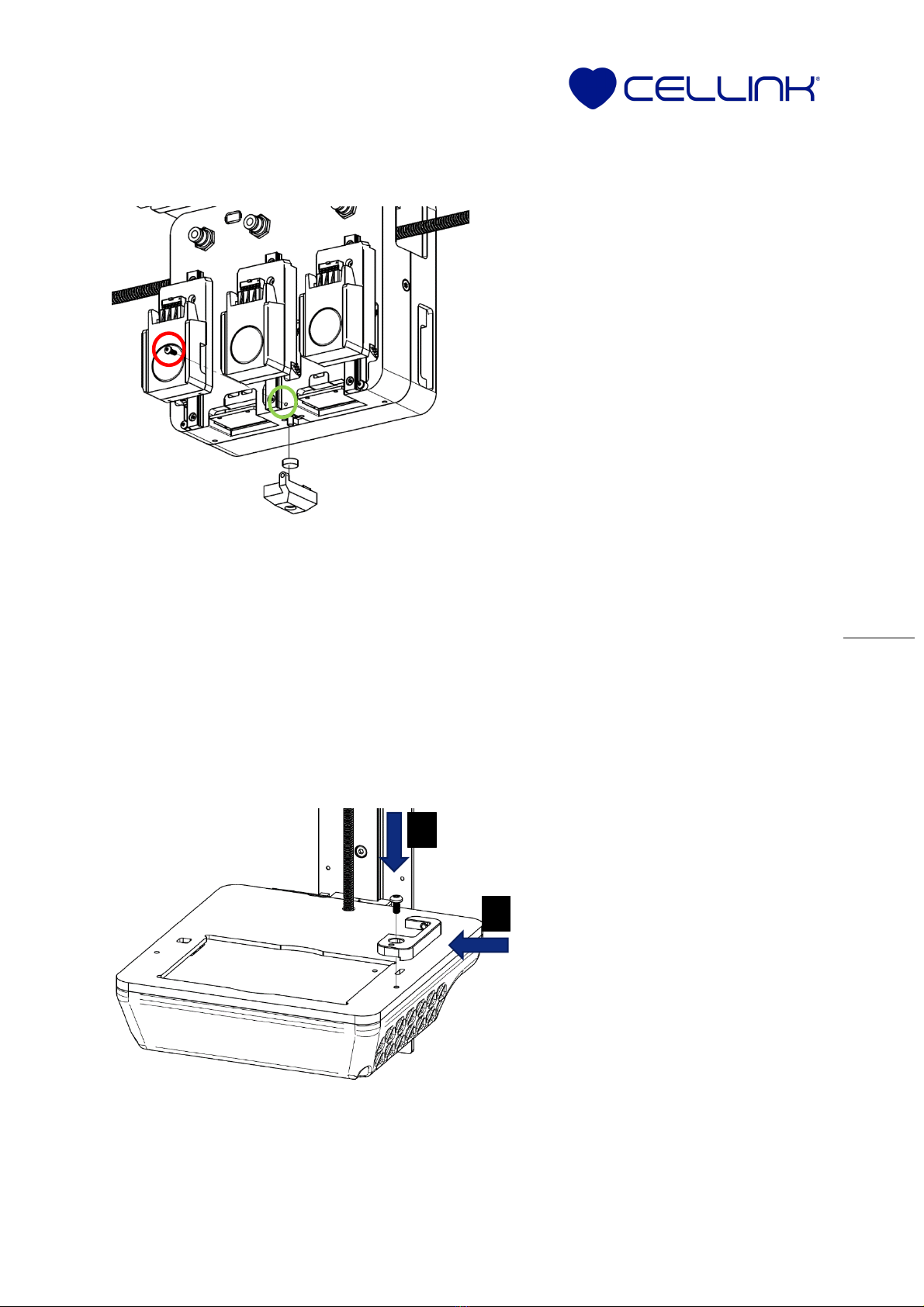

1. Turn the BIO X off and remove all
printheads.
2. Unscrew the bottom mechanical endstop
screw of the second printhead, labeled by
the green circle in the diagram.
3. Remove the spacer and keep the M2
screw, labeled by the red circle in the
diagram.
4. Insert the magnet into the surface probe
stabilizer. Polarity does not matter when
inserting the magnet.
5. Align the surface probe stabilizer and
magnet such that the surface probe
endstop is directly on top of the magnet.
6. Being careful not to bend the red switch,
press the stabilizer up and toward the
back of the printer.
7. Insert the M2 screw in the surface probe
stabilizer. Tighten it, making sure to not
overtighten.

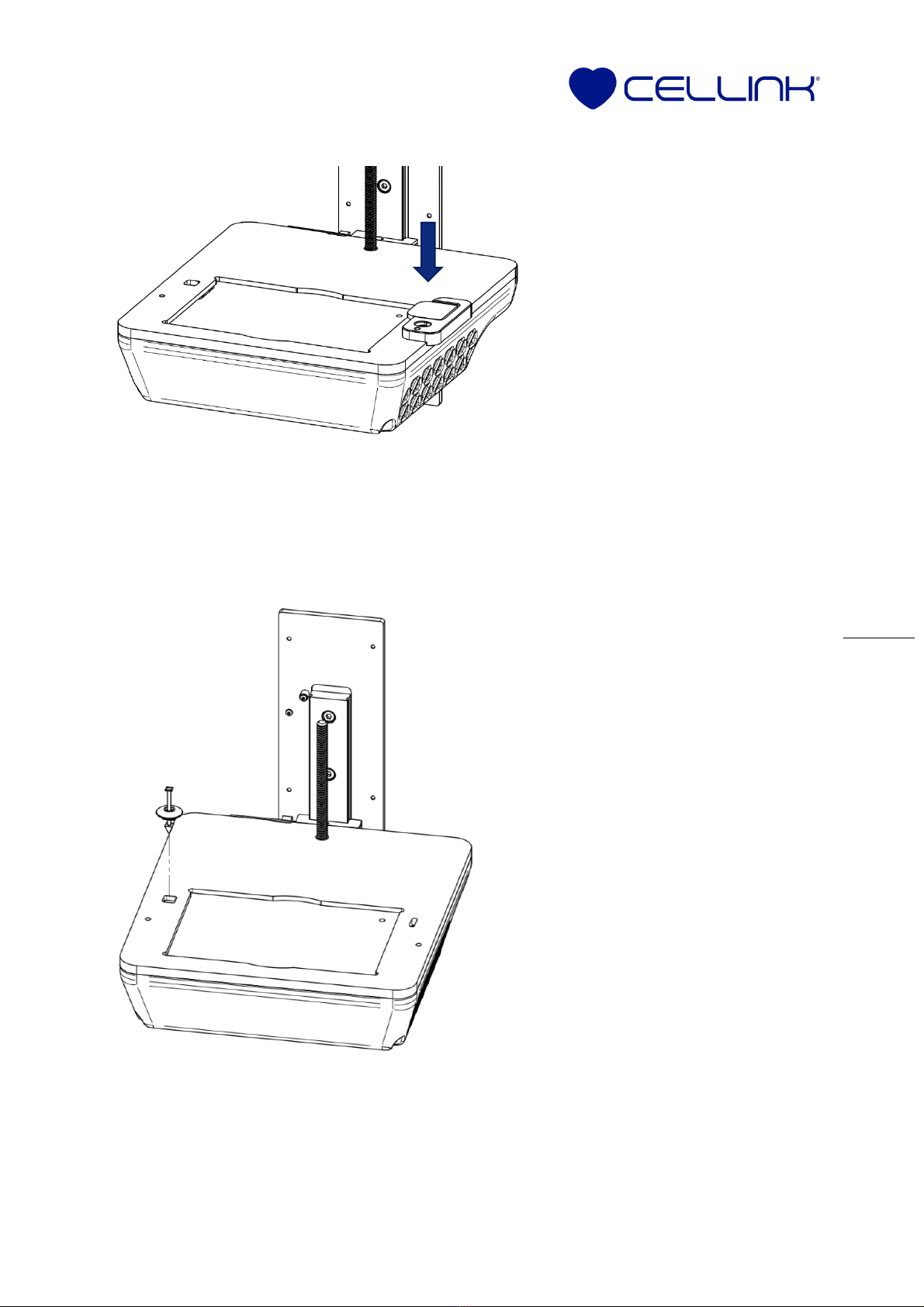

1. Align the slot of the Z-station
base with the right M4 hole in
the print bed.
2. Place the supplied M4 screw into
the hole. Do not tighten.
3. Press the Z-station base firmly to
the left to align it with the print
bed.
4. Maintain pressure and tighten
the M4 screw.
1
3
Boston, U.S.
100 Franklin St.，
Boston, MA 02110
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
Gothenburg, 41346
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
www.cellink.com | +1 (833) CELLINK
6
Step 3: Installing the XY printhead calibration lever
5. Insert the Z-probe plate as shown.
It will click into place and pivot
freely, triggering the Z-probe
endstop when pressed down and
resetting when released.
1. Turn the BIO X on and navigate to the
Utilities
menu. Select
Printer
,
Hardware
then
Sensors.
2. Align the left and right edges of the
XY lever to be parallel with the print
bed edges along the Y-axis
3. Gently push the XY lever into the XY
station slot.
Boston, U.S.
100 Franklin St.，
Boston, MA 02110
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
Gothenburg, 41346
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
www.cellink.com | +1 (833) CELLINK
7
Quick-start guide
Inserting and removing the surface probe
1. Insert the surface probe wide-side-up into the surface probe stabilizer. The magnet
will hold it in place.
2. To remove after ABL or autocalibration, pull it away from the magnet and store it
safely.
Machine calibration
NOTE: Perform machine calibration before using any of the automatic calibration features.
Recalibrate after each software update or if experiencing calibration issues with automatic
calibration.
HeartOS 1.7+ directory: Utilities -> Move and calibrate.
Start by calibrating the printheads following these steps
1. Load any of the compatible printheads in the three printhead mounts (3cc Pneumatic,
10cc Pneumatic and Temperature-controlled) and place cartridges with conical
nozzles inside the printhead. Turn the screw to secure the cartridges in place.
If any X or Y probe sensors are triggered after
installing the XY lever, follow these steps:
1. Turn the round base of the XY lever one
quarter turn clockwise to trigger the X and Y
probe sensors. Continue turning until X and Y
probes are marked as OFF.
2. Move the XY printhead calibration lever to
trigger the X and Y probes and manually
confirm that they are triggered. The XY lever
should automatically return to its center
position.
Boston, U.S.
100 Franklin St.，
Boston, MA 02110
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
Gothenburg, 41346
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
www.cellink.com | +1 (833) CELLINK
8
2. Navigate to Utilities. Select Move and calibrate.
3. For Tool 1, select Home, and wait for homing cycle to run.
4. Use the arrows on the screen to move the printhead. Place the nozzle of Printhead 1
on top of the XY printhead calibration lever, as centered as possible. Focus on the X
and Y alignments; ignore the Z alignment as it does not need to touch in the Z
direction.
a. Cross-reference with correct and incorrect calibration positions pictured
below.
Boston, U.S.
100 Franklin St.，
Boston, MA 02110
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
Gothenburg, 41346
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
www.cellink.com | +1 (833) CELLINK
9
5. Select Calibrate. Printhead 1 will calibrate automatically.
6. Repeat steps 4 and 5 for Tool 2 and Tool 3. There is no need to home the axes again.
Proceed to calibrate the surface probe following these steps:
1. Make sure the surface probe is attached.
Boston, U.S.
100 Franklin St.，
Boston, MA 02110
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
Gothenburg, 41346
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
www.cellink.com | +1 (833) CELLINK
10

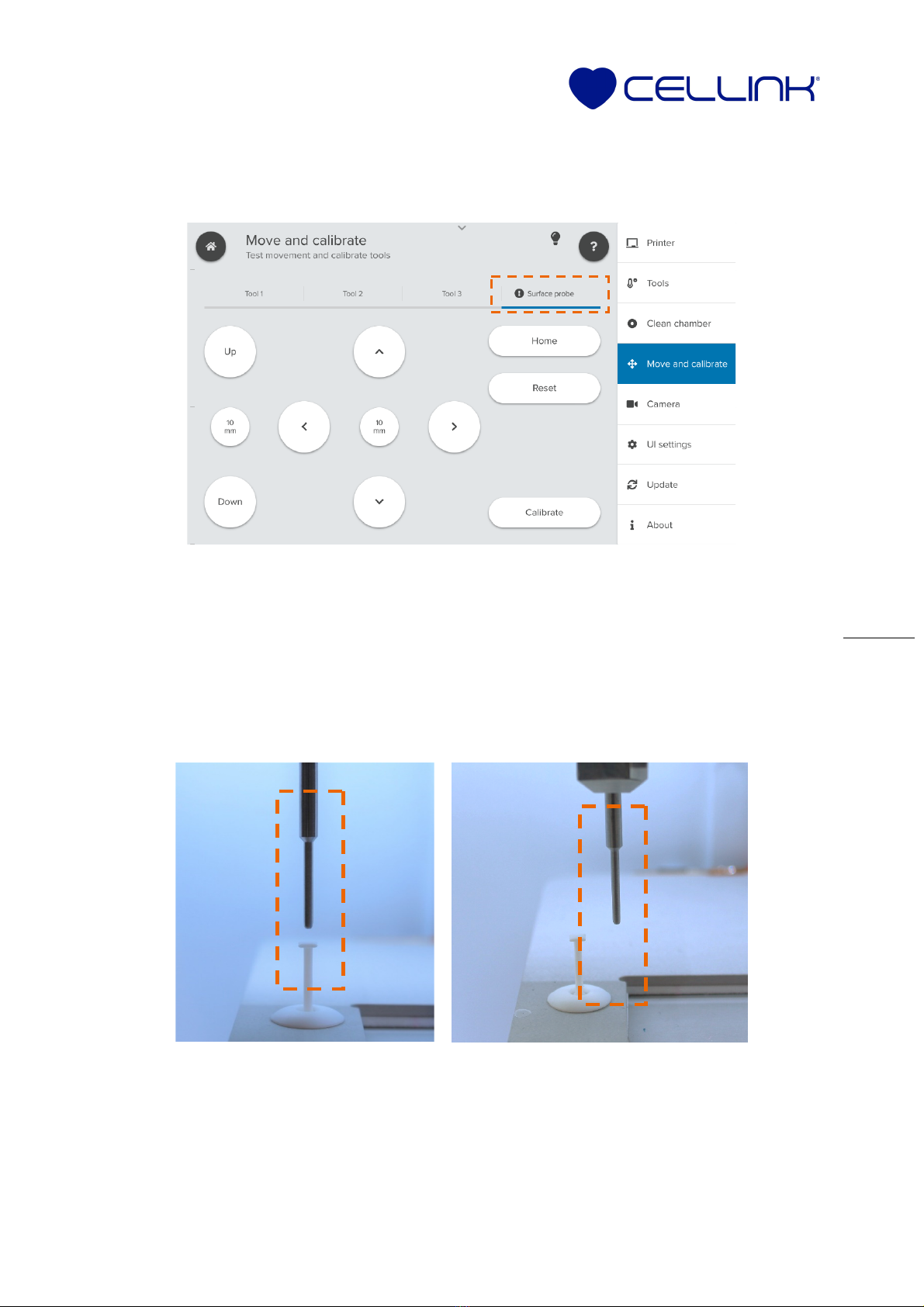

2. Select the Surface Probe tab under Utilities -> Move and calibrate, as shown in the
image below.
3. Home the axes and move the surface probe so that it hovers over the XY printhead
calibration lever, as centered as possible. Focus on the X and Y alignments; ignore the
Z alignment as it does not need to touch in the Z direction.
a. Cross-reference with correct and incorrect calibration positions pictured
below.
