Celestron Skymaster pro Manuel utilisateur

BINOCULARS | JUMELLE | FERNGLAS | BINOCOLI | BINOCULARES

72033, 72034, 72035

ENGLISH ..................................2

FRANÇAIS ...............................17

DEUTSCH.................................31

ITALIANO..................................45

ESPAÑOL .................................59

ENGLISH

BINOCULARS

4 IENGLISH

Our team designed the Celestron SkyMaster Pro ED binocular to provide outstanding views of

astronomical objects. To ensure that you fully beneﬁt from all the thought and work that has made this

binocular a reality, we encourage you to read these instructions carefully before using it.

We hope you enjoy using your new SkyMaster Pro ED binocular as much as we do.

(We’re avid astronomers, too, you know.)

WELCOME! THANK YOU FOR CHOOSING

THE CELESTRON SKYMASTER PRO ED BINOCULAR.

ENGLISH I5

PARTS OF THE SKYMASTER PRO ED BINOCULAR

Standard Eyecup

Logo Plate / Tripod Adapter Threads

Objective Lens

Diopter

Adjustment Ring

Focus Wheel

Eyepiece

Objective

Lens Caps

Rainguard

Standard

Eyecup

Eyepiece

Diopter Adjustment Ring

Focus Wheel

Center Support Rod

(20x80)

Tripod Adapter –

Built-In (20x80)

Objective Lens

6 IENGLISH

As interpupillary distance, or the distance

between the pupils, varies from person to

person, the binocular must be correctly aligned

(adjusted) to the distance between your pupils

to achieve a single, clear image. To adjust this

distance, lift the binocular to your eyes (using

both hands) and look through them at a distant

object. Move the two barrels (halves) of the

binocular closer together or further apart until

you see a single, clear image. Check that the

interpupillary distance is set correctly every

time you use your binocular.

ADJUSTING THE INTERPUPILLARY DISTANCE

WARNING: Never look at the Sun with the naked eye or with

your binocular. Looking at the Sun can cause

permanent eye damage.

ENGLISH I7

TIP: If you wear eyeglasses for nearsightedness, you should wear them

when using binoculars. You may not be able to obtain focus at inﬁnity

without them.

Whenever you begin using a new binocular

(or resume using a binocular after someone

else has been using it), ensure the diopter

compensation adjustment dial is set correctly

for your eyes. Once the dial is adjusted, you

will not need to adjust it again unless someone

changes the setting or unintentionally turns it

out of position.

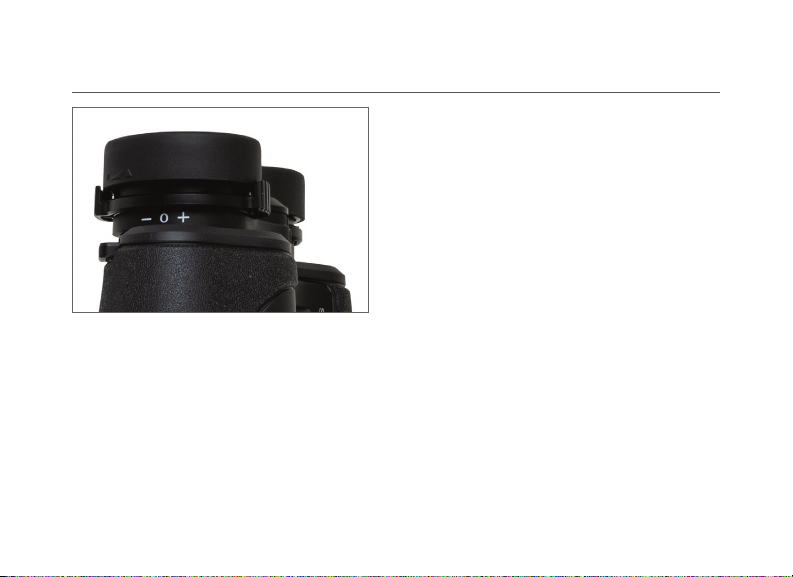

To set the diopter compensation adjustment on

a SkyMaster Pro ED binocular:

1. Set the dial at the zero point by placing the

index mark on the diopter adjustment ring

opposite the zero or middle on the scale.

2. Use one of the binocular’s objective lens

covers to cover the right objective lens.

3. Select a distant stationary object such as a

tree or sign as your focusing target. Keeping

both eyes open, raise the binocular to your

eyes and center the selected focusing

target in the binocular’s ﬁeld of view.

4. Still keeping both eyes open while viewing

the target, use the center focus dial to

bring the target into sharp focus in the left

eyepiece. Once the object is in focus, do not

SETTING THE DIOPTER

8 IENGLISH

Diopter

Adjustment Ring

Focus Wheel

adjust the center focus dial again until the

end of this process.

5. Lower the binocular and move the objective

lens cover to cover the left objective lens.

6. Still keeping both eyes open, ﬁnd and view

the target again. This time, use the diopter

adjustment ring to bring the target into

sharp focus in the right eyepiece.

7. Lower the binocular and uncover the right

eyepiece. You should now be able to view

through both eyepieces and adjust focus

using the center focus dial while maintaining

the proper amount of compensation

between your two eyes.

If the diopter adjustment ring is ever moved,

repeat this process.

(You may be wondering why you kept both

eyes open even though you could only see

through one optical channel at a time. It’s

because when you close one eye, your visual

acuity in the other eye changes slightly due

to the intricate and complex arrangement of

muscles surrounding both eyes. By keeping

both eyes open, your vision is as it would be

during regular use of the binocular.)

Continued page 7.

ENGLISH I9

POSITIONING THE EYECUPS

The SkyMaster Pro ED features specially designed twisting eyecups that may be set at fully

retracted, mid-point, or fully extended positions. To position the eyecup, simply grasp it with your

thumb and foreﬁnger and twist it clockwise until it reaches the next stopping point detent.

10 IENGLISH

ATTACHING FILTERS

Celestron SkyMaster Pro ED binoculars feature a 1.25” astronomical ﬁlter-compatible eyepiece

design. To attach a ﬁlter to an eyepiece:

lPosition the binocular’s eyecup in the fully retracted position.

lCarefully align the ﬁlter’s threads with the threads surrounding the eyepiece lens.

lTwist the ﬁlter gently so that the threads engage smoothly and continue turning until the ﬁlter

reaches a natural stopping point.

lRepeat the process with the other eyepiece.

For the most comfortable use of the binocular with ﬁlters mounted into the eyepieces, position the

eyecups in the fully extended positions so that the rims of the eyecups are higher than the top edge

of the ﬁlters.
