Celestion CDX20-3000 Manuel utilisateur

Professional Loudspeakers

Your Global Driver Solutions Partner

Celestion International Ltd, Claydon Business Park, Great Blakenham, Ipswich IP6 ONL, UK

+44 (0)1473 835300 [email protected] www.celestionprofessional.com

Celestion adopts a progressive policy and reserve the right to alter drive unit specifications and/or appearance without prior notice 08/05

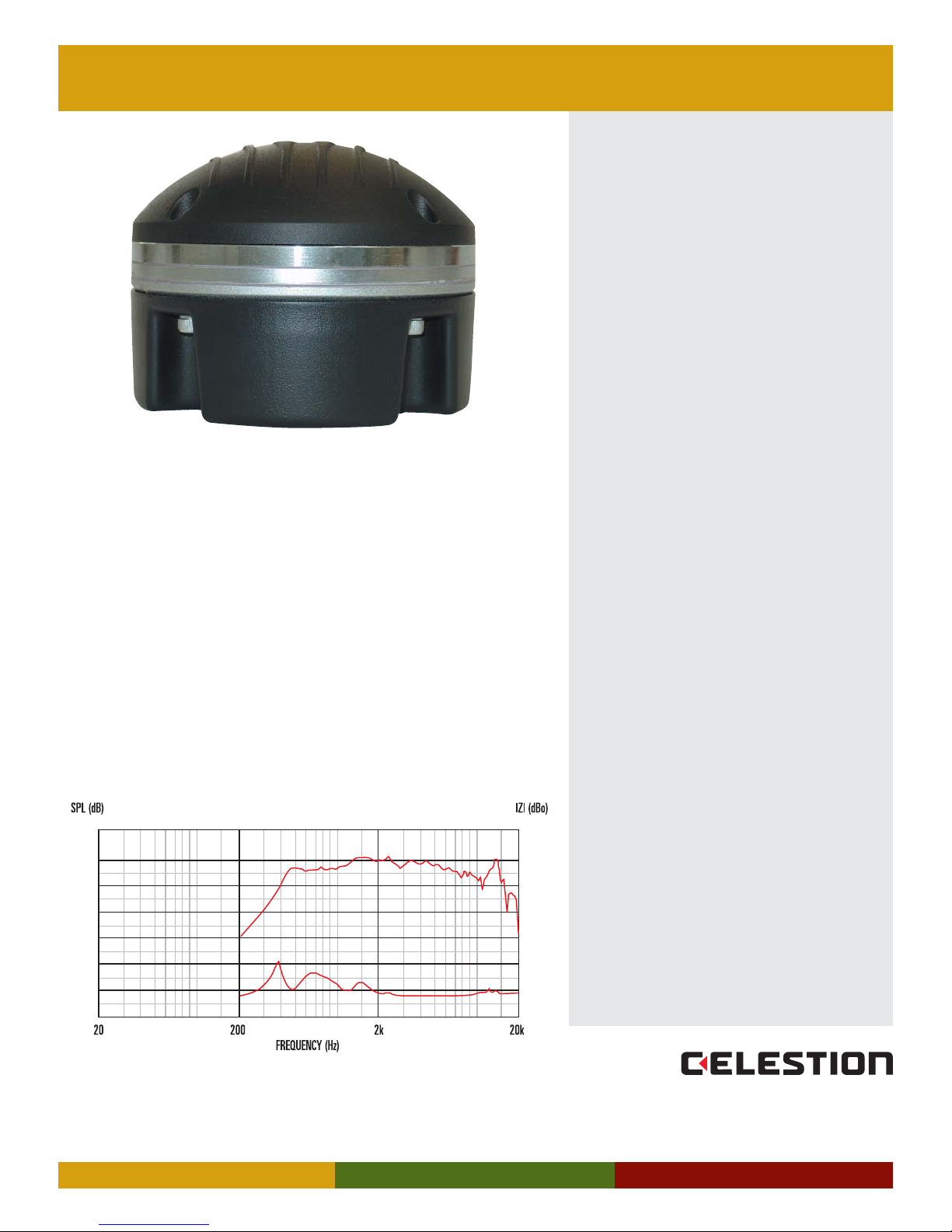

CDX20-3000

General Specifications

Power rating (AES, W rms) ........................................... 75

Nominal impedance (

Ω

) ................................................. 8

Sensitivity (dB) ............................................................ 107

Frequency range (Hz)...................................... 500-18,000

Recommended min. crossover (12db/oct, Hz)................800

Voice coil diameter (mm/in) ...................................76.2/3.0

Magnet type.....................................................Neodymium

Diaphragm material...............................................Titanium

Surround material ................................................Polyimide

Mounting Information

Width (mm/in) ..................................................... 125/5.0

Depth (mm/in) ....................................................... 94/3.7

Unit weight (kg/lb)...................................................2.0/4.4

Fitting Flange ................(4 x M6 holes on 102mm/4in PCD)

Throat exit (mm/in)................................................50.8/2.0

Frequency Response and Impedance Curves

Measured - Constant Directivity Horn 60º x 40º radiation pattern

60

80

100

120

20

40

60

80

Preliminary Data

• 2" exit, neodymium magnet, 3" voice coil compression driver

provides 75Wrms power handling and 107dB sensitivity

• New, patent-applied-for phase plug design methodology

suppresses cavity resonances at higher frequencies

• Titanium diaphragm, deep drawn to increase stiffness and

reduce distortion

• Lower compression ratio reduces air non-linearity and allows for

higher maximum SPL

• Rolled polyimide surround improves stiffness control, further

lowering distortion

• A curved coherent wavefront, optimised for horn loading
